SanDisk Optimus Eco SSD: A SAS Interface And Up To 2 TB Of Flash

SanDisk Optimus Eco SSD: A SAS Interface And Up To 2 TB Of Flash
By

Consolidation drastically changed the face of enterprise solid-state storage in 2013. One of the bigger moves was SanDisk's acquisition of SMART Storage Systems. Today, we're looking at the first branded SAS-based SSD to come from that purchase.

Before we get into SanDisk's newest SSD offering, we need to consider where the company has already been. Back in 2008, SMART Modular Technologies acquired a small solid-state drive company called Adtron for $20 million in cash. At the time, SMART primarily focused on memory technologies for embedded computing, primarily for OEMs. Over the next three years, it introduced many different types of SSDs, with IDE, SCSI, and SATA interfaces, built using SLC and MLC flash. In 2011, the company was taken private, and in 2012, SMART was spun-off as an independent entity to better focus its efforts on the growing solid-state drive market. From then on, SMART continued its OEM enterprise business, actively displacing many larger and more entrenched competitors.

SMART Storage Systems may not be a household name, but in enterprise circles, it's well-respected. In the first half of 2013, SMART announced several new products and appeared poised to finish the year with a bang. Then, in June, Western Digital announced the acquisition of STEC, one of SMART's competitors. Just a week later, SanDisk announced its plan to acquire SMART Storage Systems for more than $300 million. In the span of a few days we had two fewer SSD companies.

This wasn't SanDisk's first foray into enterprise storage acquisitions. Back in 2011, the company bought Pliant Technology, which focused on MLC-based enterprise SSDs with SAS interfaces. That deal was also for more than $300 million. So what does SanDisk get this time that Pliant didn't give it? Good question. SanDisk says SMART's products and technologies will complement those acquired from Pliant, including a first SATA-based enterprise-oriented SSD.

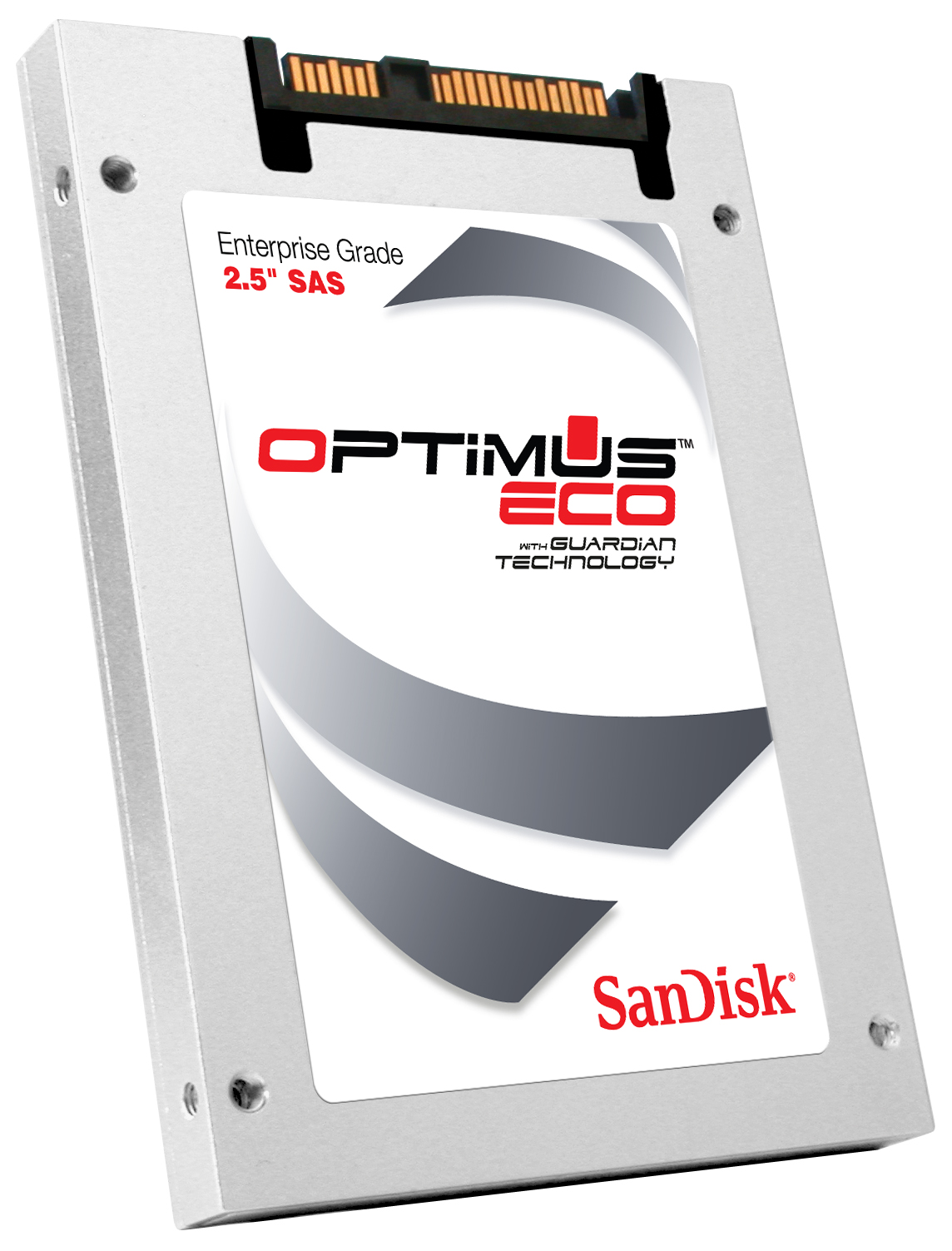

All of that history gets us caught up to today. We have the first branded product born out of that acquisition, SanDisk's Optimus Eco SAS SSD. Apparently, the company moved full-speed ahead after closing its deal back in August. After all, our review unit still has all of SMART's old markings, including the distinctive green artwork. This should be the last time anyone sees that, though. When it hits retail, the Optimus Eco will get a SanDisk logo with the corporate color scheme.

SanDisk Optimus Eco
User Capacity
400 GB
800 GB
1.6 TB
2 TB
Interface
6 Gb/s SAS
Form Factor
2.5" 9.5 mm
2.5" 15 mm
Sequential Read
500 MB/s
Sequential Write
500 MB/s
4 KB Random Read
95,000 IOPS
4 KB Random Write
35,000 IOPS
Power Consumption(Active)7 W
Endurance (Drive Writes Per Day)
Three (Random), Seven (Sequential)

The Optimus Eco in an interesting product with a handful of attributes worth pointing out. First, notice those capacity points. We're used to seeing this class of 2.5" drive shipping in 100, 200, 400, and sometimes even 800 GB denominations. The Eco blows right past those numbers, showing up with 400 GB, 800 GB, 1.6 TB, and a massive 2 TB of storage. That flagship easily exceeds the maximum capacity of competing SSDs. But it also comes at a premium price. At the other end of the spectrum, an entry-level 400 GB means you're looking at a sizable investment just to get your foot in the door.

With the exception of the 2 TB model, which is crammed into a 15 mm-tall chassis, the Ecos all ship in a 9.5 mm form factor. The good thing about sporting a SAS interface is that nobody expects your drive to drop into a laptop. And most storage systems with SAS support also accommodate 15 mm drives, since that's the standard for high-speed mechanical disks, too.

Next, check out the drive's performance specs. The word Eco gives off this impression that speed is sacrificed in the name of pricing or efficiency. But that's not the case with SanDisk's Optimus Eco. Its true that you get a slightly lower random write spec than SMART's original Optimus. However, with sequential performance rated at 500 MB/s, and random 4 KB reads rated for 90,000 IOPS and writes at 35,000 IOPS, this shouldn't be a slouch.

But perhaps most shocking (or as shocking as an enterprise-oriented SSD can get), is that the Optimus Eco is still rated for three complete writes per day in random workloads and seven in sequential tasks. Considering it uses 19 nm MLC NAND, not eMLC or SLC, write endurance shouldn't be anywhere near that high. SanDisk apparently has a few tricks up its sleeve, and we'll explore those in today's review.

As with most of these high-end introductions, SanDisk is keeping pricing information fairly quiet. However, its initial announcement did mention that the 2 TB model will sell for $4000. At roughly $2/GB, you pretty much find yourself in the same field as Intel's SSD DC S3700 (Intel SSD DC S3700 Review: Benchmarking Consistency) and Micron's P400m (Micron P400m SSD Review: High Endurance MLC Is Here To Stay). You can expect the lower-capacity versions to command a higher price per gigabyte, but we're hoping they stay in the mid to low $2/GB range.

Display 12 Comments.
This thread is closed for comments
  • 0 Hide
    tripleX , December 13, 2013 12:44 PM
    When aming this statement, did you take Littles Law into consideration:
    Every single one-second average falls between 28,500 and 38,000 IOPS (0.84 and 1.12 ms)
  • -4 Hide
    jkrui01 , December 14, 2013 12:32 AM
    toms, your are full of sh*t , consider this as my last read on your site, why not put the samsung pro in the article? because it would win, cheaper and faster.
  • 1 Hide
    danwat1234 , December 14, 2013 1:24 AM
    7 watts active power consumption? With the word 'Eco' on the front? Ummm huh? Non-eco SSDs only take maybe 3.5w at full tilt and less than 2w when idle, often around 1w or less
  • 3 Hide
    Haserath , December 14, 2013 1:50 AM
    Quote:
    toms, your are full of sh*t , consider this as my last read on your site, why not put the samsung pro in the article? because it would win, cheaper and faster.


    The Samsung Pro is not an enterprise drive. They were comparing Intel's enterprise drive vs Sandisk's.
  • 0 Hide
    utomo , December 14, 2013 6:49 AM
    Samsung 1tb need to be reviewed and compare. The price is much cheaper
  • 0 Hide
    robert3892 , December 14, 2013 10:08 AM
    4000 dollars for a 2TB drive? Even in the enterprise I see very few companies rolling out cash for something like this when a mechanical enterprise style hard drive can be bought for far less.
  • 0 Hide
    drewriley , December 14, 2013 11:18 AM
    Quote:
    7 watts active power consumption? With the word 'Eco' on the front? Ummm huh? Non-eco SSDs only take maybe 3.5w at full tilt and less than 2w when idle, often around 1w or less


    Many consumer SATA drives are a lot less, but enterprise drives aren't always quite that low. The S3700, at 800GB, is 6W typical and 8W burst. The Eco isn't quite as 'eco' at 400GB, but for 2TB, is actually pretty good. Many of the PCIe add-in SSDs that provide better performance at the same capacity are at least 10-15W and sometimes 25W. There aren't a lot of 6Gbps SAS SSD comparisons, now that 12Gbps drives are out, but even the Toshiba MK line is rated at 6.5W. We plan on doing more power consumption testing in the future.
  • 0 Hide
    drewriley , December 14, 2013 11:26 AM
    Quote:
    Samsung 1tb need to be reviewed and compare. The price is much cheaper


    As was said earlier, the Samsung 840 products are not enterprise class. They do not provide the endurance or power loss protection. They could possibly be used in workstations, but not beyond that. Samsung does offer the 843T, but that product is more in line with the Intel S3500 and does not have the random write performance to come close to the Eco. The 843T is also much more expensive than the 840 series.
  • 0 Hide
    drewriley , December 14, 2013 11:33 AM
    Quote:
    4000 dollars for a 2TB drive? Even in the enterprise I see very few companies rolling out cash for something like this when a mechanical enterprise style hard drive can be bought for far less.


    When comparing to HDD, there isn't a single SSD that will come close on price, enterprise or not. On the flip side, there isn't a single HDD that can come close on performance either. In order to get that much flash storage, you were previously limited to multiple SSDs or PCIe add-in cards, the Eco allows you to have that capacity in a smaller form-factor while drawing less power. Considering the $/GB, which is in line for it's class, it makes sense since there are plenty of enterprise customers buying 800GB drives, at least enough that companies keep producing them.
  • 0 Hide
    drewriley , December 14, 2013 11:47 AM
    Quote:
    When aming this statement, did you take Littles Law into consideration:
    Every single one-second average falls between 28,500 and 38,000 IOPS (0.84 and 1.12 ms)


    No, we didn't, but can you be a little more clear with your question? I am not an expert in the area, but the law, as it applies to performance testing, is valid if the number of jobs in the system is equal to those being completed. Meaning that no new jobs are created in the system and no jobs are lost forever. So, if jobs were being lost, you might see consistent performance centered around the bottleneck, which is not the device under test. Since the system is artificially creating and tracking IOs, I don't believe any are being lost or accidentally created. Also, with our Enterprise Video testing, which I wrote to test a specific use-case, the data is generated and validated as it is written, so there is no chance of data loss. If that doesn't answer your question, please let me know, I am always interested in new subjects....
  • 0 Hide
    bluekoala , December 16, 2013 5:06 AM
    This to me seems like good progress. Although I haven't had use for enterprise class hardware since SCSI drives, I find these developments interesting as some advances can trickle down to the consumer market if it becomes beneficial.
  • 0 Hide
    glpdx , February 24, 2014 7:55 PM
    I'll word the question nicely then. Can someone show me why this drive is worth 5x the cost of an 840pro, extreme 2, or even an Evo? Put any of those in a RAID 10 with the same question. They hold back one or two inexpensive features for enterprise products to keep their 10x margin.
