Gigabyte Aorus C500 Glass Mid-Tower Gaming Case Launched

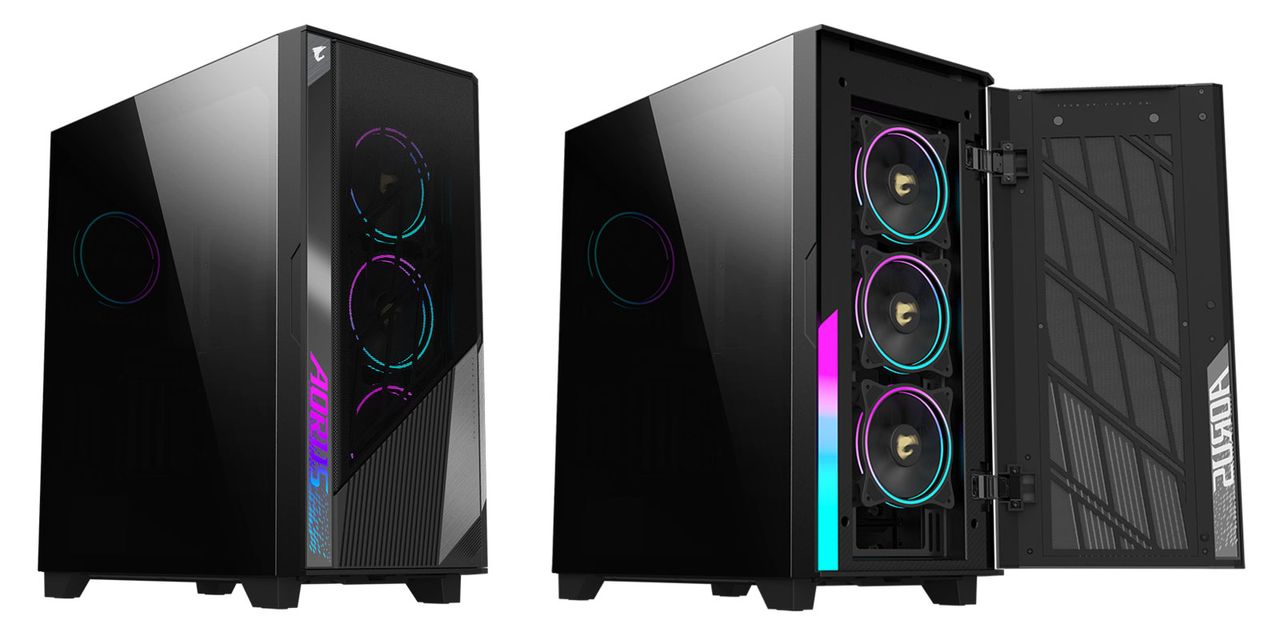

Gigabyte Aorus C500 Glass mid tower
(Image credit: Gigabyte)

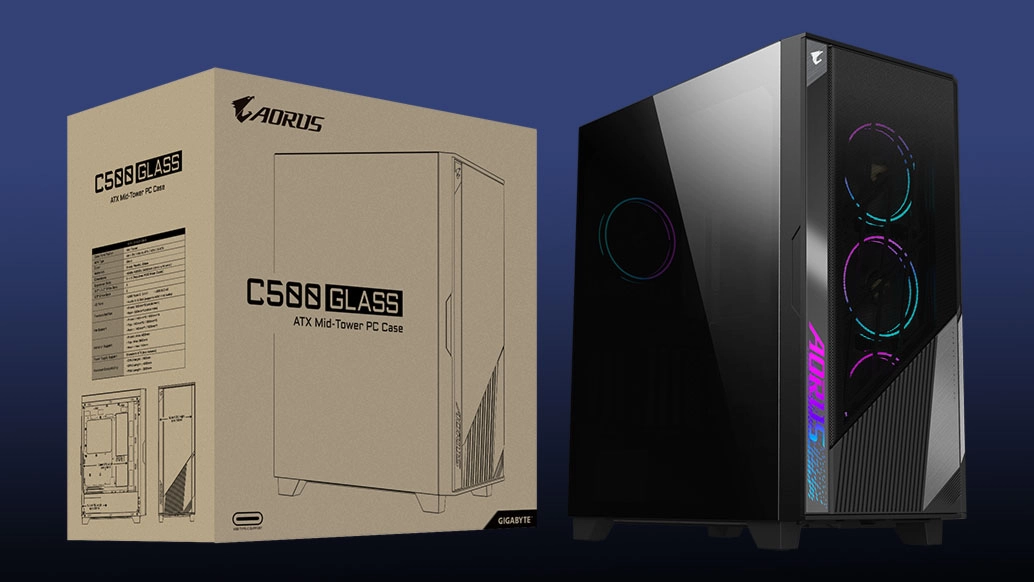

Gigabyte has launched a new member in the Aorus Glass series of PC cases. Joining the existing Aorus Glass C200, C300, and C700 is the mid-tower Aorus C500 Glass mid-tower gaming case, supporting up to E-ATX motherboards. The new case looks stylish and sleek with its full-sized tempered glass side panel and the pre-installed quartet of aRGB fans.

If you look at all four Aorus Glass PC cases, it is interesting to note that while they all have the full-sized glass side panel in common, the overall styling of each is somewhat different. Readers will probably have already guessed that the new Aorus C500 Glass is the second-largest chassis in the range. Both the Aorus C700 and C500 Glass can handle motherboards up to E-ATX. The other members of the family max out at full ATX motherboard support.

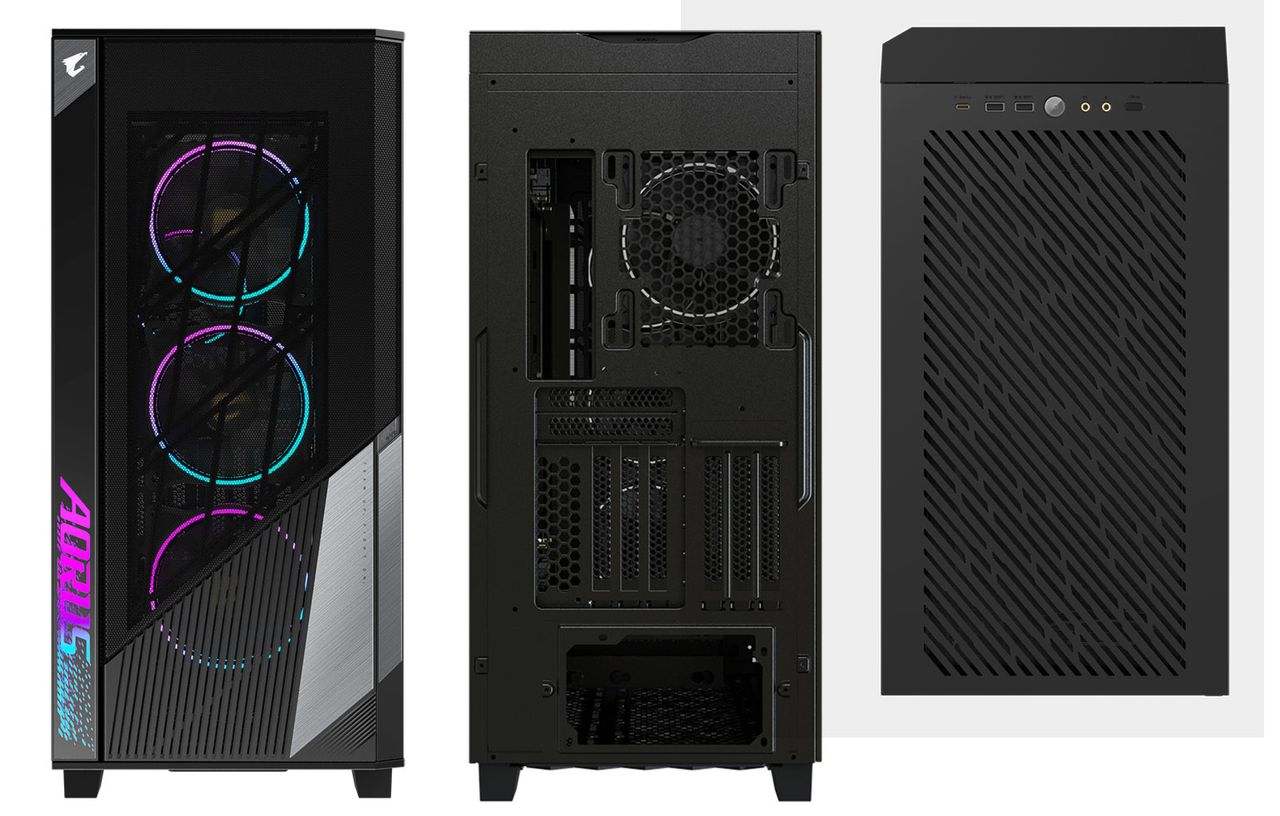

Looking more closely at the new Aorus C500 Glass, one of the big concerns with a glassy PC case is its cooling. However, despite its glassy and glossy looks, the only glass component is the left side panel. Except for the uninterrupted right-side panel, all the other surfaces are meshed, vented or perforated. Gigabyte asserts that the C500 Glass features an "optimized airflow design."

If you like PCs with sizable glass panels and plenty of RGB LED lighting, then the Aorus C500 Glass shouldn't disappoint. Four PWM 120mm fans with RGB lighting come standard. In the images, you can also see the Aorus logo down the front left side also has RGB lighting. All these pre-supplied components can be controlled via a supplied connector hub (with five 5v 3pin ARGB connectors and five PWM connectors) and Gigabyte's RGB Fusion 2.0 software.

Before delving into the case, by way of a specifications table, it is worth mentioning that the top panel is fronted by a decent array of I/O - USB 3.1 Gen2 Type-C x1 / USB 3.0 Type-A x2 / Audio In & Out – as well as power and reset button.

Swipe to scroll horizontally
Gigabyte Aorus C500 Glass specifications
Case Form FactorMid-Tower supporting Mini ITX / Micro ATX / ATX / E-ATX
MaterialsSteel, Plastic, Glass
DimensionsH=548 W=250 D=482 mm, 13.4kg
Expansion slots8 + 3 (Requires PCIE Riser Cable)
Drive bays2x 3.5 or 2.5-inch, 2x 2.5-inch
I/O PanelUSB 3.1 Gen2 Type-C x1 / USB
Pre-installed fansFront : 120mm x3 (ARGB & PWM), Rear : 120mm x1 (ARGB & PWM)
Fan supportFront : 120mm x3 / 140mm x3, Top : 120mm x3 / 140mm x2, Rear : 120mm x1 / 140mm x1
Radiator supportFront : Max 420mm, Top : Max 360mm, Rear : 140mm
GPU verticalYes, two kits provided (Default: 73mm total clearance / VGA holder bracket: 160mm total clearance)
Max compatibilityCPU Height : 190mm, GPU Length : 420mm, PSU Length : 220mm
Dust filtersTop, Front, Bottom

Some aspects of the case that aren't spelled out in our exterior summary or the specs table above include the provision of a swing door front panel access method. Moreover Gigabyte claims its design features "excellent cable management," options, a drop protection system used for the 4mm tempered glass side panel, and modular drive bays.

Gigabyte hasn't provided us with pricing or availability dates for the Aorus C500 Glass gaming case. However, the Aorus C300 Glass retails for approximately $125, and the C700 Glass costs $375. Therefore, we fear the Aorus C500 Glass will be nearer to its bigger brother's price. If you are looking for a more accessibly priced but excellent new PC case, please check out our regularly updated Best PC Cases of 2022 guide, featuring our 11 favorite currently available models.
