Firmware, Software and Test System

Firmware

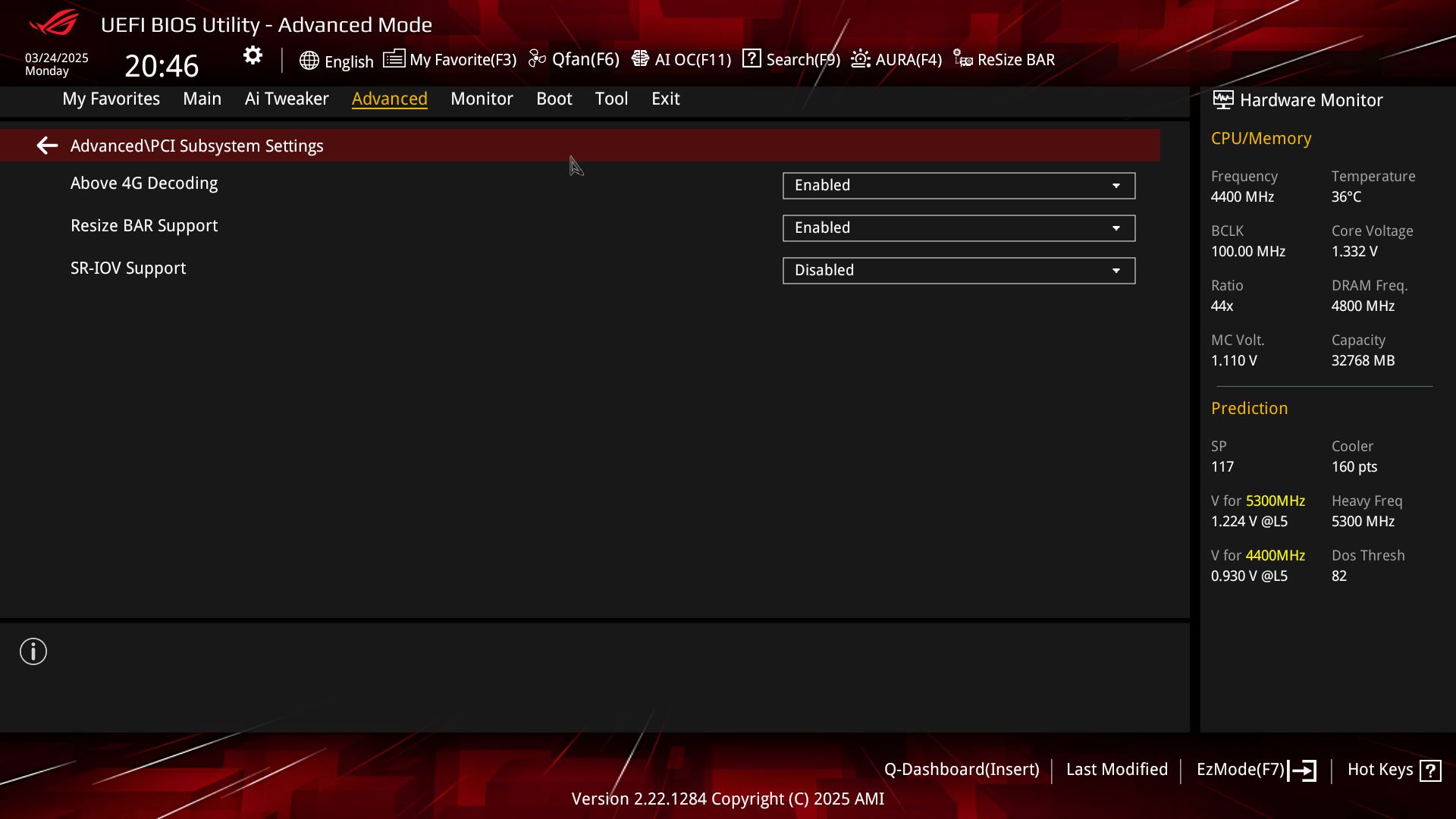

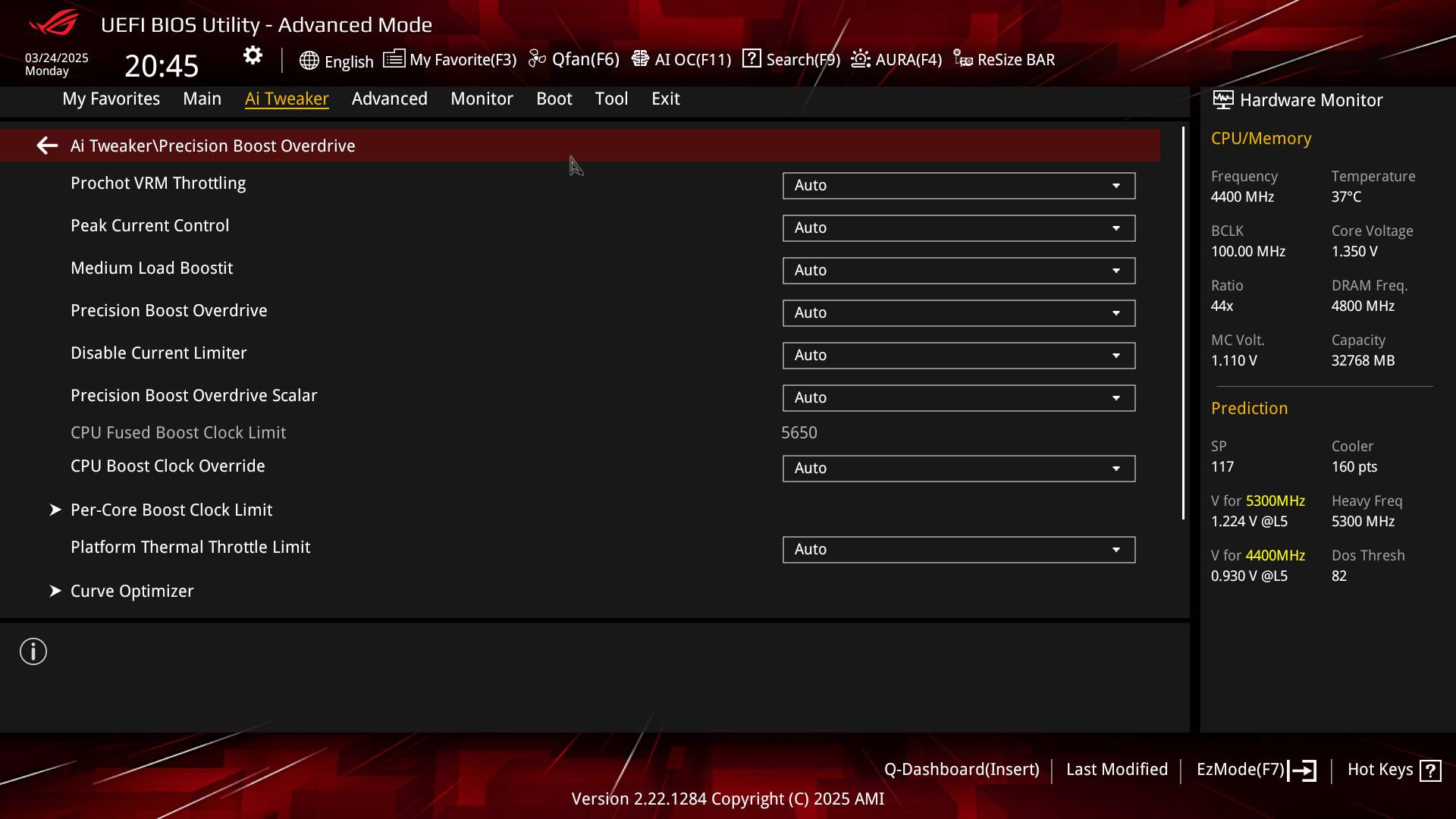

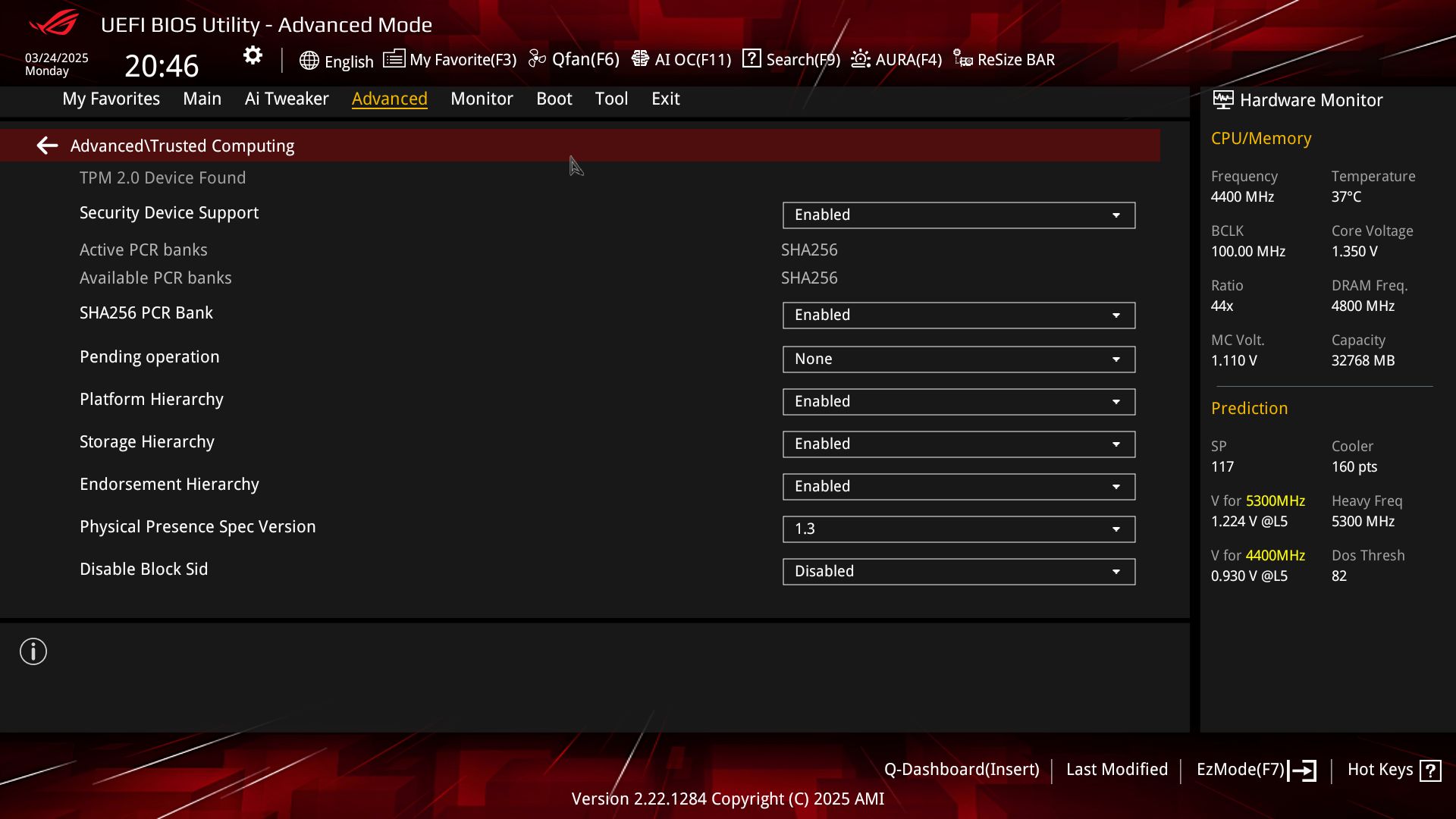

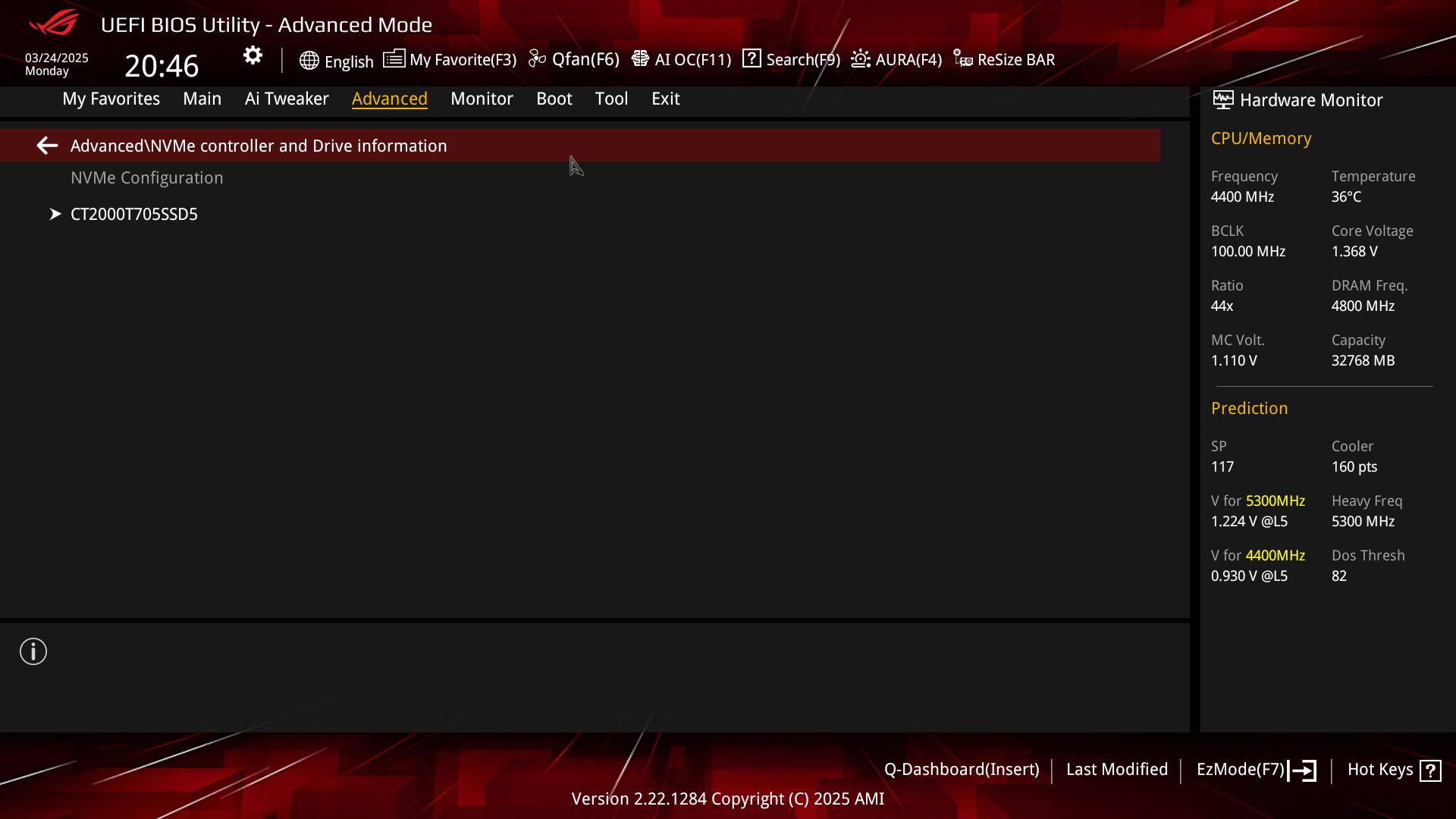

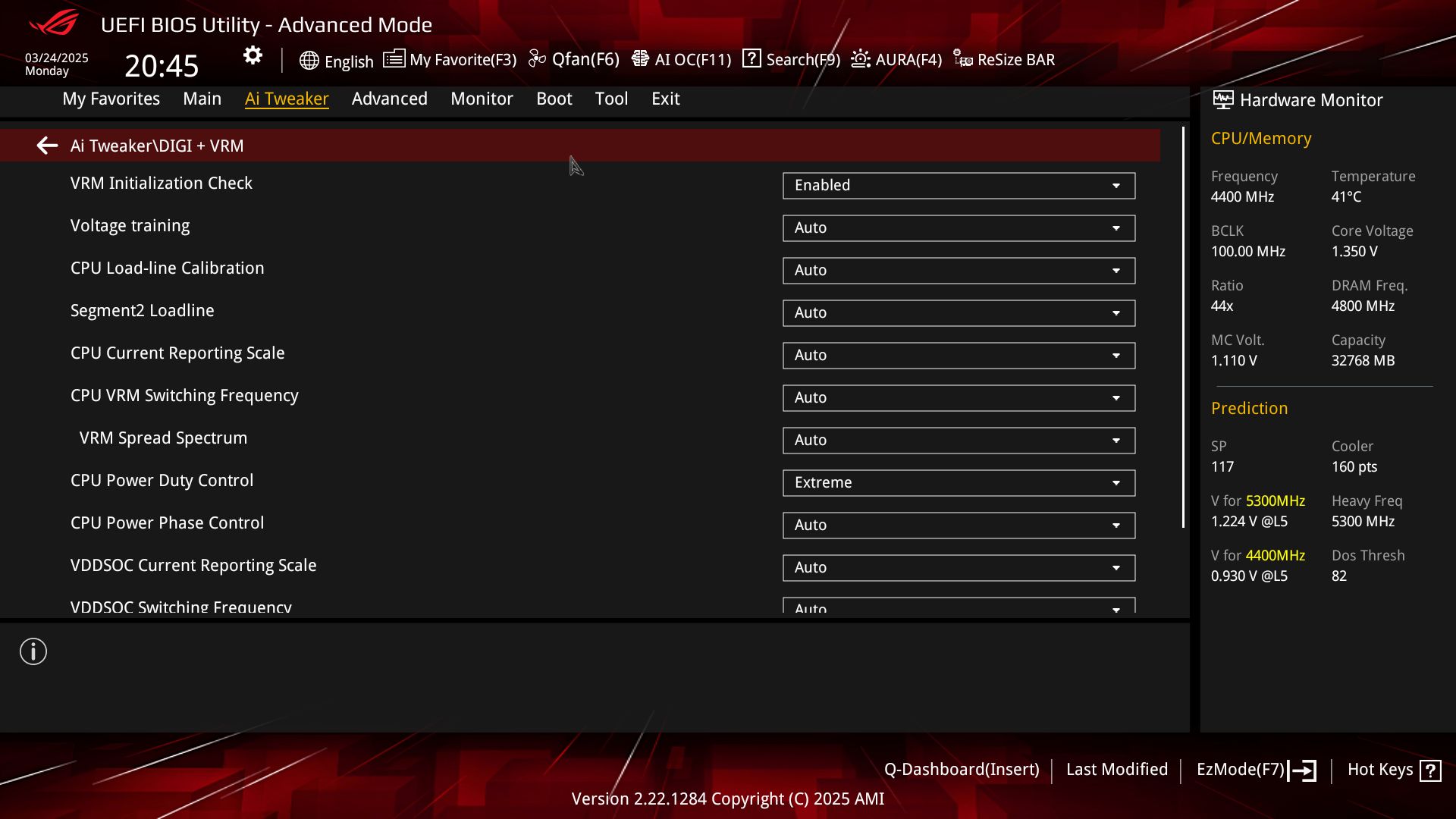

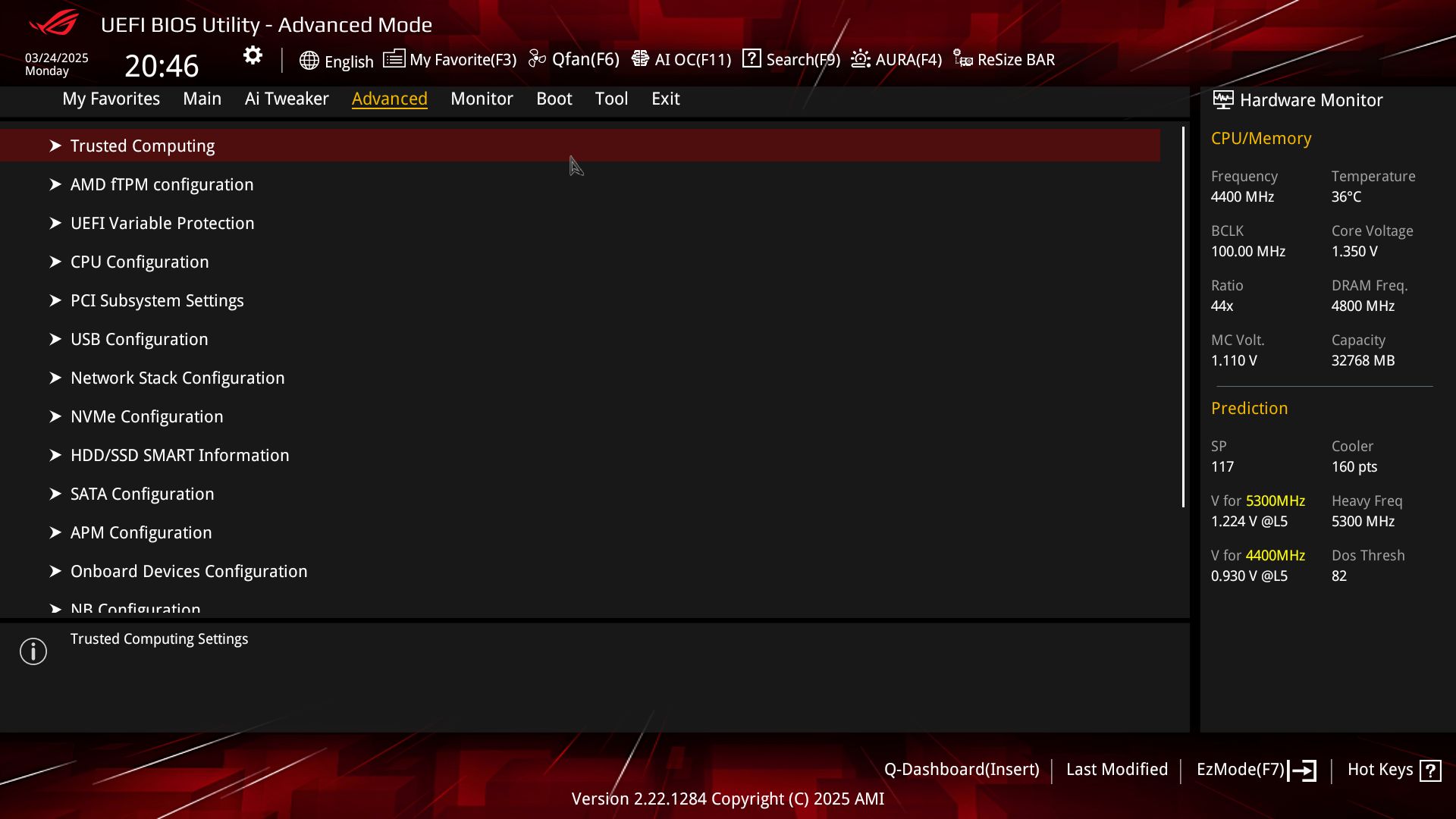

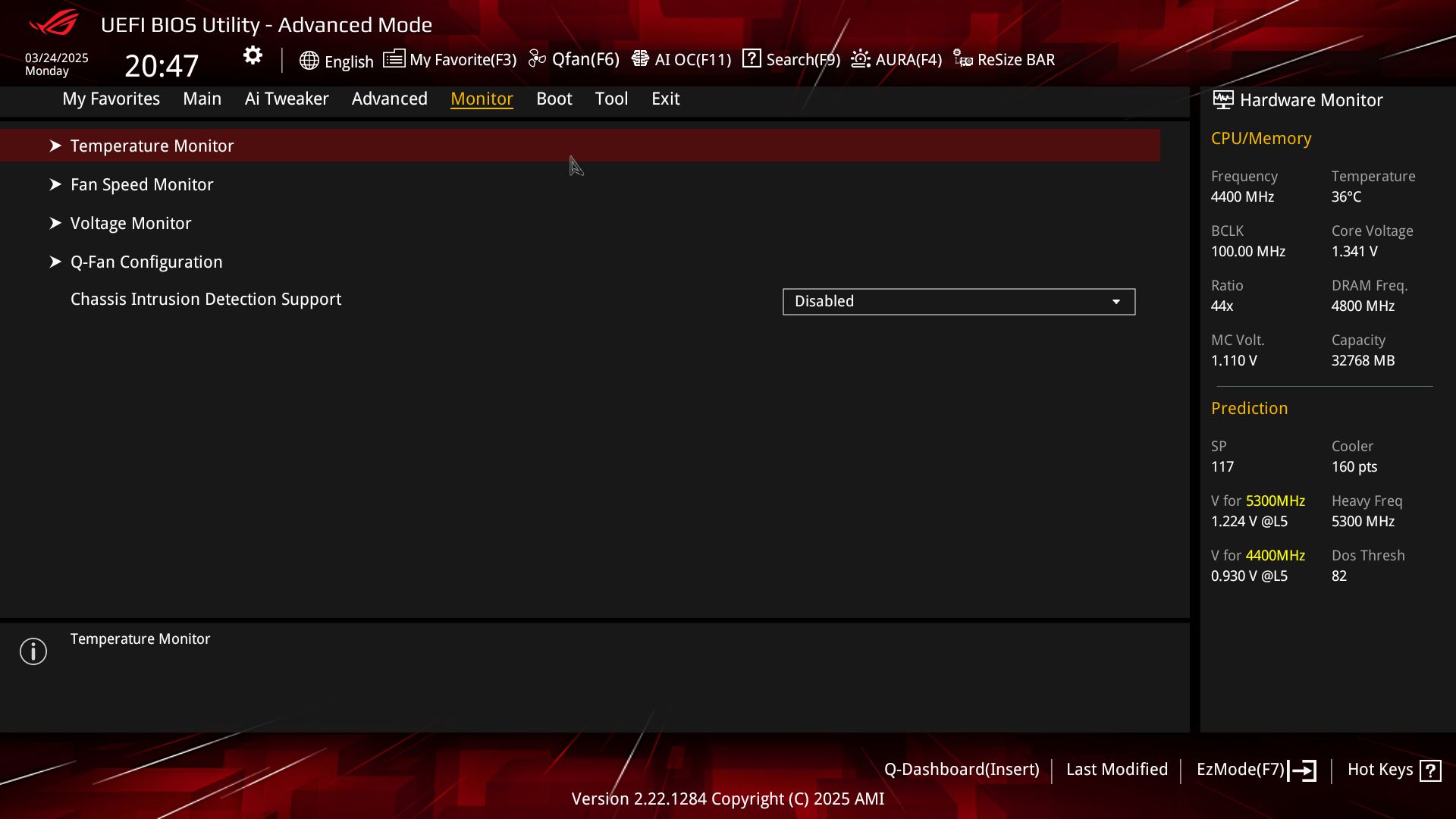

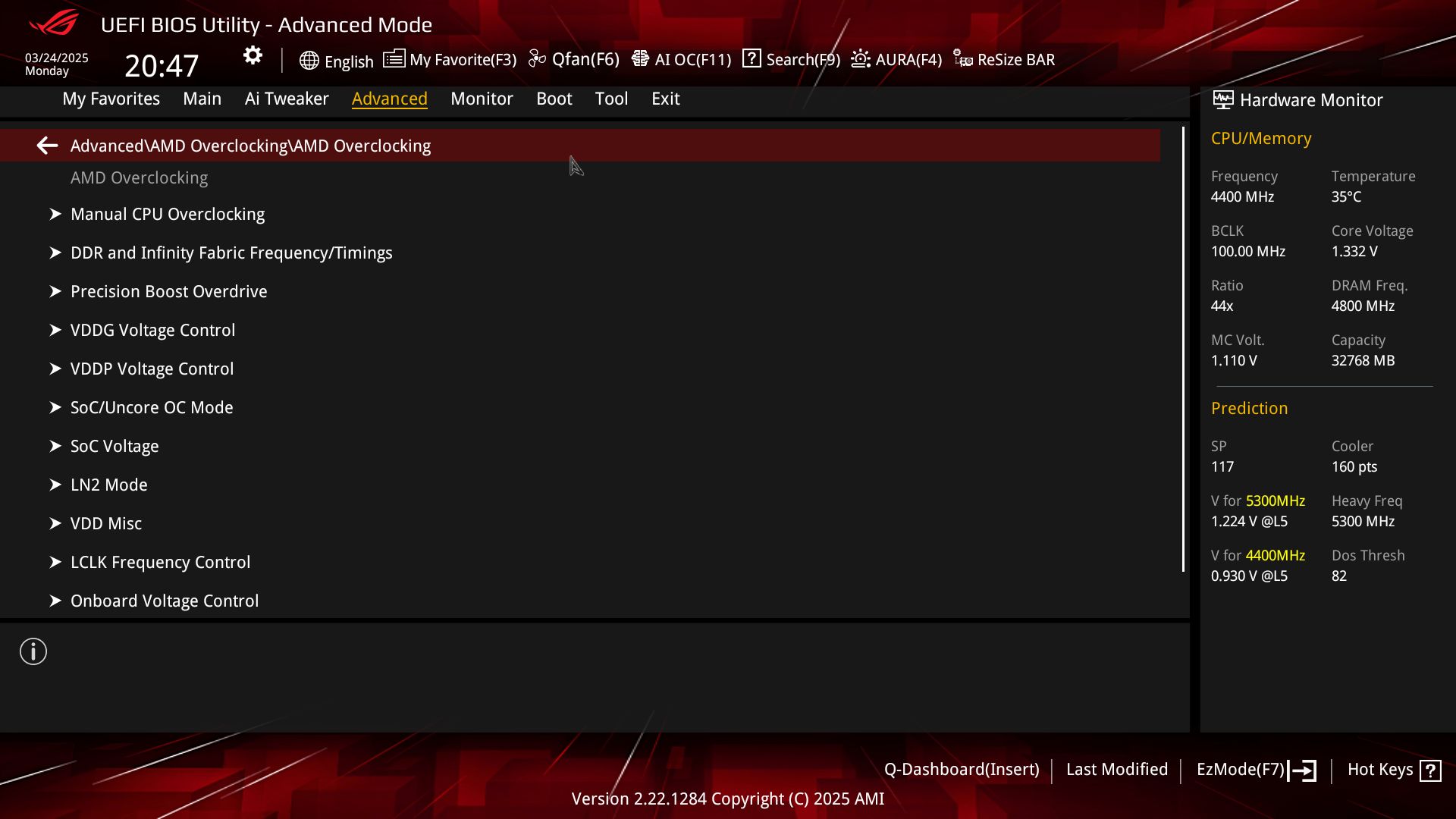

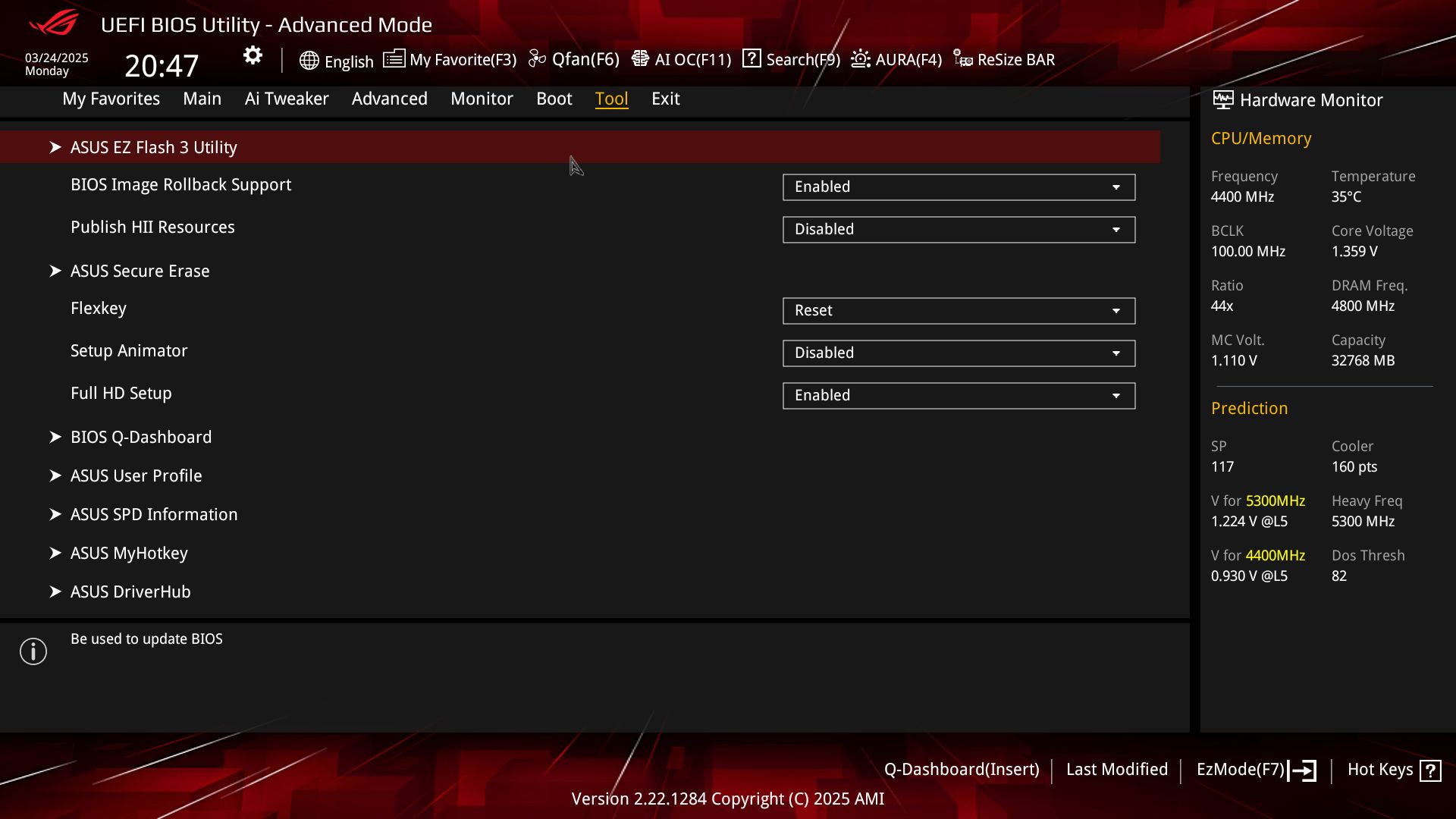

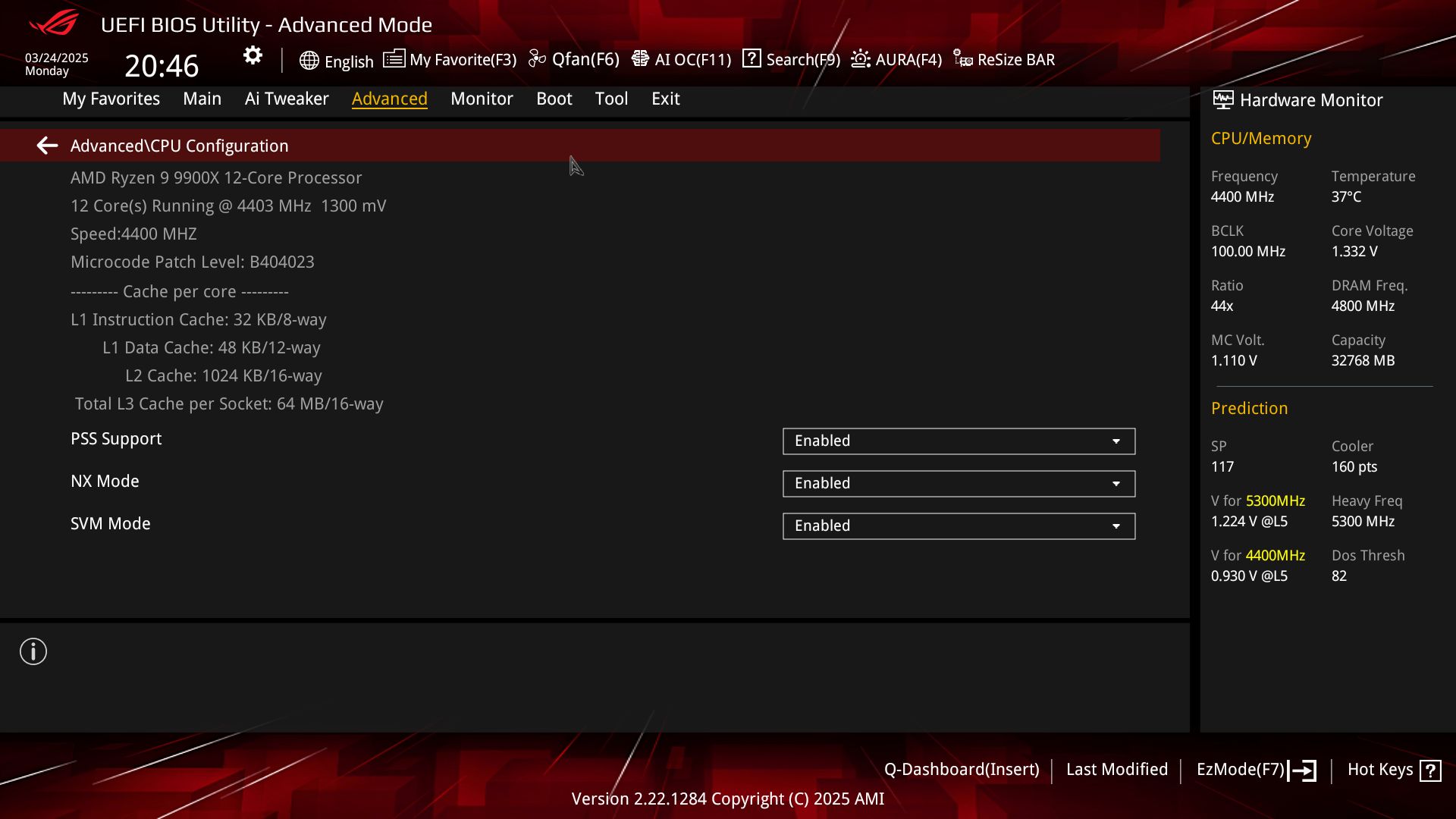

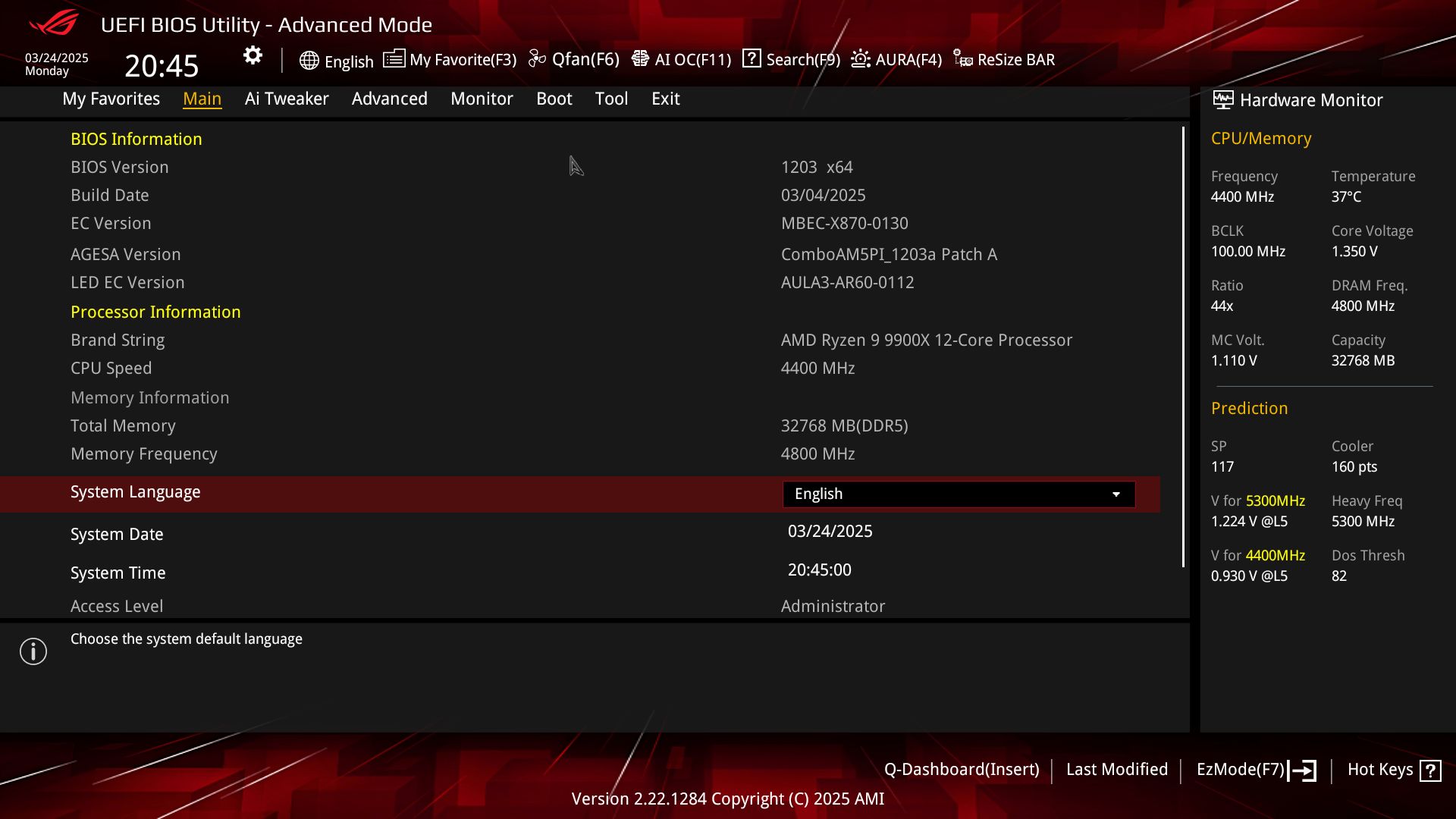

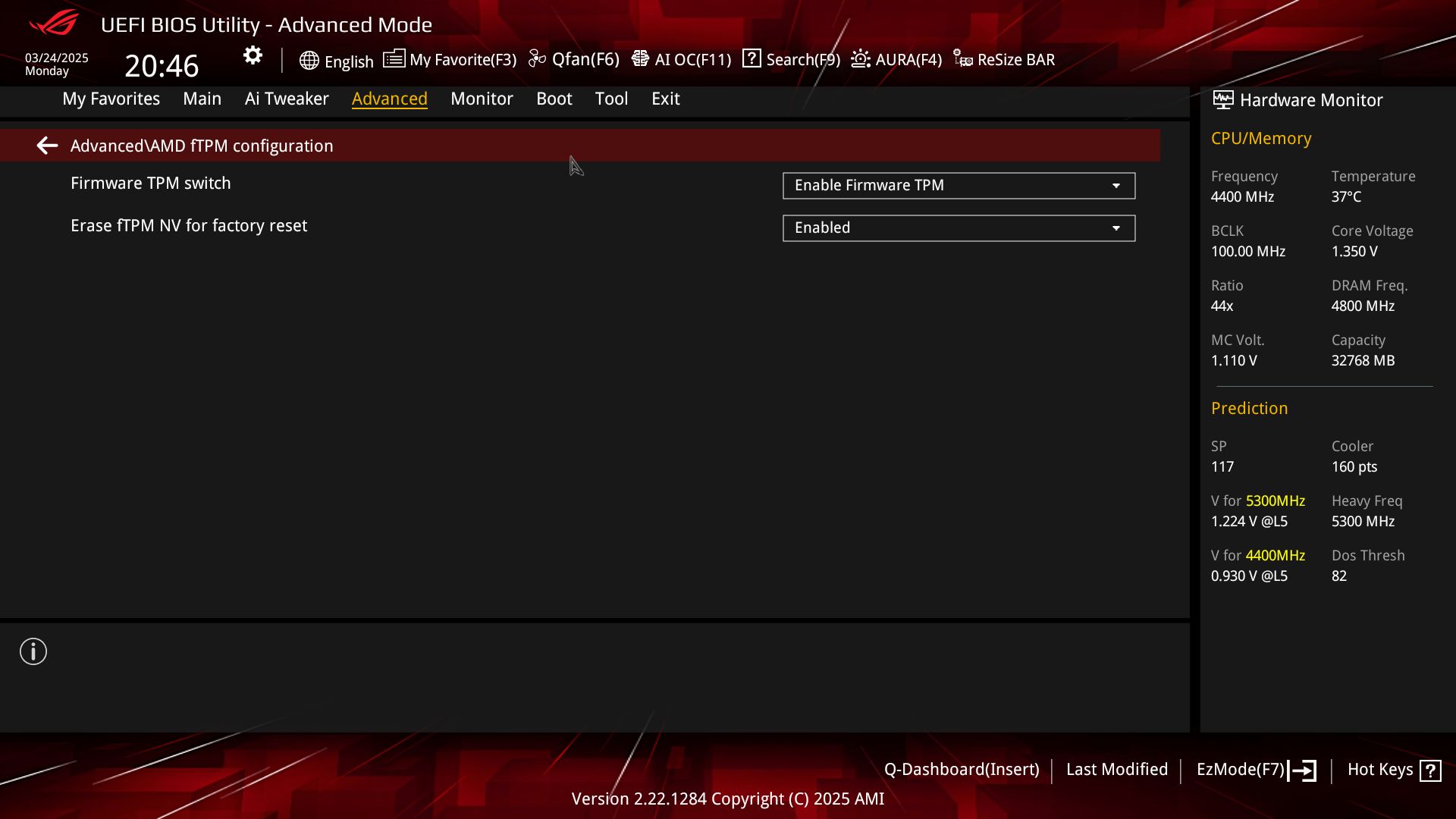

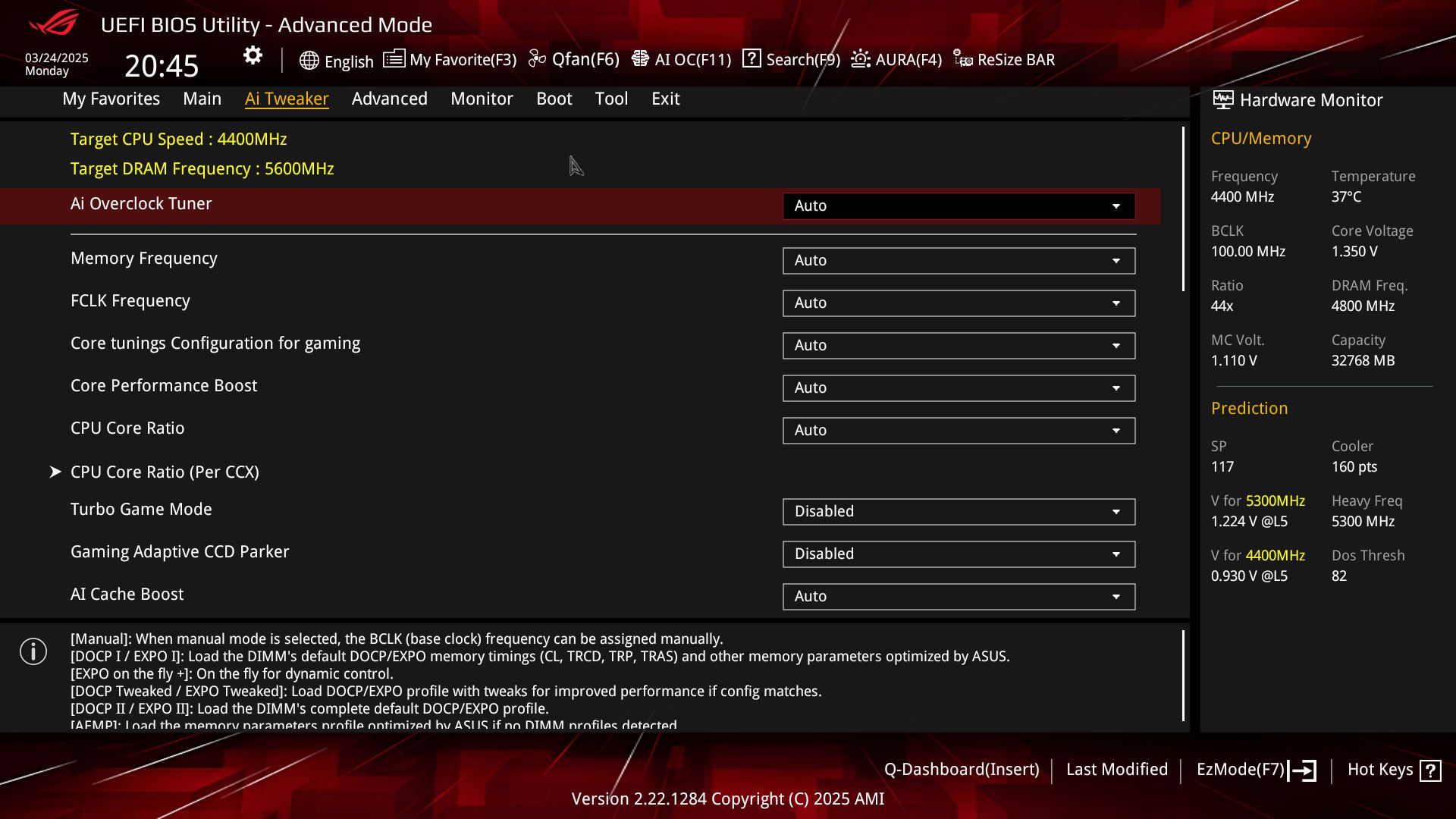

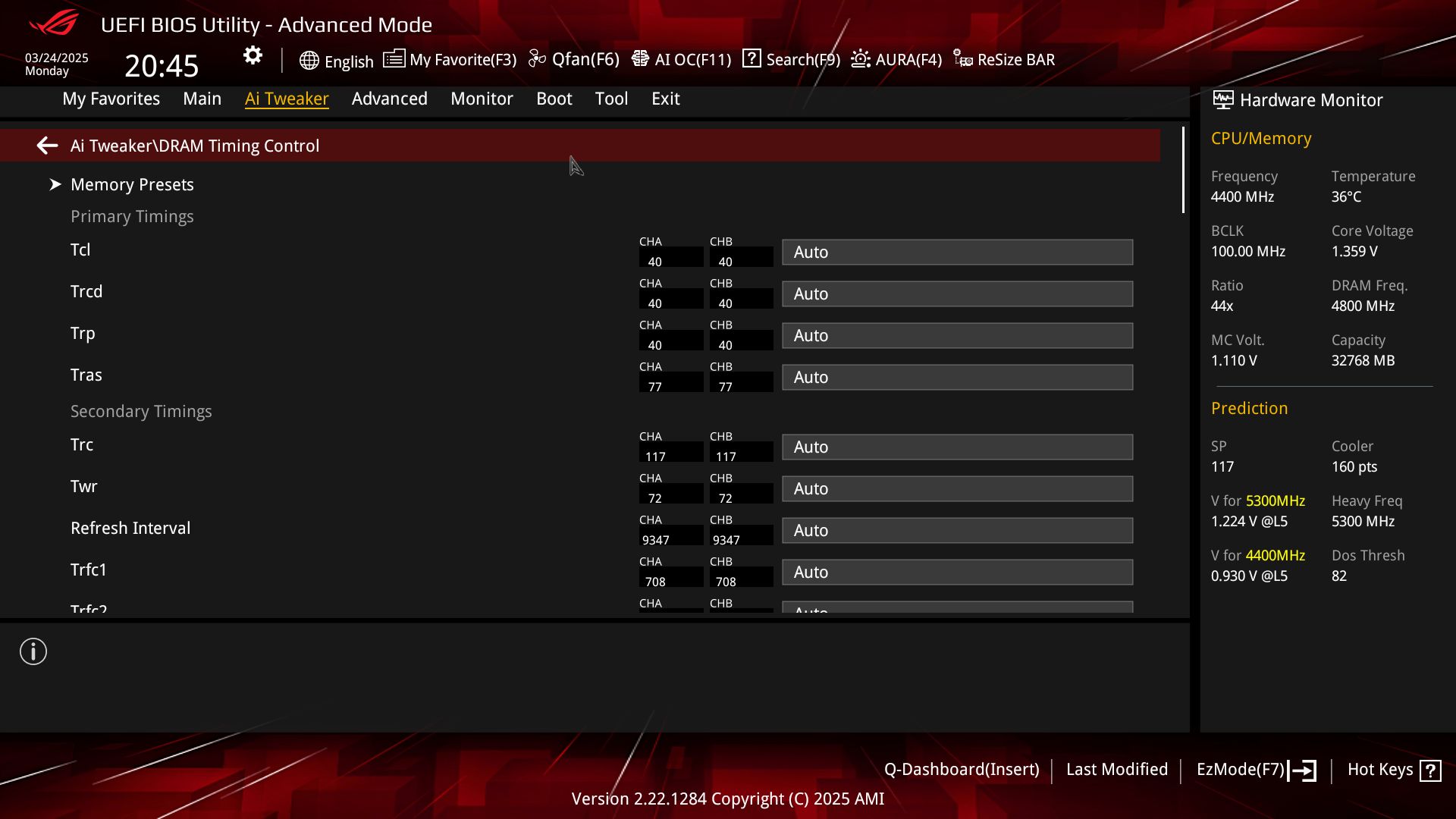

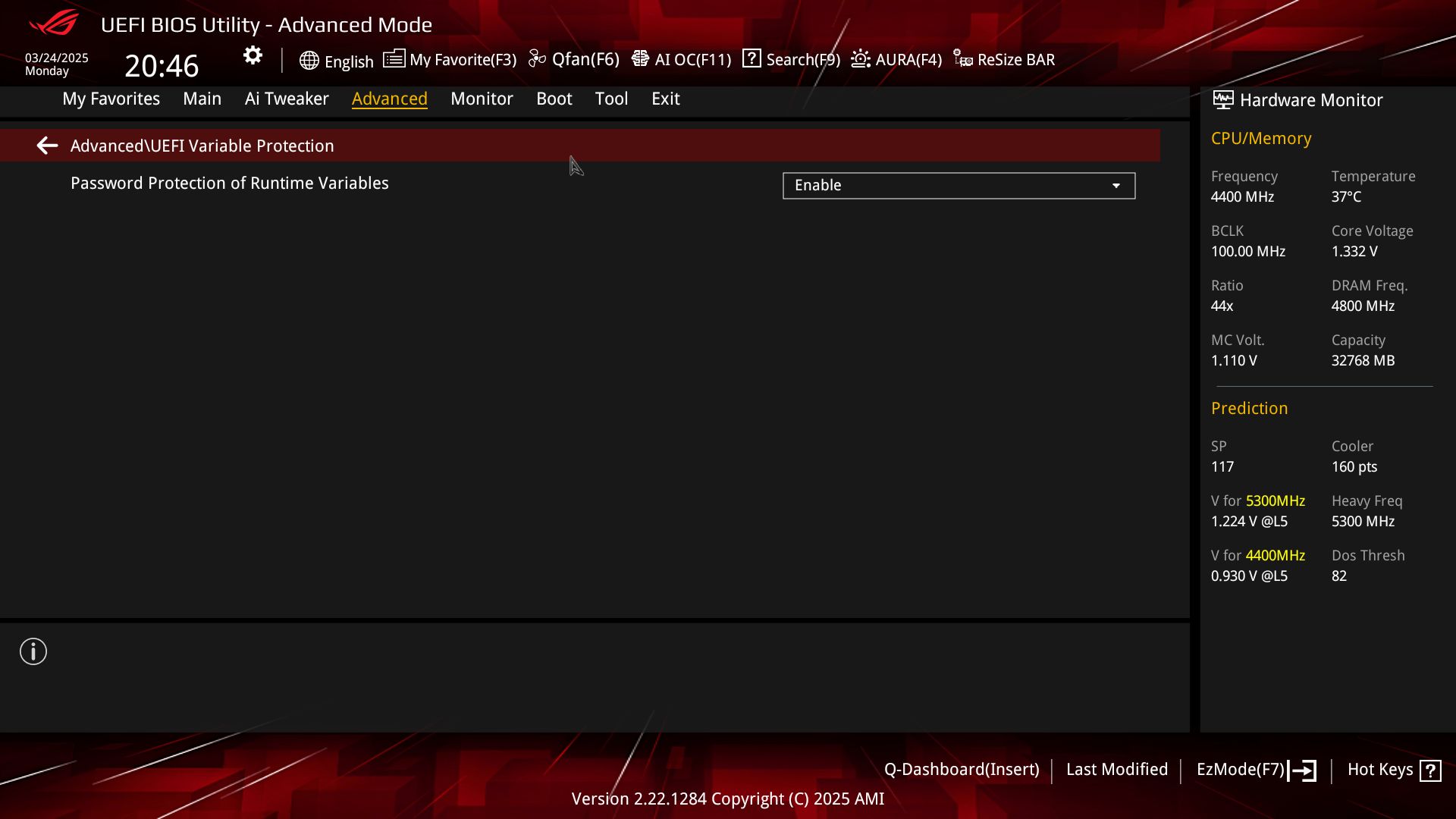

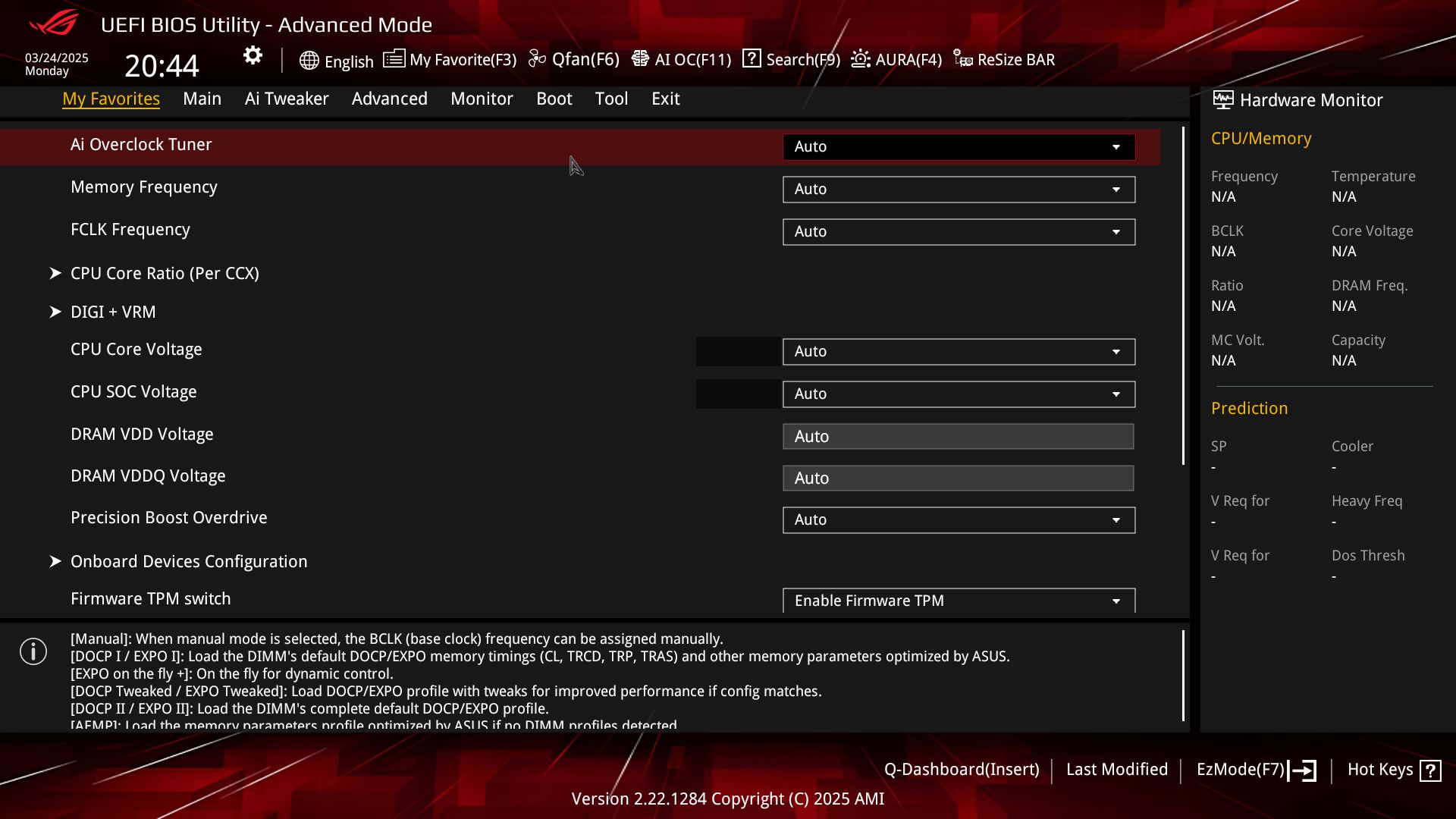

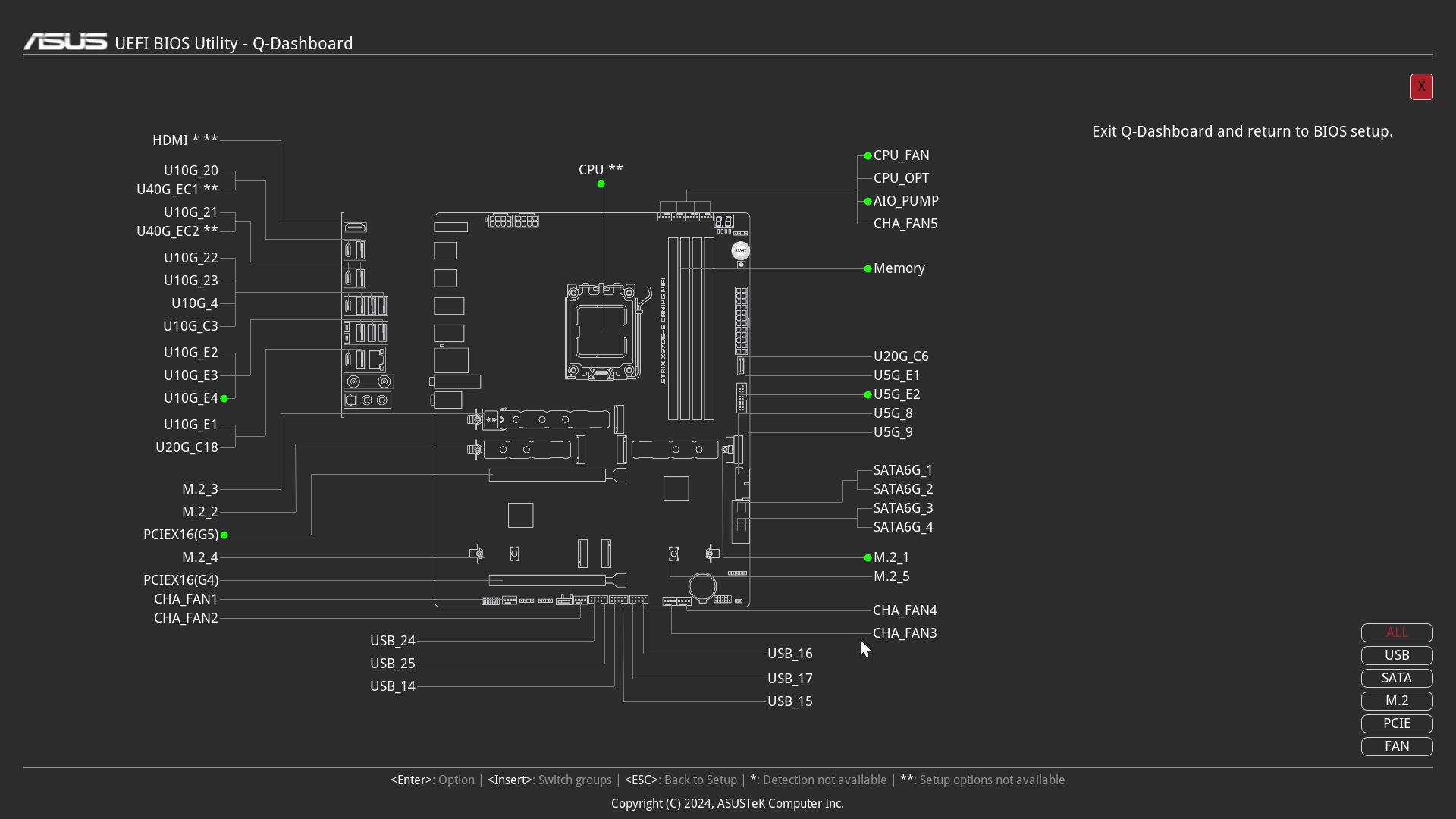

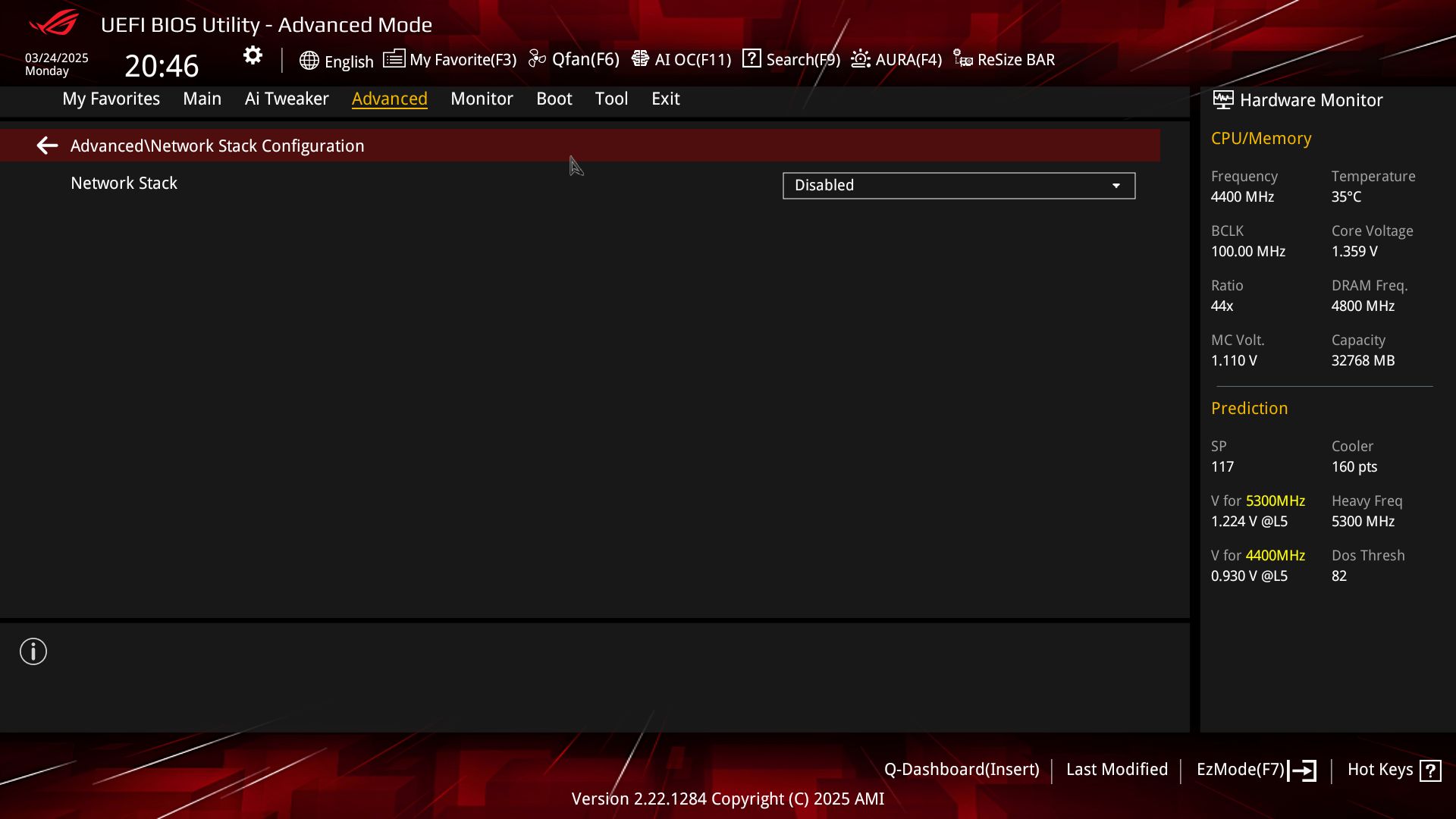

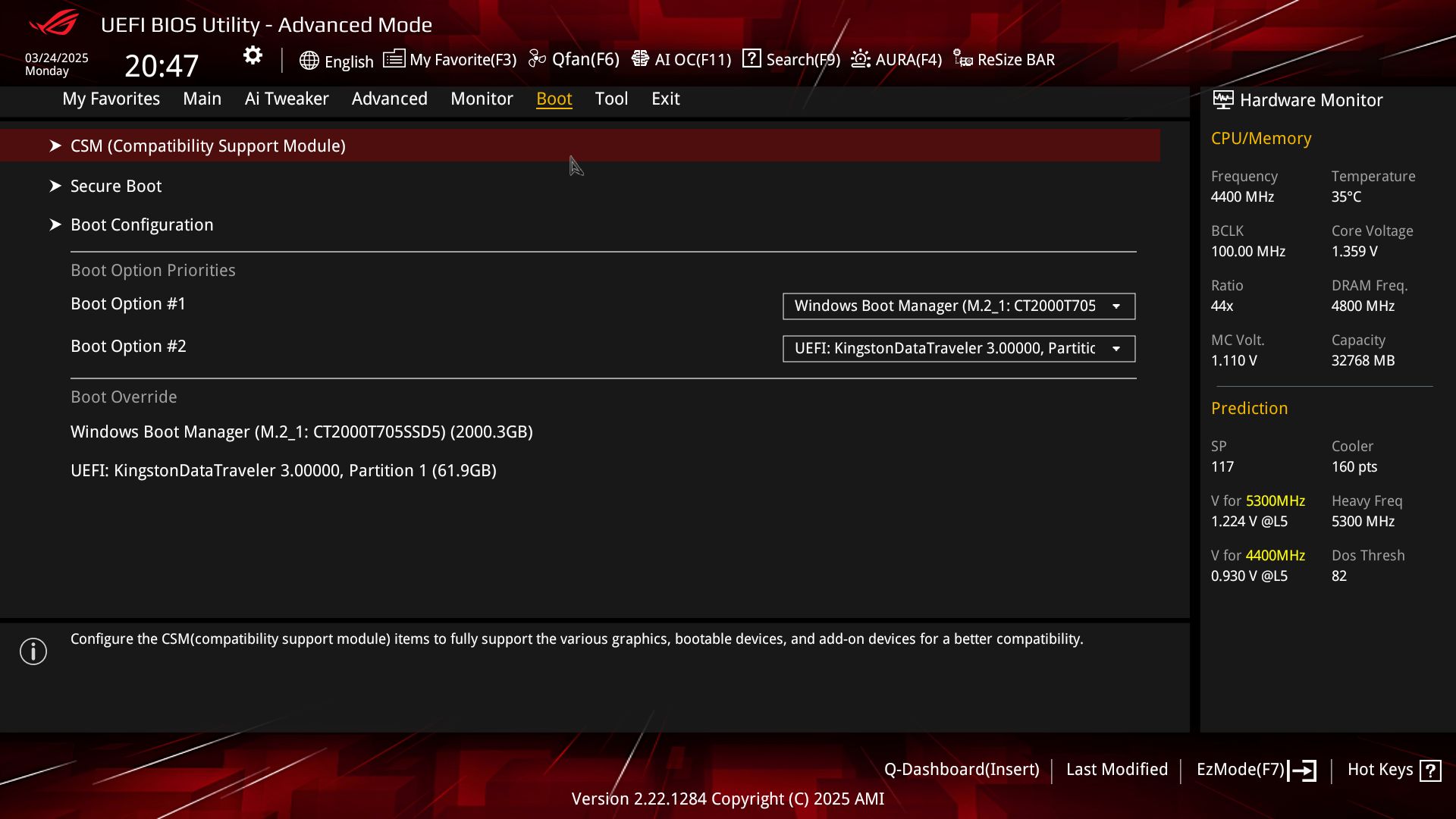

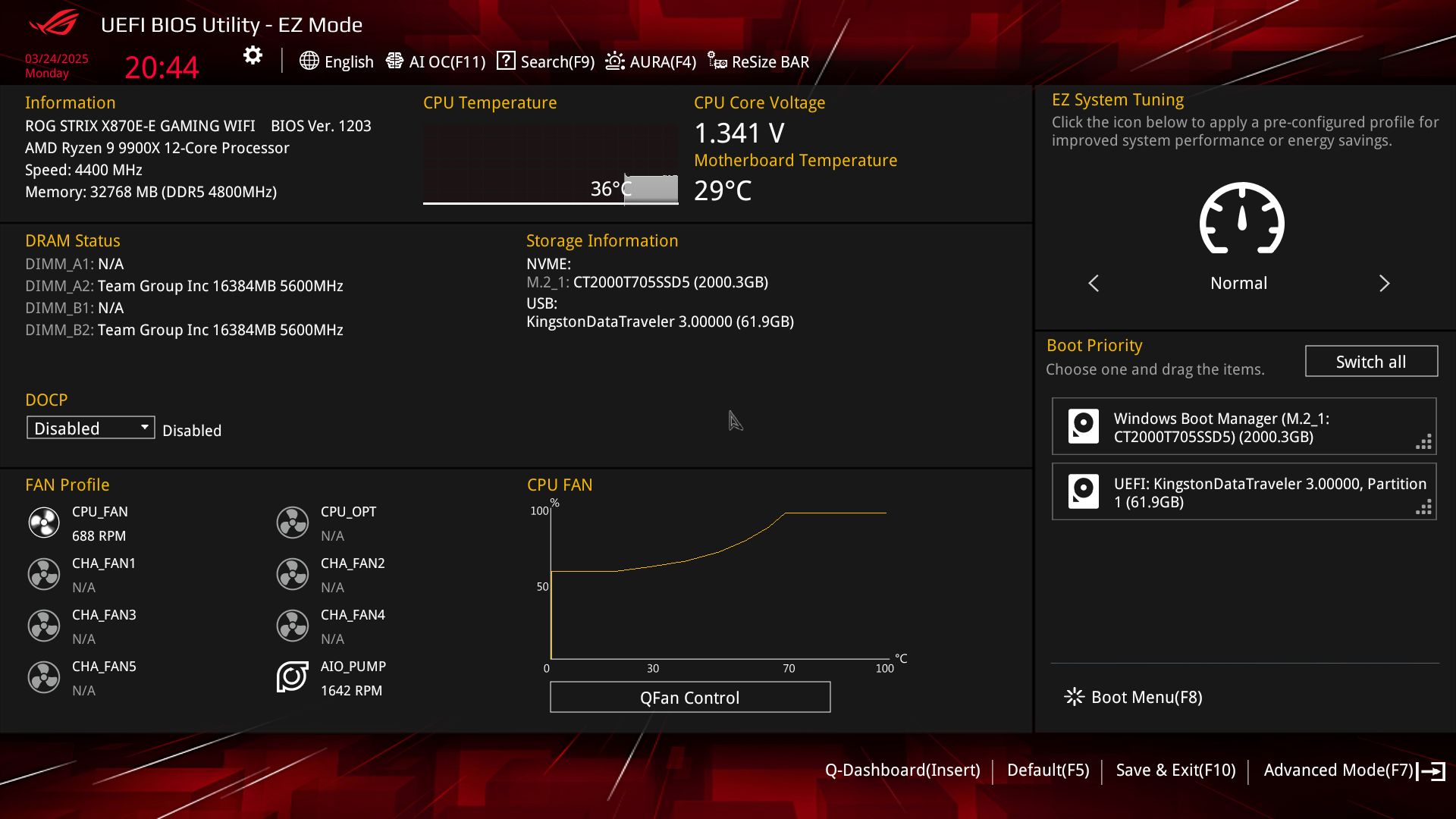

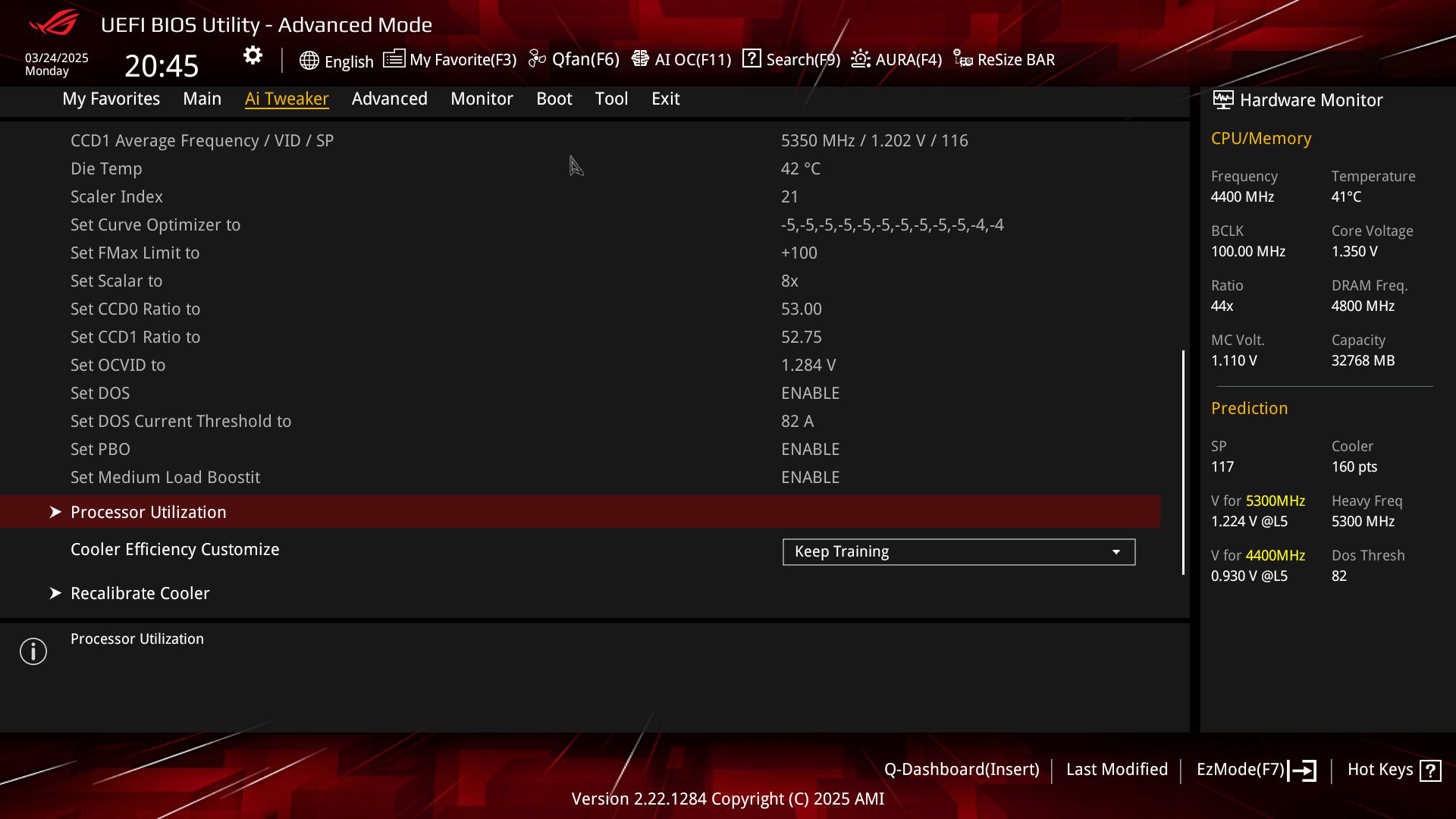

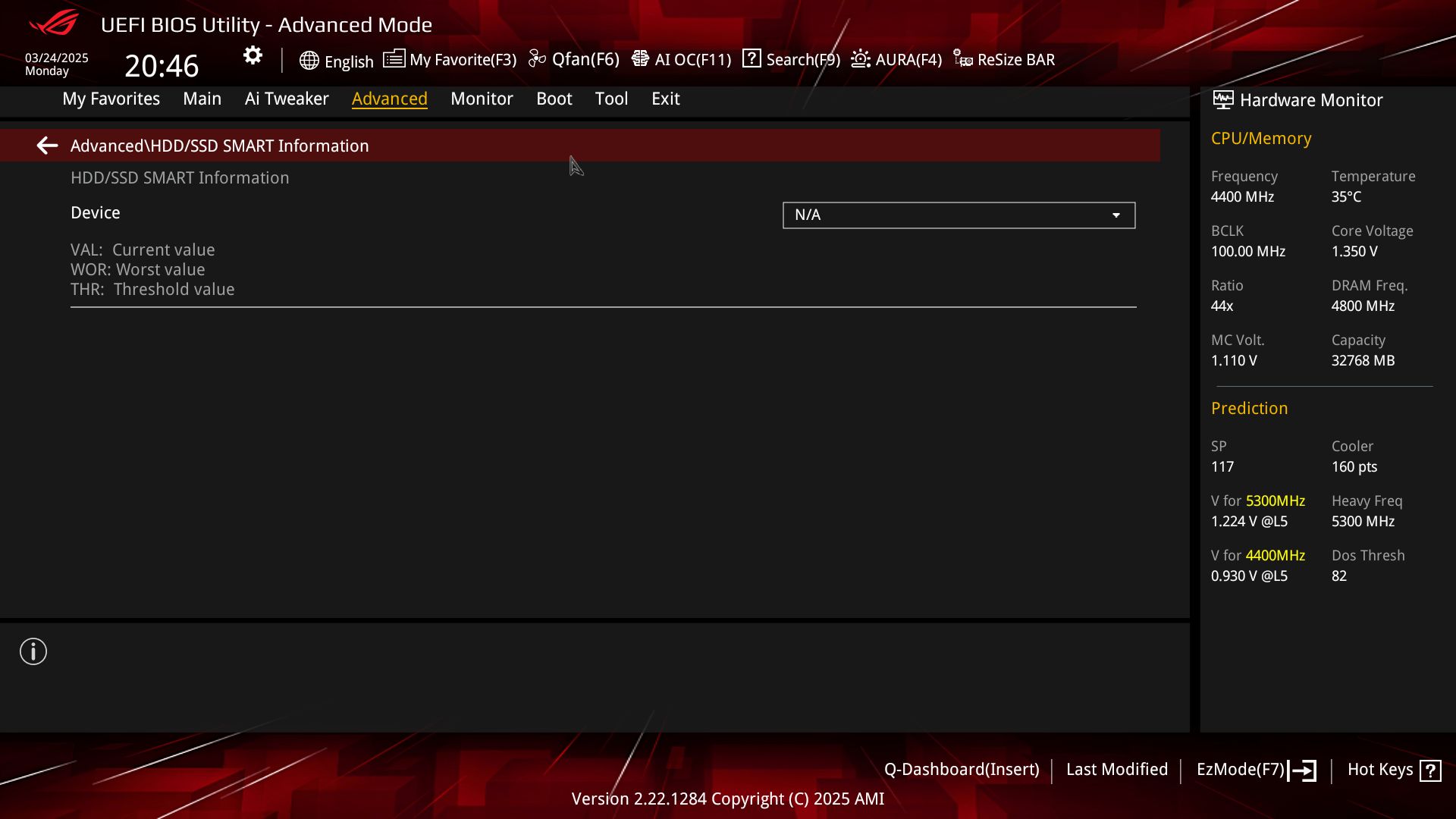

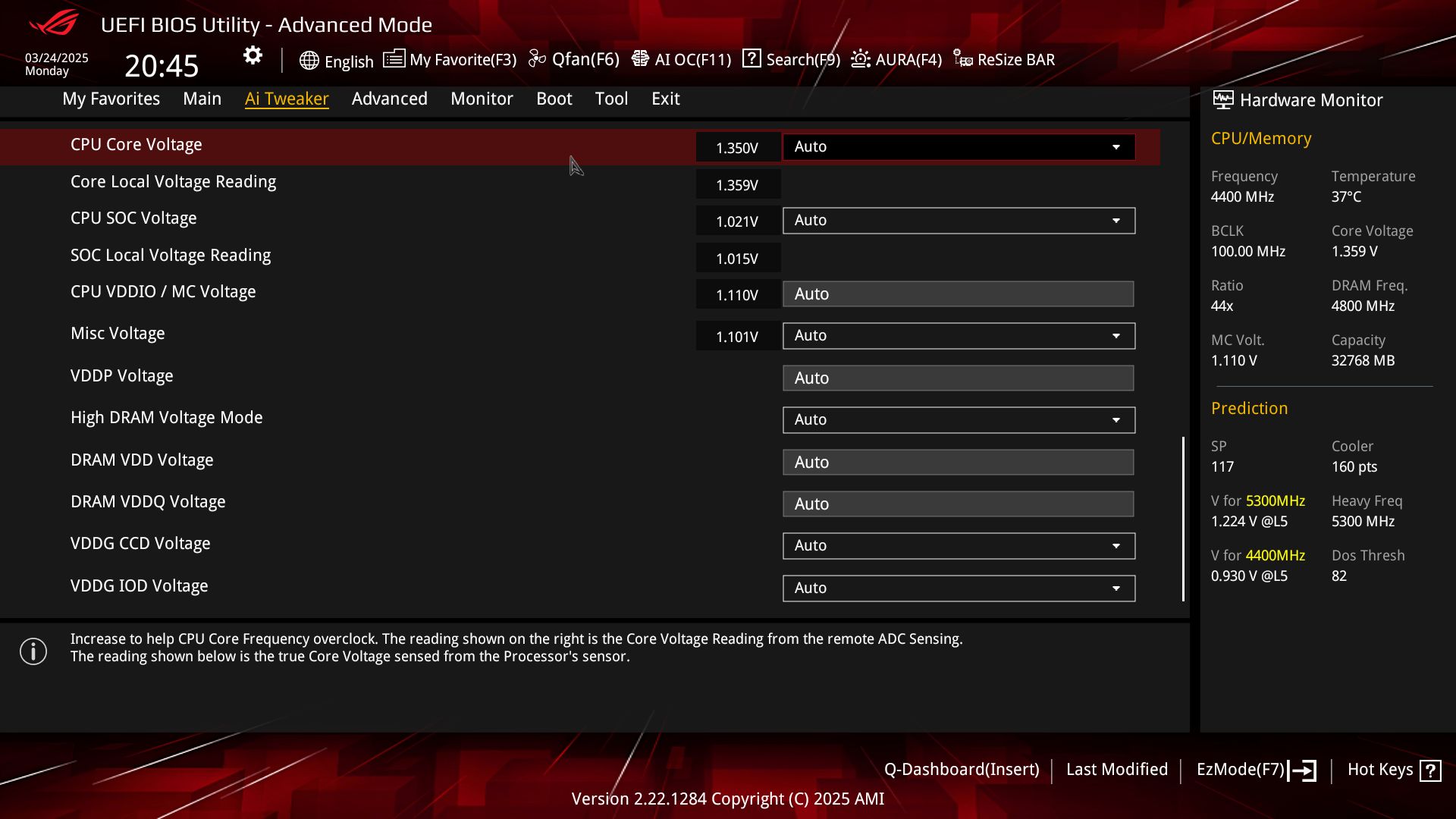

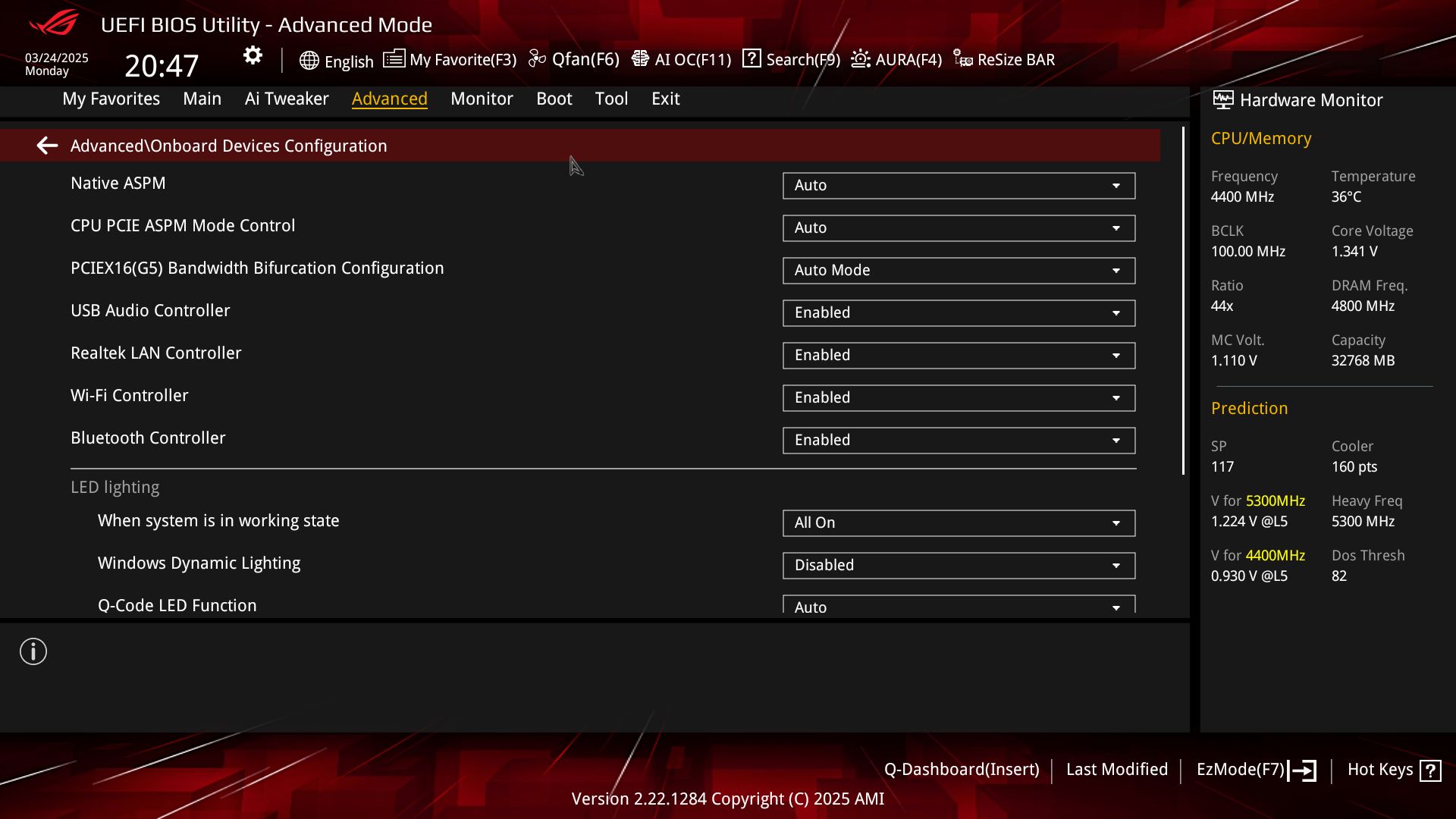

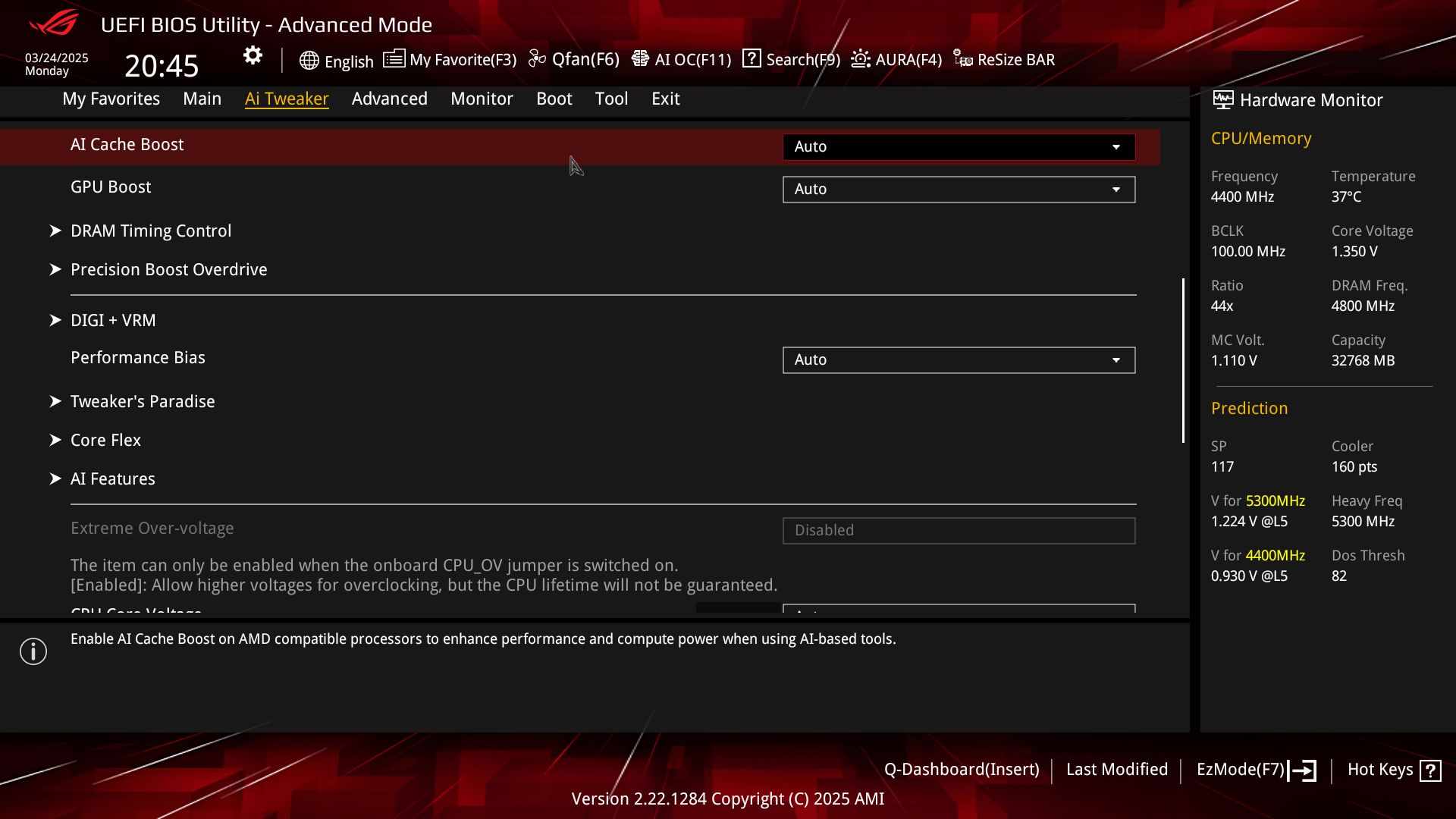

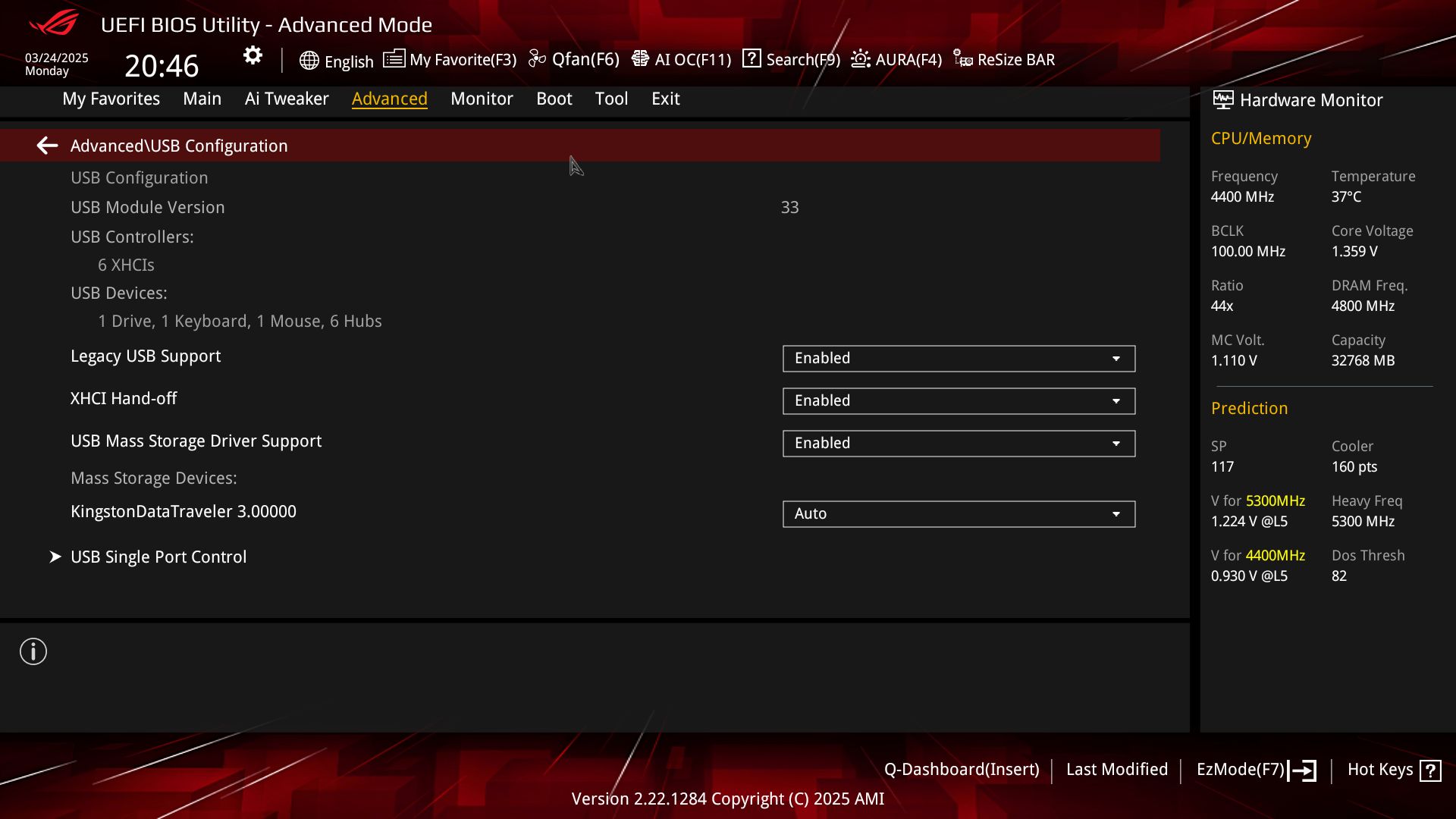

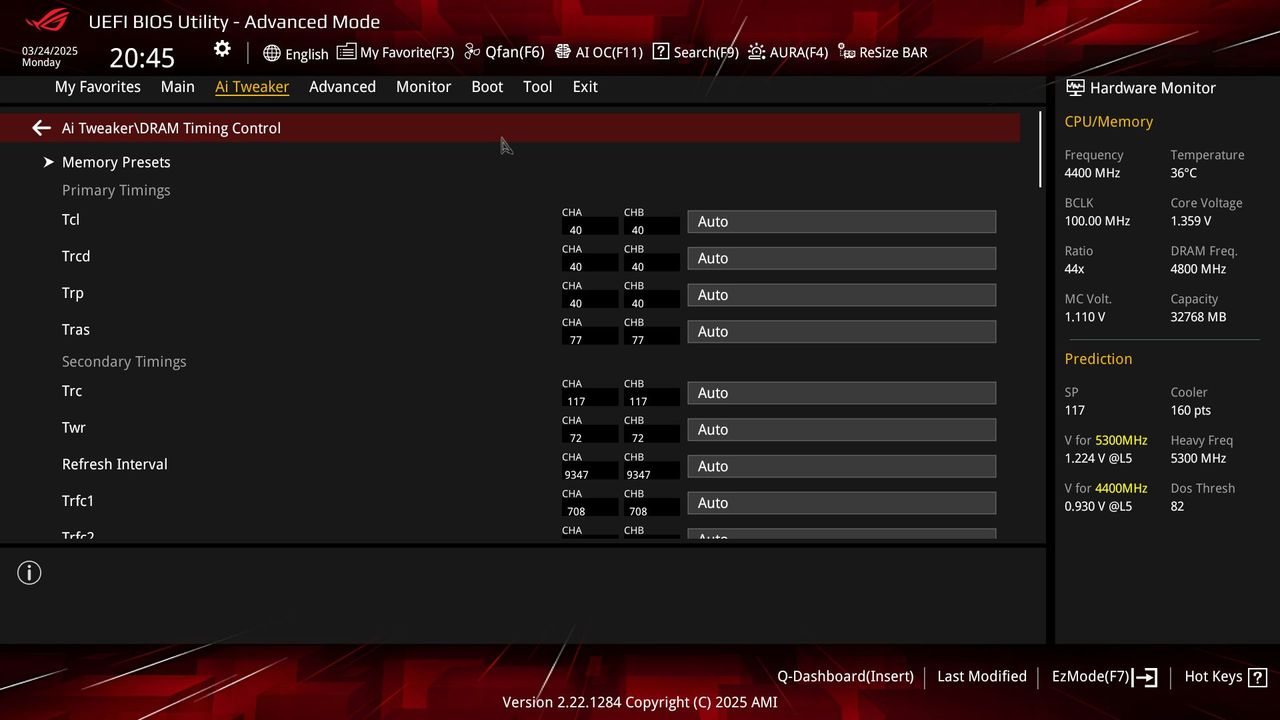

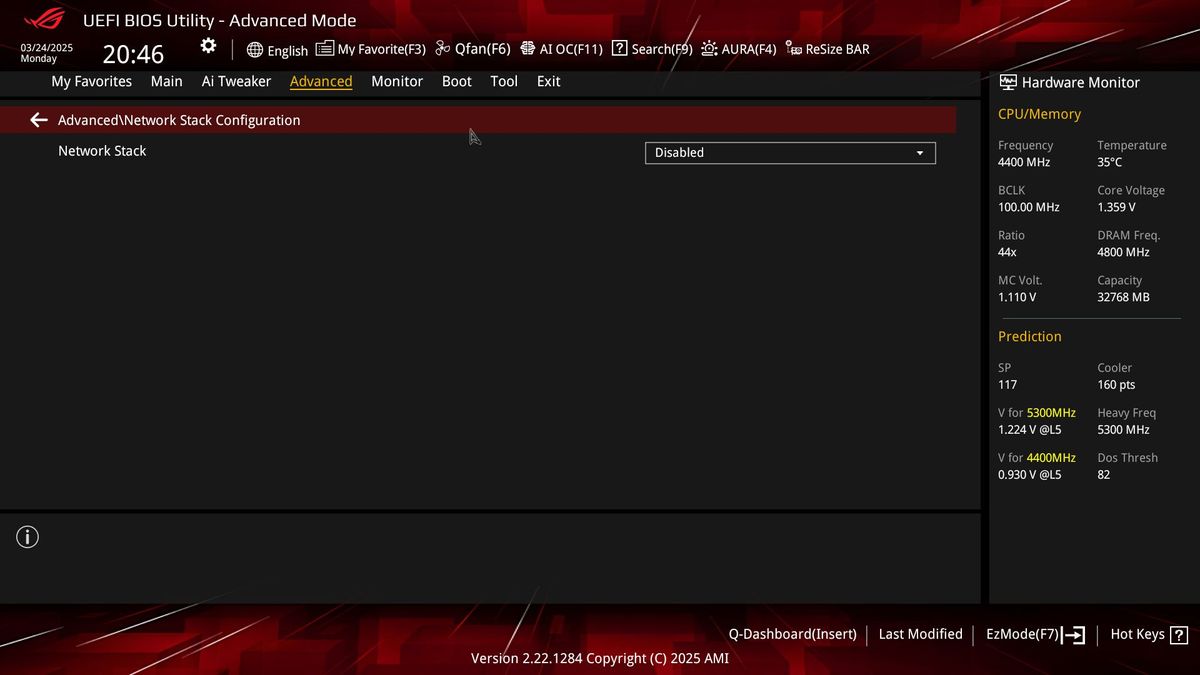

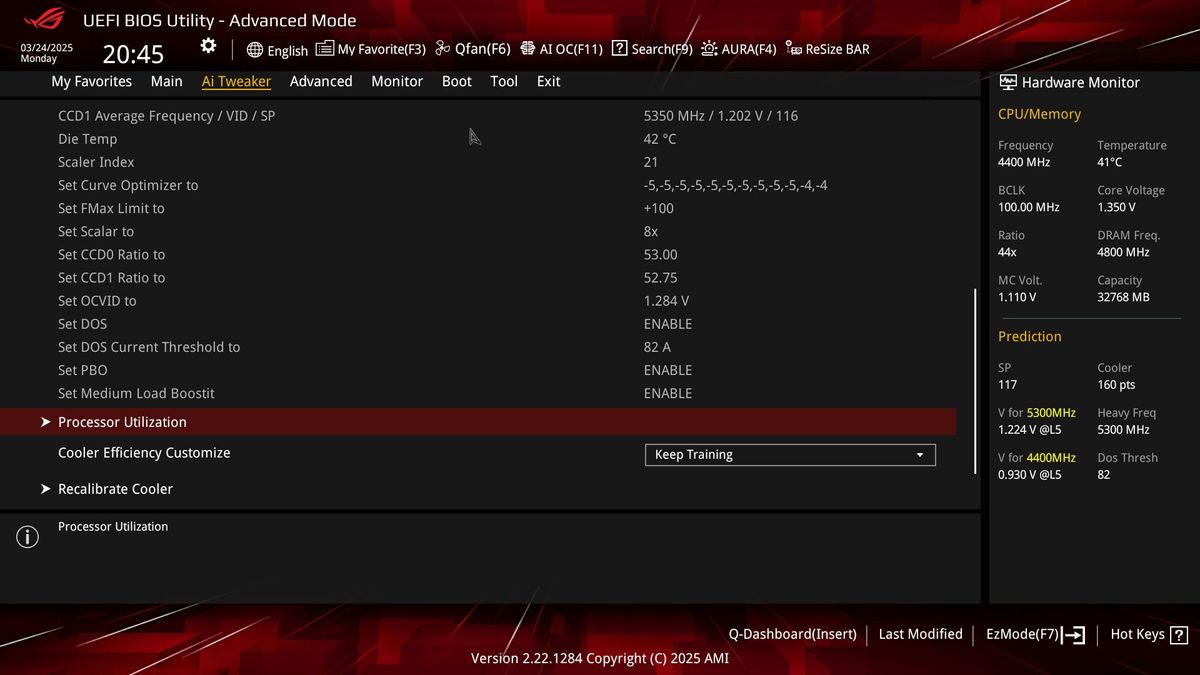

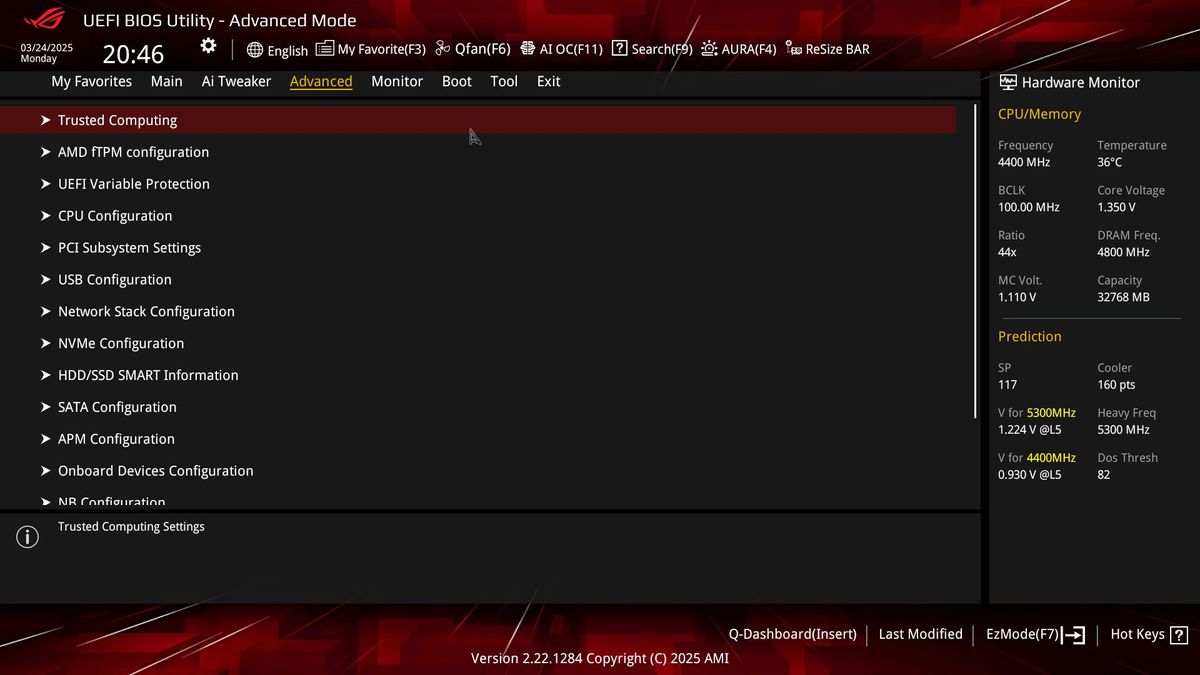

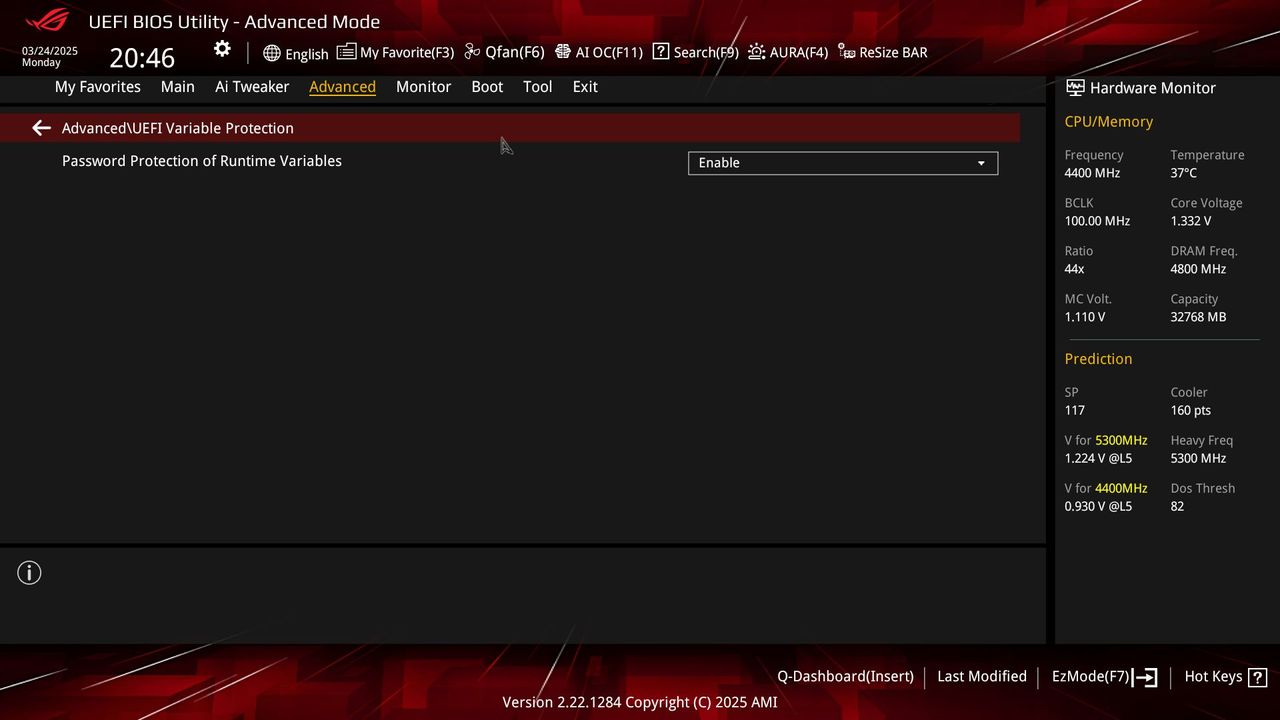

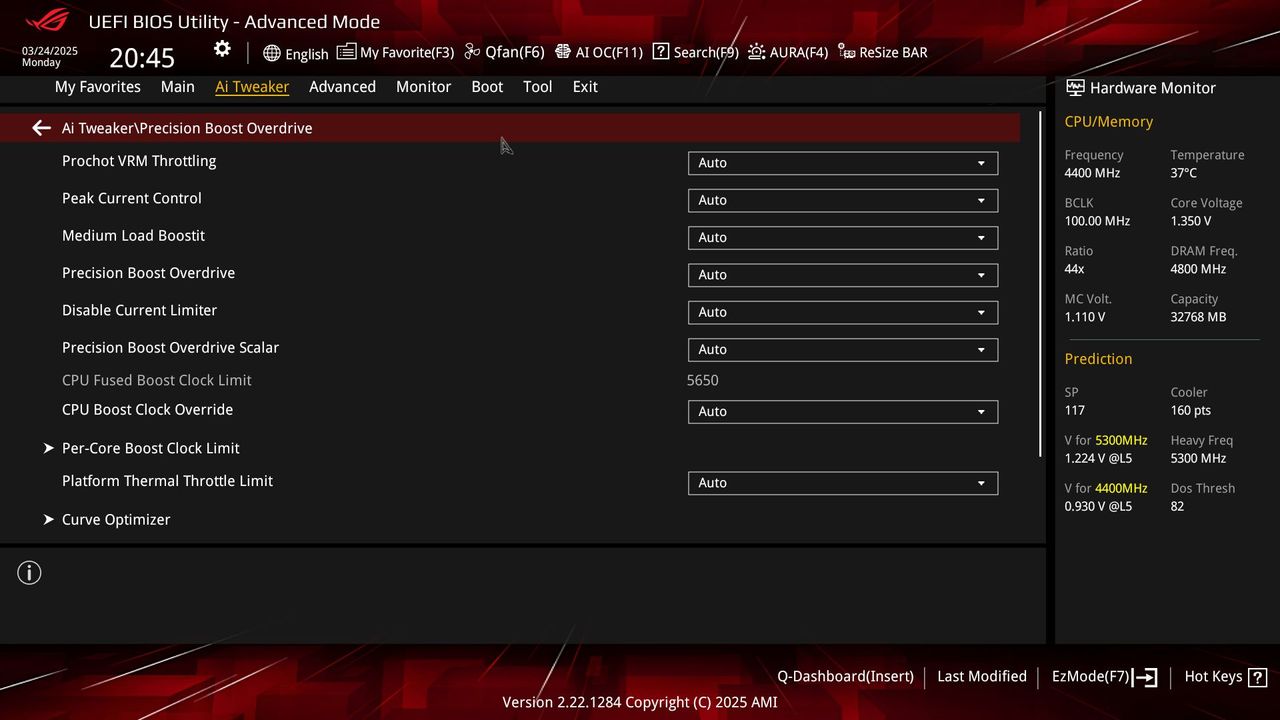

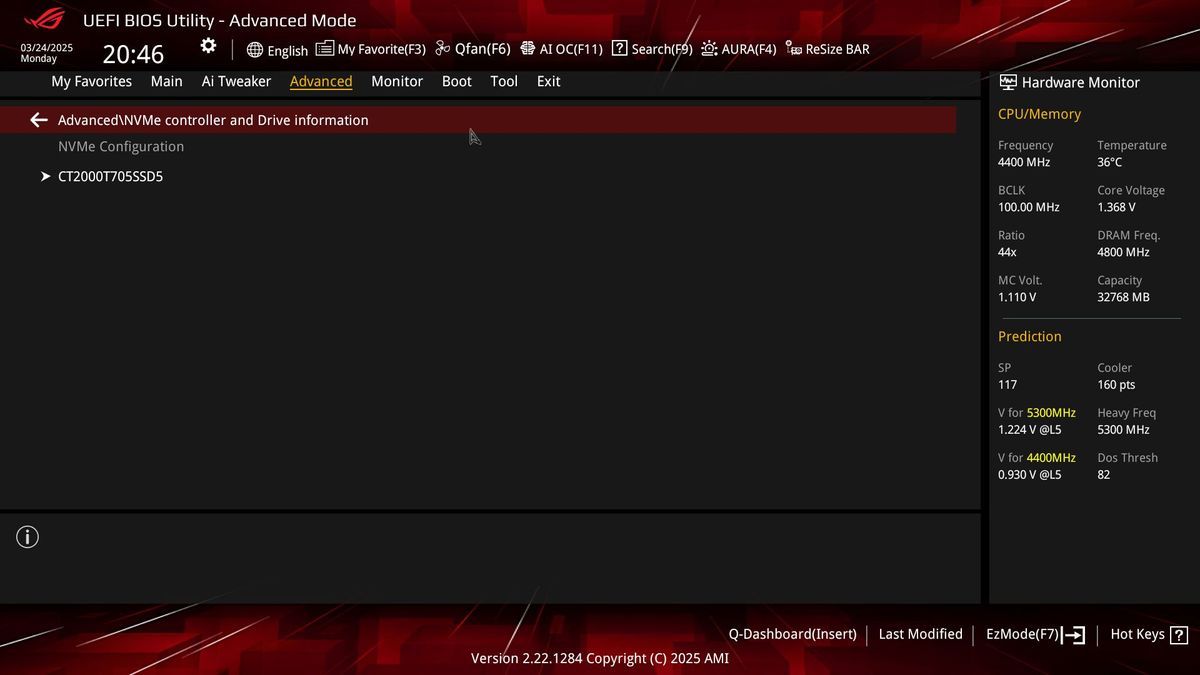

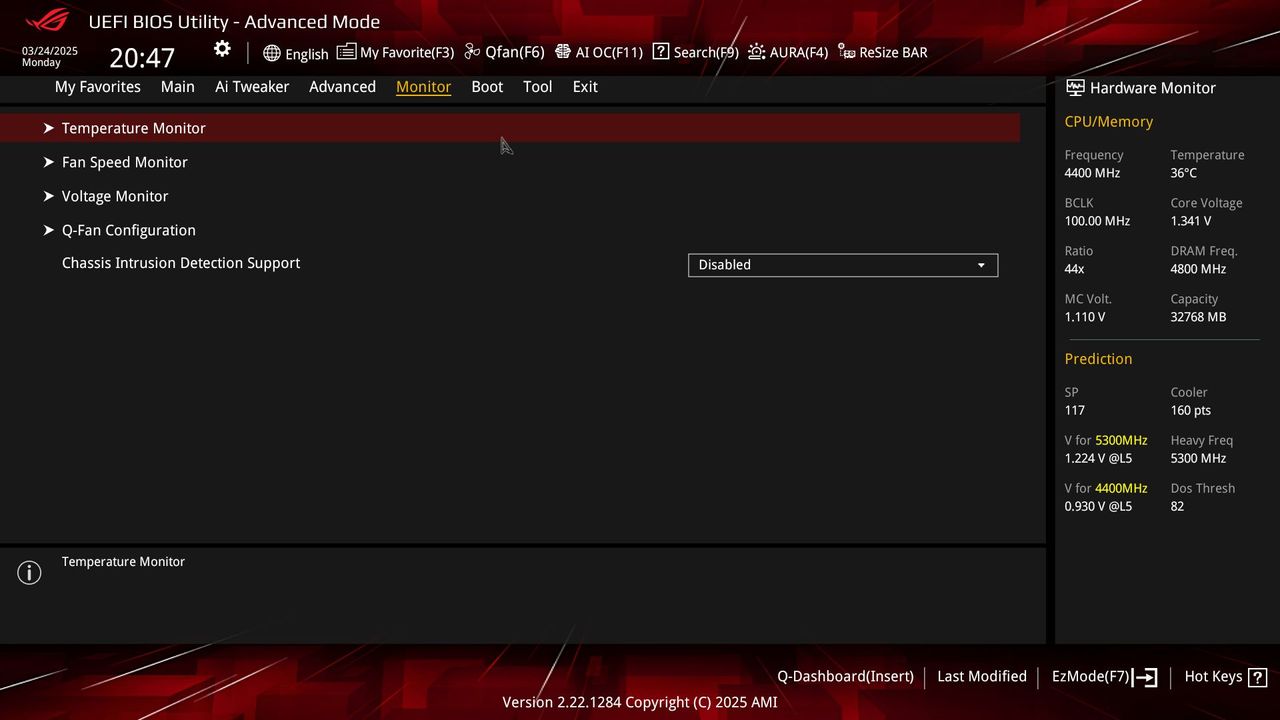

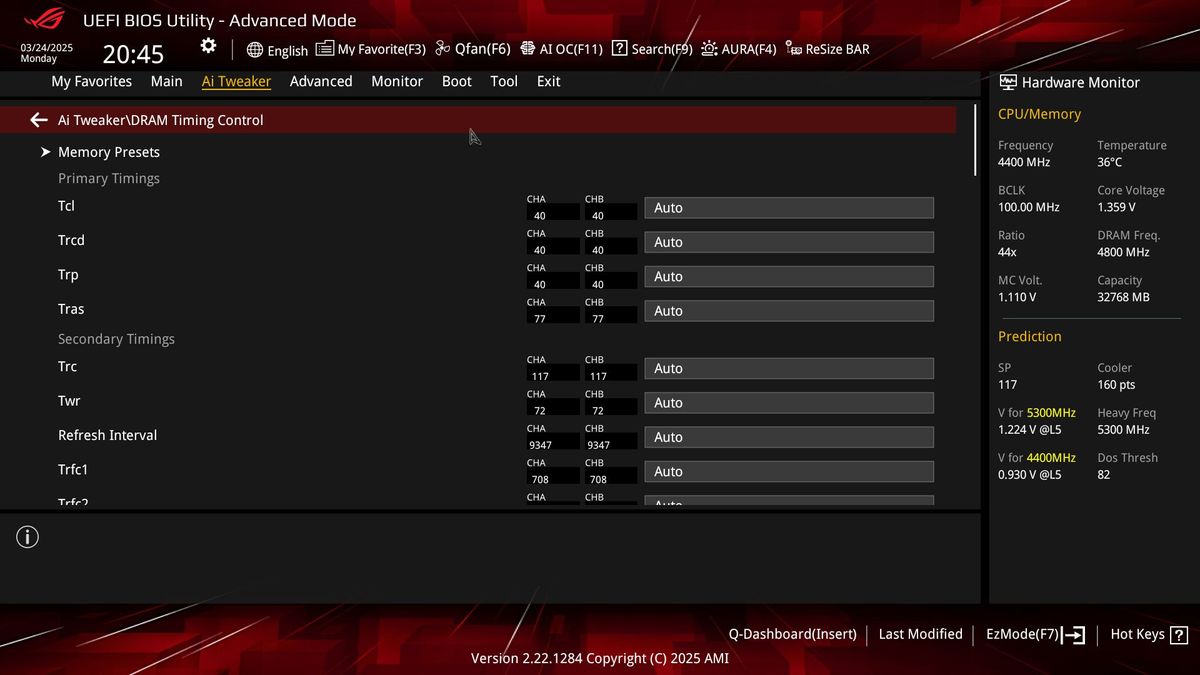

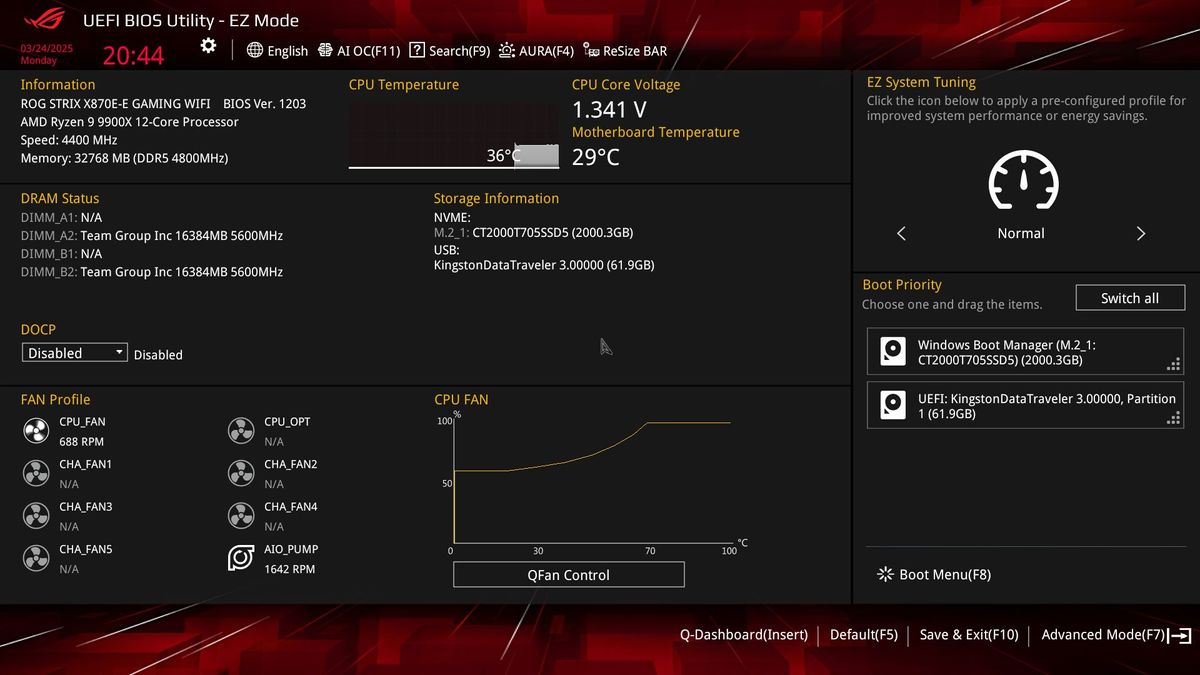

Asus’ BIOS on the X870E-E Gaming looks the same, sporting the black, red, easy-to-read ROG theme we’re all familiar with. Asus starts in an Easy Mode that displays high-level information, including CPU and memory clock speeds, temperatures, fan speeds, storage information, etc. Advanced Mode has several headers across the top that drop down additional options. The new Q-Dashboard shows all the integrated connectivity. When hardware is connected, there’s a green circle next to it. The BIOS is one of my favorites, as any option you need is there, and anything you need frequently isn’t buried deep within menus.

Image 1 of 26

Asus ROG Strix X870E-E Gaming Wifi — (Image credit: Tom's Hardware)

Software

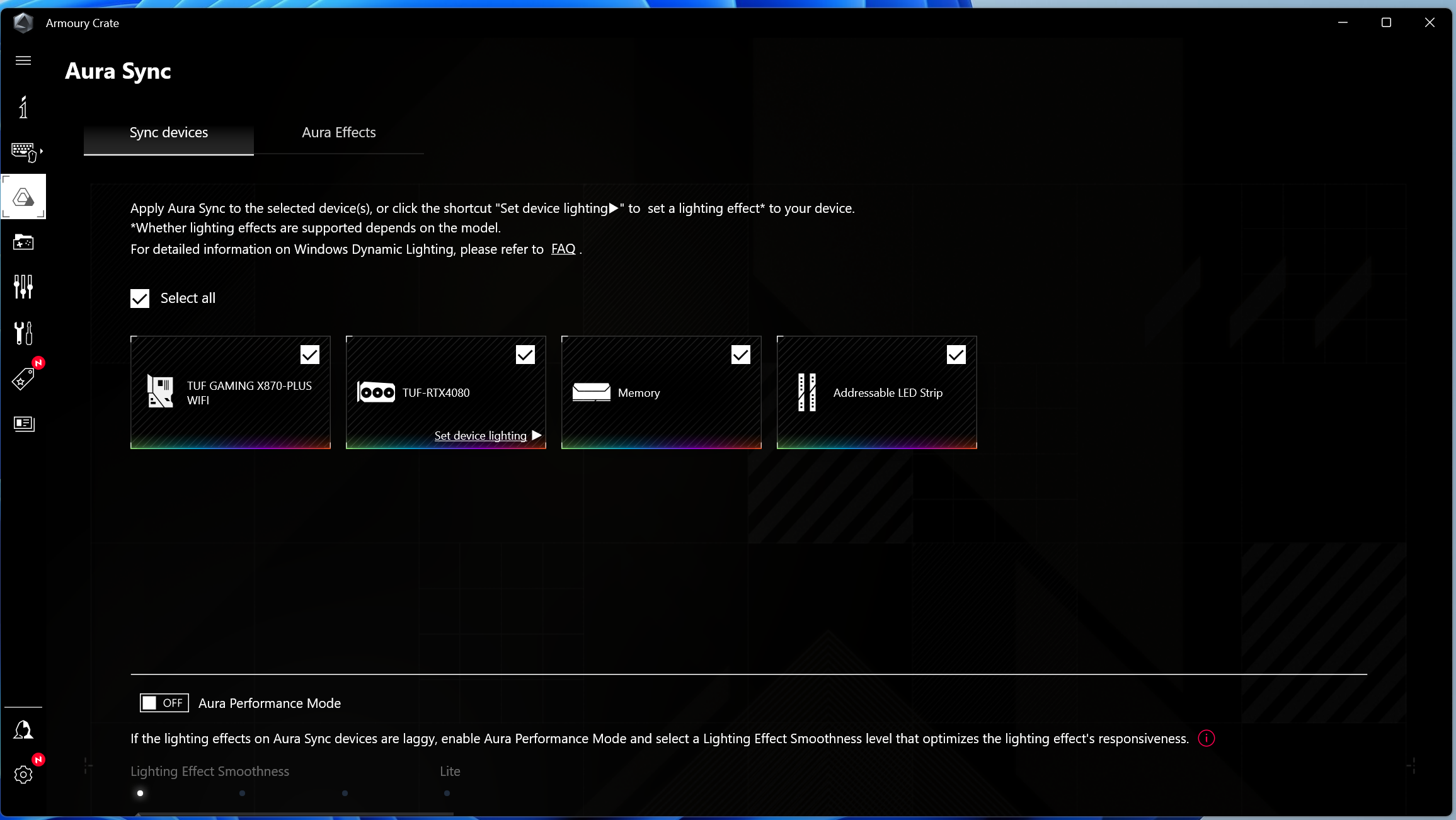

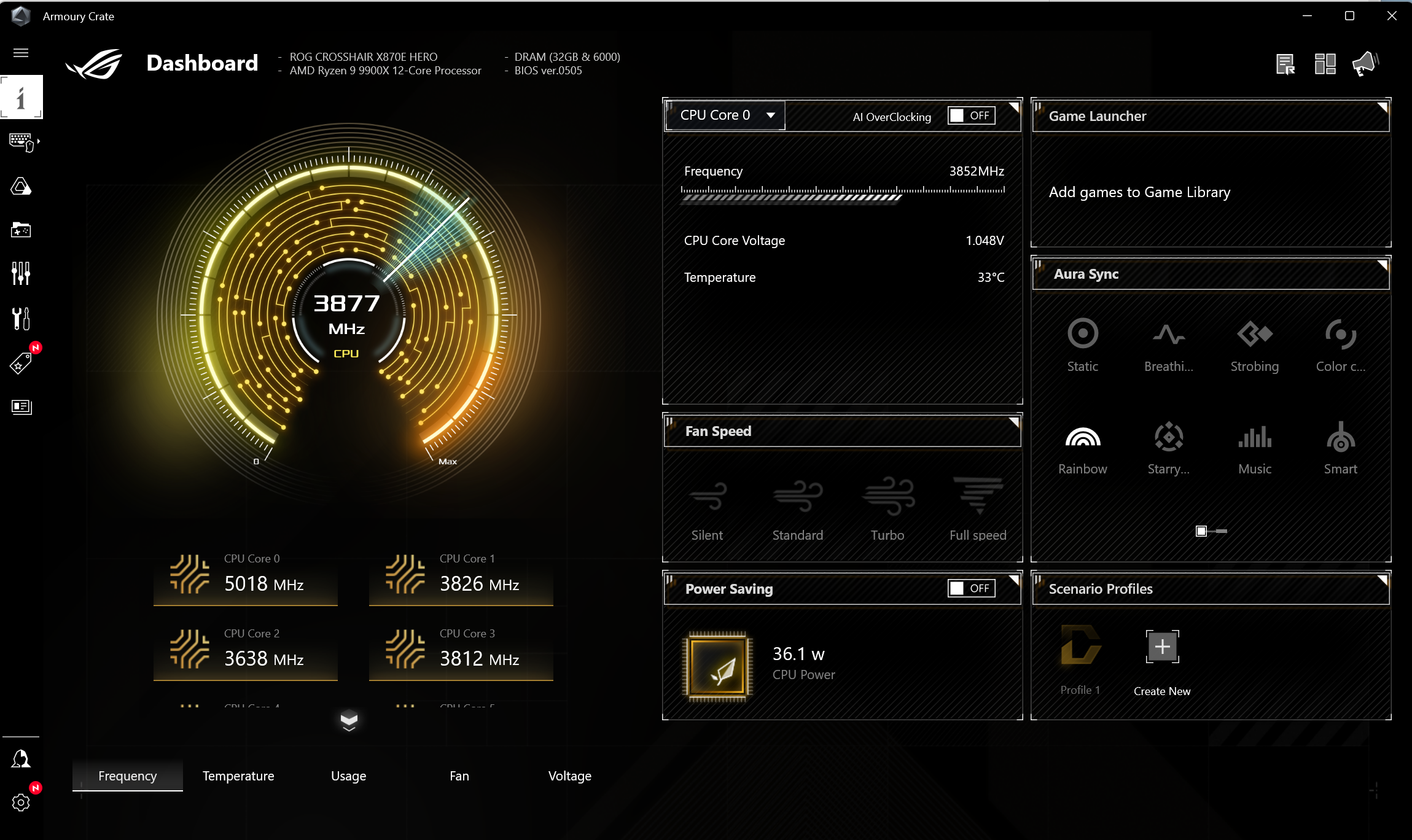

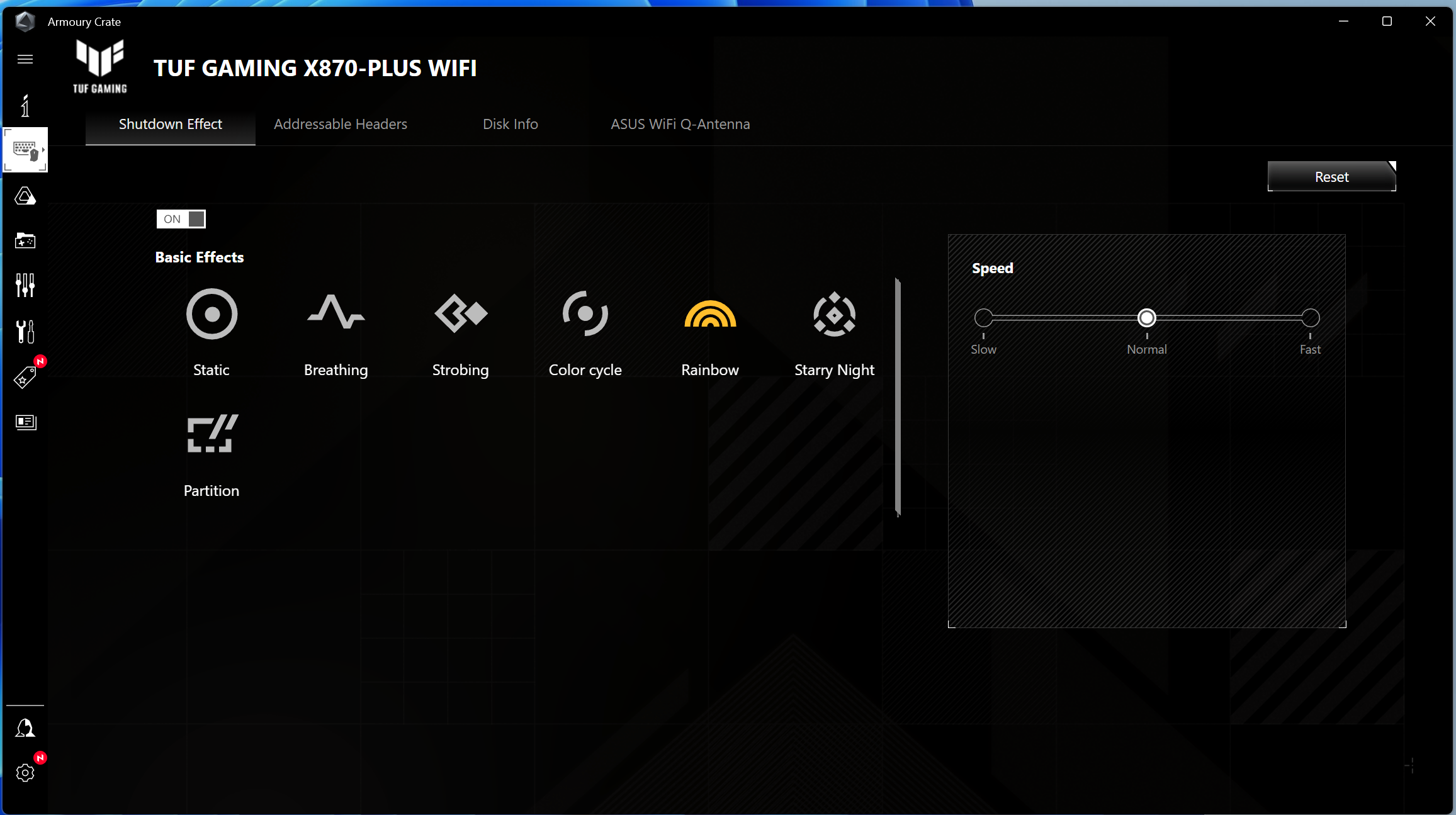

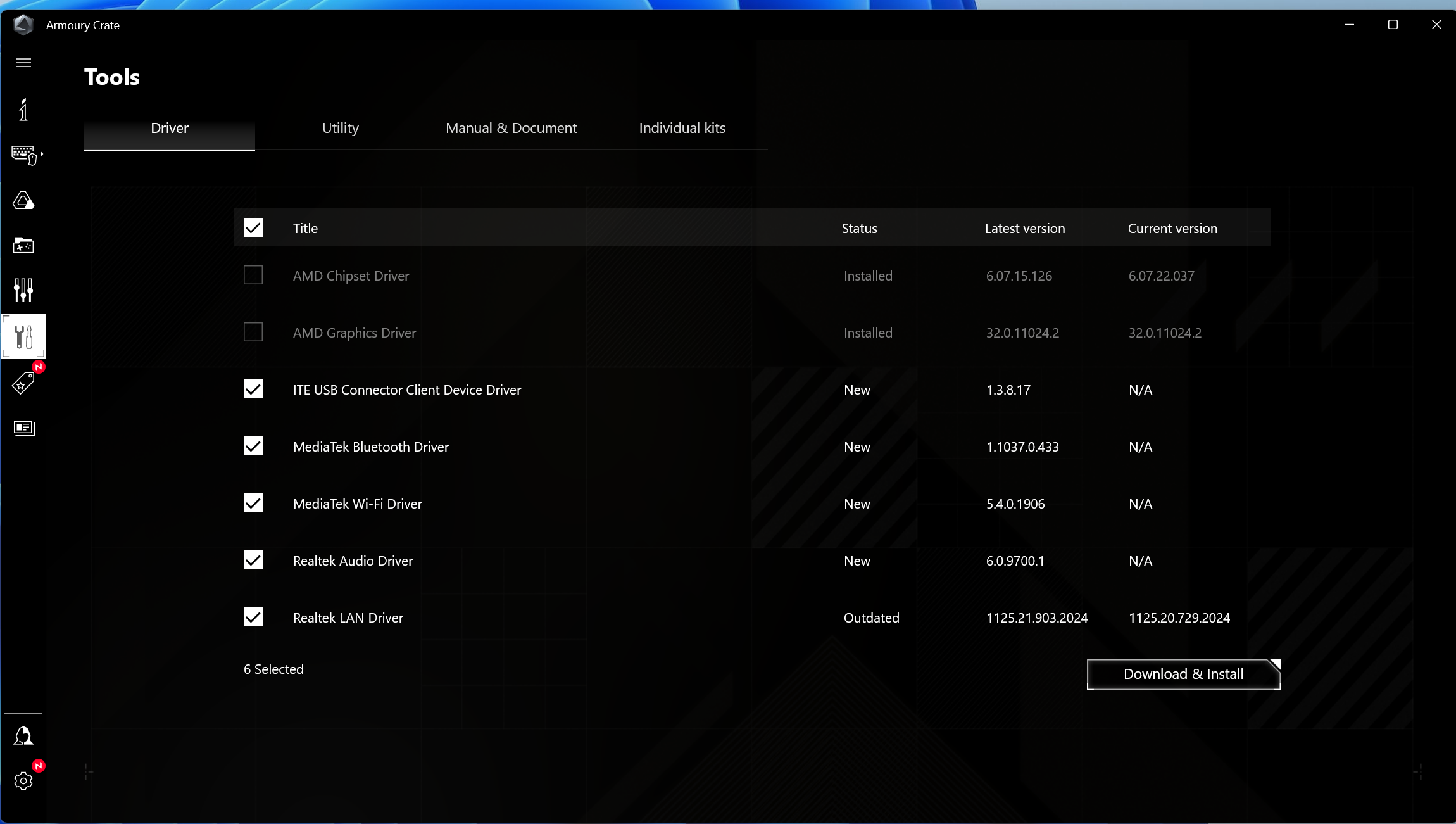

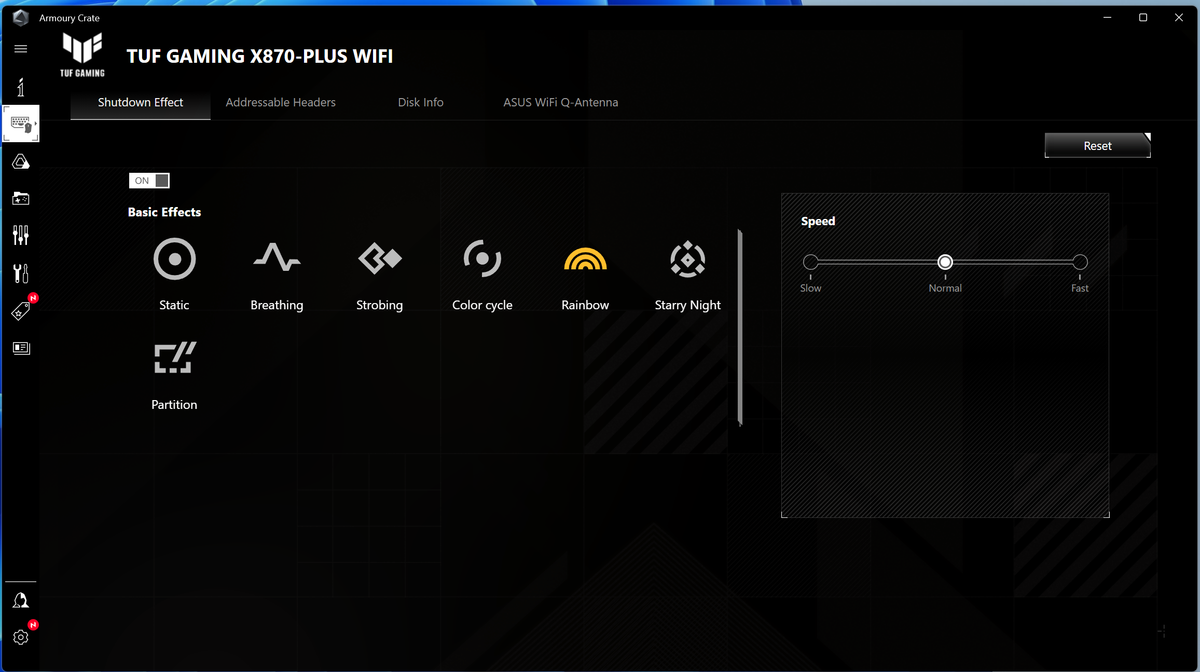

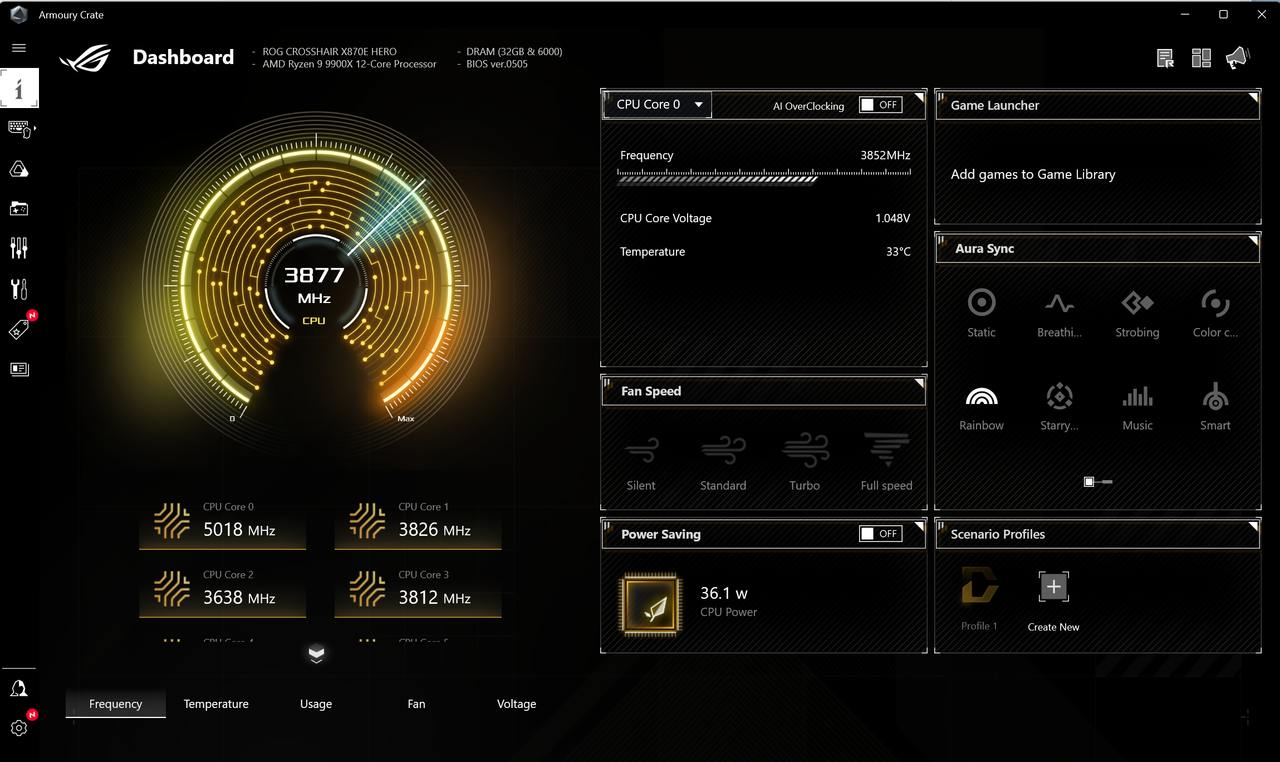

Armoury Crate for the X870E-E Gaming follows the ROG-inspired theme. Several applications exist for various functions, ranging from RGB lighting control, audio, system monitoring, and overclocking etc. It's also worth mentioning the included software. When purchasing Asus motherboards, you receive a sixty-day AIDA64 license - a useful application for stress and performance testing. Asus’ Driver Hub (get your updated drivers here!) and a custom version of Hwinfo for real-time monitoring are also helpful applications. We’ve captured a few screenshots of the applications below.

Image 1 of 4

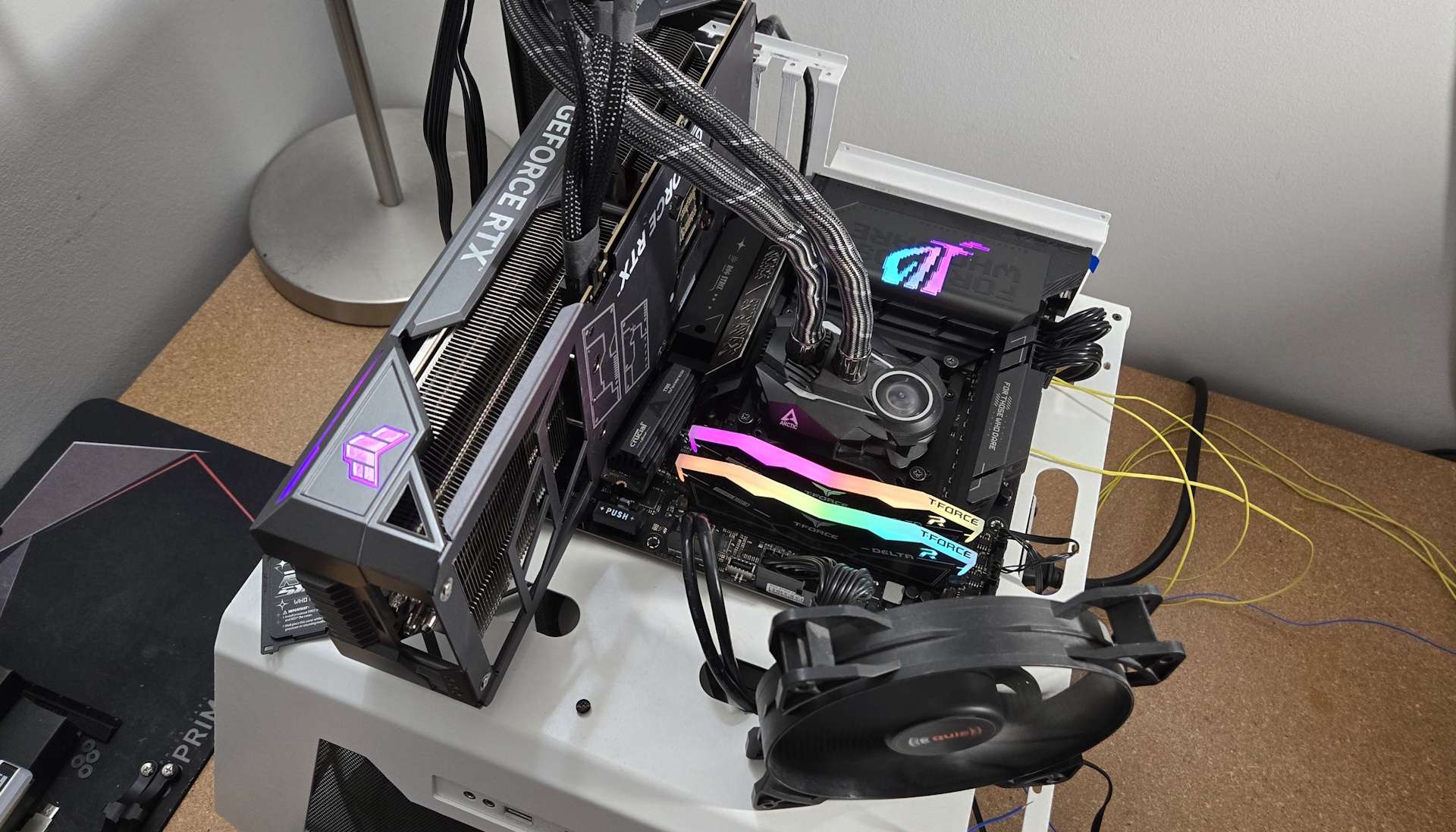

Test System / Comparison Products

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally

CPU	AMD Ryzen 9 9900X
Cooling	Arctic Liquid Freezer II 420
Storage	Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD
RAM	Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
RAM	Teamgroup T-Froce Delta DDR5-7200 CL34 (FF3D518G7200HC34ABK)
RAM	Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)
GPU	Asus TUF RTX 4080 16G
PSU	EVGA Supernova 850W P6
Software	Windows 11 64-bit (23H2 - 22631.4169)
Display Driver	NVIDIA Driver 561.09
Sound	Integrated HD audio
Network	Integrated Networking (GbE to 10 GbE)
Graphics Driver	GeForce 561.09

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings	Row 0 - Cell 1
Procyon	Version 2.8.1352 64
Row 2 - Cell 0	Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)
3DMark	Version 2.29.8294.0 64
Row 4 - Cell 0	Speed Way and Steel Nomad (Default)
Cinebench R24	Version 2024.1.0
Row 6 - Cell 0	Open GL Rendering Benchmark - Single and Multi-threaded
Blender	Version 4.2.0
Row 8 - Cell 0	Full benchmark (all 3 tests)
Application Tests and Settings	Row 9 - Cell 1
LAME MP3	Version SSE2_2019
Row 11 - Cell 0	Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLI	Version: 1.8.2
Row 13 - Cell 0	Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4	Version 1.4
Row 15 - Cell 0	Custom benchmark
7-Zip	Version 24.08
Row 17 - Cell 0	Integrated benchmark (Command Line)
Game Tests and Settings	Row 18 - Cell 1
Cyberpunk 2077	Ultra RT: - 1920 x 1080, DLSS - Balanced.
F1 2024	Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON
