Cross-Load Tests & Infrared Images
Our cross-load tests are described in detail here.

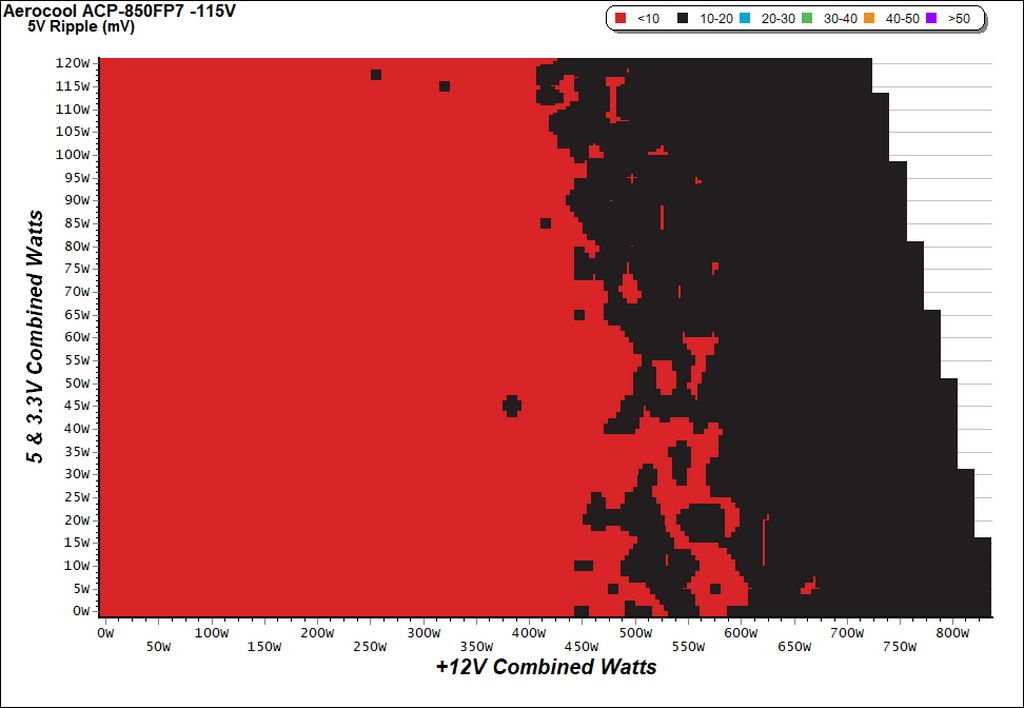

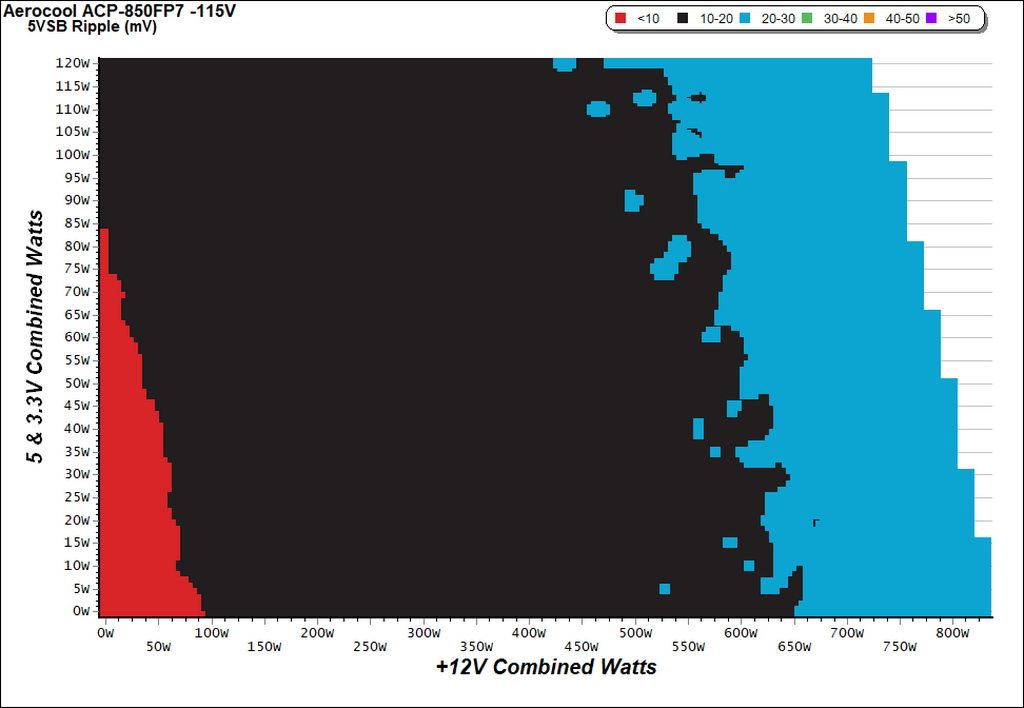

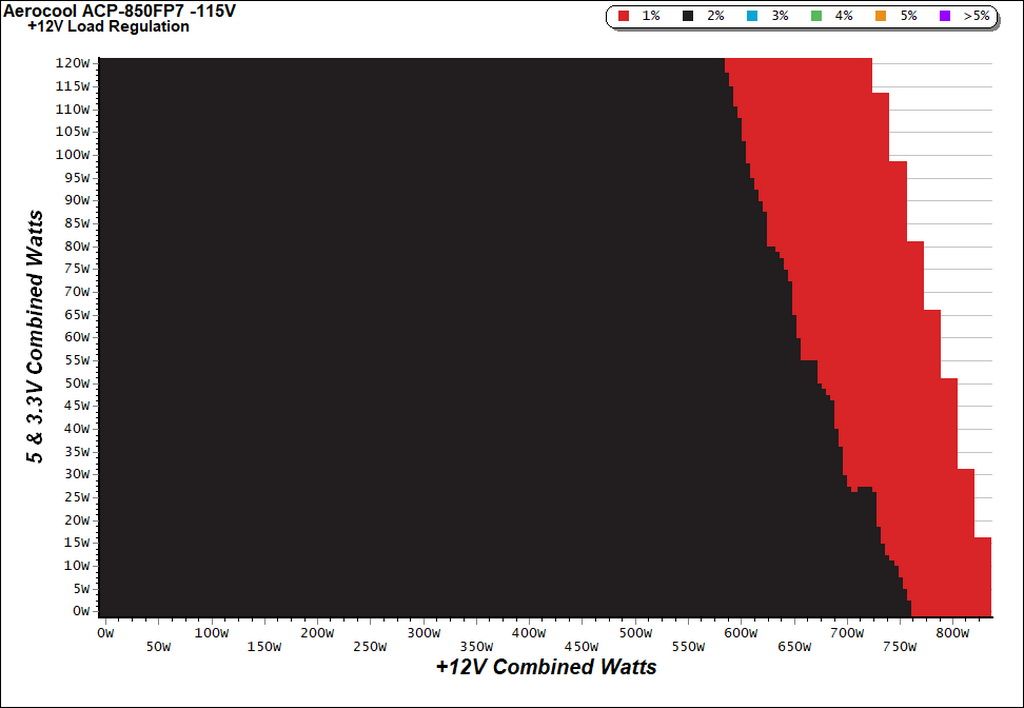

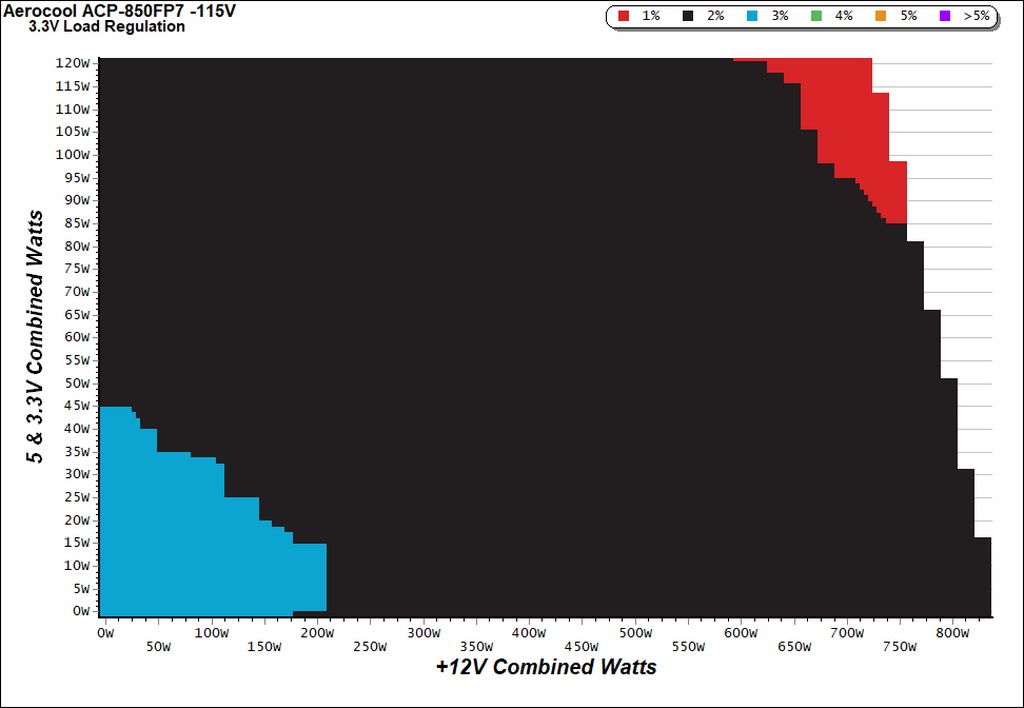

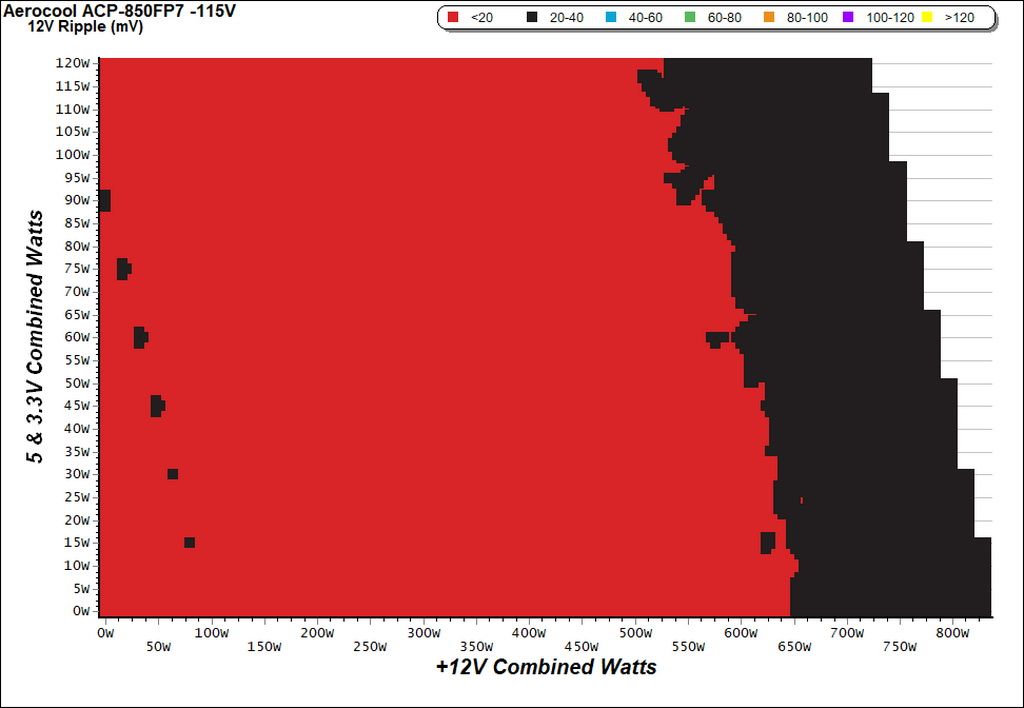

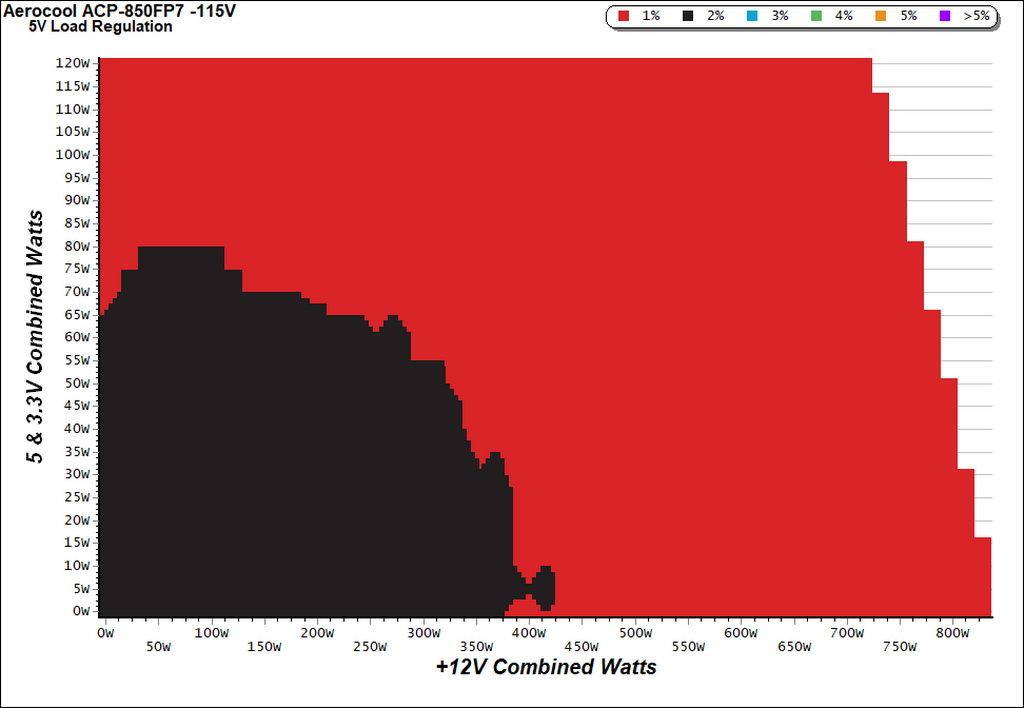

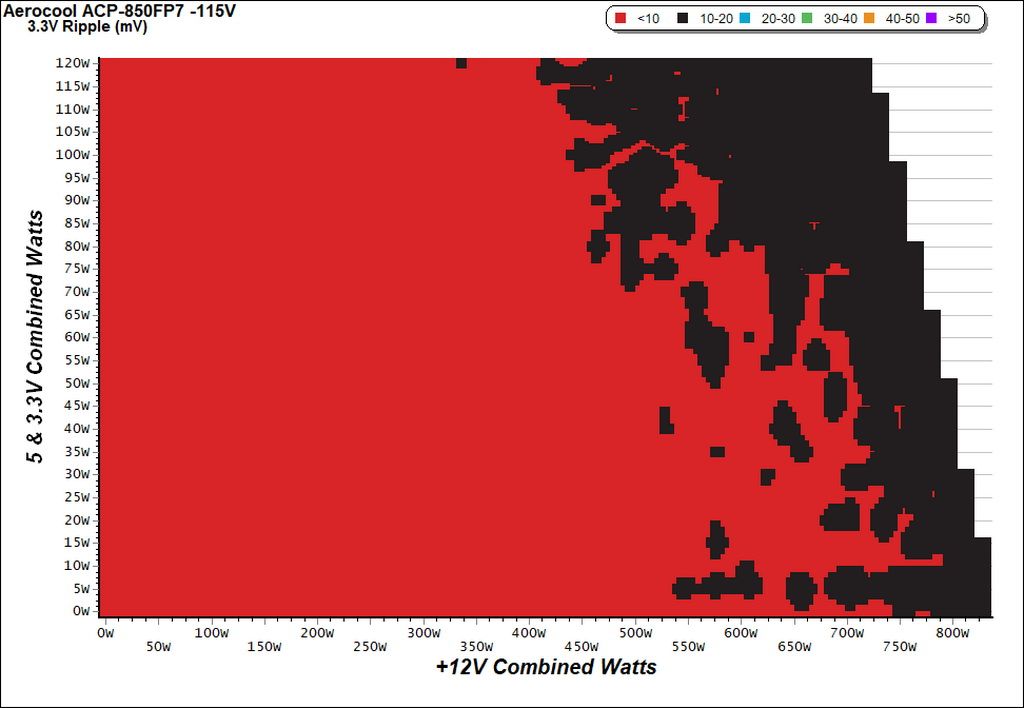

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V and 3.3V rails. The load regulation deviations in each of the charts below were calculated by taking the nominal values of the rails (12V, 5V and 3.3V) as point zero. The ambient temperature was between at 30°C (86°F) to 32°C (89.6°F).
Load Regulation Charts
The ACP-850FP7 achieves high efficiency, as you can see in our graph. From around 130W to 430W (and with up to 70W on the minor rails), we see efficiency levels between 92 and 94%.

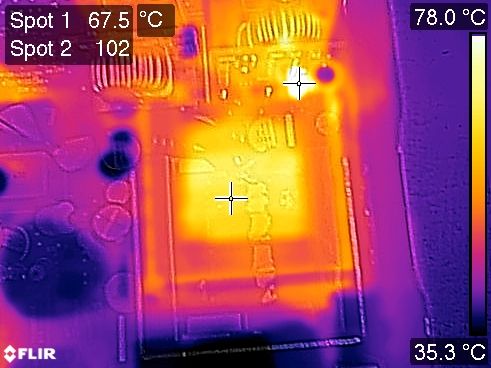

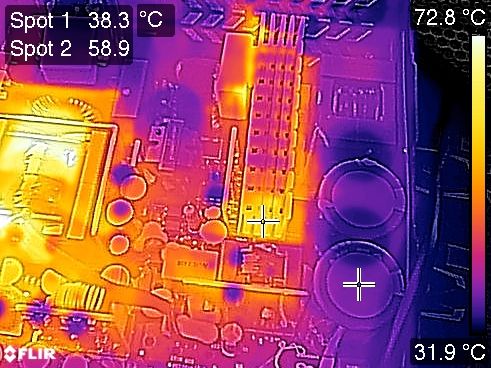

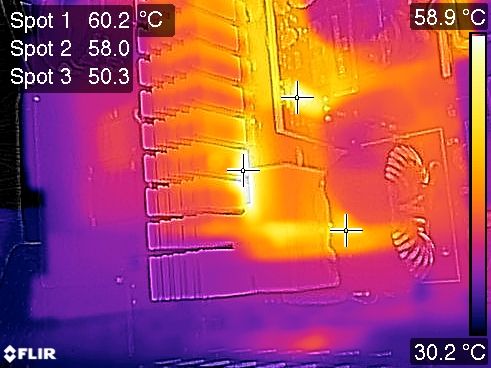

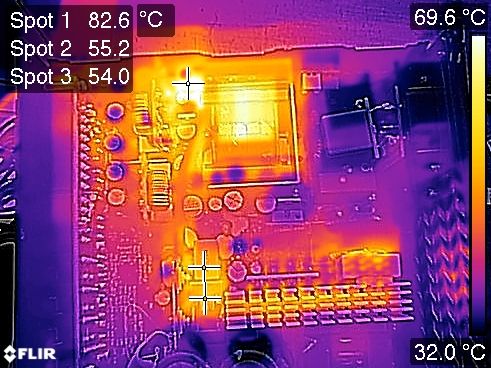

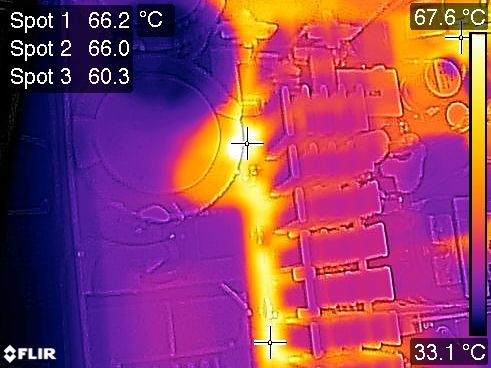

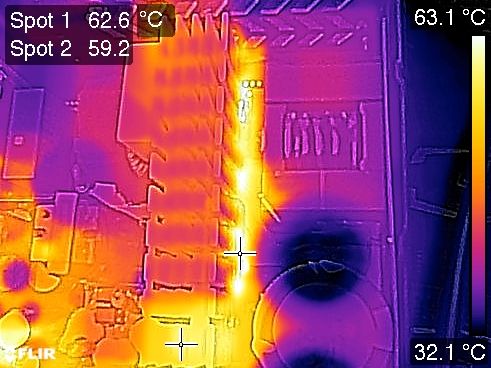

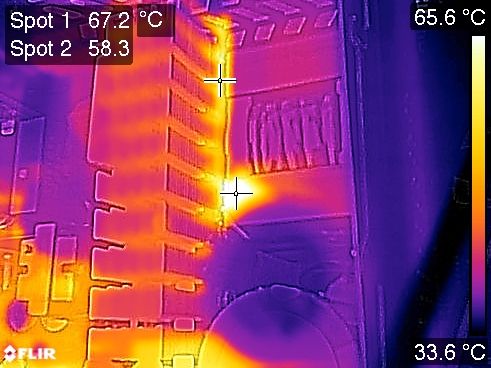

We applied half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).

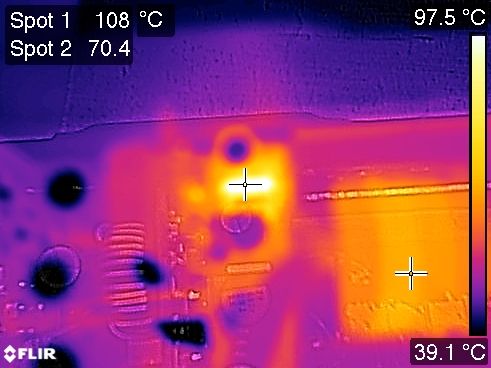

The temperatures inside of Aerocool's ACP-850FP7 are generally low. Only the -12V regulator exceeds 100°C.
