ASRock Z590 Taichi Review: Cogs Aplenty

Fully-featured and updated with unique moving cogs

ASRock Z590 Taichi
(Image: © ASRock)

Firmware

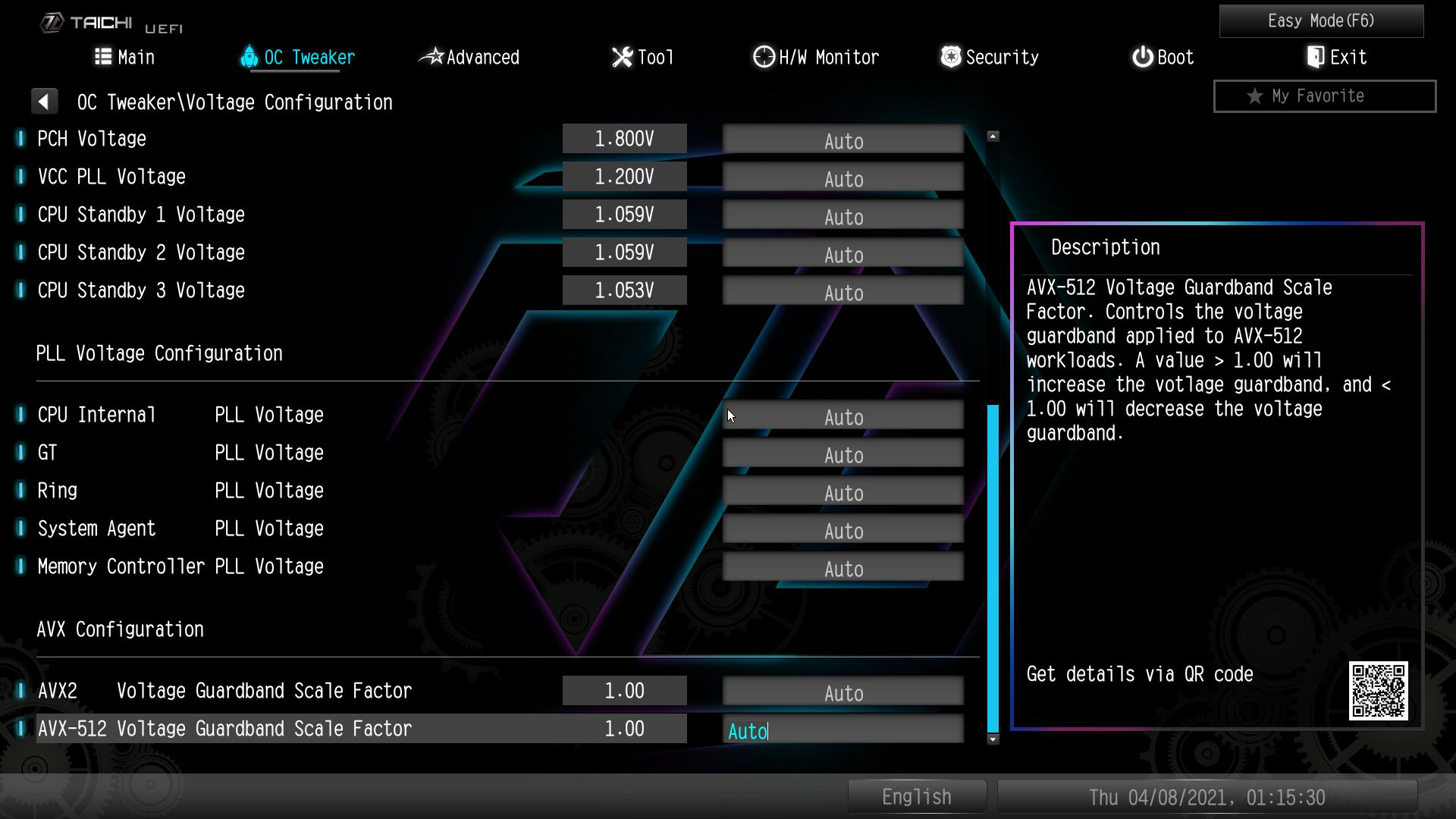

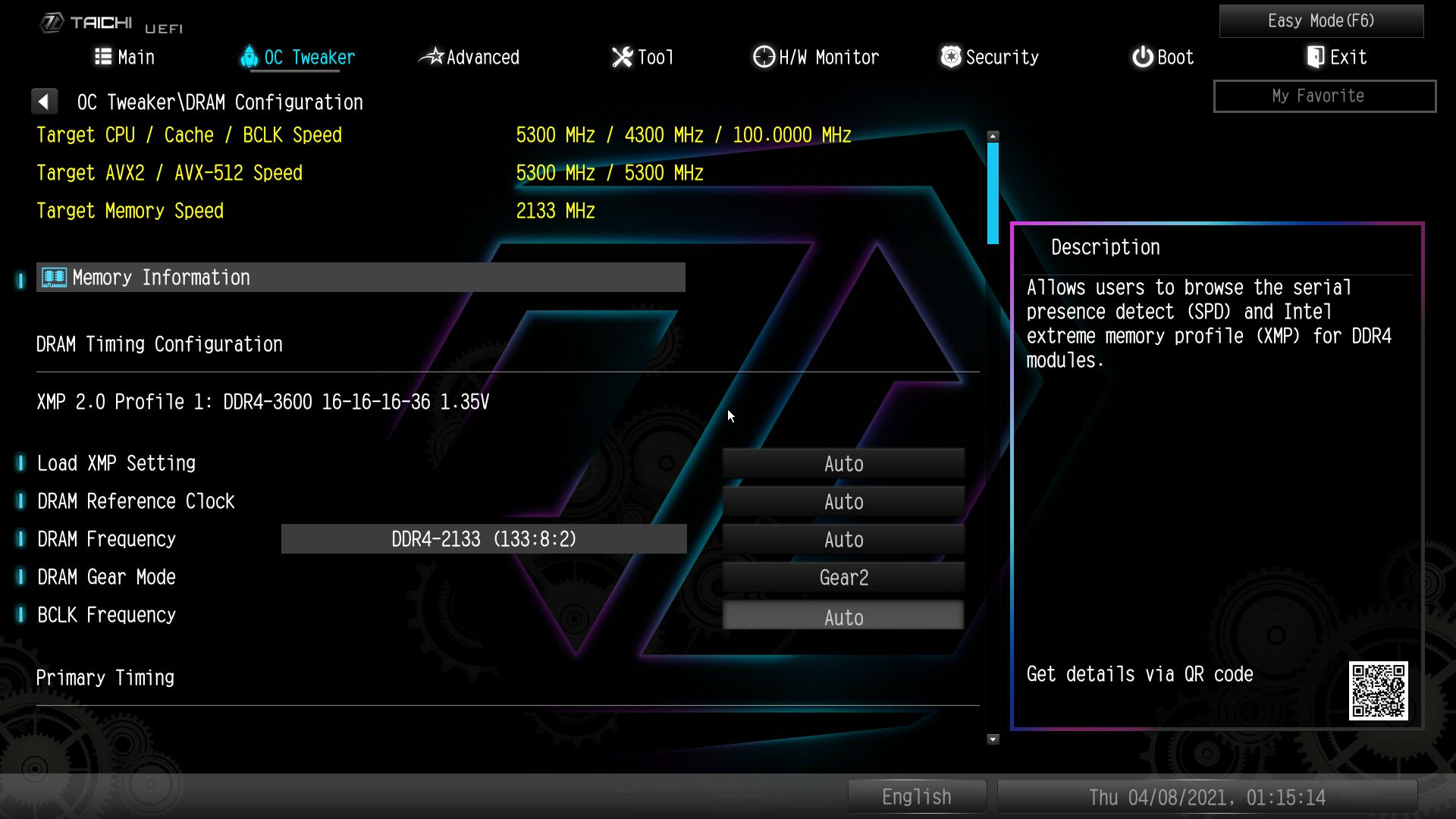

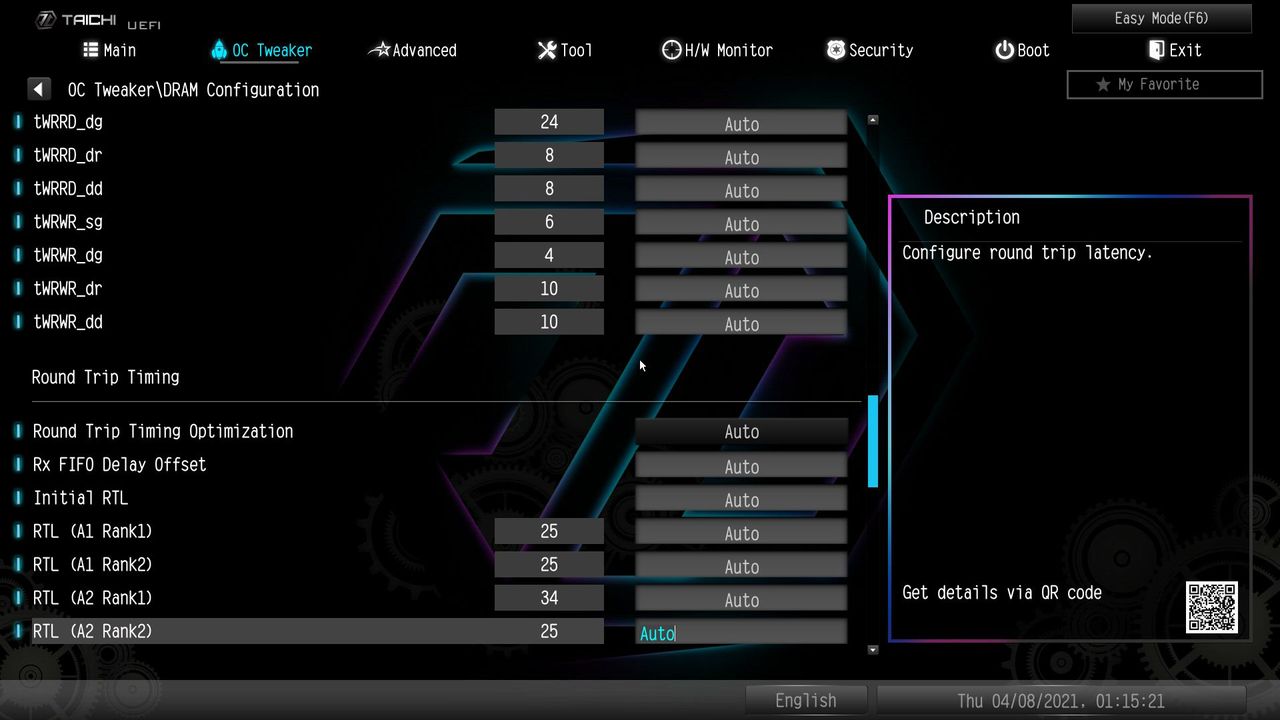

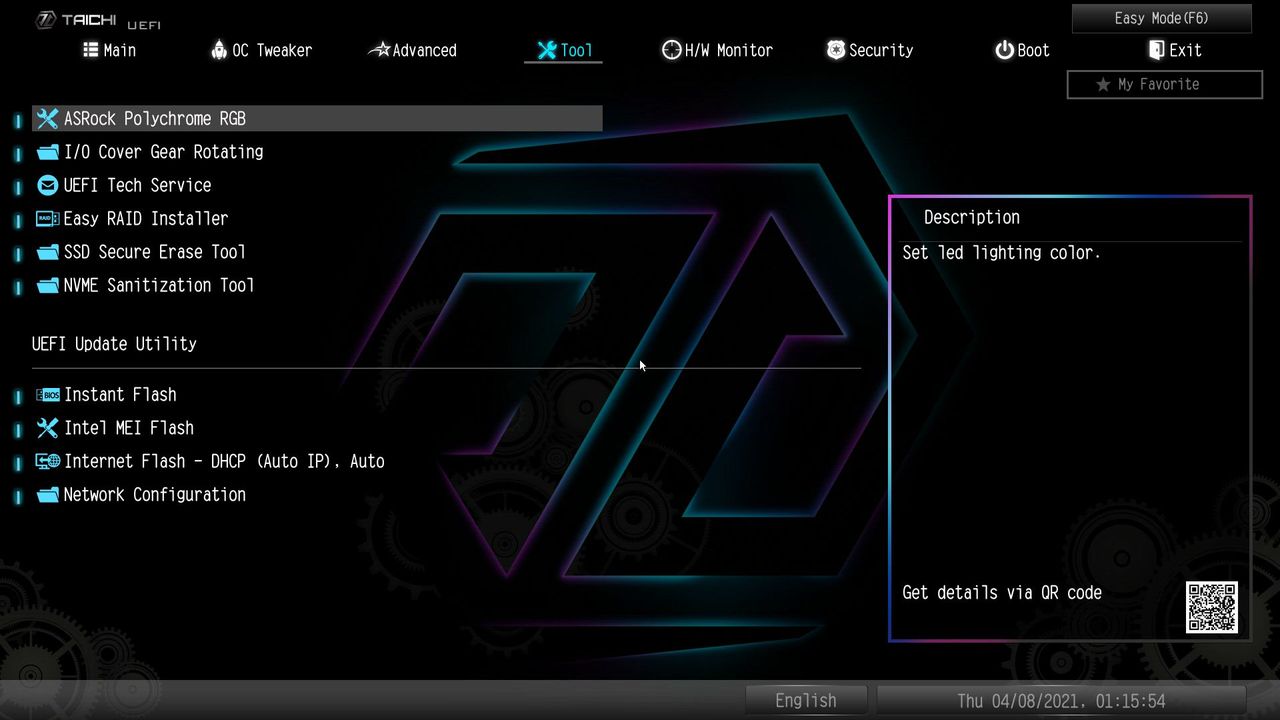

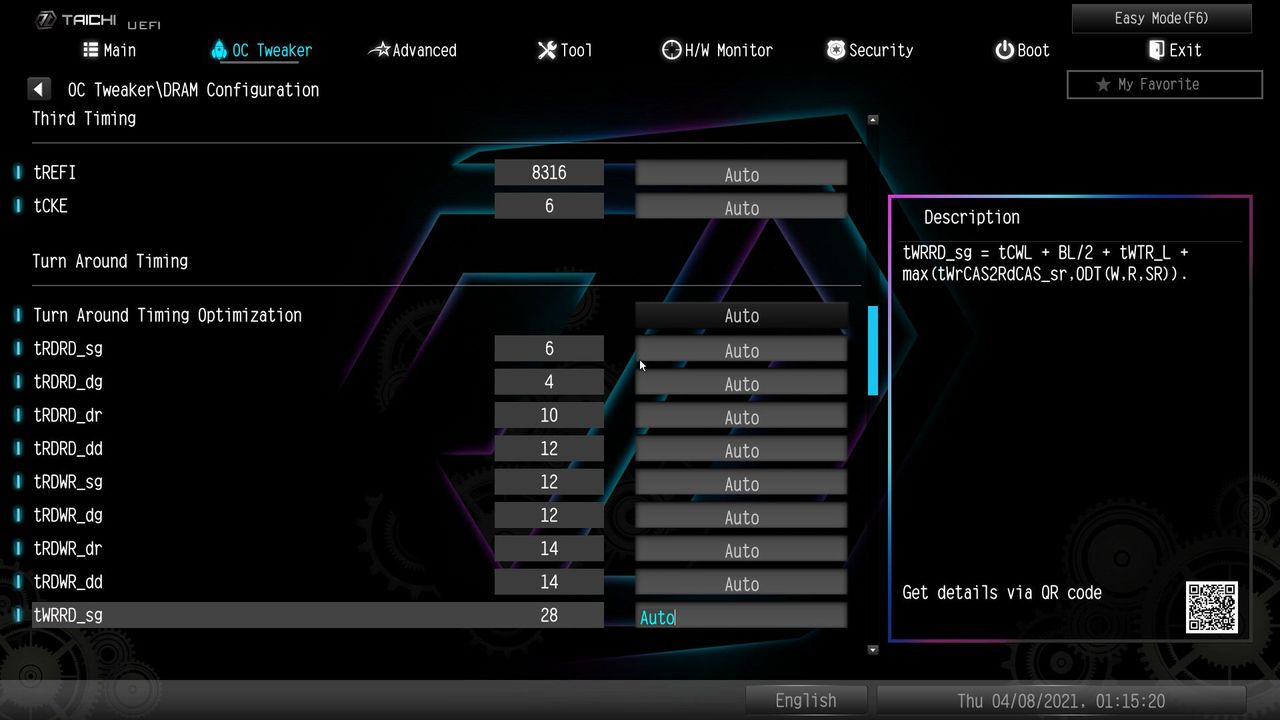

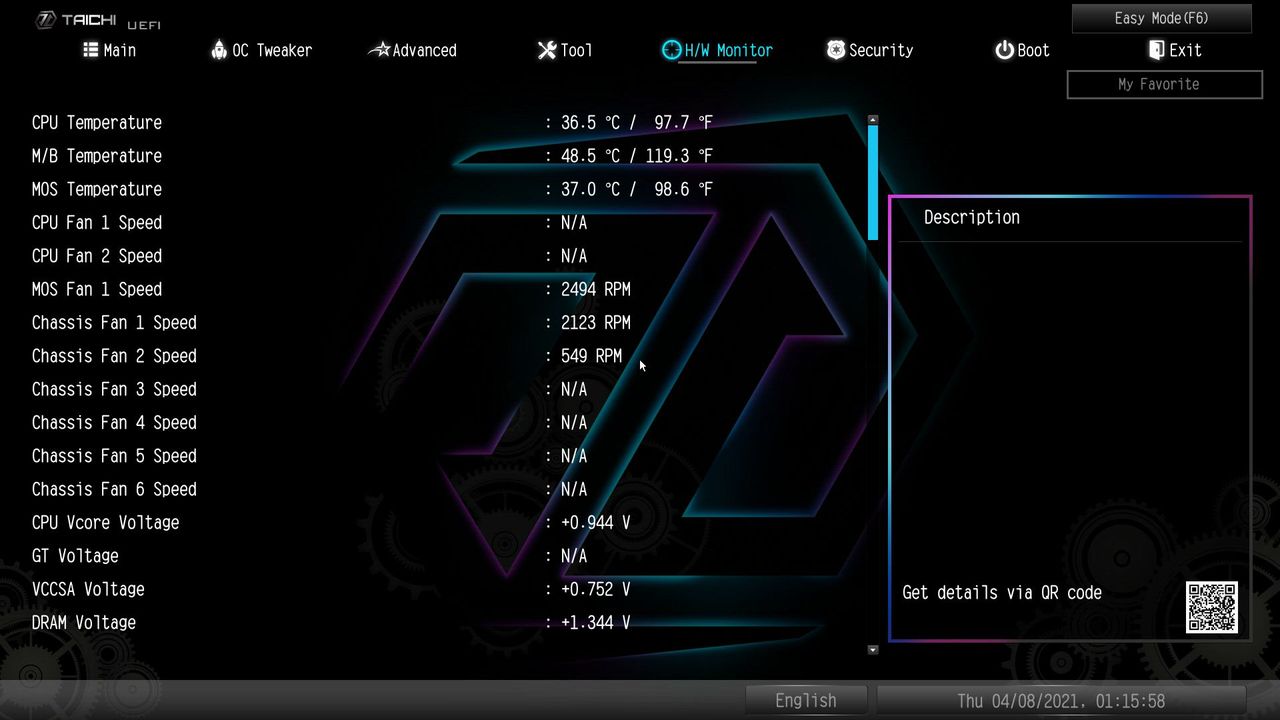

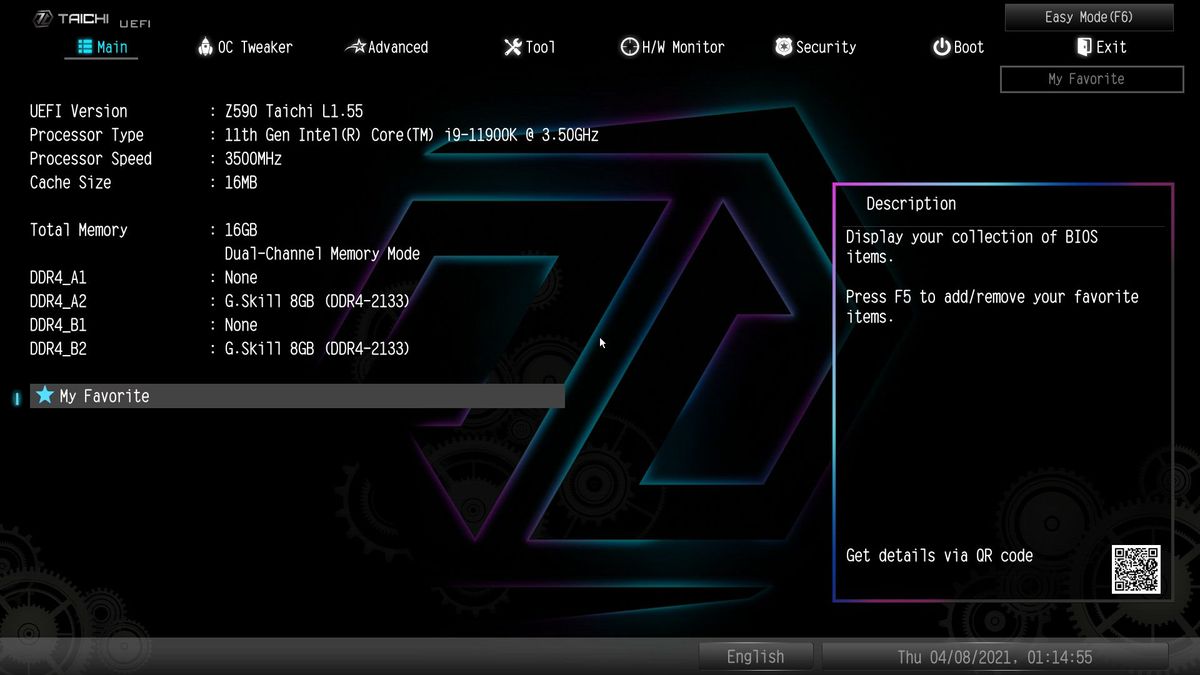

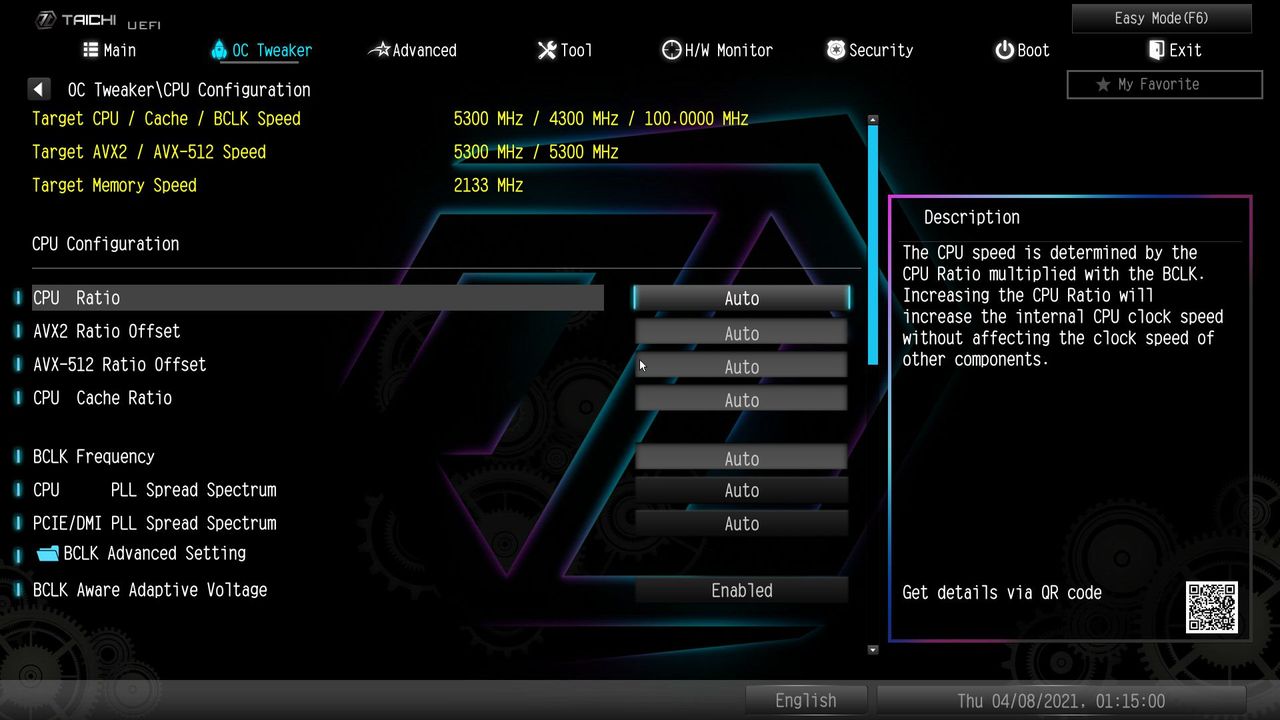

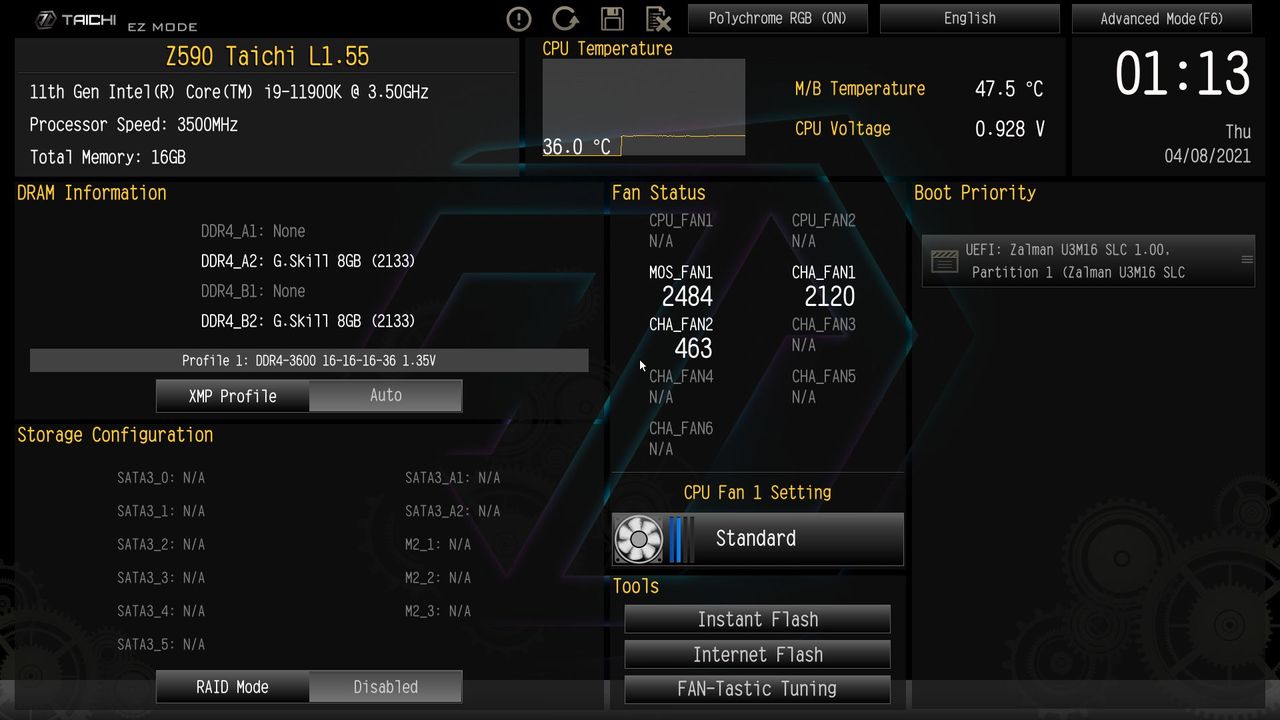

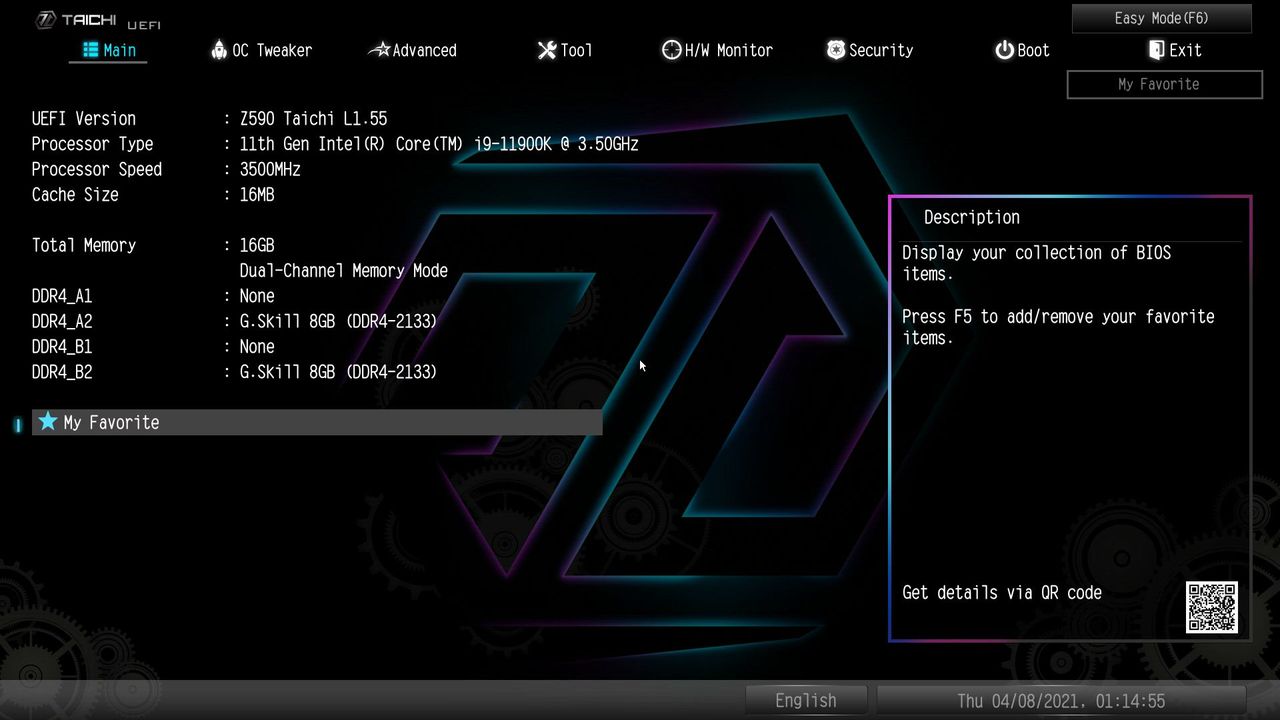

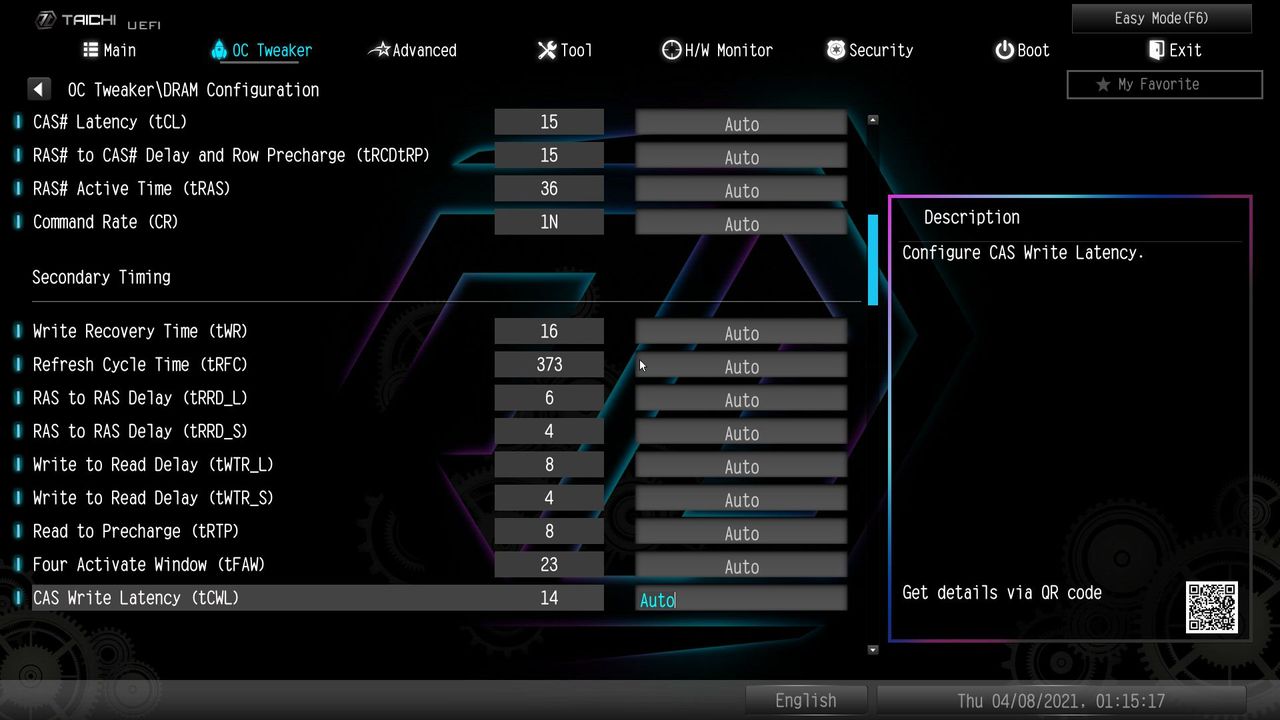

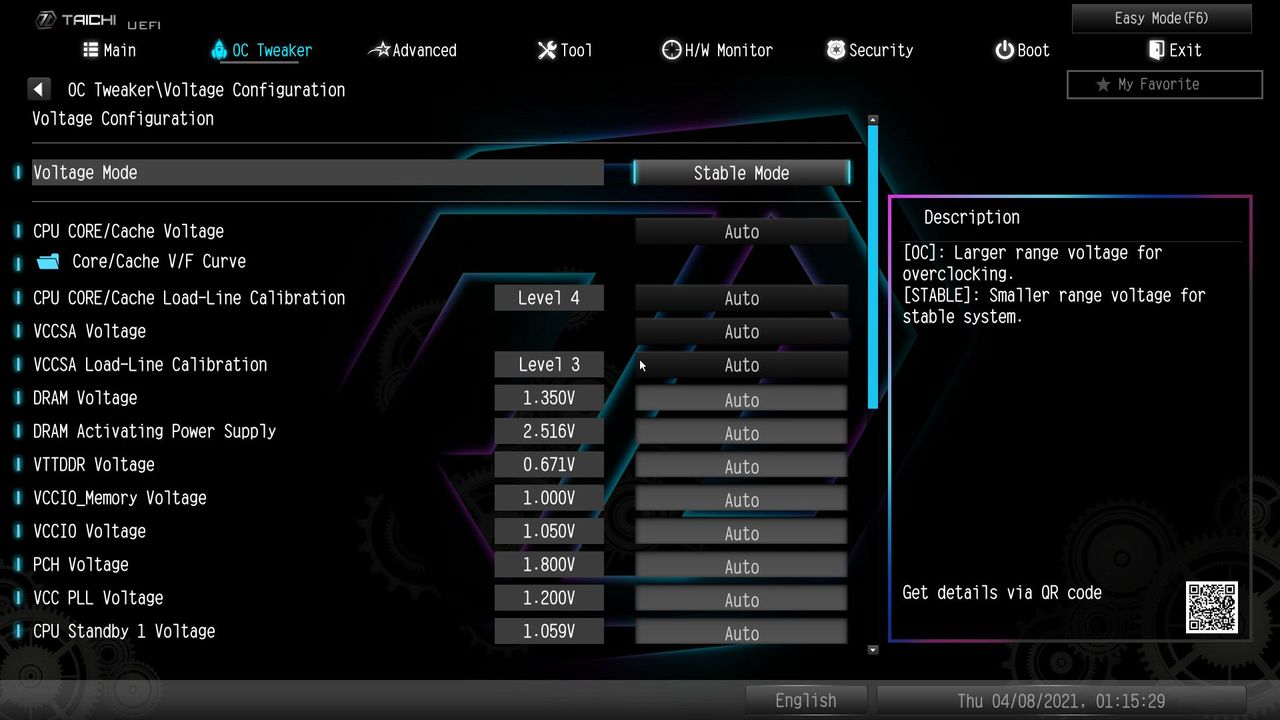

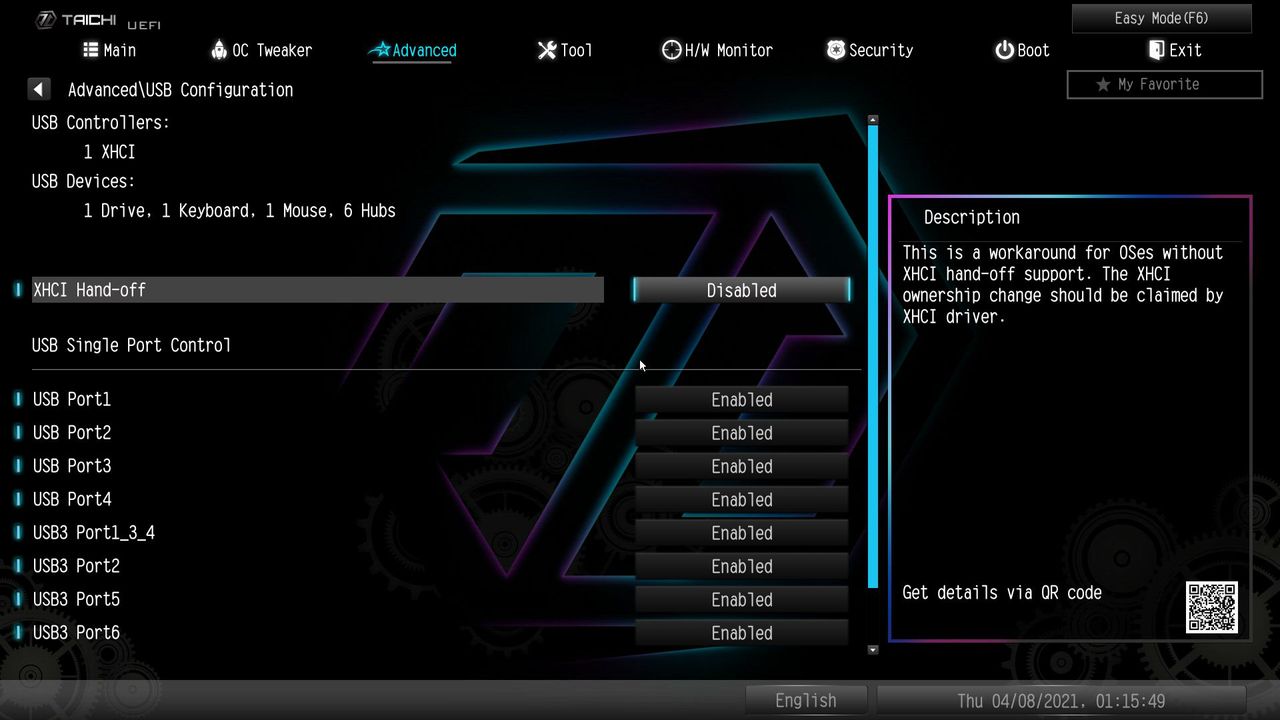

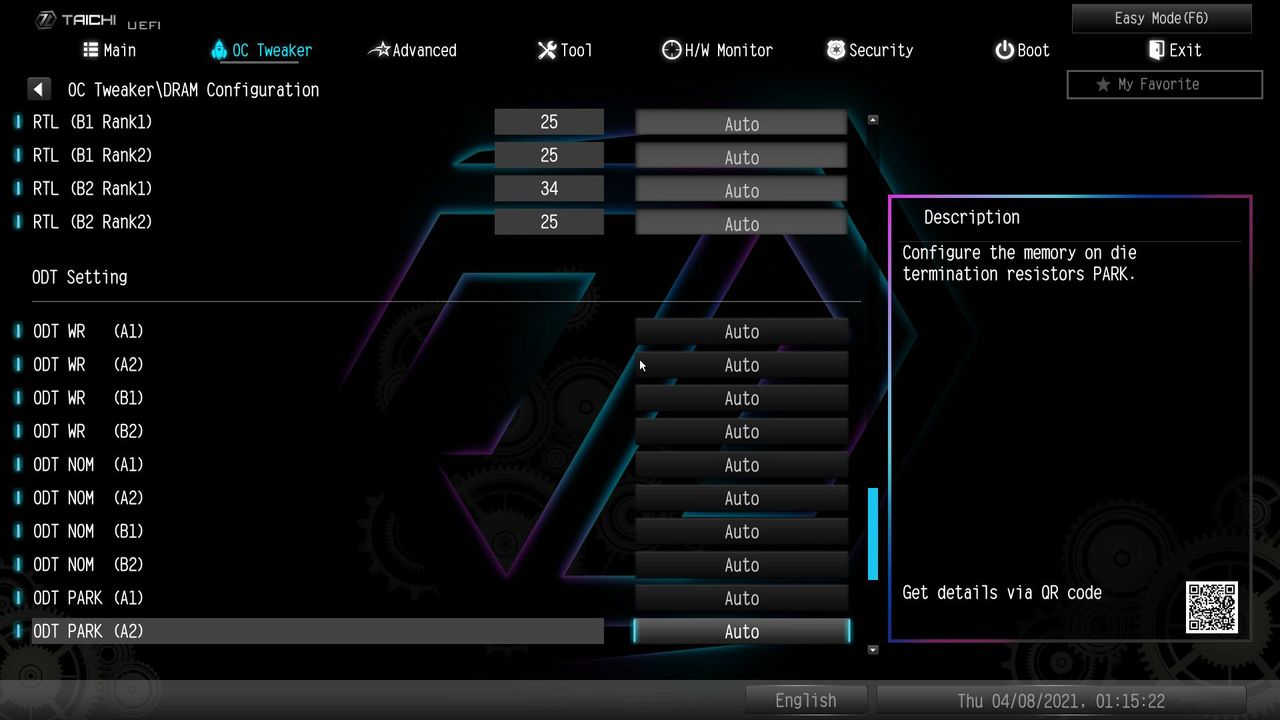

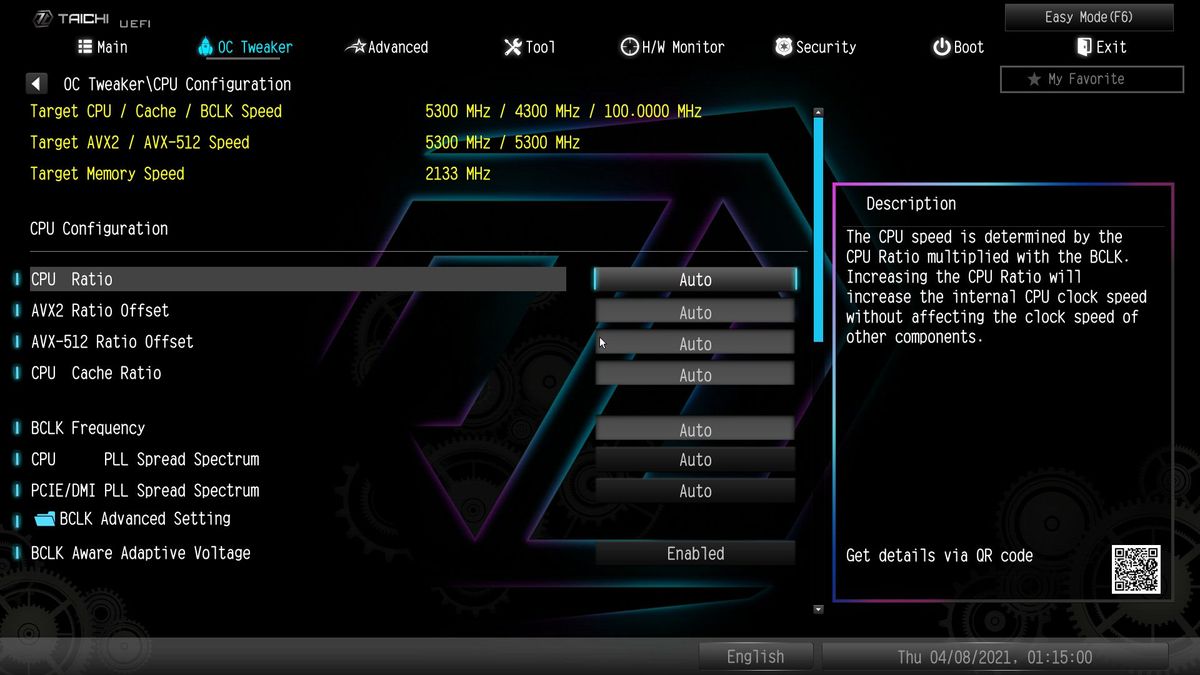

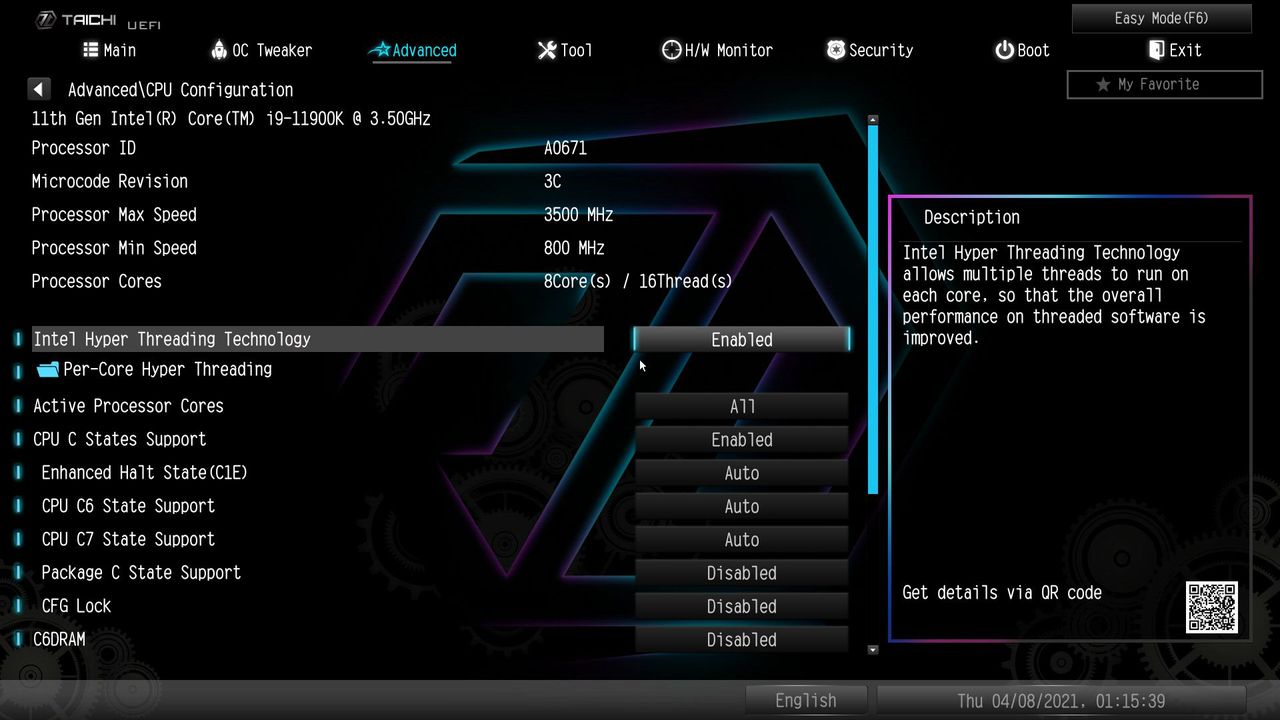

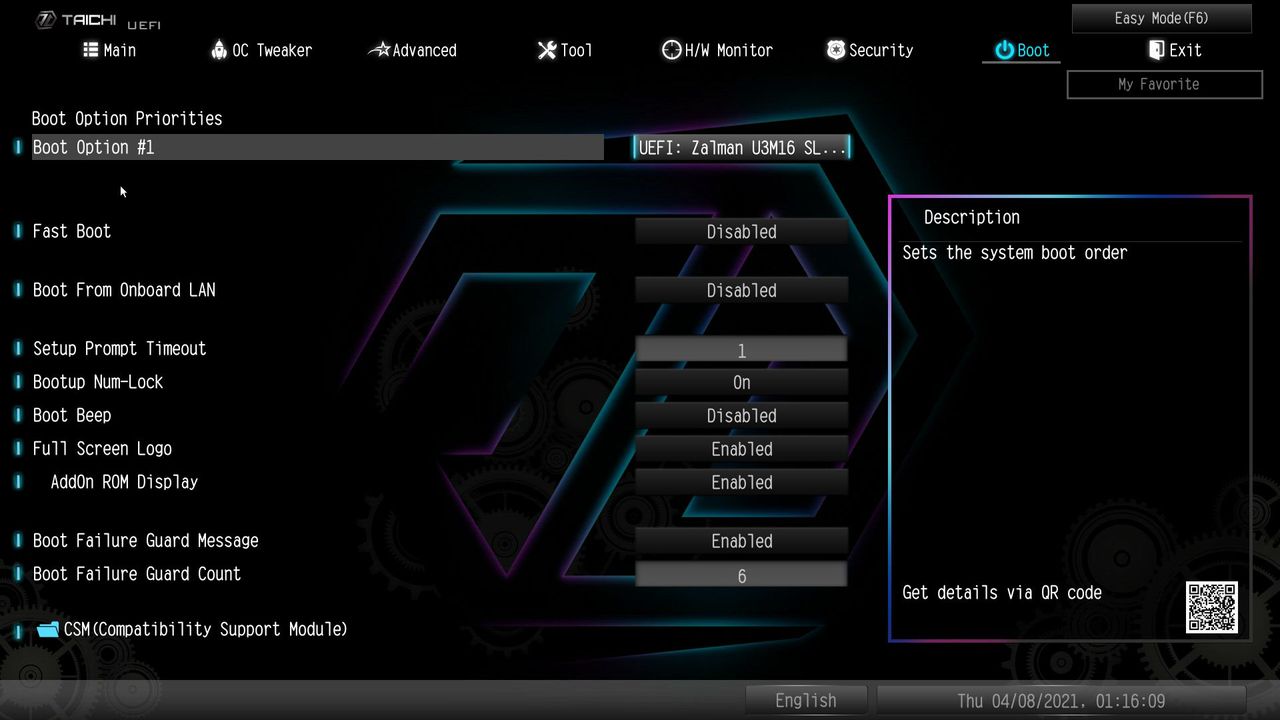

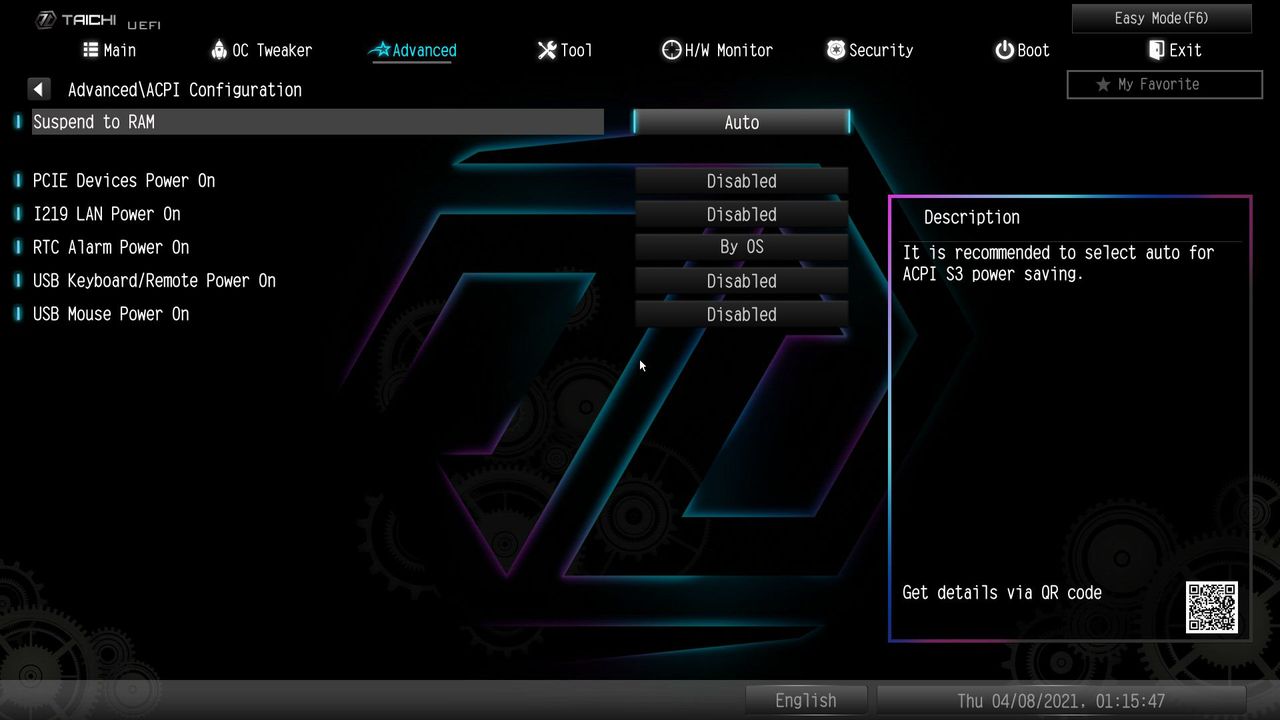

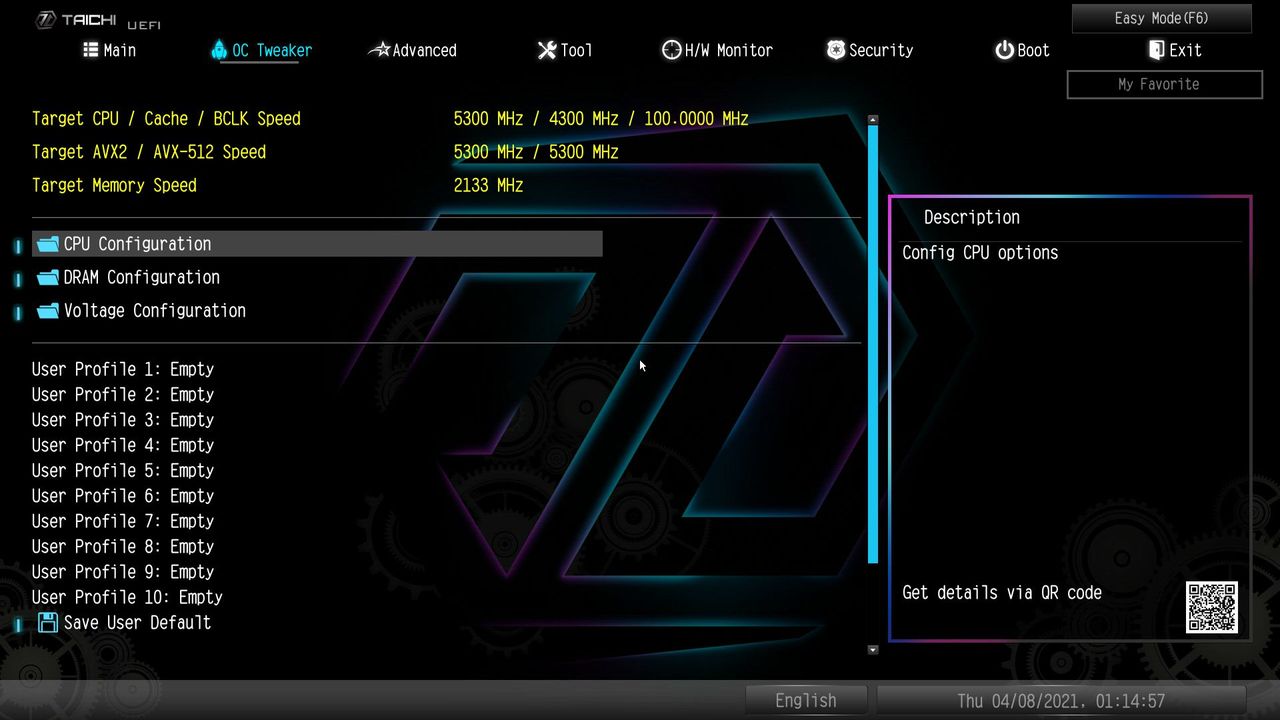

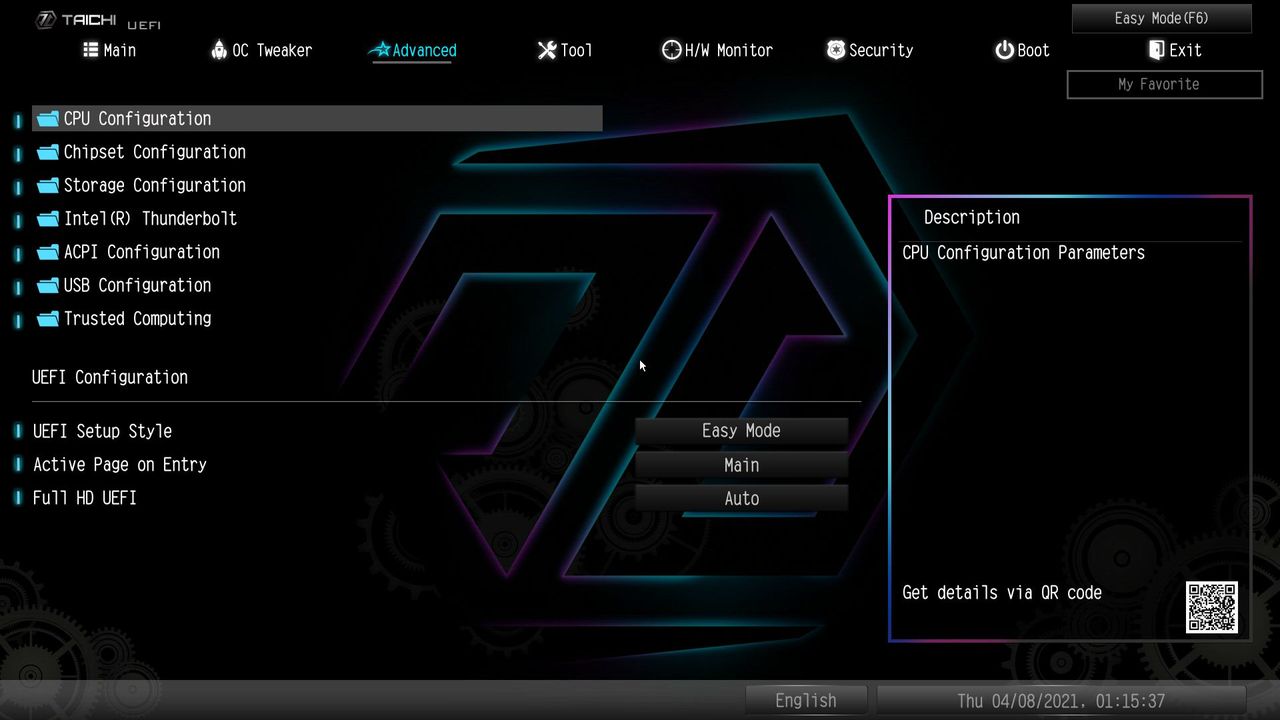

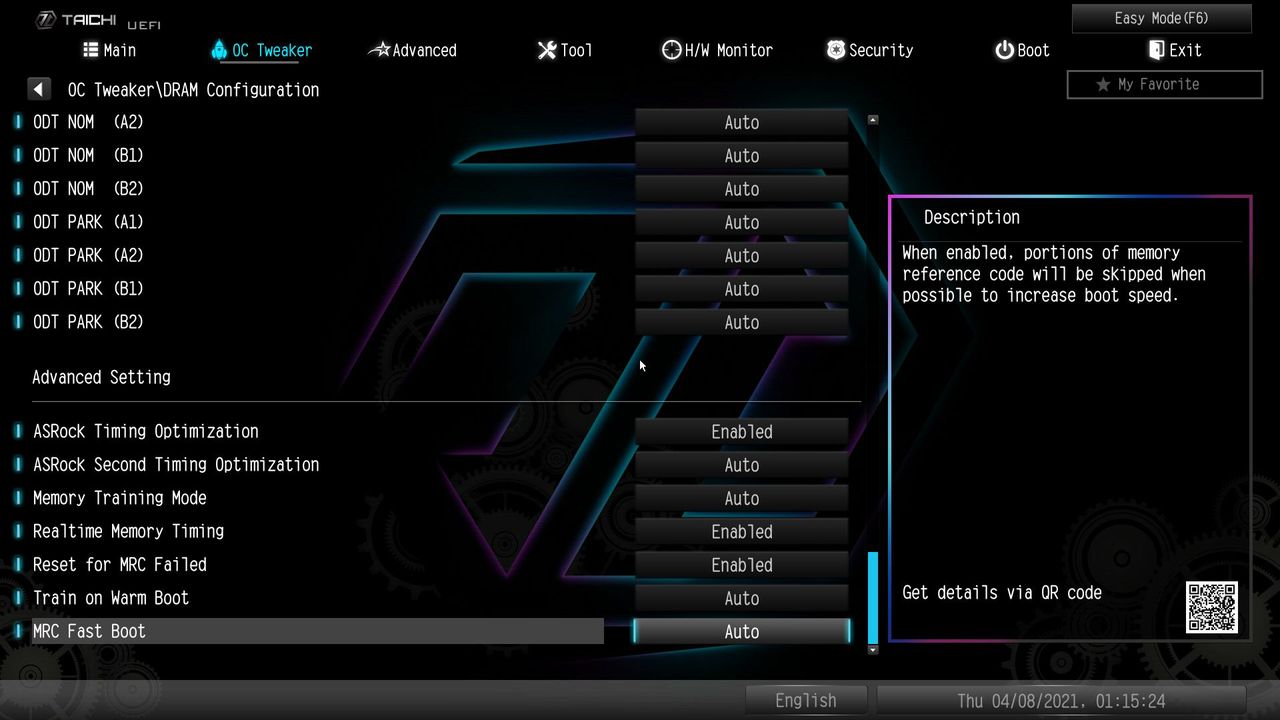

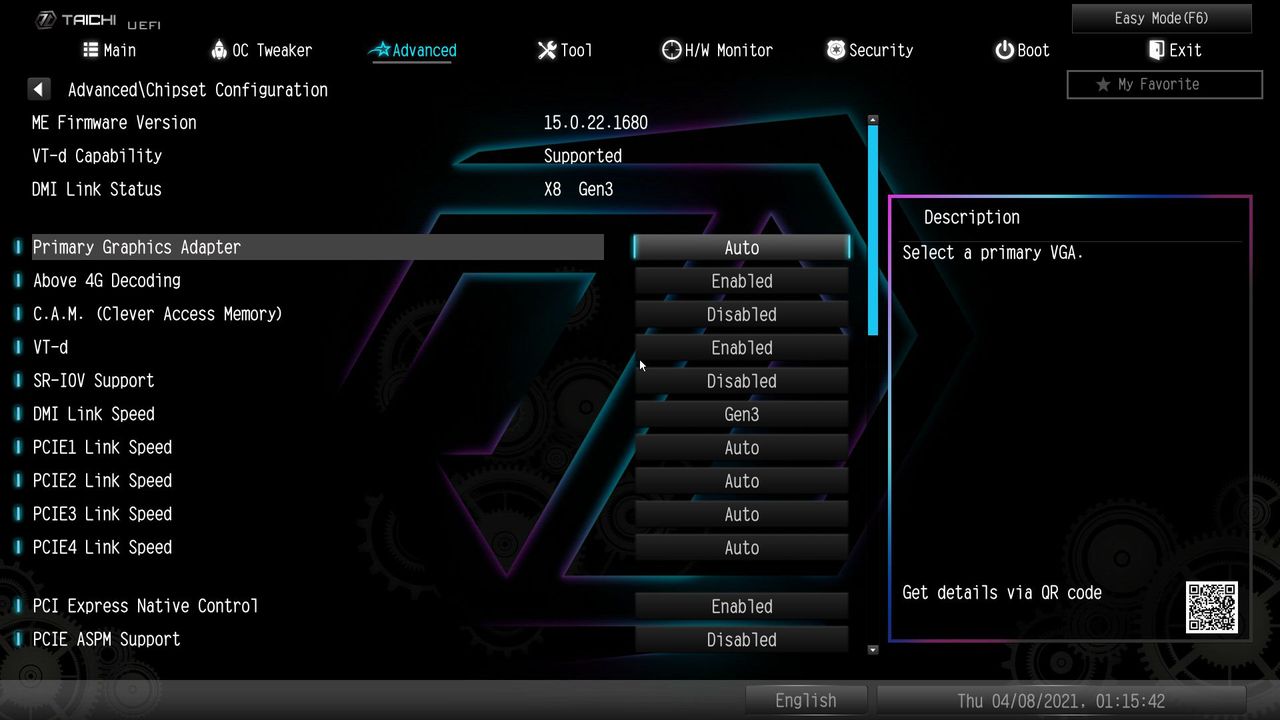

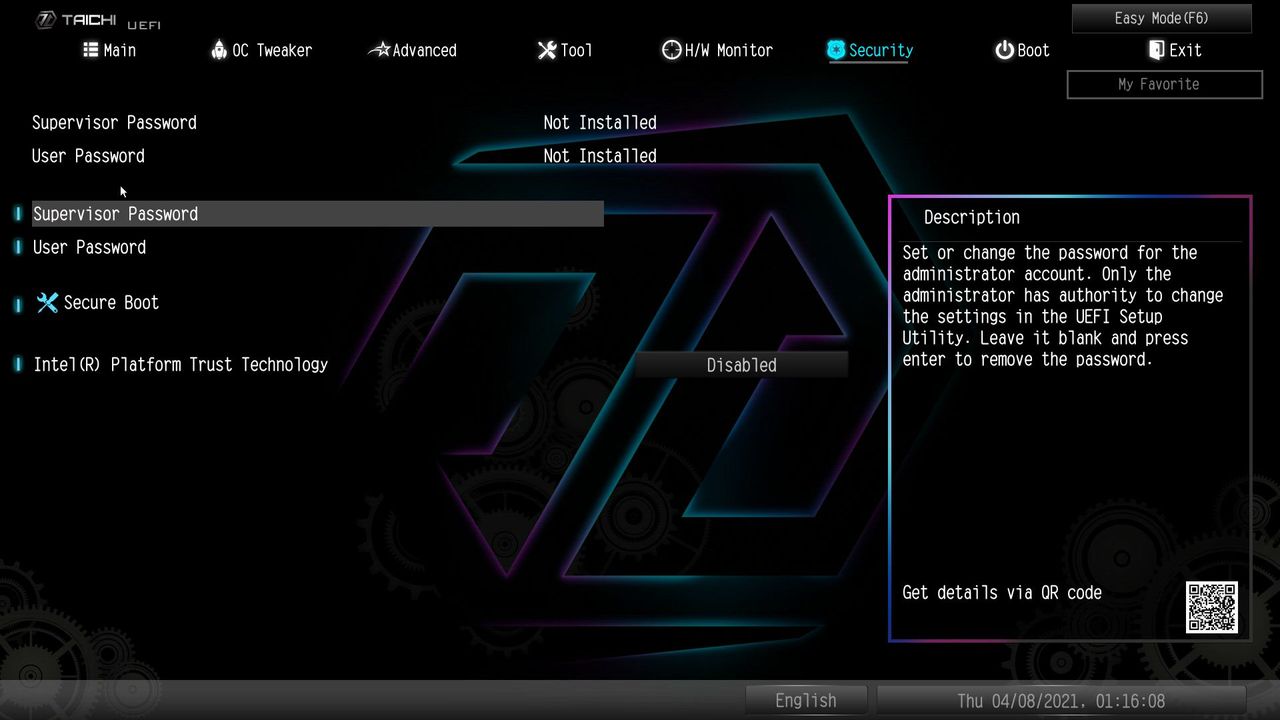

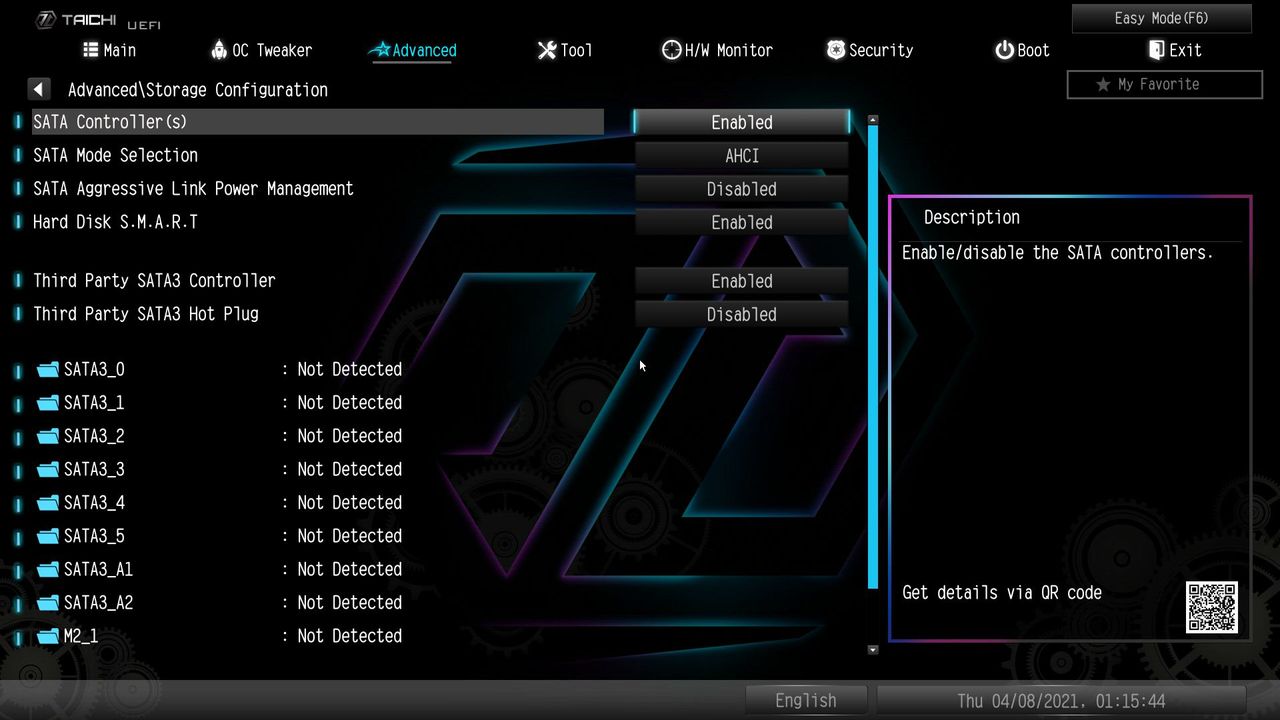

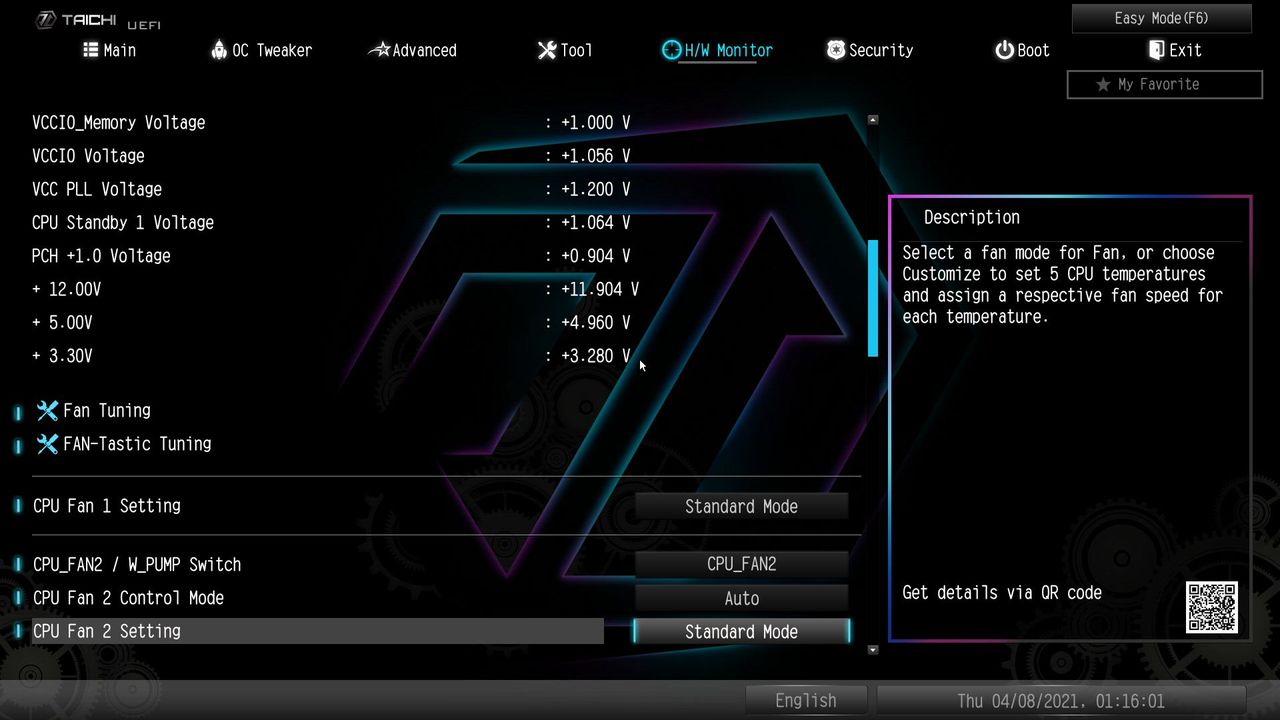

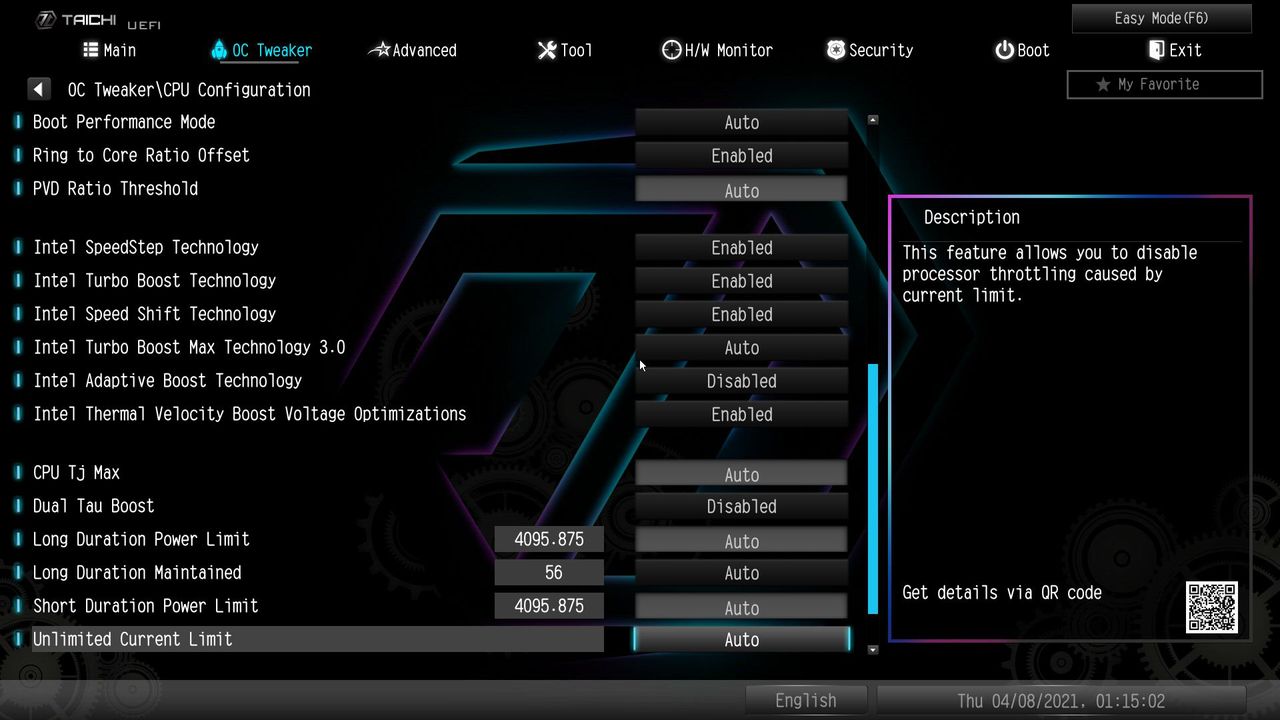

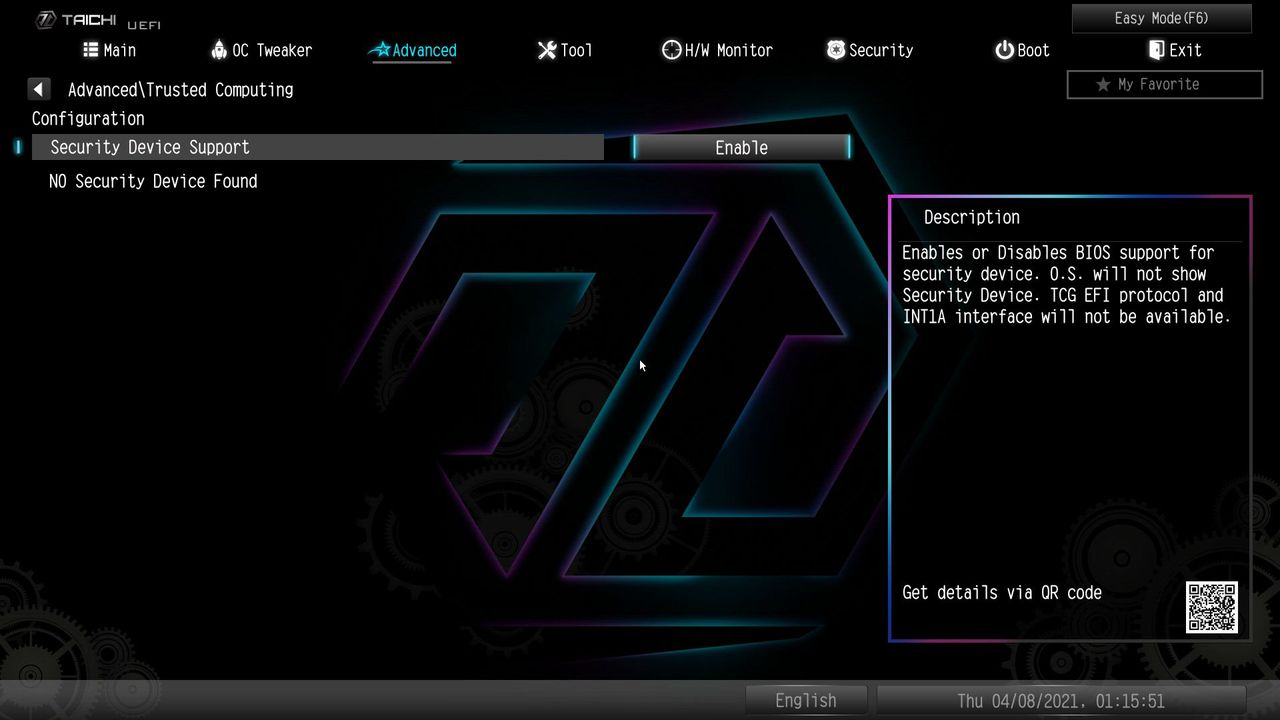

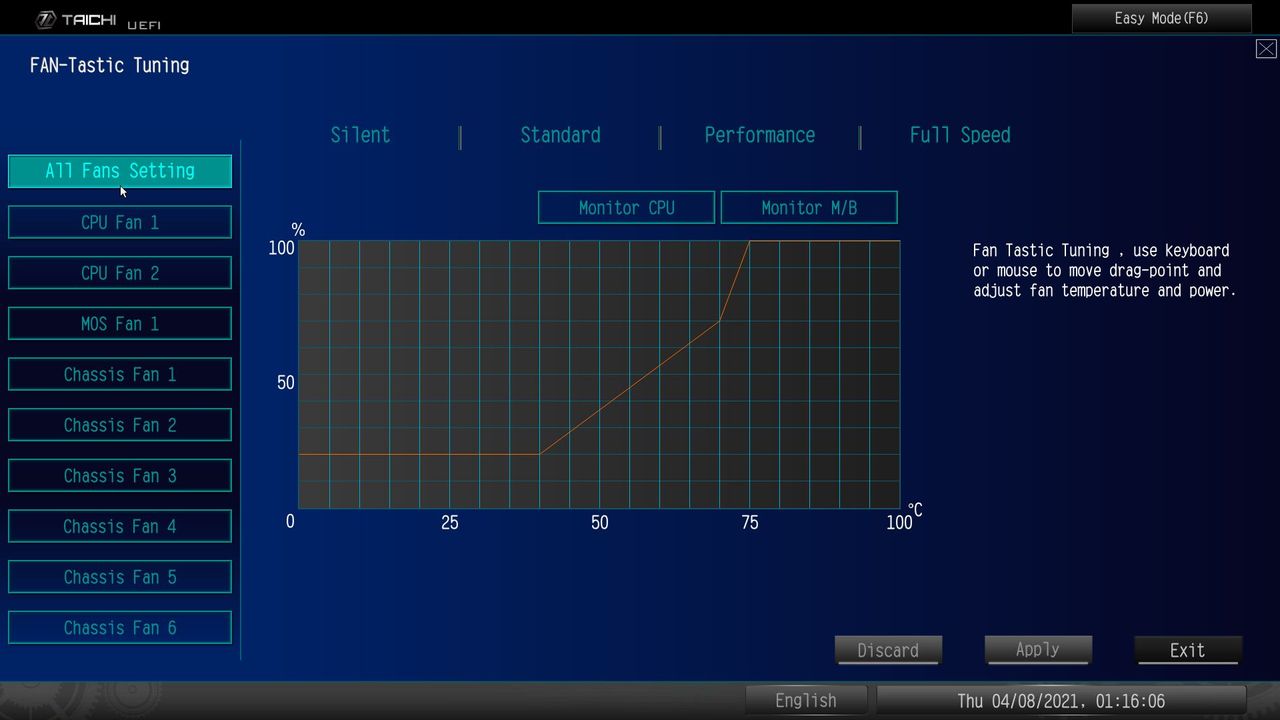

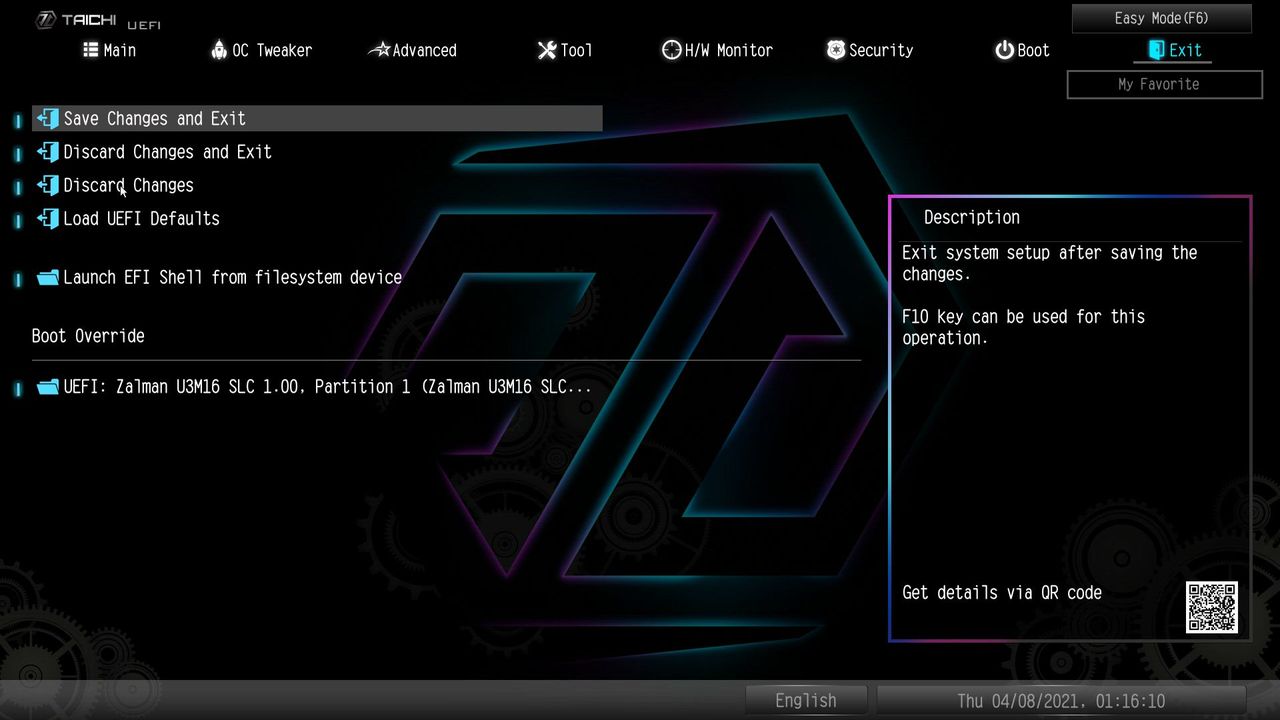

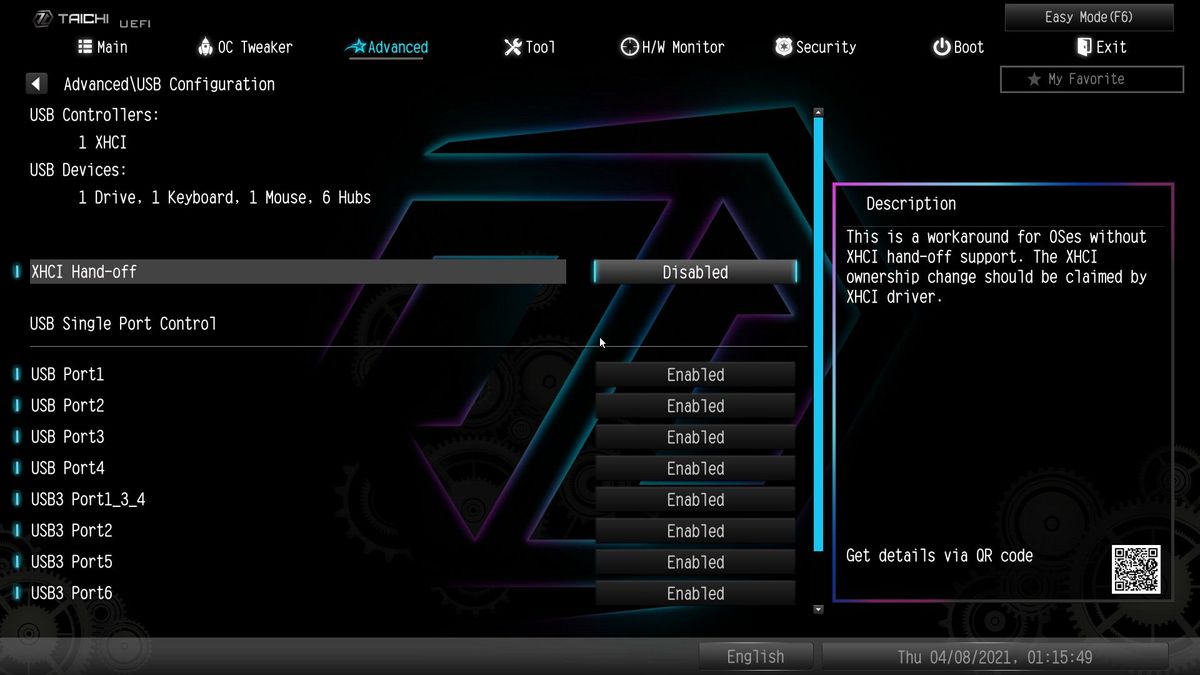

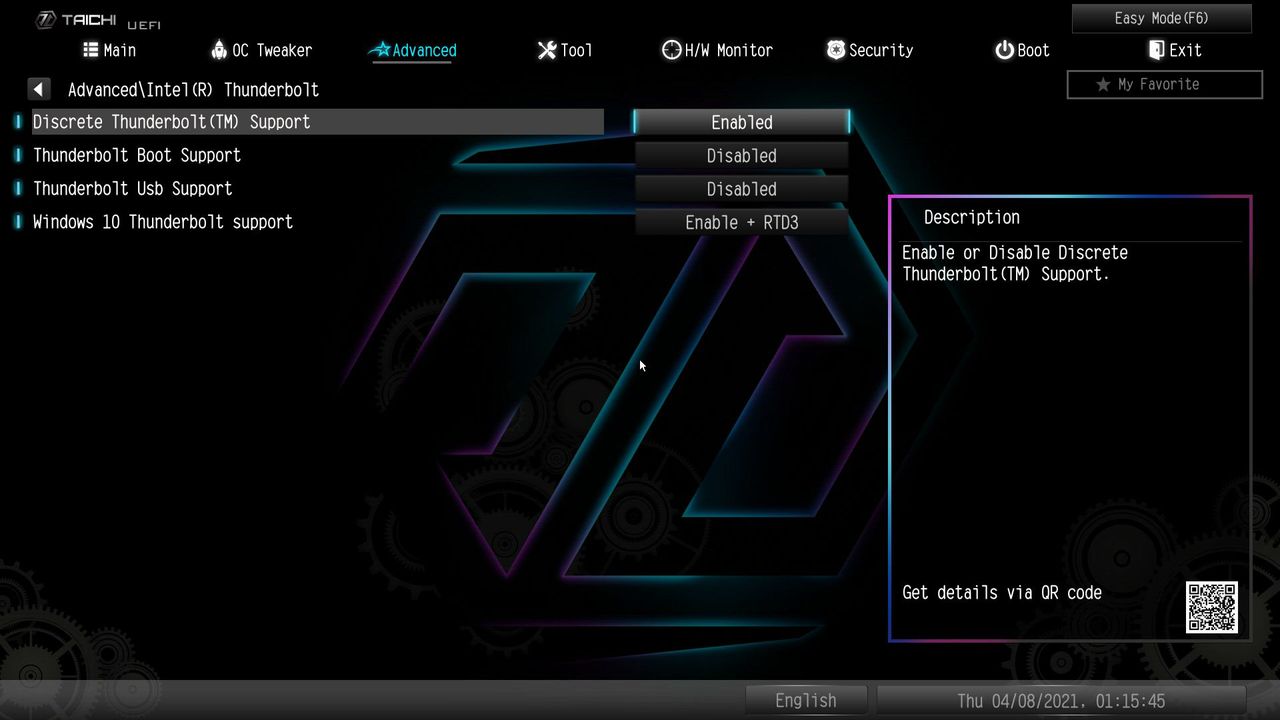

The Z590 Taichi BIOS has the same theme as the last generation, different from the Steel Legend and PG Velocita. With this board, the gears and cogwheels make their way into the black background. The primary text is yellow, with white text for any editable fields. Like most boards, the Taichi includes an EZ Mode for high-level monitoring and adjustments and a comprehensive Advanced section. The BIOS is organized well, with many of the more commonly-used functions accessible without drilling down multiple levels to find them. In the end, the BIOS worked well and was easy to navigate and read.

Image 1 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 2 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 3 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 4 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 5 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 6 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 7 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 8 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 9 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 10 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 11 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 12 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 13 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 14 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 15 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 16 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 17 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 18 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 19 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 20 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 21 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 22 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 23 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 24 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 25 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 26 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 27 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 28 of 28

ASRock Z590 Taichi

(Image credit: Tom's Hardware)

Software

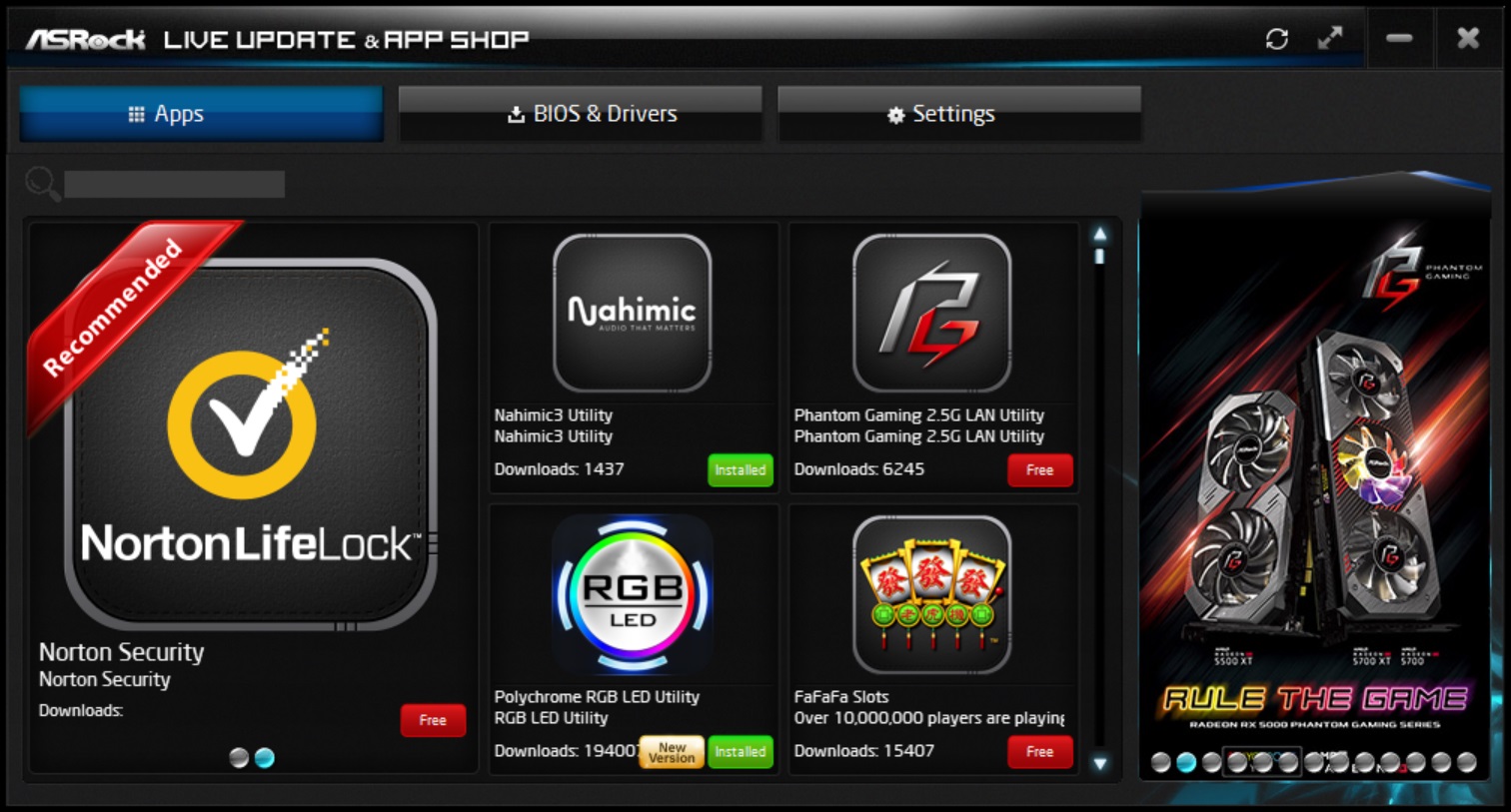

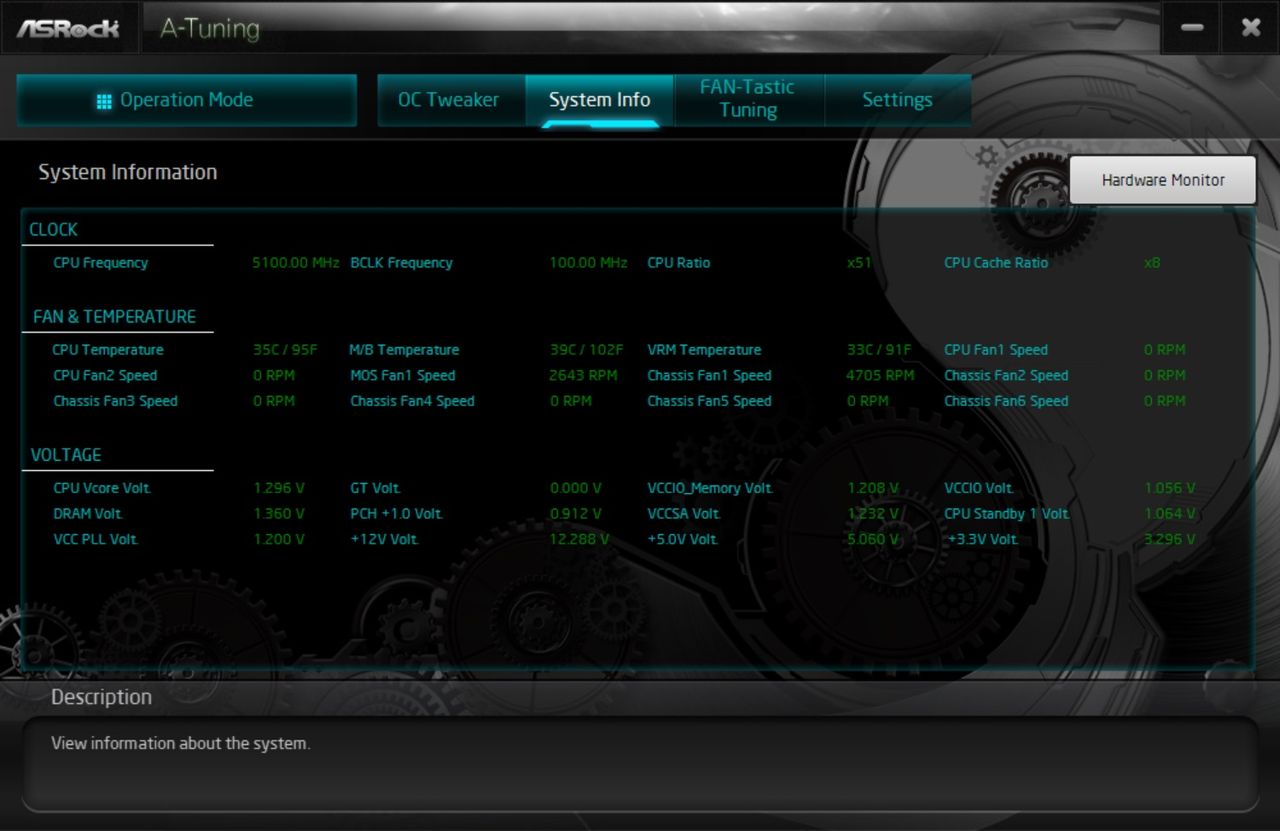

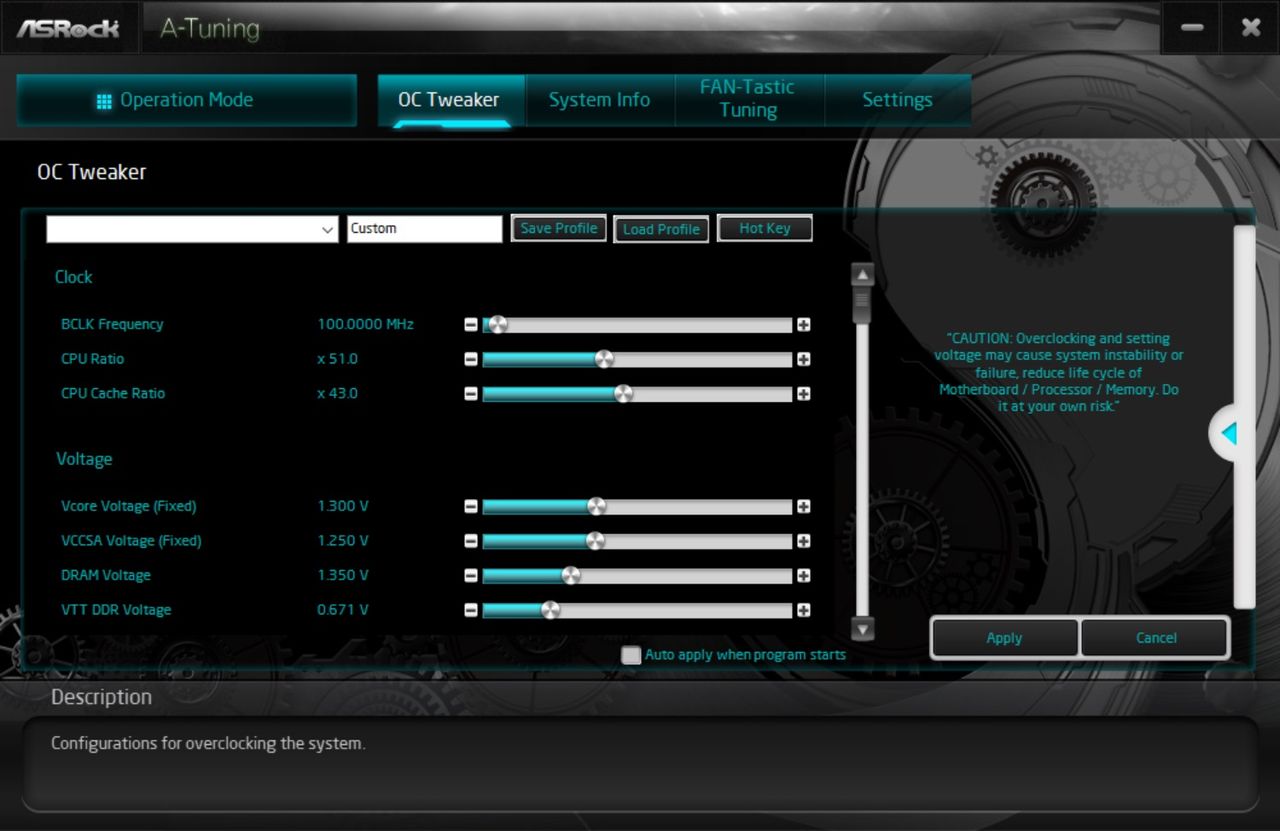

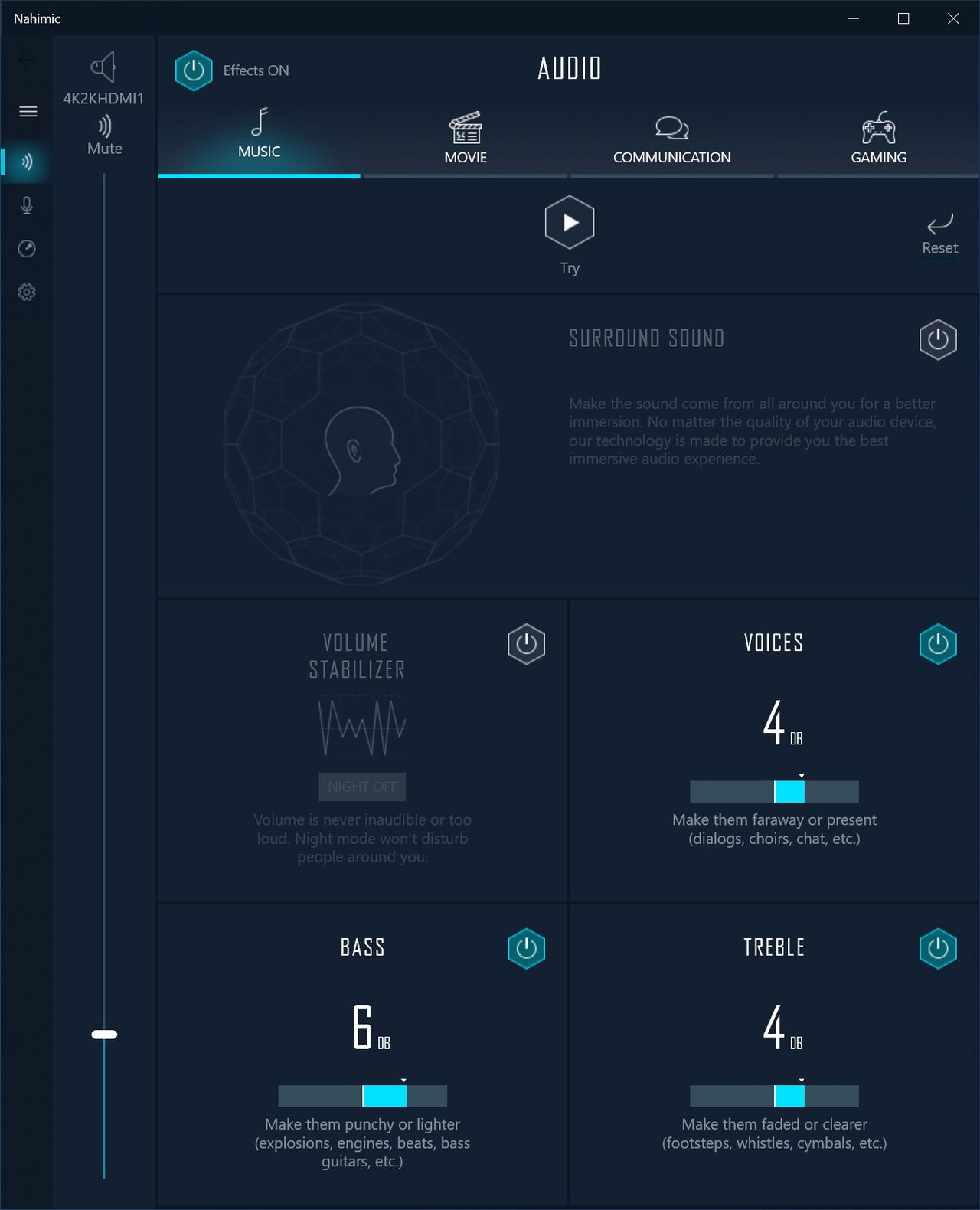

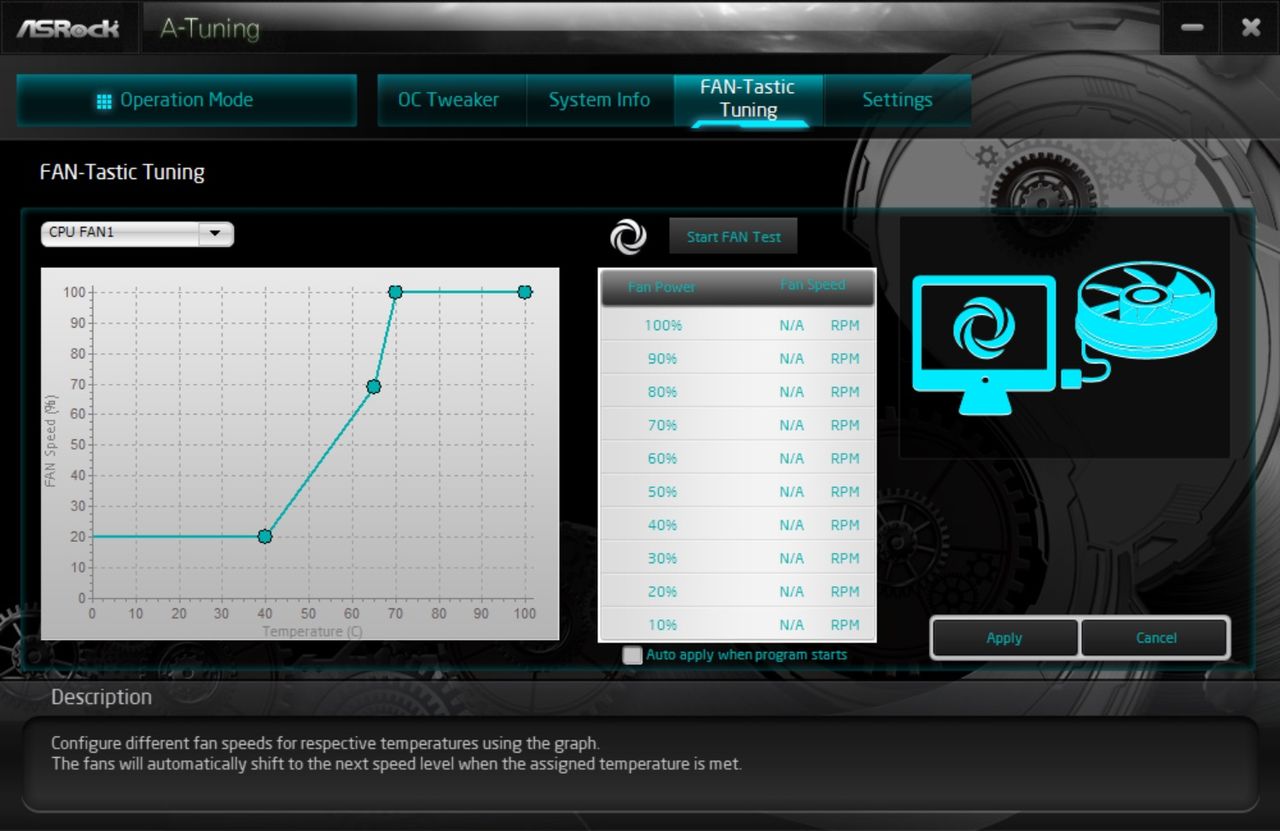

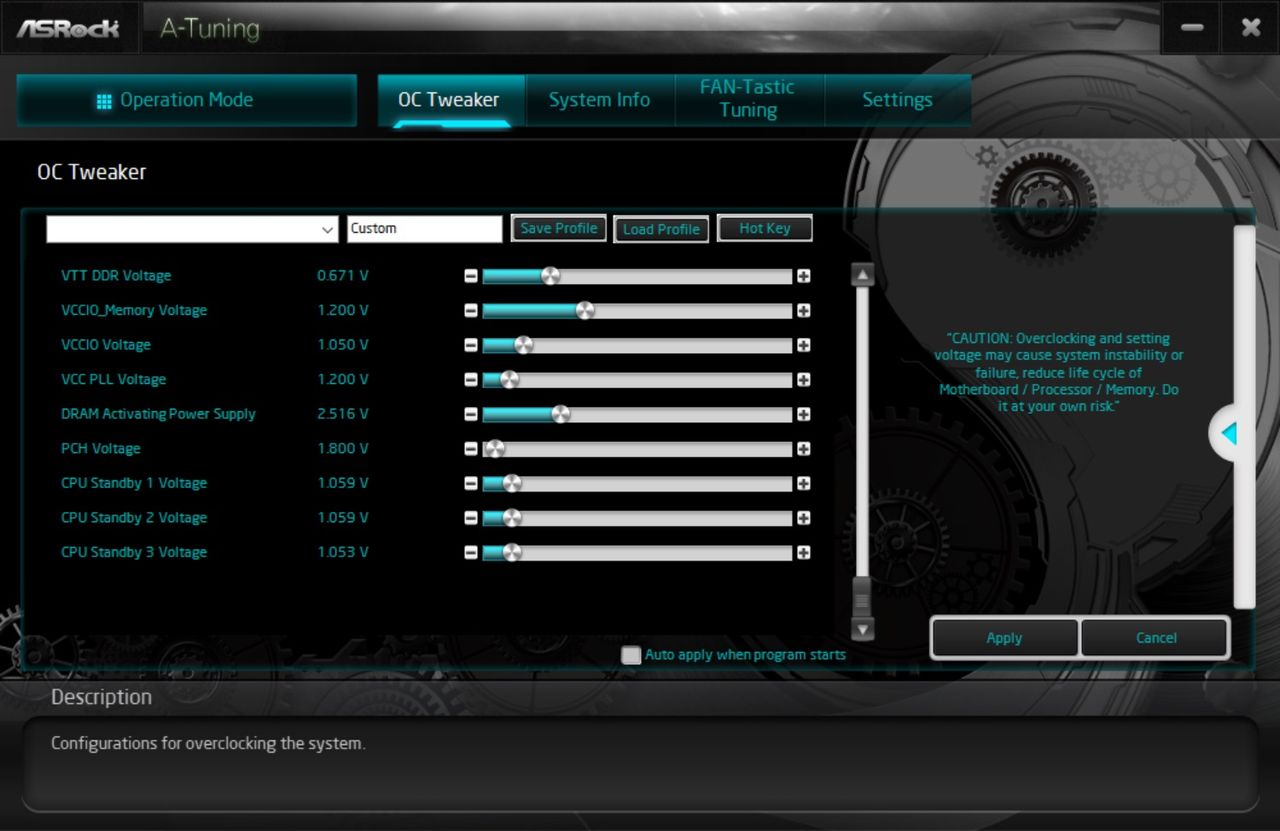

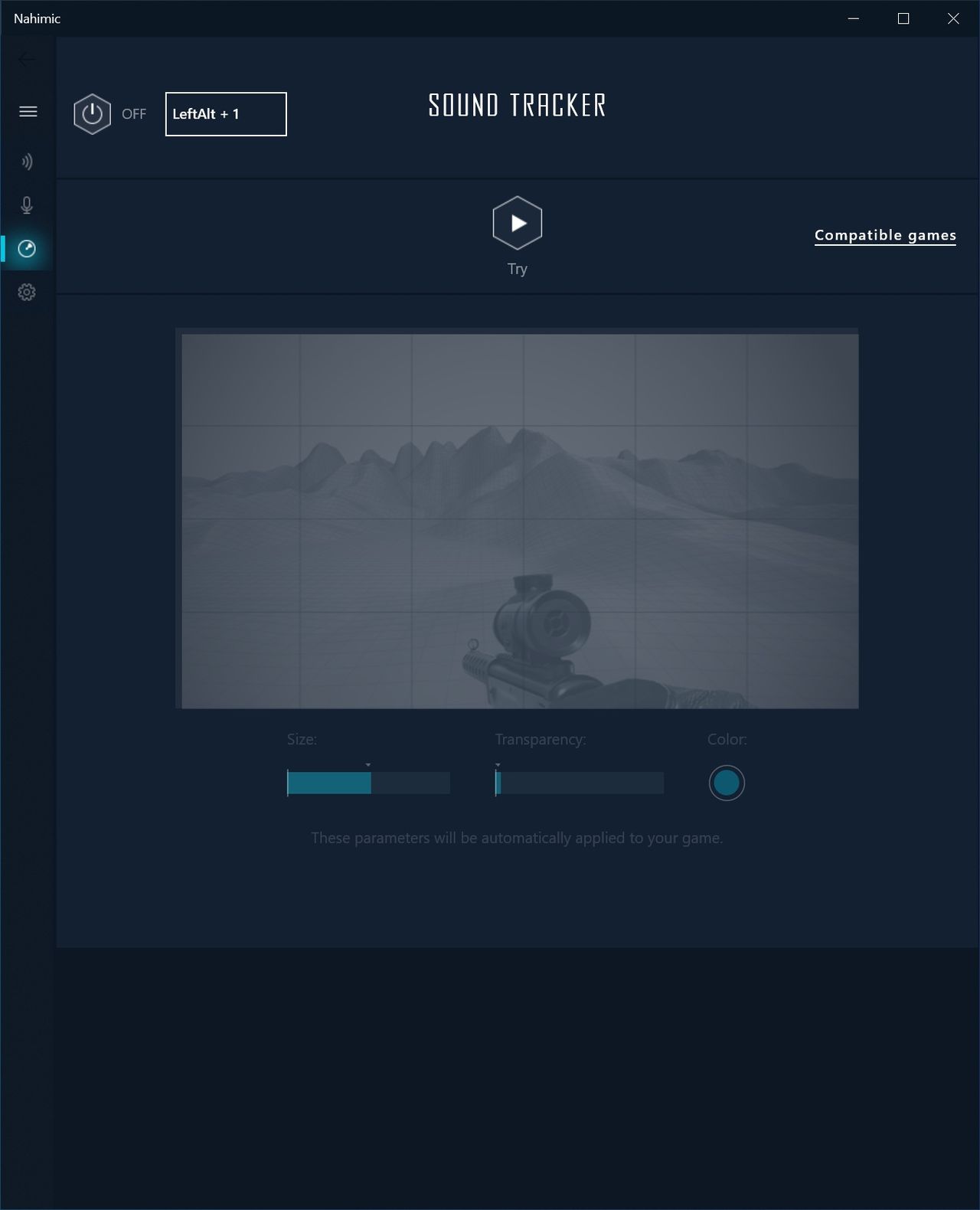

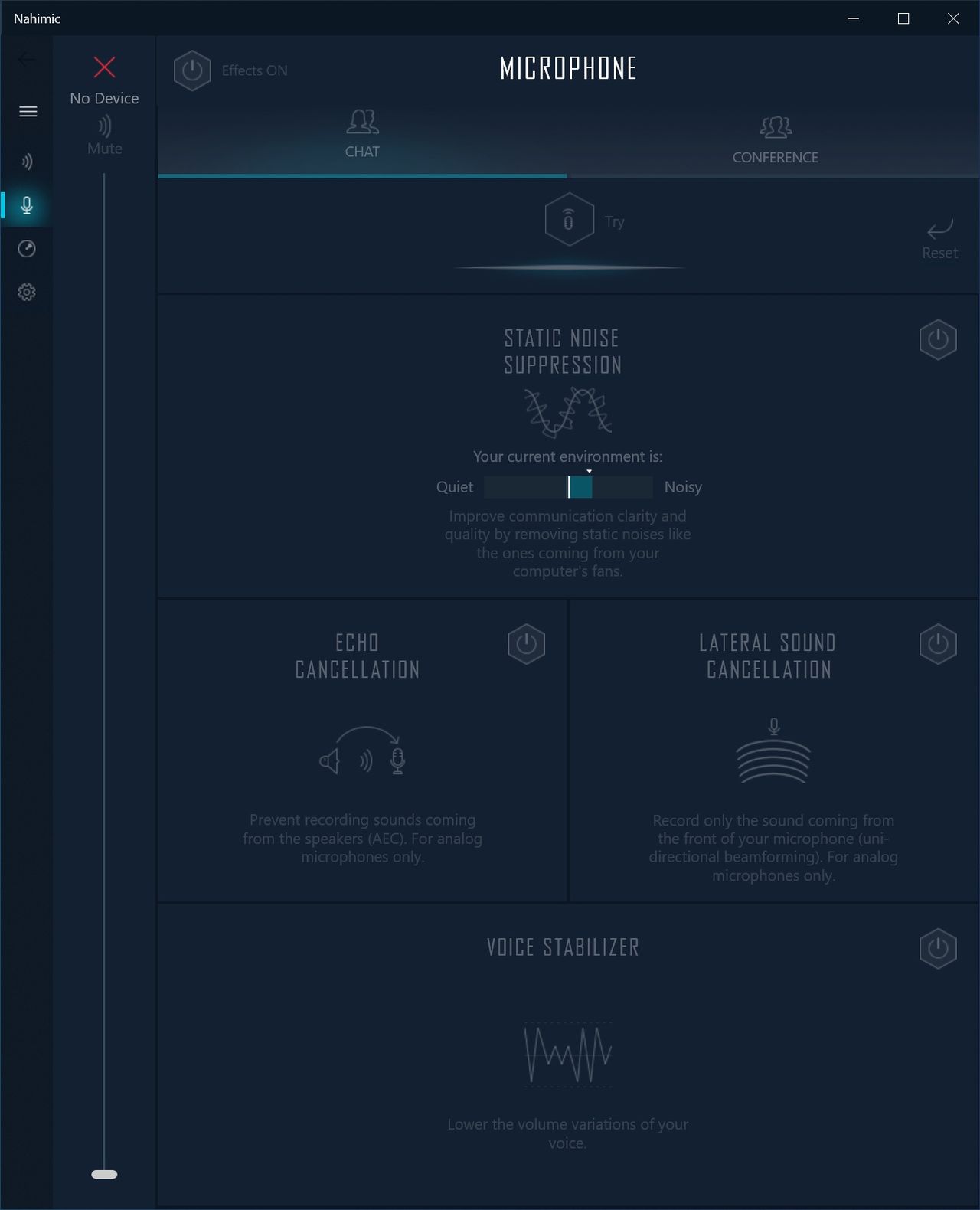

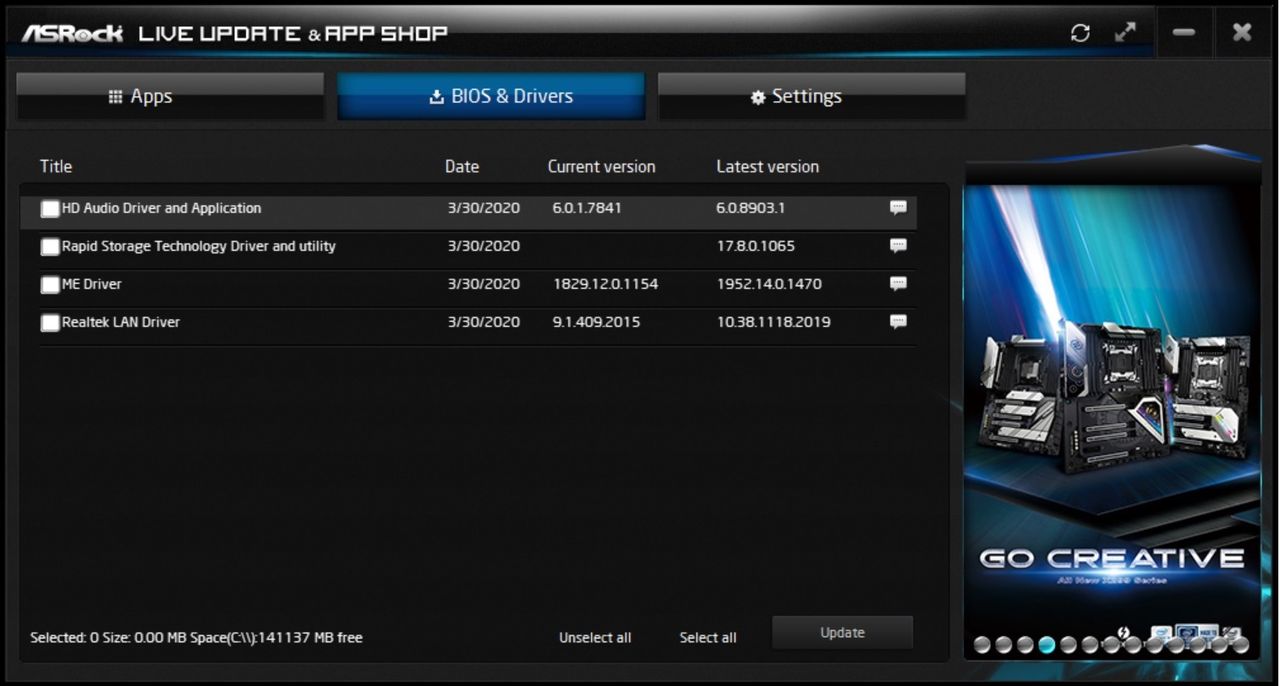

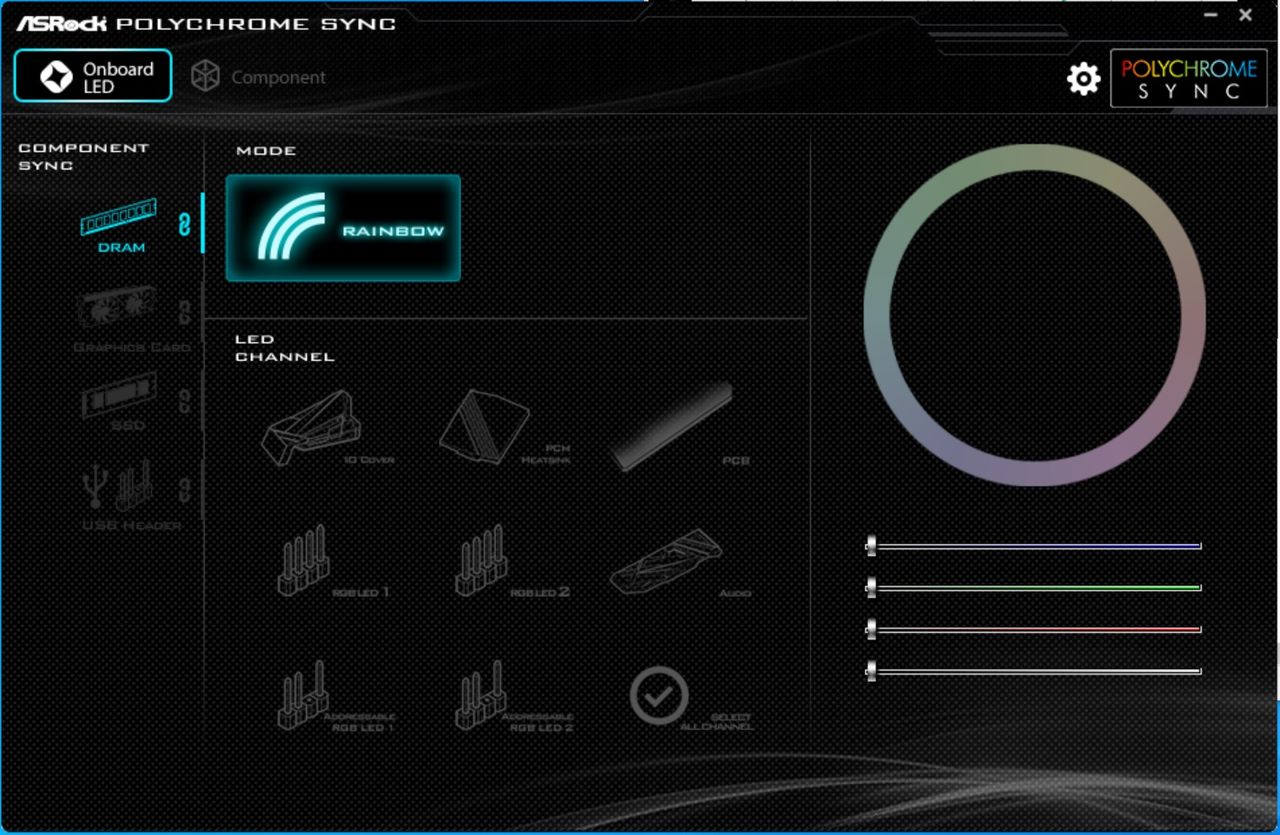

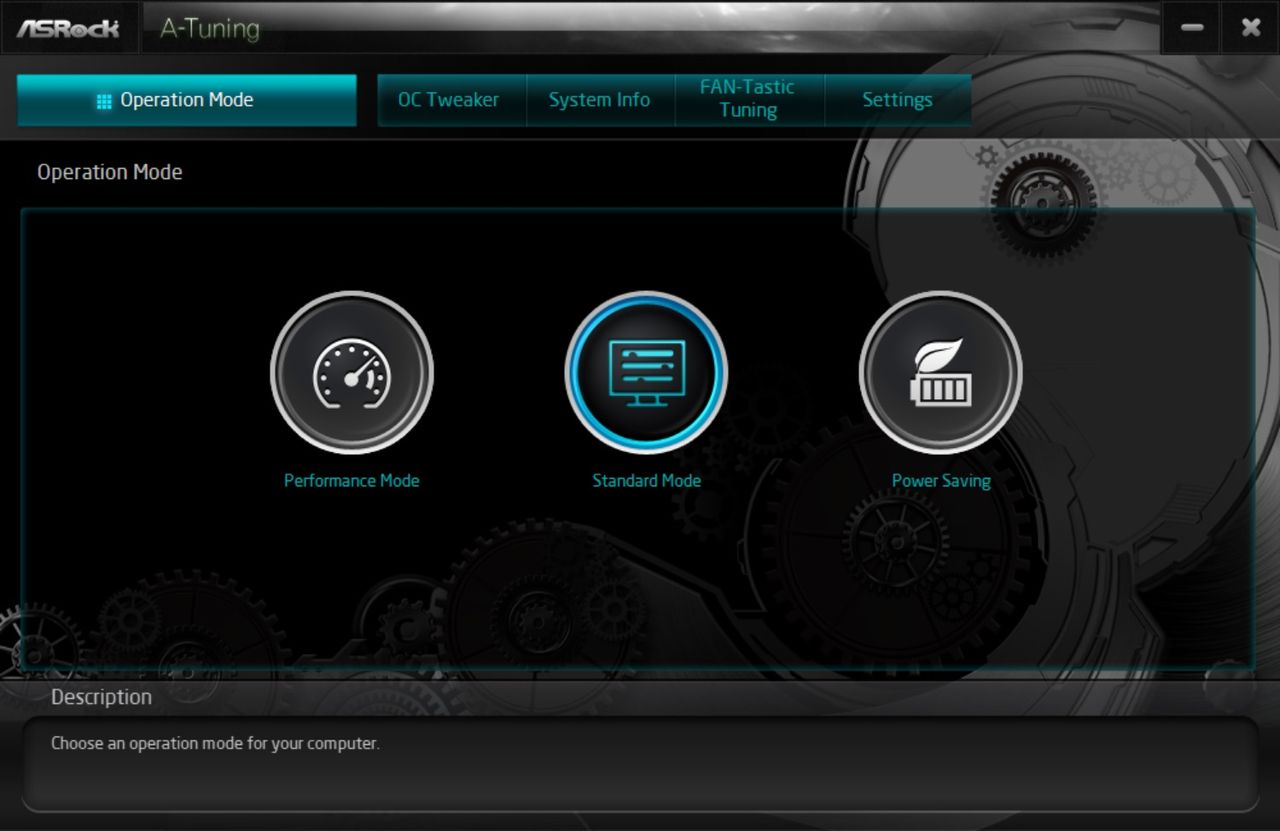

On the software side, ASRock includes a few utilities that cover overclocking and monitoring (A-Tune), audio (Nahimic 3), software for updating drivers and downloading applications (App Shop), and of course, RGB control (Polychrome RGB). We did not run into any issues in our limited use of the applications.

Image 1 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 2 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 3 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 4 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 5 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 6 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 7 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 8 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 9 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 10 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)
Image 11 of 11

ASRock Z590 Taichi

(Image credit: Tom's Hardware)

Test System

As of March 2021, we’ve updated our test system to Windows 10 64-bit OS (20H2) with all threat mitigations applied. On the hardware front, we’ve switched to all PCIe 4.0 components. We upgraded our video card to an Asus RTX 3070 TUF Gaming and the storage device to a 2TB Phison PS5-18-E18 M.2. Along with the hardware changes, we’ve also updated the games to F1 2020 and Far Cry: New Dawn. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted (typically during new platform launches). The hardware used is as follows:

TEST SYSTEM COMPONENTS
CPUIntel i9-11900K
RAMGSkill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN)
GSkill Trident Z Royale 2x8GB DDR4 4000 (F4-4000C18Q-32GTRS)
GPUAsus TUF Gaming RTX 3070
CPU CoolerCorsair H150i
PSUCorsair AX1200i
Operating SystemWindows 10 64-bit 20H2
Graphics DriverNVIDIA Driver 461.40
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)

Benchmark Settings

Synthetic Benchmarks and Settings
PCMark 10Version 2.1.2508 64
Essentials, Productivity, Digital Content Creation, MS Office
3DMarkVersion 2.17.7137 64
Firestrike Extreme and Time Spy Default Presets
Cinebench R20Version RBBENCHMARK271150
Open GL Benchmark - Single and Multi-threaded
Application Tests and Settings
LAME MP3Version SSE2_2019
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Custom benchmark
7-ZipVersion 19.00
Integrated benchmark
Game Tests and Settings
F1 2020Ultra Preset - 1920 x 1080, TAA, 16xAF (Australia, Clear, Dry)
Far Cry: New DawnUltra Preset - 1920 x 1080
