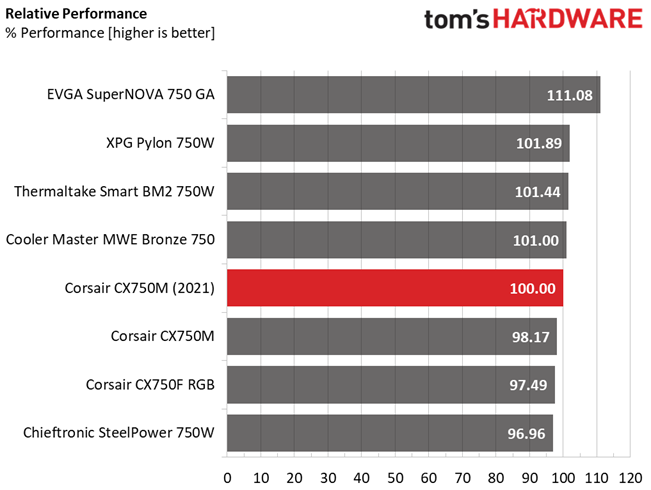

The PSU achieves good performance for a unit using a double-forward platform. The problem is that it costs the same with the EVGA 750 GA, which as you can see dominates the performance chart since it uses a more modern platform.

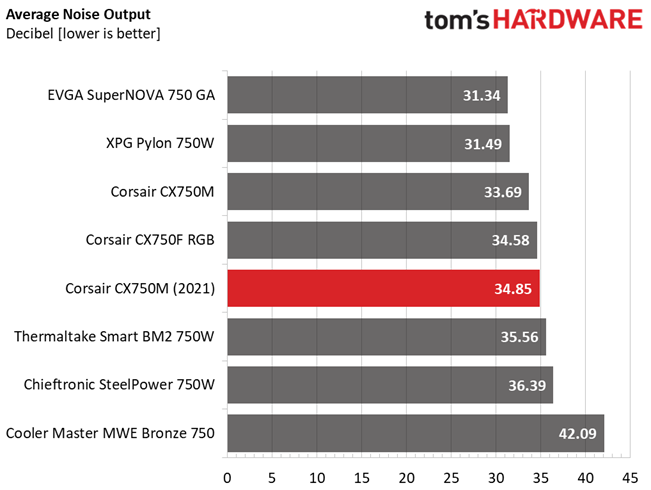

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).
The average noise output could be lower. The increased noise at high loads notably affects the average noise output.
The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.
Average efficiency is high enough for this category's standards.
Power Factor Rating
The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.
The APFC converter does an excellent job!
MORE: Best Power Supplies
MORE: All Power Supply Content
Current page: Performance, Noise, Efficiency and Power FactorPrev Page Transient Response Tests, Timing Tests, Ripple Measurements and EMC Pre-Compliance Testing Next Page Bottom Line
