Three-Way X99 LGA 2011-v3 ATX Motherboard Shootout

ASRock X99 Extreme4 Firmware

The X99 Extreme4’s OC Tweaker menu opens to a group of factory-programmed overclocks similar to those of its software, but with a slightly different voltage slope. Turbo 4.5 GHz ramps up 50 mV past our desired 1.30 V limit, so we started our overclock with the more longevity-friendly Turbo 4.4 GHz setting.

The highest frequency we’ve been able to reach with this Core i7-5960X sample and a 1.30 V core is 4444 MHz, give or take a few MHz of BCLK rounding error, based on a 101 MHz BCLK setting at 44x CPU multiplier. The X99 Extreme4 gets us there, rounding down to 4543 MHz.

Image 1 of 2

Image 2 of 2

Image 1 of 2

Image 2 of 2

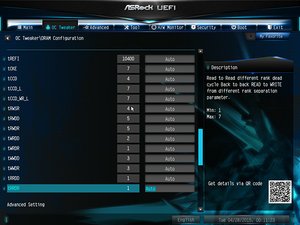

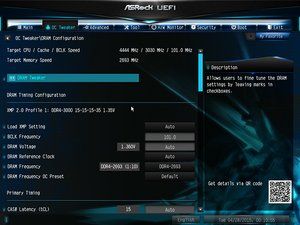

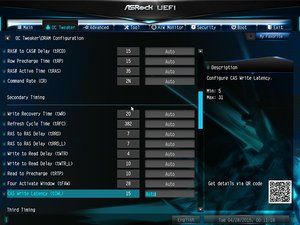

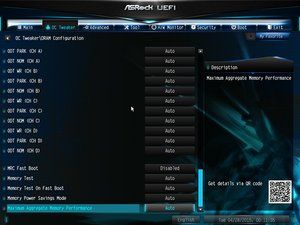

Because data rates exceeding 2666 MT/s require an increased base clock, the DRAM Configuration submenu includes a redundant BCLK setting. The X99 Extreme4 picked 125 MHz x 24 as the appropriate setting for our DDR4-3000, but our CPU couldn’t take the strain.

Dropping to 124 MHz BCLK at that same multiplier helped us to reach a stable DDR4-2975.

Image 1 of 2

Image 2 of 2

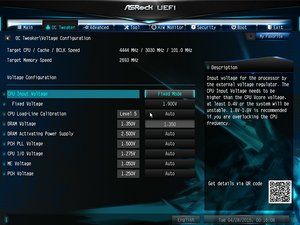

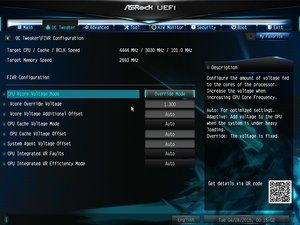

A 1.30 V CPU core setting was spot-on according to CPU-Z, and our thermal readings were consistent with other motherboards using these same settings at full load.

Image 1 of 2

Image 2 of 2

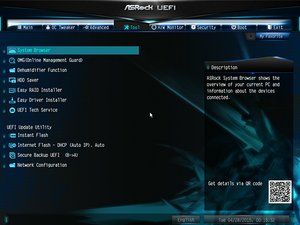

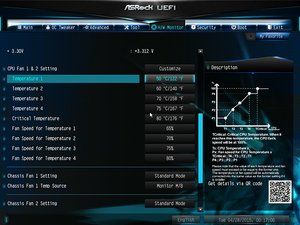

Other firmware-integrated applications allow users to download drivers, update the firmware, set fan slopes, or even send an email to ASRock tech support before the OS is loaded.

Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
