PNY RTX 4070 Review: Single 8-Pin, No 16-Pin 12VHPWR

Reference clocks, slightly less than reference performance

Reviews
By
published
PNY RTX 4070 card photos and unboxing
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Image 1 of 3

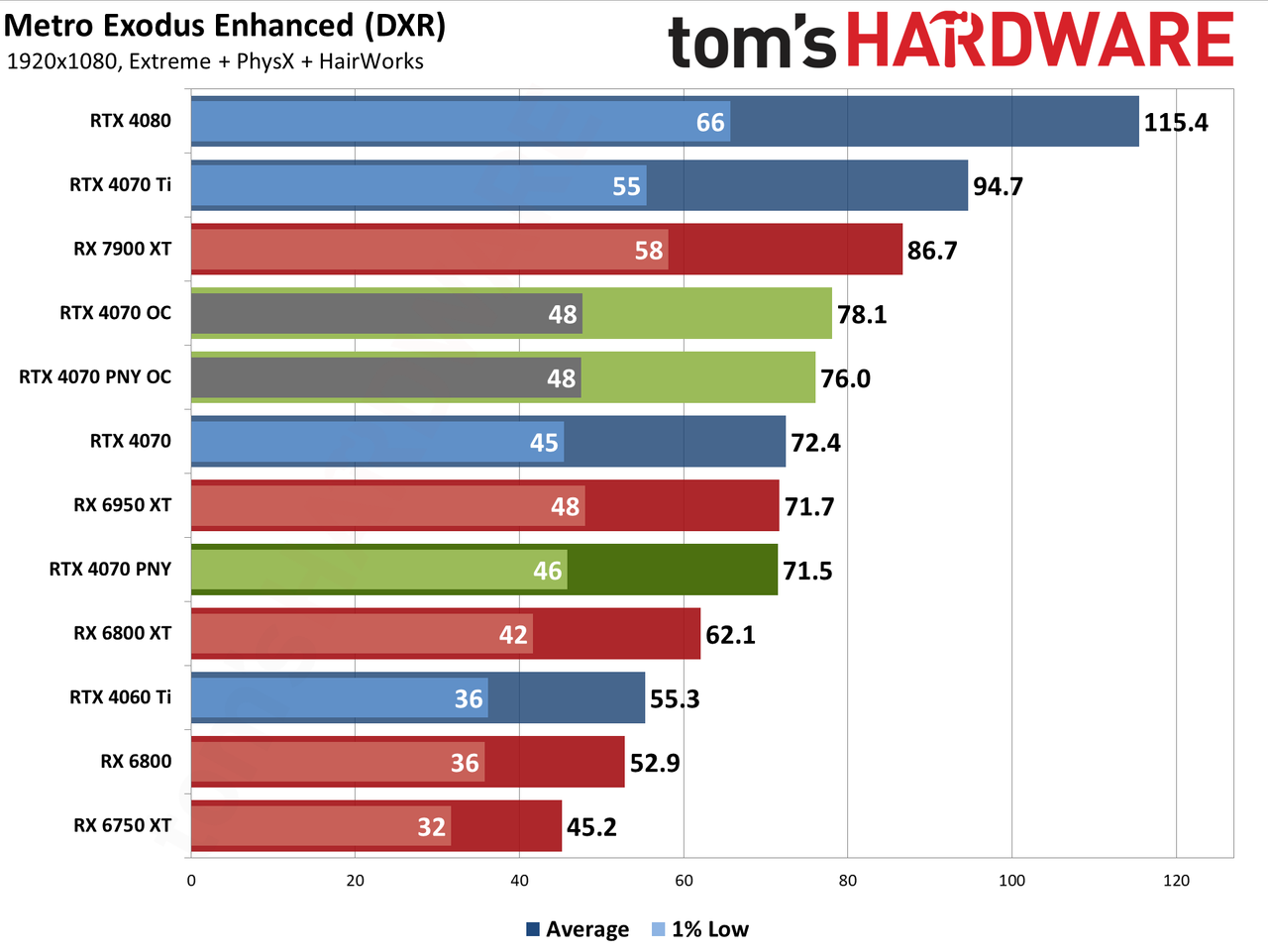

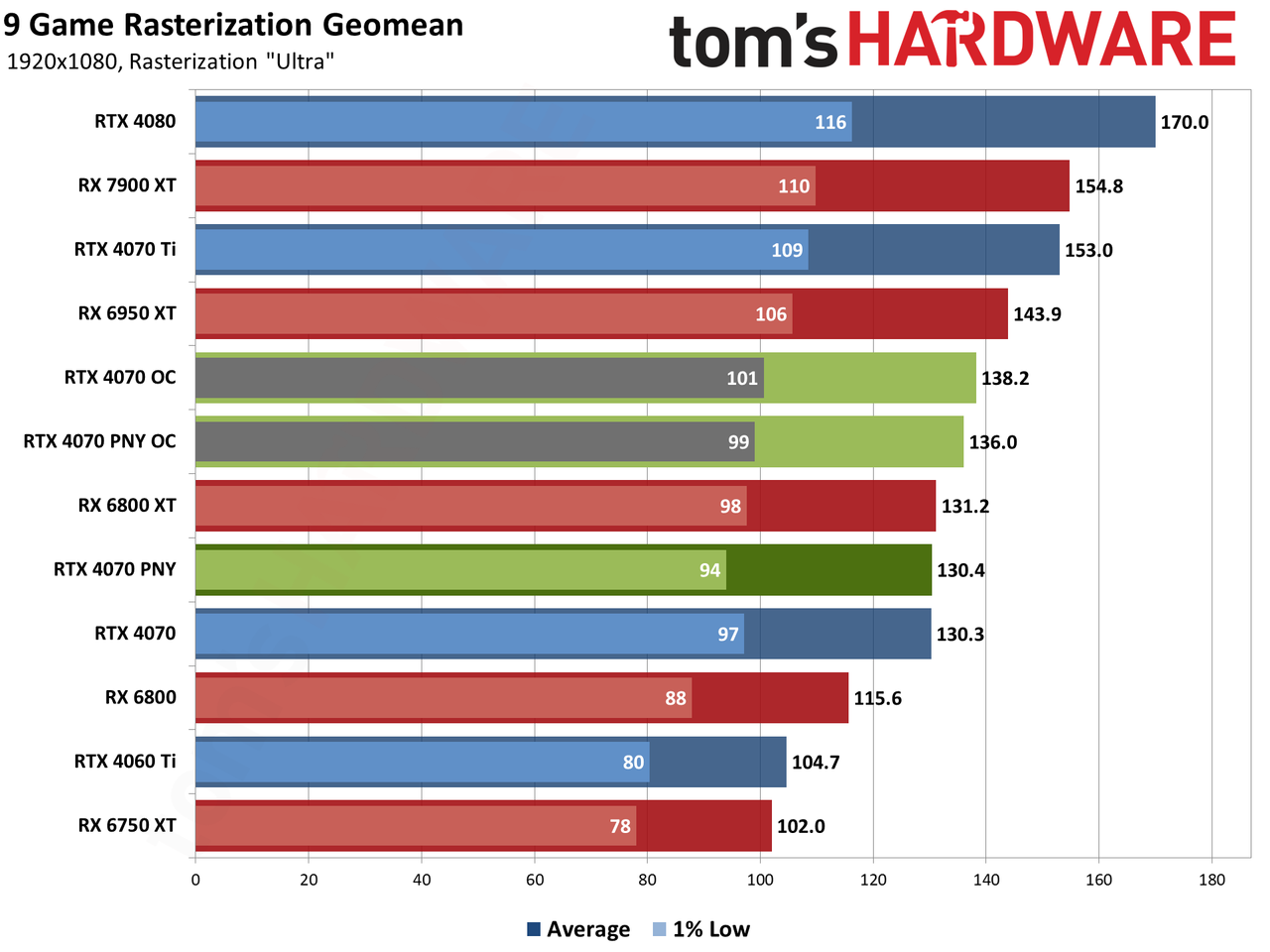

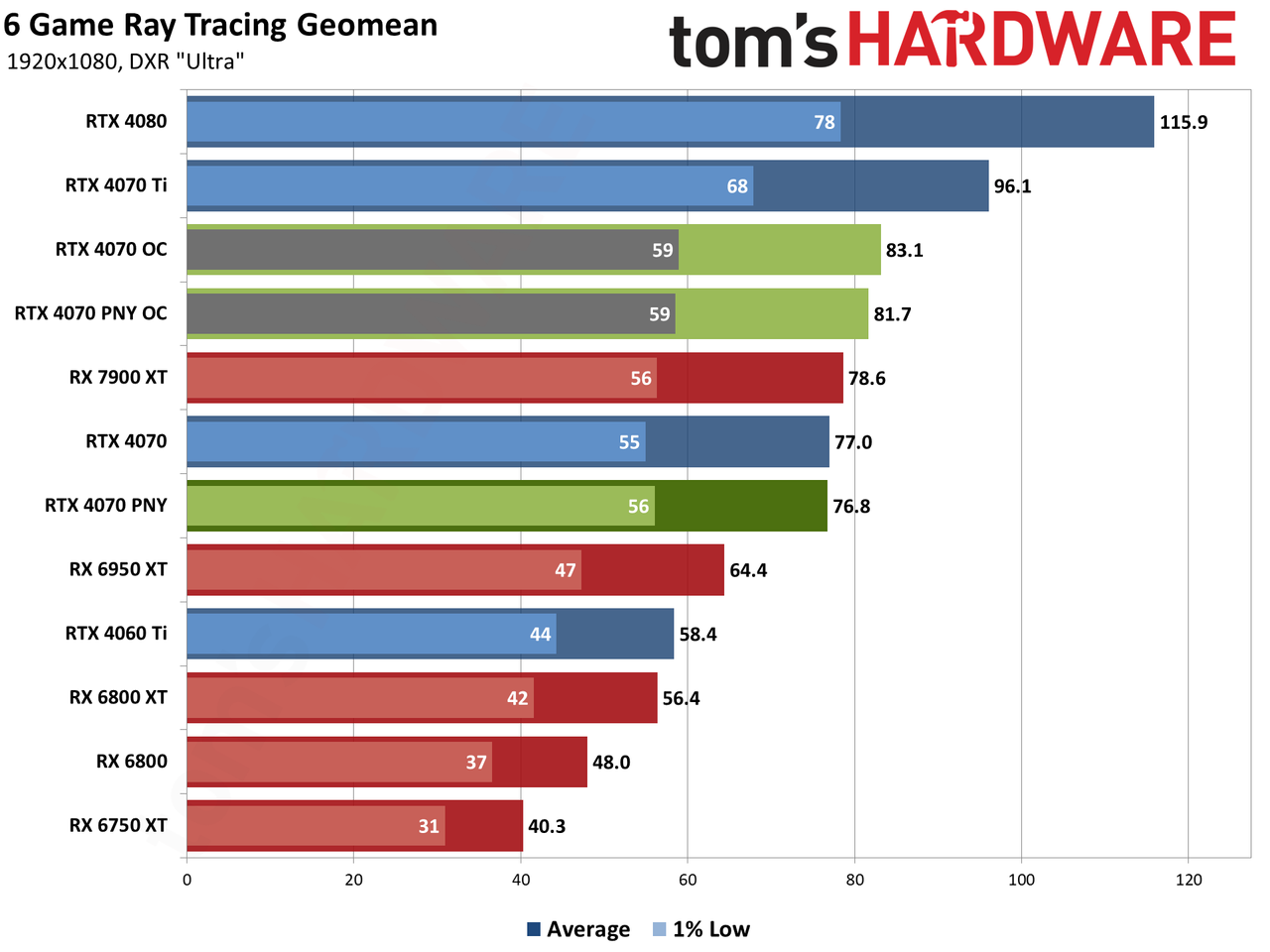

PNY RTX 4070 1080p performance charts
(Image credit: Tom's Hardware)

The PNY RTX 4070, and RTX 4070 in general, does a bit better at 1080p ultra than at 1440p ultra. That's partly because the large L2 cache helps more at lower resolutions, and partly because CPU bottlenecks also come into play. Overall, the 4070 comes in just a bit ahead of the RX 6950 XT, where it was just a bit behind at 1440p.

We could point out that it's fair to expect any $600 graphics card to easily handle 1080p gaming. After all, even the $350 RX 6750 XT averages over 60 fps, though as usual, AMD's GPUs struggle a bit more in some of the ray tracing games. Likewise, AMD's GPUs do better overall in rasterization games. Anyway, let's move on.

Image 1 of 15

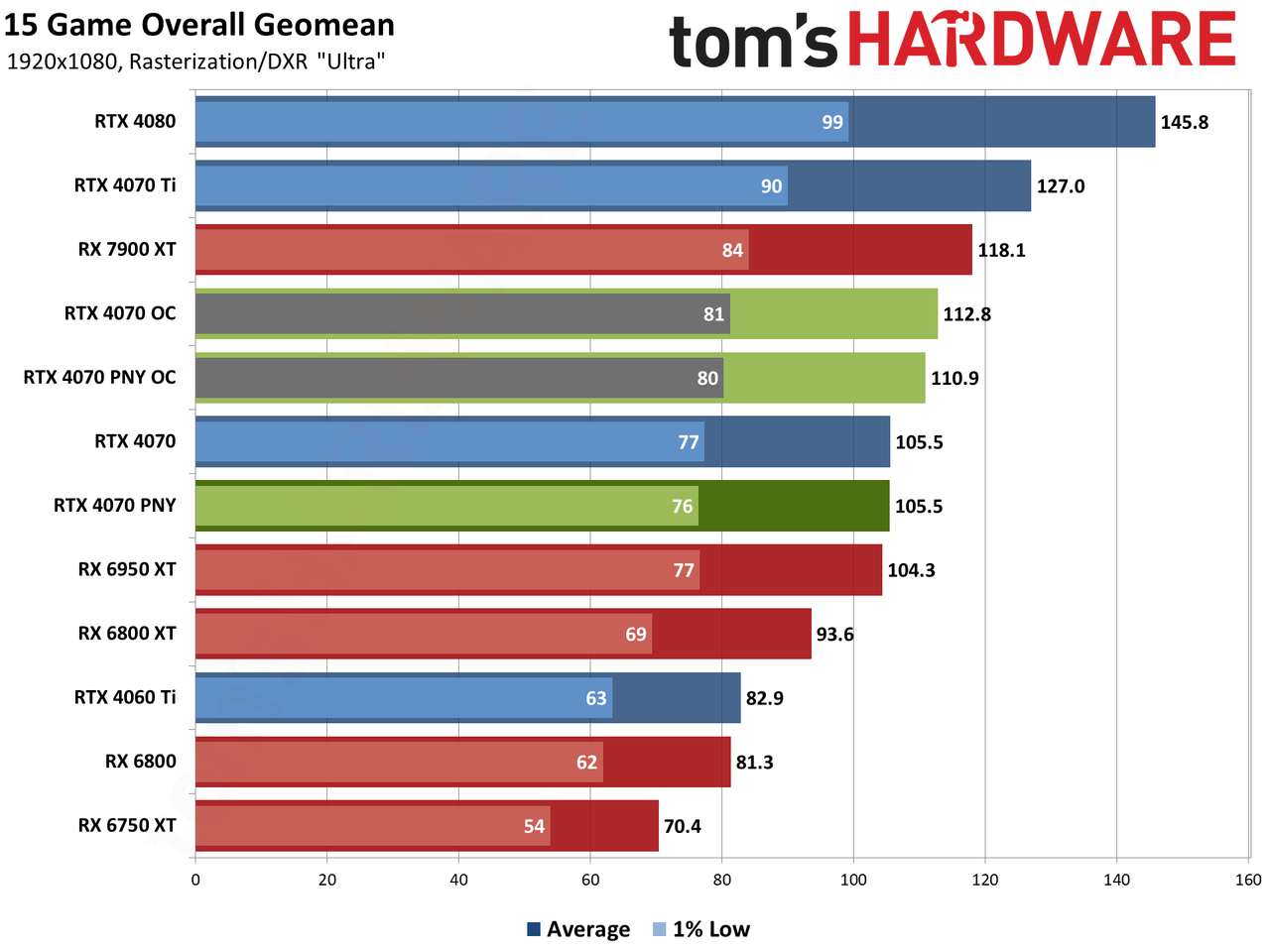

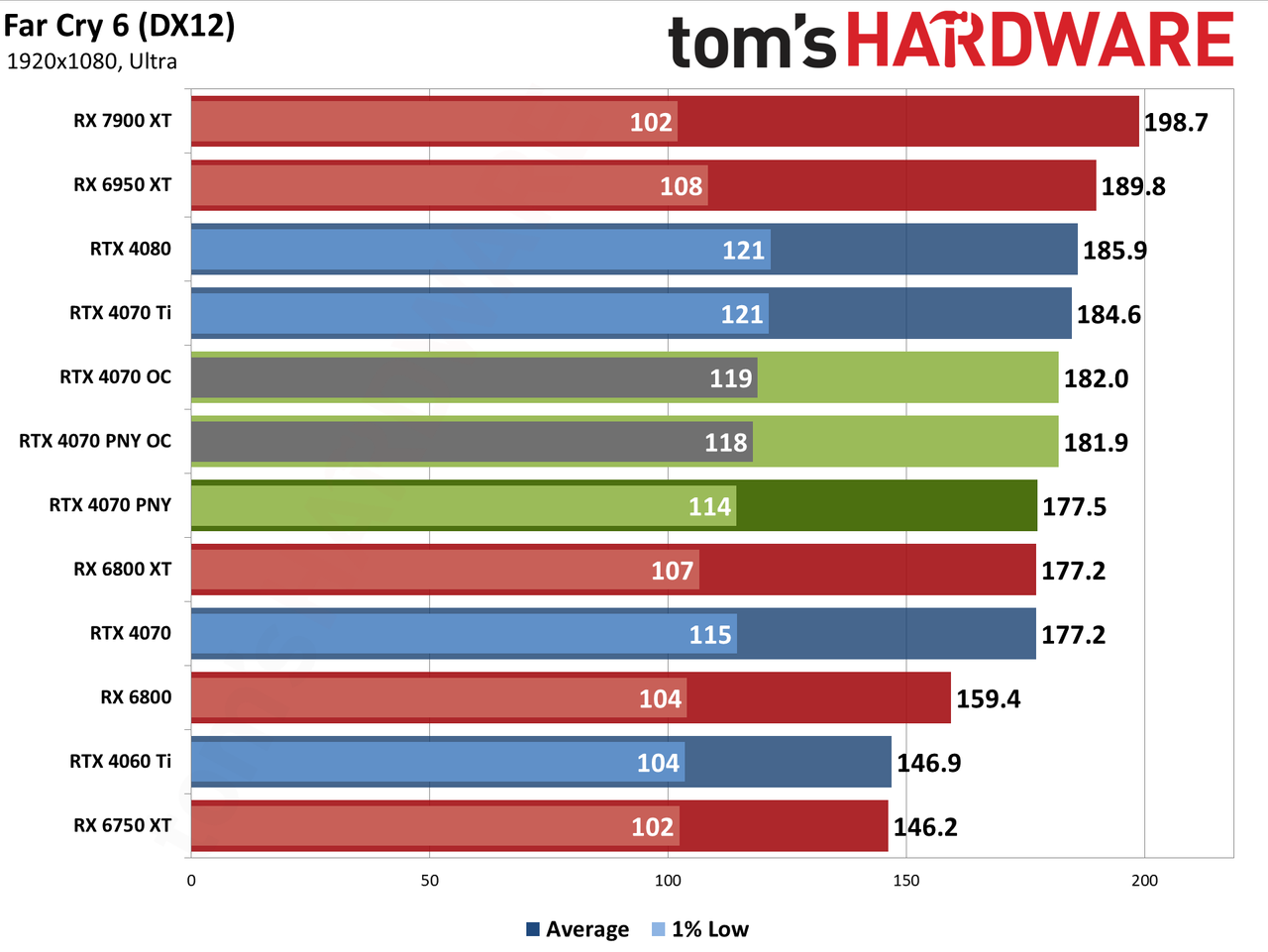

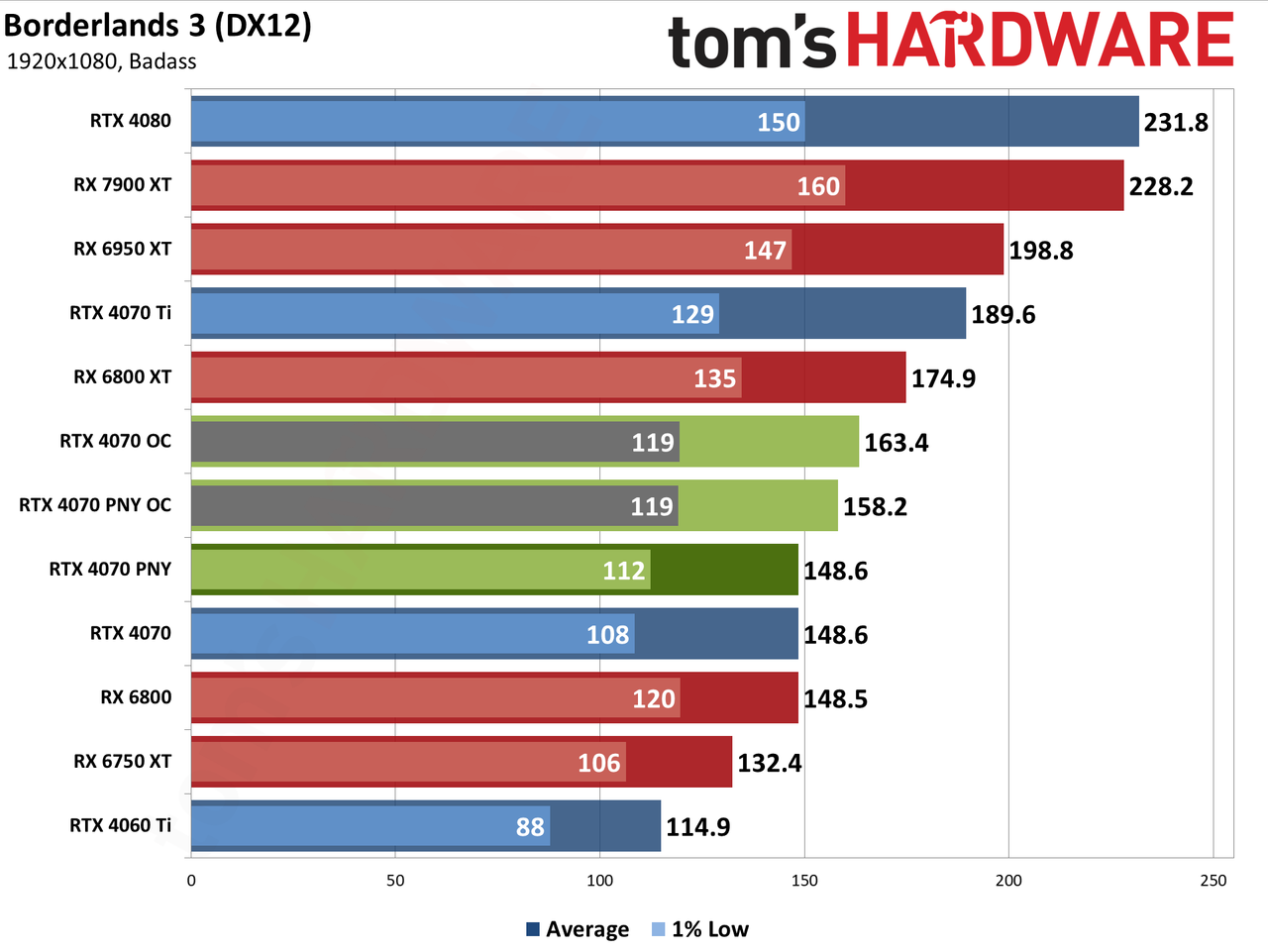

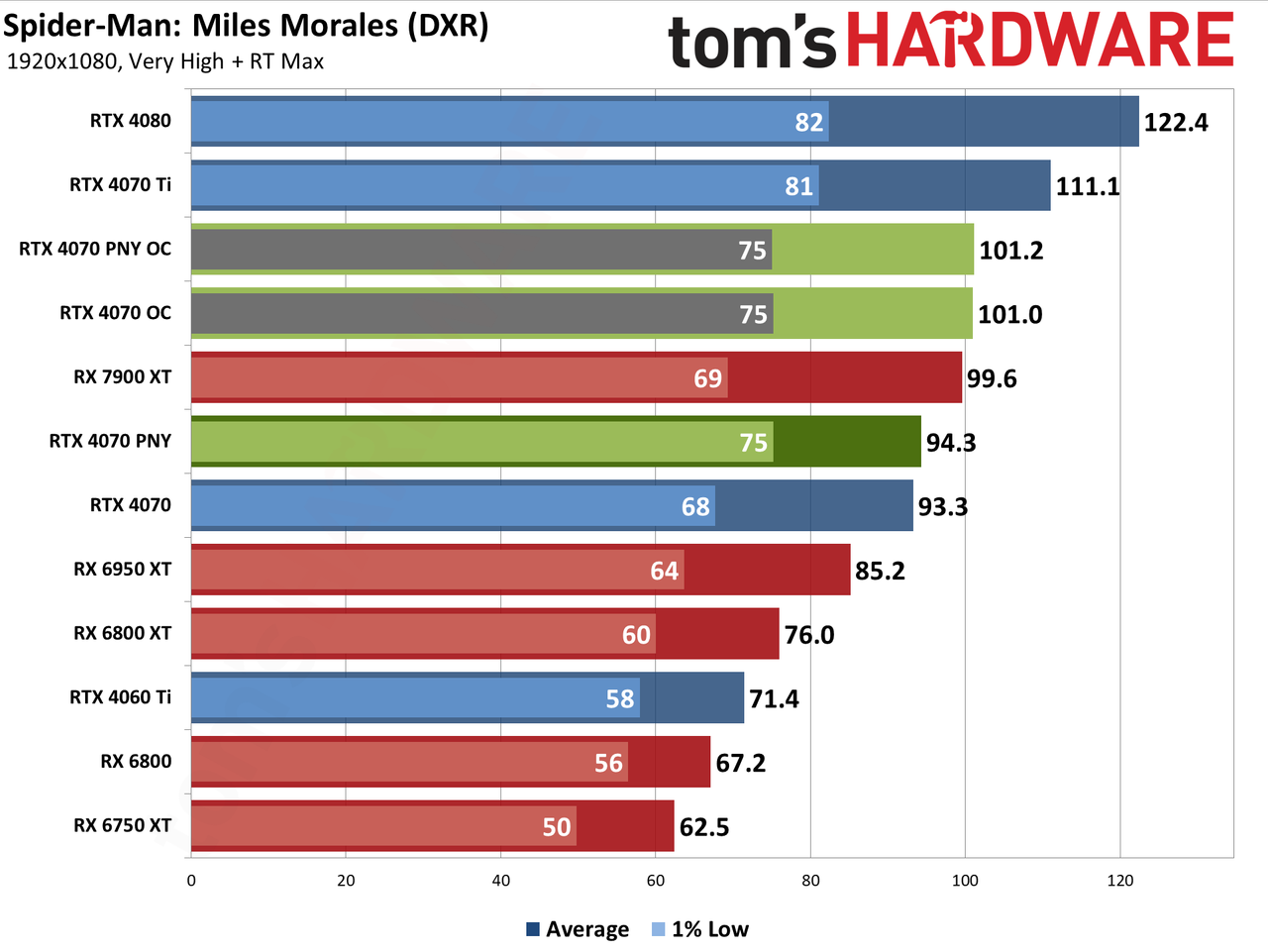

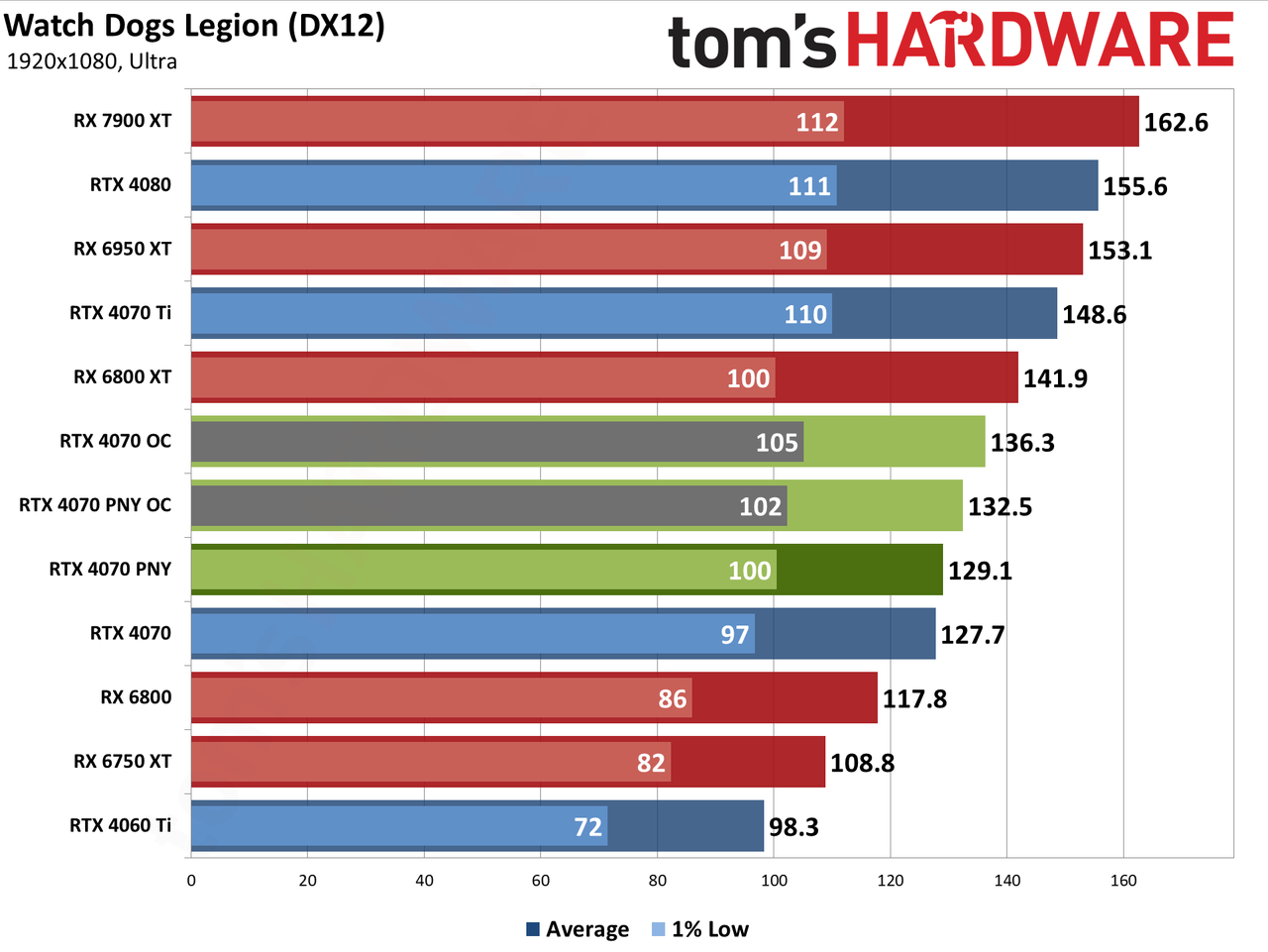

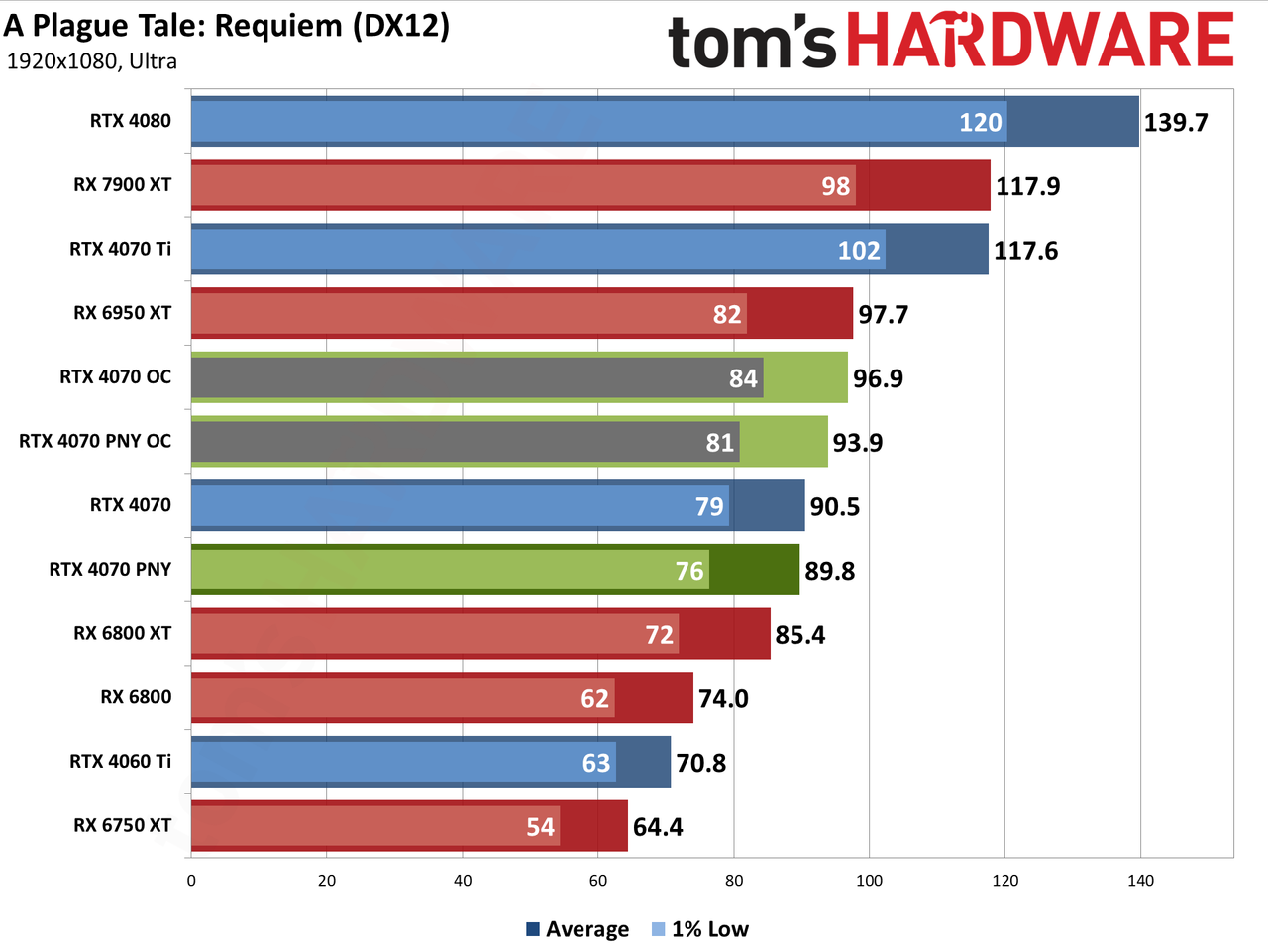

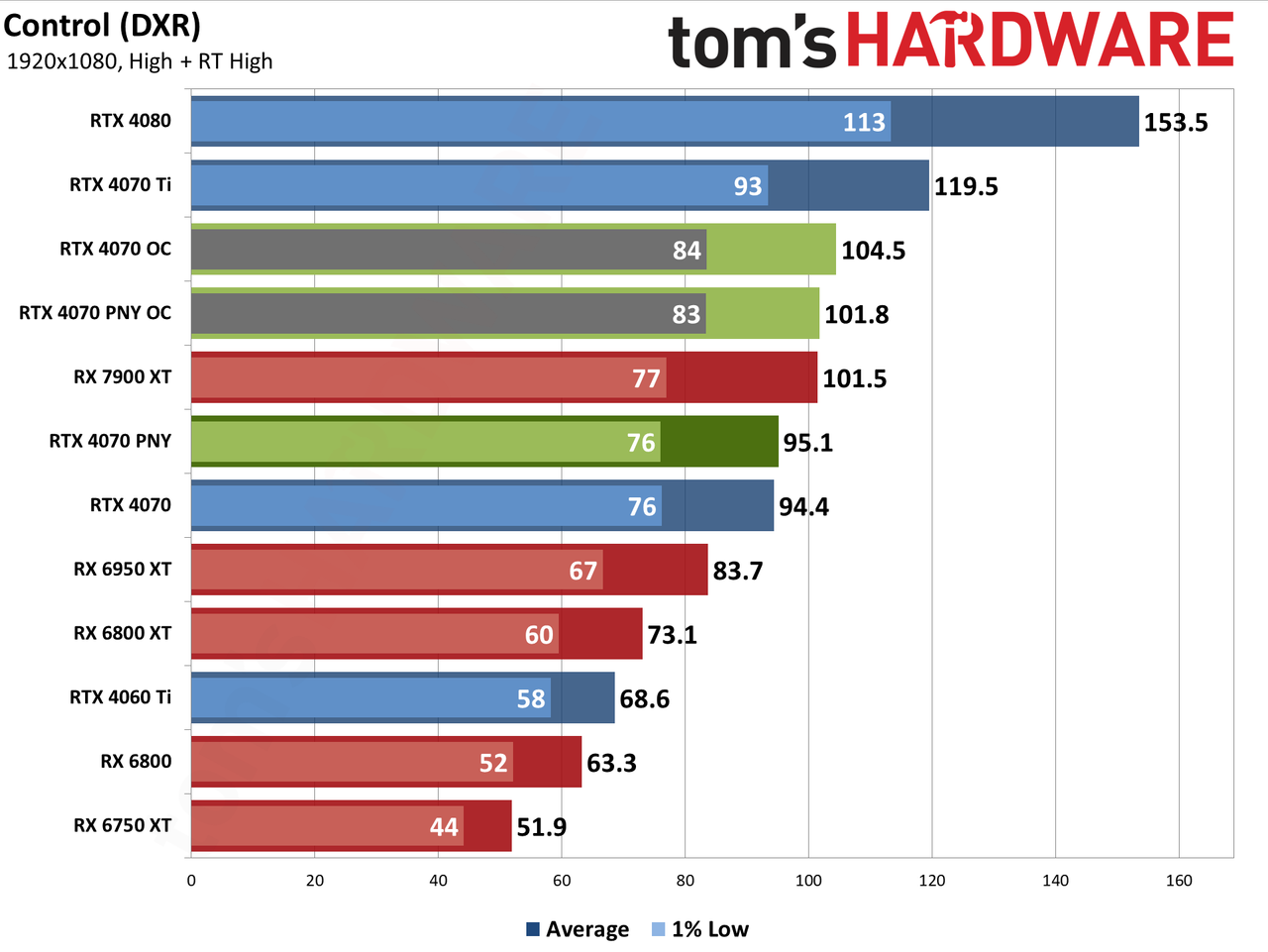

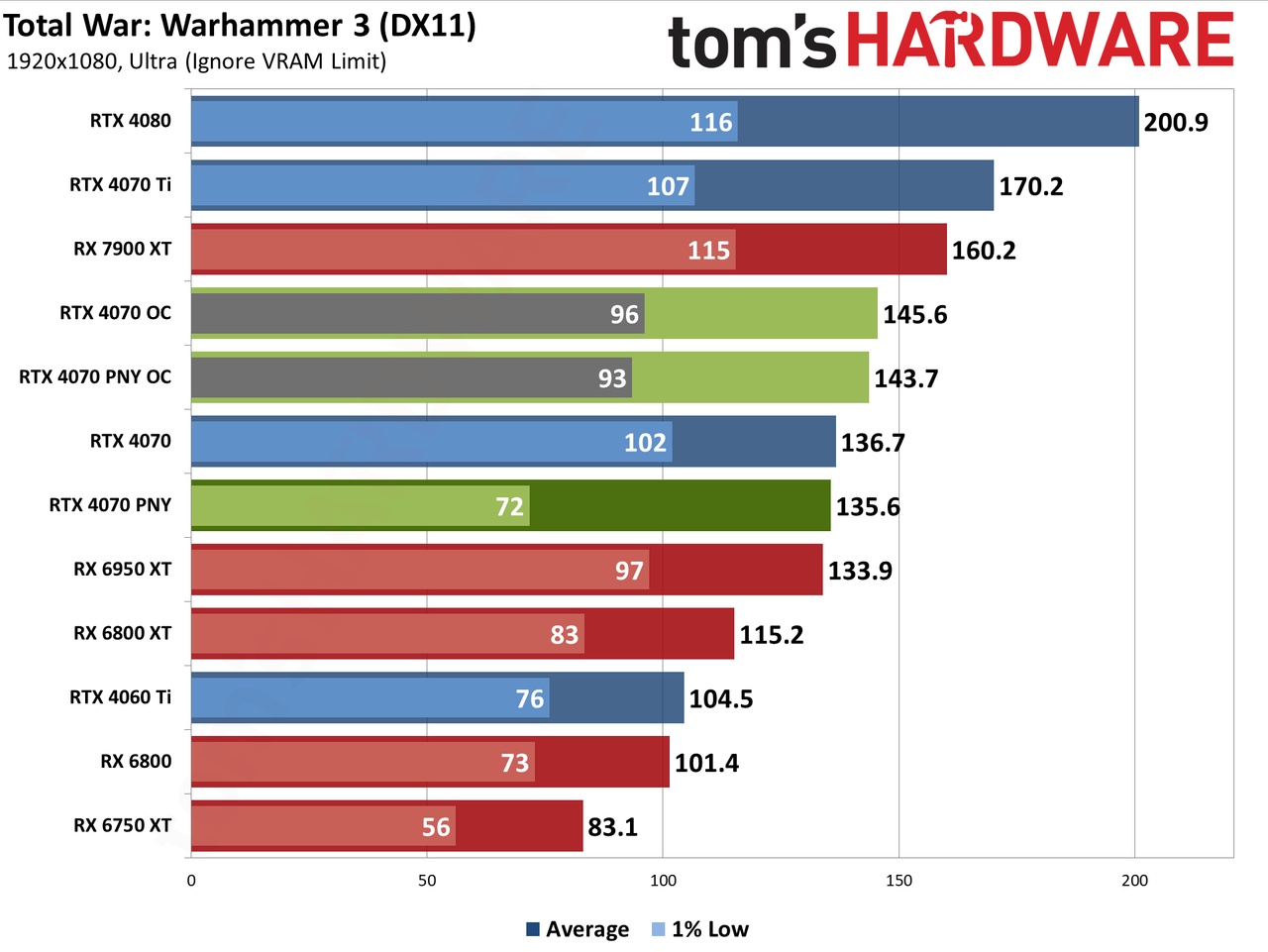

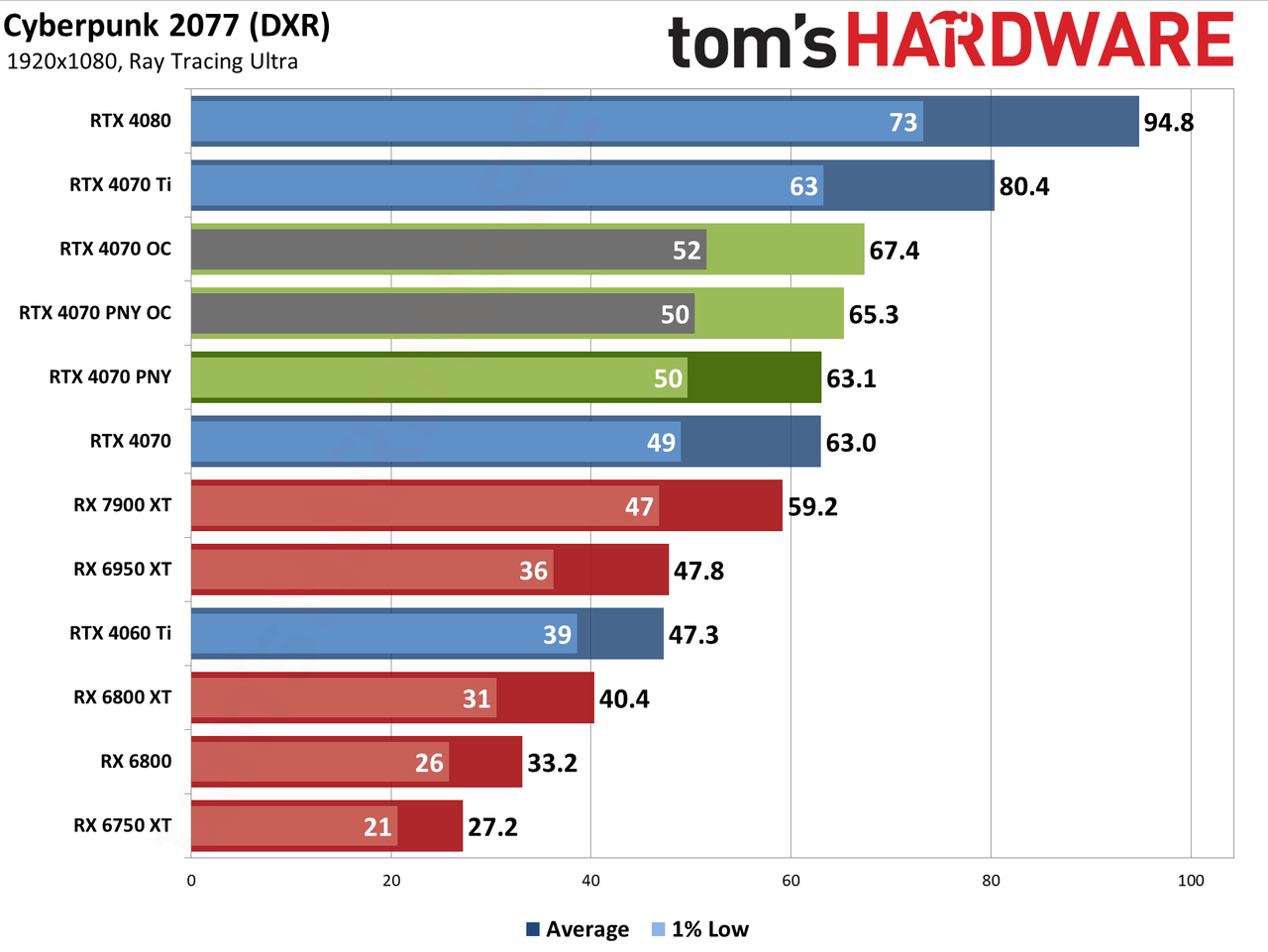

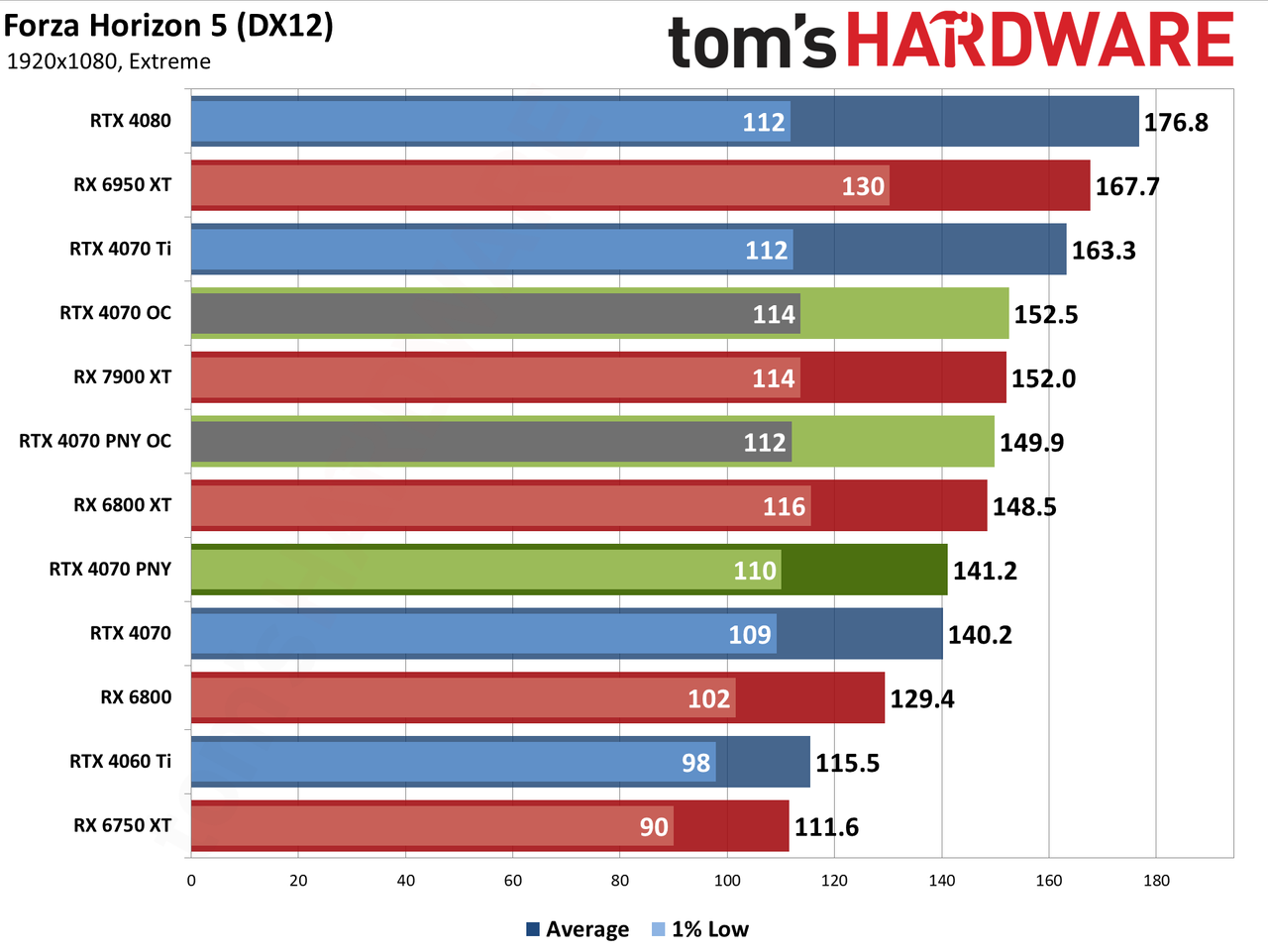

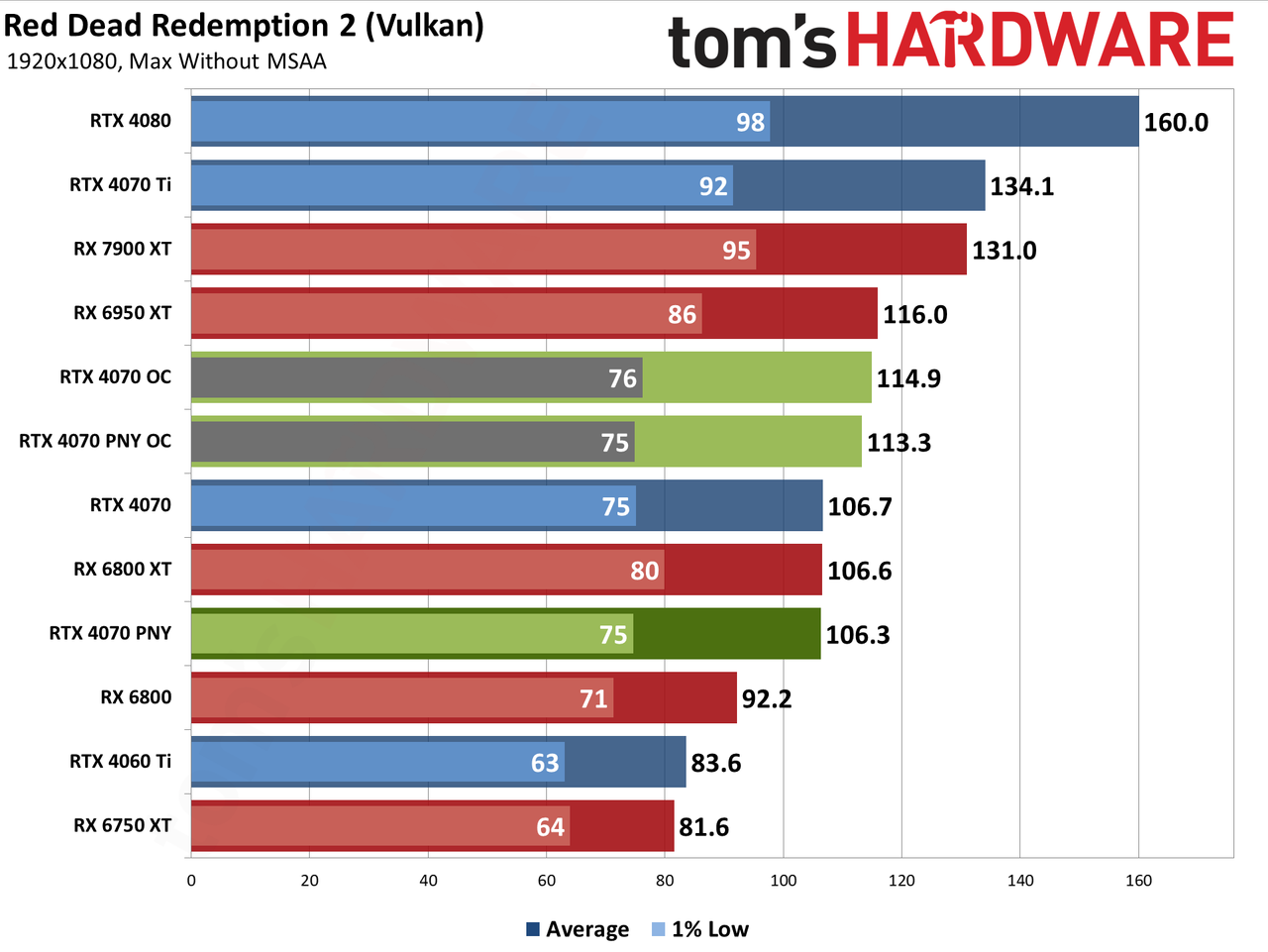

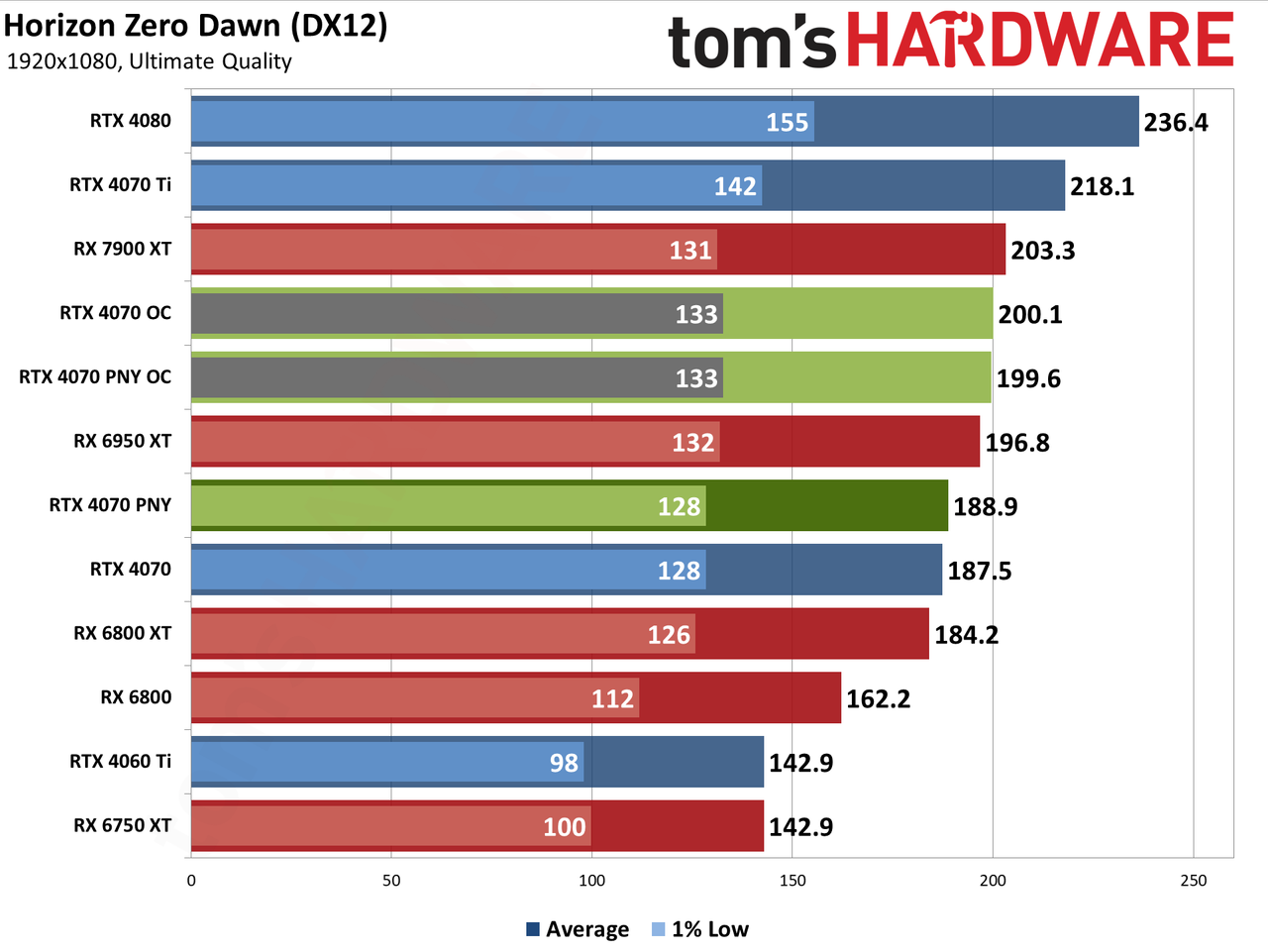

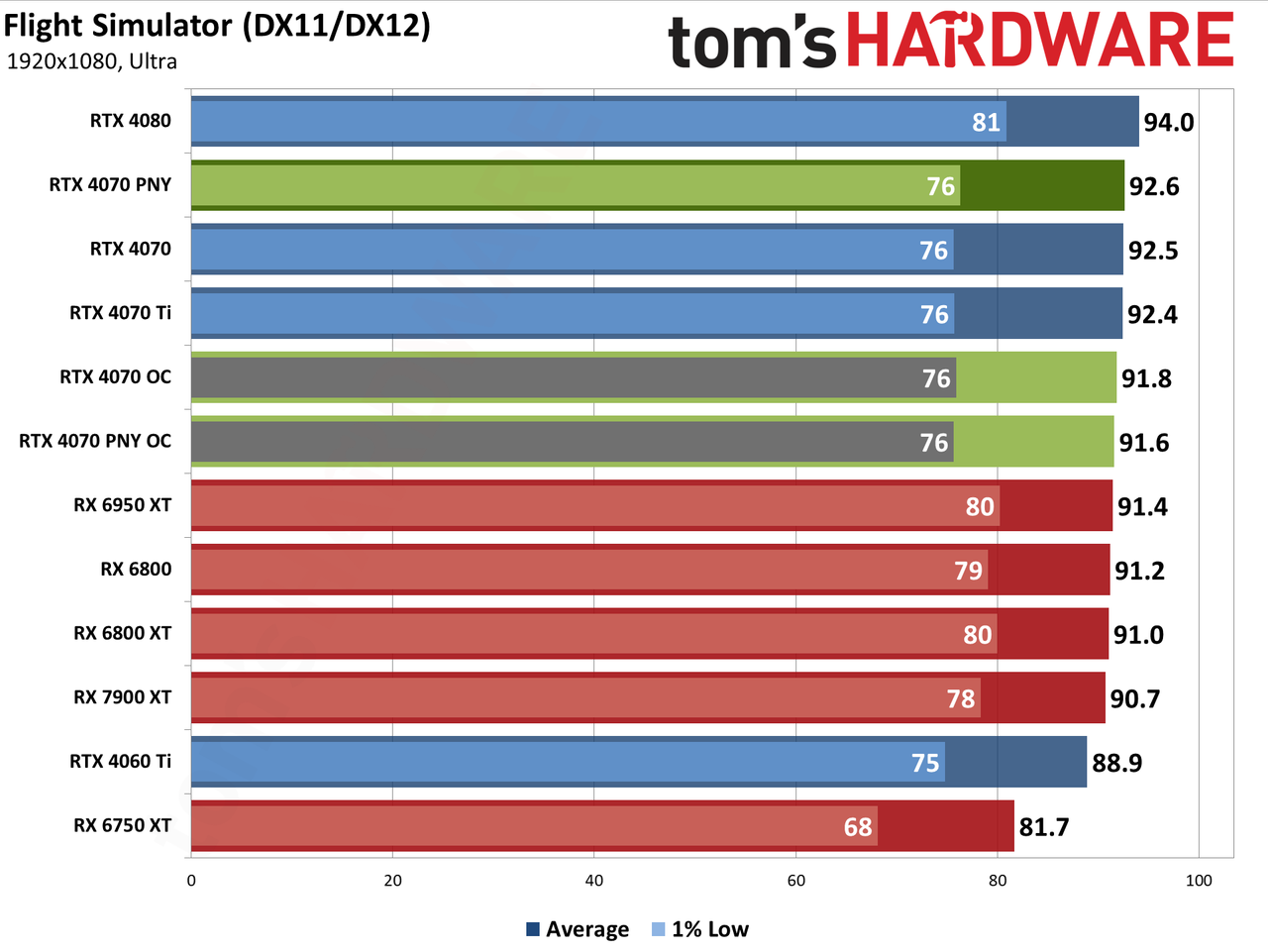

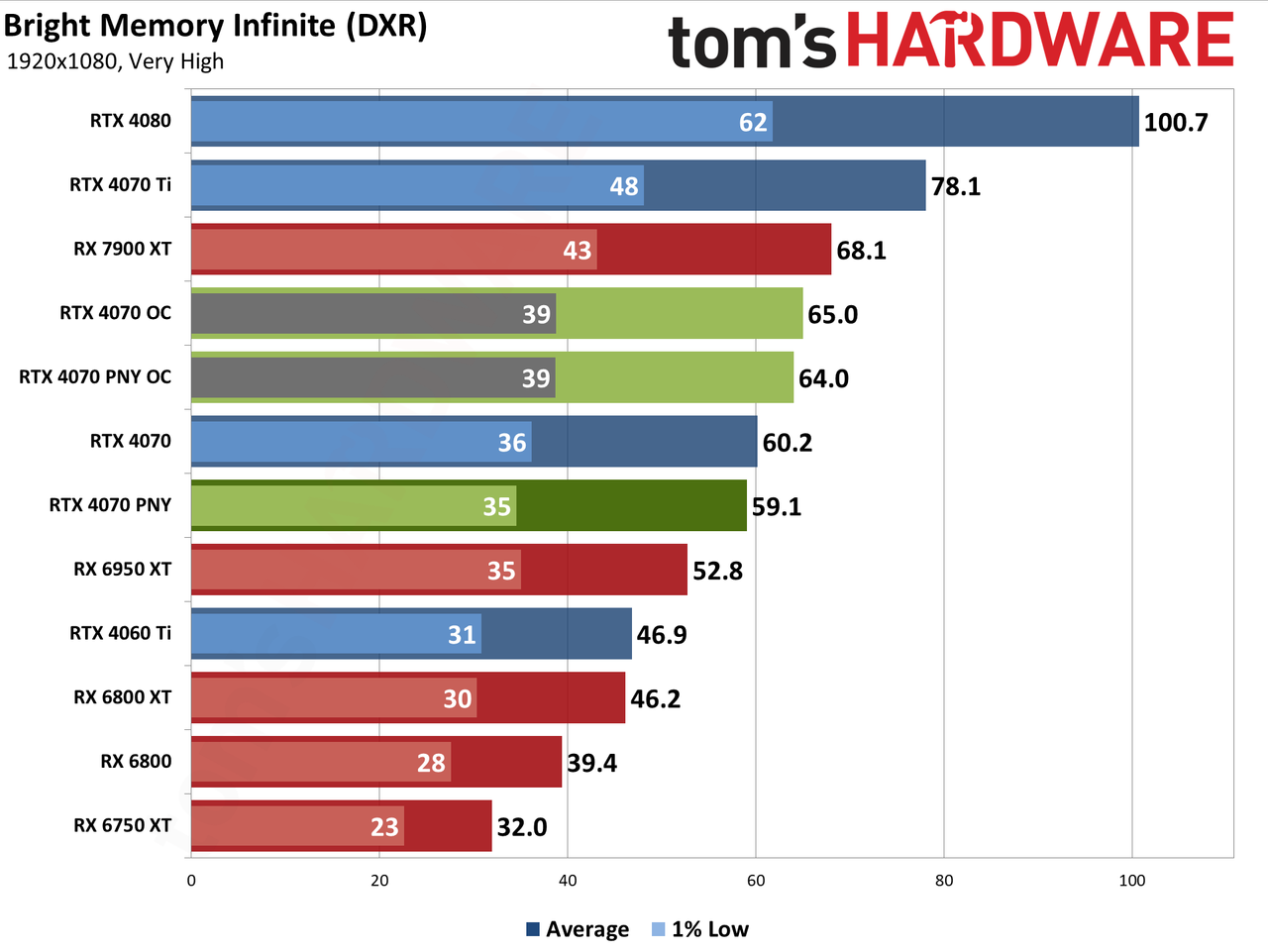

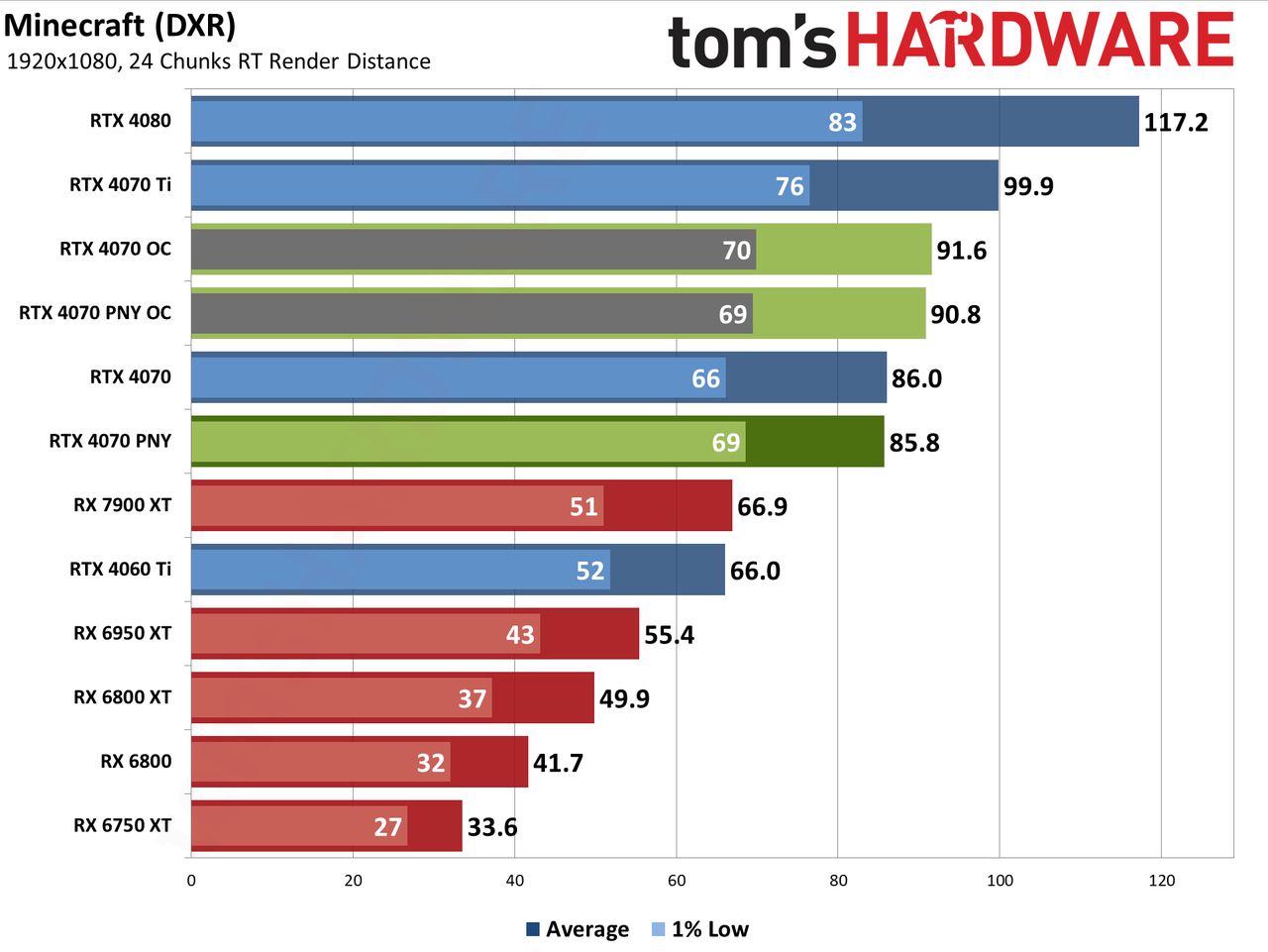

PNY RTX 4070 1080p performance charts
(Image credit: Tom's Hardware)

The spread in the individual games, when comparing the PNY and Founders Edition 4070 cards, is meaningless. That's as you'd expect, given they have the same reference clock speeds.

The RX 6950 XT remains the closest competition, with a slightly higher price right now. PNY's card just edges past it, by 1% overall, with a 20% lead in the DXR test suite and a 9% loss in the rasterization games.

What the above performance charts don't show (and we'll get to this in a couple of pages) is that the RTX 4070 basically matches the RX 6950 XT in performance while using 178W on average at 1080p, while the RX 6950 XT uses 307W. That means you need a better PSU if you want to run AMD's previous gen halo card, and that's still not accounting for DLSS upscaling or frame generation.

Jarred Walton
Jarred Walton

Jarred Walton is a senior editor at Tom's Hardware focusing on everything GPU. He has been working as a tech journalist since 2004, writing for AnandTech, Maximum PC, and PC Gamer. From the first S3 Virge '3D decelerators' to today's GPUs, Jarred keeps up with all the latest graphics trends and is the one to ask about game performance.
