Cross-Load Tests & Infrared Images
Our cross-load tests are described in detail here.

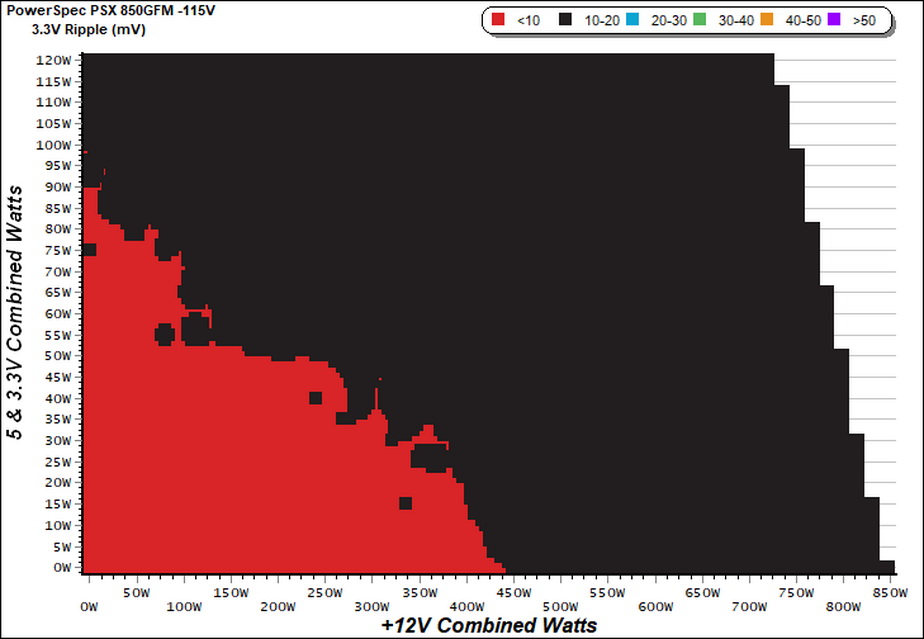

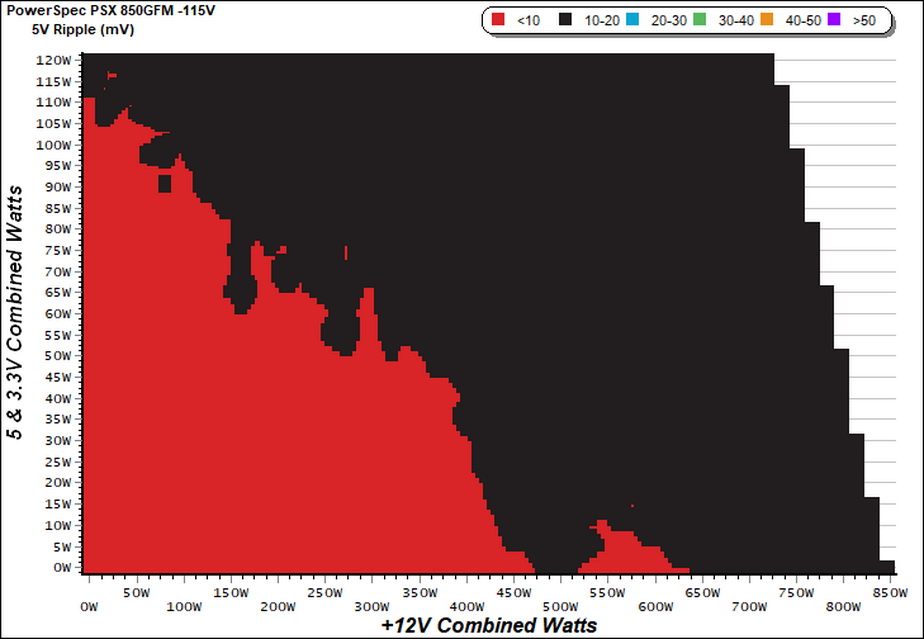

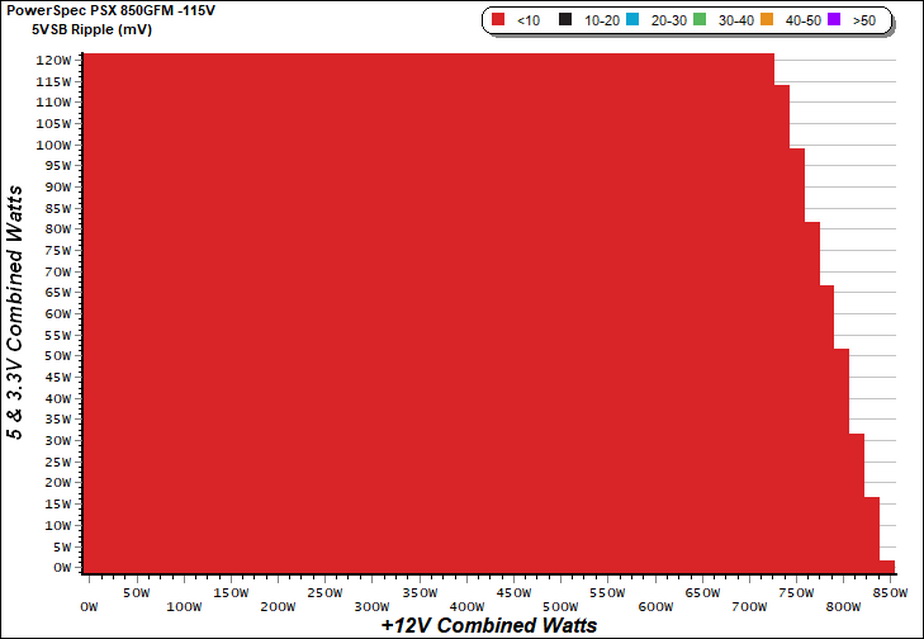

To generate the following charts, we set our loaders to auto mode through our custom-made software before trying more than 25,000 possible load combinations with the +12V, 5V, and 3.3V rails. The load regulation deviations in each of the charts below are calculated by taking the nominal values of the rails (12V, 5V, and 3.3V) as point zero. The ambient temperature is between at 30°C (86°F) to 32°C (89.6°F).

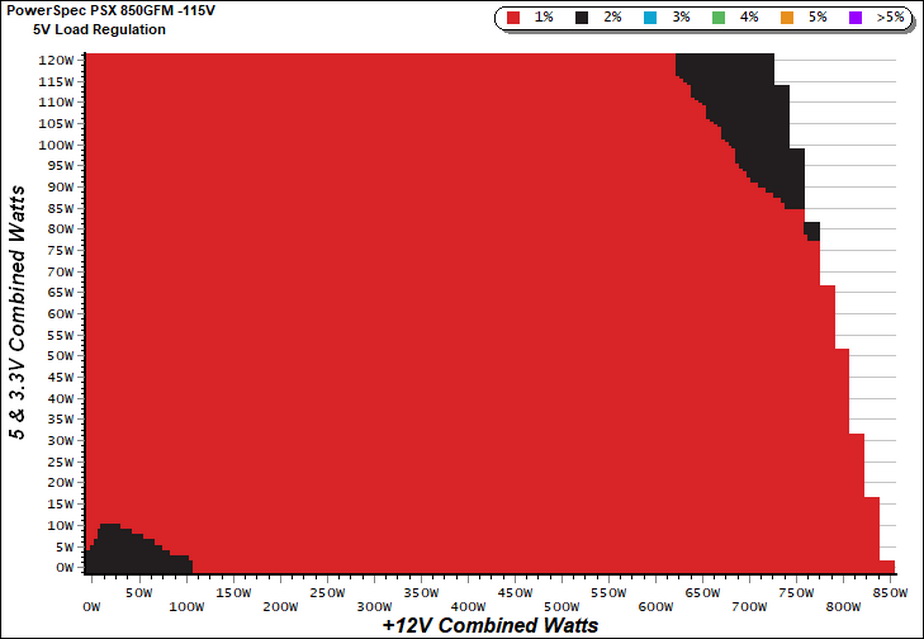

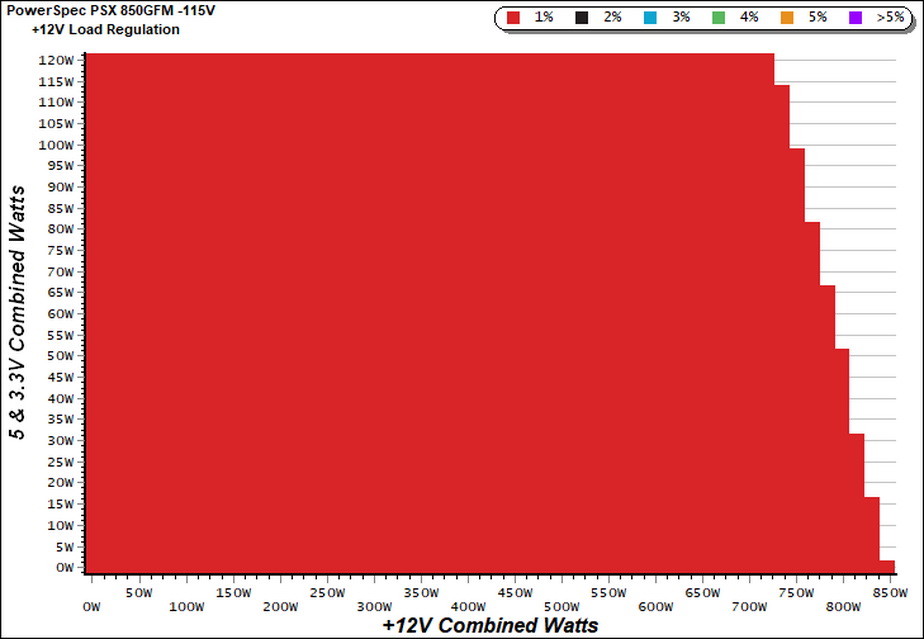

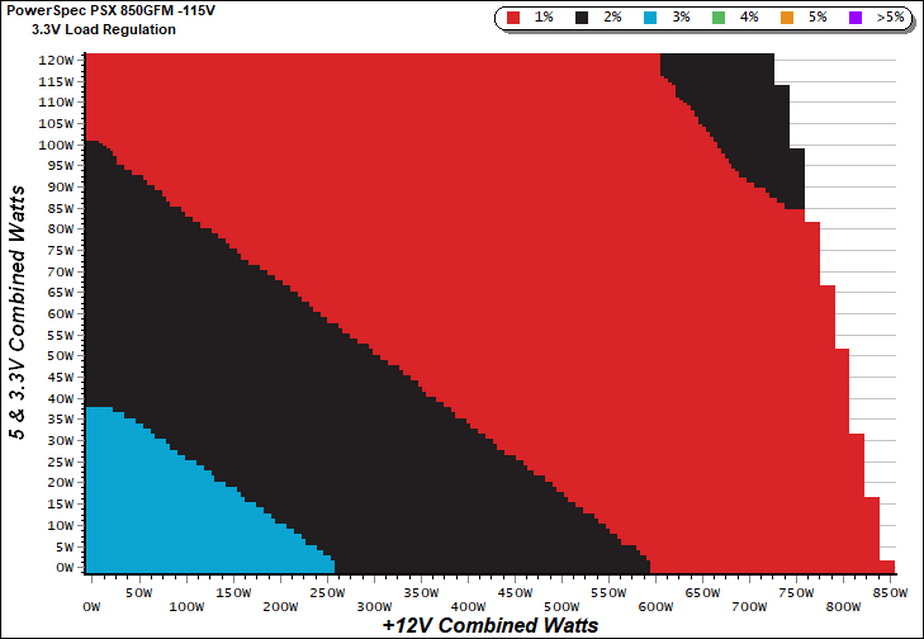

Load Regulation Charts

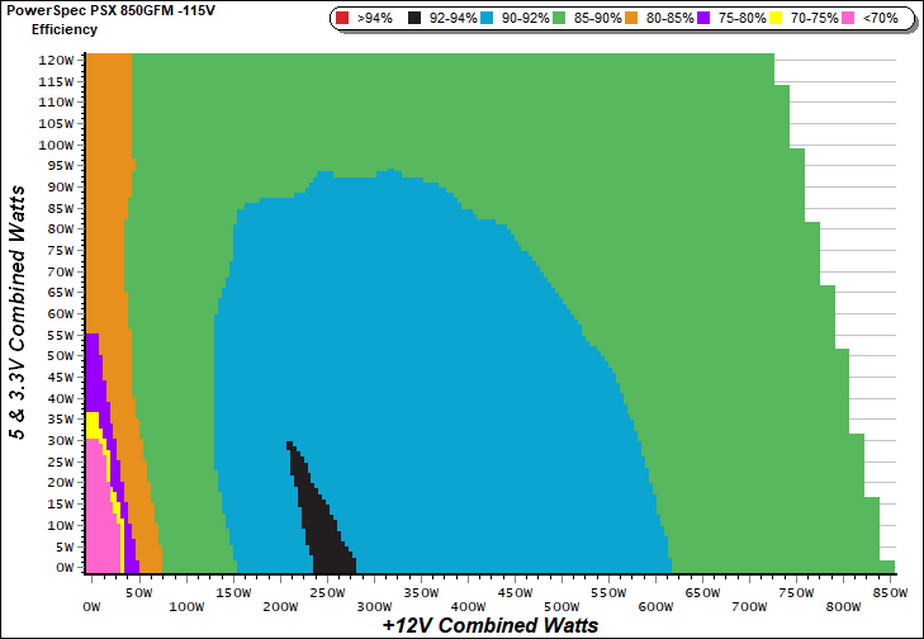

There is a small region where efficiency is within the 92-94% range. This is something that we don't often see in 80 PLUS Gold units.

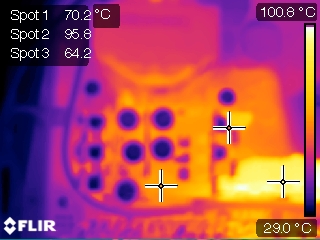

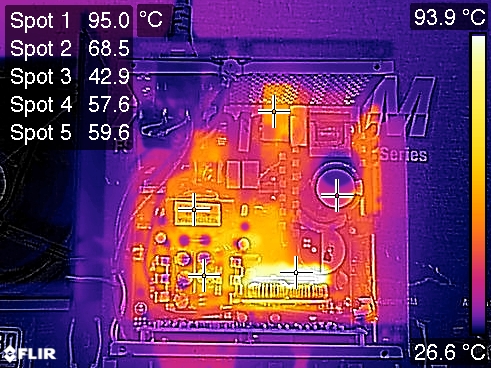

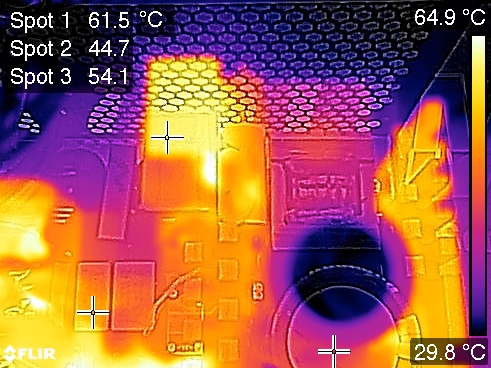

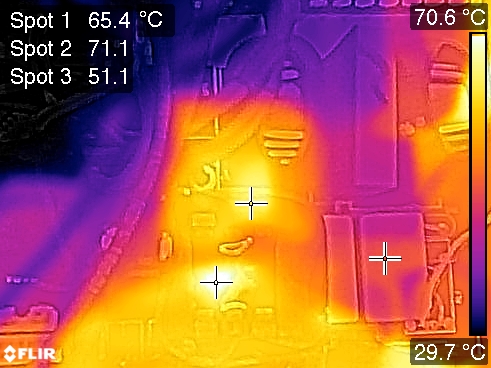

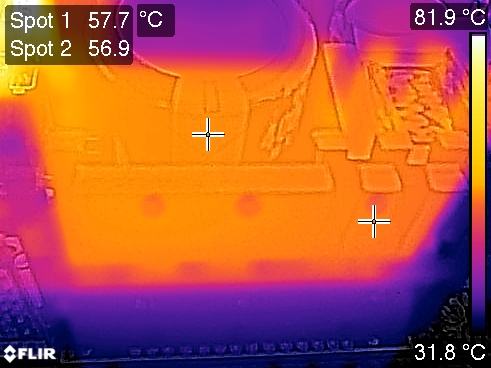

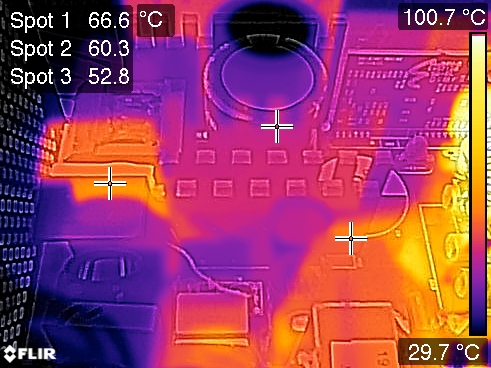

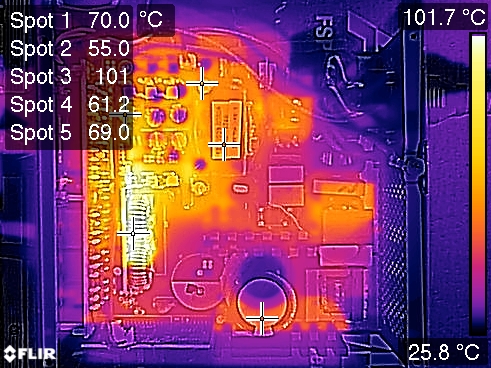

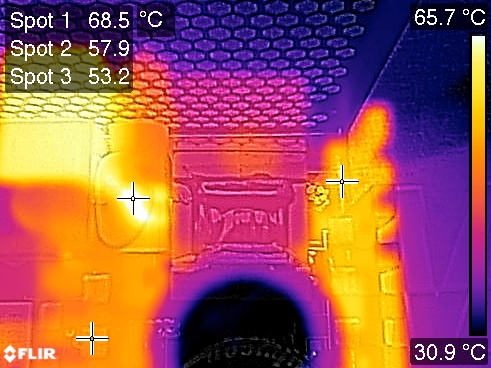

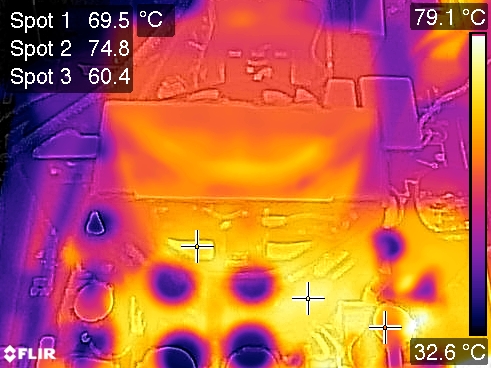

We apply half-load for 10 minutes with the PSU's top cover and cooling fan removed before taking photos with our modified FLIR E4 camera that delivers 320x240 IR resolution (76,800 pixels).

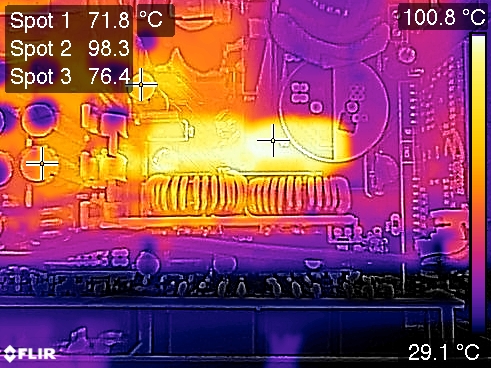

Only the DC-DC converters' coils got quite hot. Everything else remained fairly cool thanks to the platform's increased efficiency levels. This also tells us that the fan profile could be a little more conservative for less overall noise output.
