Tom's Hardware Verdict

The ST1000-PTS has compact dimensions and achieves high efficiency but there are better options in the same price range.

Pros

+
Full power at 47 degrees Celsius
+
Efficient
+
High Power Factor readings
+
Low inrush currents
+
Fully modular
+
8x PCIe & 2x EPS connectors
+
Compact dimensions

Cons

-
Modest performance
-
Inaccurate power ok signal
-
Over Current & over Protections are improperly set
-
High spike during the 5VSB turn-on test

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Go to page:

Specifications and Part Analysis

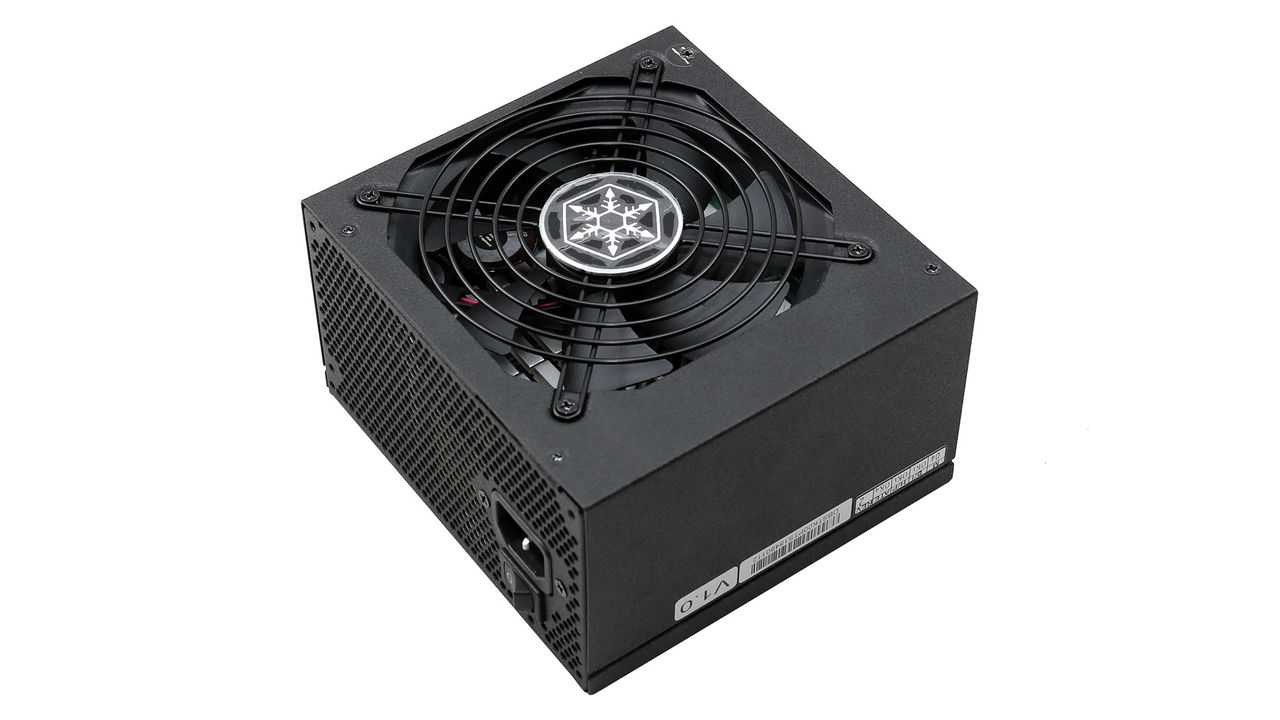

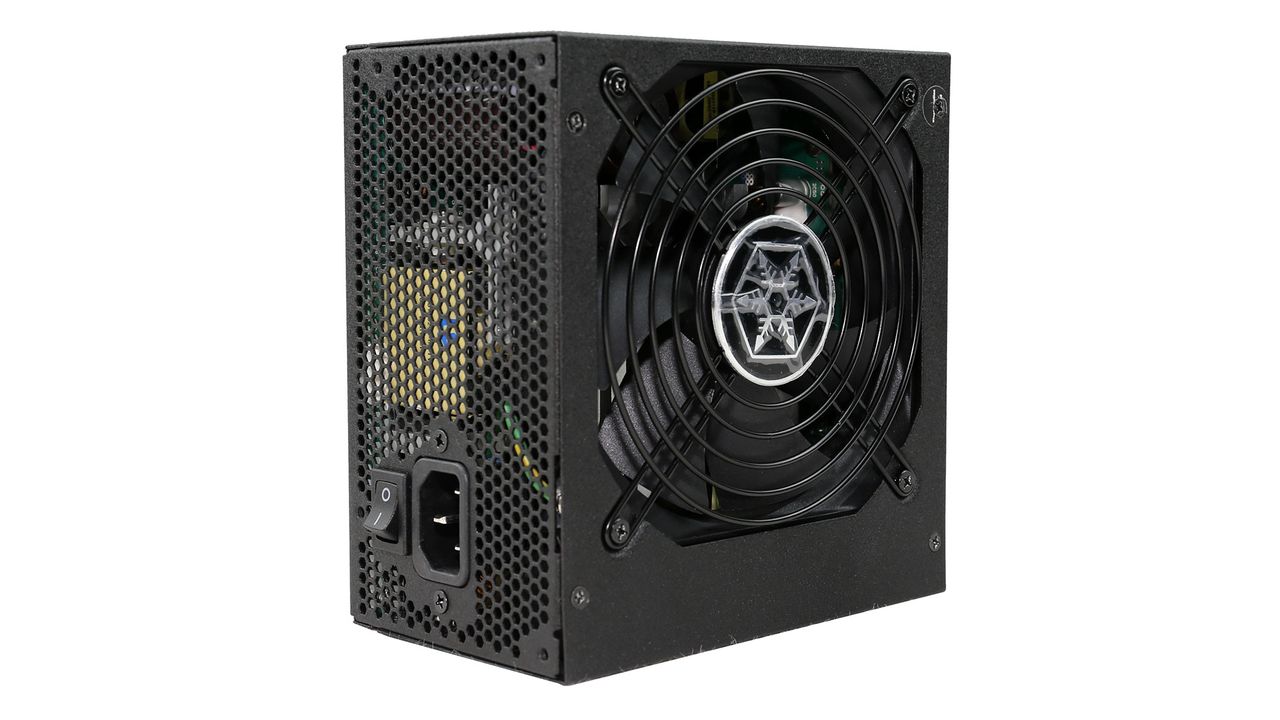

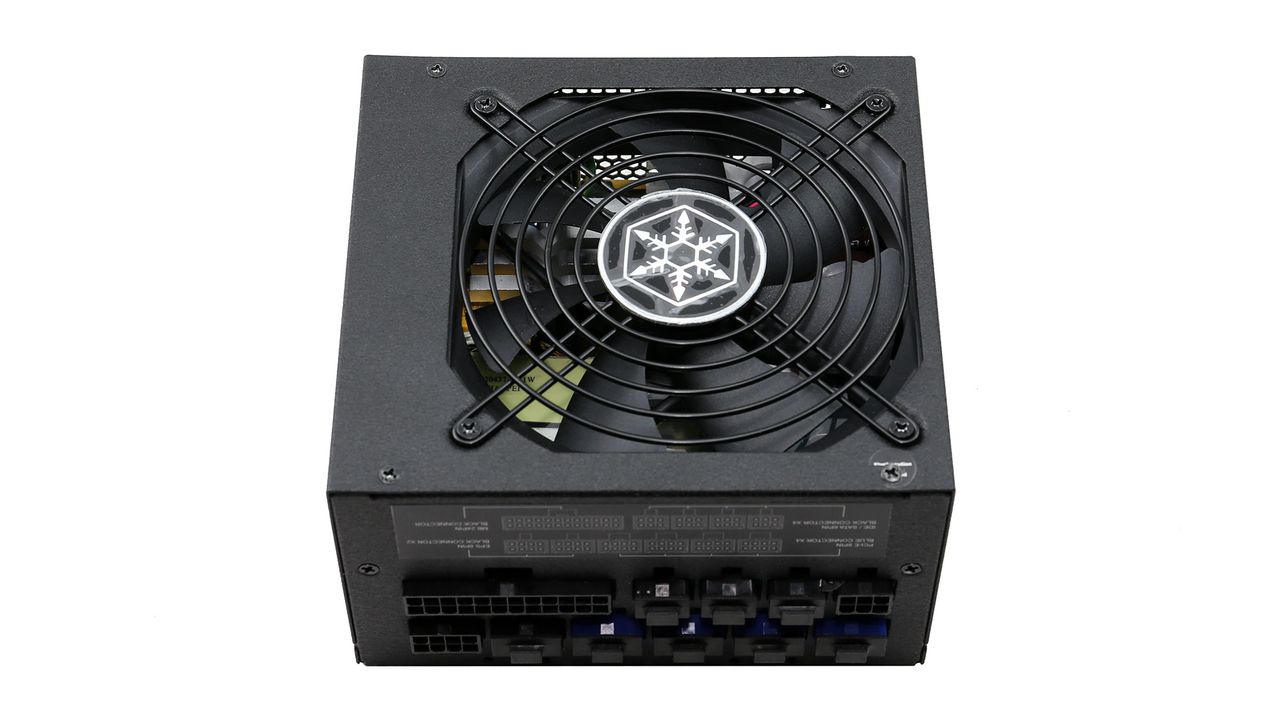

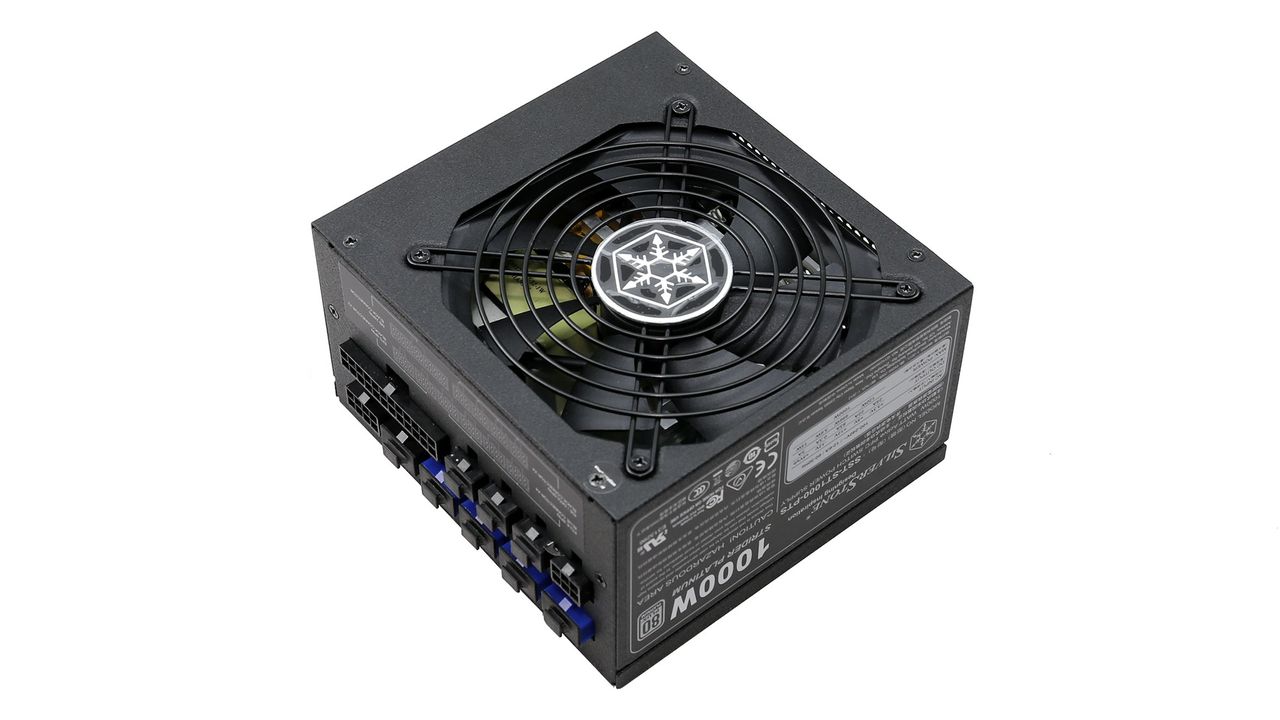

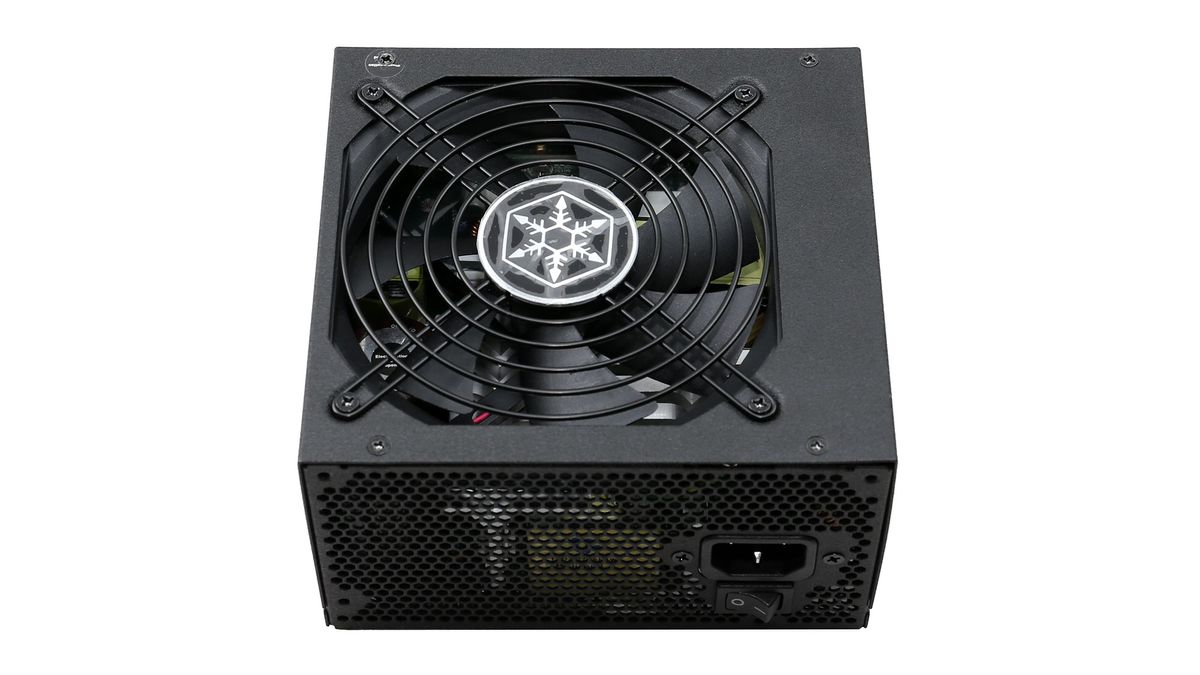

The major assets of the SilverStone ST1000-PTS power supply are its compact dimensions (142mm or 5.59 inches depth), low noise output and the highly efficient platform, which meets the 80 PLUS Platinum and Cybenetics ETA-A+ efficiency standards. Is this is enough though to justify the high asking price of $254 (£195)? The fact is that there are better performing products in the same price range, so SilverStone has to either lower this unit's price or release a new version with improved performance, to keep up with the tough competition from Corsair, FSP and Seasonic.

We have already evaluated the ST1200-PTS, so it was a matter of time before we put its smaller brother on the test bench. The SilverStone ST1000-PTS has the same compact dimensions with the 1200W unit, but because of the smaller capacity it achieves a lower power density score which still looks impressive though, at 554W per liter (it is 664W per liter for the ST1200-PTS). Clearly SilverStone participates in an endless race with one goal in mind, to downsize its power supplies as much as possible. Some years ago, a PSU with only 140mm length had a hard time achieving 750W max power and we see nowadays similar dimension units going up to 1200W, while still keeping the noise output low.

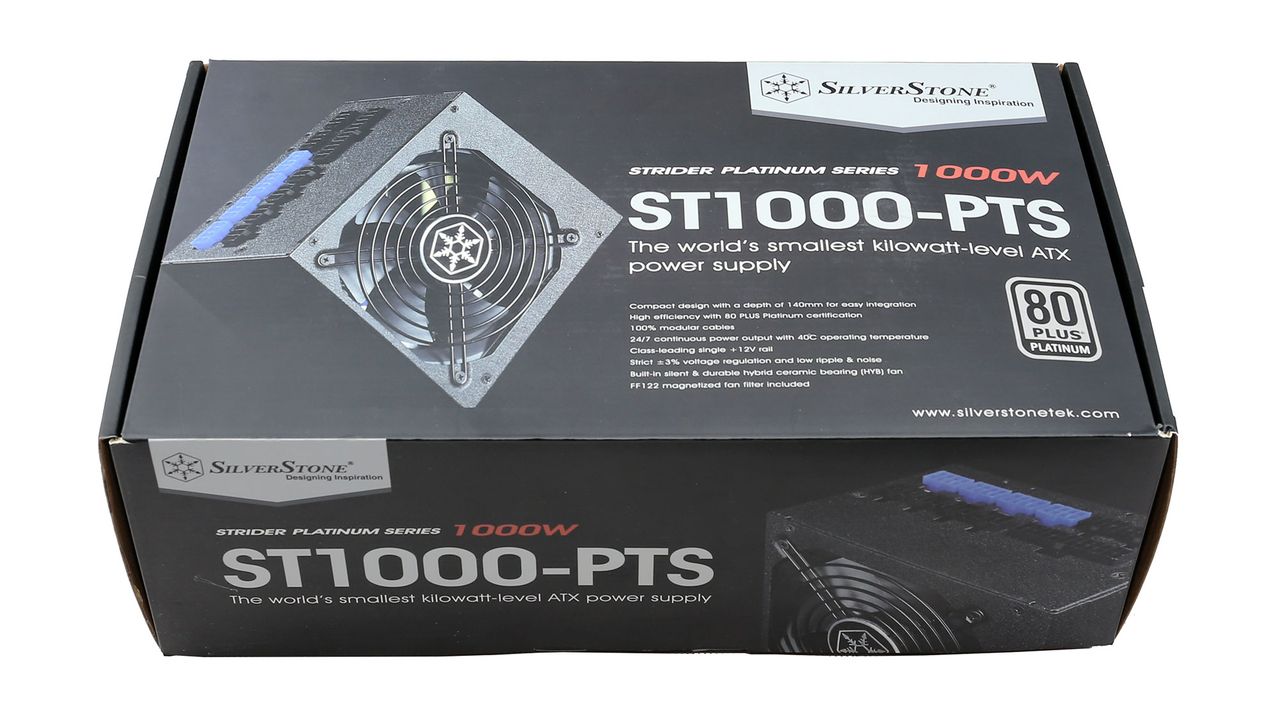

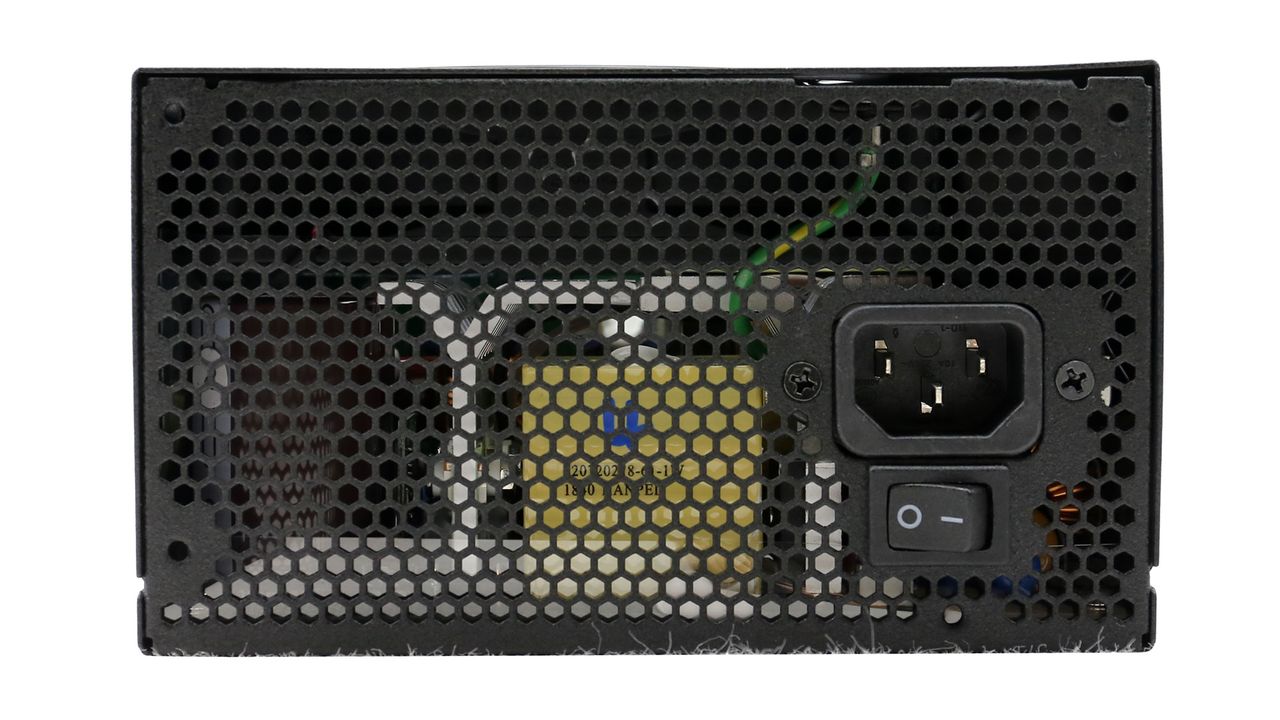

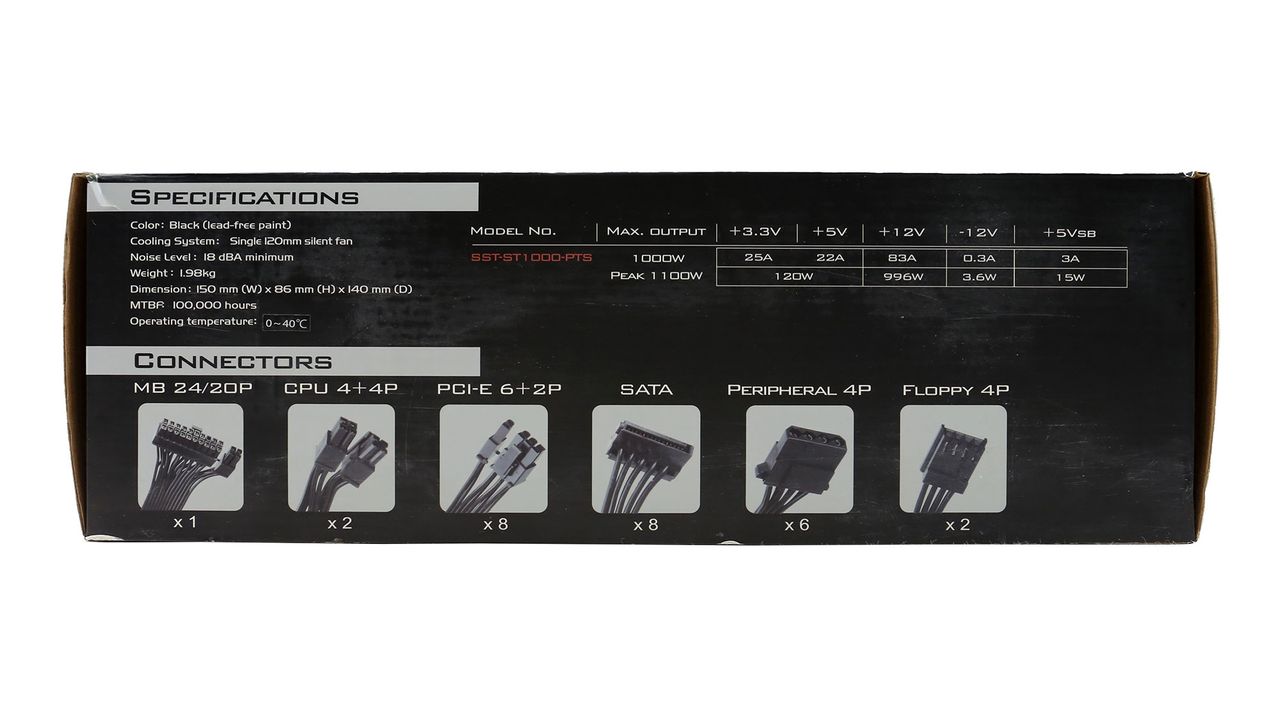

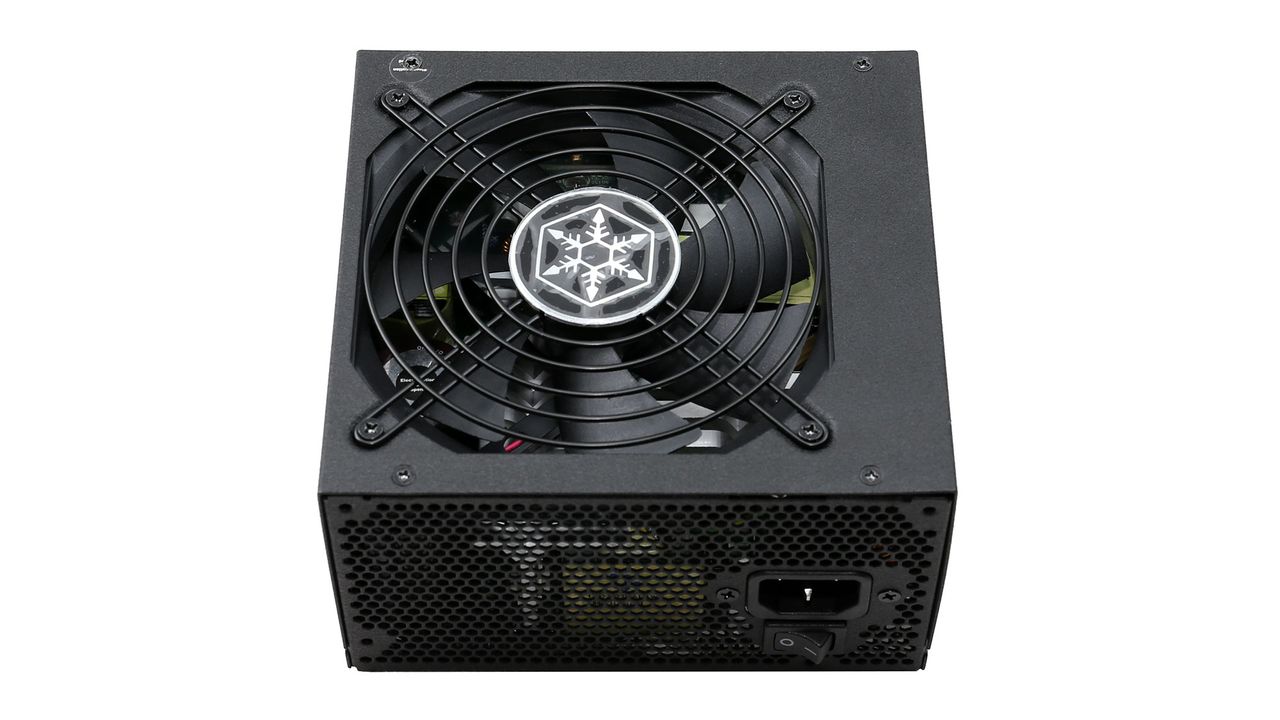

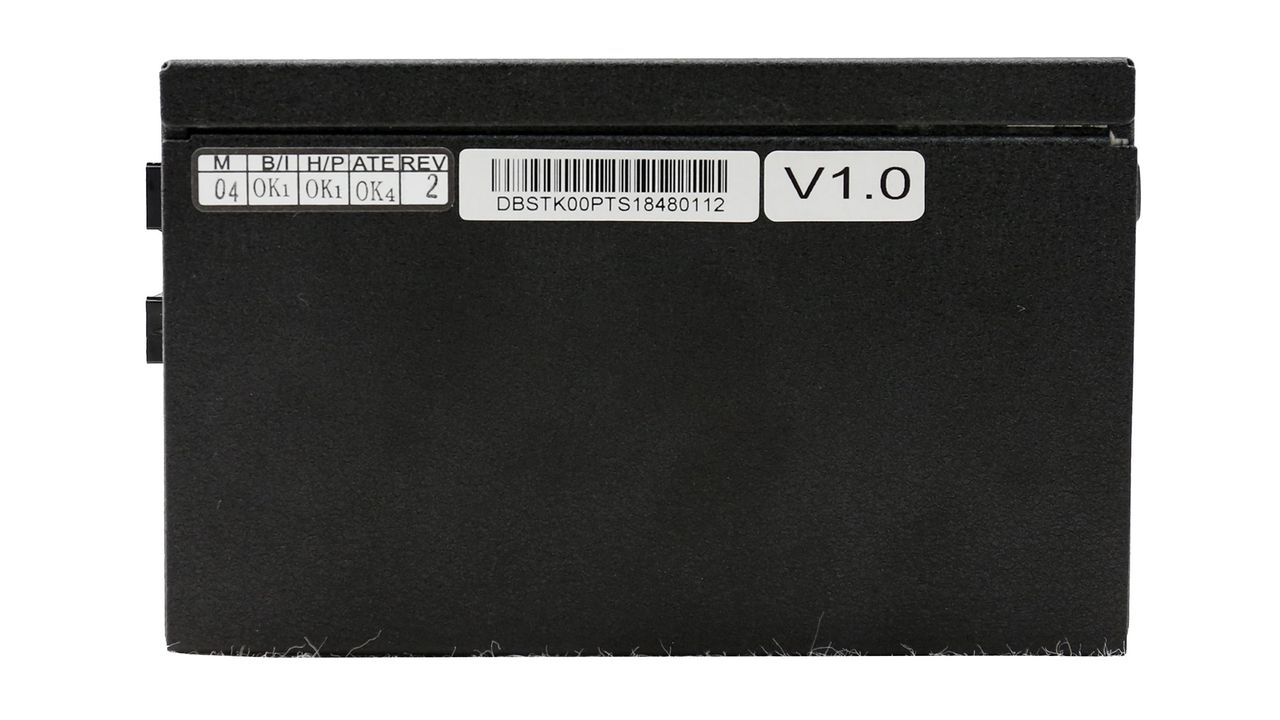

Image 1 of 10

Image 1 of 11

Swipe to scroll horizontally

Manufacturer (OEM)	Enhance Electronics

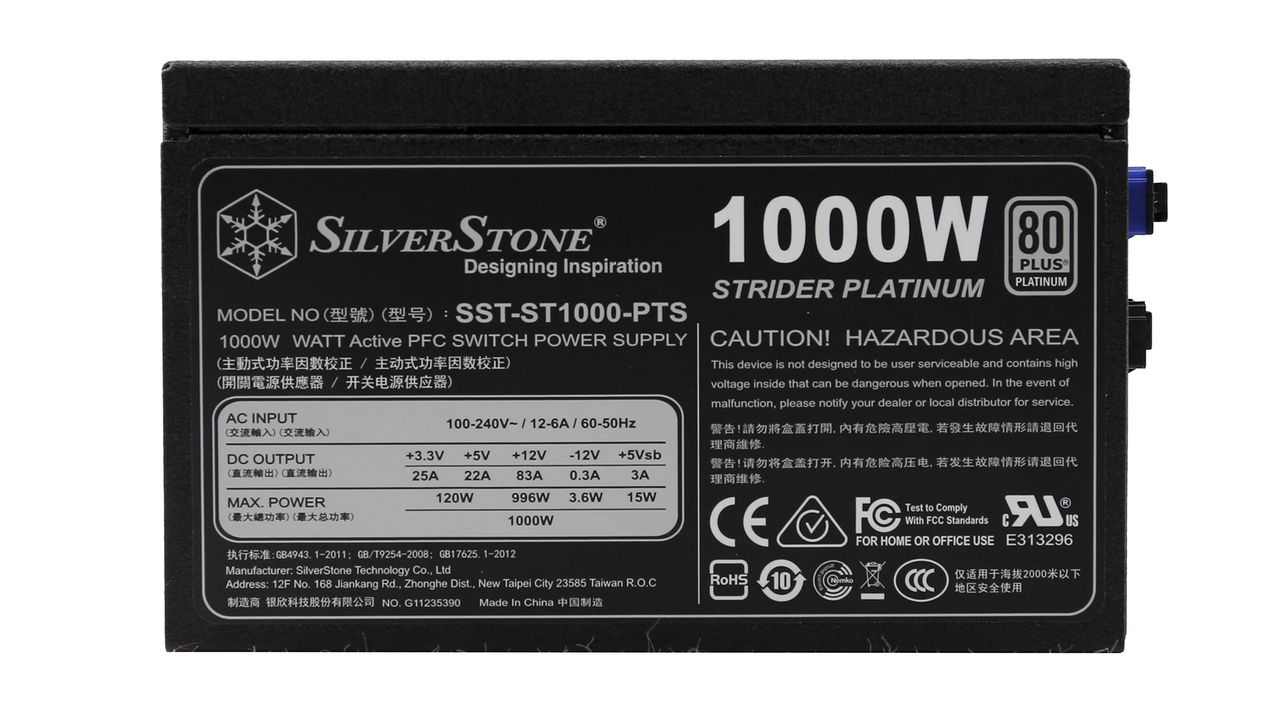

Max. DC Output	1000W
Efficiency	80 PLUS Platinum, ETA-A+ (91-94%)
Noise	LAMBDA-A (20-25 dB[A])
Modular	✓ (Fully)
Intel C6/C7 Power State Support	✓
Operating Temperature (Continuous Full Load)	0 - 40°C
Over Voltage Protection	✓
Under Voltage Protection	✓
Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗
No Load Operation	✓

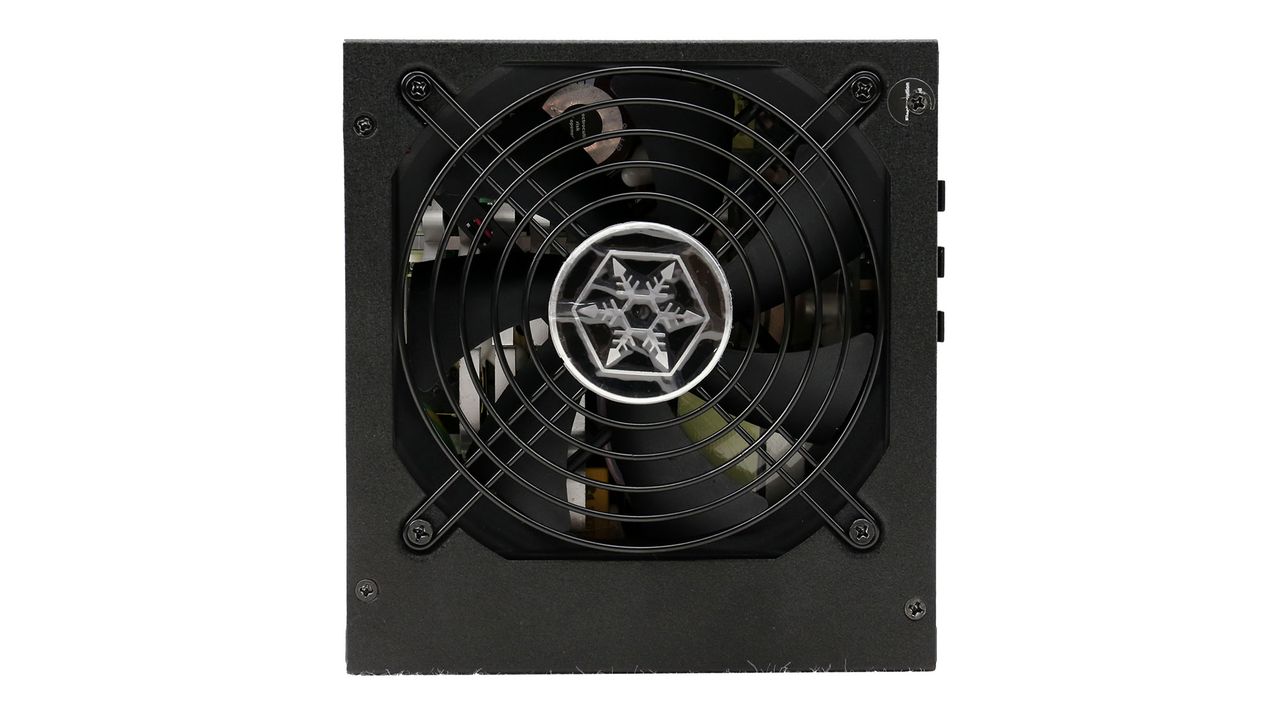

Cooling	120mm Sleeve Bearing Fan (D12SH-12)
Semi-Passive Operation	✗
Dimensions (W x H x D)	152 x 87 x 142mm
Weight	1.99 kg (4.39 lb)
Form Factor	ATX12V v2.4, EPS 2.92
Warranty	5

Swipe to scroll horizontally

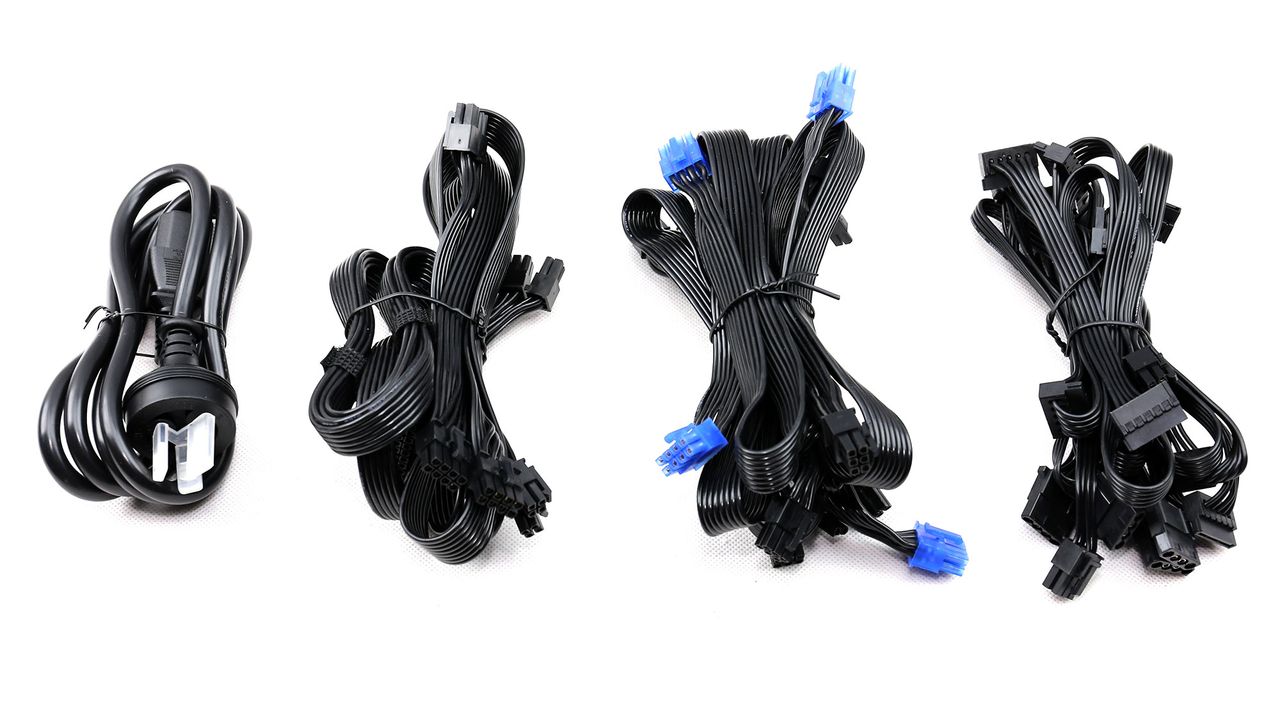

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors

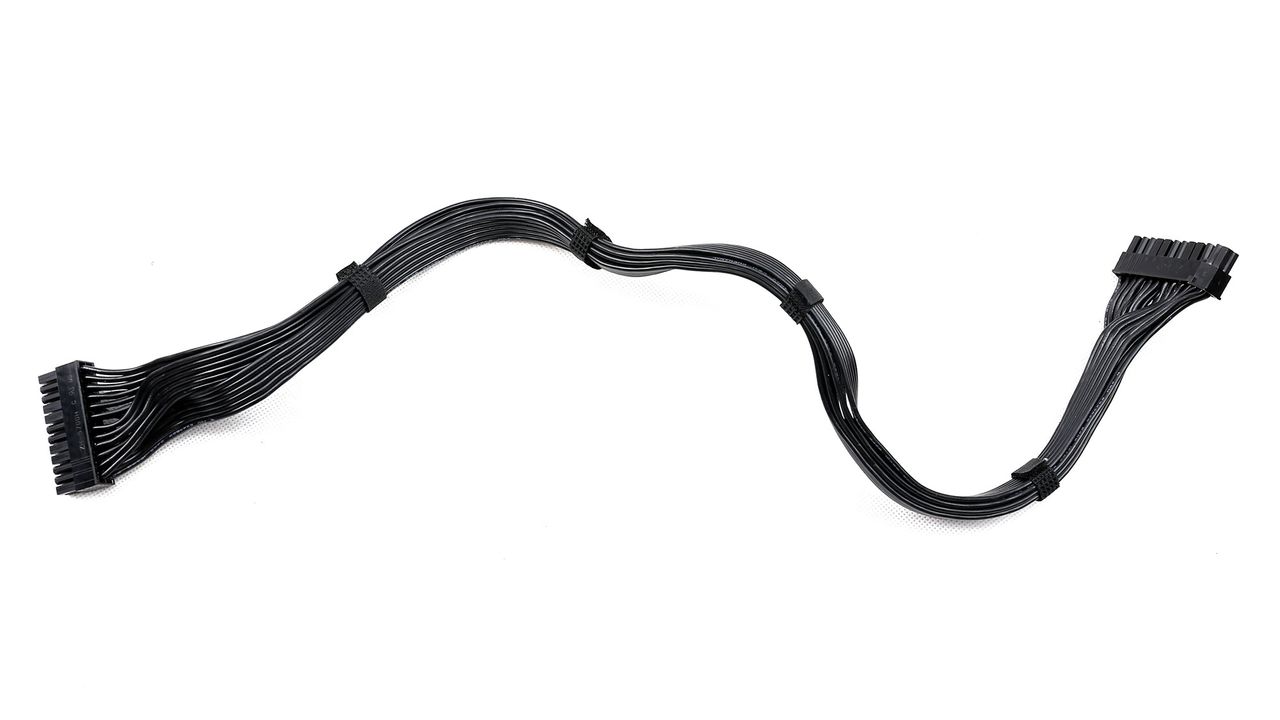

ATX connector 20+4 pin (600mm)	1	1	16-22AWG	No

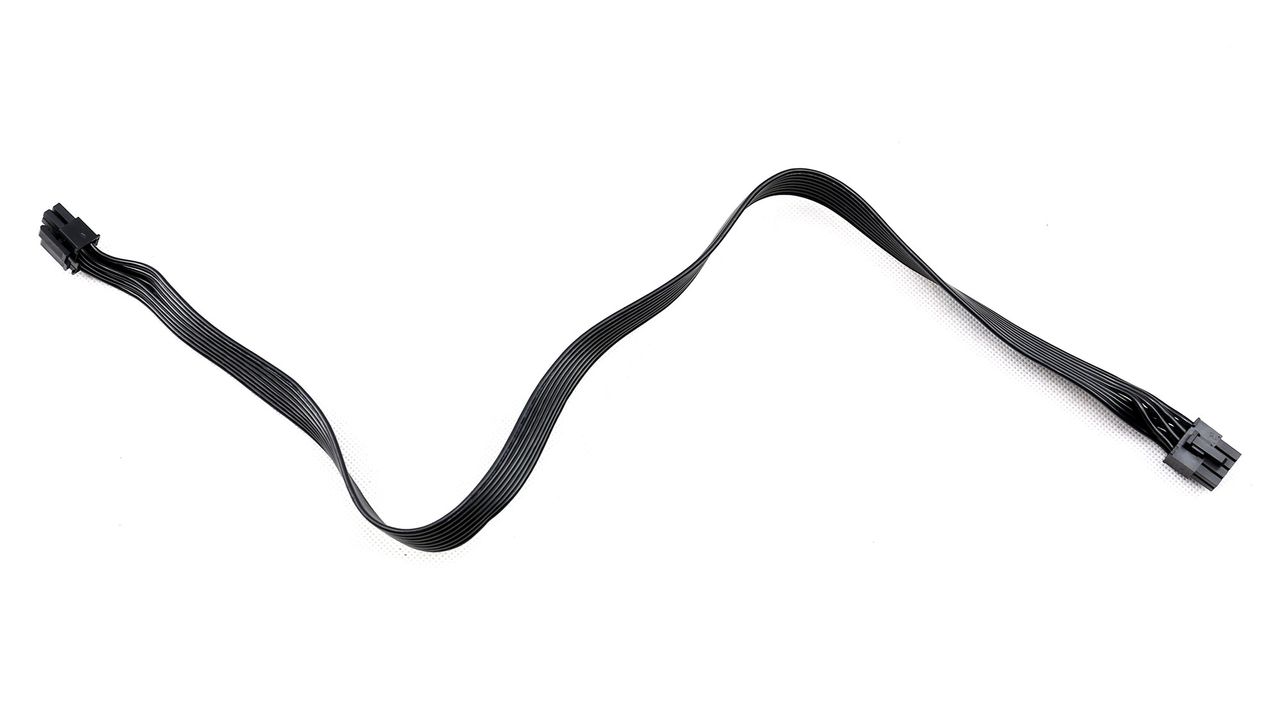

4+4 pin EPS12V (750mm)	1	1	16AWG	No
4+4 pin EPS12V (550mm)	1	1	16AWG	No

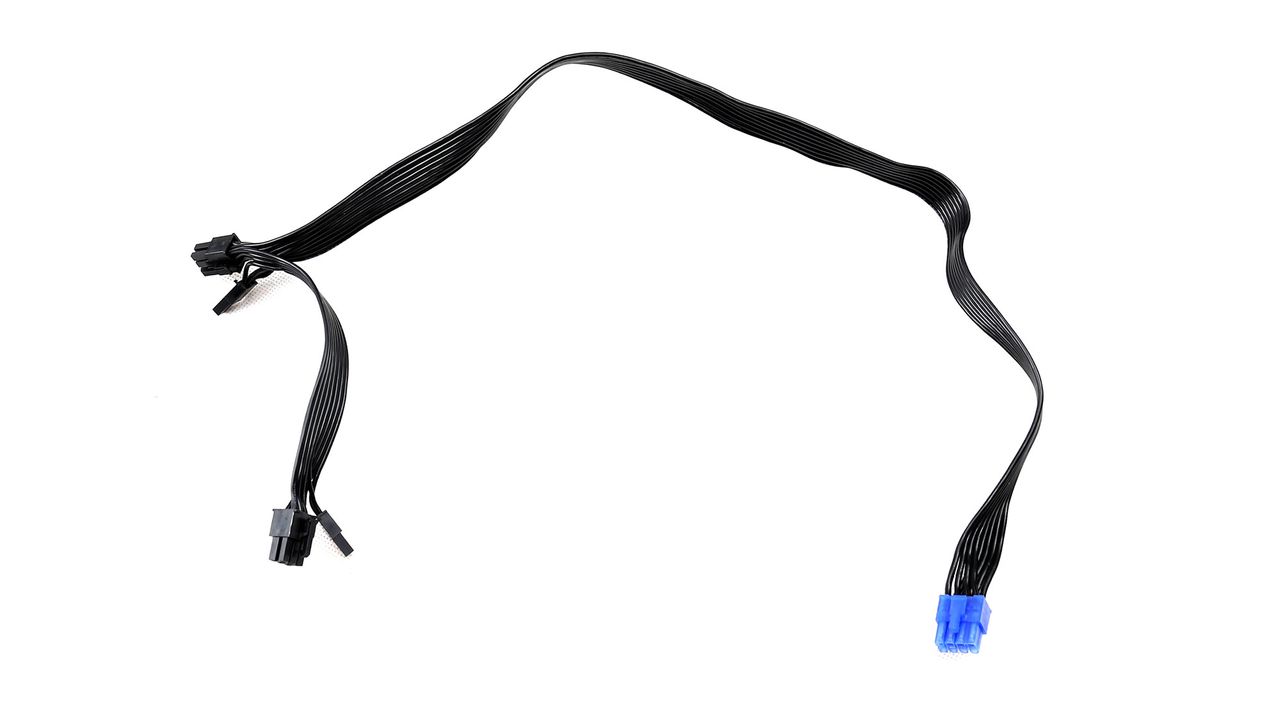

6+2 pin PCIe (550mm+150mm)	4	8	16-18AWG	No

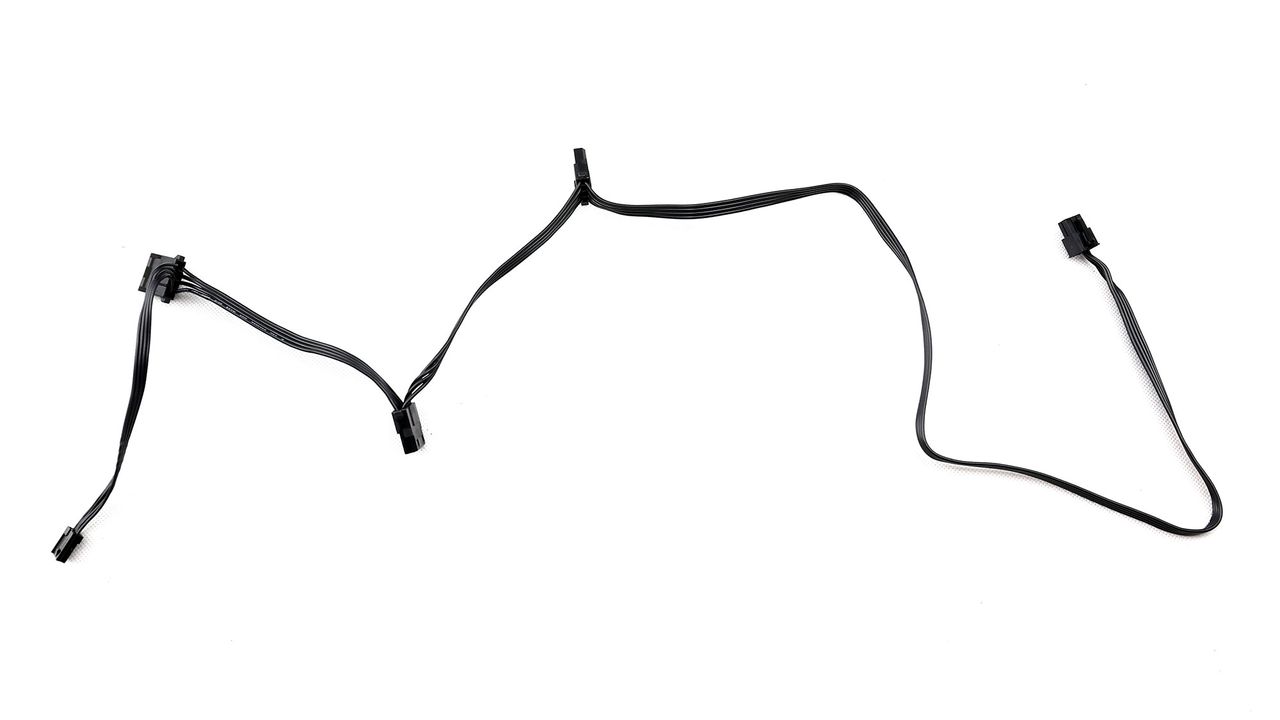

SATA (610mm+140mm+140mm+140mm)	2	8	18AWG	No

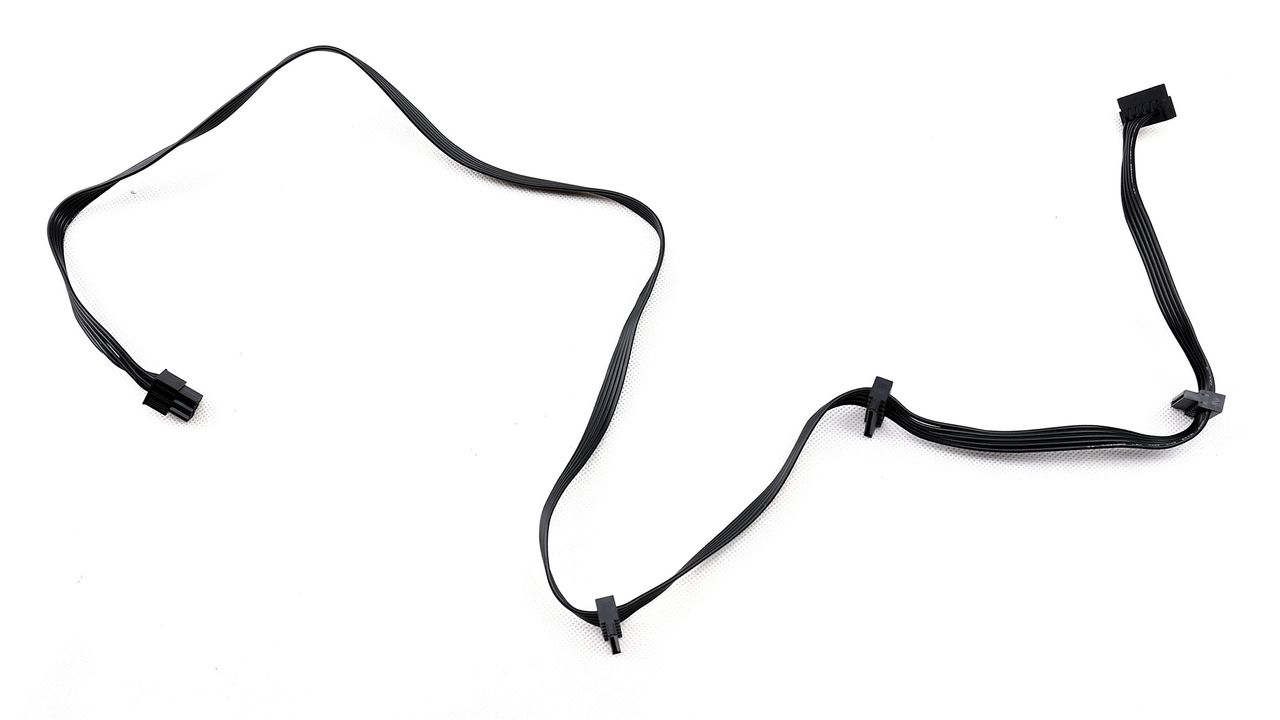

4-pin Molex (610mm+150mm+150mm) / FDD (+150mm)	2	6 / 2	18-22AWG	No

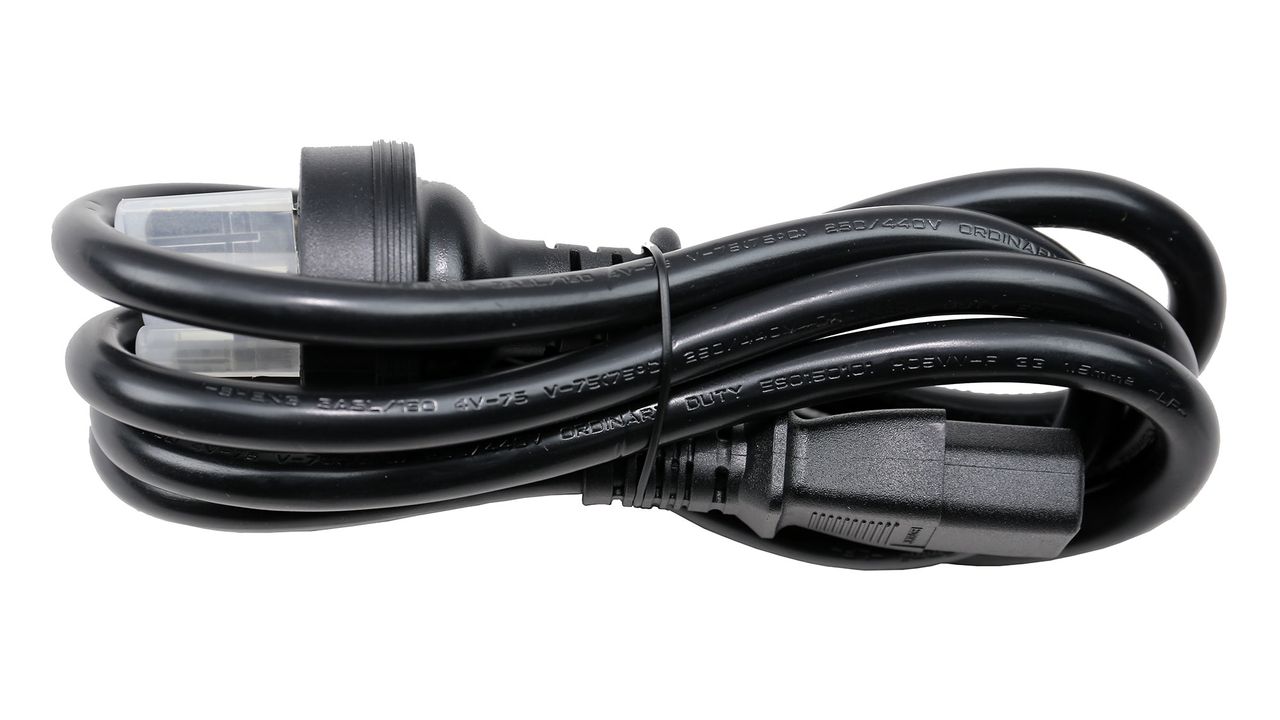

AC Power Cord (1400mm) - C13 coupler	1	1	16AWG	-

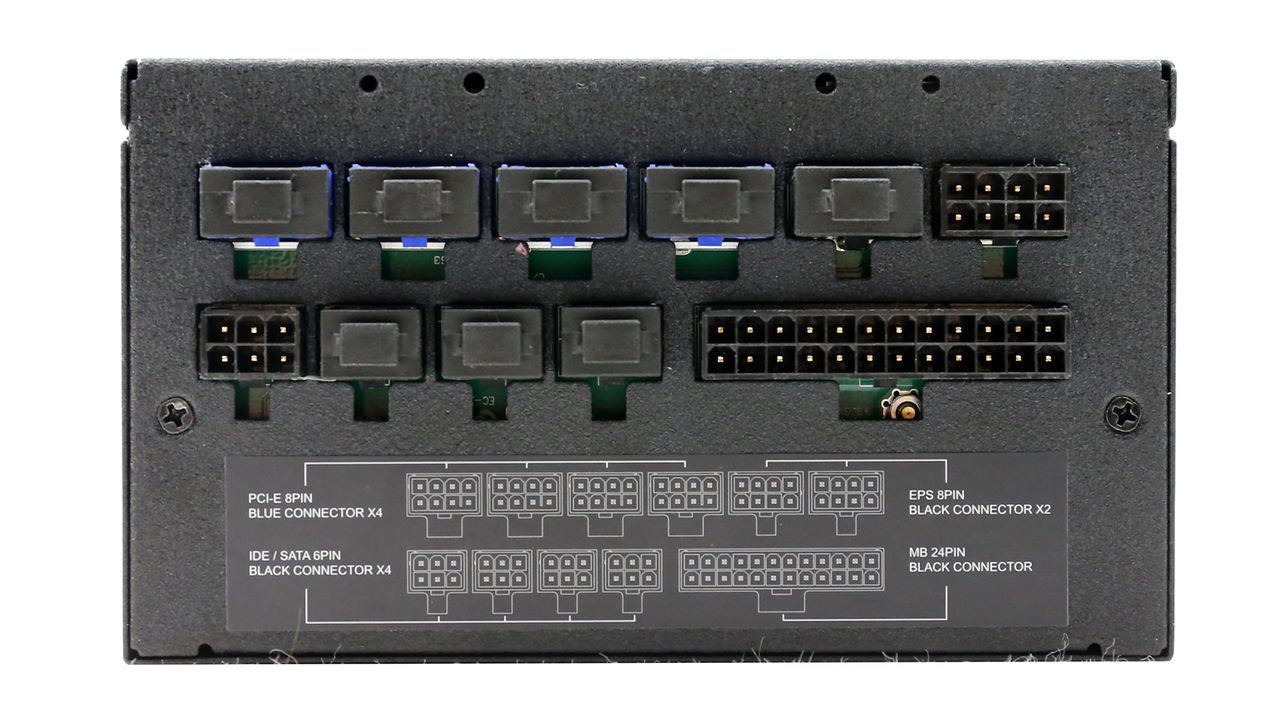

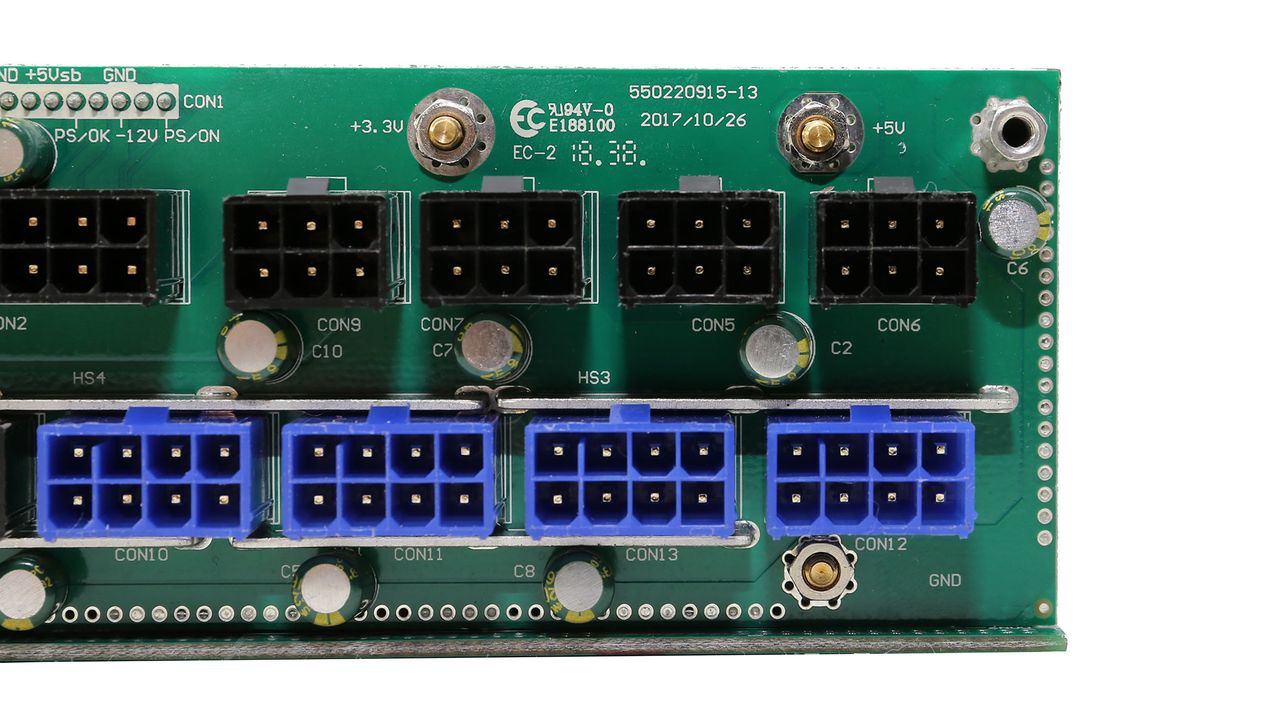

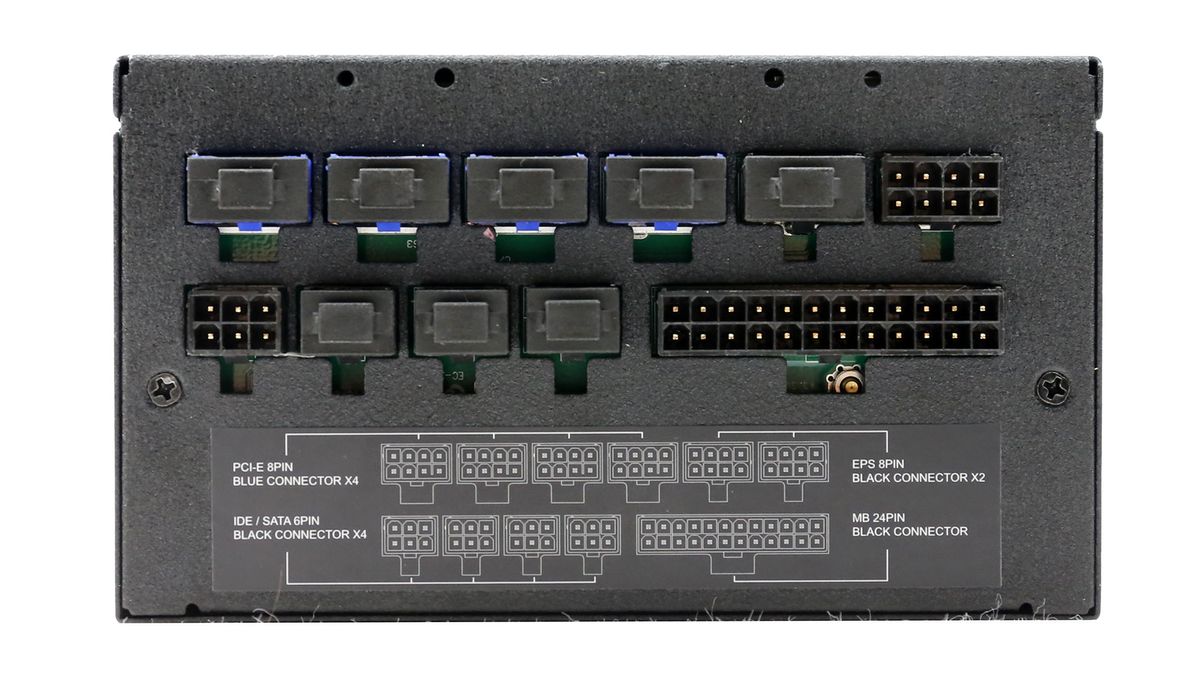

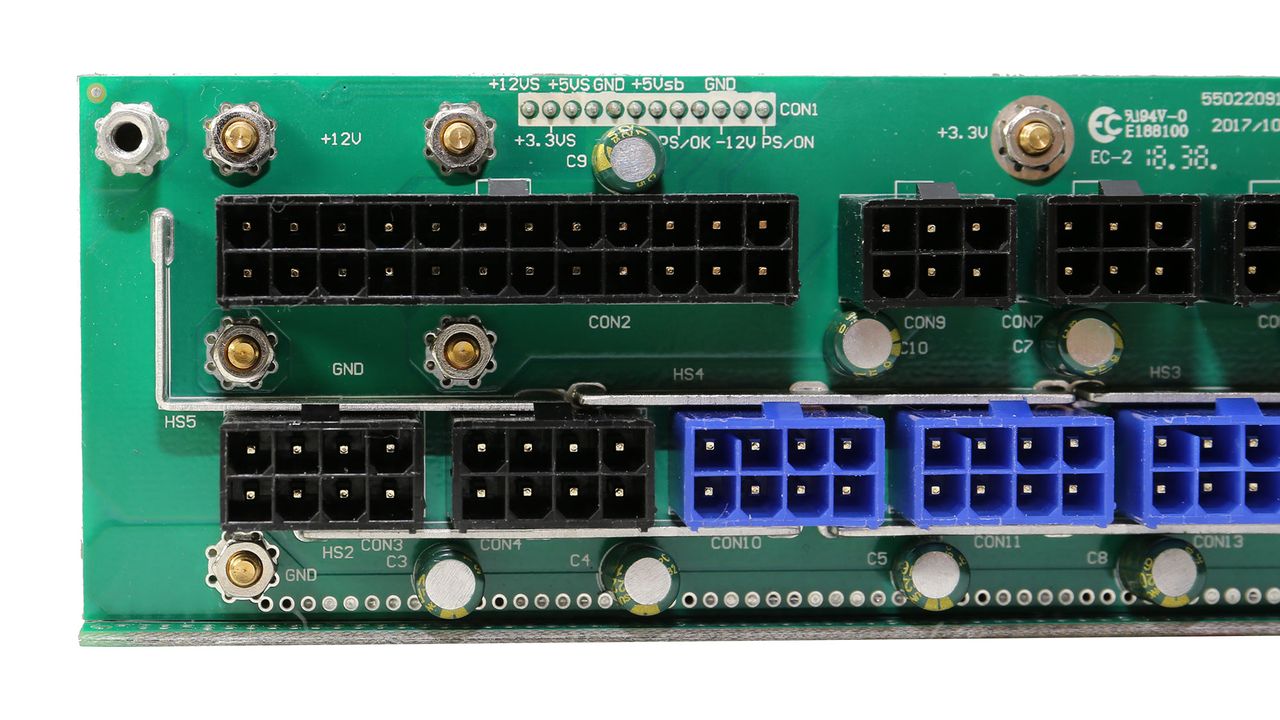

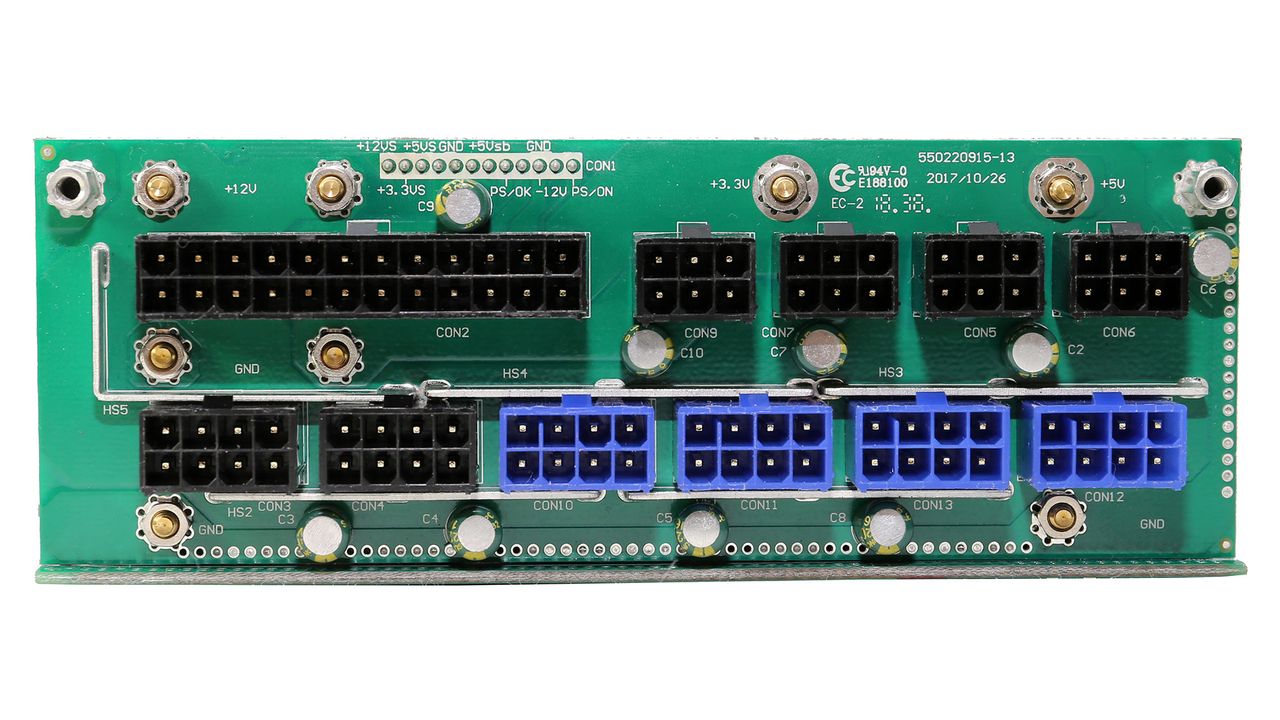

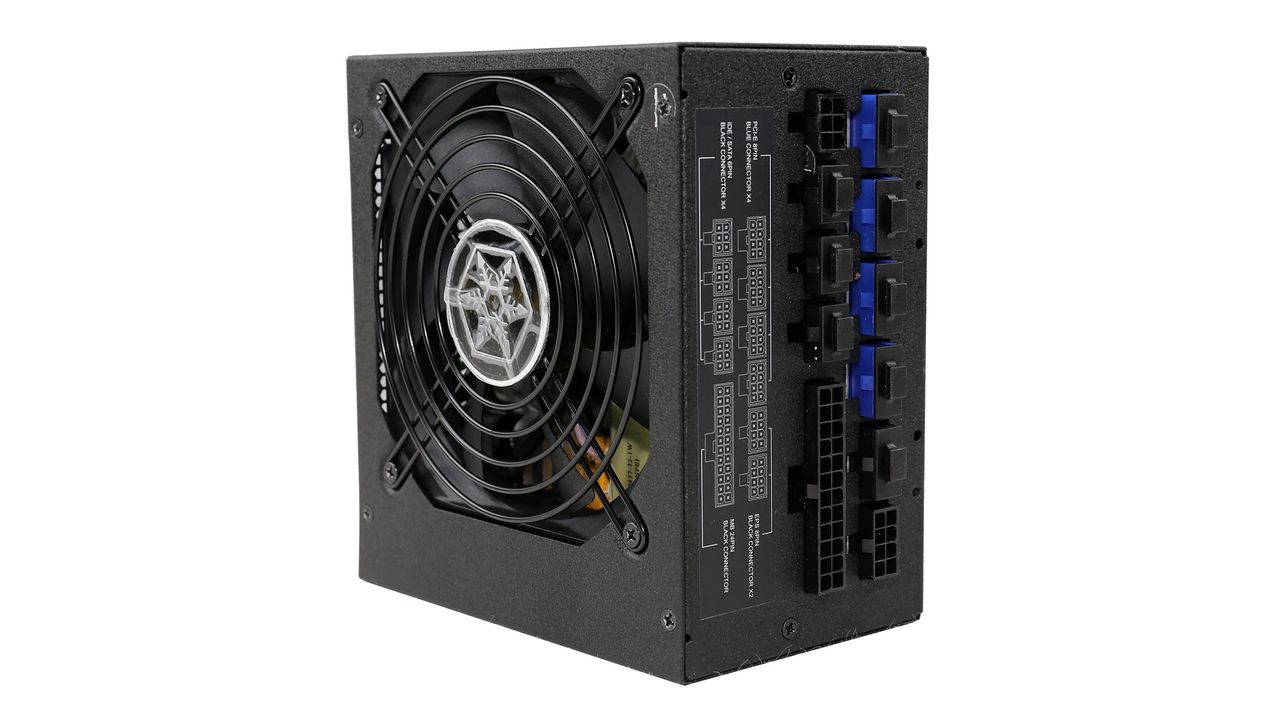

All cables are modular and there are two EPS connectors along with eight PCIe ones. Actually the ST1000-PTS uses exactly the same cable configuration as the ST1200-PTS, meaning that it offers a great amount of connectors. The distance between the peripheral connectors is ideal at 140-150mm, but for the PCIe ones, a 100-110mm clearance would be better, since the corresponding sockets on power hungry graphics cards are usually installed side by side.

Image 1 of 6

Swipe to scroll horizontally

General Data
Manufacturer (OEM)	Enhance Electronics

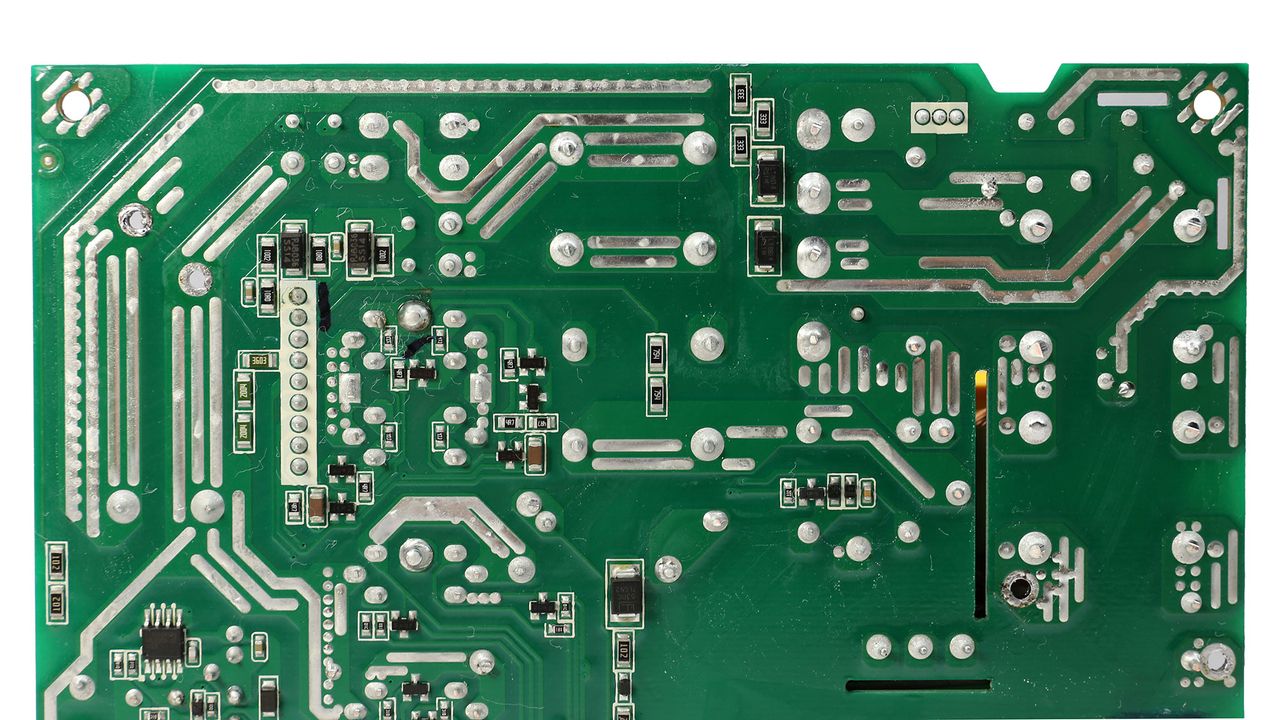

PCB Type	Double Sided
Primary Side

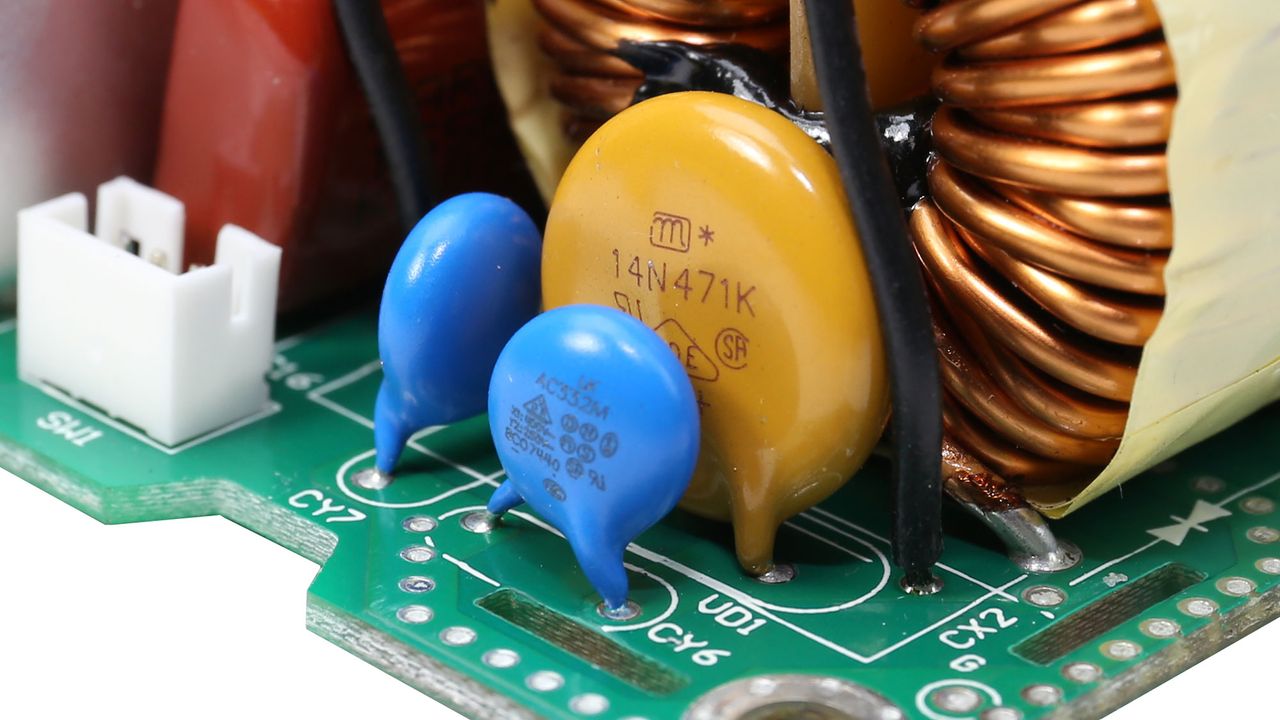

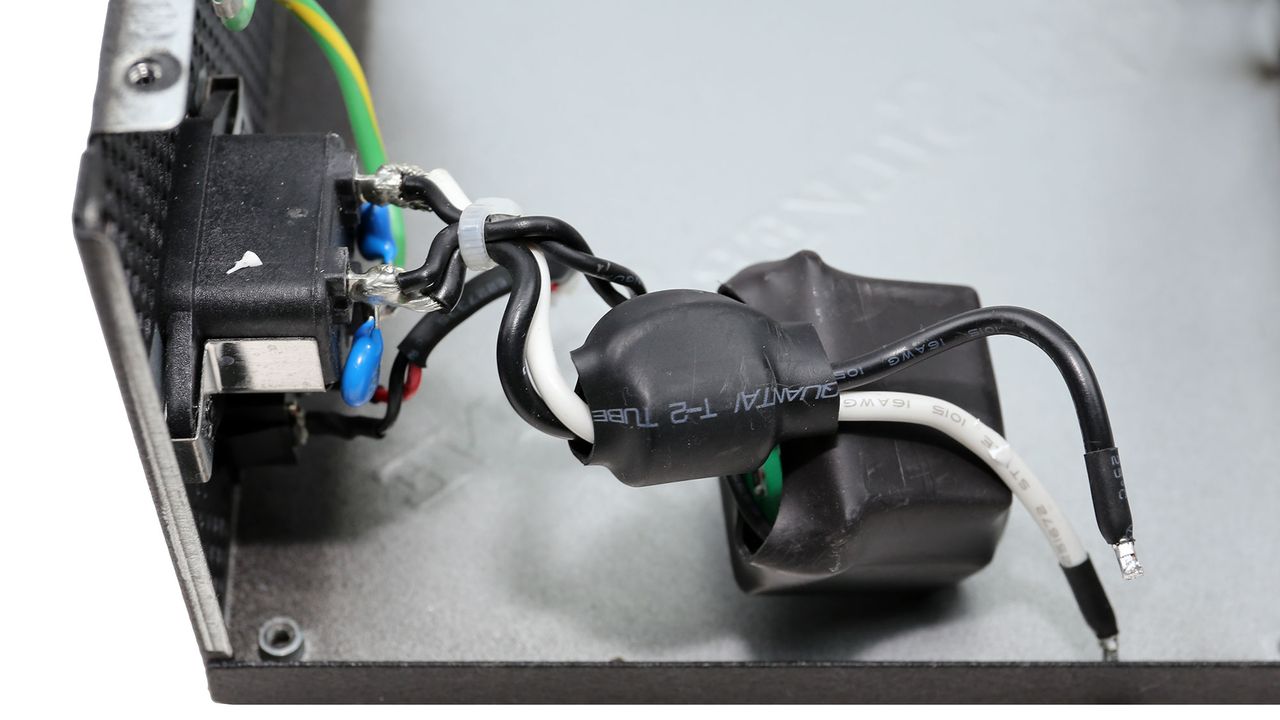

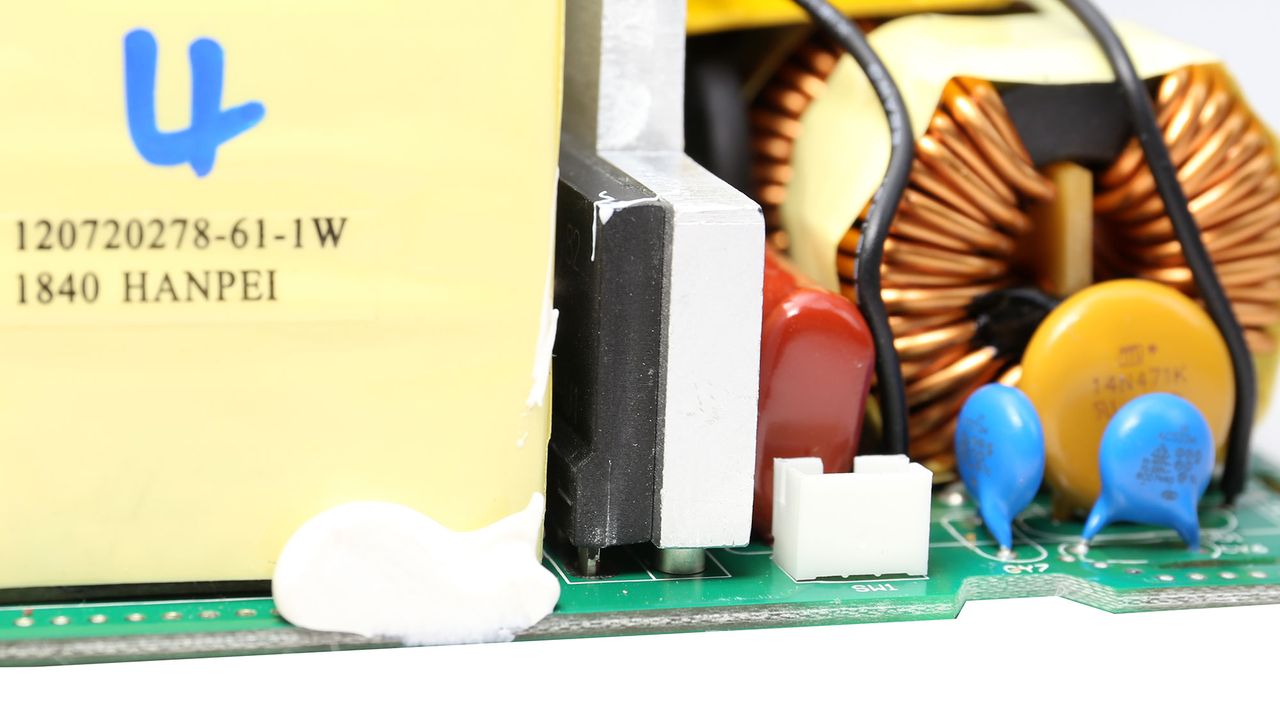

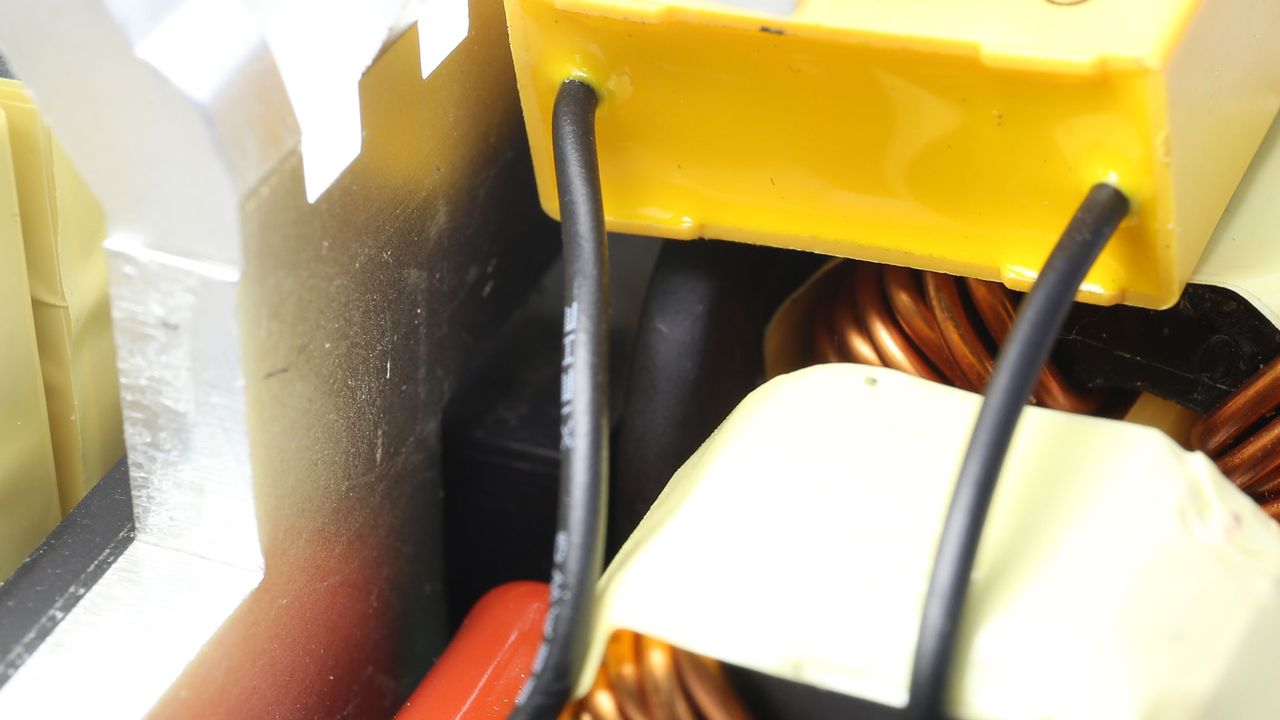

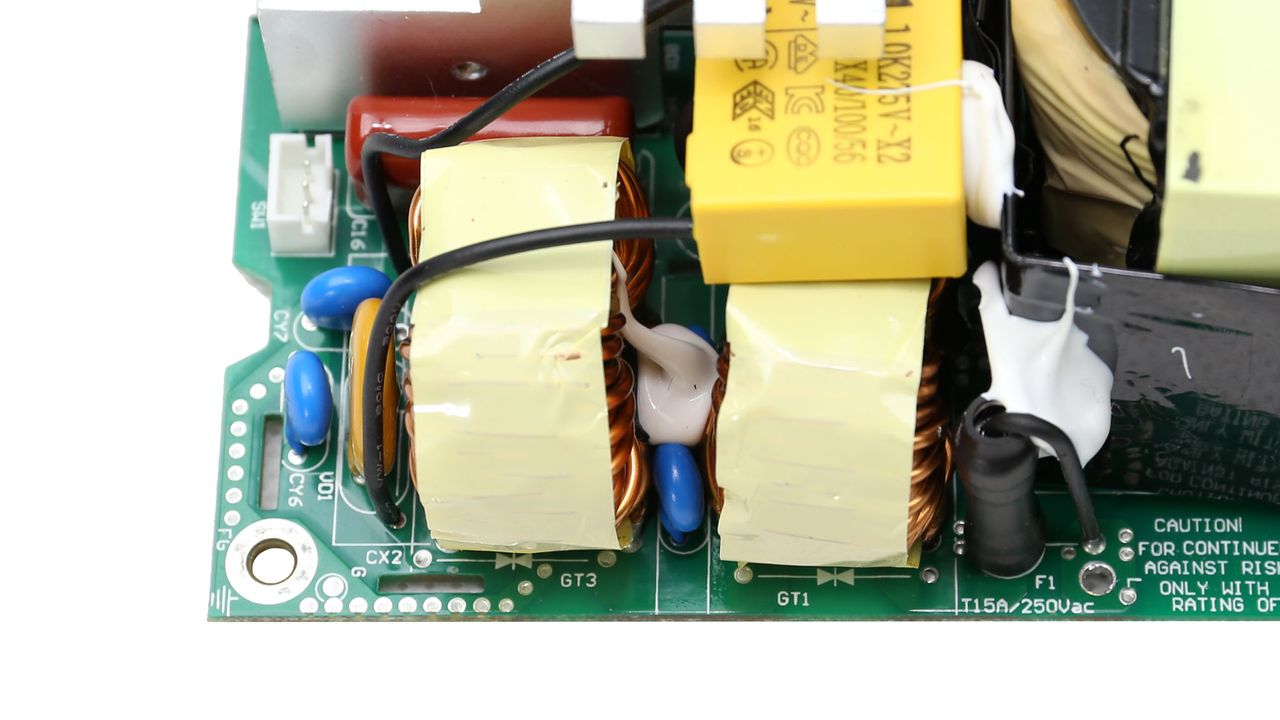

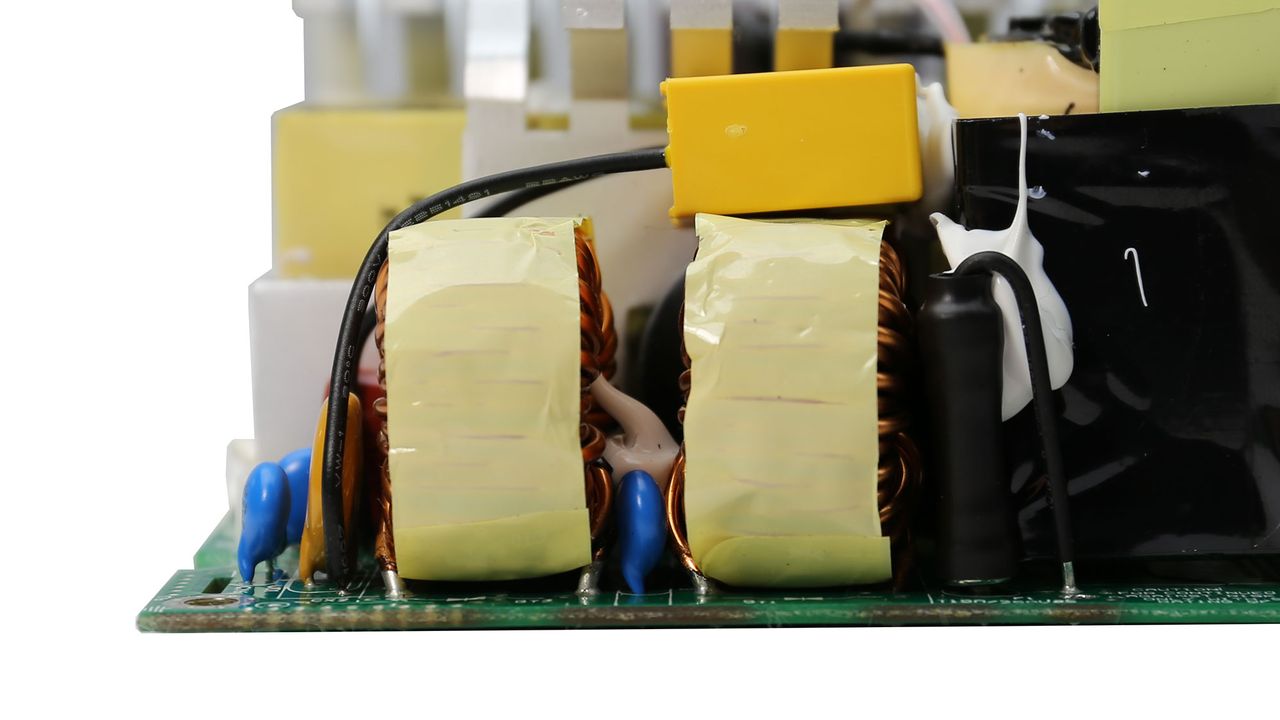

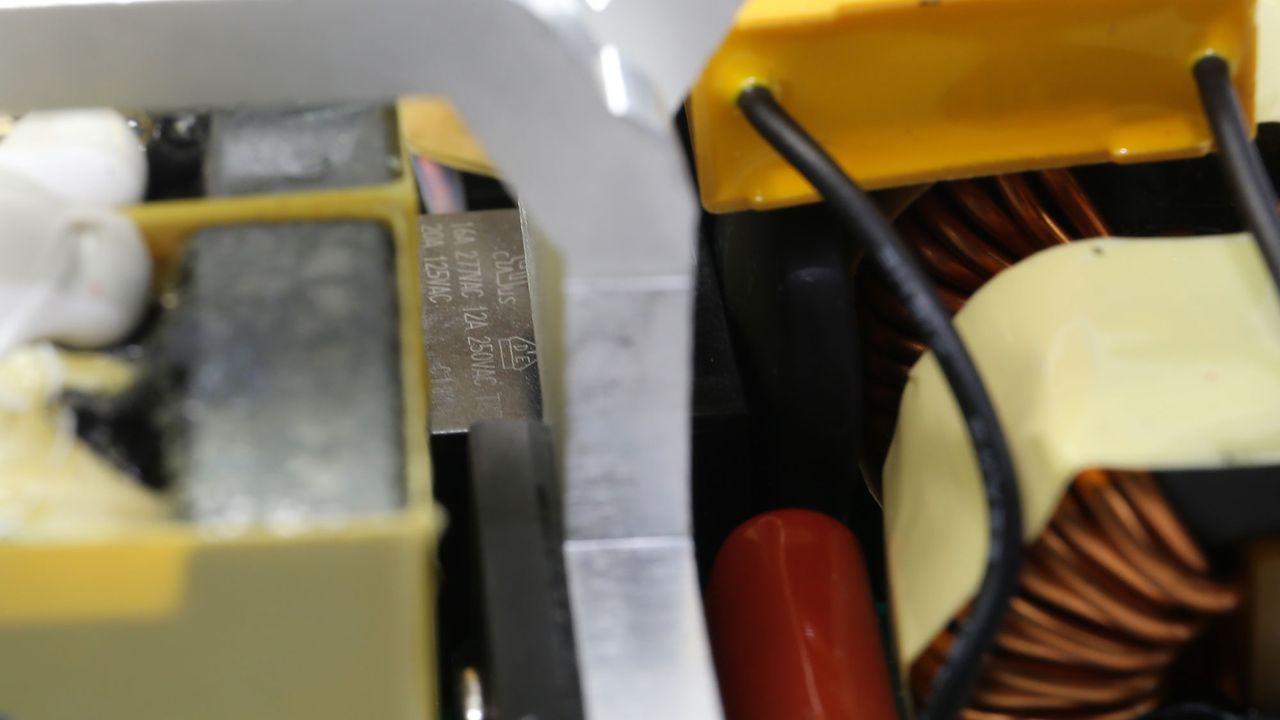

Transient Filter	6x Y caps, 3x X caps, 2x CM chokes, 1x MOV

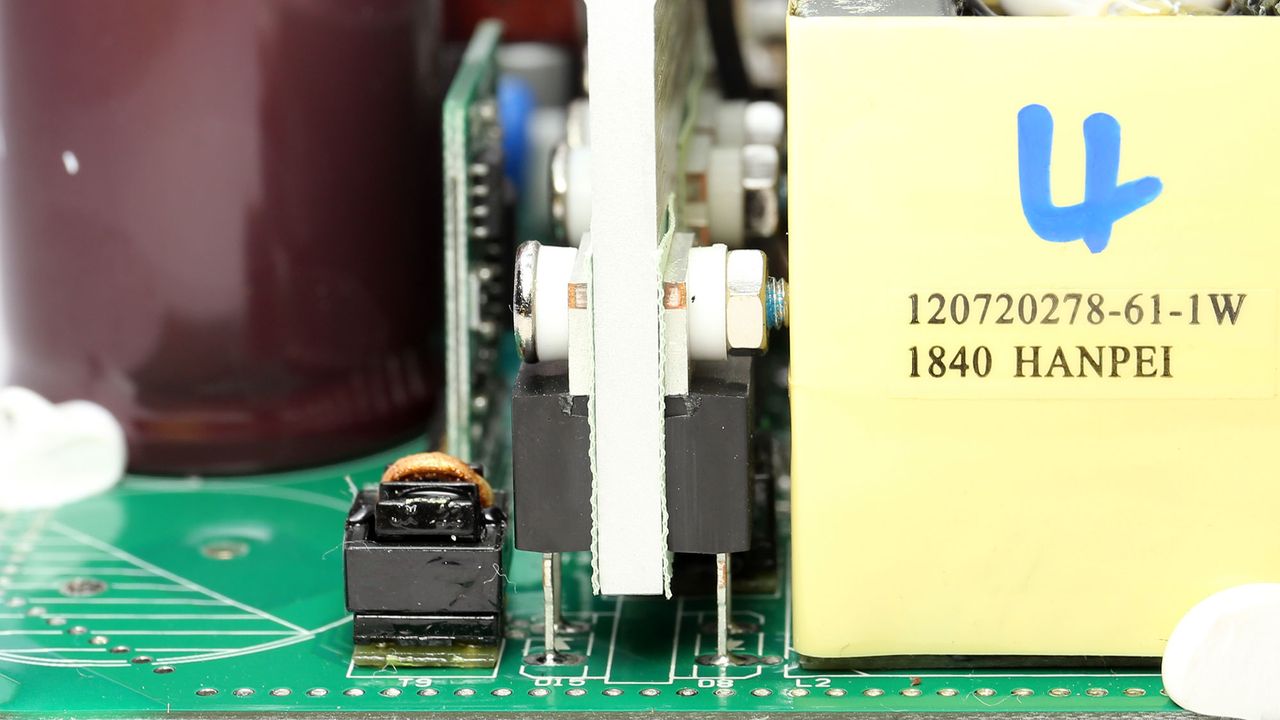

Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	1x RS2505M-U1 (600V, 25A @ 150°C)

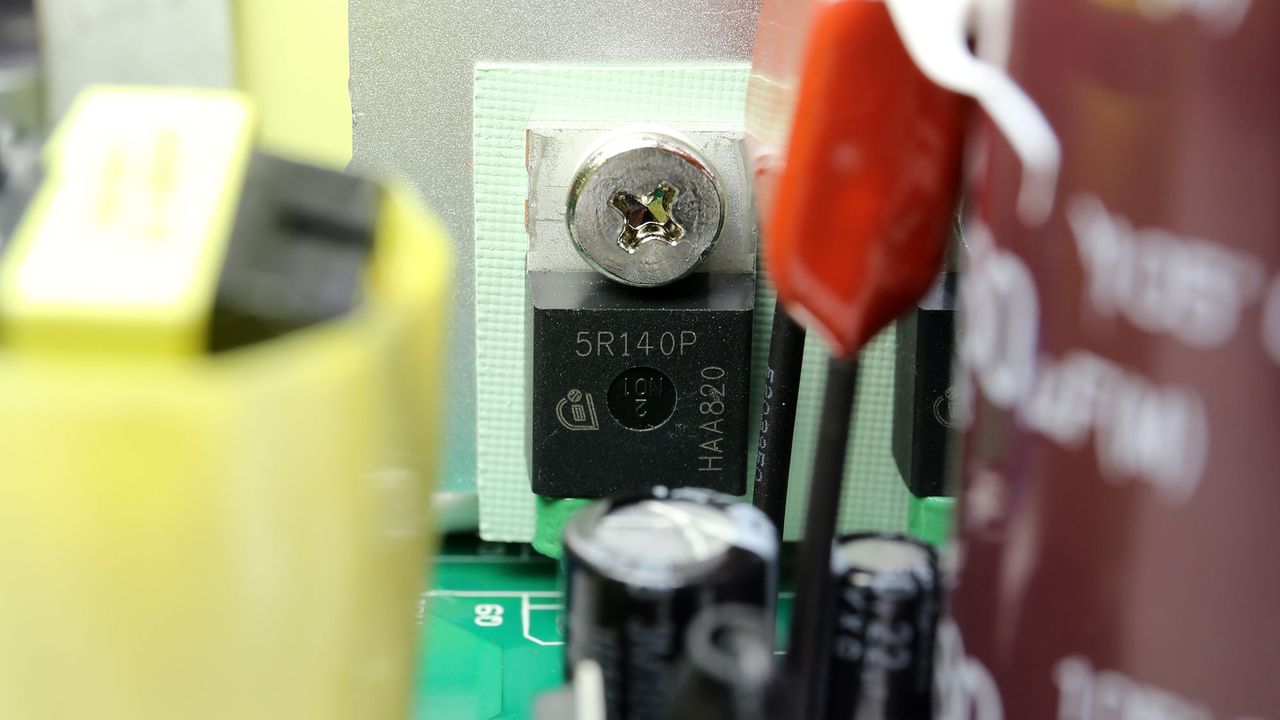

APFC MOSFETS	4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)

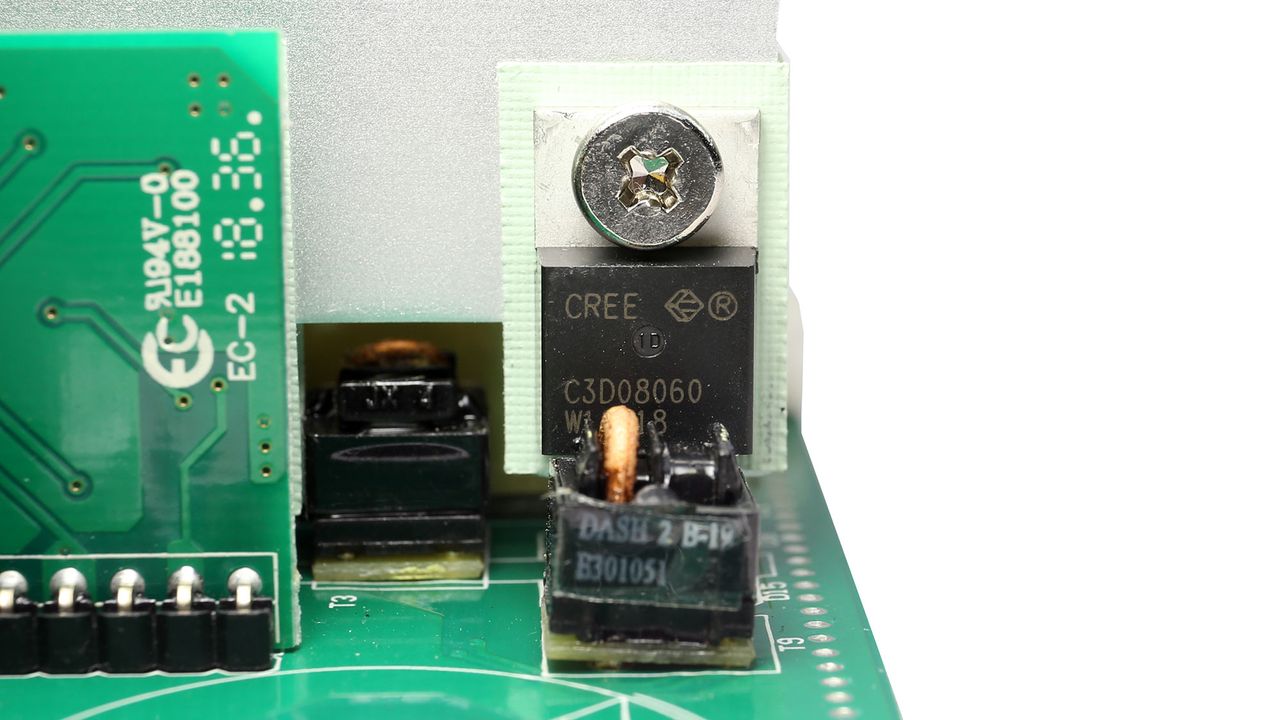

APFC Boost Diode	2x CREE C3D08060A (600V, 8A @ 152°C)

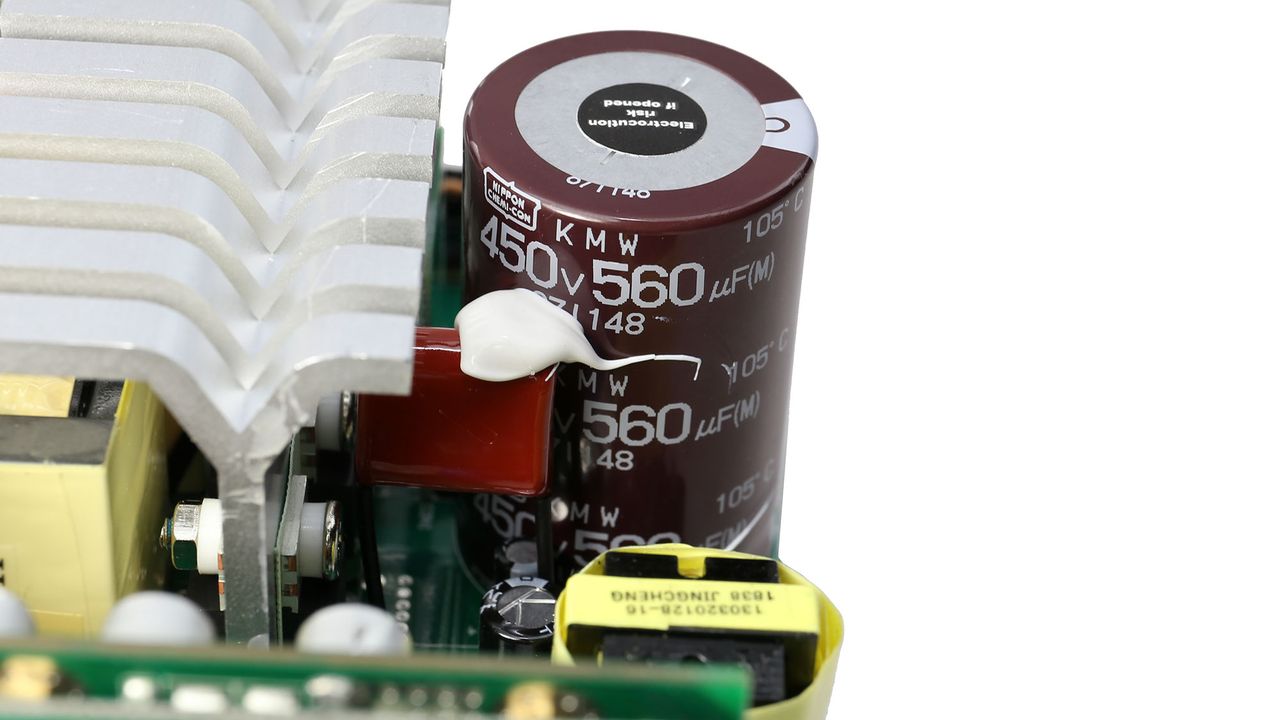

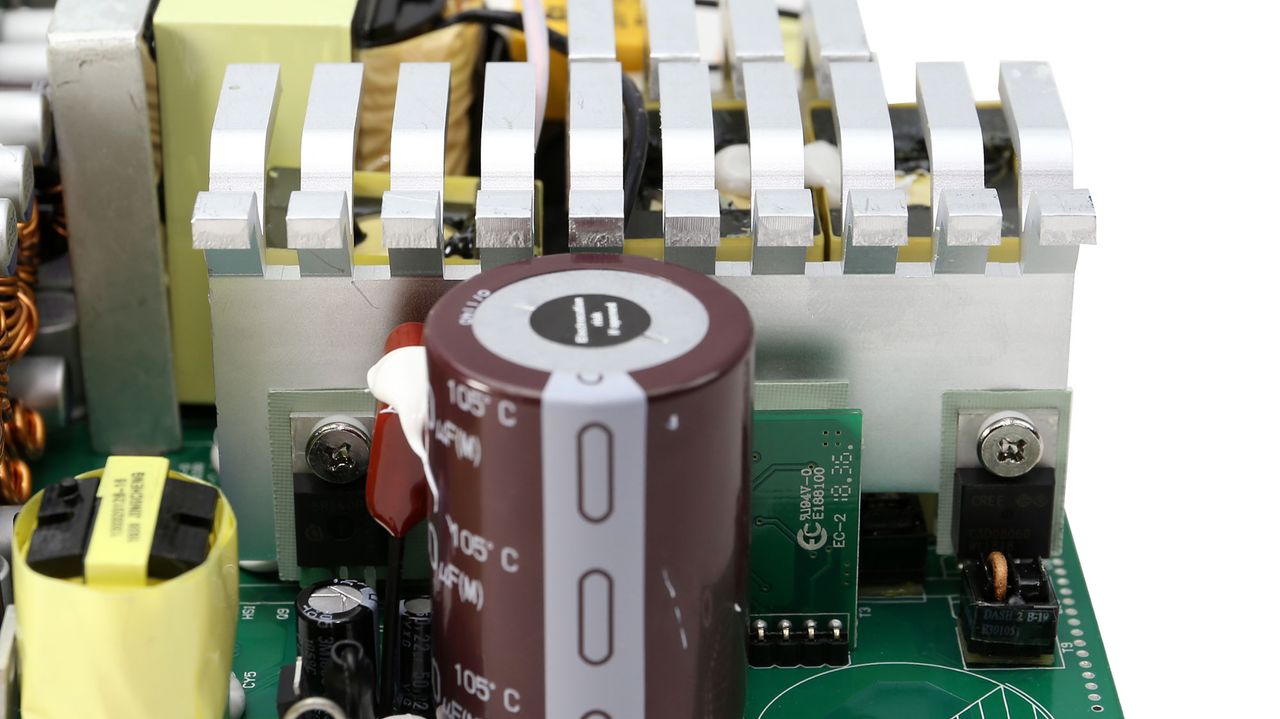

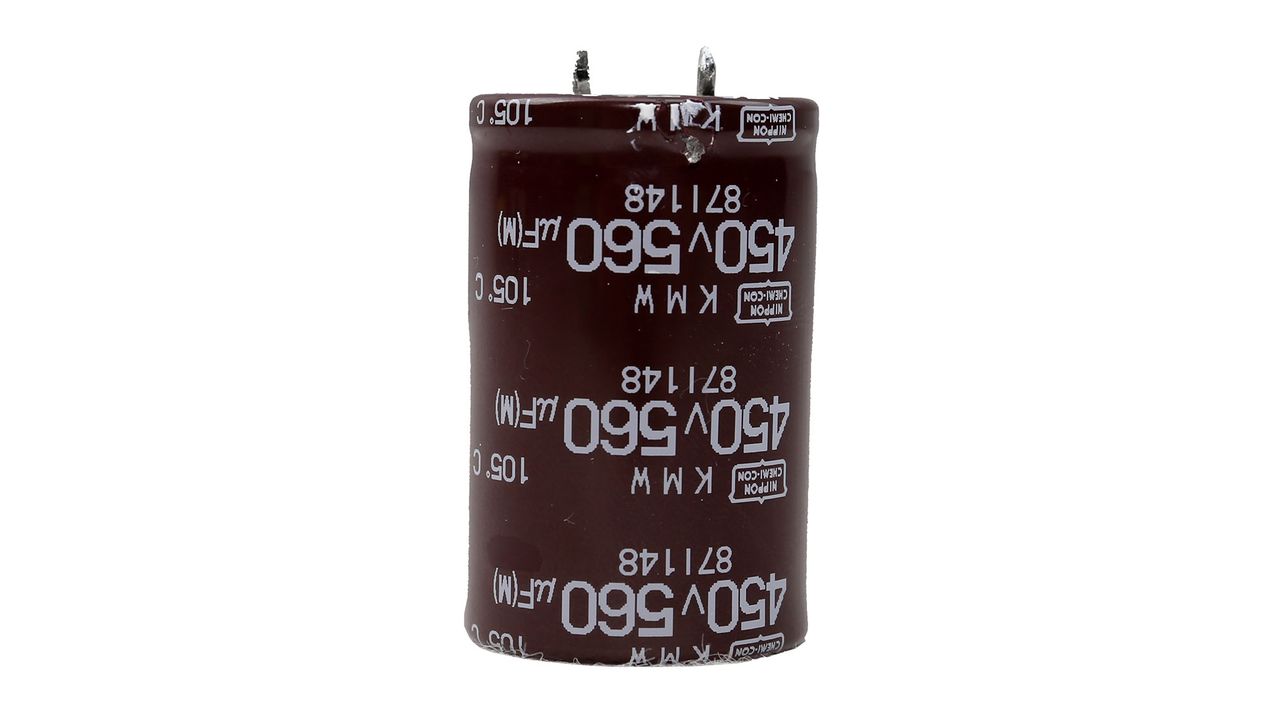

Hold-up Cap(s)	2x Nippon Chemi-Con (450V, 560uF, 2000h @ 105°C, KMW)
Main Switchers	4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)

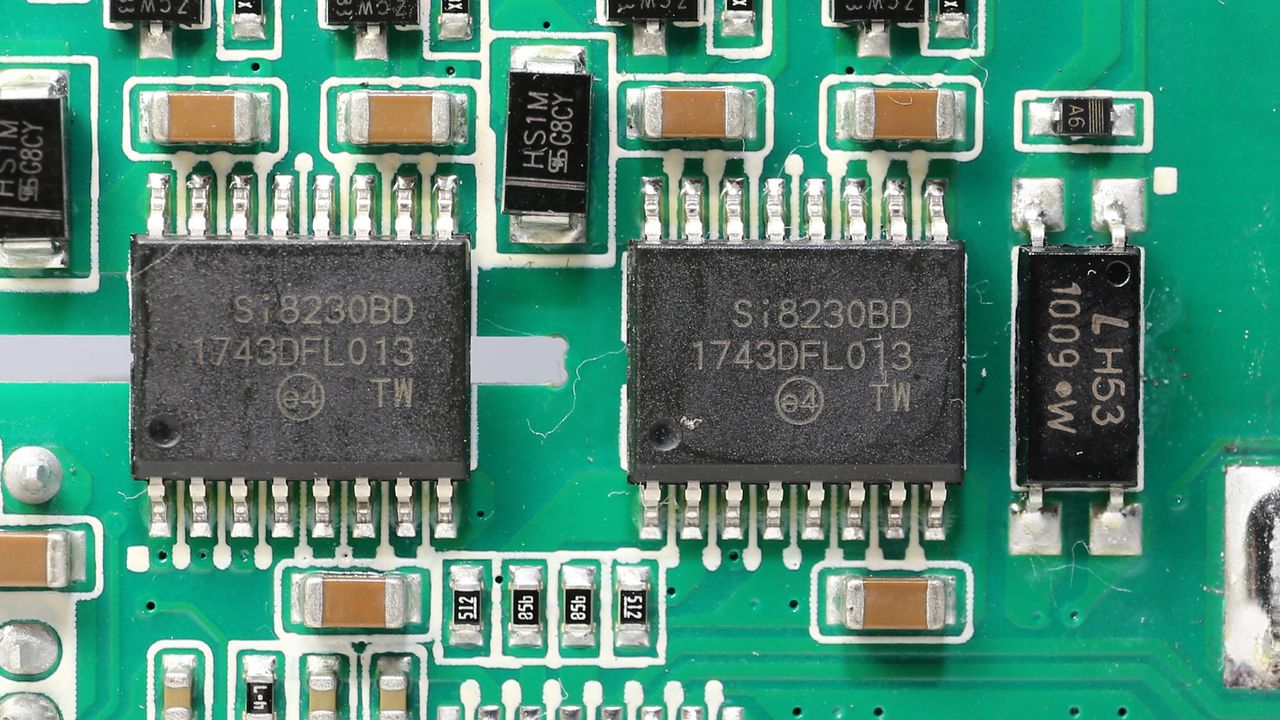

IC Driver	2x Silicon Labs Si8230BD
APFC Controller	ATK AT6101ZS & CM03X Green PFC Controller

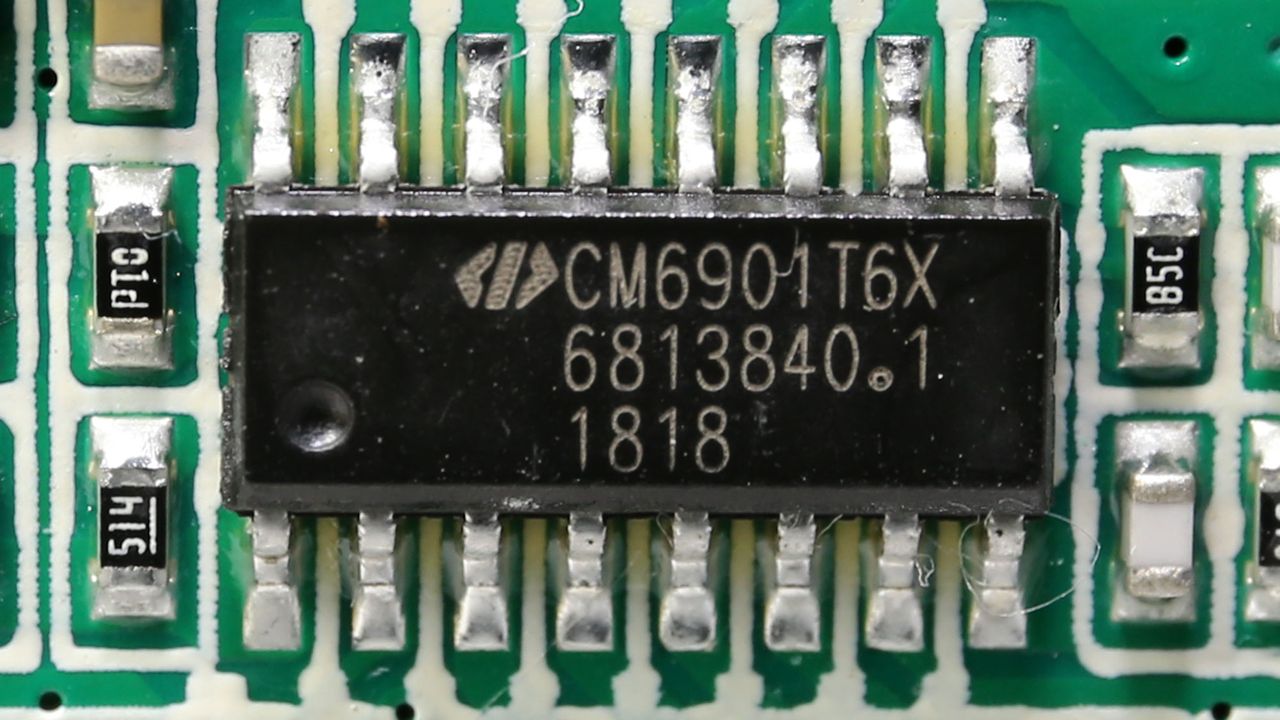

Resonant Controllers	Champion CM6901T6
Topology	Primary side: Interleaved PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side

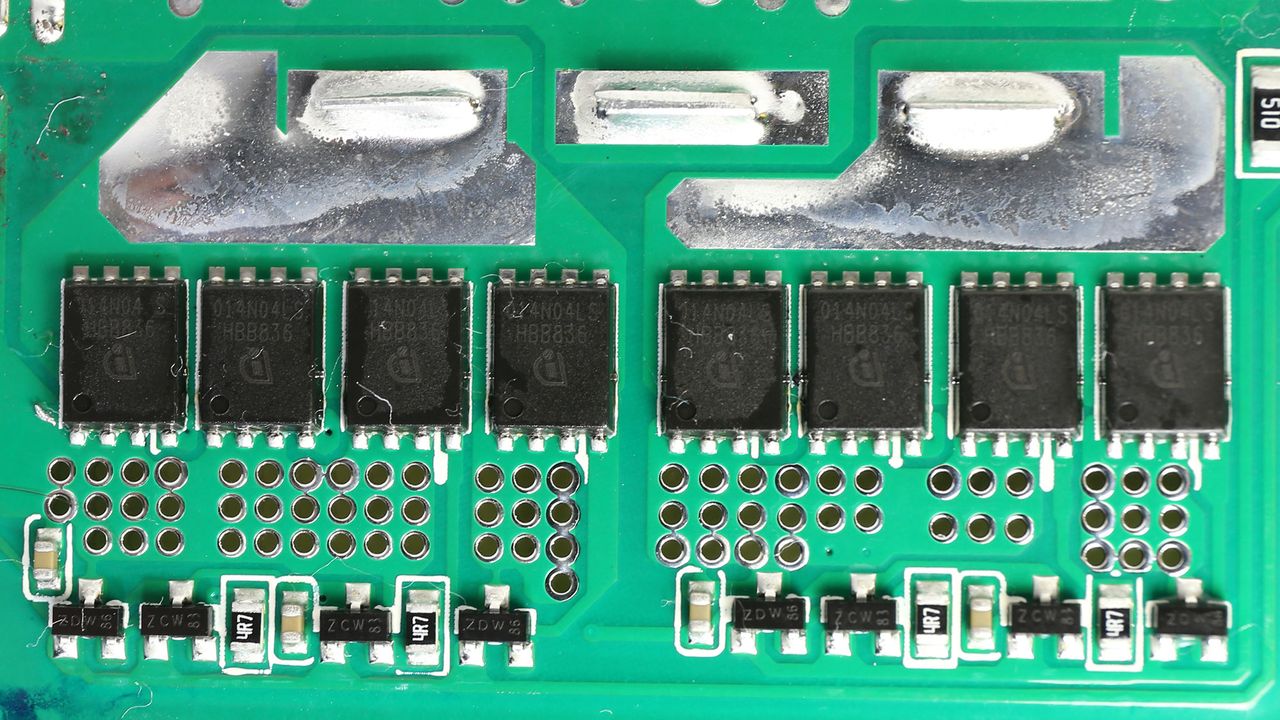

+12V MOSFETS	8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mOhm)

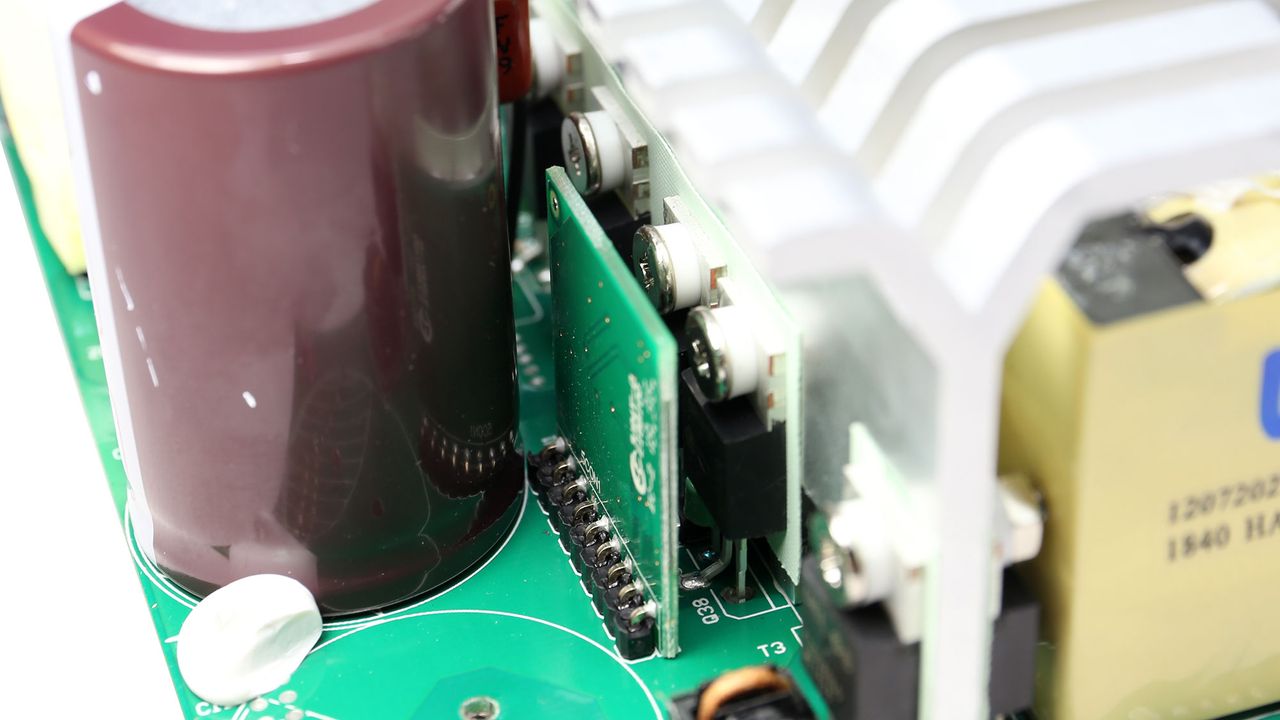

5V & 3.3V	DC-DC Converters: 4x Infineon BSC018NE2LS (25V, 97A @ 100°C, 1.4mOhm) PWM Controllers: ANPEC APW7160A

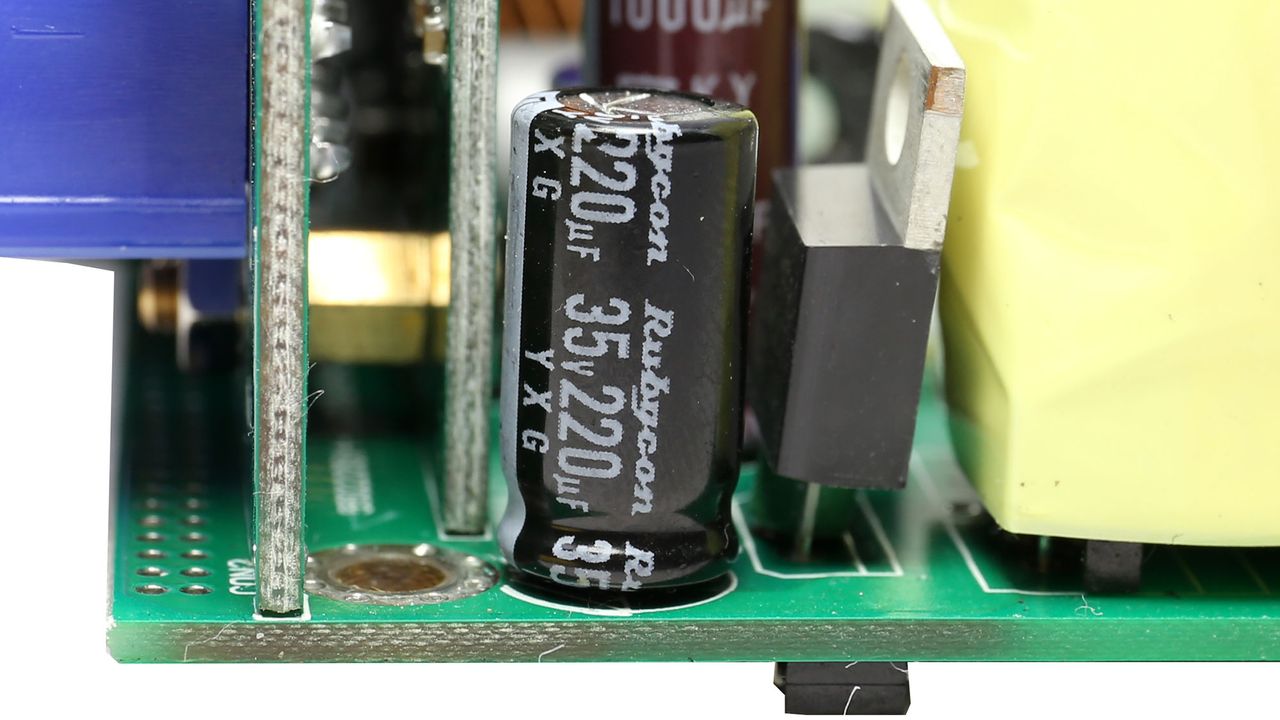

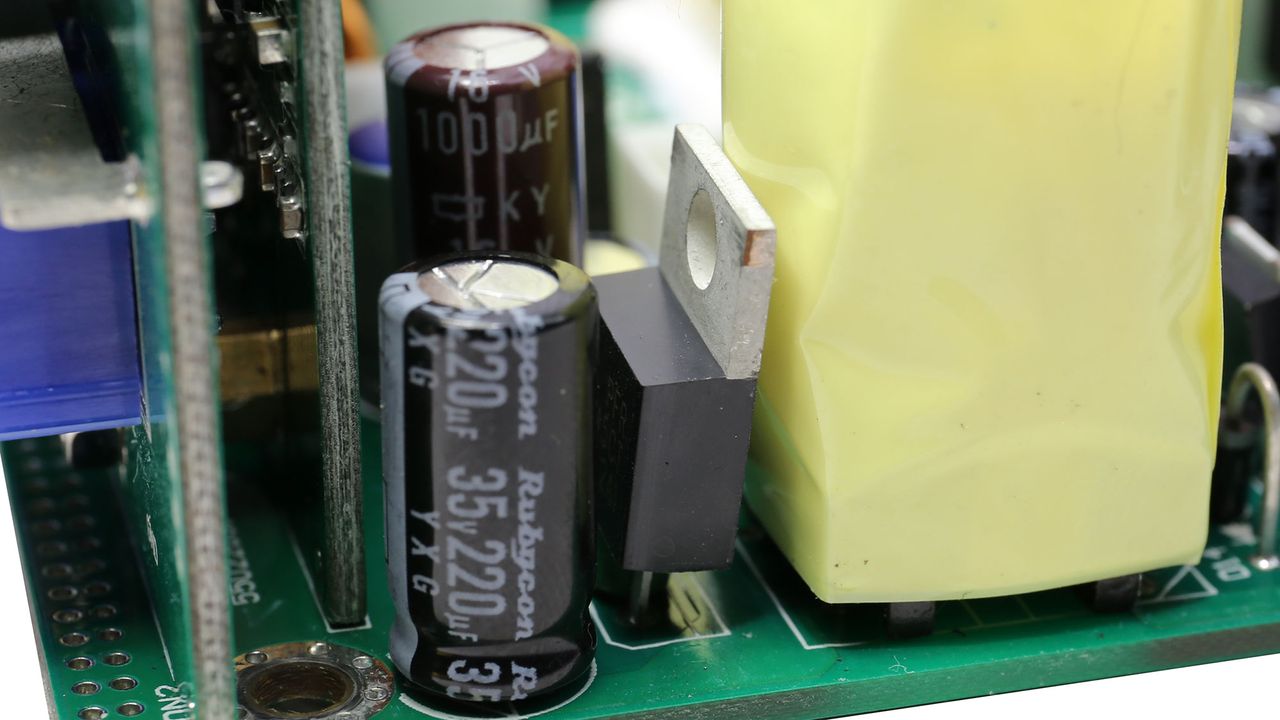

Filtering Capacitors	Electrolytics: Nippon Chemi-Con (4-10,000 @ 105°C, KY), Rubycon (3-6,000 @ 105°C, YXG), Suncon (105°C) Polymers: Unicon (UPH), CapXon (PT)
Supervisor IC	SITI PS223 (OCP, OTP, OVP, UVP, SCP, PG)

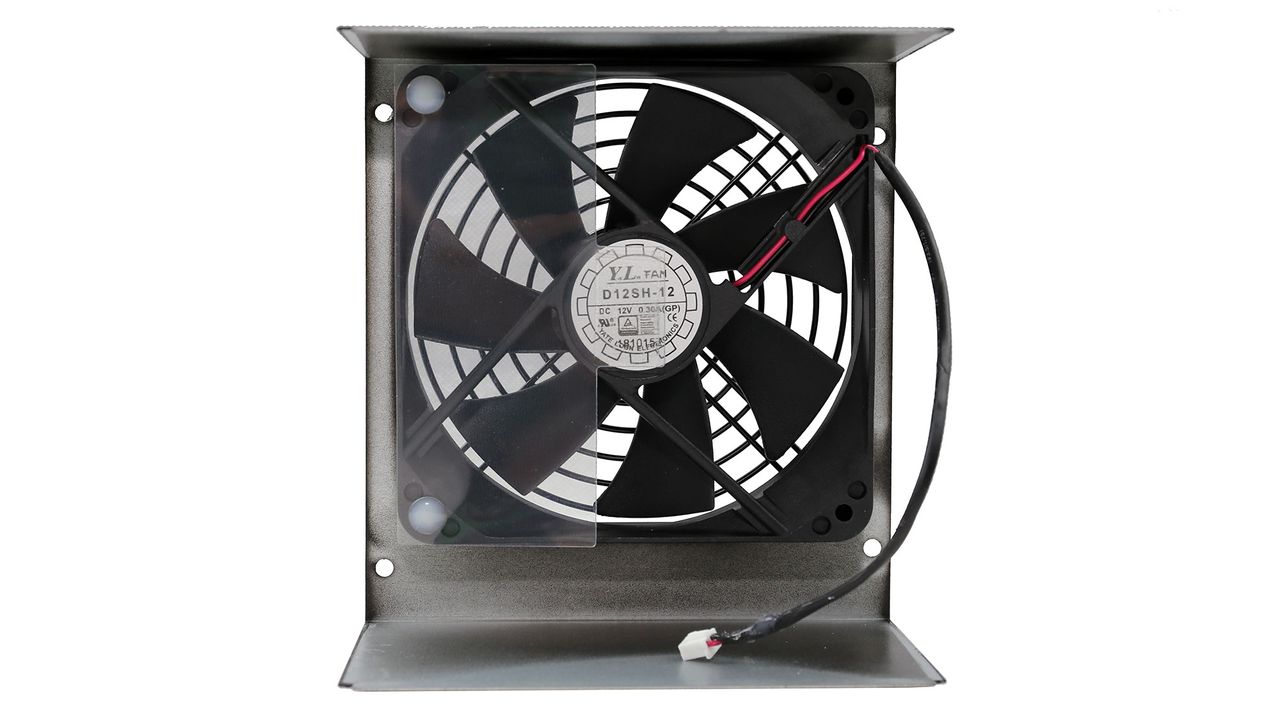

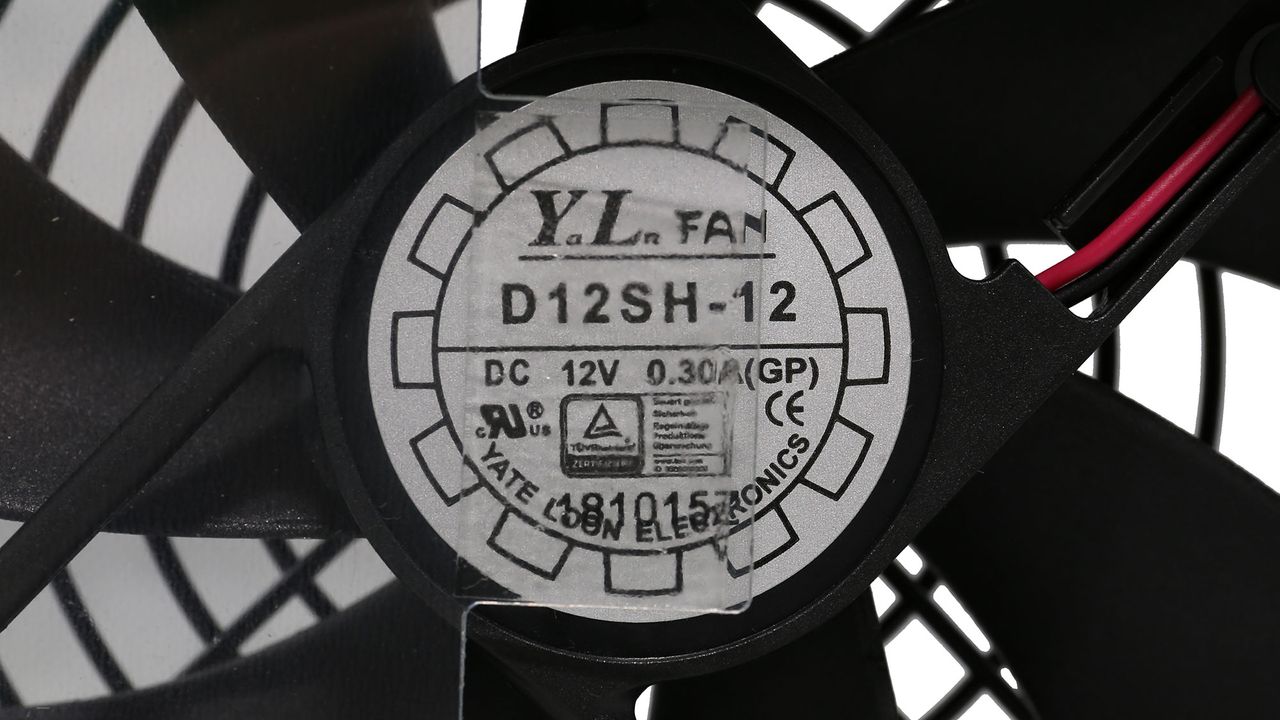

Fan Model	Yate Loon D12SH -12 (120mm, 12V, 0.30A, Rifle Bearing Fan)

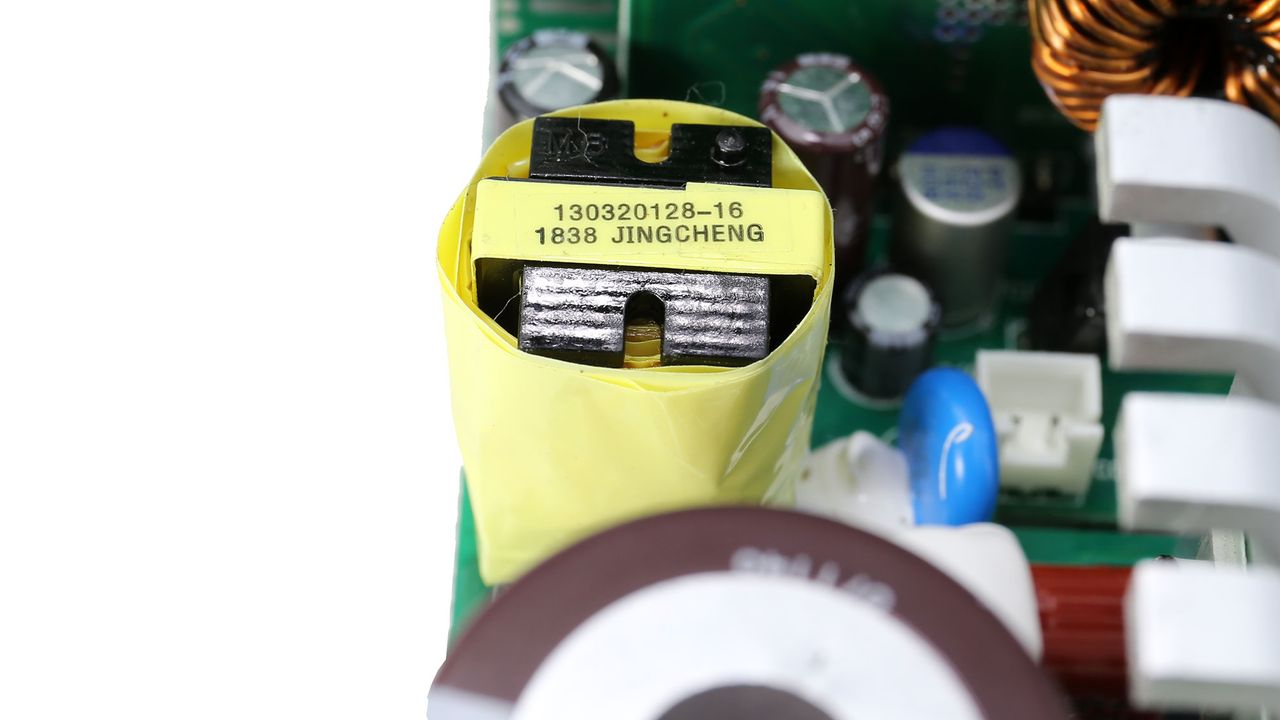

5VSB Circuit

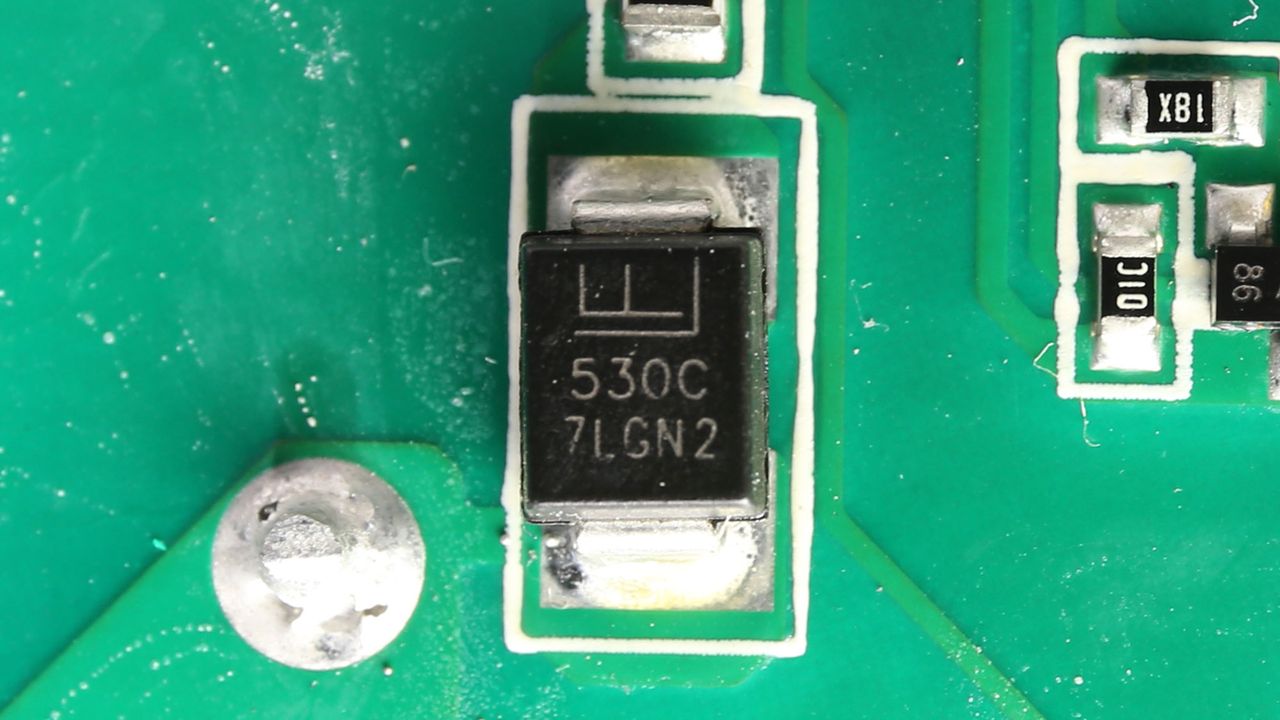

Rectifier	1x PFR10V45CT SBR (45V, 10A)

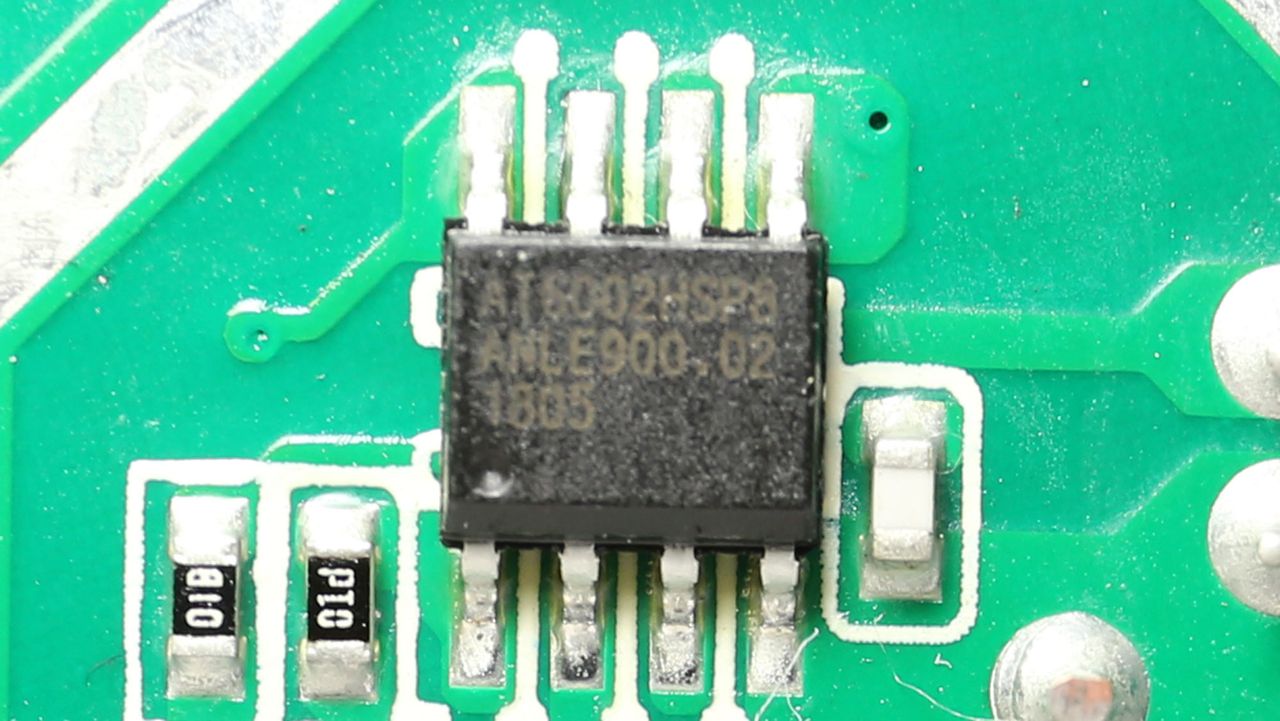

Standby PWM Controller	ATK AT6002H

Image 1 of 25

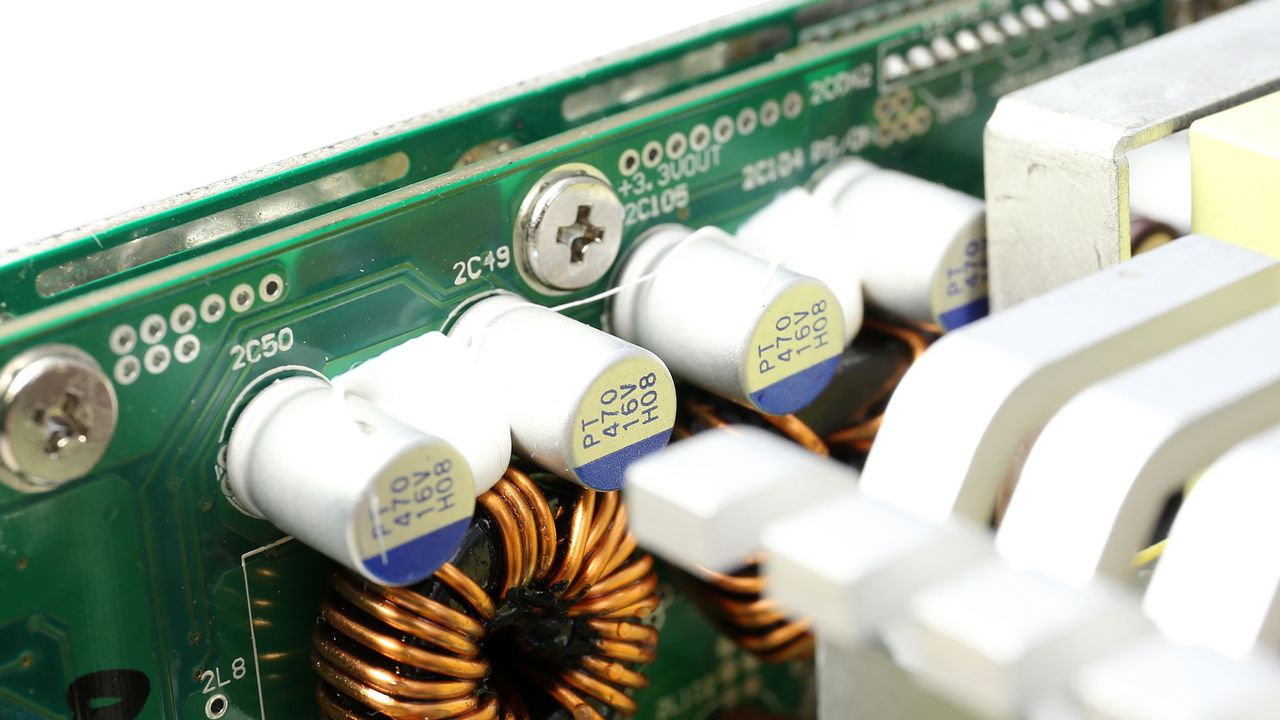

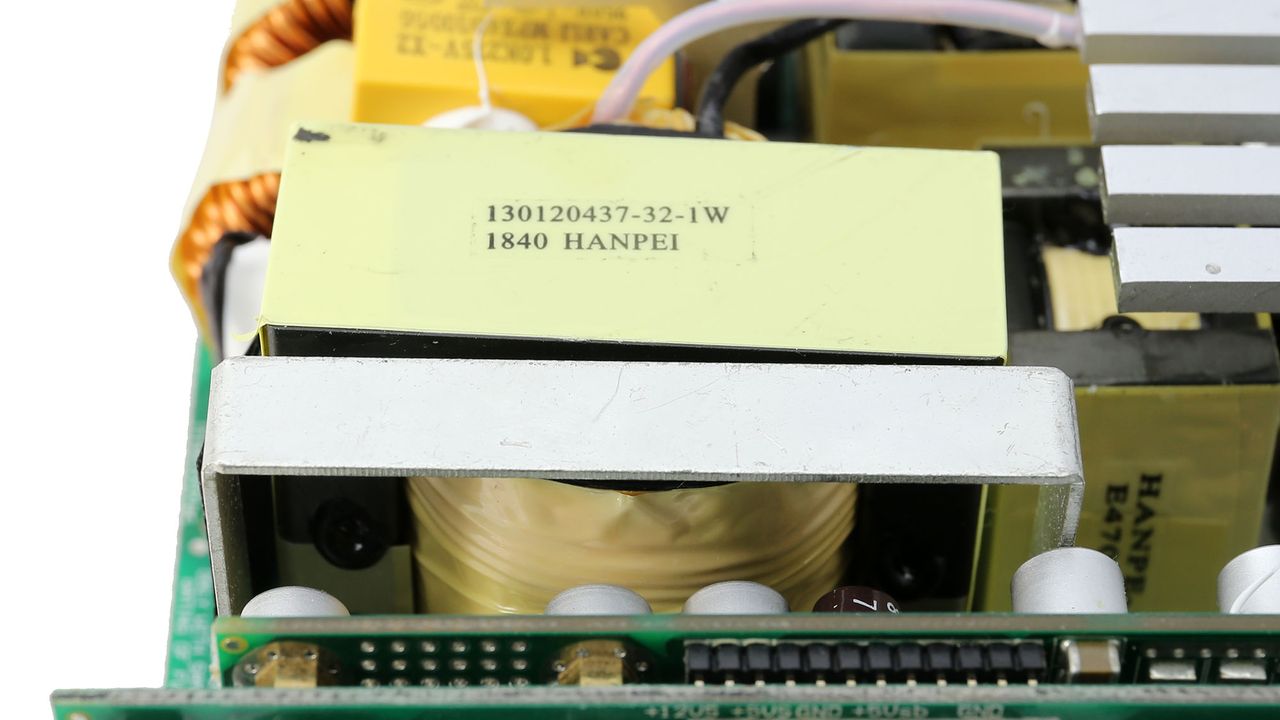

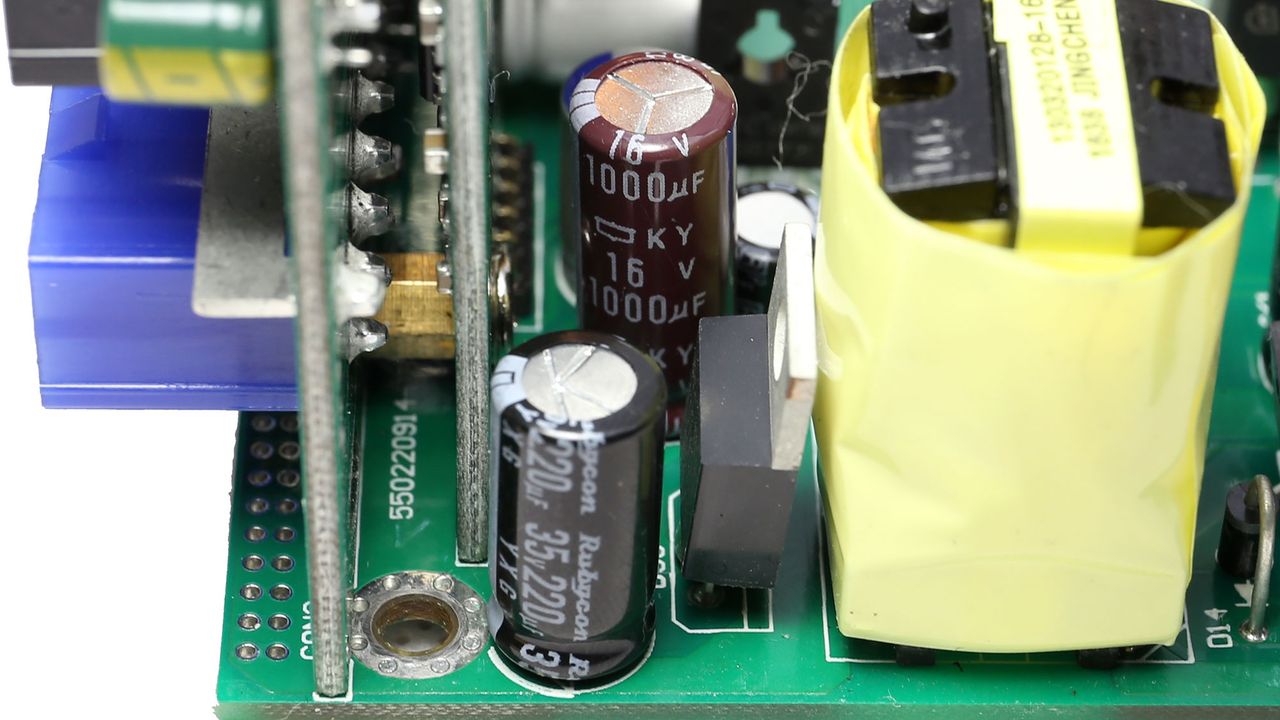

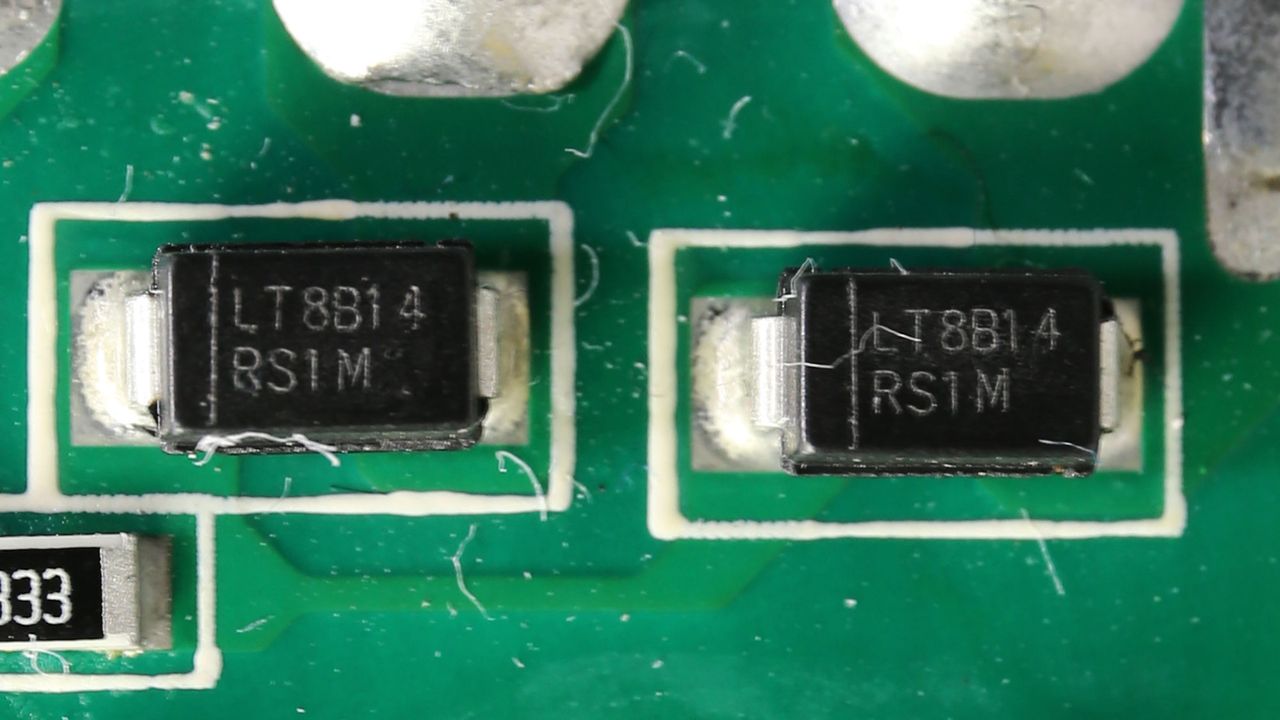

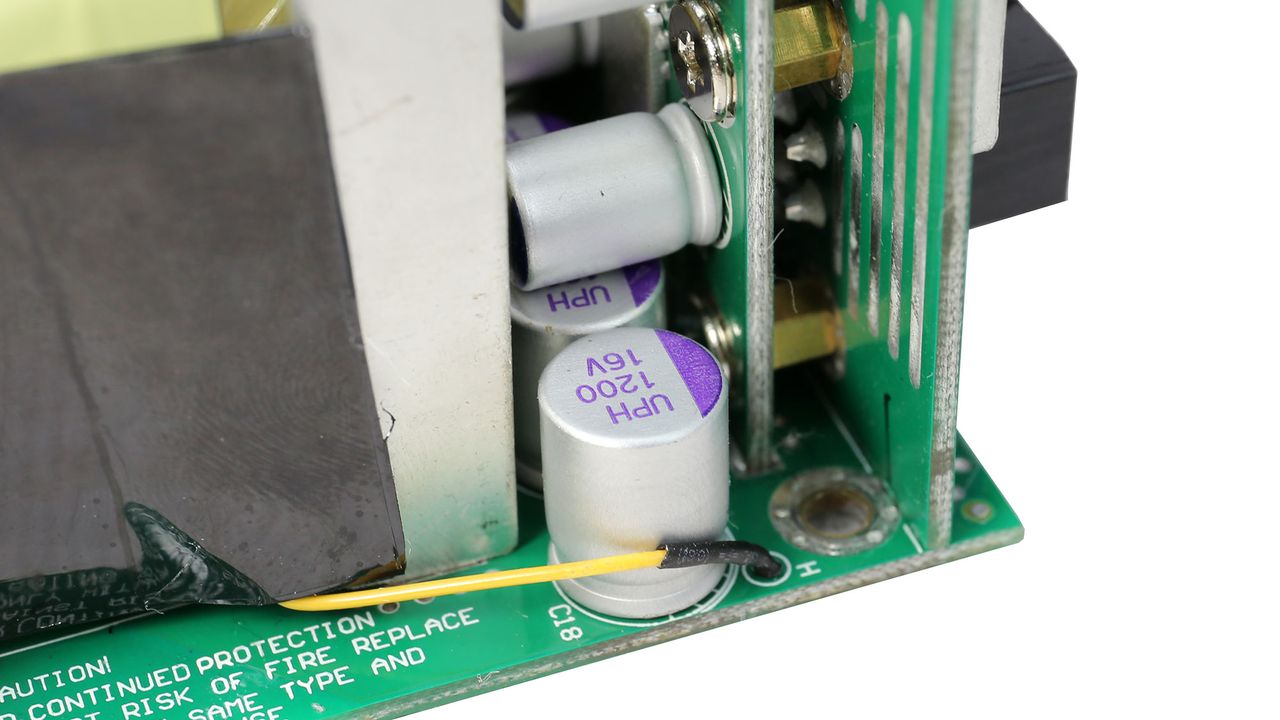

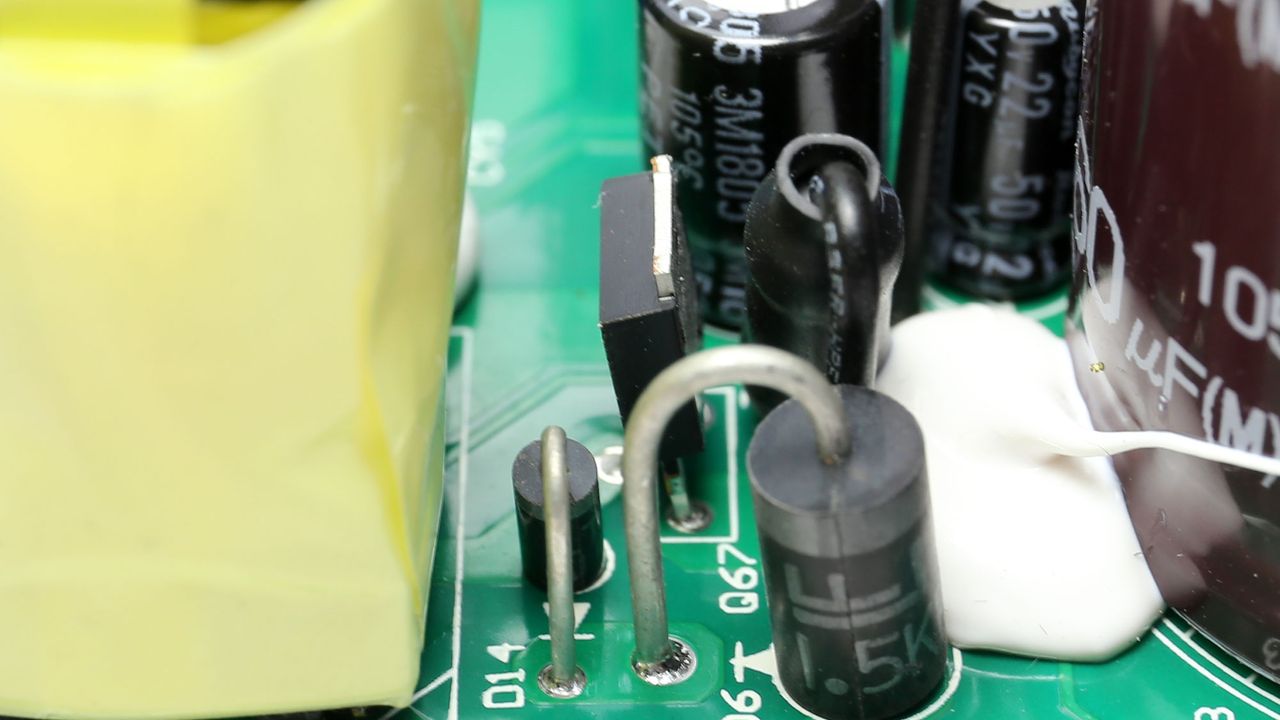

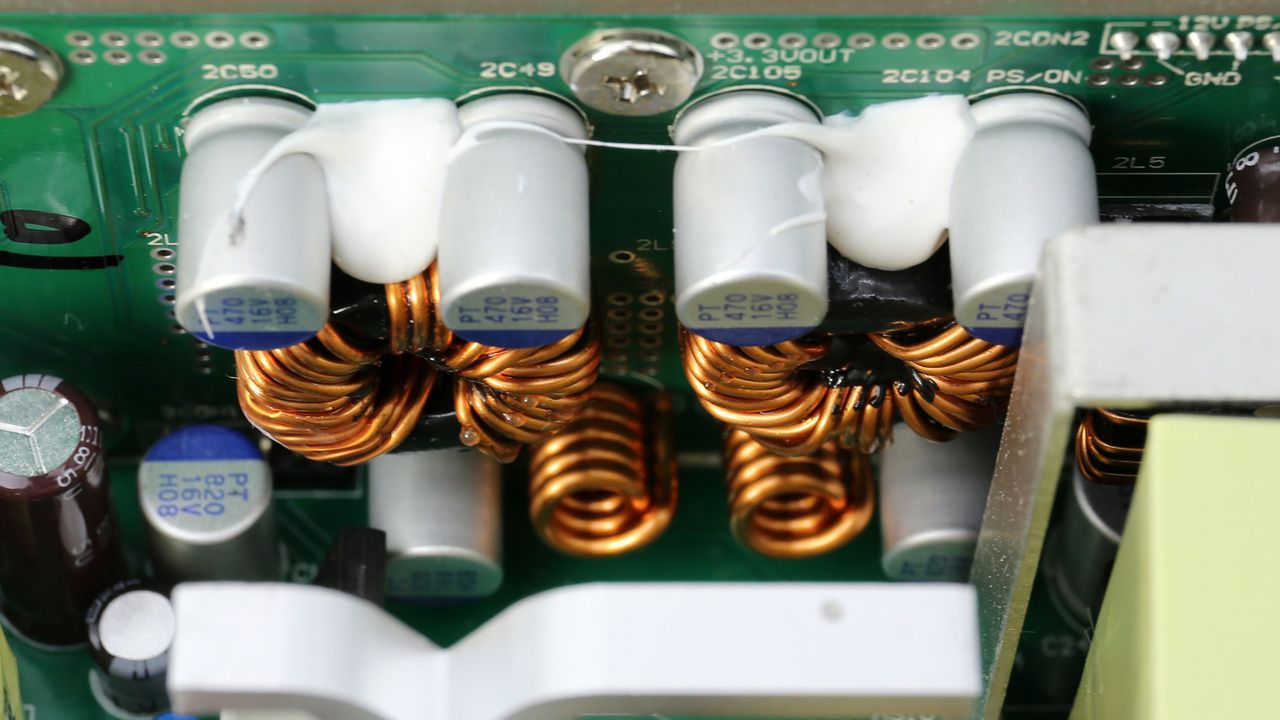

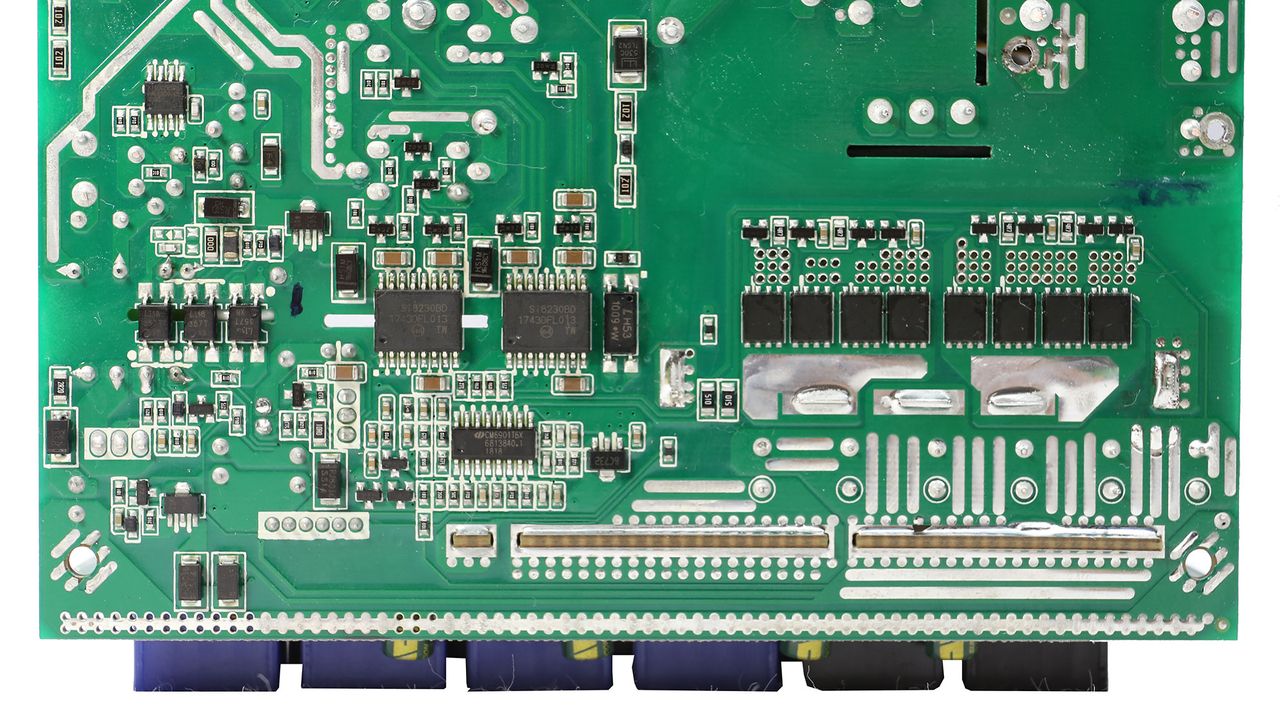

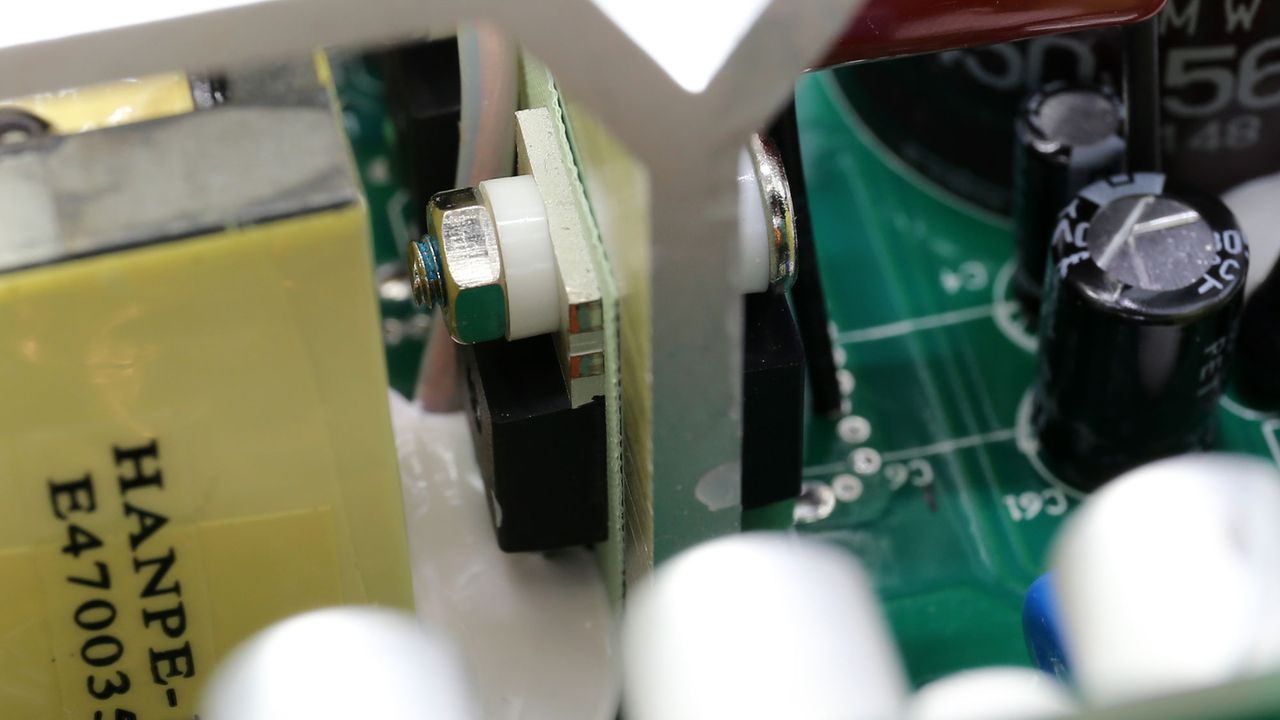

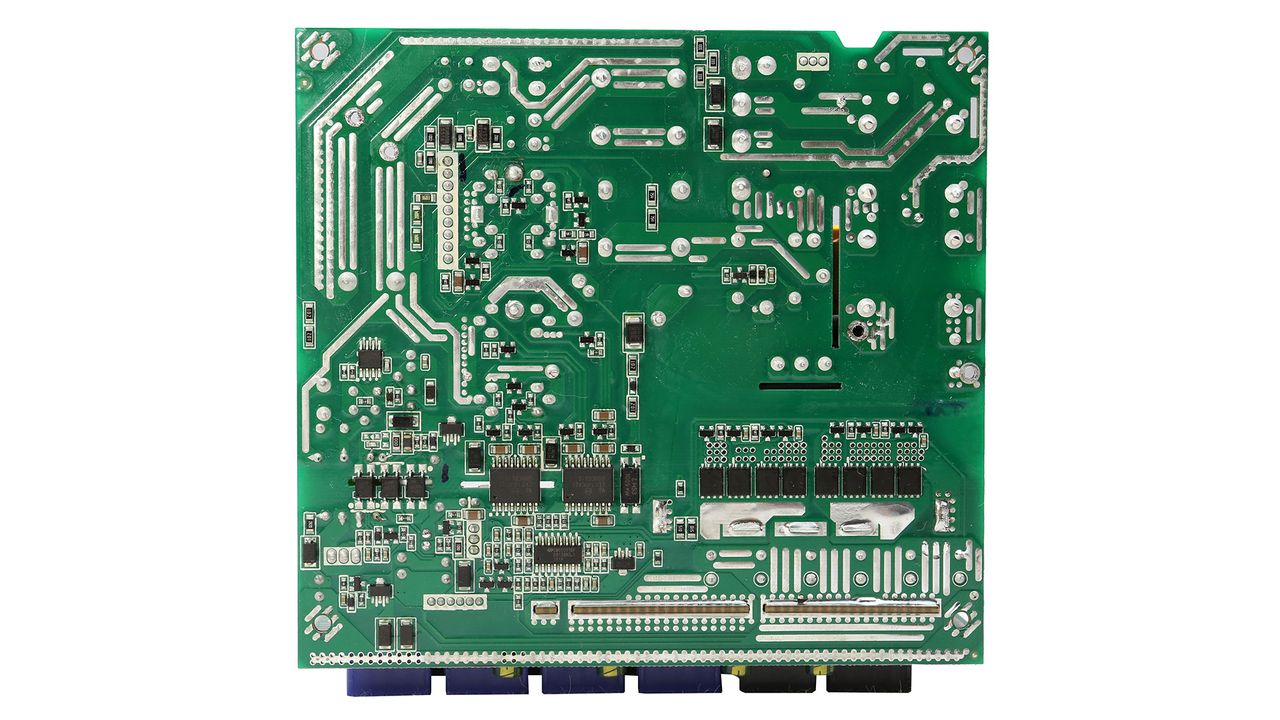

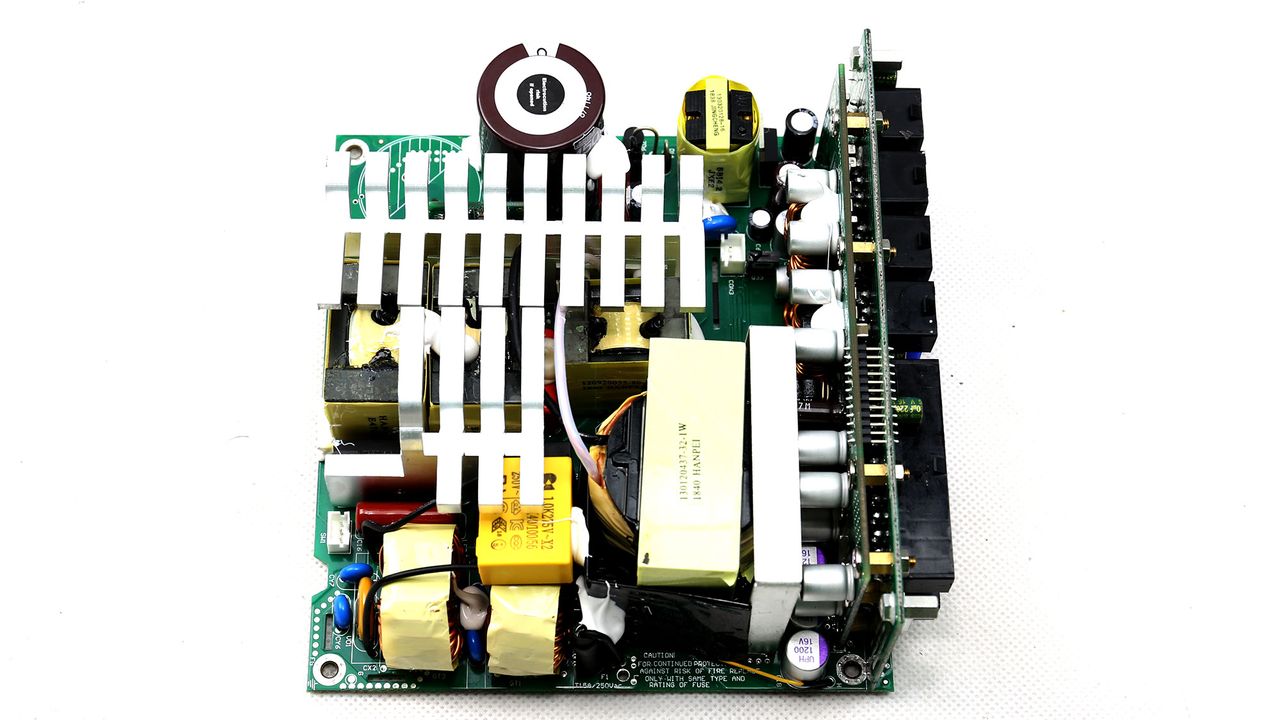

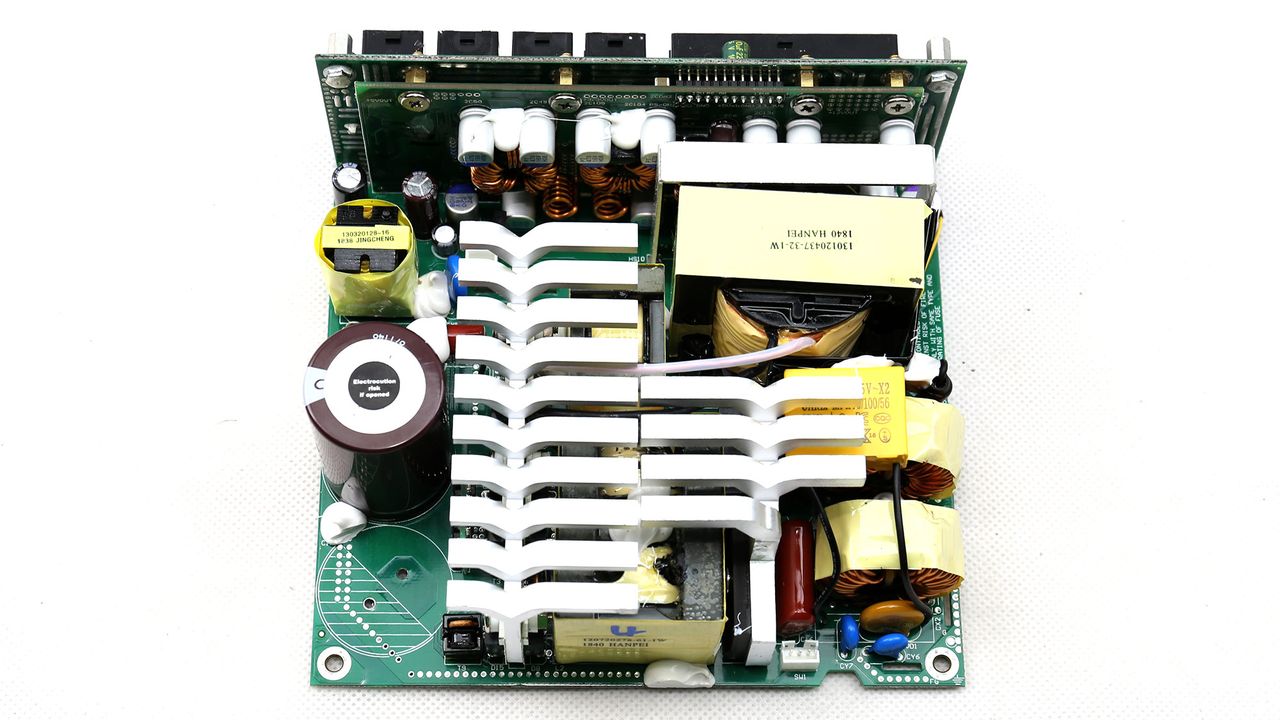

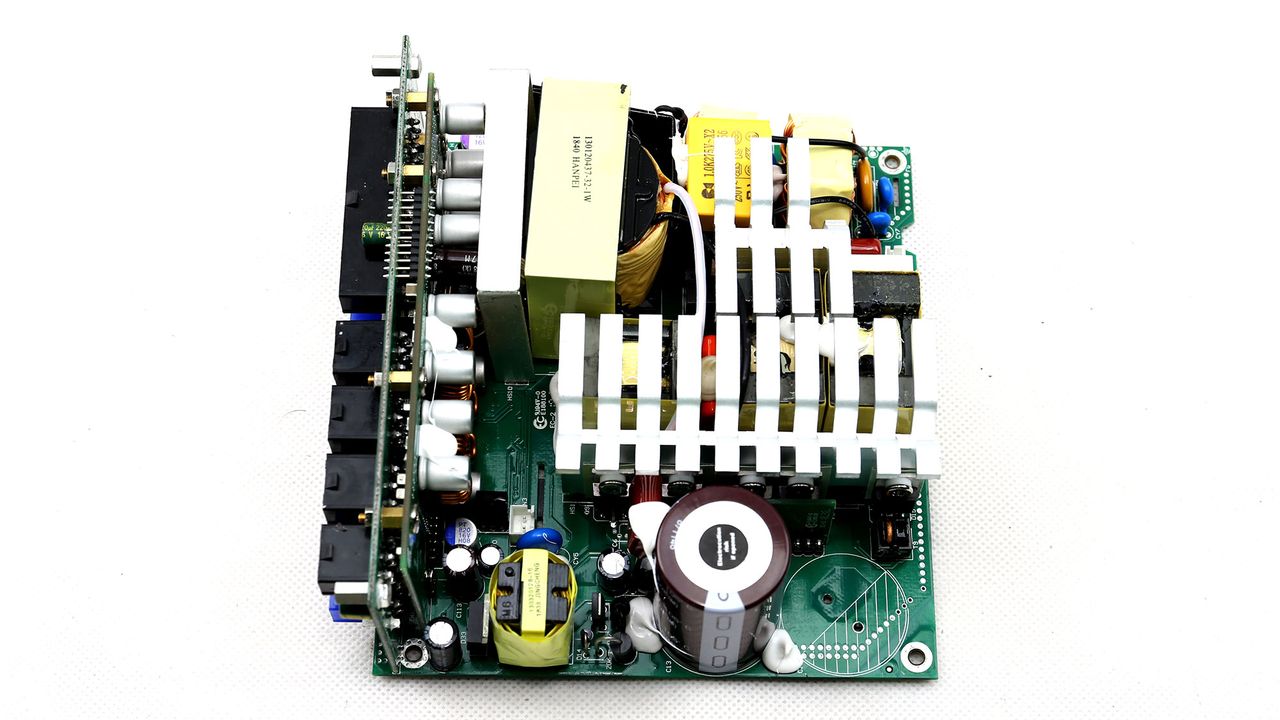

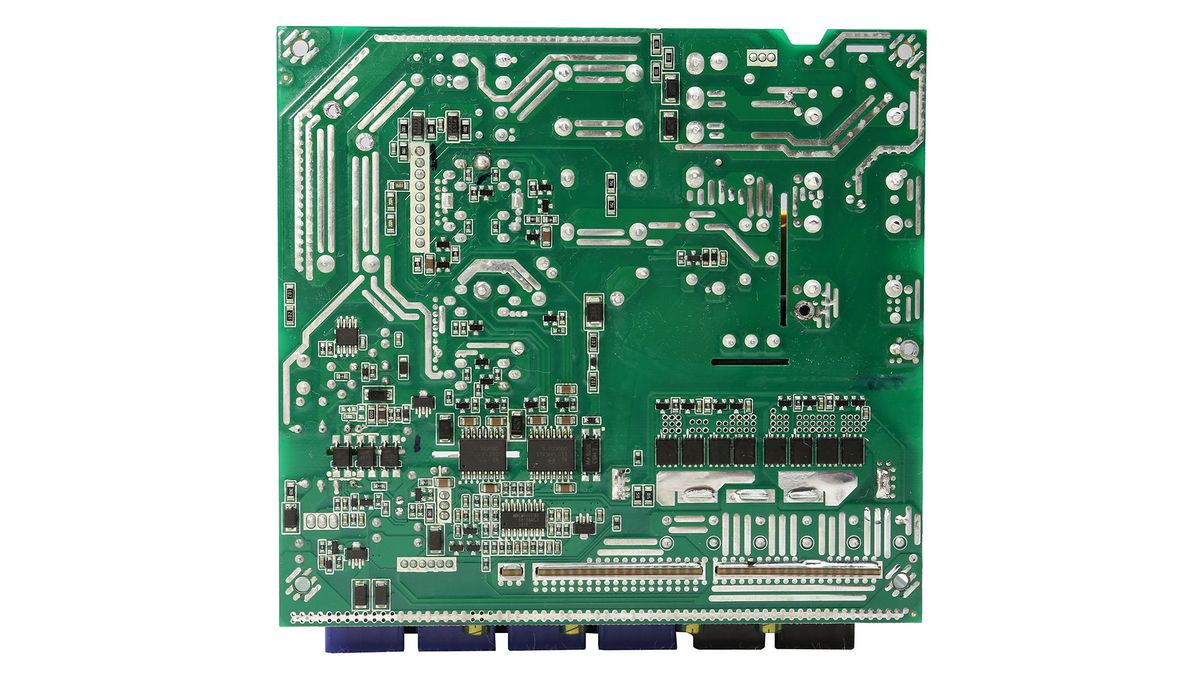

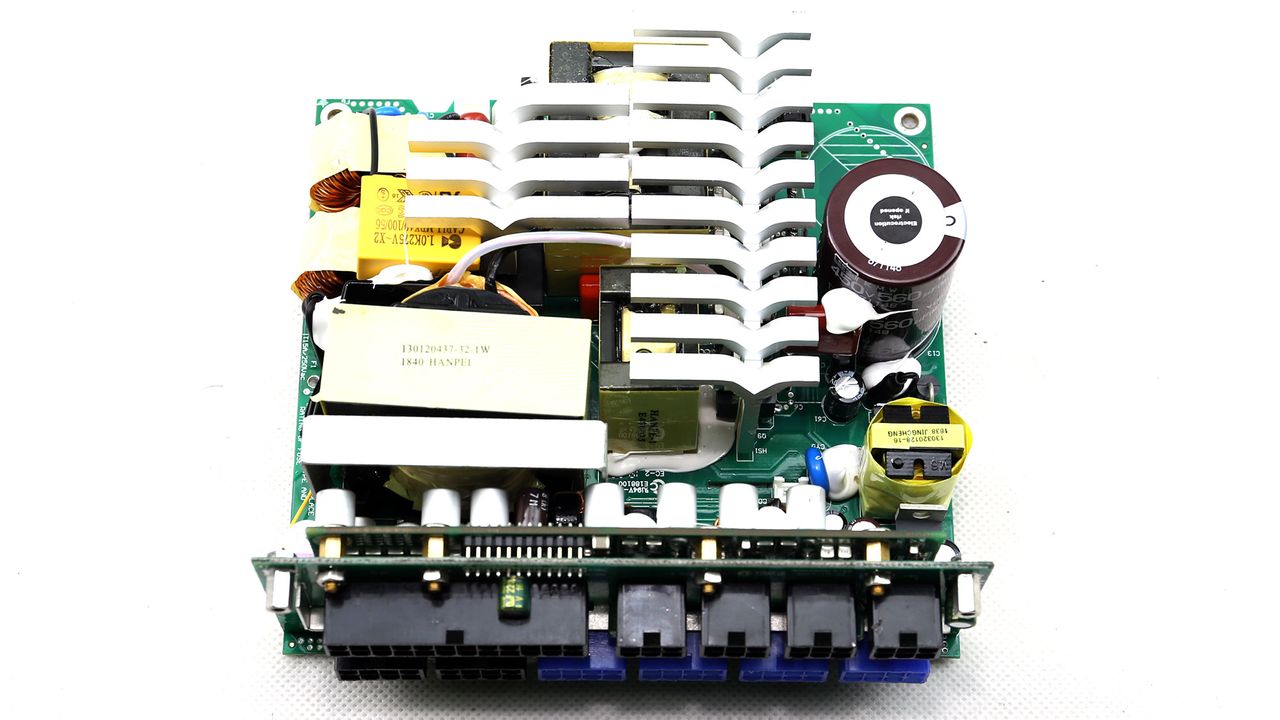

The platform is provided by Enhance Electronics and, on the primary side, a full bridge topology is used along with an LLC resonant converter. On the secondary side, a synchronous rectification scheme is used for the +12V rail, with eight FETs handling this rail, and the minor rails are generated through a pair of DC-DC converters. The electrolytic filtering caps are provided by respectable manufacturers and are of high quality. The majority of polymer caps is provided by Unicon; we also found several CapXon polymer caps.
