VMware: Booting

Workstation Storage: Modeling, CAD, Programming, And Virtualization
By

Overall Statistics

Elapsed Time
31.39 s
Read Operations
23 752
Write Operations
1303
Data Read
864.65 MB
Data Written
16.27 MB
Disk Busy Time
3.236 s
Average Data Rate
272.20 MB/s


SSDs are known for helping accelerate boot times. Queue depths during Windows start-up can easily exceed four, as the operating system accesses multiple files in quick succession or at the same time. This is exactly we see when Windows 7 loads up under VMware Workstation. Fewer than half of the operations occur at a queue depth of one. The vast majority of the transferred data is sequential, with about two-thirds of the operations 64 KB in size.

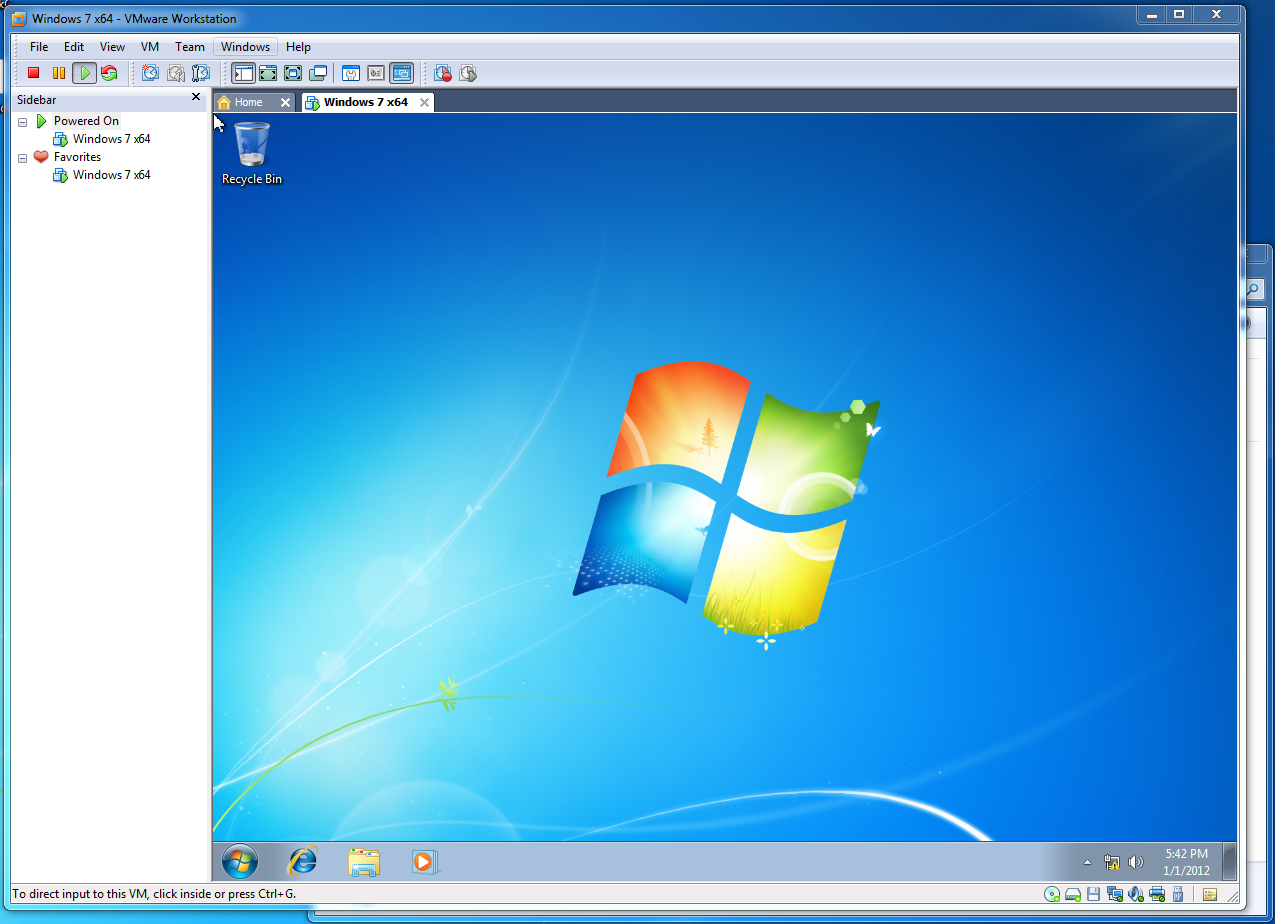

VMware Workstations takes as little as 30 seconds to reach the desktop. In comparison, our two Caviar Green drives in RAID 1 take about 50 seconds to get there.

I/O Trends:

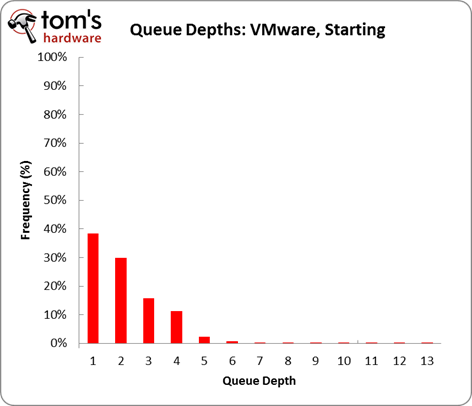

  • 38% of all operations occur at queue depth of one
  • 55% of all operations occur at queue depth between two and five

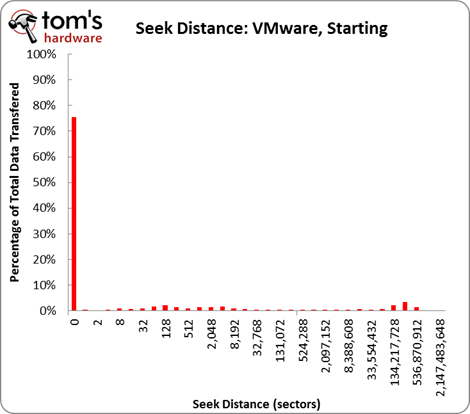

  • 75% of all data transferred is sequential

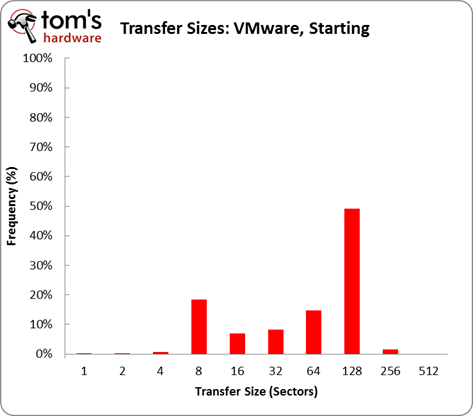

  • 18% of all operations are 4 KB in transfer size
  • 64% of all operations are 64 KB in transfer size
