HP Launches Trio Of 10-Bit 4K Pro Monitors With USB-C (Updated)

Updated, 2/8/2018, 6:50am PT:HP has confirmed that all three monitors support HDCP 2.2 over the USB-C video input, which uses the DisplayPort 1.2 protocol. Also, all three monitors have the same configuration of connectors: two USB 3.0 downstream ports at the rear and one at the side (totaling three), and one USB-C downstream port with 15W charging capability at the side.

Original, 2/7/2018, 10:15am PT:

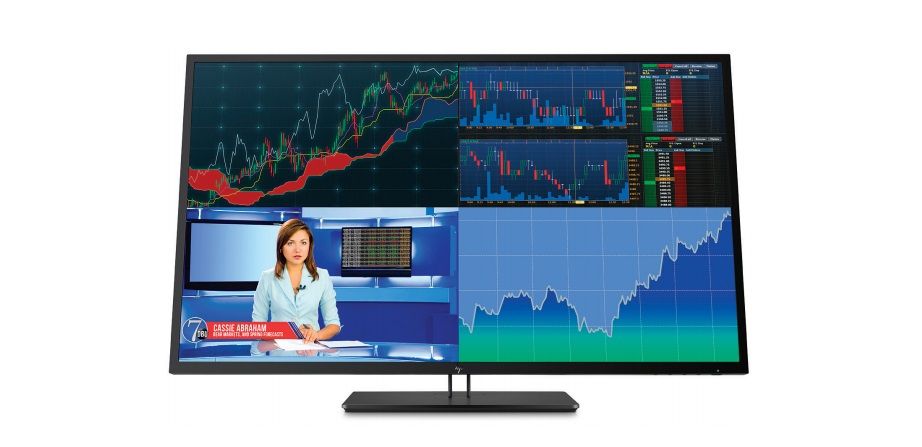

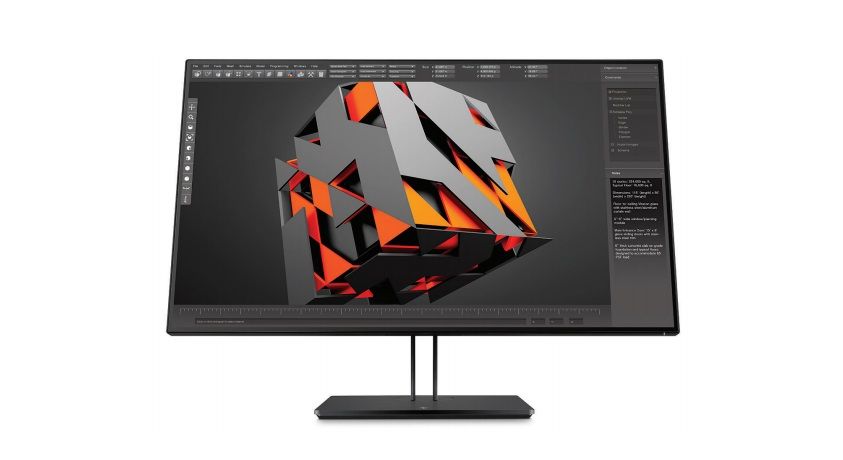

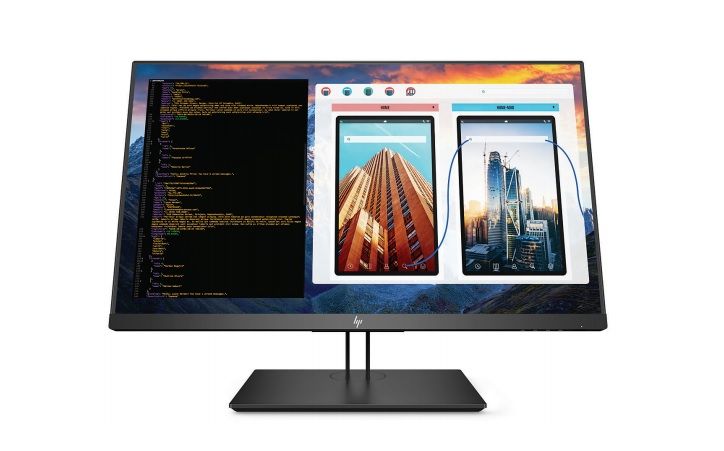

HP launched a trio of new professional monitors with USB-C input. The Z27, Z32, and Z43 bring convenient connectivity and accurate sRGB color to multiple screen sizes.

USB-C finally seems to be gaining traction as a display connection. Not only did we see a fair amount of monitors equipped with it at CES 2018, but we’ve also reviewed some. HP is adding to the growing list with its new Z27 (27”), Z32 (32”), and Z43 (43”) monitors. These are targeted for professional applications and all feature 4K IPS LCD panels with a native 10-bit color depth. This means 178° viewing angles--typical of IPS panels--and smoother color gradients in applications that can output 10-bit color. None of these are wide-gamut panels, however, and only have 100% coverage of the sRGB color gamut, so they’re not exactly up for photographic work.

All the monitors feature similar-looking but not functionally identical exterior designs. For ergonomic adjustments, you lose more with size. Only the Z27 has the full suite of adjustments (tilt, swivel, height, and rotation). The Z32 loses rotation, and the Z43 loses height adjustment as well. In case you’re not satisfied with that, all three have VESA mounts, so you can change the base. It’s a similar story when it comes to the screen bezels. Both the Z27 and Z32 feature narrow bezels, but the Z27 only has them on three sides, while the Z32 has them on all four. This makes the Z27 fine for stacking horizontally, but for a grid stacking, go with the Z32. The Z43 doesn’t have slim bezels.

As for video inputs, all three have the same combination of DisplayPort 1.2 (mini and full-size) and HDMI 2.0, along with the aforementioned USB-C input, which uses DisplayPort 1.2 as the video protocol. HP lists HDCP-compliance in its specs, but DisplayPort 1.2 doesn’t have native HDCP 2.2 support. We’ve contacted HP to clarify this. All three monitors can supply 65W of charging power to an attached notebook, or other device, through the USB-C port. For other connectors, the Z27 has an audio output and three USB 3.0 ports, the Z32 has three USB 3.0 ports, and the Z43 has four USB 3.0 ports.

If you’re in the market for a USB-C-equipped monitor, then know that LG also has similar offerings in 27, 32, and 43” sizes as well. They’re not all direct competitors for these HPs, though, and they don’t come with HP’s rather generous three year warranty and a zero bright sub-pixel guarantee. The HP Z27, Z32, and Z43 will be available imminently on HP’s website at $559, $899, and $799, respectively.

Product

Z27

Z32

Z43

Panel Type & Backlight

IPS with LED backlight

IPS with LED backlight

IPS with LED backlight

Screen Size & Aspect Ratio

24” 16:9

32” 16:9

43” 16:9

Curve Radius

N/A

N/A

N/A

Max Resolution & Refresh

UHD (3840x2160) @ 60Hz

UHD (3840x2160) @ 60Hz

UHD (3840x2160) @ 60Hz

FreeSync Range

N/A

N/A

N/A

Native Color Depth & Gamut

10-bit sRGB

10-bit sRGB

10-bit sRGB

Response Time (GTG)

8ms

8ms

8ms

Brightness

350 nit

350 nit

350 nit

Speakers

None

None

None

Video Inputs

(1) DisplayPort 1.2, (1) mini DisplayPort 1.2, (1) HDMI 2.0, (1) USB-C (DisplayPort 1.2)

(1) DisplayPort 1.2, (1) mini DisplayPort 1.2, (1) HDMI 2.0, (1) USB-C (DisplayPort 1.2)

(1) DisplayPort 1.2, (1) mini DisplayPort 1.2, (1) HDMI 2.0, (1) USB-C (DisplayPort 1.2)

Audio

  1. Audio out

None

None

USB

(3) USB 3.0

(3) USB 3.0

(4) USB 3.0

Power Consumption

185W (maximum), 70W (typical), 0.5W (standby)

185W (maximum), 70W (typical), 0.5W (standby

205W (maximum), 95W (typical), 0.5W (standby)

Panel Dimensions (WxHxD) w/base

24.18 x 20.07 x 9.05"

28.12 x 22.22 x 9.76"

38.27 x 24.37 x  9.44"

Panel Thickness

Unknown

Unknown

Unknown

Bezel Width

Unknown

Unknown

Unknown

Weight

9.38kg

12.16kg

16.95kg

Warranty

3 year

3 year

3 year
