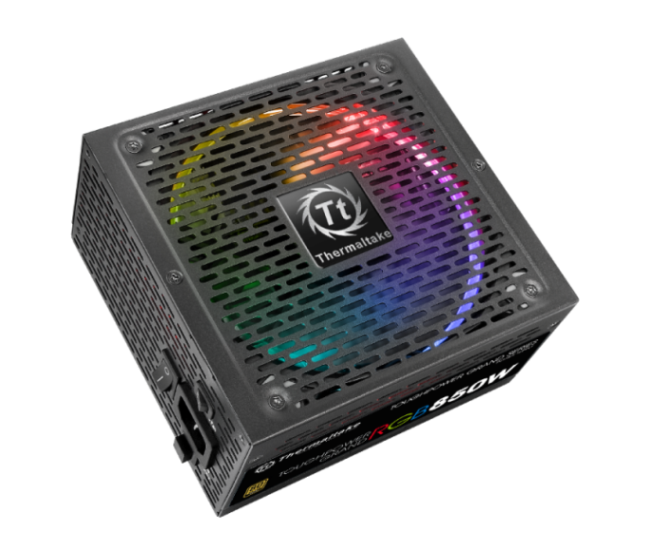

Thermaltake (TT) continues to enrich its portfolio of PSU products. Today the company released the Toughpower Grand RGB Gold line, which includes three members with capacities ranging from 650W to 850W that cover the mid-level Wattage category. All three models are 80 PLUS Gold certified and come equipped with a 140mm RGB fan featuring 256 colors. There is a button you use to change the colors of the fan's LED lighting, or you can just turn it off. According to TT, a built-in memory function remembers your last selection. This is very convenient because you won't have to select the RGB lighting mode each time you remove the power from the PSU.
The new Toughpower Grand RGB Gold line is currently available at major online stores in both US and EU market. Thermaltake seems to be very confident about the reliability of its products since it offers a hefty 10-year warranty on all of them. On the popular online stores Amazon and Newegg, the Toughpower Grand RGB 650W, 750W and 850W units cost $90, $100 and $120, respectively. Those prices are definitely competitive, and if the new units perform well, TT will have some strong contenders in this category.

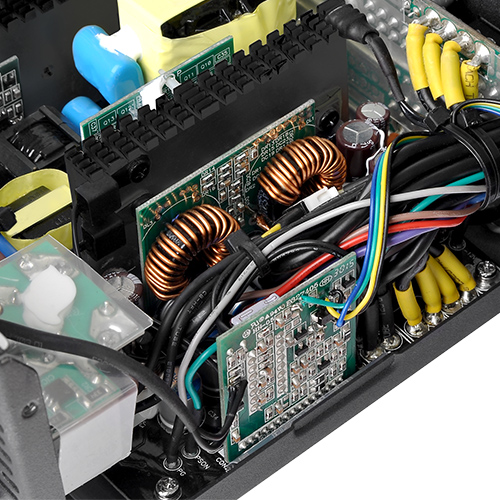

Judging from the photos of the internals that TT posted in the pages of the Toughpower Grand RGB units, the OEM looks to be Sirfa/Sirtec. We encountered the Platinum efficiency version of this platform recently in the SilverStone Strider Platinum ST85F-PT review.
| Line | Toughpower Grand RGB Gold Series |
|---|---|
| OEM | Sirfa/Sirtec |
| Models | TPG-0650F-R, TPG-0750F-R, TPG-0850F-R |
| Max. DC Output | 650W, 750W, 850W |
| PFC | Active PFC |
| Efficiency | 80 Plus Gold |
| Modular | Yes (fully) |
| Intel C6/C7 Power State Support | Yes |
| Operating temperature | 0°C ~ 50°C |
| Protections | Over Voltage Protection Under Voltage Protection Over Current Protection Short Circuit Protection Over Power Protection Over Temperature Protection |
| Cooling | 140 mm HDB Fan (256 Colors RGB LED) |
| Semi-passive operation | Yes |
| Number of PCIe | TPG-0650F-R, TPG-0750F-R: 4 TPG-0850F-R: 6 |
| Number of EPS | TPG-0650F-R, TPG-0750F-R: 1 TPG-0850F-R: 2 |
| Dimensions | 150 mm (W) x 87 mm (H) x 160 mm (D) |
| Compliance | ATX12V v2.4, EPS 2.92 |
| Price | TPG-0650F-R: $90 TPG-0750F-R: $100 TPG-0850F-R: $120 |
| Warranty | 10 years |
All of the protection features are present, including OTP (Over Temperature Protection). Thermaltake also equipped the PSUs with a semi-passive mode for silent operation under light loads. Finally, they can deliver full power continuously at up to 50°C, as the ATX spec recommends.
The power specification tables of all three Toughpower Grand RGB models follow.
| TPG-0650F-R Power Specs | ||||||
|---|---|---|---|---|---|---|
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 22 | 22 | 54.2 | 3 | 0.3 |
| Watts | 120 | 650 | 15 | 3.6 | ||
| Total Max. Power (W) | 650 |
| TPG-0750F-R Power Specs | ||||||
|---|---|---|---|---|---|---|
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 22 | 22 | 62.5 | 3 | 0.3 |
| Watts | 120 | 750 | 15 | 3.6 | ||
| Total Max. Power (W) | 750 |
| TPG-0850F-R Power Specs | ||||||
|---|---|---|---|---|---|---|
| Rail | 3.3V | 5V | 12V | 5VSB | -12V | |
| Max. Power | Amps | 22 | 22 | 70.9 | 3 | 0.3 |
| Watts | 120 | 850 | 15 | 3.6 | ||
| Total Max. Power (W) | 850 |
