Frore Systems' seemingly magic apparatuses for both air and liquid cooling have long been in the news, claiming to offer performance up to several times that of existing designs. Some companies are already using Frore's designs, like Qualcomm with its Snapdragon X2 Elite reference platform, and many others are integrating the products as we speak. At CES, Tom's Hardware photographed some rather impressive live demos.
The company's wares are the AirJet and LiquidJet lines, each for a different cooling medium as their names imply. The AirJet Mini G2 is the building block, so to speak, of a cooling package that Frore calls an AirJet Pak and includes several Minis with vibrating membranes for near-silent or even fully passive operation. The company is aiming these at ultraportables, laptops, and mini-PCs — roughly any application requiring up to around 45 W. The units are dust-proof, too, and water-resistant.

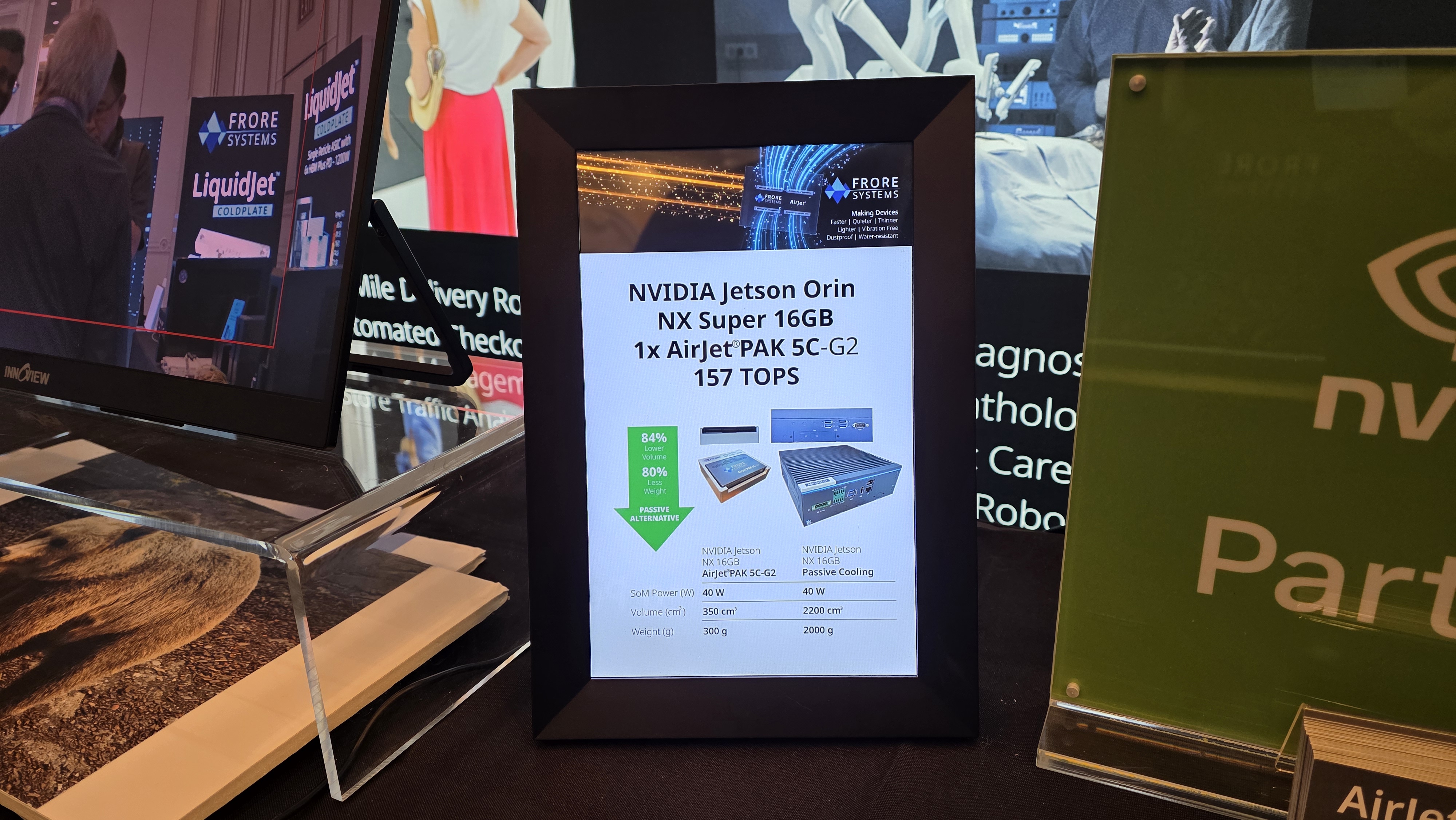

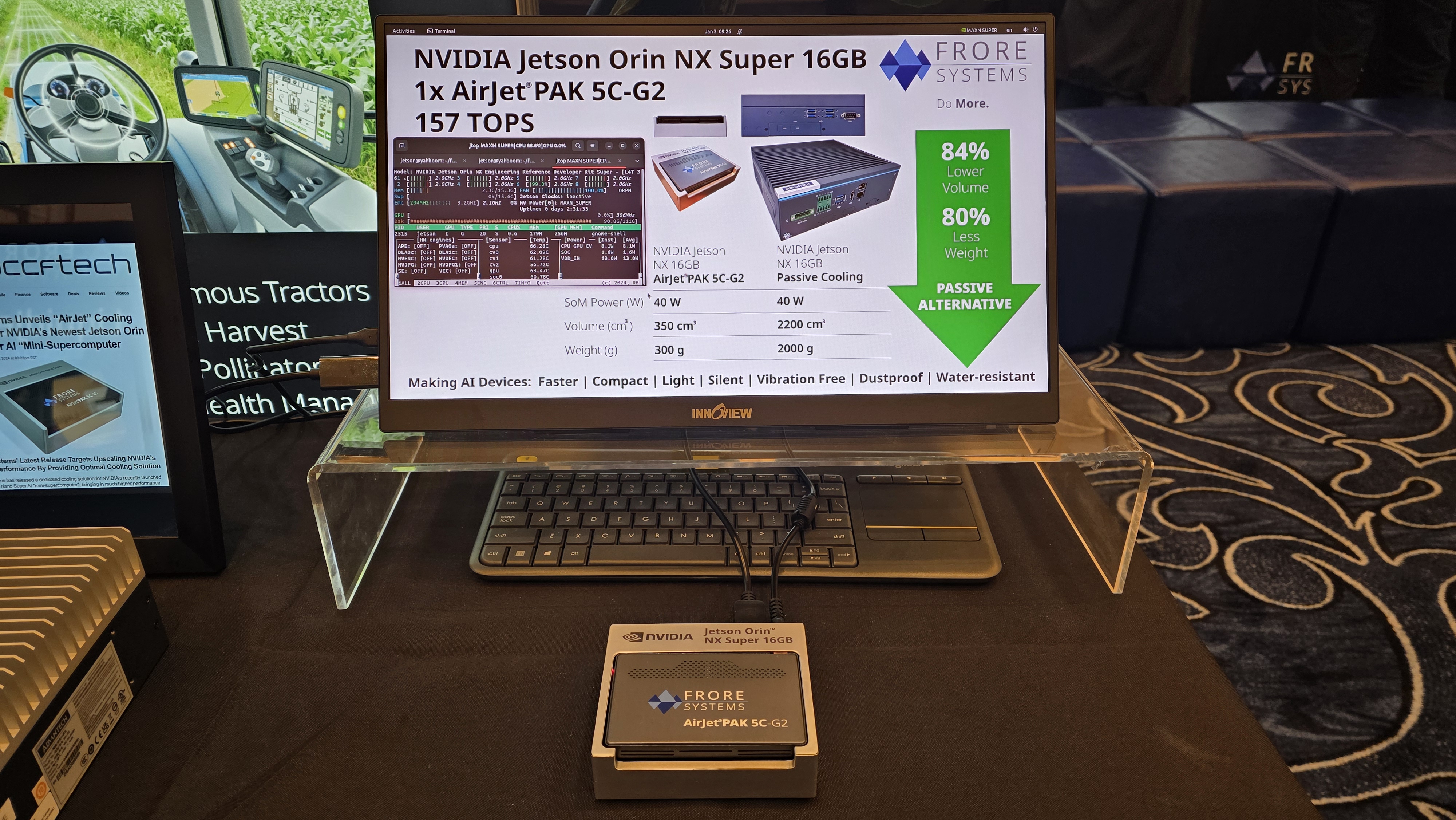

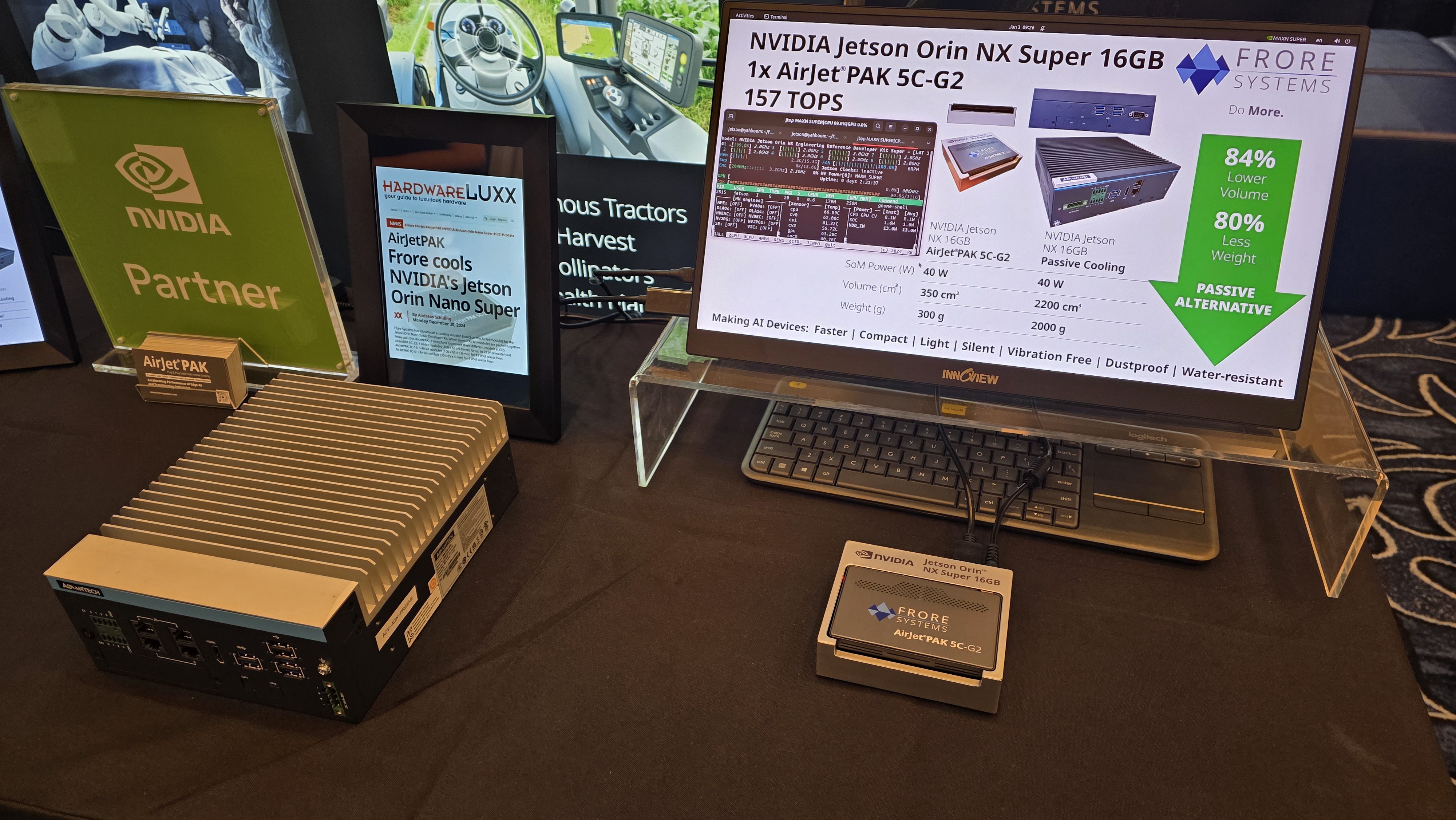

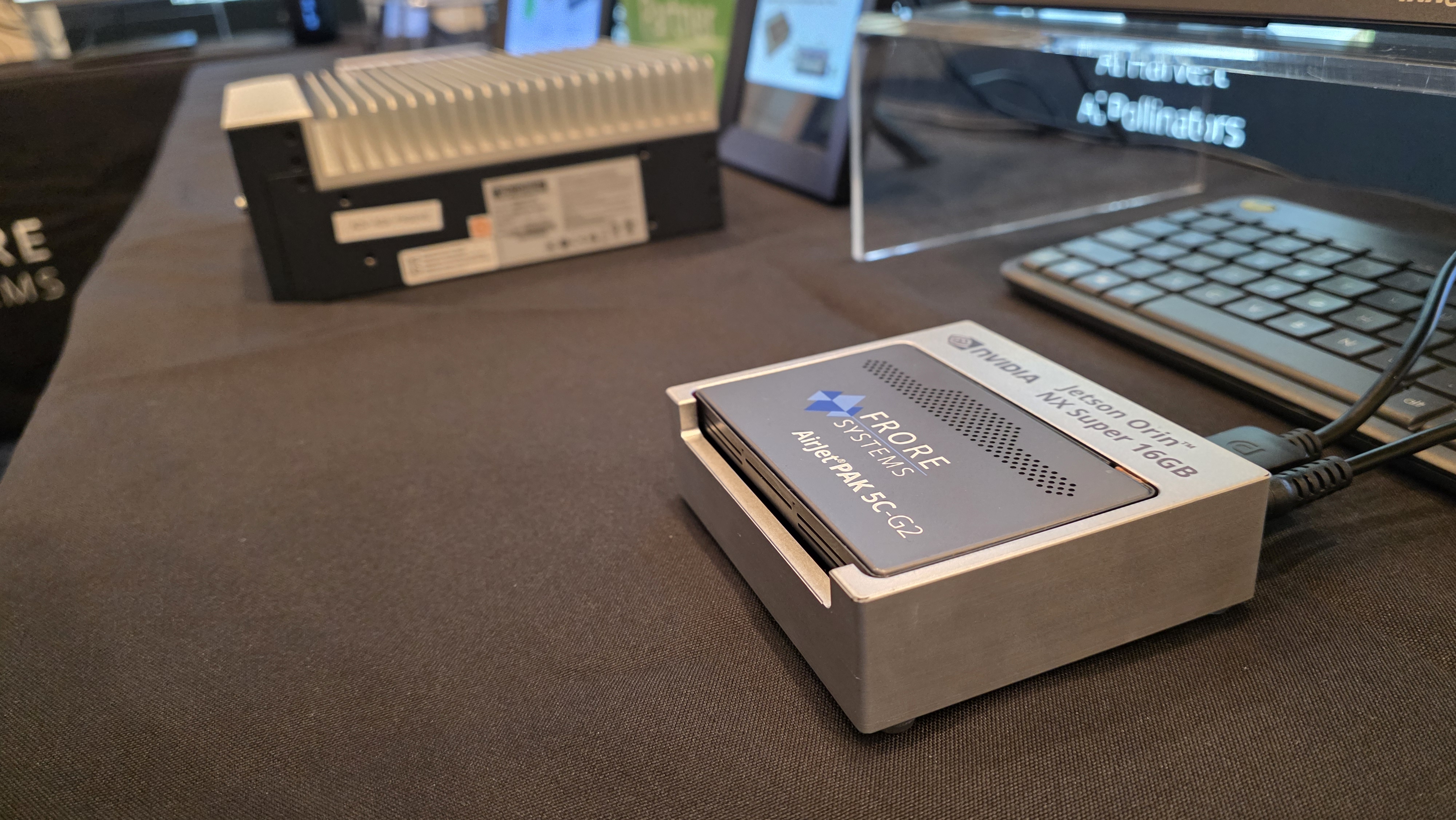

One of the most impressive demos is this one, an AirJet Pak 5C (five AirJet Mini G2 units) cooling a Nvidia Jetson Orin NX Super machine (40 W steady TDP), with a 300g apparatus containing a cooling package not much larger than a 2.5" hard drive performing the same duty as a massive heatsink weighing in at a whole two kilos.

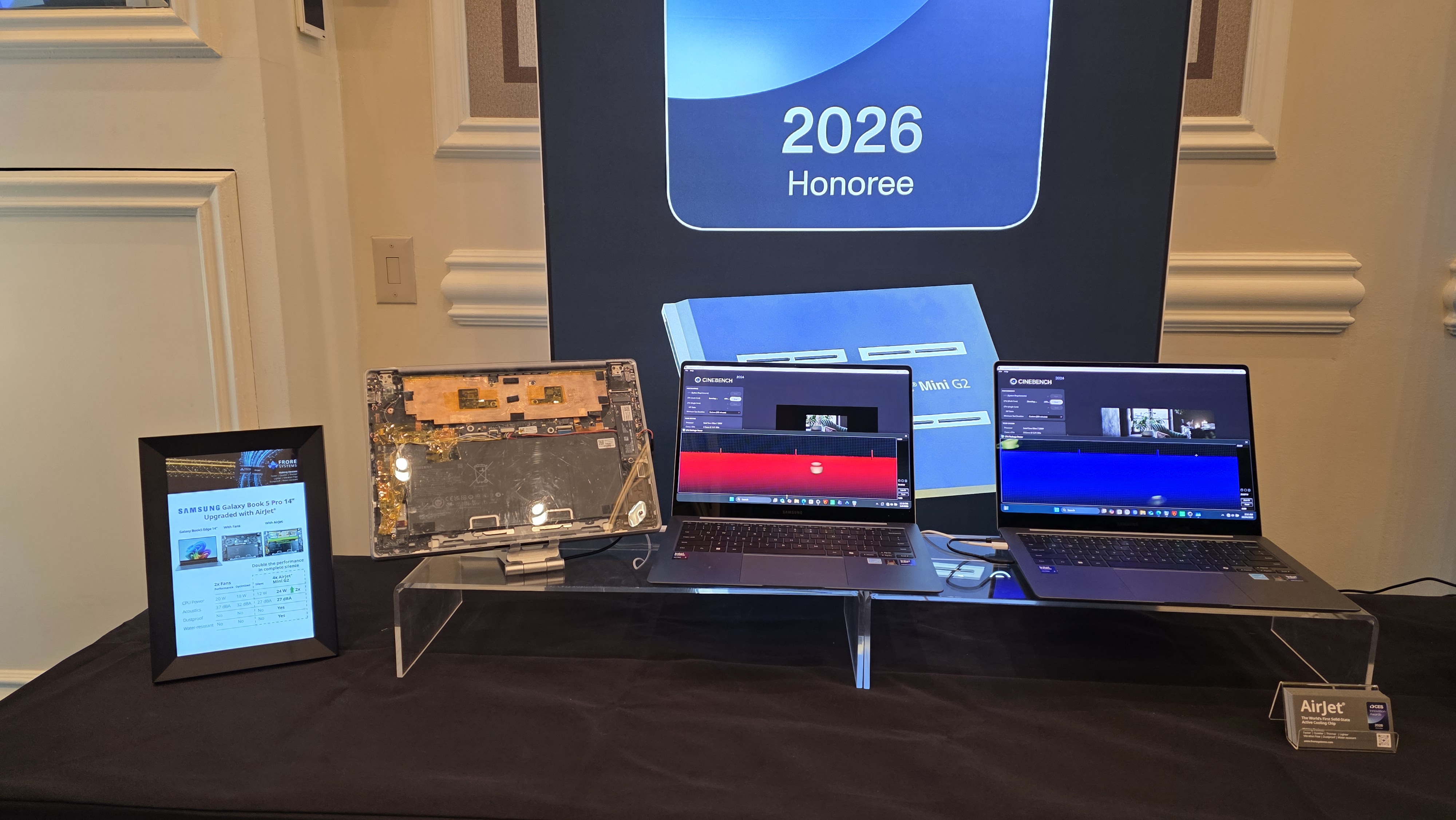

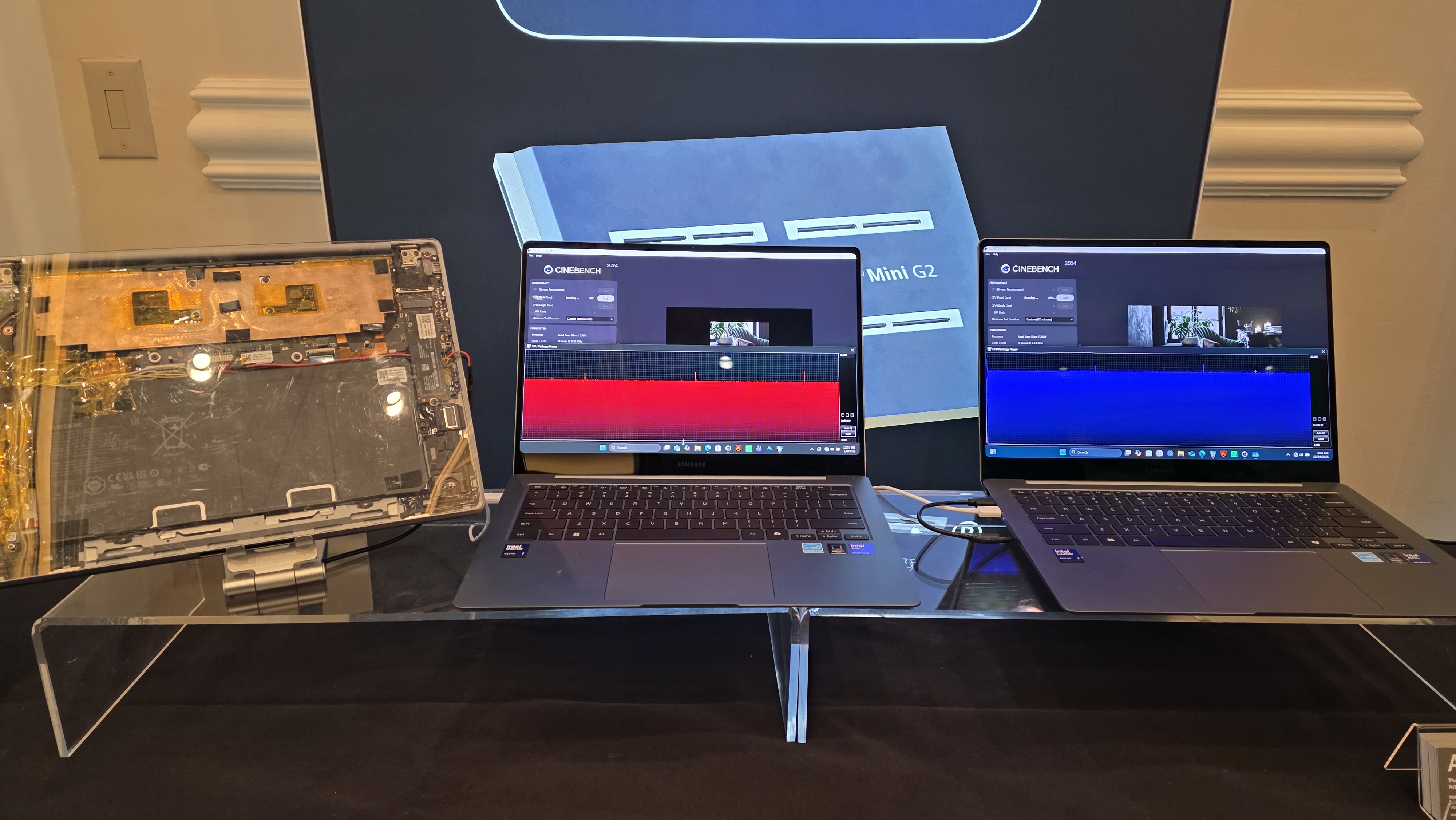

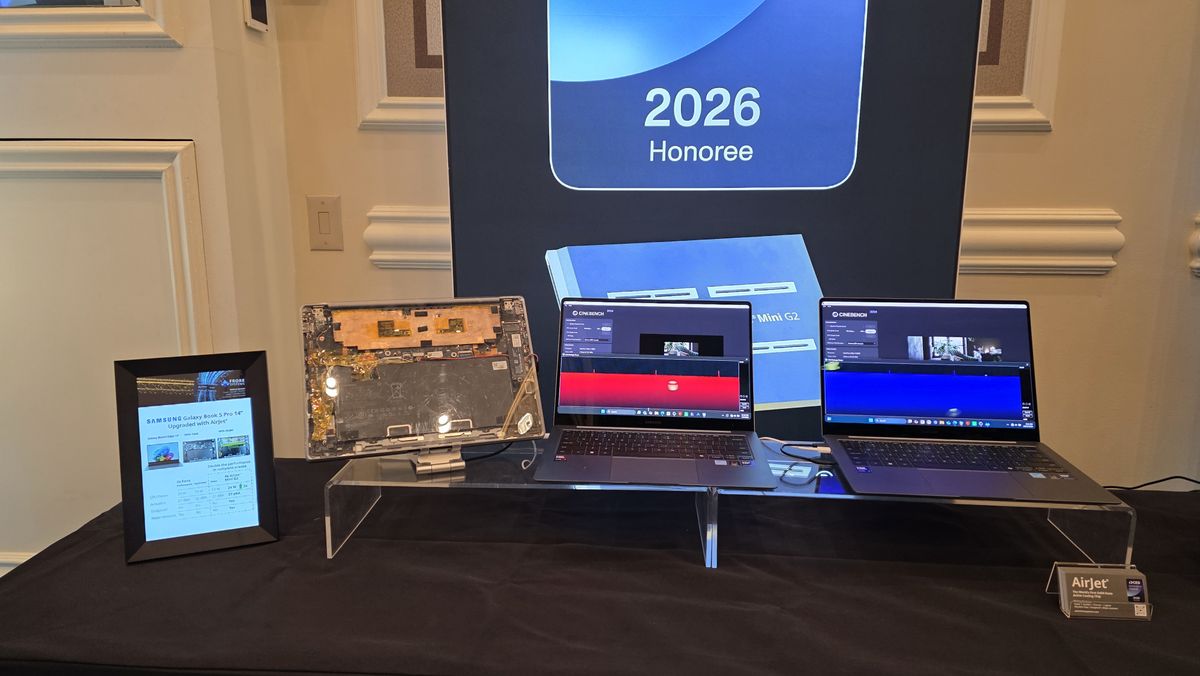

The same theme carries over to this Galaxy Book 5 Pro 14" that replaces its two-fan, 32-37 dbA bog-standard laptop cooling setup with a design packing four AirJet Mini G2s, offering an even higher TDP (24 W over 20 W), while simultaneously operating silently at the base noise measurement level of 27 dbA. As additional bonuses, theoretically, the AirJet-clad unit won't ever need cleaning, either. Not only is it much quieter, but the AirJet variant also goes significantly faster thanks to the higher steady-state TDP, as shown by the running Cinebench tests.
For servers and other high-performance applications, Frore makes the LiquidJet, essentially a really high-tech cold plate with 3D microscopic water channels that move water through a much shorter path than conventional designs, with far better cooling efficiency and lower pressure. Unsurprisingly, Frore is targeting mainly, but not only, at AI servers, where more efficient cooling directly results in lower power bills and better ROI.

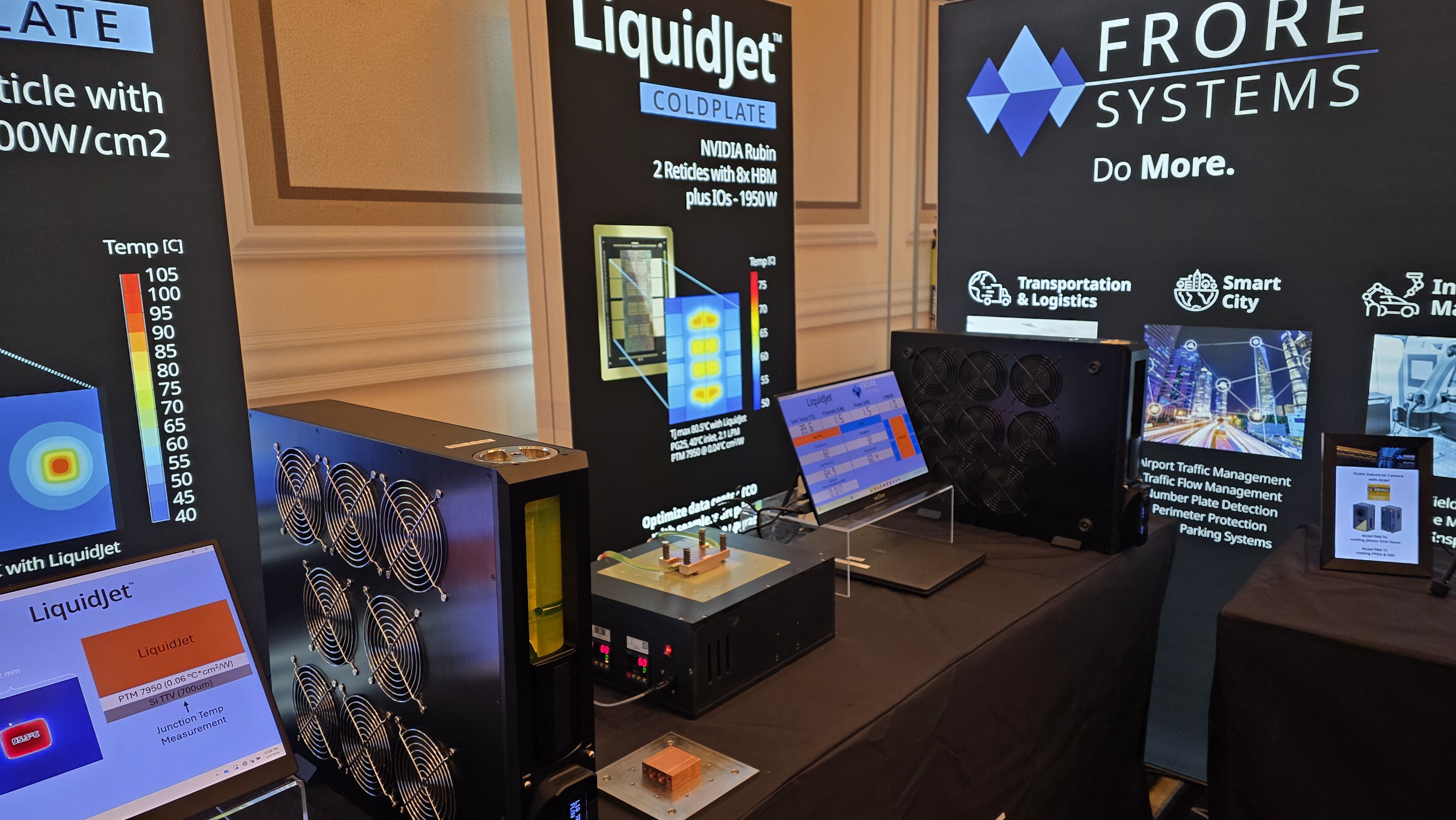

Over at the Big Iron desk, Frore has a big honkin' Nvidia Rubin 2 SoC containing eight HBM modules plus I/O chips (in the center of the picture), for a grand total of 1950 W of heat that must be dissipated. The LiquidJet setup keeps this chip at a balmy 65-70°C, and the radiator-and-fan kit appears to be roughly bigger than an SFF PC, quite an achievement compared to what would otherwise be necessary. We'll bet that the fans weren't nearly as loud as those in a datacenter, too.

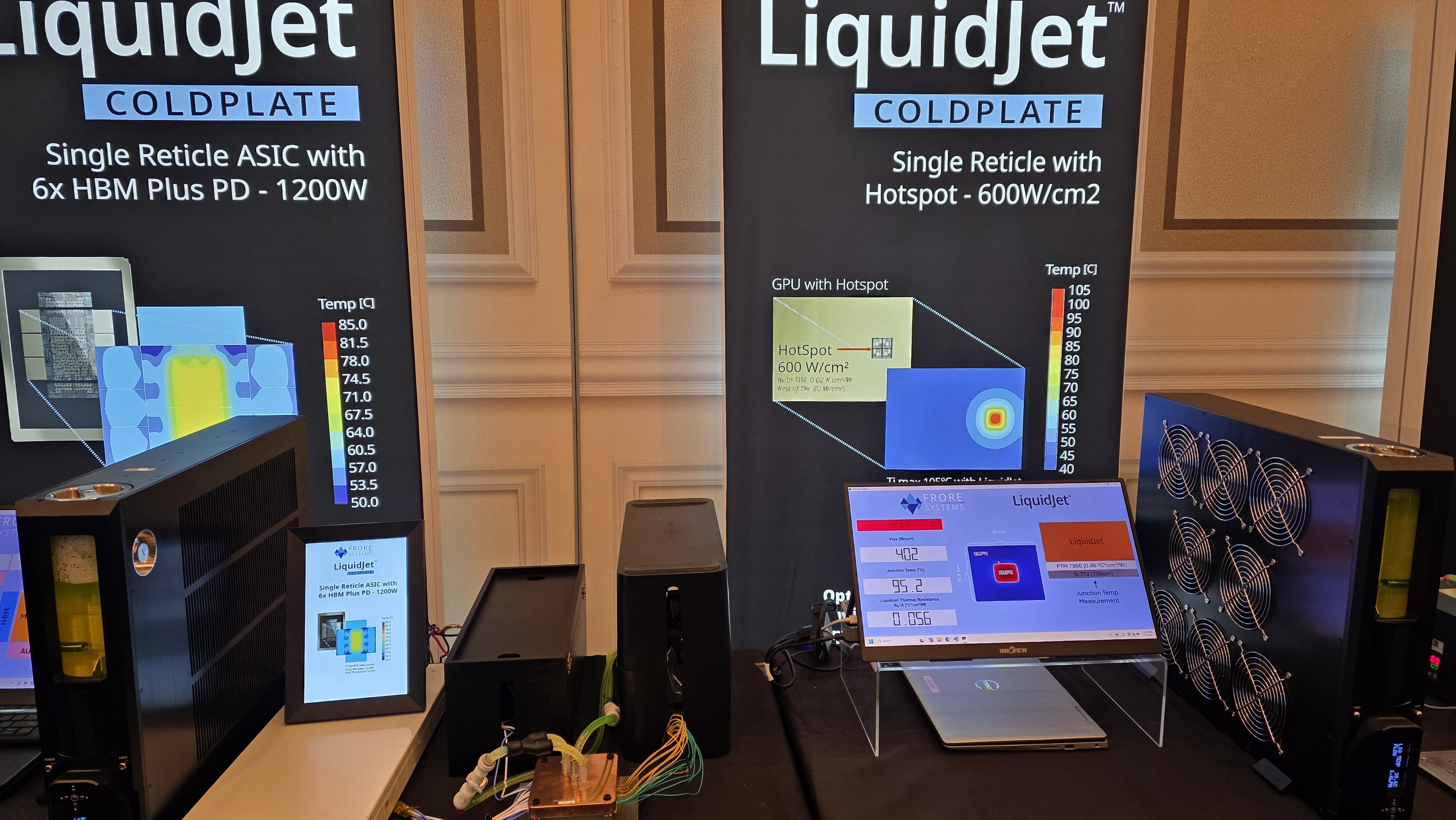

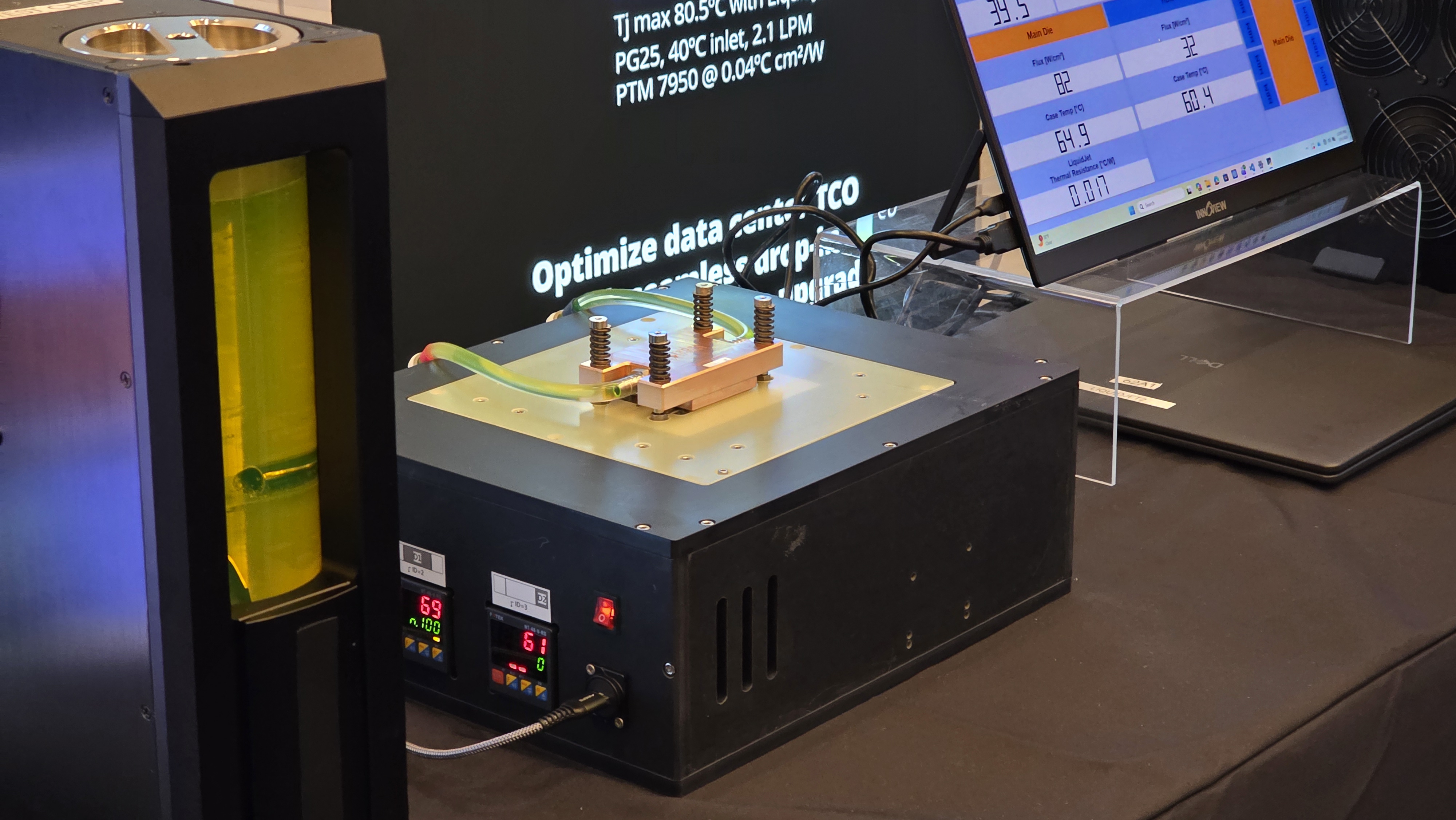

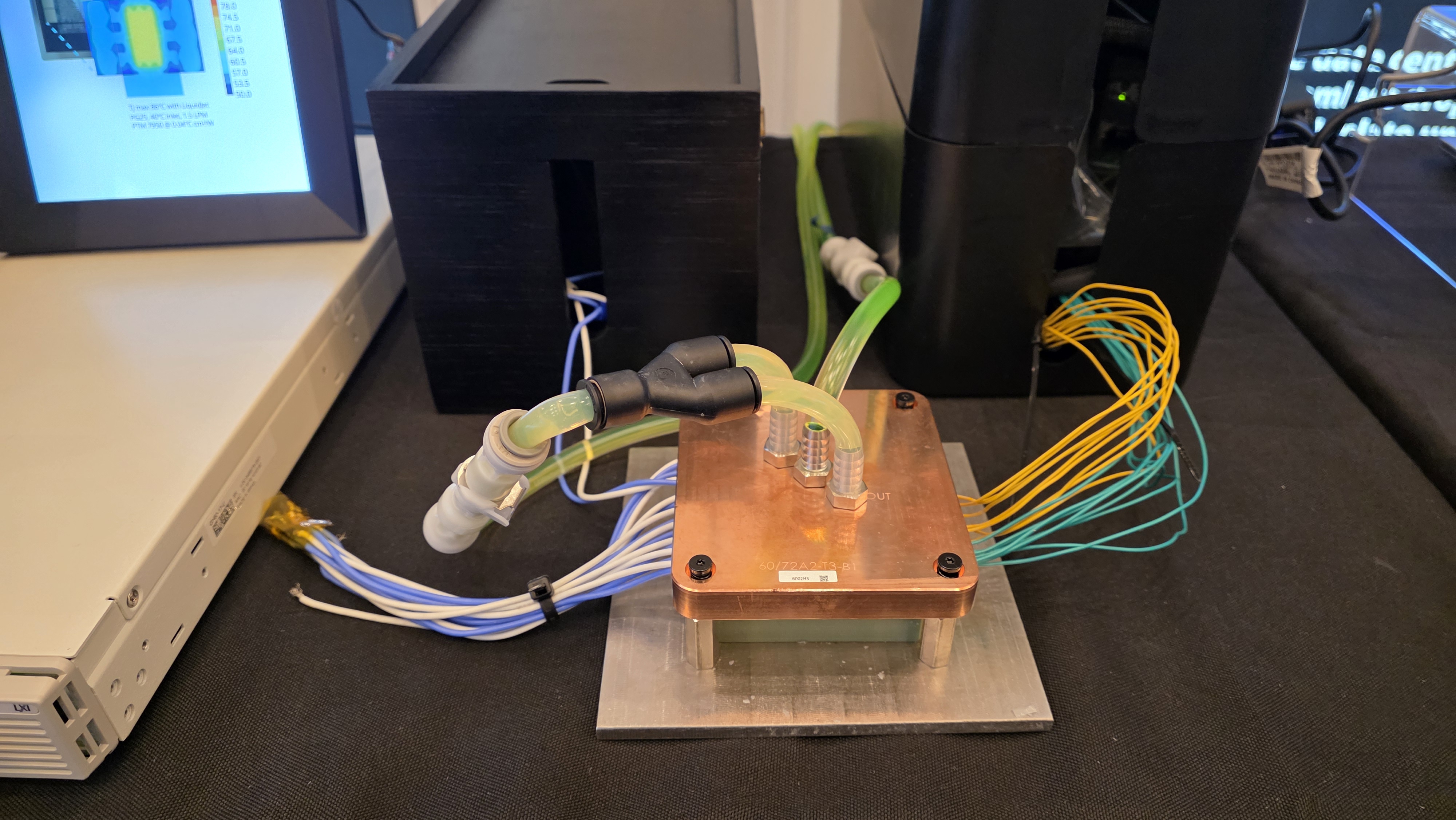

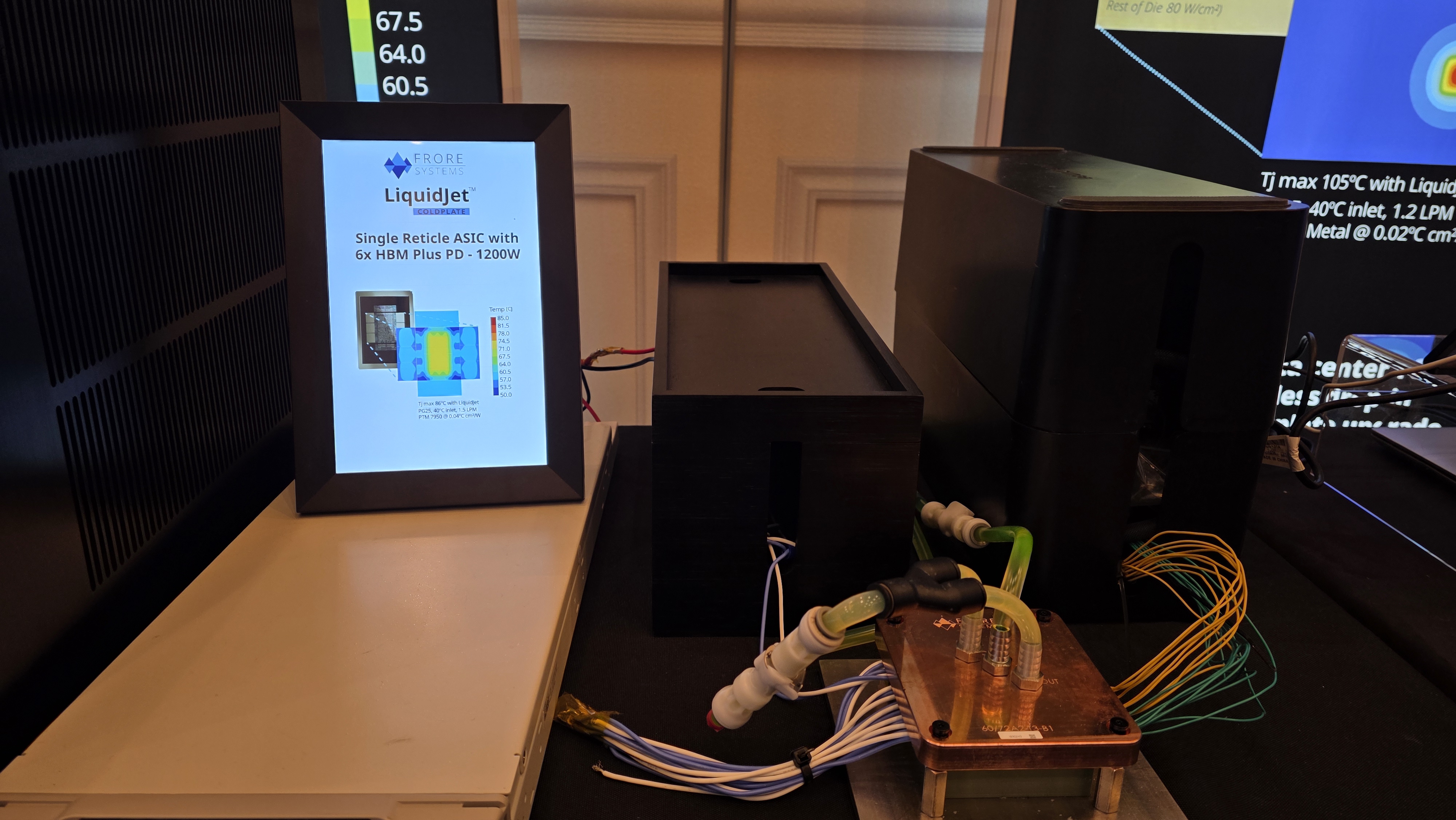

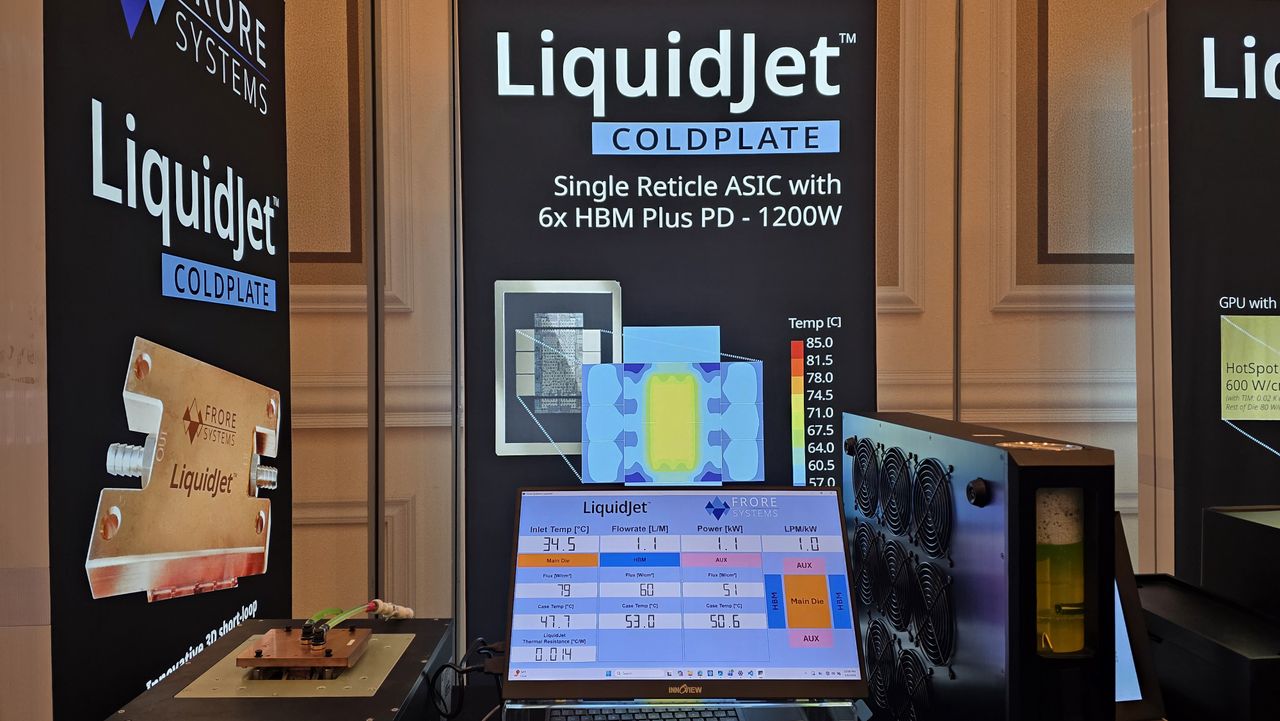

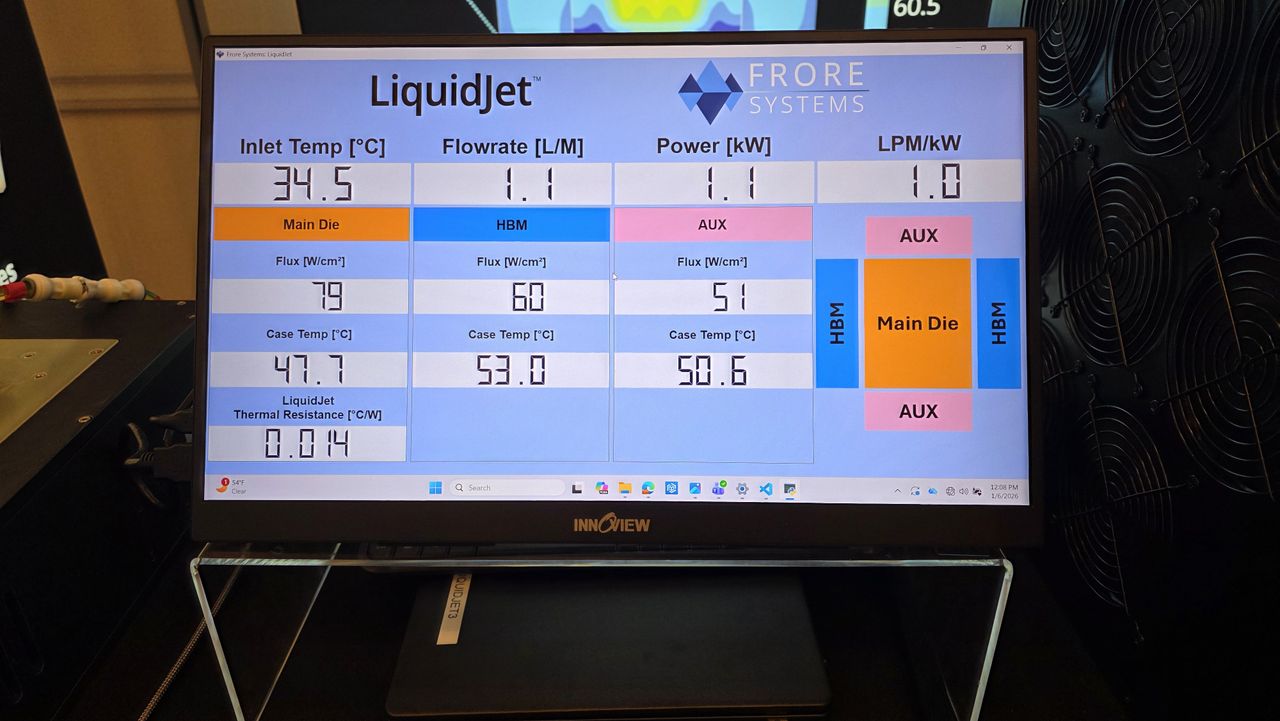

Here we see a large ASIC with a 1200 W TDP being cooled by one of its LiquidJet cold plates, remaining pretty chilly at 70-75°C. The inlet water temperature is just 34.5°C, warm enough to take a shower but not even qualifying as "hot".

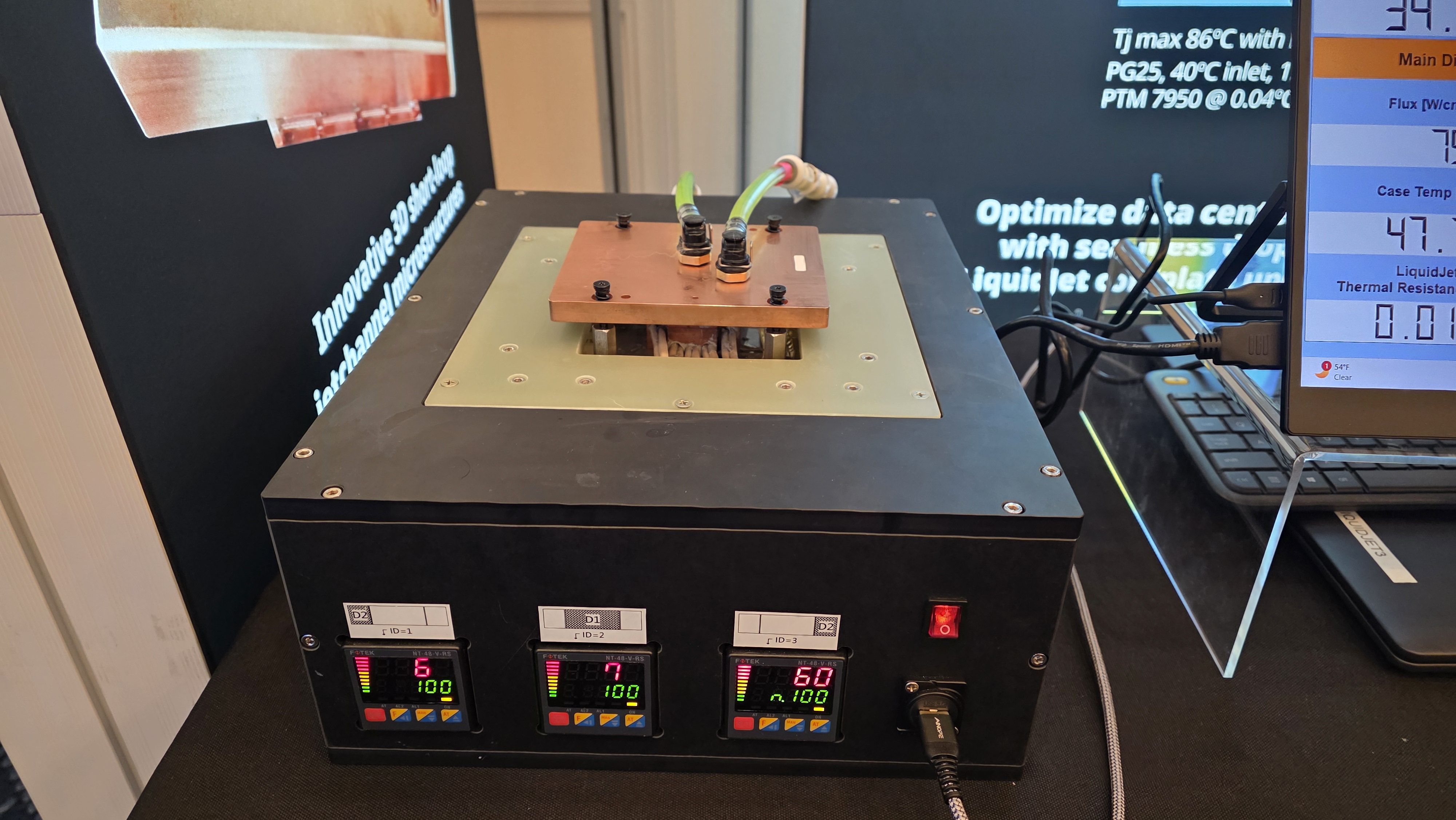

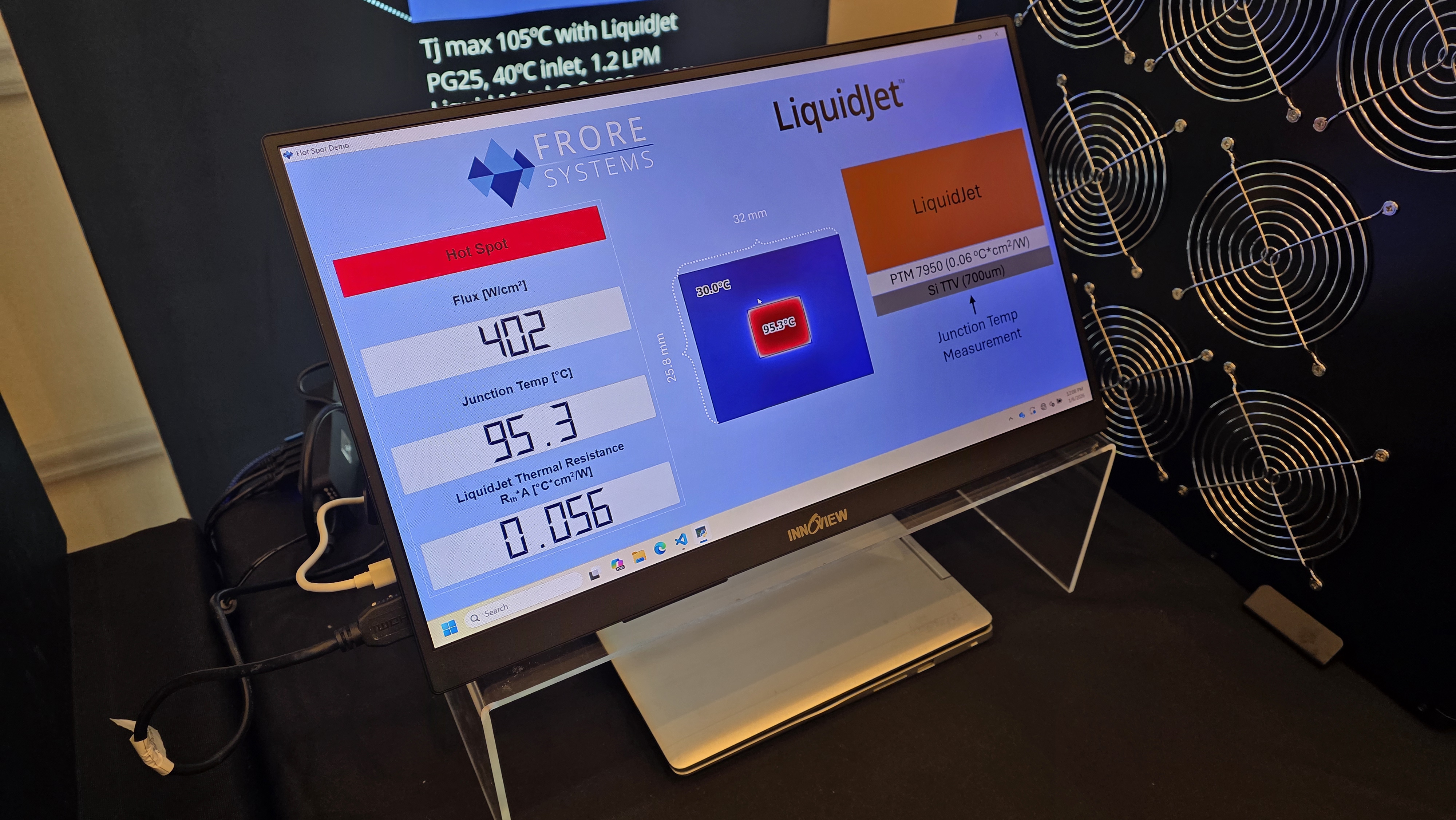

Finally, a 600 W GPU (105° C), cooled by a LiquidJet with top-mounted inlet and outlets, holding itself steady at a nice 95°C. This displays how Frore precisely designs each block to better suit the hotspots of the chip(s) resting underneath, one of the key features for LiquidJet blocks. Be sure to click the pictures for high-res versions, and check out the gallery below for the whole set.
