MSI MAG X870E Tomahawk MAX Wifi PZ Review: Project Zero cleans up the cables

MSI’s Project Zero concept cleans up wiring by moving most connectivity to the rear

Reviews
By published
MSI X870E Tomahawk MAX Wifi PZ
(Image: © Future)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

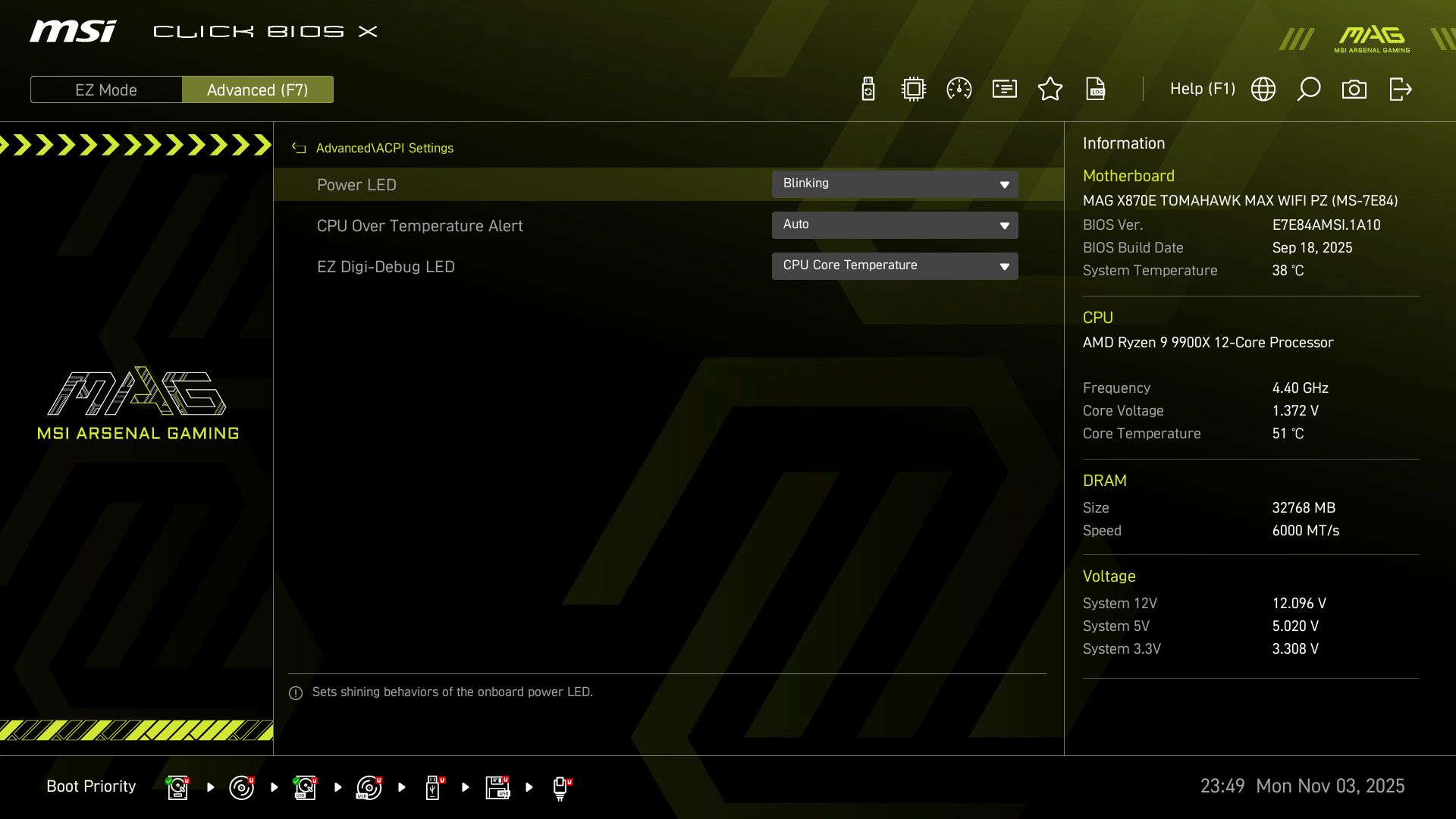

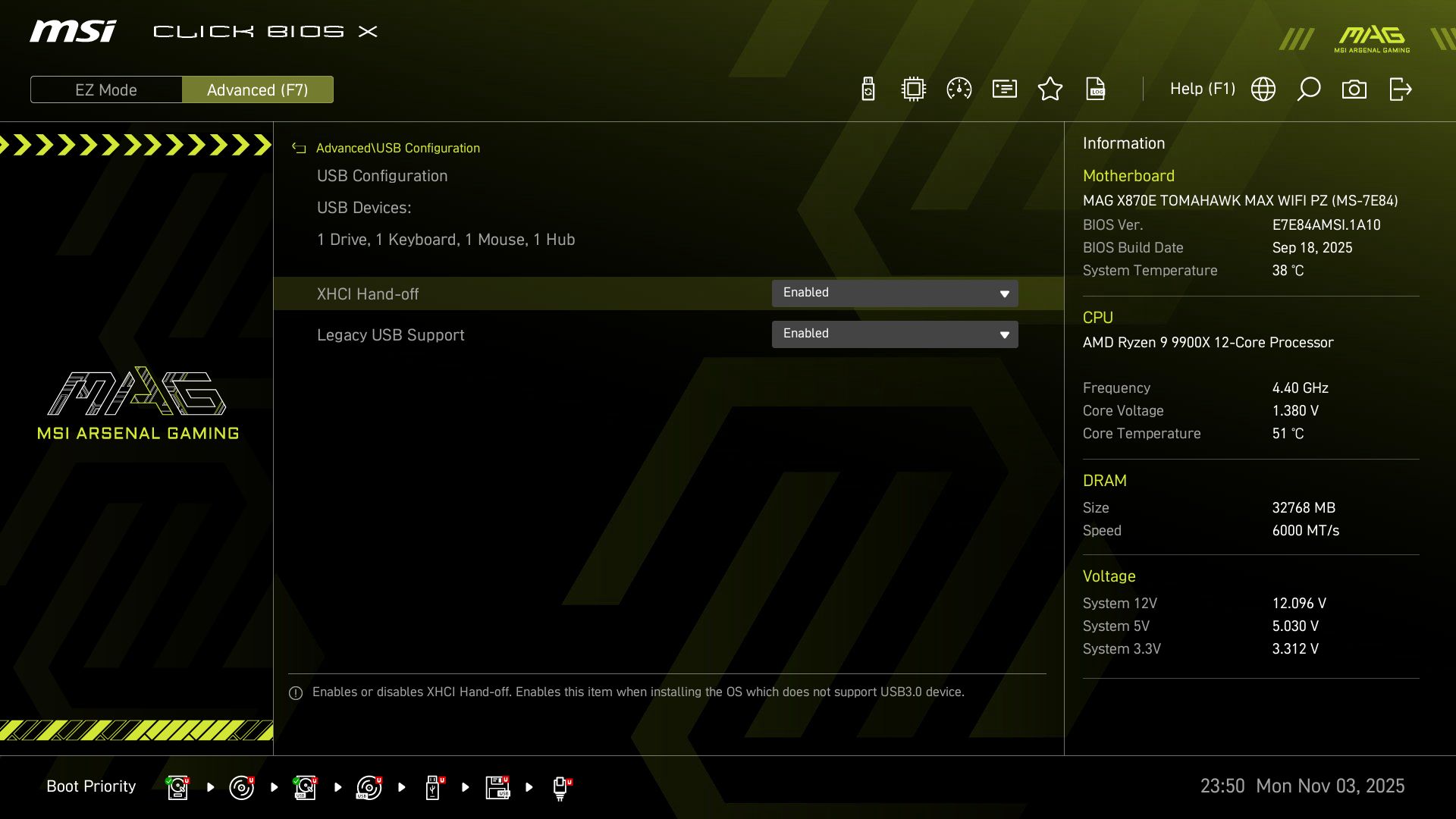

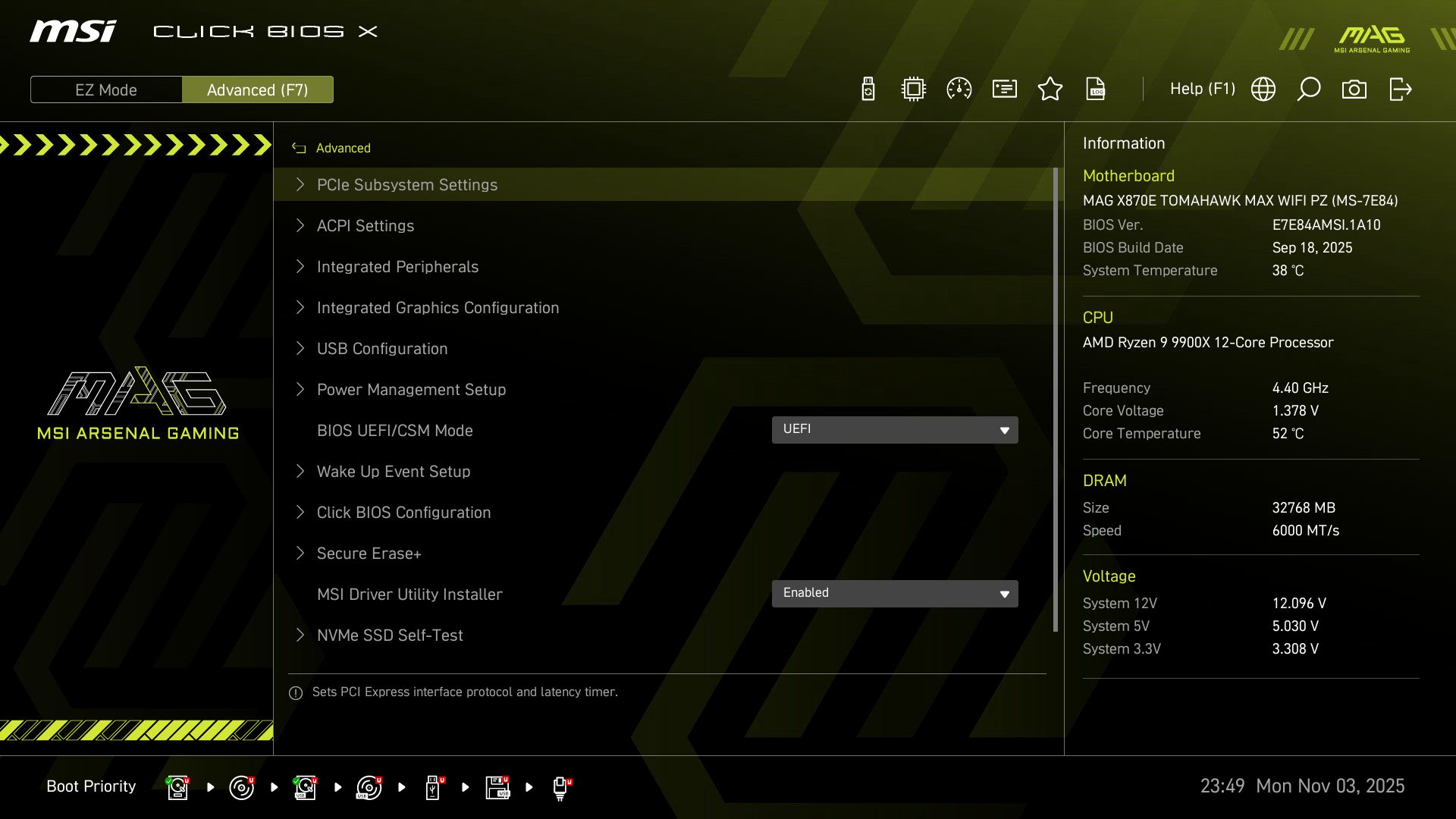

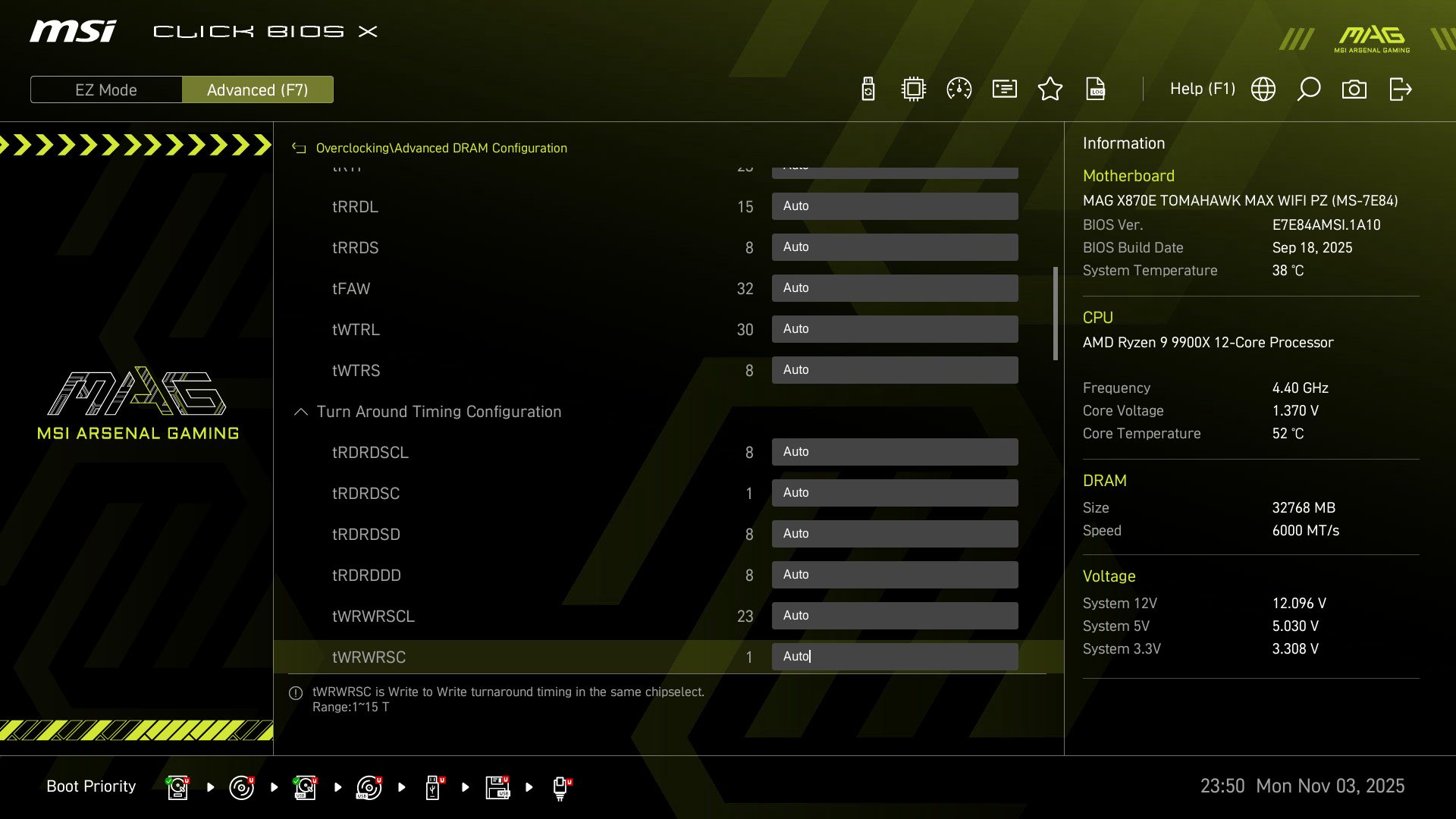

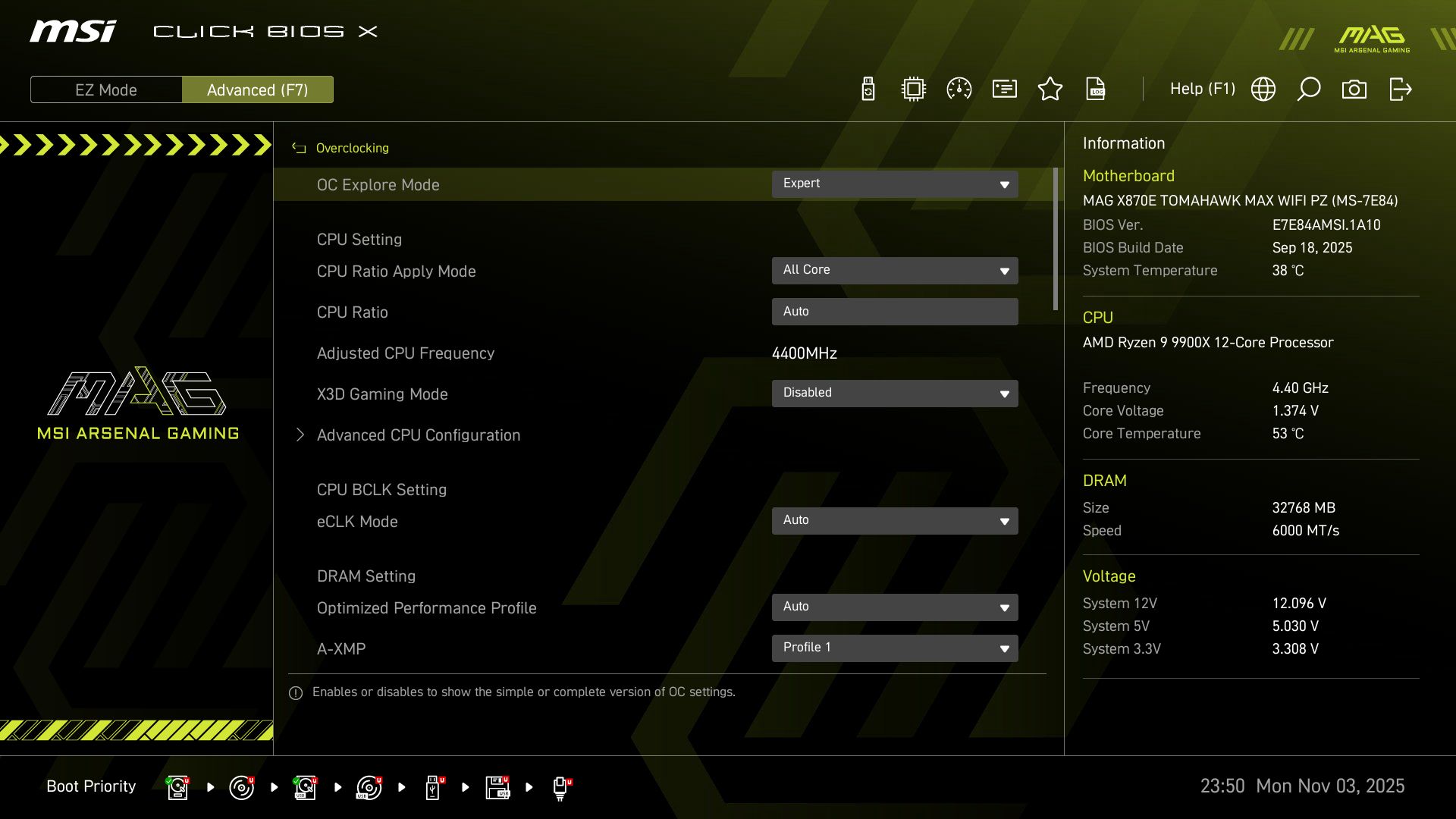

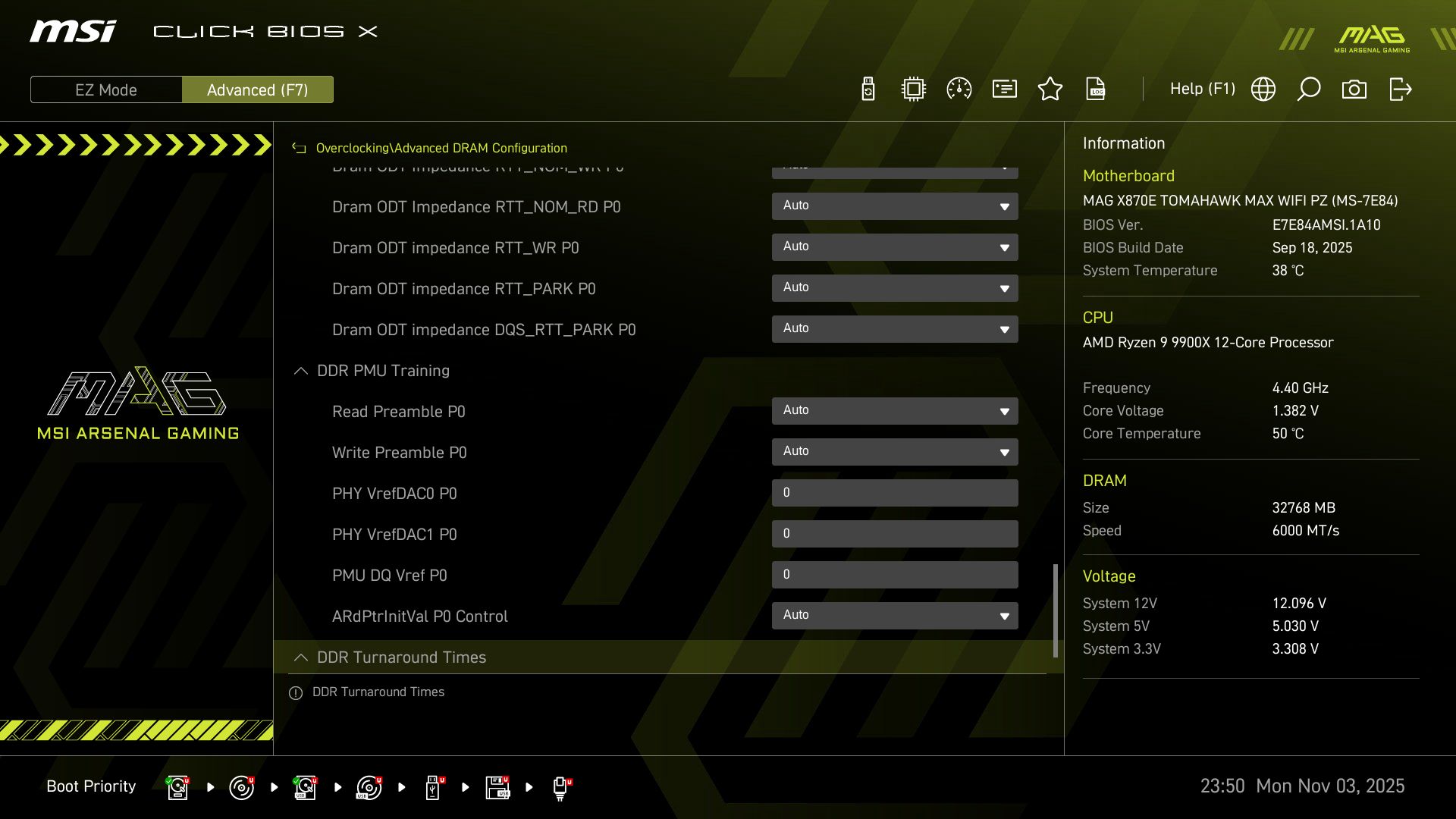

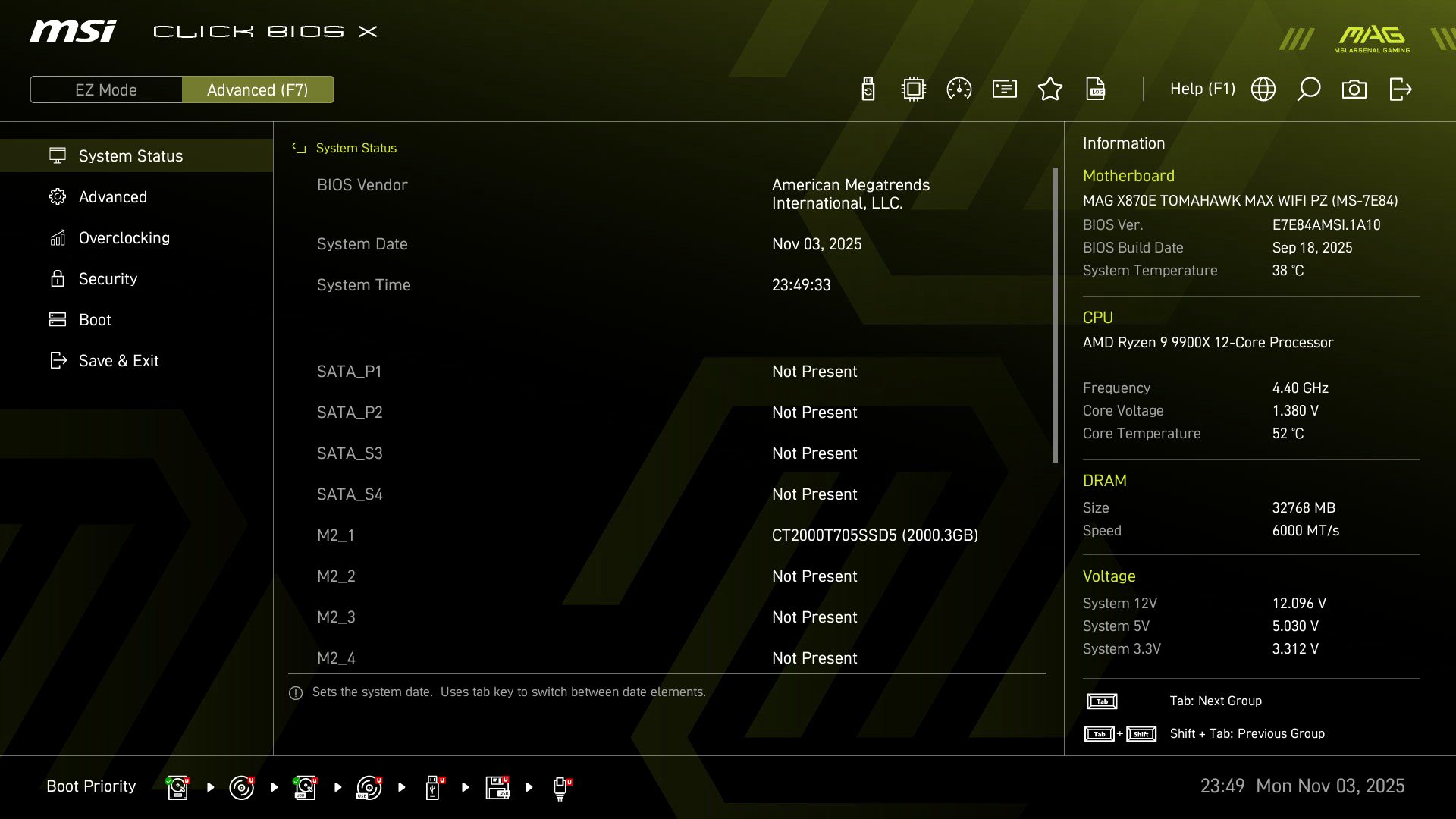

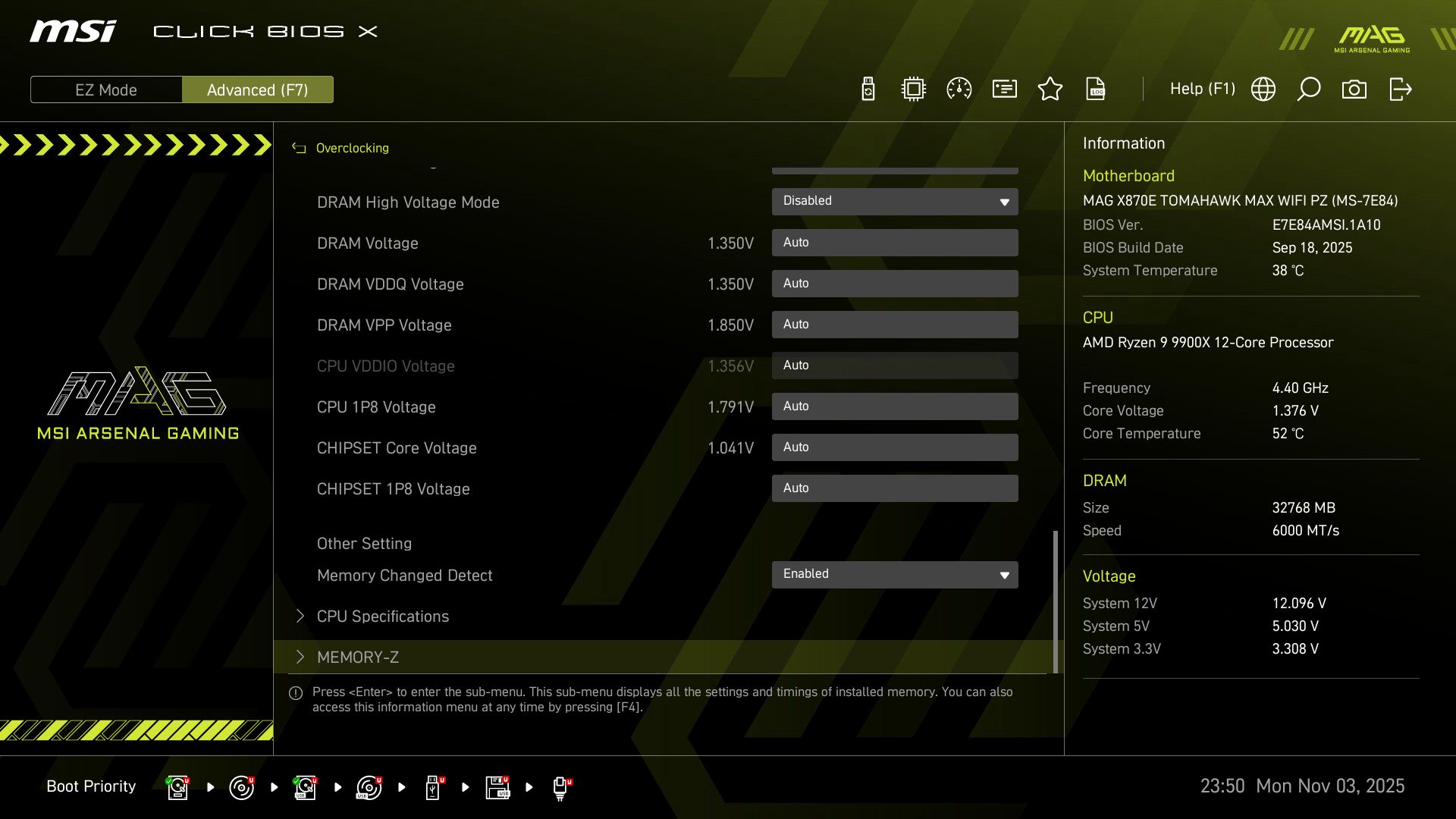

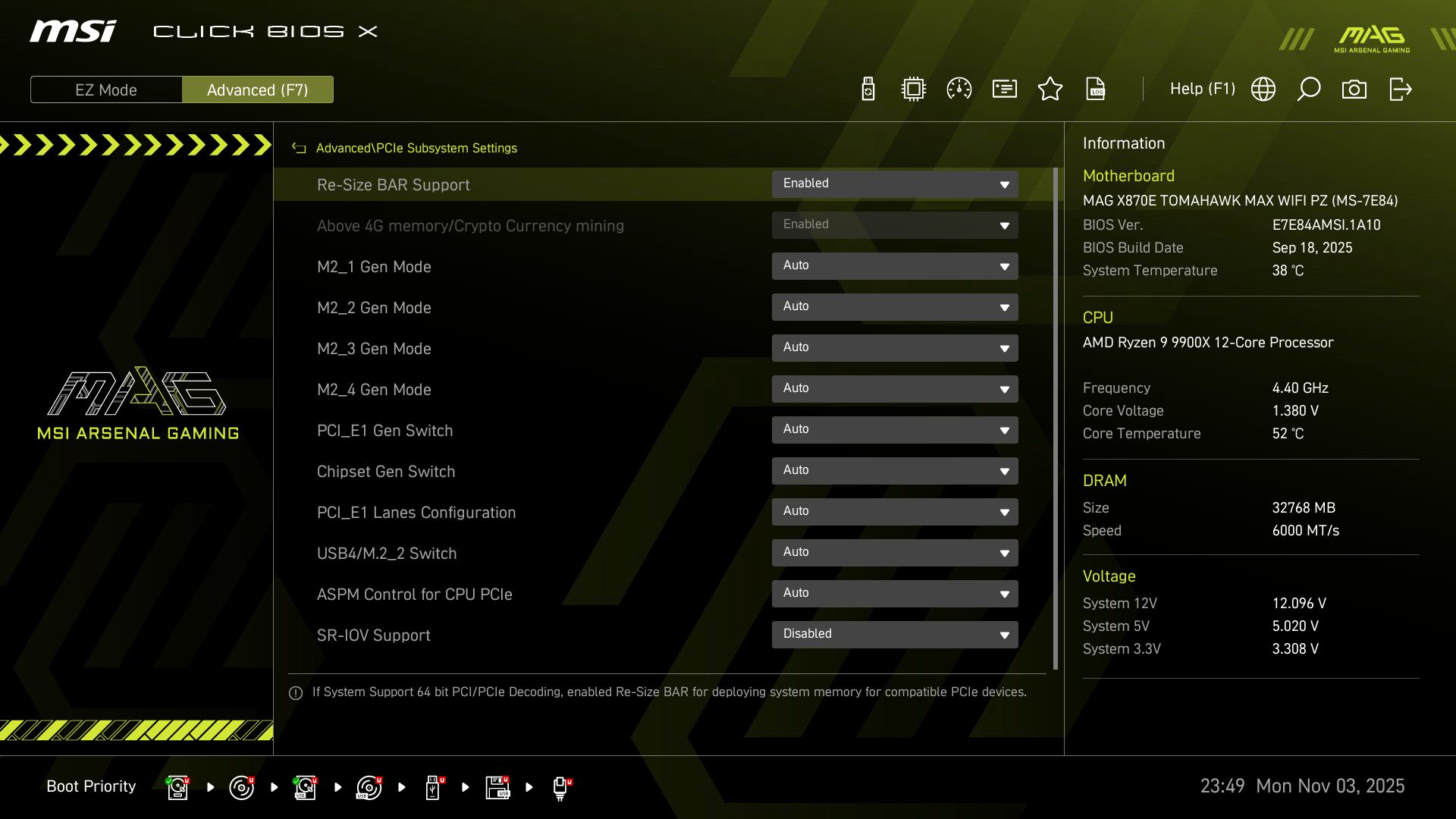

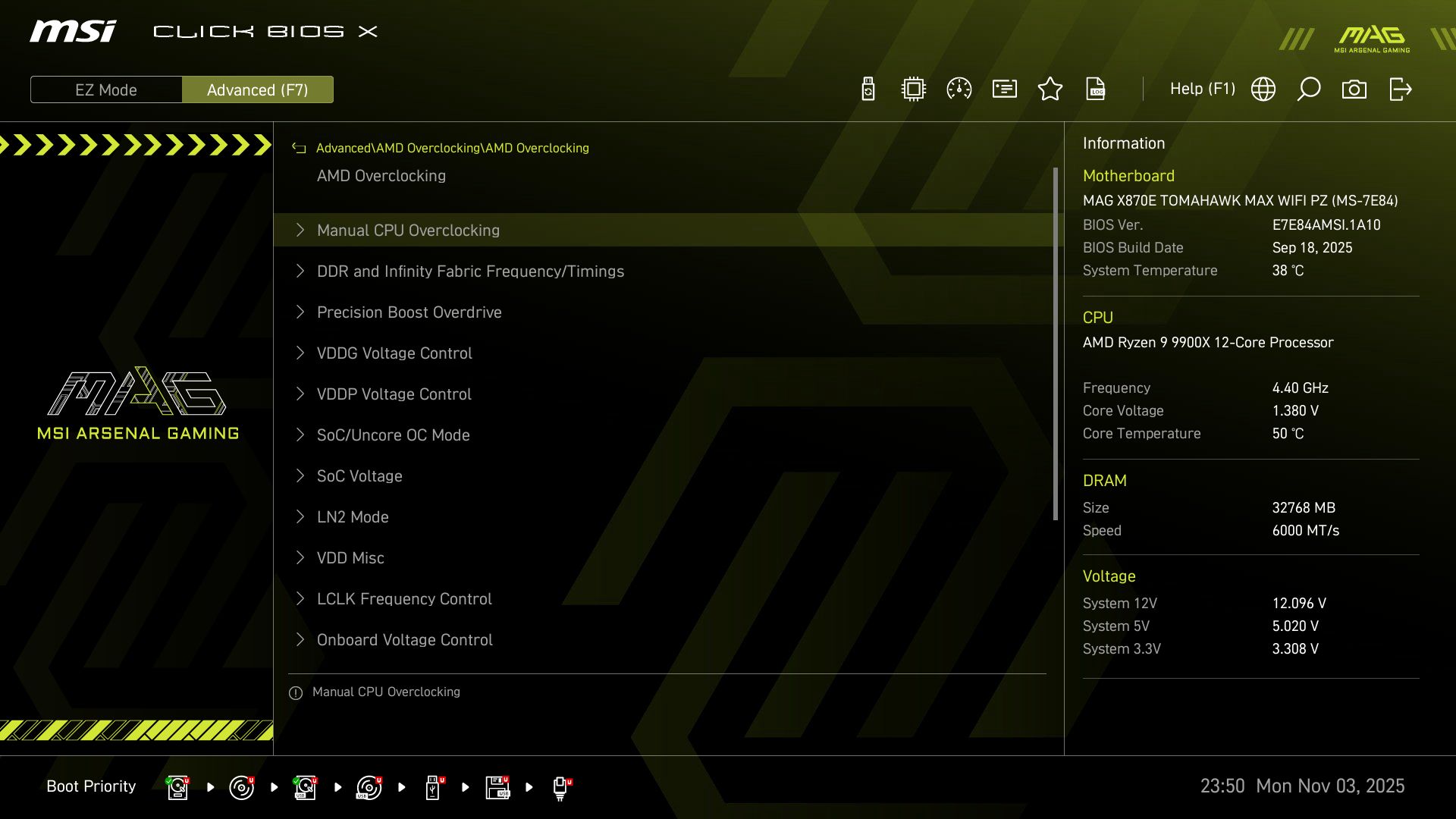

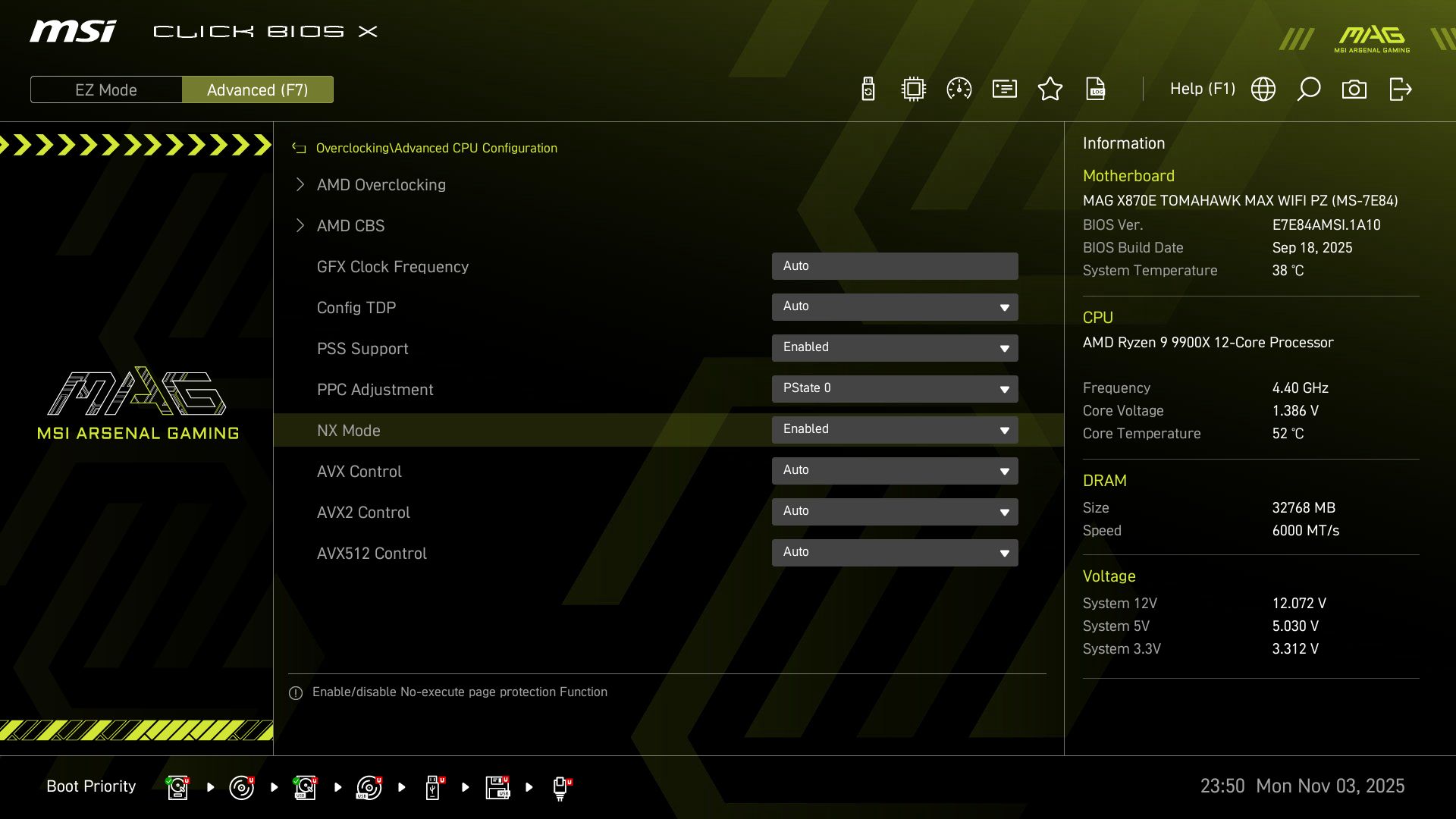

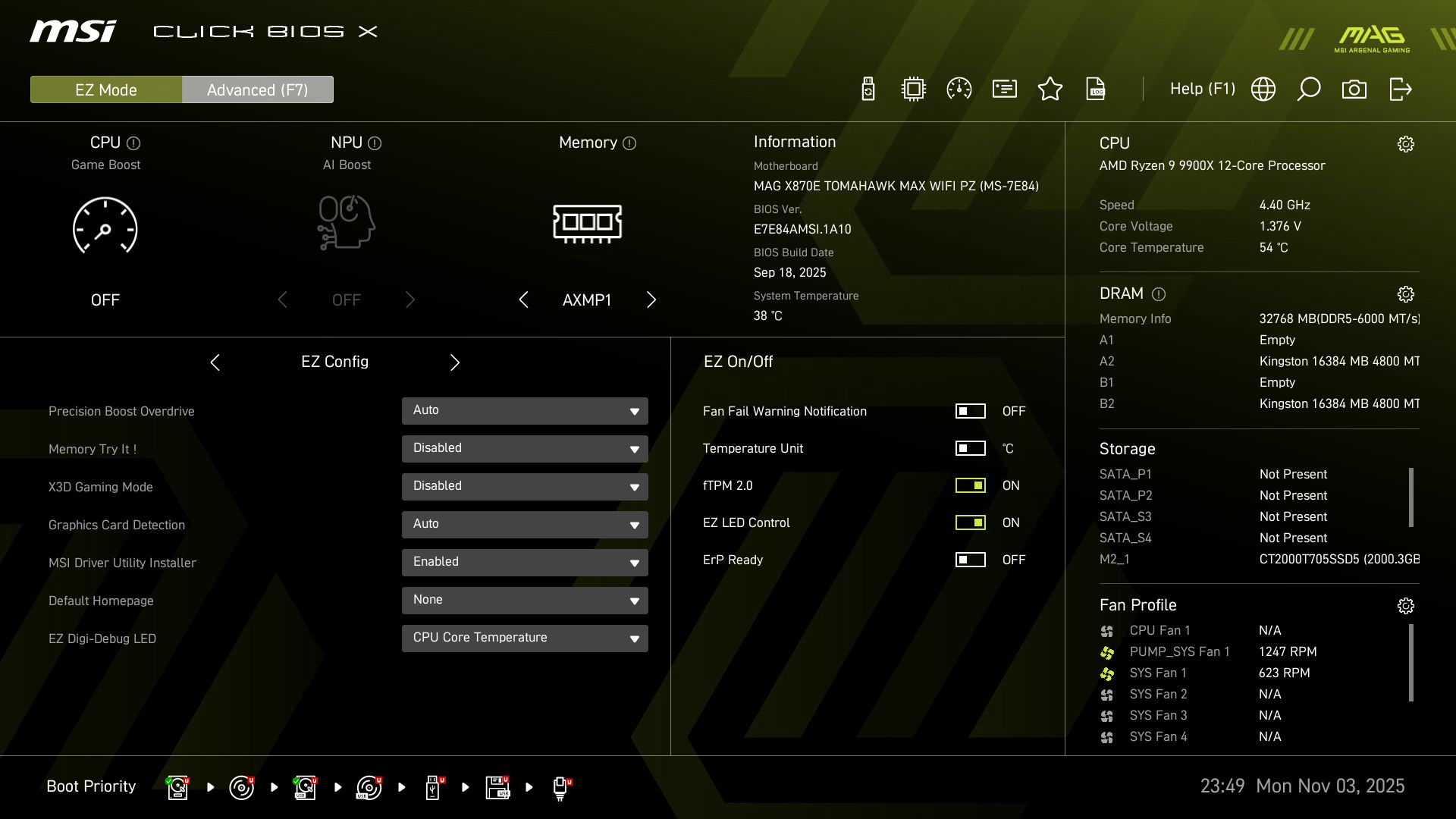

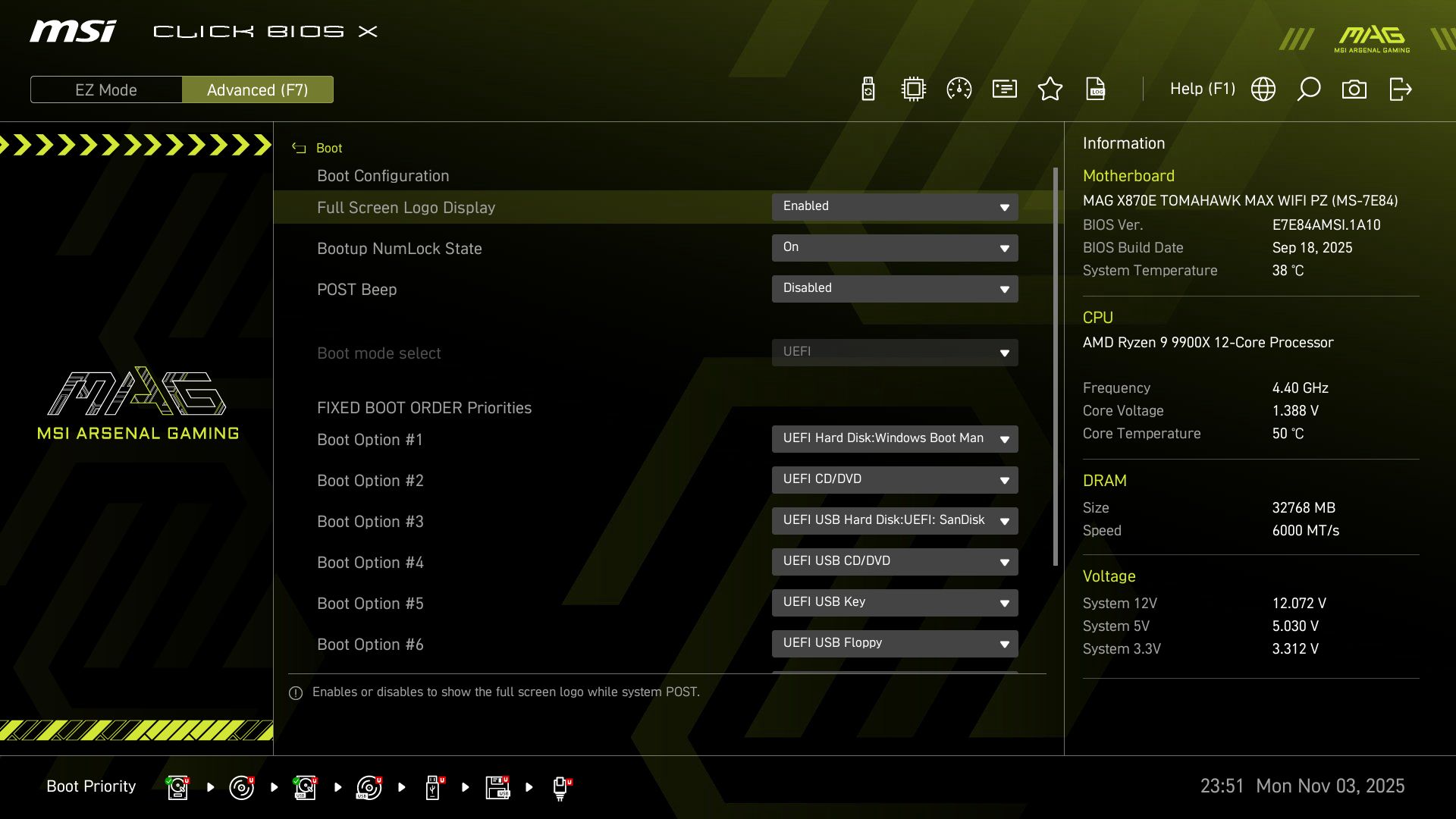

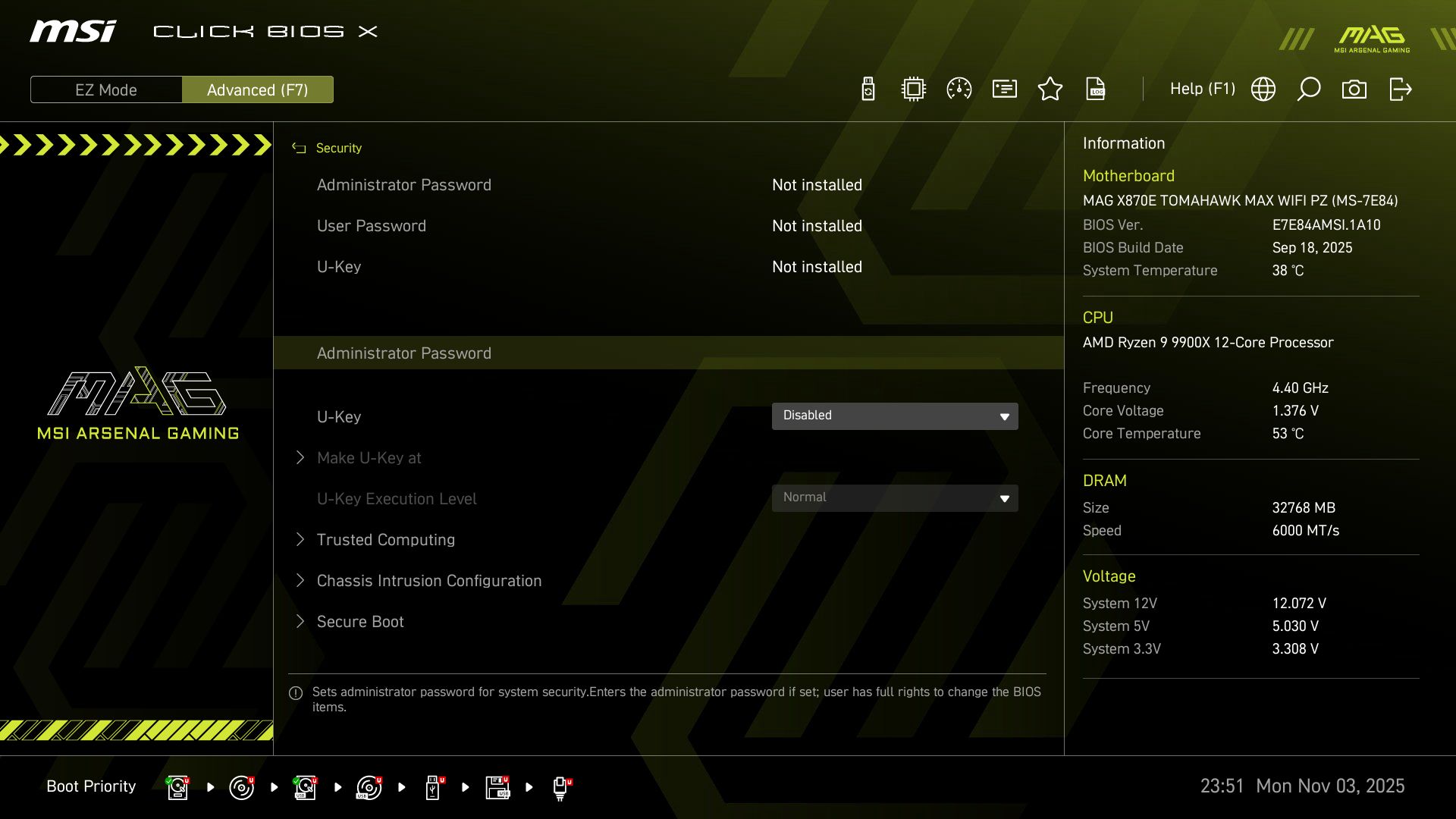

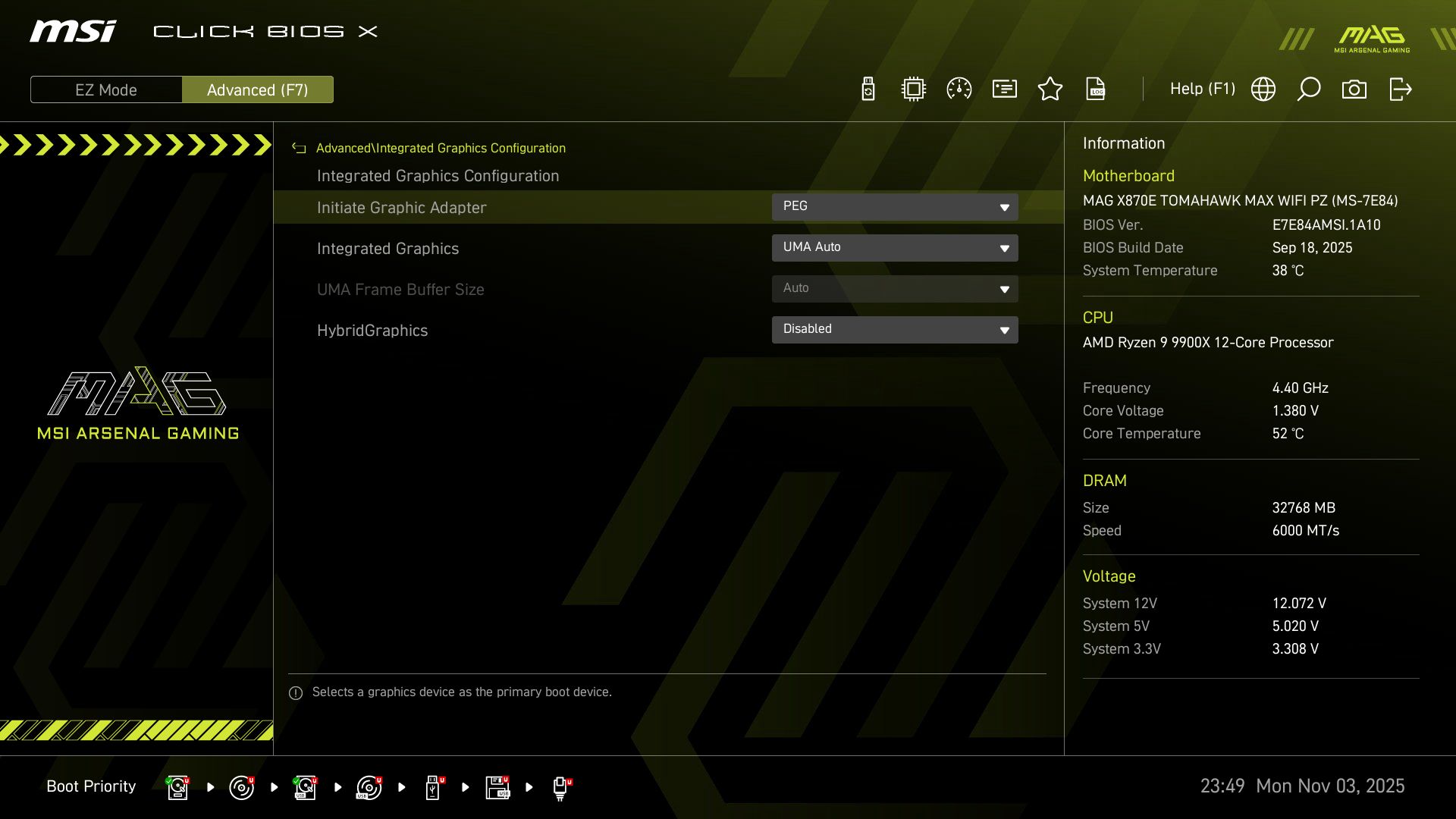

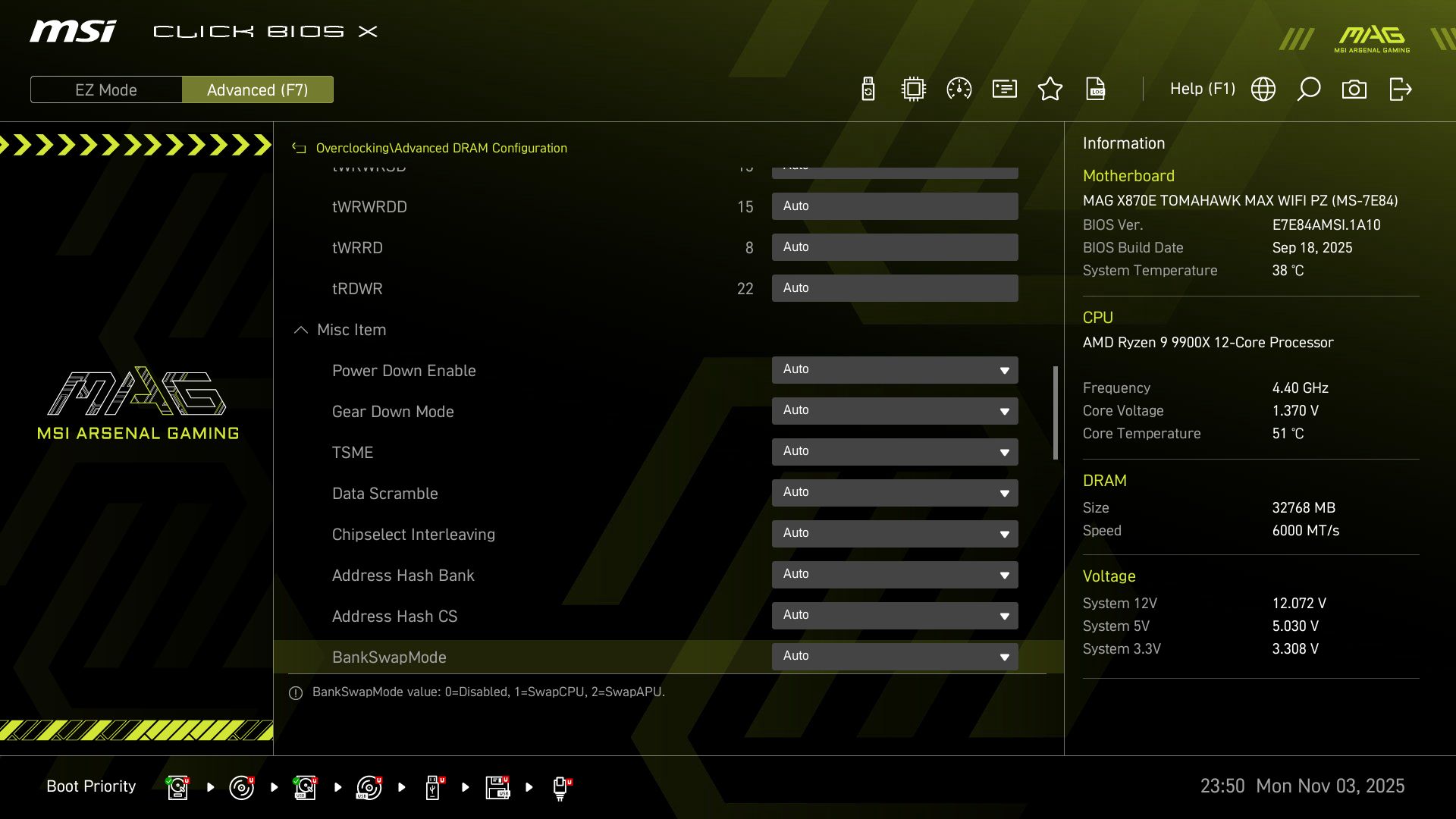

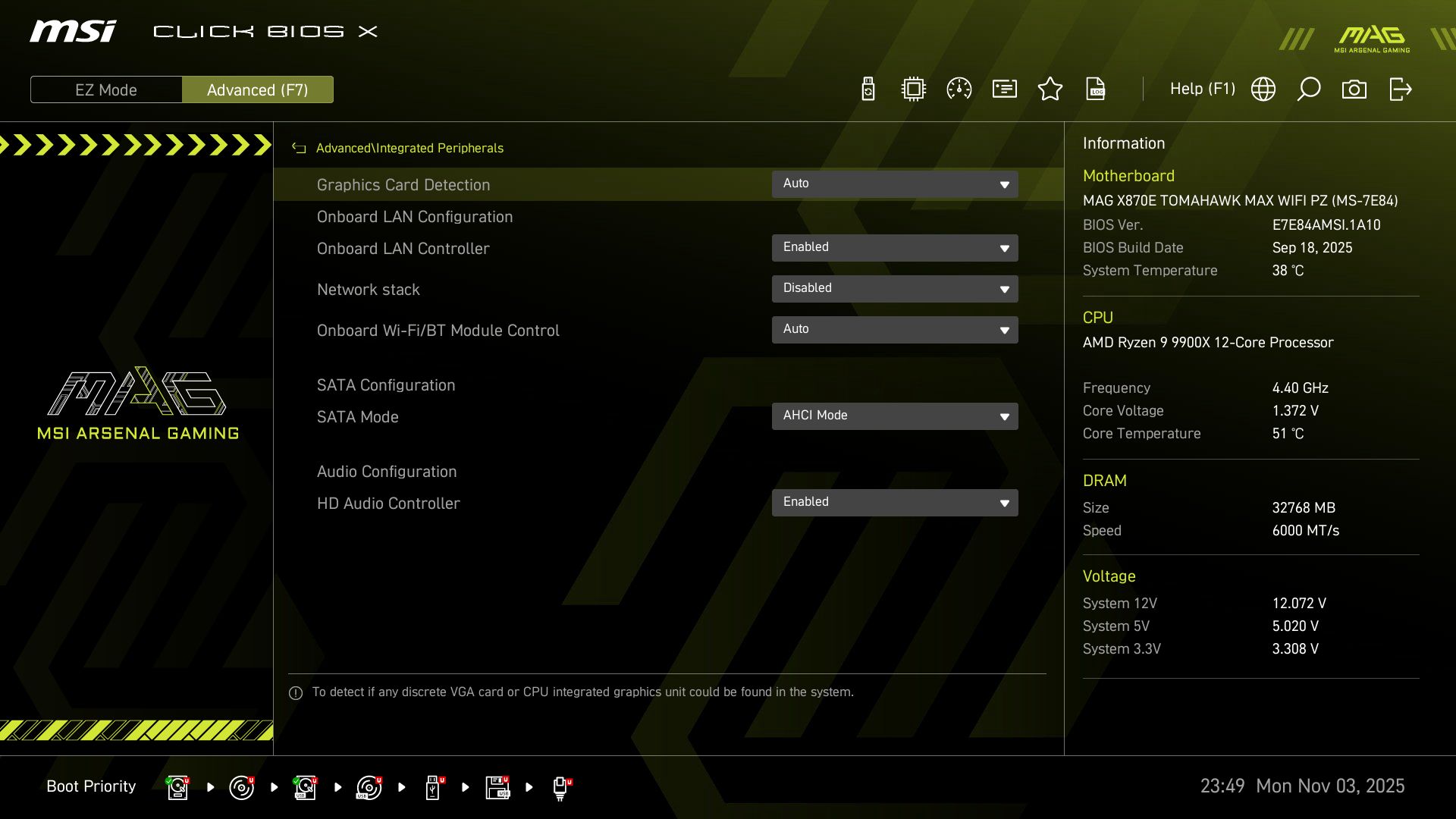

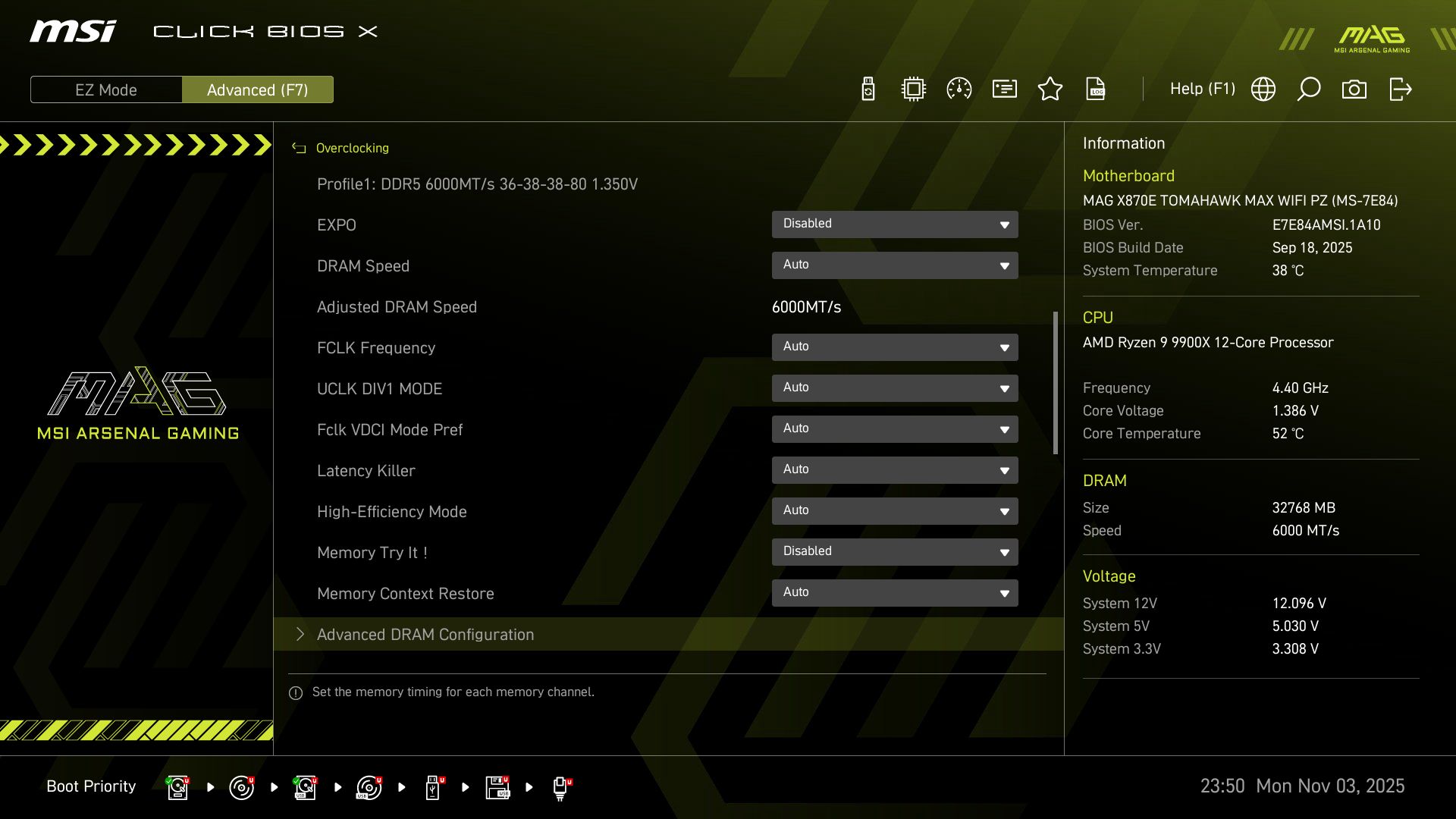

With X870, MSI has updated its BIOS, renaming it “Click X,” and improved the aesthetic and functionality in the process. The company changed the format with the headings on the left side, details in the middle, and system status information on the right. Like most other board partners, it features an informational EZ Mode, which allows for limited functionality, including Game Boost, PBO, and more.

Overall, I like the new layout, and maneuvering around is intuitive after a short time, though it does take some getting used to. The dark, fading yellow/green background (that matches the board’s aesthetic) and white labeling are easy to read, and most of what you need is at your fingertips.

Image 1 of 26

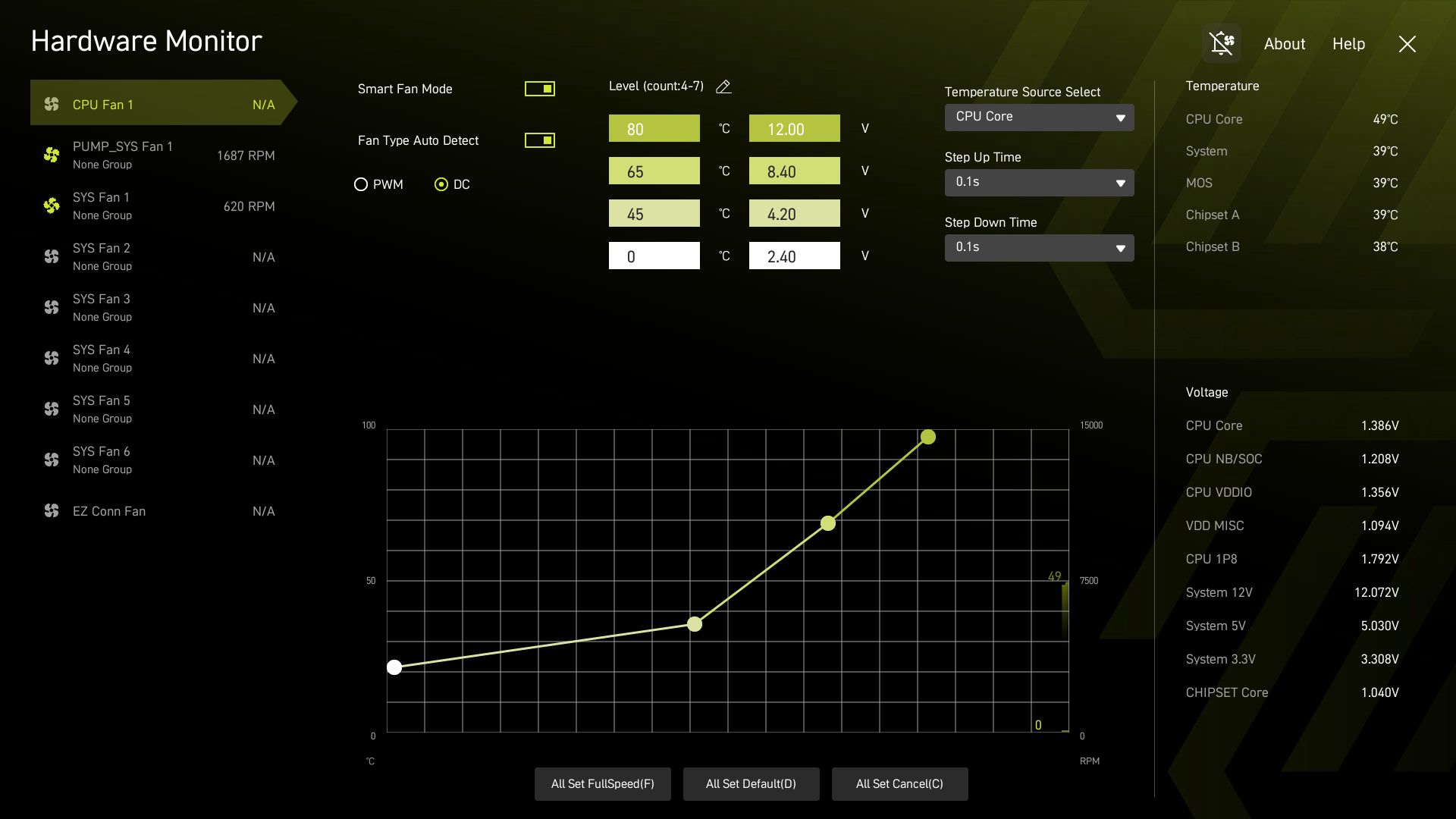

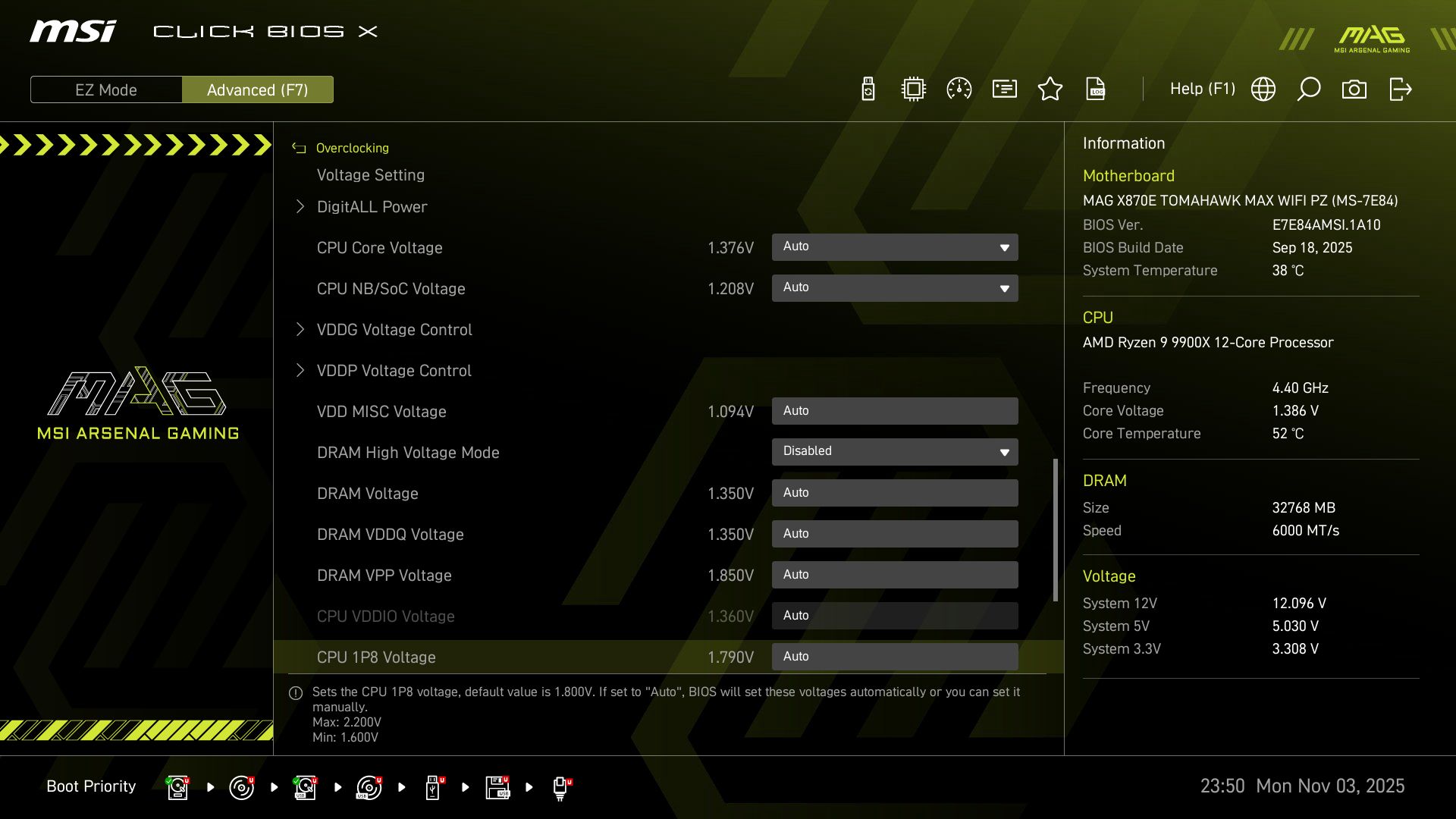

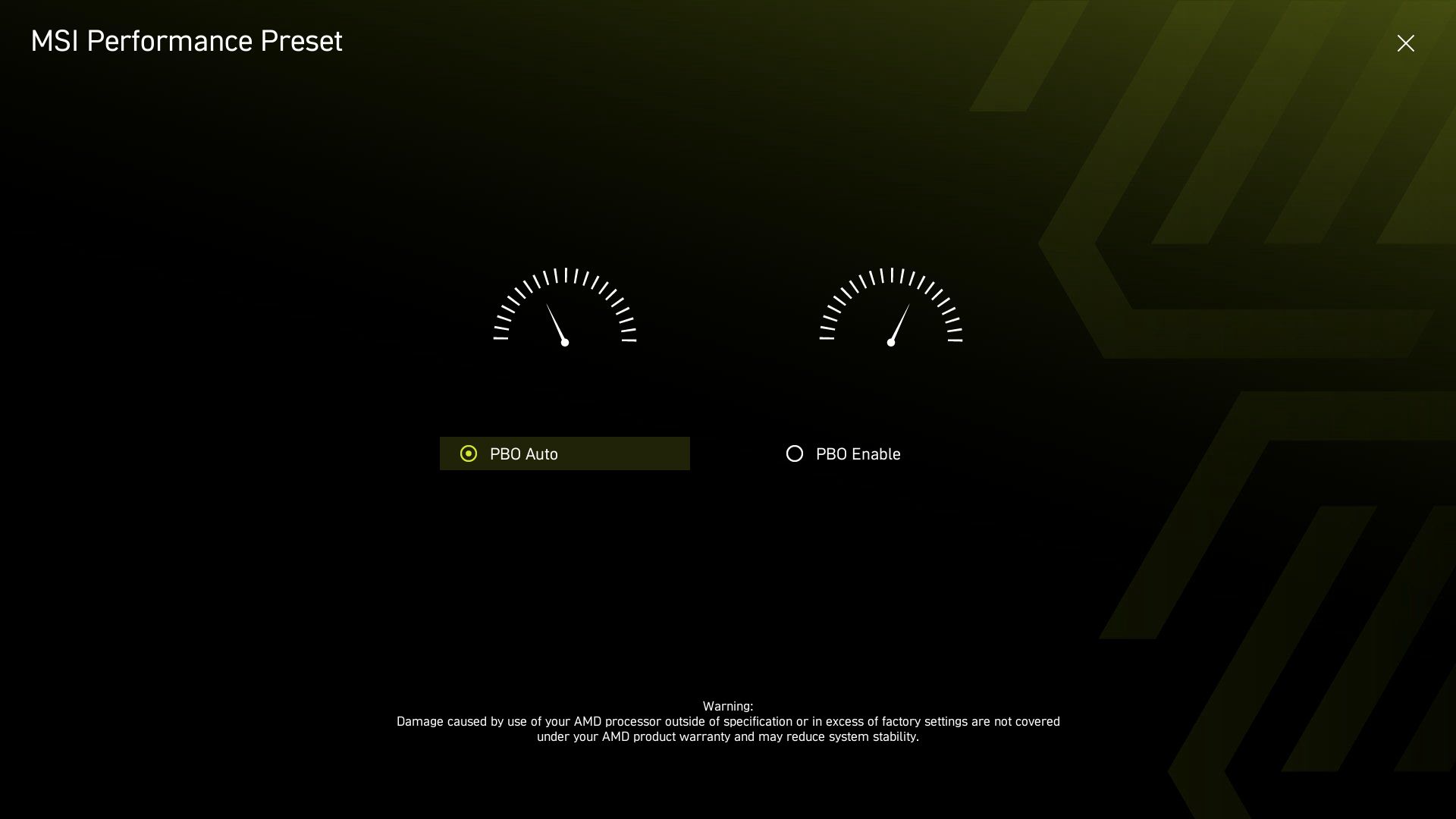

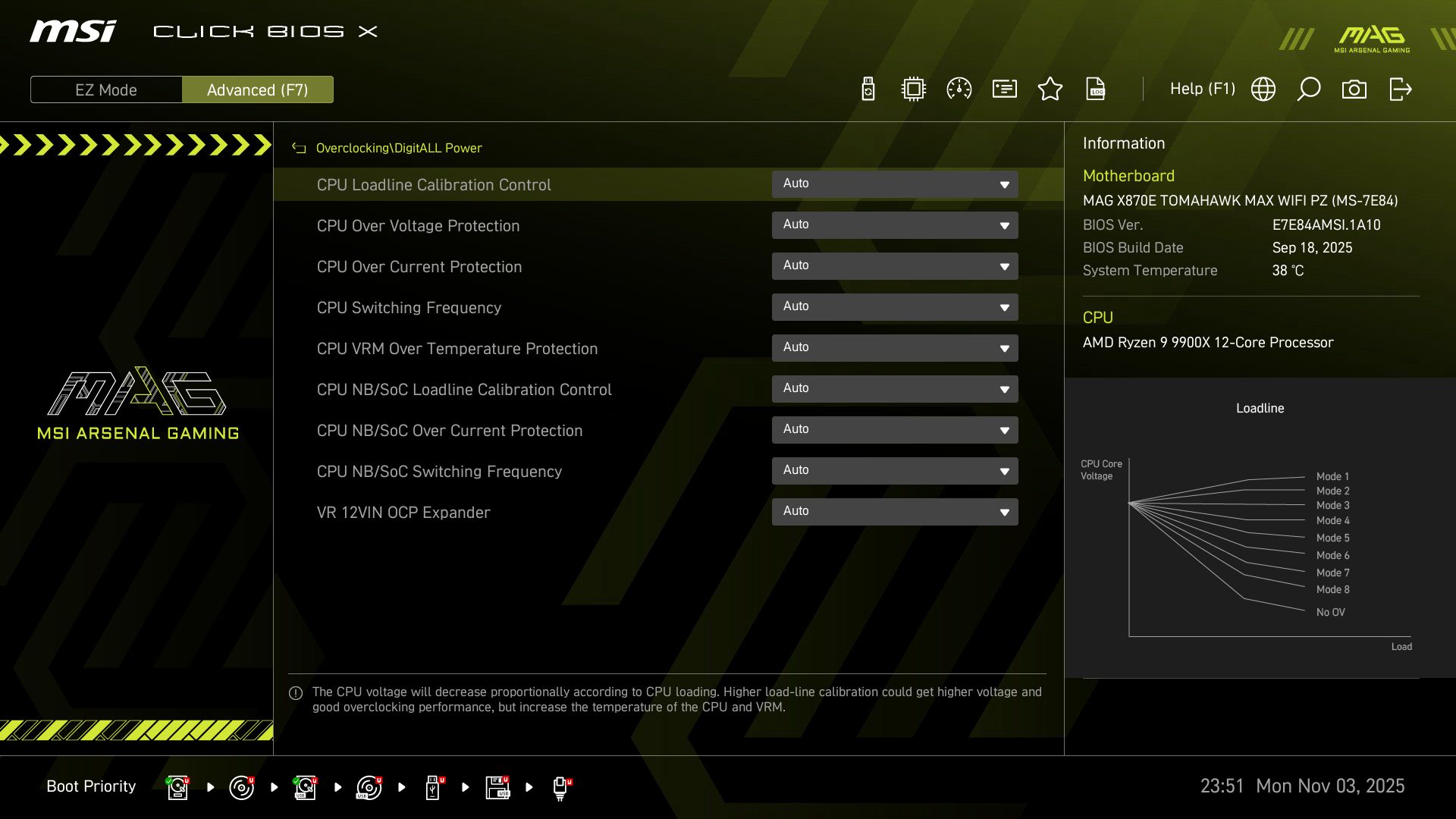

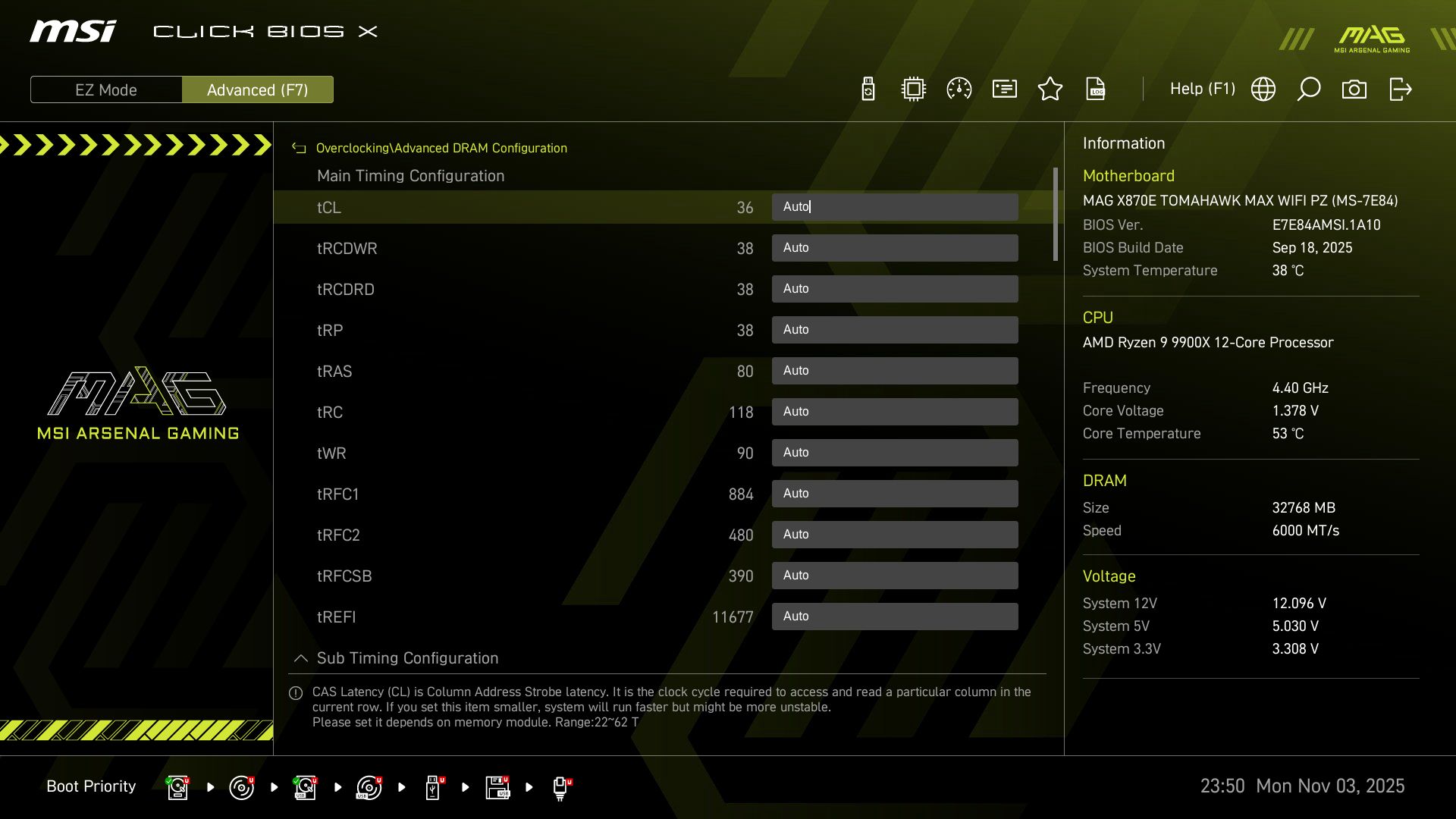

MSI X870E Tomahawk MAX Wifi PZ BIOS
(Image credit: Future)

Software

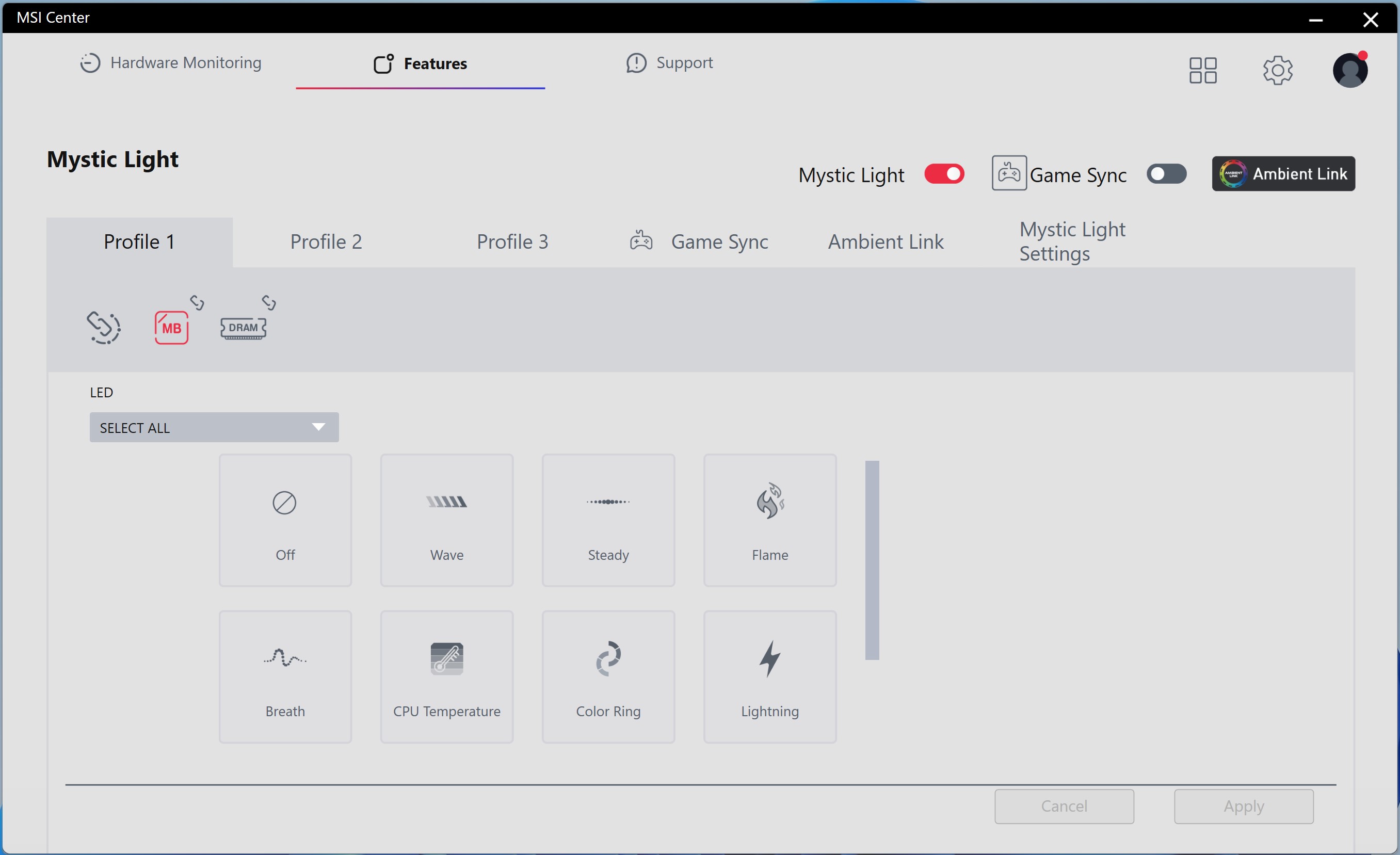

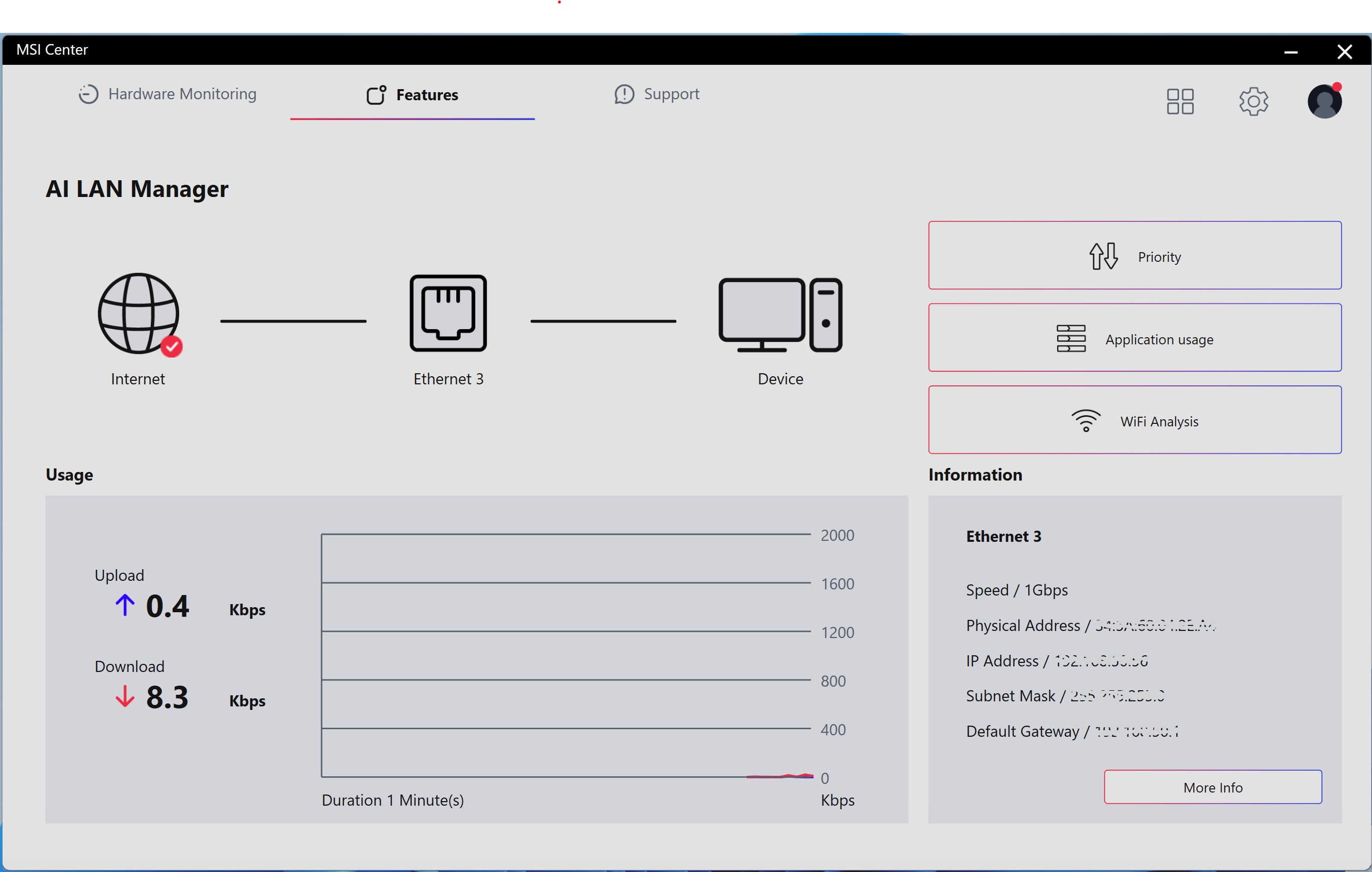

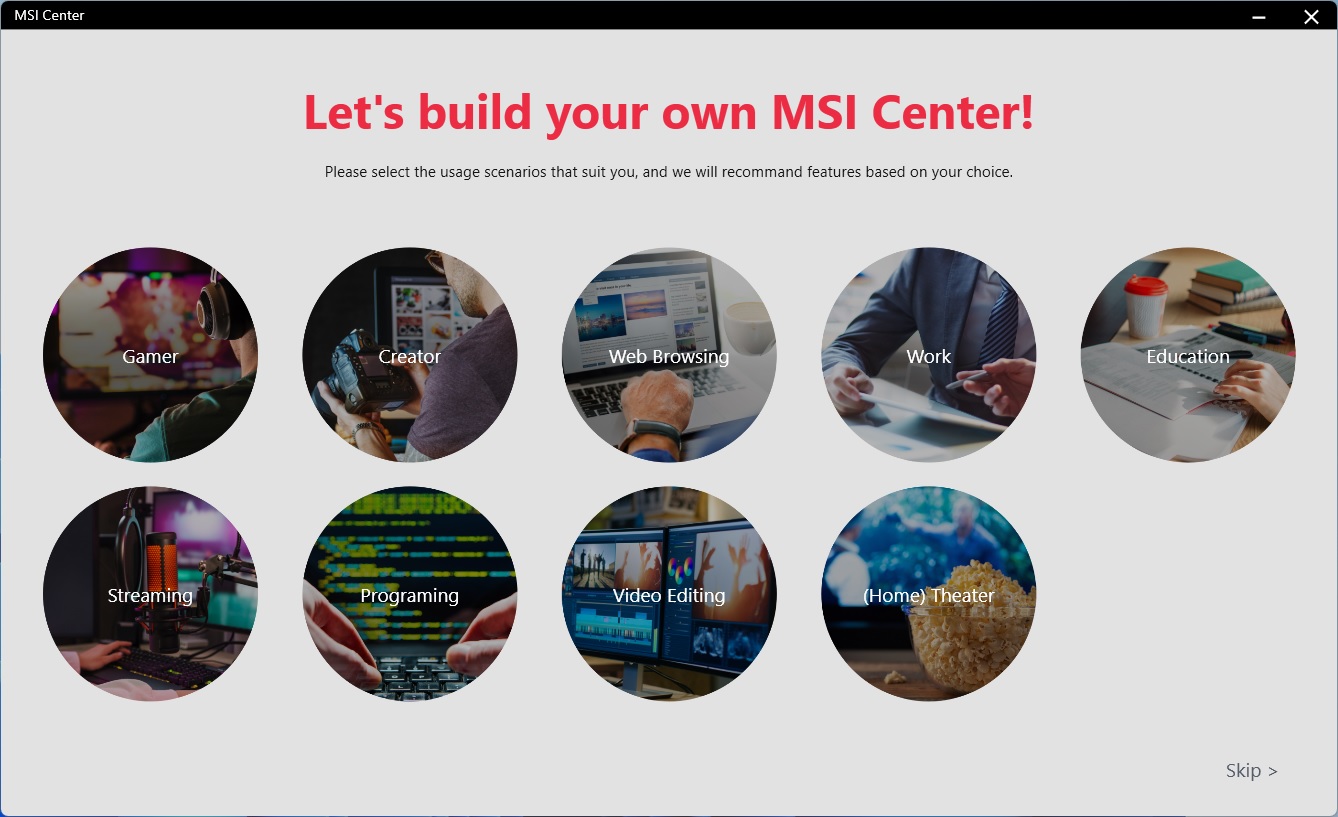

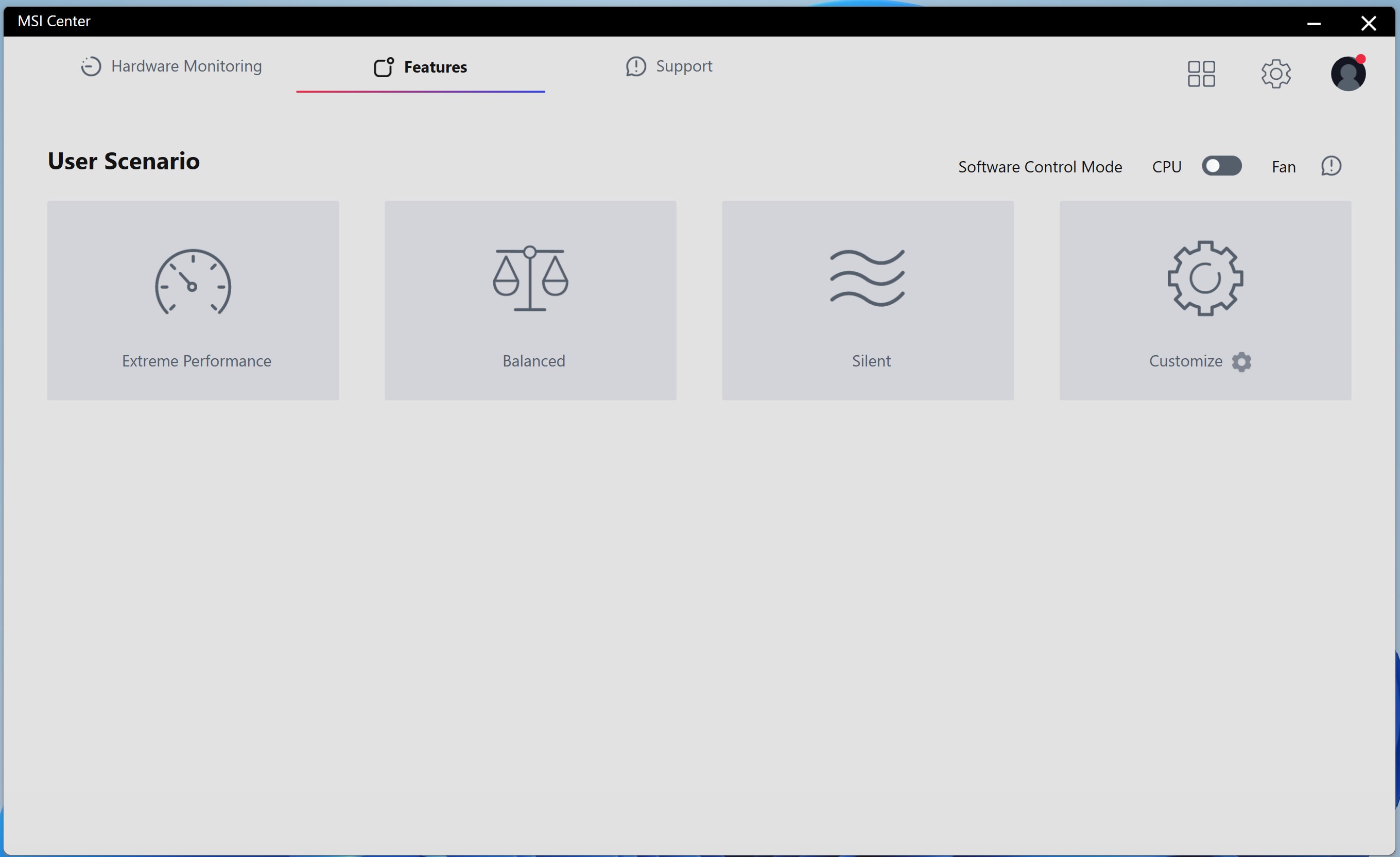

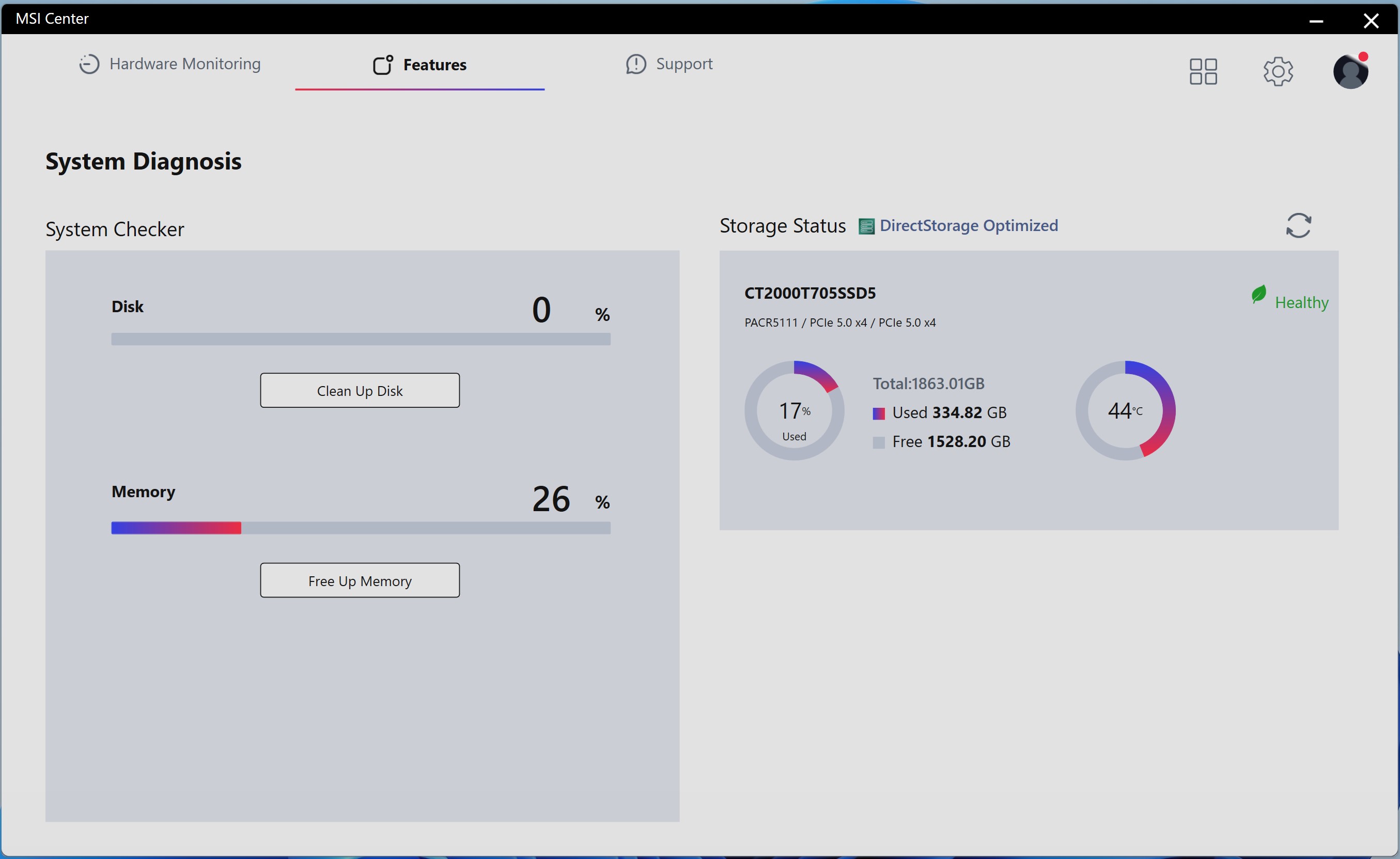

MSI Center is a single utility that offers a wide range of functionality. From hardware monitoring to RGB control with Mystic Light, the software features numerous applets and serves as a one-stop shop for downloading additional utilities, including overclocking and fan control. Those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will find them all in MSI Center.

Image 1 of 6
MSI X870E Tomahawk MAX Wifi PZ
(Image credit: Future)

Test System / Comparison Products

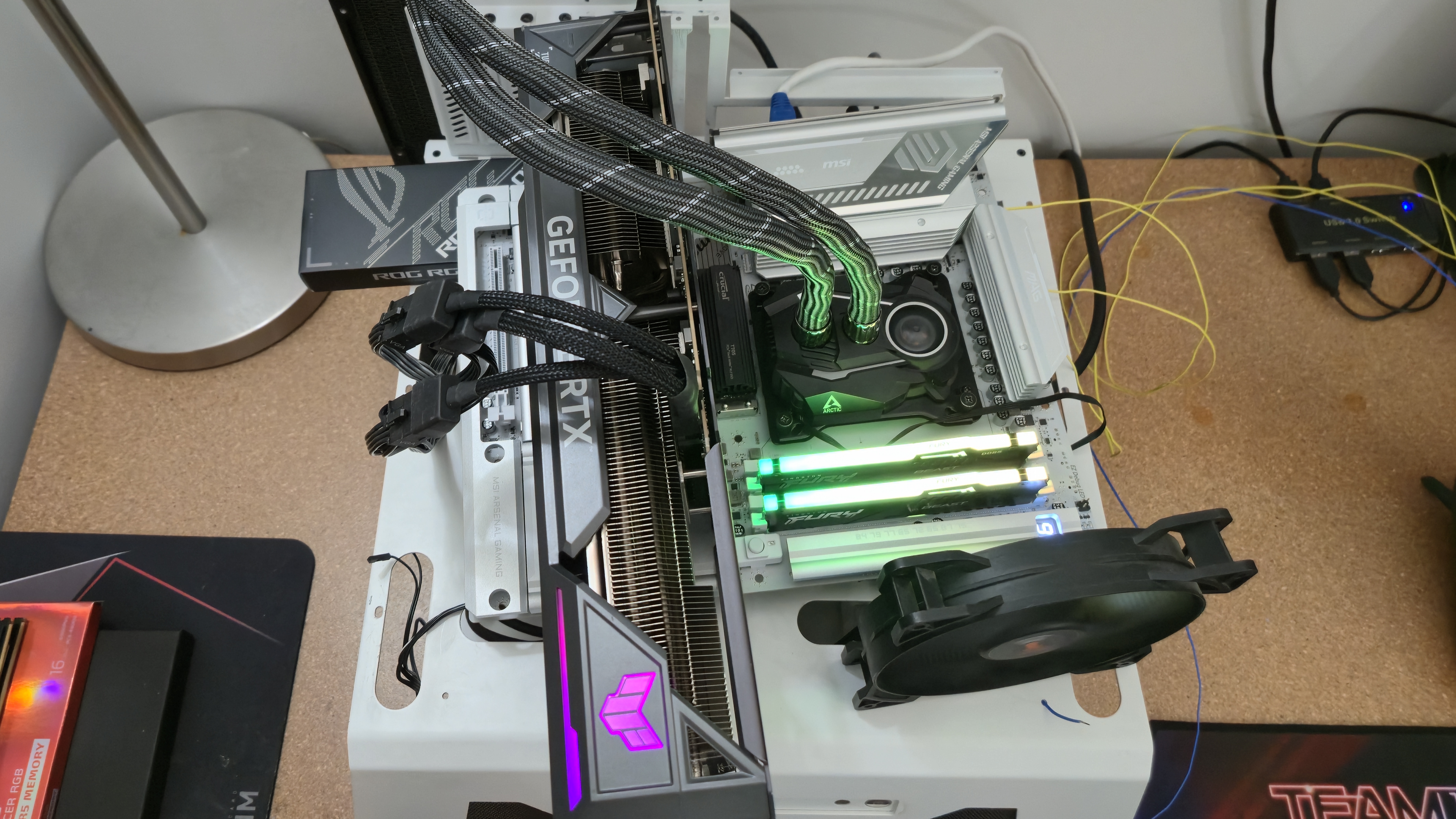

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. The hardware we used is as follows:

TEST SYSTEM COMPONENTS

MSI X870E Tomahawk MAX Wifi PZ

(Image credit: Future)
Swipe to scroll horizontally

Sound

Integrated HD audio

Network

Integrated Networking (GbE to 10 GbE)

Graphics Driver

GeForce 561.09

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings

Procyon

Version 2.8.1352 64

Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)

3DMark

Version 2.29.8294.0 64

Speed Way and Steel Nomad (Default)

Cinebench R24

Version 2024.1.0
Open GL Rendering Benchmark - Single and Multi-threaded

Blender

Version 4.2.0
Full benchmark (all 3 tests)

Application Tests and Settings

LAME MP3

Version SSE2_2019

Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)

HandBrake CLI

Version: 1.8.2

Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)

Corona 1.4

Version 1.4

Custom benchmark

7-Zip

Version 24.08

Integrated benchmark (Command Line)

Game Tests and Settings

Cyberpunk 2077

Ultra RT: - 1920 x 1080, DLSS - Balanced.

F1 2024

Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

TOPICS
Joe Shields
Joe Shields
Staff Writer, Components

Joe Shields is a staff writer at Tom’s Hardware. He reviews motherboards and PC components.
