Alienware AW2524H 500 Hz Gaming Monitor Review

The Alienware AW2524H is a 25-inch FHD IPS gaming monitor with 500 Hz, G-Sync and HDR400.

Alienware AW2524H
Editor's Choice
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

To read about our monitor tests in-depth, please check out Display Testing Explained: How We Test PC Monitors. We cover brightness and contrast testing on page two.

Uncalibrated – Maximum Backlight Level

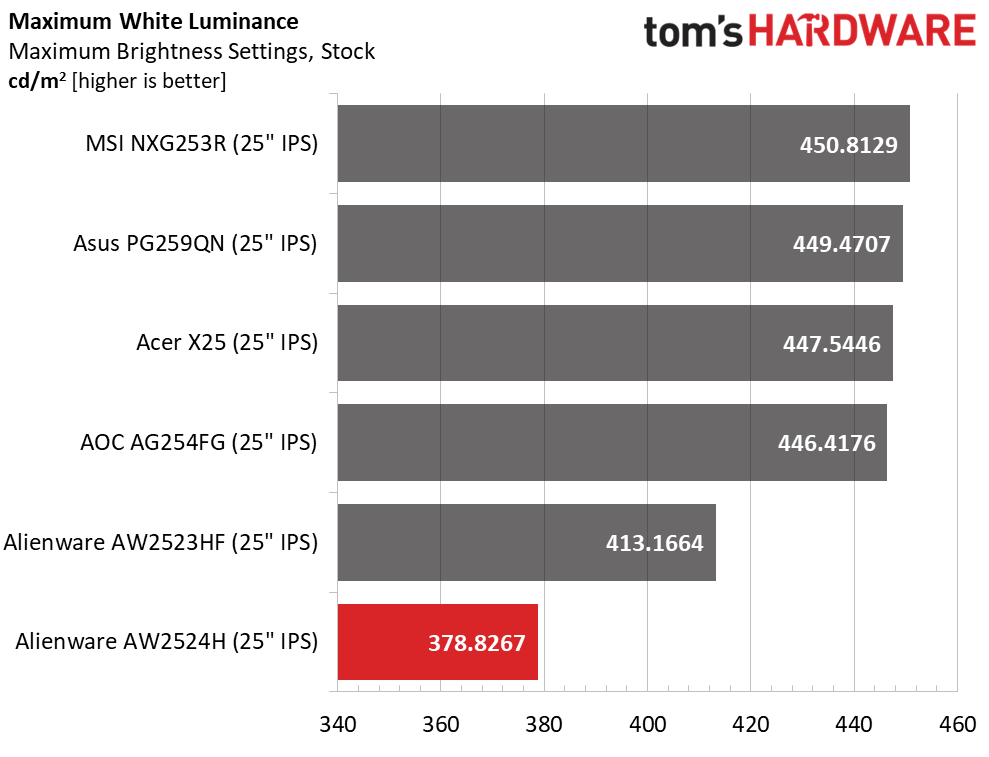

The AW2524H is an HDR400 monitor, but it saves a bit of output in SDR mode with a peak of 378 nits. Though it is last in the comparison, there is more than enough light for any environment or application. Anything over 300 nits is quite bright, even in a sunlit office like mine.

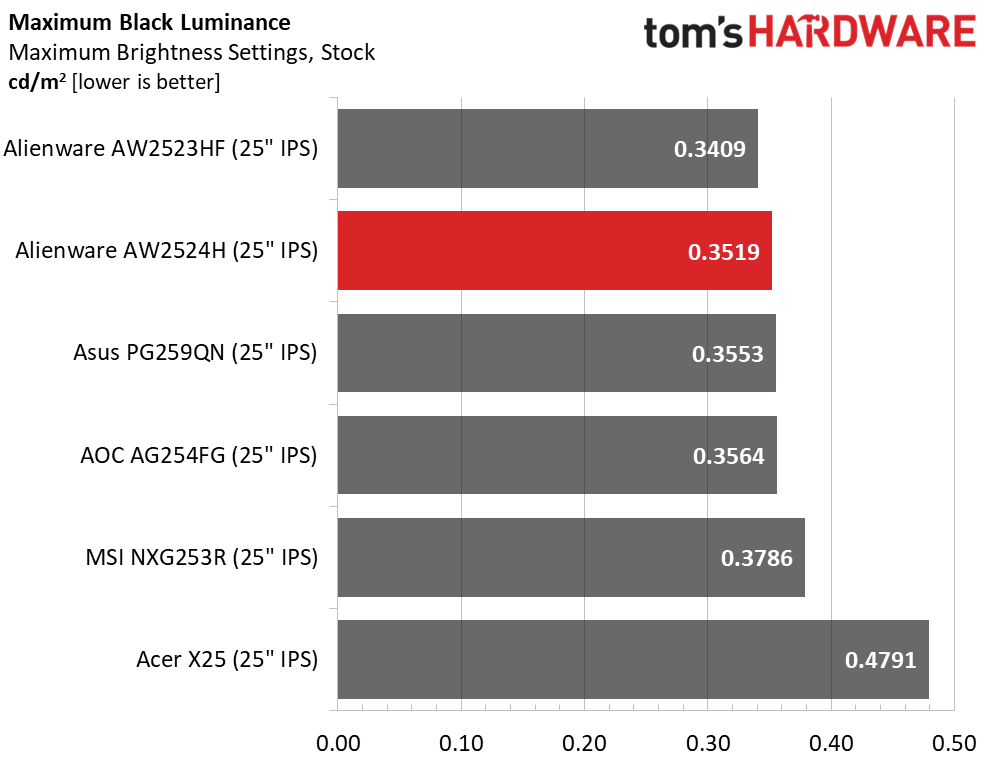

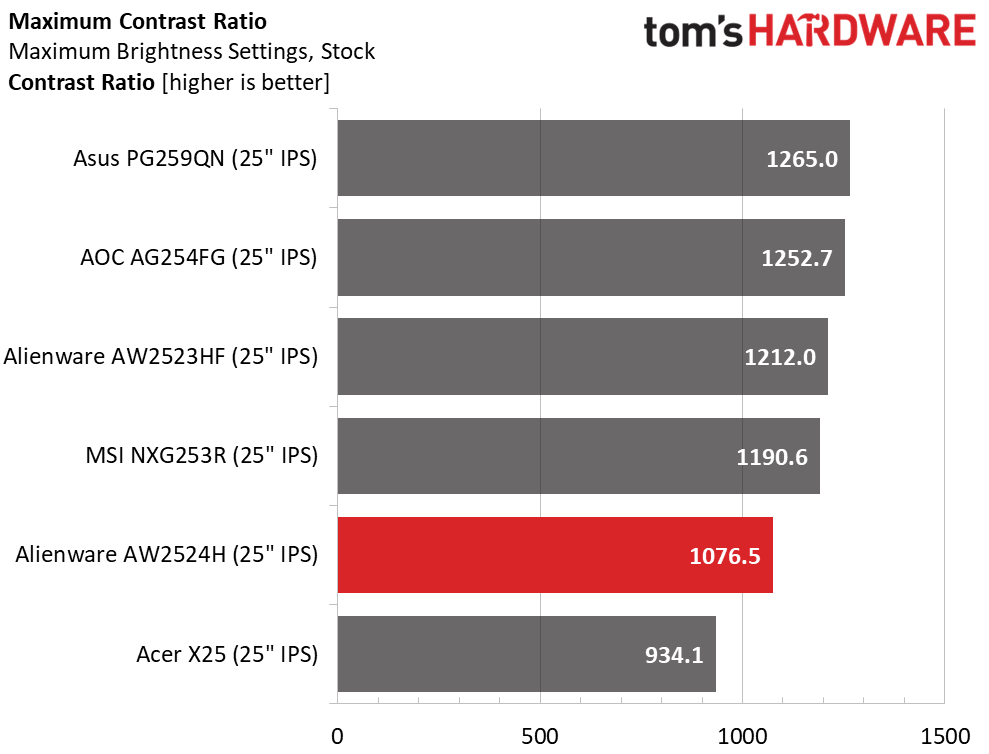

Black levels are respectable in the AW2524H’s native configuration with the dimming turned off. The contrast is just over 1,000:1, which is average among IPS panels. The others, save the Acer, are a bit higher. With dimming engaged, I measured 8,273:1 with no loss of highlight or shadow detail.

After Calibration to 200 nits

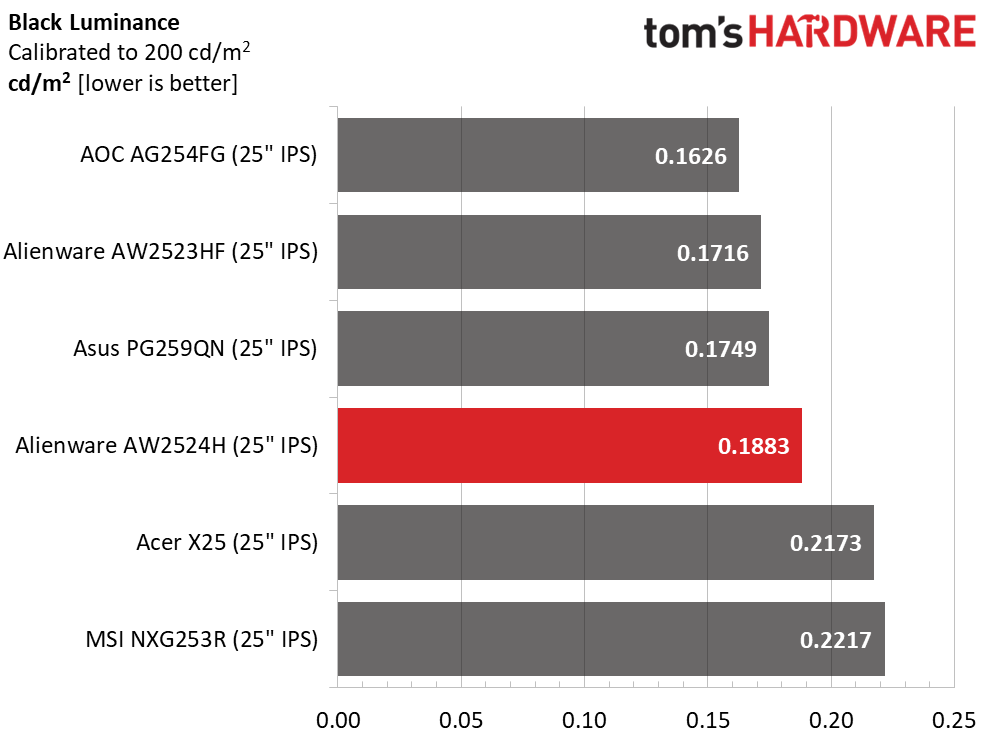

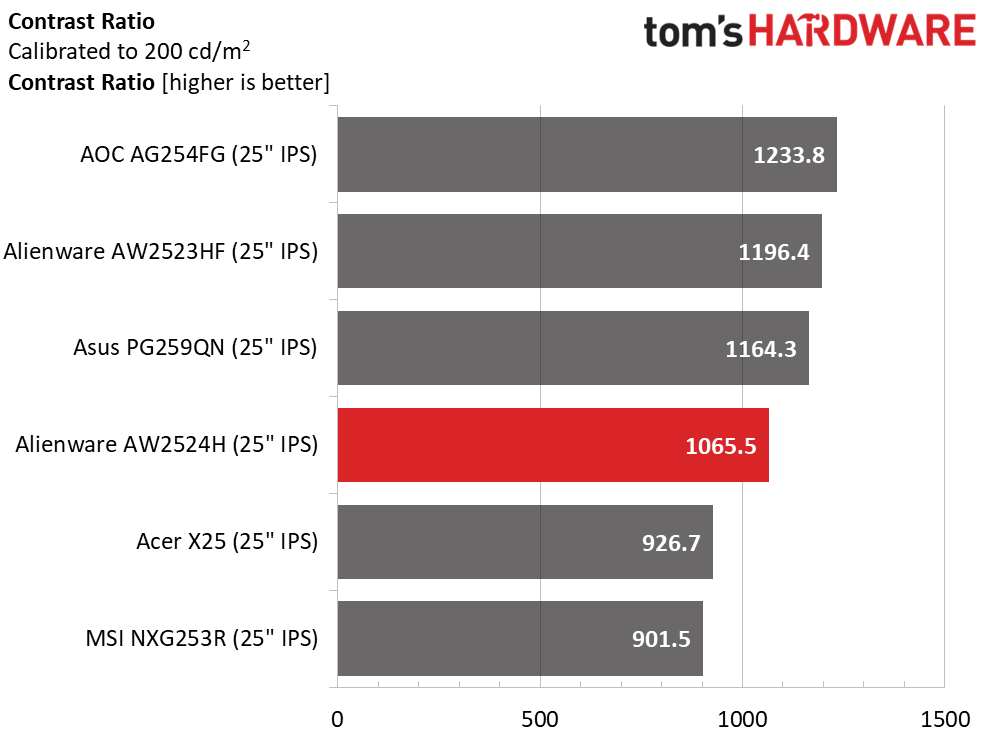

Calibration doesn’t affect the black level or contrast scores visibly. That scores the AW2524H points for consistency. Again, you’ll want to check out the image with dimming engaged, which I did after testing was complete. I used Mode 0, which delivered the highest contrast.

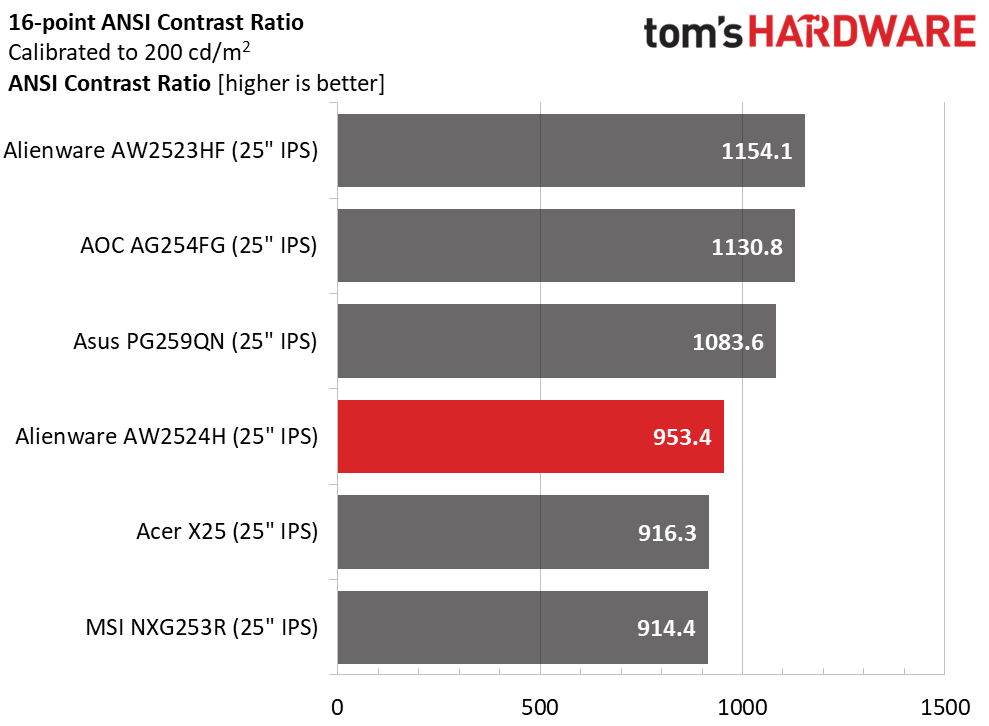

The ANSI score is the same whether dimming is on or off. It’s only a tad lower than the static score, another point for consistency. The AW2524H is built from solid components and is subject to good quality control, which is appropriate when spending $830 on a 25-inch FHD display.

MORE: Best Gaming Monitors

MORE: How We Test PC Monitors

MORE: How to Buy a PC Monitor: A 2022 Guide

MORE: How to Choose the Best HDR Monitor

Christian Eberle
Contributing Editor

Christian Eberle is a Contributing Editor for Tom's Hardware US. He's a veteran reviewer of A/V equipment, specializing in monitors. Christian began his obsession with tech when he built his first PC in 1991, a 286 running DOS 3.0 at a blazing 12MHz. In 2006, he undertook training from the Imaging Science Foundation in video calibration and testing and thus started a passion for precise imaging that persists to this day. He is also a professional musician with a degree from the New England Conservatory as a classical bassoonist which he used to good effect as a performer with the West Point Army Band from 1987 to 2013. He enjoys watching movies and listening to high-end audio in his custom-built home theater and can be seen riding trails near his home on a race-ready ICE VTX recumbent trike. Christian enjoys the endless summer in Florida where he lives with his wife and Chihuahua and plays with orchestras around the state.

  • cknobman
    Its cool and all but only 25 inches?
    Just too small for me, really wish there was at least a 27 inch or better yet a 32.
    Reply
  • Friesiansam
    500Hz is pointlessly fast and, it's clear from the test results, the panel is not fast enough to keep up.
    Reply
  • helper800
    Friesiansam said:
    500Hz is pointlessly fast and, it's clear from the test results, the panel is not fast enough to keep up.
    Soon panel technologies will push its flaws past what humans can perceive, that is a good day in my book. I long for the day that motion blur, IPS glow, text fringing, pixel density, and many more are all solved by one monitor. That will be the day I get a new monitor.
    Reply
  • cristovao
    In a 10 meter room, light fills 30.000.000 times per second, so i don't think 500 or more frames in a monitor is going to break past human perception anytime soon!
    Reply
  • helper800
    cristovao said:
    In a 10 meter room, light fills 30.000.000 times per second, so i don't think 500 or more frames in a monitor is going to break past human perception anytime soon!
    I dont know what you are talking about. What are you trying to say? Humans cannot perceive 30,000,000 "fills" of light. Please elaborate.
    Reply
  • usertests
    Required reading:
    https://blurbusters.com/blur-busters-law-amazing-journey-to-future-1000hz-displays-with-blurfree-sample-and-hold/
    Inputs include a single DisplayPort 1.4, two HDMI 2.1... The HDMI ports are limited to 240 Hz but include VRR for consoles.

    How exactly do you get 1080p 500 Hz? The DisplayPort using Display Stream Compression?
    Reply
  • s997863
    I’ve been reviewing monitors long enough that occasionally, I have a “remember when” moment. Remember when all monitors refreshed at a fixed 60 Hz?

    Remember when you opened a Geforce2 control panel on a CRT monitor and got refresh choices up to 120Hz?
    Reply
  • helper800
    usertests said:
    Required reading:
    https://blurbusters.com/blur-busters-law-amazing-journey-to-future-1000hz-displays-with-blurfree-sample-and-hold/


    How exactly do you get 1080p 500 Hz? The DisplayPort using Display Stream Compression?
    Settings to lower the bandwidth include; color subsampling, bit depth of those colors, and DSC are options to increase data throughput for a higher refresh rate. 4k is 4 times the resolution of 1080p and we have 4k monitors that are 144hz+. You can simply quadruple the hz on a 4k monitor and apply it to 1080p to see what is possible for peak hz throughput at 1080p. 4 times 144 is 576. So getting to 500hz or 480 without an OC on the monitor at 1080p is very doable even at 4:4:4 chroma, and 8 or 10 bit color, with or without DSC is my guess.
    Reply
  • blacknemesist
    helper800 said:
    Settings to lower the bandwidth include; color subsampling, bit depth of those colors, and DSC are options to increase data throughput for a higher refresh rate. 4k is 4 times the resolution of 1080p and we have 4k monitors that are 144hz+. You can simply quadruple the hz on a 4k monitor and apply it to 1080p to see what is possible for peak hz throughput at 1080p. 4 times 144 is 576. So getting to 500hz or 480 without an OC on the monitor at 1080p is very doable even at 4:4:4 chroma, and 8 or 10 bit color, with or without DSC is my guess.
    The neo G8 does 4k@240hz with only DSC so 480hz 1080p seems to not even need any type of compression for dp1.4
    Reply
  • Sleepy_Hollowed
    I would personally would like it to be ultra wide, but it is what it is, this is the ultimate 1080p standard monitor for gaming anyways.
    Reply
