AMD Ryzen Threadripper 1920X Review

By Igor Wallossek, Paul Alcorn
last updated

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Project CARS & Far Cry Primal

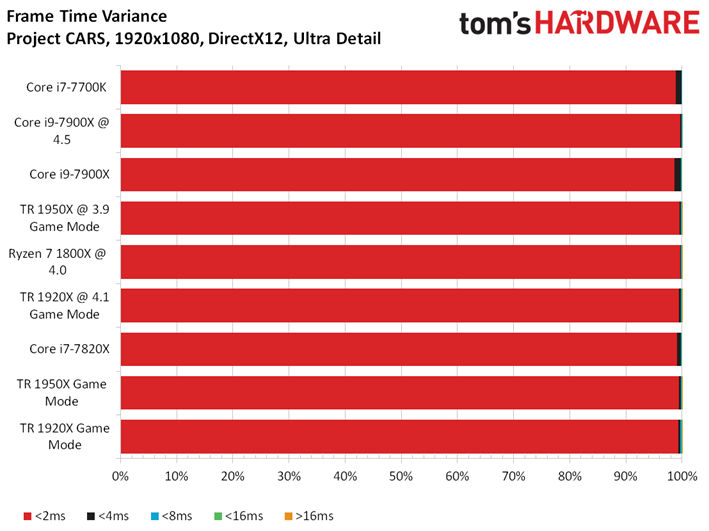

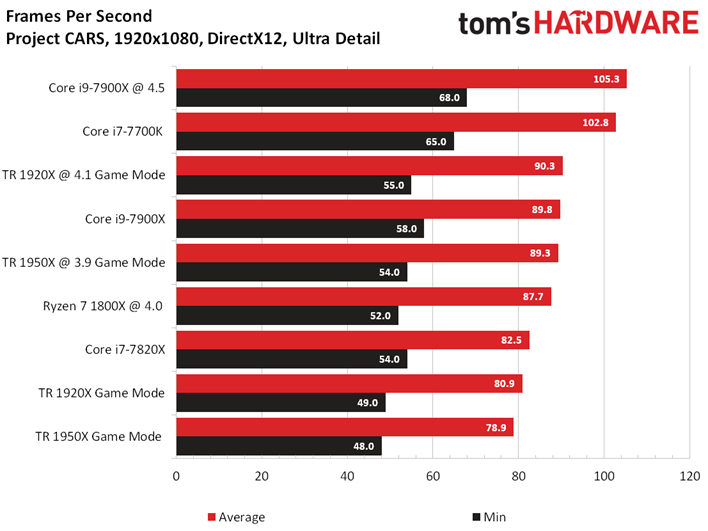

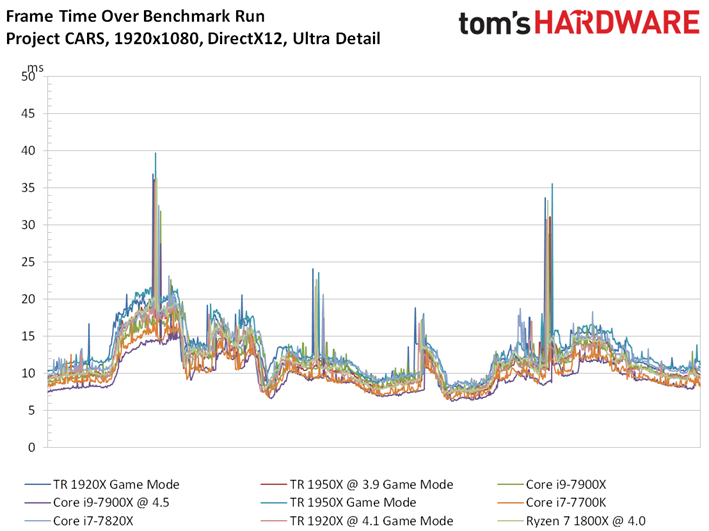

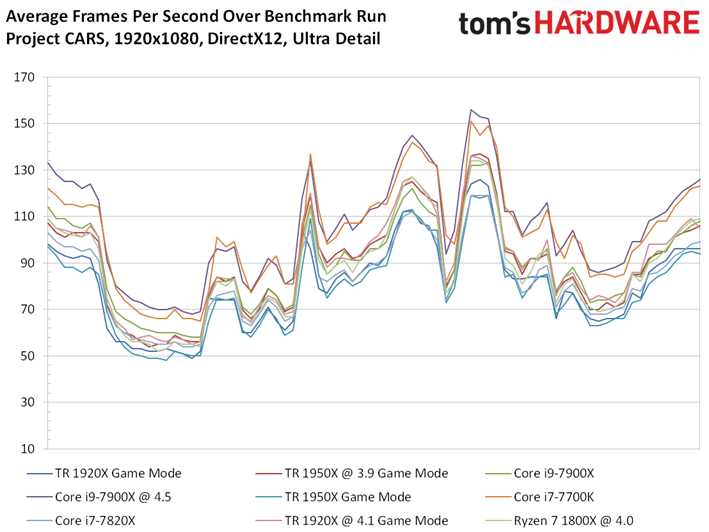

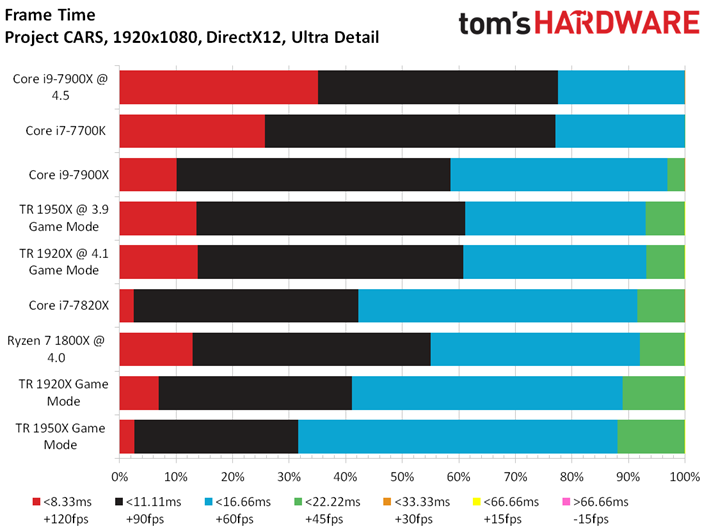

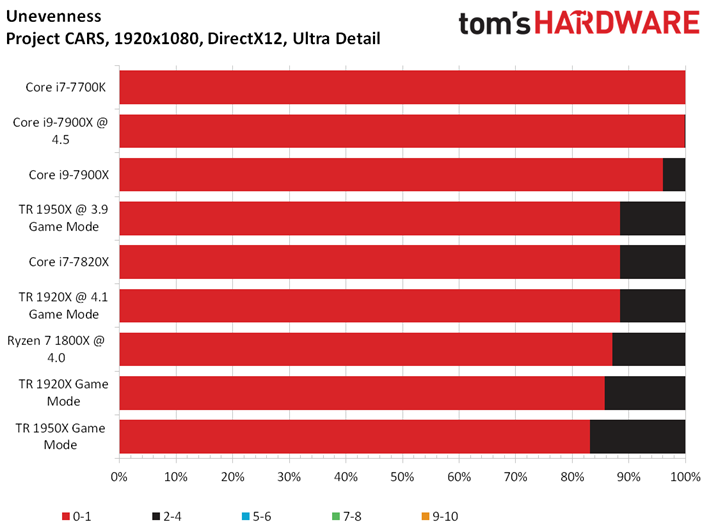

Project CARS

Project CARS is a CPU-intensive title that promotes parallelism by breaking tasks into smaller chunks and spreading them among available cores.

Image 1 of 6

Intel's high IPC throughput is clearly a factor as the Core i7-7700K and i9-7900X cruise to a substantial lead.

Ryzen Threadripper 1920X offers higher clock rates than then 1950X, which helps it secure a narrow victory.

The Core i7-7820X suffers due to its comparatively low core count.

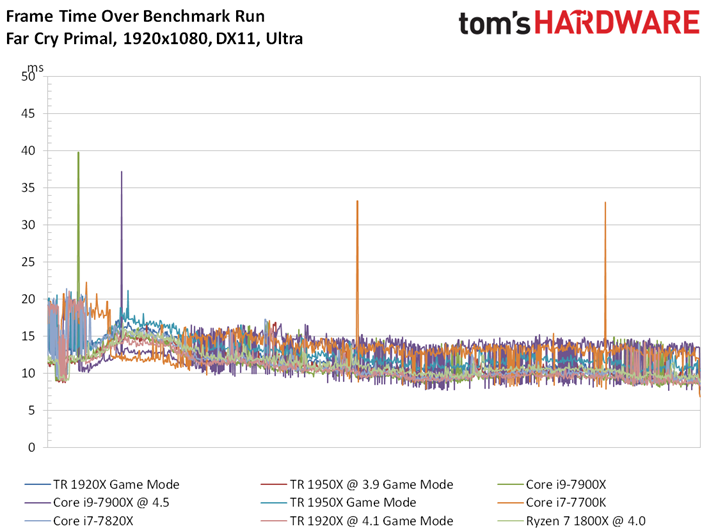

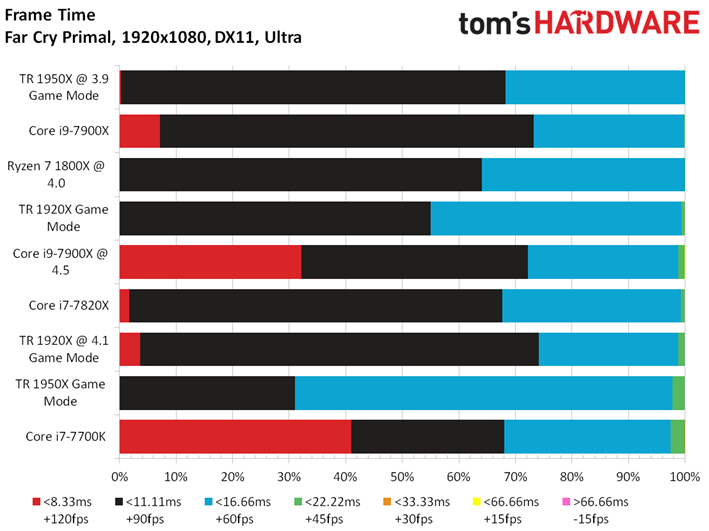

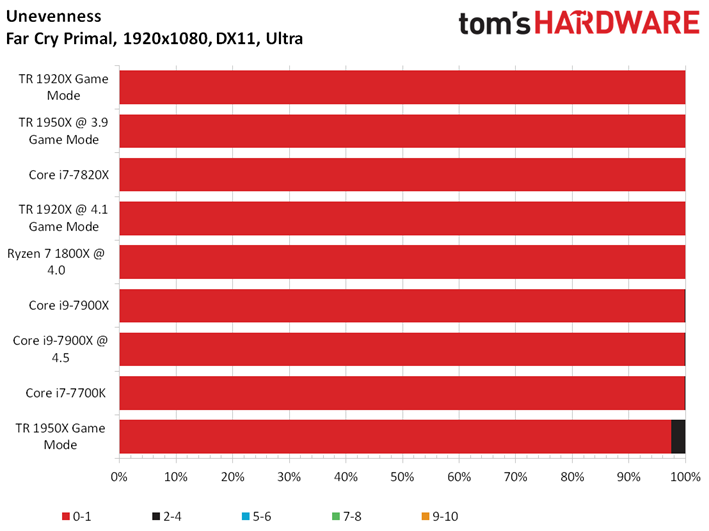

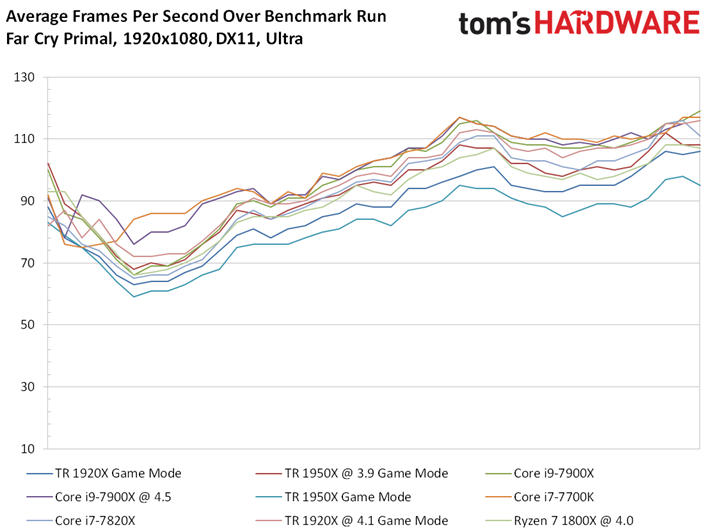

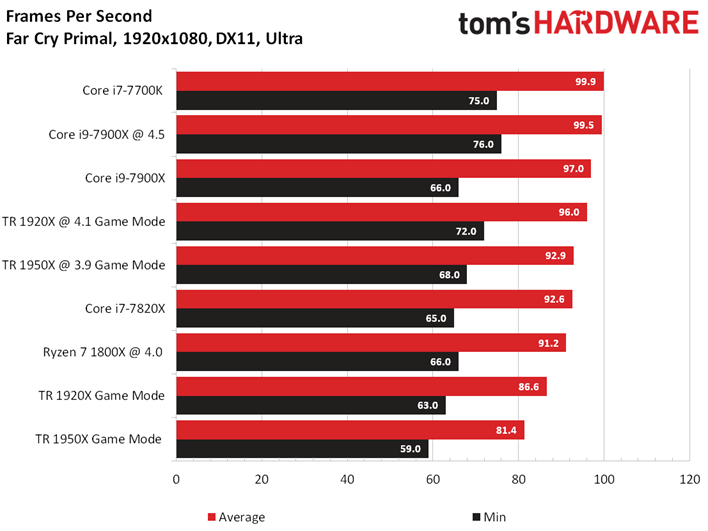

Far Cry Primal

Image 1 of 6

Threadripper 1920X shines when we overclock it. Notably, the chip yields a 14.9ms 99th percentile measurement, while the overclocked -7900X registers a much higher 18.2ms.

The Core i7-7700K suffers several extreme frame time outliers.


MORE: Best CPUs


MORE: Intel & AMD Processor Hierarchy


MORE: All CPUs Content

Igor Wallossek
30 Comments Comment from the forums
  • Aldain
    Great review as always but on the power consumption fron given that the 1950x has six more cores and the 1920 has two more they are more power efficient than the 7900x is every regard relative to the high stock clocks of the TR
    Reply
  • derekullo
    "Ryzen Threadripper 1920X comes arms with 12 physical cores and SMT"

    ...

    Judging from Threadripper 1950X versus the Threadripper 1900X we can infer that a difference of 400 megahertz is worth the tdp of 16 whole threads.

    I never realized HT / SMT was that efficient or is AMD holding something back with the Threadripper 1900x?
    Reply
  • jeremyj_83
    Your sister site Anandtech did a retest of Threadripper a while back and found that their original form of game mode was more effective than the one supplied by AMD. What they had done is disable SMT and have a 16c/16t CPU instead of the 8c/16t that AMD's game mode does. http://www.anandtech.com/show/11726/retesting-amd-ryzen-threadrippers-game-mode-halving-cores-for-more-performance/16
    Reply
  • Wisecracker
    Hats-off to AMD and Intel. The quantity (and quality) of processing power is simply amazing these days. Long gone are the times of taking days off (literally) for "rasterizing and rendering" of work flows

    ...or is AMD holding something back with the Threadripper 1900x?
    I think the better question is, "Where is AMD going from here?"

    The first revision Socket SP3r2/TR4 mobos are simply amazing, and AMD has traditionally maintained (and improved!) their high-end stuff. I can't wait to see how they use those 4094 landings and massive bandwidth over the next few years. The next iteration of the 'Ripper already has me salivating :ouch:

    I'll take 4X Summit Ridge 'glued' together, please !!

    Reply
  • RomeoReject
    This was a great article. While there's no way in hell I'll ever be able to afford something this high-end, it's cool to see AMD trading punches once again.
    Reply
  • ibjeepr
    I'm confused.
    "We maintained a 4.1 GHz overclock"
    Per chart "Threadripper 1920X - Boost Frequency (GHz) 4.0 (4.2 XFR)"

    So you couldn't get the XFR to 4.2?
    If I understand correctly manually overclocking disables XFR.
    So your chip was just a lotto loser at 4.1 or am I missing something?

    EDIT: Oh, you mean 4.1 All core OC I bet.
    Reply
  • sion126
    actually the view should be you cannot afford not to go this way. You save a lot of time with gear like this my two 1950X rigs are killing my workload like no tomorrow... pretty impressive...for just gaming, maybe......but then again....its a solid investment that will run a long time...
    Reply
  • redgarl
    Now this at 7nm...
    Reply
  • AgentLozen
    redgarl said:
    Now this at 7nm...

    A big die shrink like that would be helpful but I think that Ryzen suffers from other architectural limitations.

    Ryzen has a clock speed ceiling of roughly 4.2Ghz. It's difficult to get it past there regardless of your cooling method.
    Also, Ryzen experiences nasty latency when data is being shared over the Infinity Fabric. Highly threaded work loads are being artificially limited when passing between dies.
    Lastly, the Ryzen's IPC lags behind Intel's a little bit. Coupled with the relatively low clock speed ceiling, Ryzen isn't the most ideal CPU for gaming (it holds up well in higher resolutions to be fair).

    Threadripper and Ryzen only look as good as they do because Intel hasn't focused on improving their desktop chips in the last few years. Imagine if Ivy Bridge wasn't a minor upgrade. If Haswell, Broadwell, Skylake, and Kabylake weren't tiny 5% improvements. What if Skylake X wasn't a concentrated fiery inferno? Zen wouldn't be a big deal if all of Intel's latest chips were as impressive as the Core 2 Duo was back in 2006.

    AMD has done an amazing job transitioning from crappy Bulldozer to Zen. They're in a position to really put the hurt on Intel but they can't lose the momentum they've built. If AMD were to address all of these problems in their next architecture update, they would really have a monster on their hands.
    Reply
  • redgarl
    Sure Billy Gates, at 1080p with an 800$ CPU and an 800$ GPU made by a competitor... sure...

    At 1440p and 2160p the gaming performances is the same, however your multi-threading performances are still better than the overprices Intel chips.
    Reply
