Asus ROG Poseidon GeForce GTX 1080 Ti 11GB Platinum Edition Review

By Igor Wallossek
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Gaming Performance

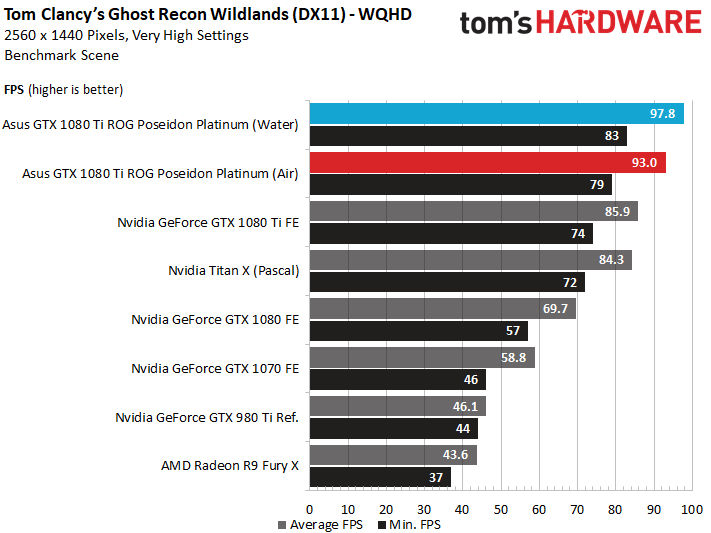

2560x1440 Results

There's no reason to test a GeForce GTX 1080 Ti at 1920x1080; at that resolution, even our high-end host processor bottlenecks performance. Rather, these cards are designed for 2560x1440 and up.

Image 1 of 6

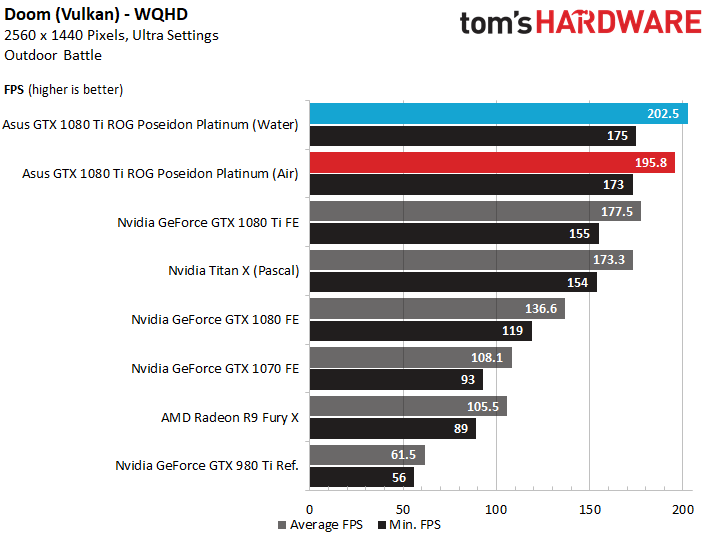

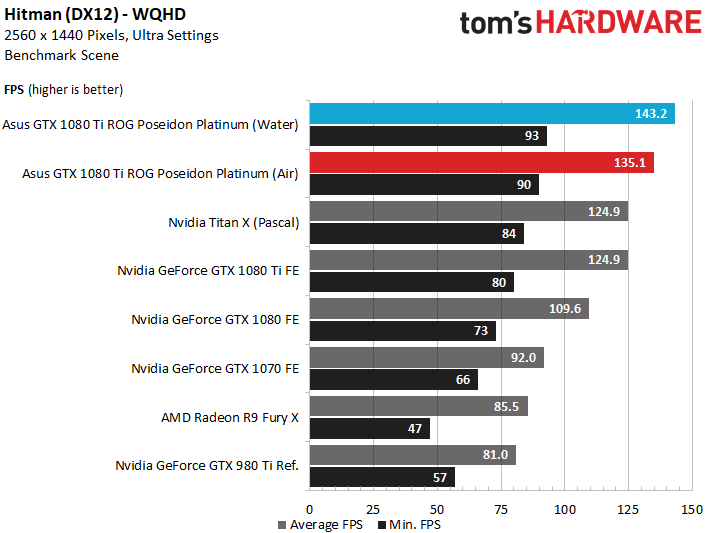

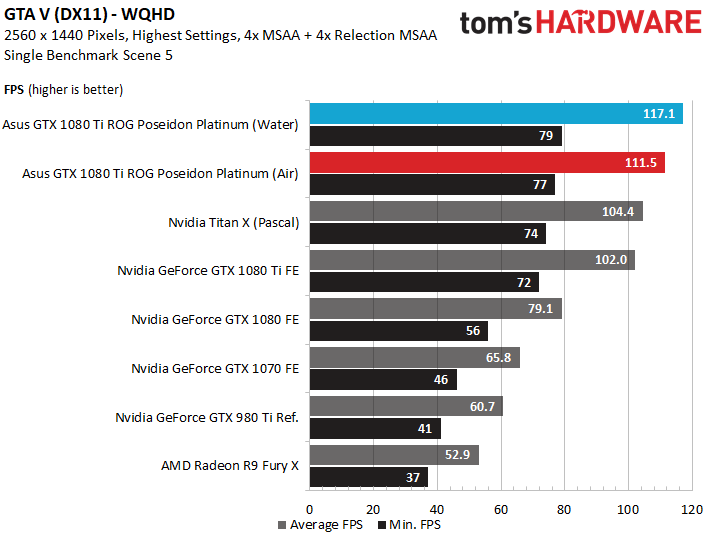

At QHD, the ROG Poseidon GeForce GTX 1080 Ti 11GB Platinum Edition is, depending on the game, clearly faster than the GeForce GTX 1080 Ti Founders Edition and Titan X (Pascal).

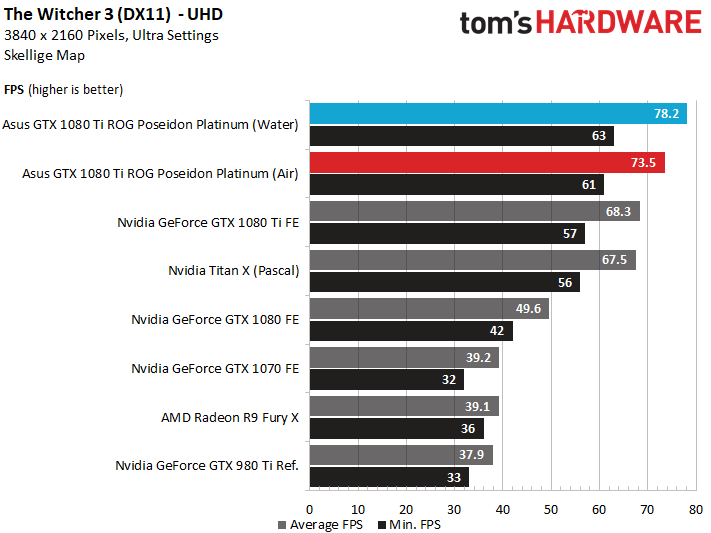

3840x2160 Results

Image 1 of 6

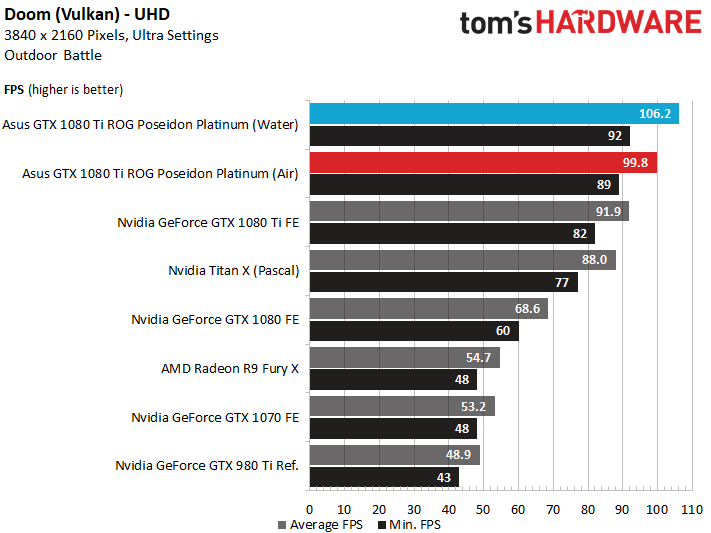

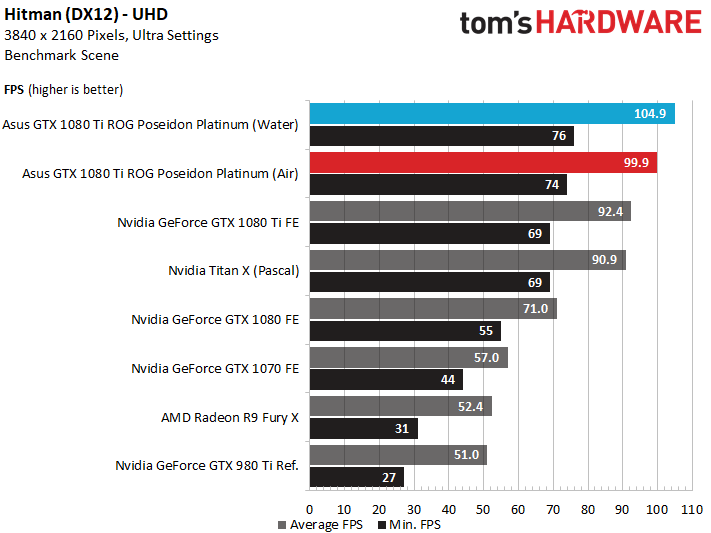

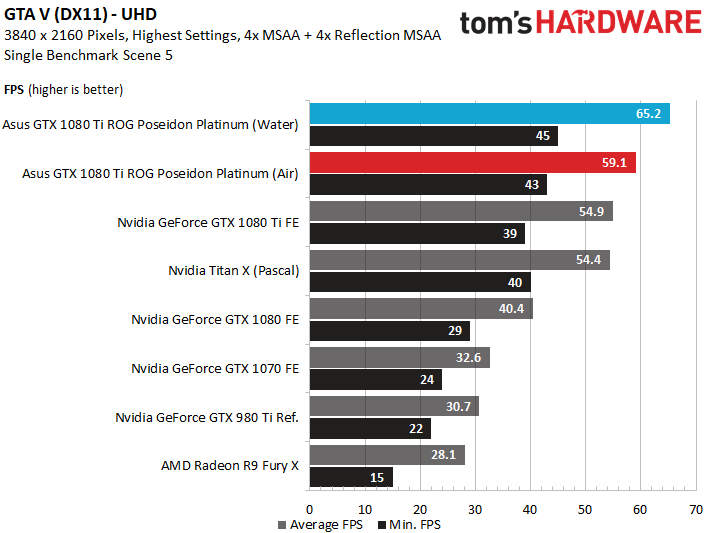

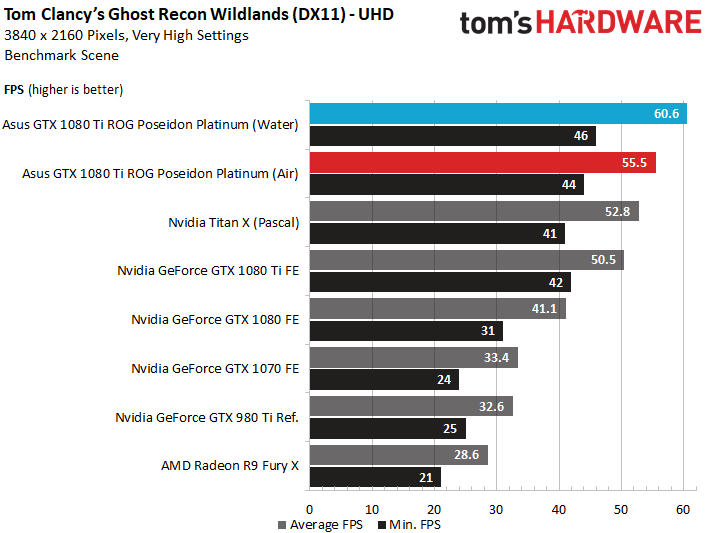

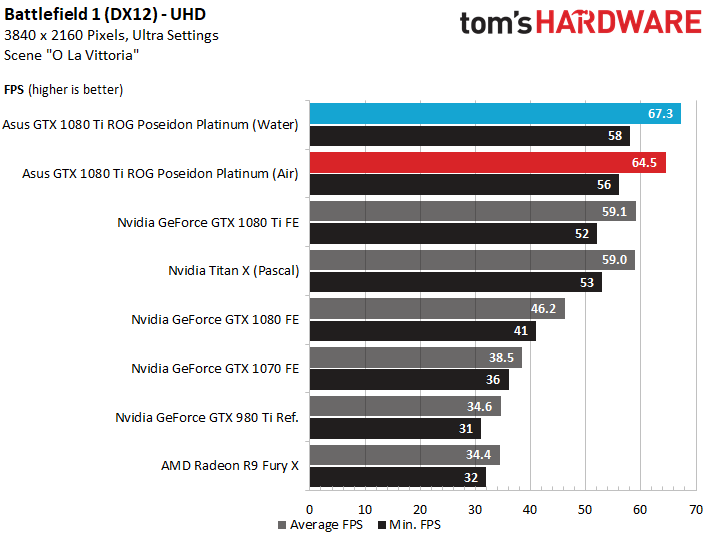

At this high resolution, Asus' card is again quite a bit faster than the GeForce GTX 1080 Ti Founders Edition and Titan X (Pascal).

Many of these titles are playable at 4K. Those that aren't can be made smoother by dialing down the quality settings somewhat.

Comparison GPUs
Asus Radeon R9 Fury X
Nvidia Titan Xp 12GB
Nvidia GeForce GTX 1080 Ti FE


MORE: Best Graphics Cards


MORE: Desktop GPU Performance Hierarchy Table


MORE: All Graphics Content
