Biostar X370GT7 Motherboard Review

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Software & Firmware

Software

Let's run through some other features and the software. FLY.net is Biostar’s attempt at optimizing network traffic without licensing the Killer branded solutions from Rivet. By running FLY.net, applications can be given priority automatically through the program, or you can define how to apply your precious bandwidth resources. For instance, streaming a Battlegrounds match to Twitch at 770 Kb/s was throttling my Netflix window, but when I swapped the priority to “Browser” the quality of Netflix noticeably increased. If more thorough analysis is desired, let us know in the comments section.

The Racing GT app is also enabled for the GT7 and proides access to the Vivid LED DJ interface through the operating system. Permanent modes kept the LED portions of the board lit with the color, while breathing provided a fade to black effect that was similar to that of our Trident-Z memory. The shine effect sounds appealing in theory, but when we applied it through the tool it just looked like it strobed on and off like something was broken.

Though not entirely new, the Lightening Charger design supports QC2.0 and Apple output specifications of 12V/1.5A and 5V/2.4A respectively. This design is also compliant with the BC1.2 protocol.

The GT7 also includes Infineon’s PowIRstage IC, which is reported to increase response time within the voltage regulator circuit, reduce regulator temperature, and provide up to 60A of power delivery from each phase. We find it interesting that the marketing material specifically provides an accurate part number for these components, so if you are into that sort of thing, follow the link. With an 8+4 phase regulator design, the GT7 is on par with other offerings in this AM4 segment.

At the time of this writing, Biostar is bundling in a free World of Tanks premium account. Don’t be fooled by NewEgg; there was once a package that offered a bundled SSD M.2 drive with the motherboard, but that is not the package being shown today. (Editor's Note: One is included in the Biostar Z270GT9 we recently reviewed.)

Firmware

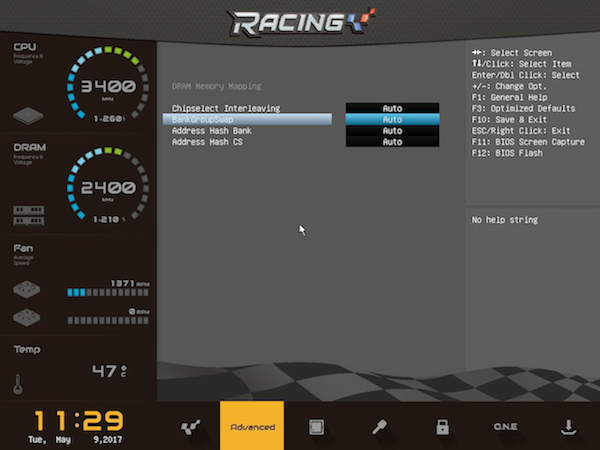

The racing theme continues into the UEFI with the checkered flag residing at the bottom of the main viewing area. To the left, tachometers represent both the CPU and memory speed with voltages shown below their respective operating frequencies.

We like that the high-level health status is shown throughout the menus without eating up too much space and saving us the drive through several different menus. The bottom edge of the screen shows the main menu components.

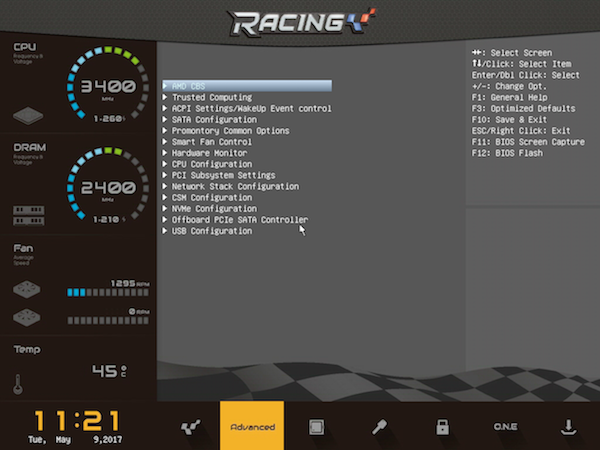

Just as with ASRock samples, Biostar enables many of the extremely low-level Ryzen options through the UEFI, particularly the CBS, promontory, and memory customization options.

Smart Fan Control lets the UEFI control the fans with 4-pin PWM. After calibrating the fans, start and sensitivity values are updated and you can set them to aggressive, quiet, or manual fan modes.

The O.N.E. menu option is where we find our overclocking settings and options for Vivid LED control. For voltage control, you can select auto mode to “set it and forget it” or enable override or adaptive mode. Override lets you set specific voltage points, and adaptive mode allows for a plus or minus voltage bias to be applied from nominal values.

Override works best for our CPU core voltage, since we know the maximum we want to use. SOC voltage is set at adaptive mode so we can increase the voltage slightly without knowing what nominal is.

After doing some Googling, we determine that overclocking is enabled through the AMD Pstate Configuration menu where we must define the specific FID hex code that corresponds to our desired frequency. Each increment in hex increases the frequency by 25 MHz. Though not advised, users can also bypass the voltage specified for the module and increase it in 6.25mV steps by reducing the VID code by 1 hex increment, with a maximum setting of 1.55V.

You can overclock memory in two separate ways: either through enabling the XMP profile or selecting the appropriate memory frequency from the table. Both options worked for us for maximum memory bandwidth. Timings are tunable through the DRAM Timing menu if maximum tweaking is desired.

Load line settings between level 1 and 6 are available for overclockers, but Biostar suggests disabling the load line altogether to reduce voltage oscillation on the supplies and reducing the impact of Vdroop events. I do not like running without load lines, but for the sake of this review that’s what I ended up using. (Editor’s Note: We’ve seen past samples where Biostar’s “VCore LoadLine: Disabled” functions similarly to other manufacturer’s “LoadLine Compensation: Enabled.”)


MORE: Best Motherboards

MORE: How To Choose A Motherboard


MORE: All Motherboard Content

  • logainofhades
    I used to use nothing but biostar, in the AM2/AM2+ days. They were great boards, for the money.
    Reply
  • Michael Dahlin
    Only had problem with one Biostar mobo. It was a G41-M7 the capacitors smoked right next to the pcie slot
    Reply
  • Quaddro
    Always using biostar since 790 series..880, and 990.
    All dead due to bad PWM controller..
    Reply
  • s4fun
    The only motherboard company I'd absolutely avoid is ECS. Let them supply the crap boards to HP, Dell, e-Machines, Gateway etc. I only bought biostar when I wanted a basic board with no fuss. They must be trying to move up market.
    Reply
  • logainofhades
    19808151 said:
    The only motherboard company I'd absolutely avoid is ECS. Let them supply the crap boards to HP, Dell, e-Machines, Gateway etc. I only bought biostar when I wanted a basic board with no fuss. They must be trying to move up market.

    The ECS K7S5A was a great board, back in the day. They never did repeat that success, sadly.
    Reply
  • Calculatron
    I have been keeping on eye on Biostar for the last couple years, because they have been doing a lot to adapt to the market and change their image. It's been a struggle for them, because they've always been known for their budget solutions, so often get snubbed by enthusiasts.

    It's nice to see their efforts bear some fruit for the mainstream - more competition is never a bad thing.
    Reply
  • WyomingKnott
    One nit to pick: "The GT7 also includes Infineon’s PowIRstage IC, which is reported to increase response time within the voltage regulator circuit, reduce regulator temperature, and provide up to 60A of power delivery from each phase."
    Increasing response time would not be desirable; did you mean decreasing response time / increasing responsiveness?
    Otherwise, it's good to see a brand come back from poor quality. I look forward to the day a CoolerMaster PSU gets a recommendation.
    Reply
  • Peter_256
    Not sure what you consider basic x370 here. usb c included on all x370's? lightning charger ? dual bios? debug led? power on / reset buttons on the motherboard?
    led headers? the fan headers? alc1220? better power delivery? (news flash. am4 power delivery isn't usually this good)

    then we get to "flair" First you say it has extra flair, then you state it falls short in the flair department. Maybe they needed to add some case stickers, or a lollipop?
    or some of the above mentioned features are 'flair' done better or equally well by less expensive competitors?

    100c overnight. One word for that. Not Genius... starts with M
    Reply
