How We Test Power Supply Units

News
By , published

Our methodology, testing equipment, and benchmarks.

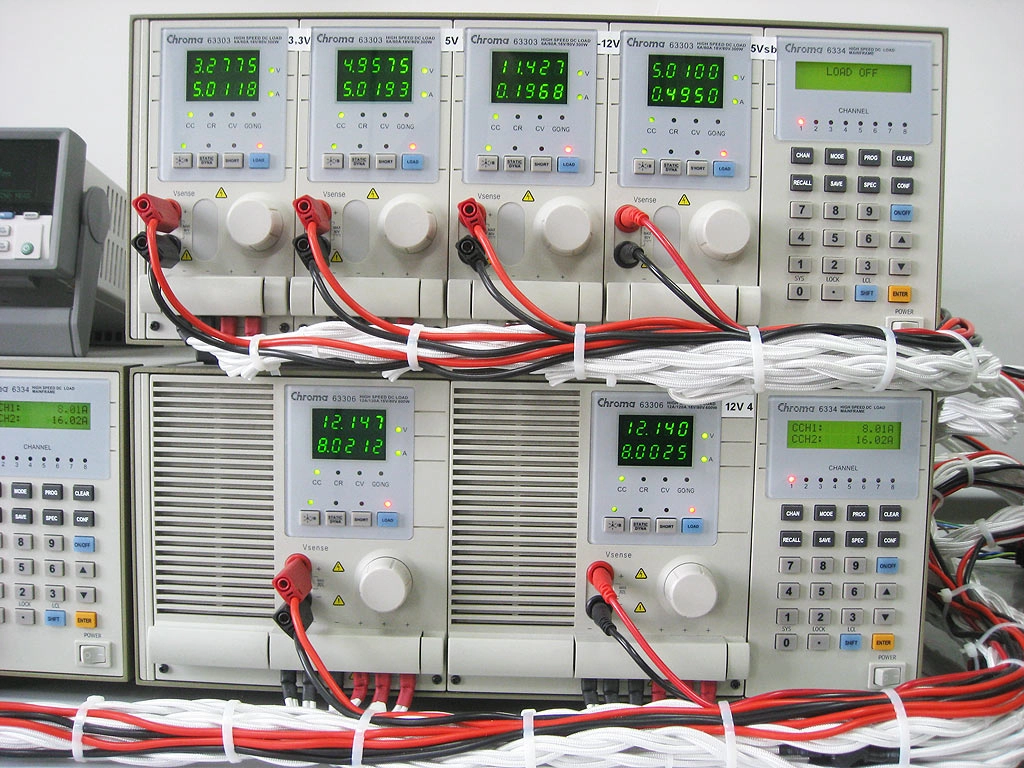

Cross-load tests are the real deal since they show a PSU's performance throughout its entire operating range. There are no guidelines on how transient tests should be performed and the momentary power-up cross load testing that Intel recommends is far too lenient. Intel recommends that the 12 V line should be loaded to < 0.1 A and the 3.3 V / 5 V lines up to just 5 A. We perform two cross load tests of our own devise: In test CL1, we load the 12 V line up to 80% of its maximum capacity and the 3.3 V / 5 V lines with 2 A each. In test CL2, we load the 12 V line with 2 A and the 3.3 V / 5 V lines up to 80% of their maximum combined capacity. For these tests, we test at ≈45 °C (113 °F) ambient.

MORE: Best Power Supplies

See more Power Supplies News
Aris Mpitziopoulos
Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a contributing editor at Tom's Hardware, covering PSUs.
