Fan Operation And Bearing Types

Fan Operation And Bearing Types

The most crucial components of every fan are its bearing and shaft, at which the fan blade is attached. The bearing is a stationary cylinder inside which the shaft rotates. To provide high reliability and decreased noise output, friction between the shaft and the bearing has to be minimized as much as possible. In most cases, oil is used as a lubricant. However, other methods can be used as well (for instance, Teflon-coated surfaces). If the oil isn't sealed properly inside the bearing, then its quantity will get lower as time passes, increasing friction, which leads to slower fan rotation and increased noise, until the fan breaks down and stops rotating.

There are three basic bearing types used in most PSU fans today:

• Sleeve bearing fans
• Double ball bearing fans
• Fluid dynamic bearing (FDB) and hydro dynamic bearing (HDB) fans

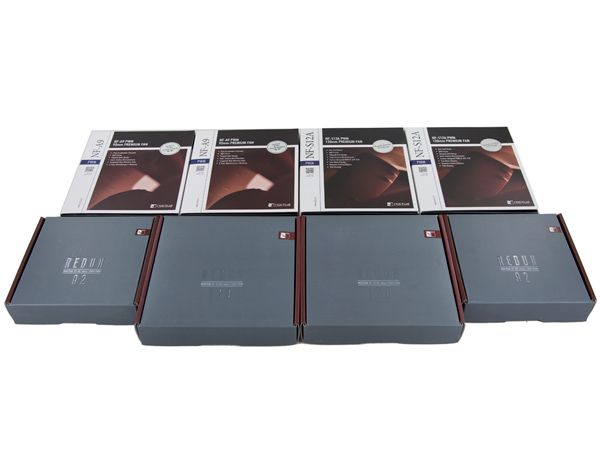

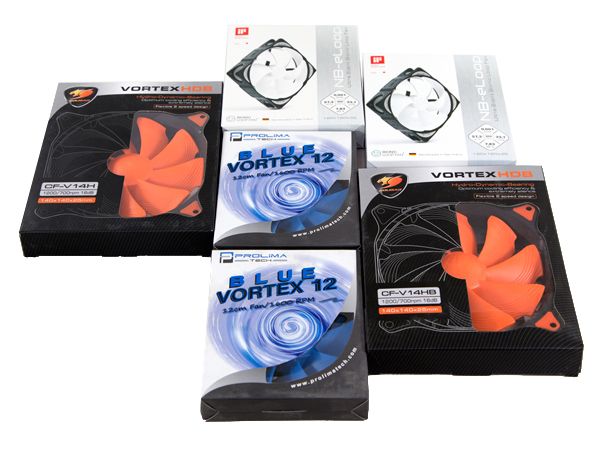

Below, we provide a brief explanation of each bearing type and a reference to its key aspects; we will also provide several photographs of the corresponding bearing types. The photos were obtained by taking several fans apart (some of which are pretty expensive), which were kindly provided by Noctua and Caseking.de.

Image 1 of 2

Sleeve Bearing Fans

The most common fans found in PSUs today use a sleeve bearing, which has a decreased lifespan compared to the other two bearing types mentioned. Fans utilizing a sleeve bearing cost less and deliver low noise output levels, especially at lower speeds, compared to fans that use ball bearings. Lubricant (oil or grease) decreases friction between the bearing's inner surface and the fan's shaft. Once this lubricant evaporates, the fan's life simply ends.

Image 1 of 10

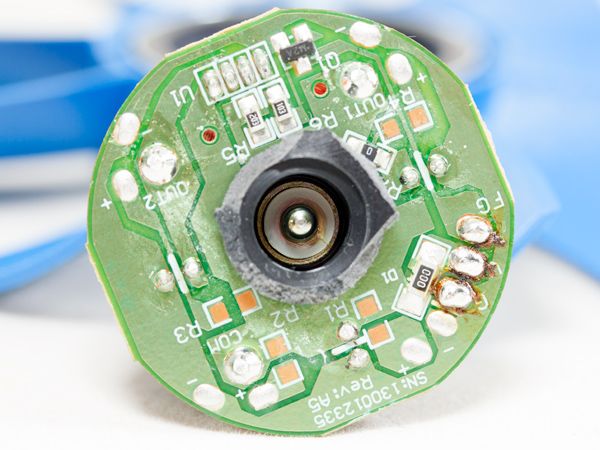

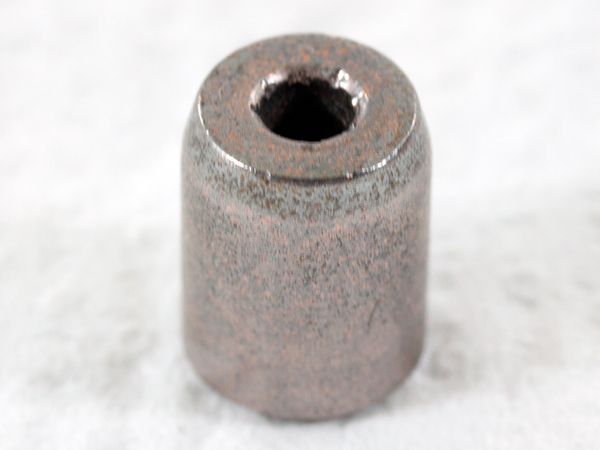

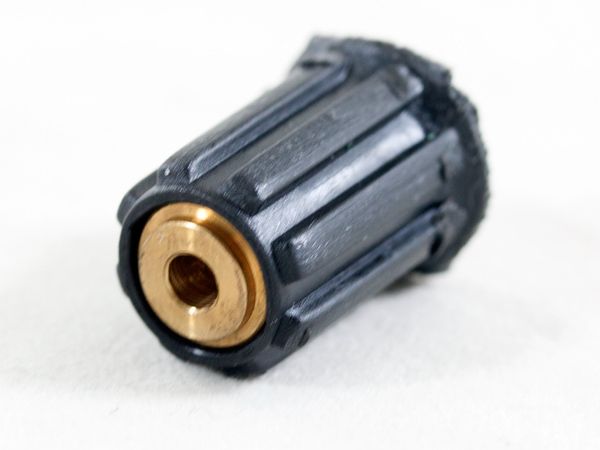

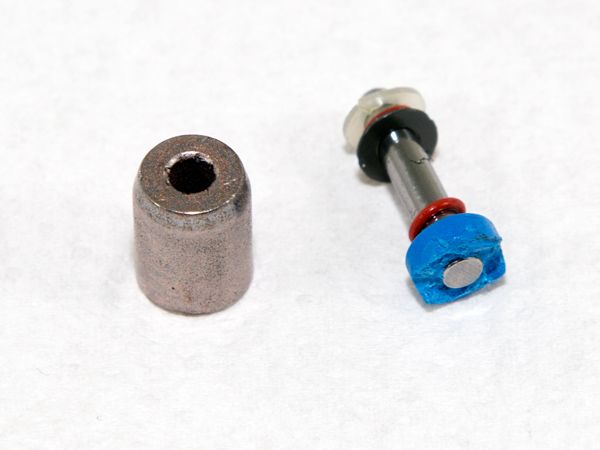

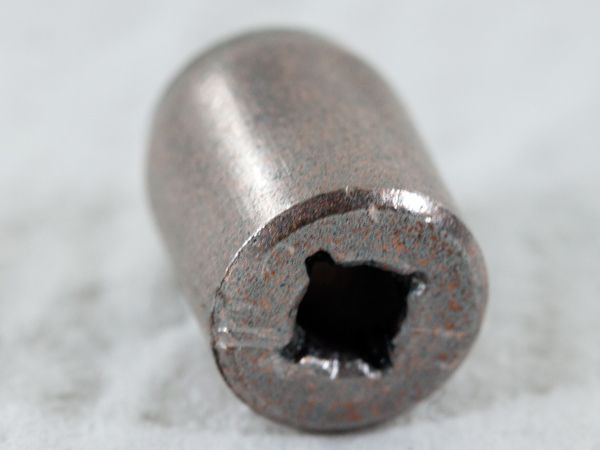

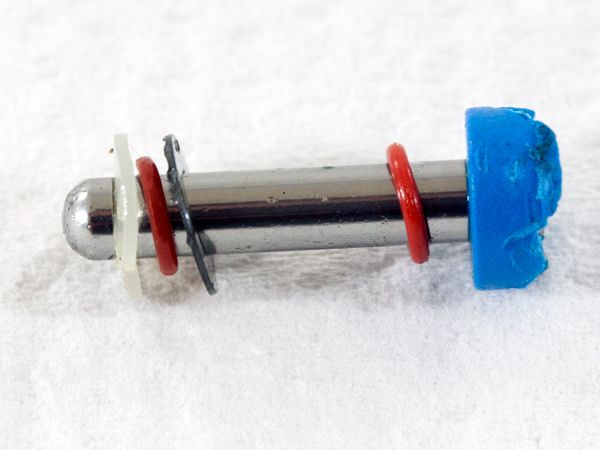

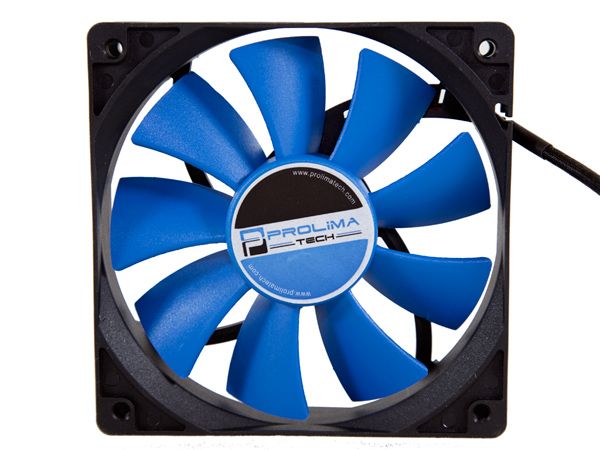

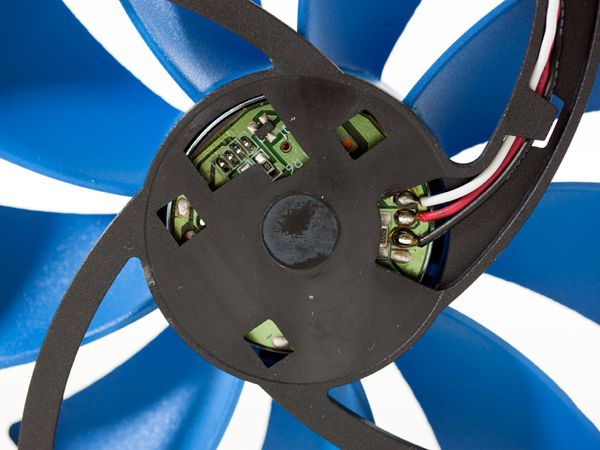

A good quality sleeve bearing fan by Prolimatech, which has proper seals to keep the oil from vaporizing.

Good sleeve bearing fans can last up to 30,000 hours (and even more in some cases) at temperatures reaching 50 degrees C. Their major advantage is an affordable price, which makes them popular in low-cost PSUs. Sleeve bearing fans aren't designed for horizontal mounting since oil inside the bearing moves to one of the shaft's sides, so it doesn't provide uniform friction protection.

Ball Bearing Fans

Higher-quality fans use double ball bearings to reduce friction. This type of fan can be mounted in any orientation without affecting its longevity. This is in contrast to the sleeve bearing fans, which are seriously affected when they are mounted horizontally, as is typically the case with PSUs. The typical lifespan of a good ball bearing fan can reach, and in some cases even exceed, 50,000 hours at very high ambient temperatures. But in most cases, long before the fan stops working, its bearings will start to produce increased noise due to wear. They can become annoying at this point, so users will probably change them long before they completely break down.

Image 1 of 6

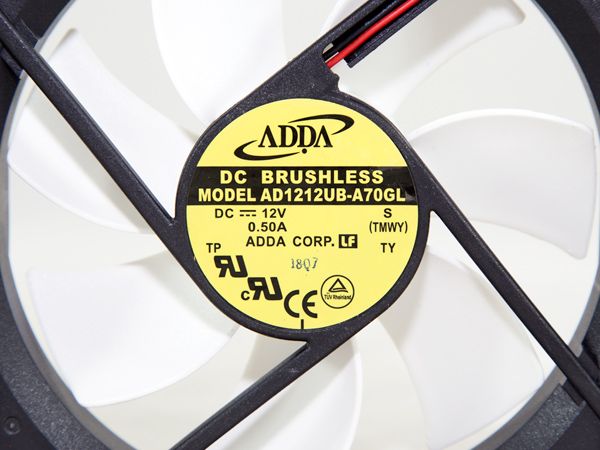

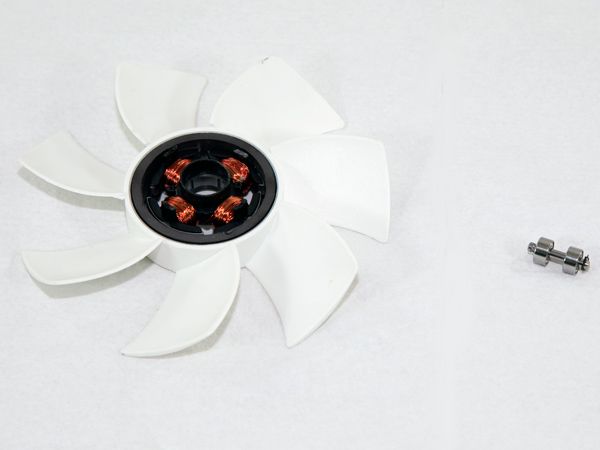

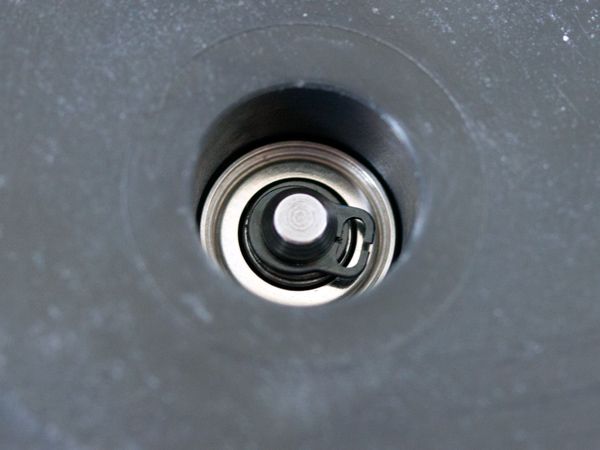

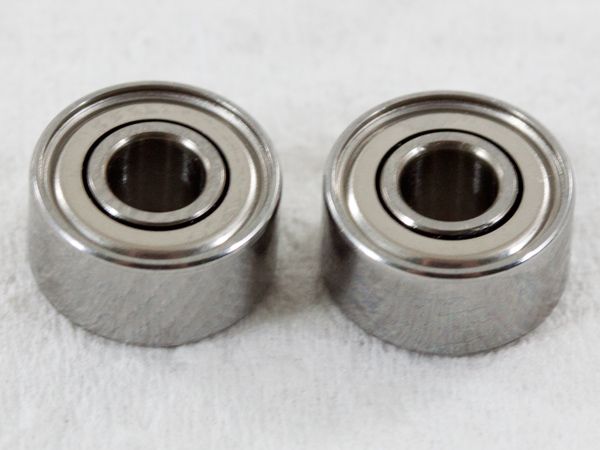

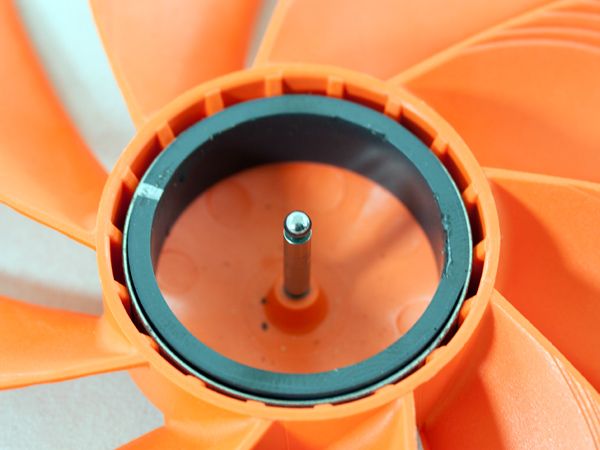

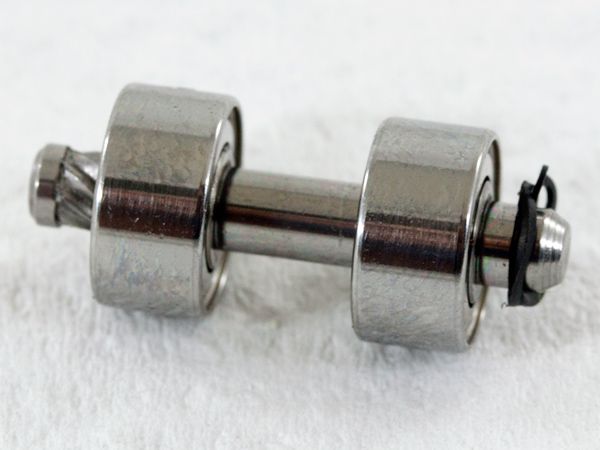

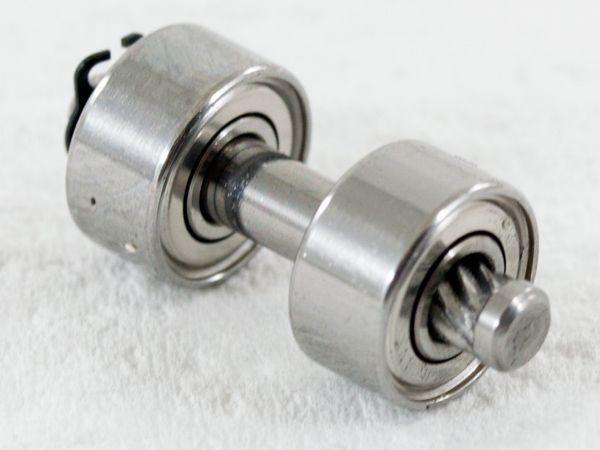

A quality double ball bearing fan by ADDA. In the last photo, the two ball bearing rings are depicted.

In general, ball bearing fans have an increased noise output compared to sleeve and fluid dynamic fans, especially at low speeds, when the rotor assembly balance can be affected. Some manufacturers use magnets in order to keep the shaft balanced on all cases and avoid this issue.

Fluid Dynamic And Hydro Dynamic Bearing Fans

Fluid dynamic bearing (FDB) and hydro dynamic bearing (HDB) fans are in essence highly modified versions of the sleeve bearing fans, where the design of the bearing is different and also the lubricant fluid is kept intact with the use of seals (some good-quality sleeve bearing fans also feature seals to keep the oil intact). This means friction is kept at very low levels even after prolonged usage, which can easily exceed 50,000 hours and in some cases reach up to 300,000 hours. The lubricant in FDB fans is pumped up to the whole surface of the bearing through a spiral groove, and this feature makes these fans a better choice for horizontal mounting, since the lubricant covers the whole surface of the shaft in all cases.

Image 1 of 12

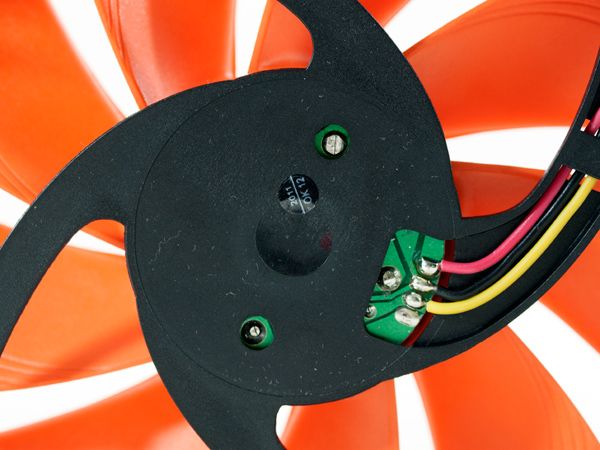

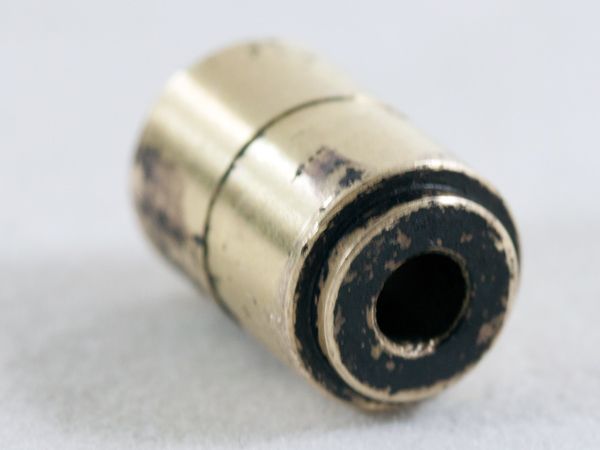

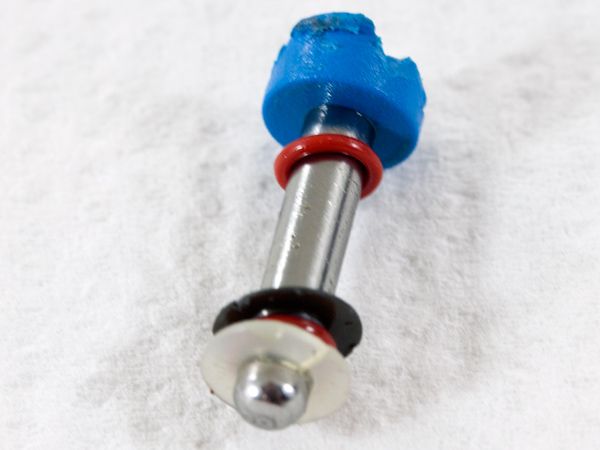

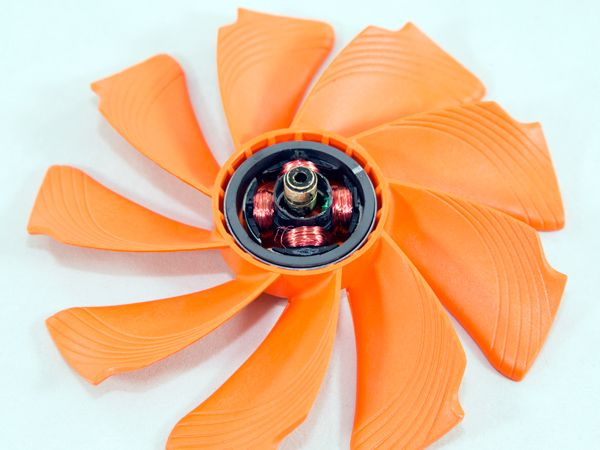

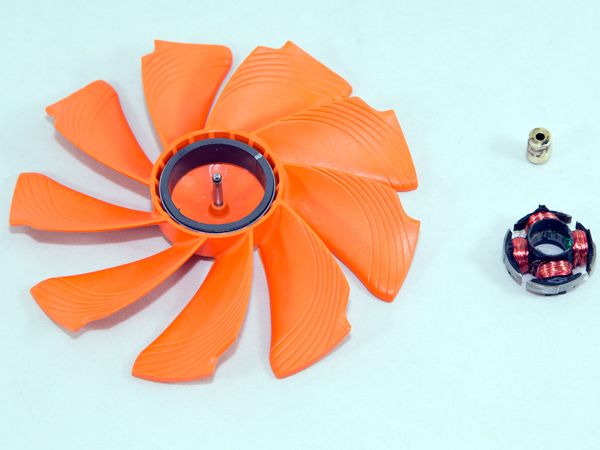

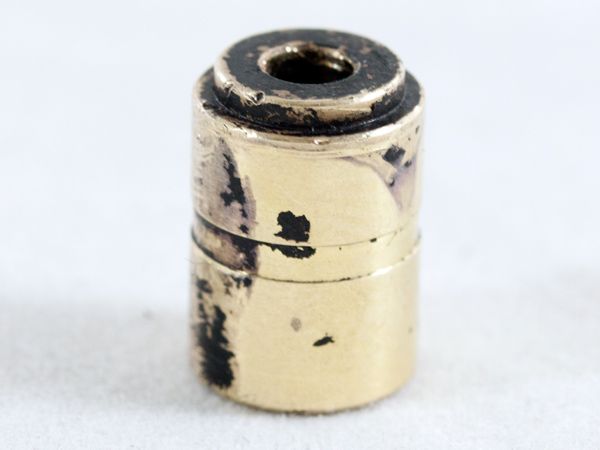

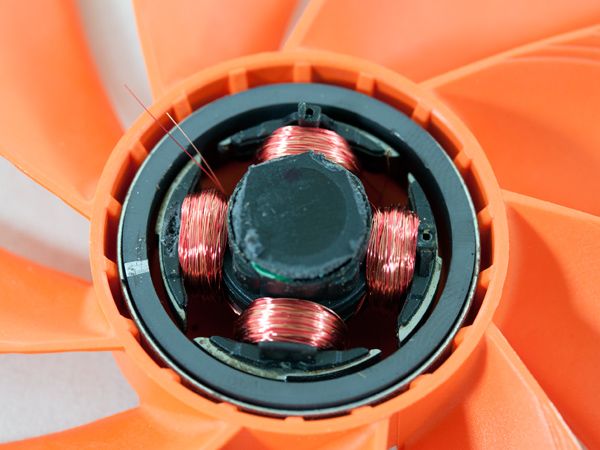

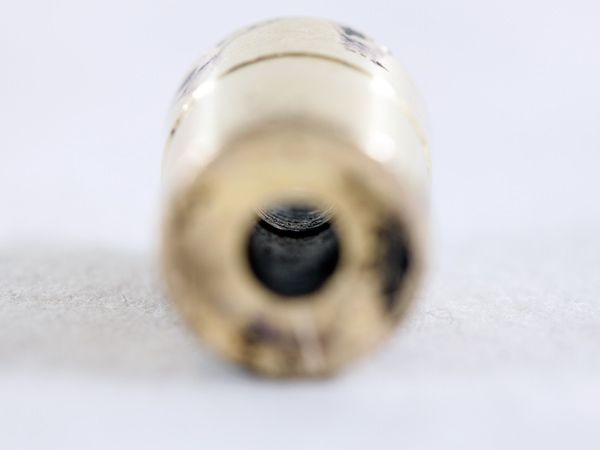

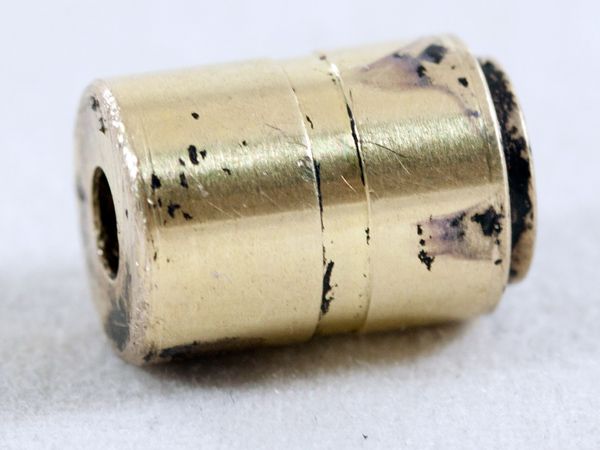

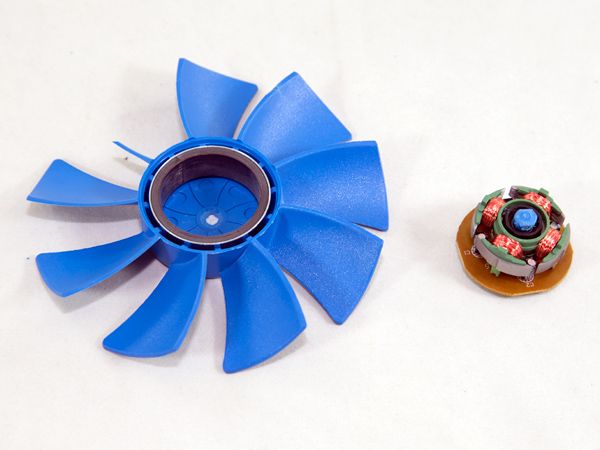

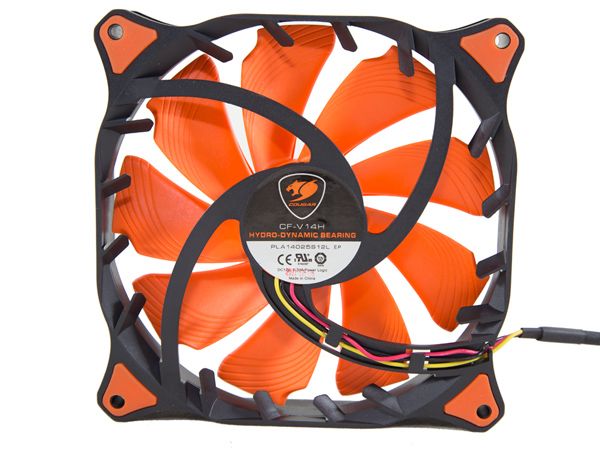

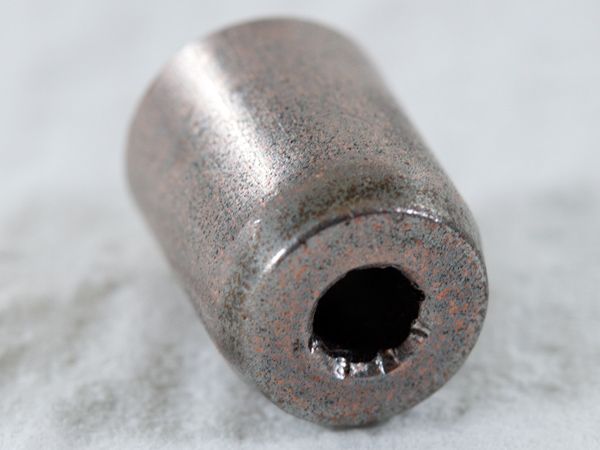

An HDB fan by Cougar. In the external side of the bearing, there is only a single groove; however, in the internals, the pattern is different.

The only problem with this type of bearing, besides increased production cost, is that during the start-up phase and until the lubricant is pumped all the way up to the bearing's top, there might be increased friction, meaning that these fans aren't suitable for applications involving lots of starts and stops (in PSUs featuring a semi-passive mode).

Several manufacturers use the same principle of operation in their fans; however, they name it differently due to patent rights of the FDB bearing (which are held my Matsushita). For example, hydro dynamic bearing (HDB) shares enough similarities with FDB. But in all cases, the design of the grooves on the bearing is different from the one used in FDB.

Image 1 of 2

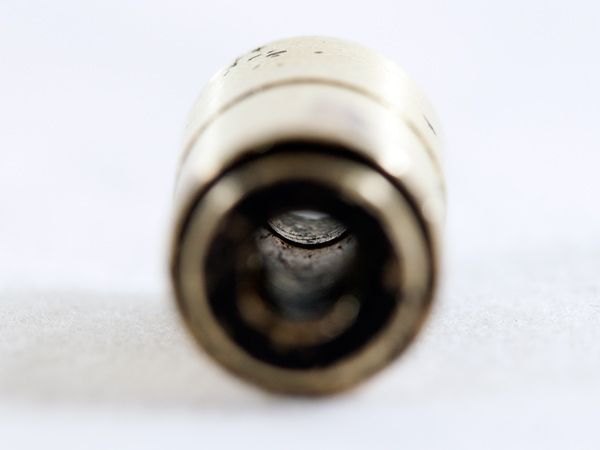

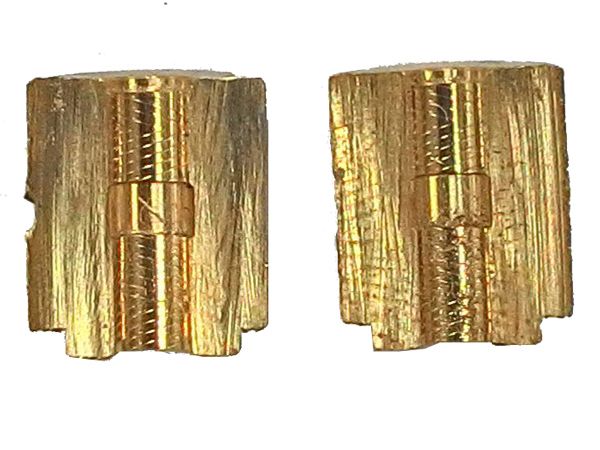

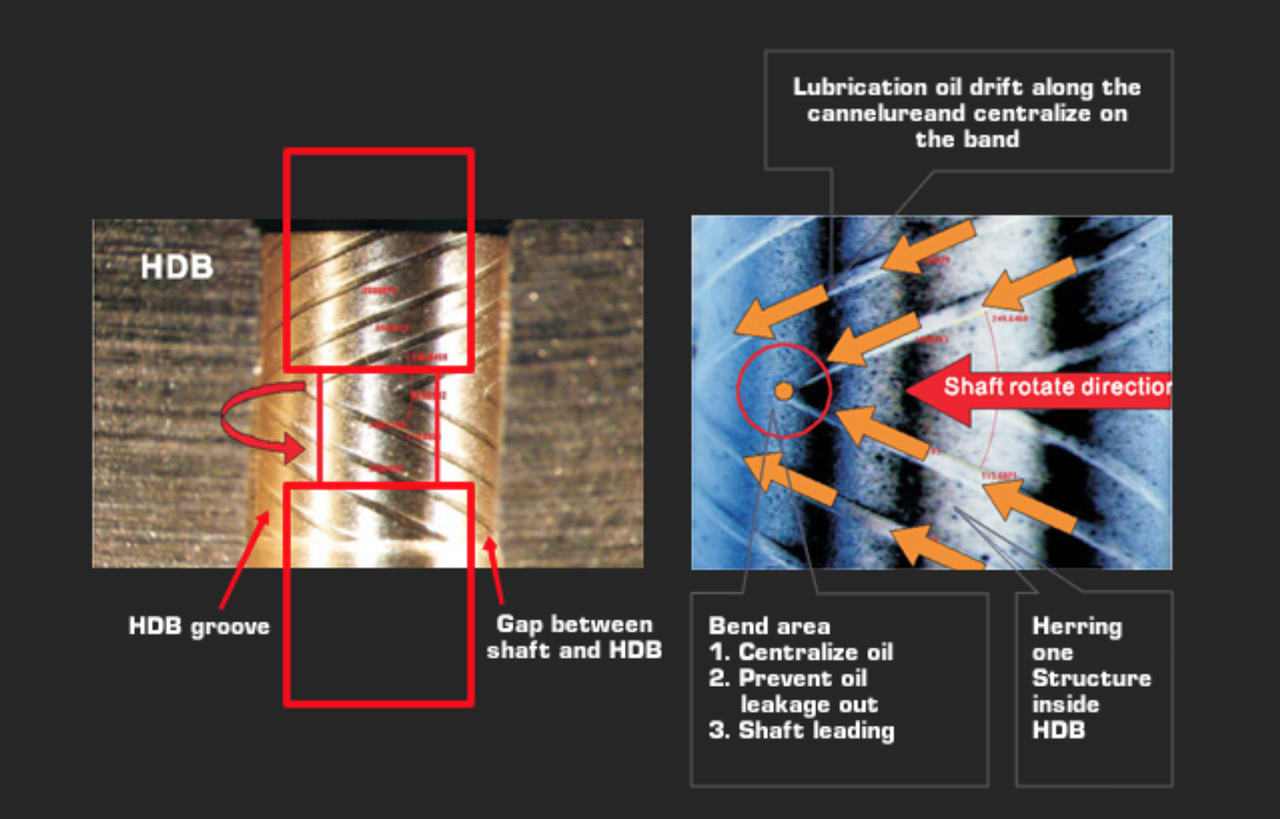

The internal spiral grooves on the bearing of the Cougar Vortex HDB fan, which has a 300,000-hour lifespan, according to its manufacturer.
