Thermaltake Toughpower GF3 1200W ATX v3.0 Power Supply Review

The Thermaltake Toughpower GF3 1200W tops our performance charts.

Reviews
By
published
Thermaltake Toughpower GF3 1200W ATX v3.0
(Image: © Thermaltake)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Performance Rating

(Image credit: Tom's Hardware)

Overall performance is high. The GF3 1200 is followed closely though by the Cooler Master MWE Gold 1250 V2.

Noise Rating

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 30 to 32 degrees Celsius (86 to 89.6 degrees Fahrenheit).

(Image credit: Tom's Hardware)

The average noise output is high, even under normal operating temperatures. This PSU is not for systems where noise output is among the top priorities.

Efficiency Rating

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature close to 30 degrees Celsius.

(Image credit: Tom's Hardware)

Average efficiency could be a bit higher.

Power Factor Rating

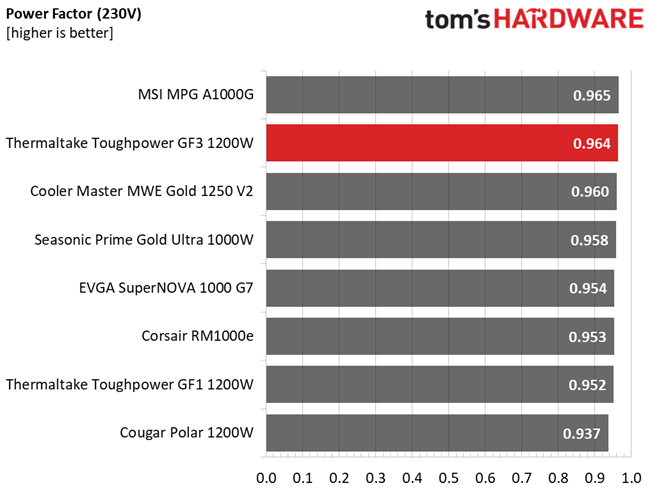

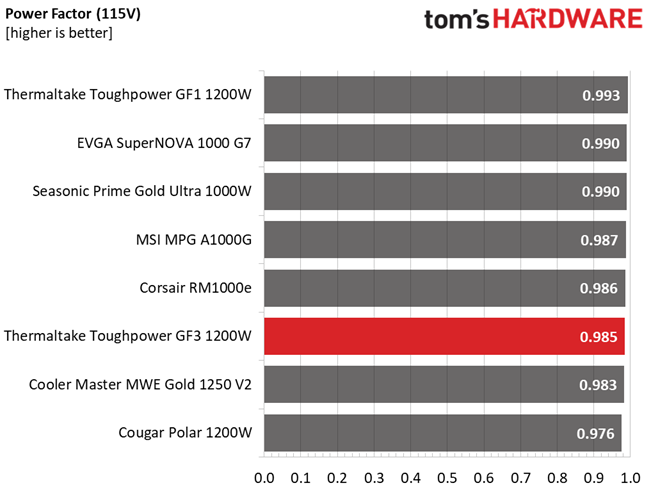

The following graphs show the PSU's average power factor reading throughout its operating range with an ambient temperature close to 30 degrees Celsius and 115V/230V voltage input.

Image 1 of 2
Thermaltake Toughpower GF3 1200W
(Image credit: Tom's Hardware)

The APFC converter performs well with 230V, while there is room for improvement with 115V input.

MORE: Best Power Supplies

MORE: How We Test Power Supplies

MORE: All Power Supply Content

Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.

6 Comments Comment from the forums
  • hexxum
    Didn’t the Toughpower gf3 1200w fail ATX 3.0 certification through Cybenetics? Here is a quote with links from Dogzilla09 from Overclockers:


    Here check the results (for Thermaltake Toughpower GF3) on the second page, under Results paragraph, there's no row with ATX 3.0 Ready/PCIE 5.0 ready (previous designation) written:
    https://www.cybenetics.com/d/cybenetics_TLu.pdfHere's how it should look like on the 1000W GF3 model:
    https://www.cybenetics.com/d/cybenetics_1GW.pdfNow here's the MSI Ai1300P (it has different wording, but it's also passed testing).
    https://www.cybenetics.com/d/cybenetics_jWP.pdf
    Reply
  • vashtanerada
    It definitely says that it passed ATX 3.0. Unless something changed since you posted this.
    Reply
  • hexxum
    I contacted Cybenetics about this and the SilverStone Hela 1200r since both failed. They both failed a transient load test. Thermaltake was already sending them a new test unit, which has since passed and Cybenetics has updated their data sheet. Also contacted SilverStone. They said had sent Cybenetics a preproduction unit and that they’d be in contact with them to get it resolved. I haven’t seen any updates for the Hela 1200r yet.
    Reply
  • Parallax1
    I have startup noise problem with this. Im definetly sure its not the fan, i tried to stop it from exterior and still noise happens. I guess high inrush current causing this for 1 second, but is that harmful for psu or pc?

    Here is the noise :

    https://youtube.com/shorts/An8ypTL-JaU?feature=share
    Reply
  • hexxum
    Parallax1 said:
    I have startup noise problem with this. Im definetly sure its not the fan, i tried to stop it from exterior and still noise happens. I guess high inrush current causing this for 1 second, but is that harmful for psu or pc?

    Here is the noise :

    https://youtube.com/shorts/An8ypTL-JaU?feature=share

    I had a Hela 1200r for a hot minute and it made a similar noise. I use a smart plug with my computer to fully cut off power after shut down. In a way it’s like flipping the switch on the psu to fully cut power. I noticed the psu would make this noise when I turned the computer back on. Didn’t seem to happen if I would shutdown the computer and turn it back on without fully cutting the power at the plug, which leads me to believe the noise is from some component in the psu when it first gets loaded with electricity. I ended up returning the Hela 1200r due to it failing atx 3.0 certification. I now have a msi ai1300p and I’ve never heard it make that noise. The Hela 1200r operated fine though so I don’t think this sound is something to worry about.

    Also to anyone else following earlier posts of mine in this thread. The Hela 1200r sent a new production unit to Cybenetics and it has now passed atx 3.0 certification. Apparently they had sent a pre production unit first and that’s why it failed one of the transient load tests.
    Reply
  • Parallax1
    hexxum said:
    I had a Hela 1200r for a hot minute and it made a similar noise. I use a smart plug with my computer to fully cut off power after shut down. In a way it’s like flipping the switch on the psu to fully cut power. I noticed the psu would make this noise when I turned the computer back on. Didn’t seem to happen if I would shutdown the computer and turn it back on without fully cutting the power at the plug, which leads me to believe the noise is from some component in the psu when it first gets loaded with electricity. I ended up returning the Hela 1200r due to it failing atx 3.0 certification. I now have a msi ai1300p and I’ve never heard it make that noise. The Hela 1200r operated fine though so I don’t think this sound is something to worry about.

    Also to anyone else following earlier posts of mine in this thread. The Hela 1200r sent a new production unit to Cybenetics and it has now passed atx 3.0 certification. Apparently they had sent a pre production unit first and that’s why it failed one of the transient load tests.
    Probably both use the same PCB, both are CWT production. I couldn't trust it and then returned it because I was going to use it as a rendering and workstation.
    Probably youre right. Mine has cutoff mechanism inside, i can barely hear that something cutting off the power, but you cant control it.
    I have ordered FSP Hydro PTM Pro 1200w atx 3.0 now, I know that FSP keeps the product controls tight, I hope I will be satisfied.
    Reply
