11-Way P45 Motherboard Shootout

Features
By Thomas Soderstrom
published

TP45 HP Software And Accessories

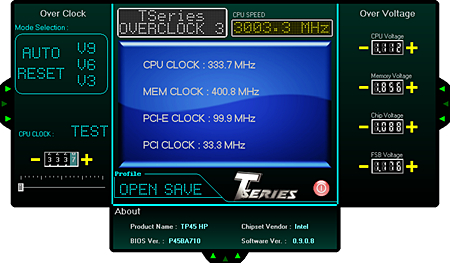

Biostar includes its Overclock 3 software with the TP45 HP, for controlling voltage and FSB clock speed, along with a couple other utilities.

We were actually surprised to find that the Overclock 3 utility worked quite well, though the lack of advanced timing and ratio controls mean it’s really only intended for fine-tuning.

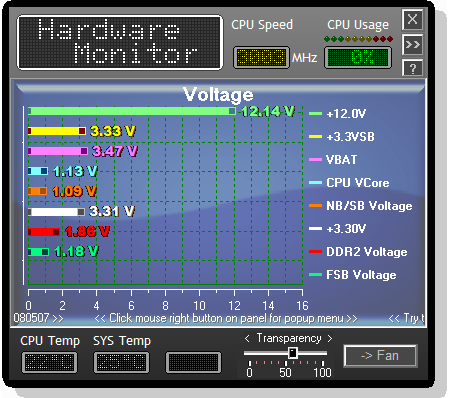

Biostar’s Hardware Monitor shows the most important voltage and temperature levels, though the temperature readings do appear unrealistically low.

Image 1 of 2

We didn’t use Biostar’s BIOS Update utility, simply because we didn’t want to end up with a dead motherboard. Most brands now offer a utility to update BIOS from Windows, but we’ve corrupted enough motherboards in the not-so-distant past that we still don’t trust this feature.

Biostar also includes a utility for sending trouble messages to its support department.

Swipe to scroll horizontally

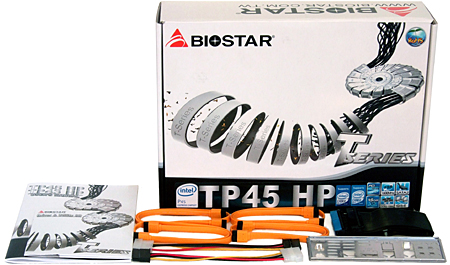

Documentation & SoftwareMotherboard Manual
Motherboard Driver CD
Hardware6x SATA Data Cable
1x 80-conductor Ultra ATA cable
2x 4-Pin to SATA Power Adapter
1x I/O Panel Shield

The TP45 HP doesn’t include many accessories, but there are enough cables to build a fairly elaborate system.

Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
