EP45-DQ6 Software And Accessories

Gigabyte includes the latest version of its overclocking software EasyTune6, as well as several utilities and trial software with its EP45-DQ6.

Image 1 of 2

The Tuner menu has sub-menus for Frequency and Voltage which are far more detailed than any competing product we’ve noticed. Bus frequency and core voltage adjustments work, and are reported by CPU-Z.

Because our test system used a Gigabyte graphics card, EasyTune6 treated us with a graphics overclocking page.

Image 1 of 2

The “Smart” menu allows setting an automatic overclock level, which responds to CPU demand by increasing clock speed dynamically. Cruise took our FSB to 360 MHz and Sports to 372.7 MHz, but higher settings were too much for our CPU without manual voltage increases.

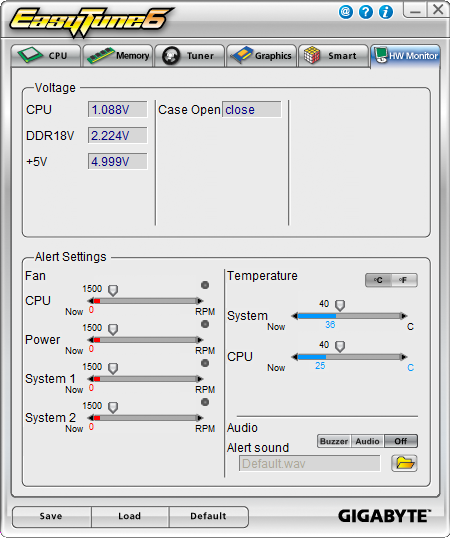

EasyTune6 also monitors temperature and voltage levels, with adjustable fan speeds and customized alerts.

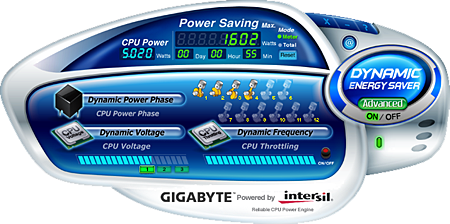

Gigabyte DES is able to turn off voltage regulator phases in response to low-load conditions, working along side Intel EIST to reduce power consumption.

Swipe to scroll horizontally

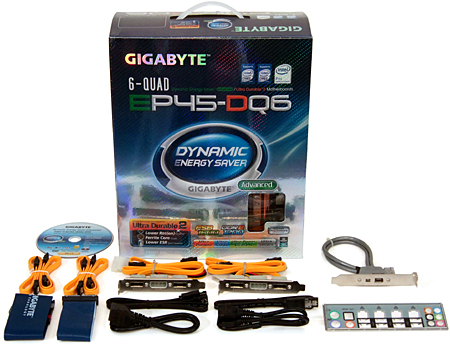

Documentation & SoftwareMotherboard Manual
Hardware Installation Guide
Motherboard Driver DVD
Hardware4x SATA Data Cable
1x 80-conductor Ultra ATA cable
1x Floppy Cable
2x eSATA Breakout Plates (2-port)
2x eSATA to SATA Data Cable
2x 4-pin to eSATA Power Cable
1x IEEE-1394 Breakout Plate (2-ports)
1x I/O Panel Shield

Gigabyte always sends its samples to us early, prior to availability of literature, but we’ve seen a manual and installation guide in vender photos. Other items include four Serial ATA cables and two dual-port eSATA breakout cables with adapter to ease data transfer.
