ASRock (via momomo_us) has carved up a new motherboard for cryptocurrency miners. The H510 Pro BTC+, which arrives with the LGA1200 socket and H510 chipset, is ready to power your mining operations with the latest Comet Lake or Rocket Lake processors.
The H510 PRO BTC+ measures 50.1 x 22.4cm (20.1 x 8.8 inches) so the motherboard doesn't adhere to an official form factor. It shouldn't matter anyways, since the H510 PRO BTC+ is more than likely going on to a rack rather than inside a conventional computer case.
The motherboard's greatest trait comes in the form of six PCIe 3.0 x16 expansion slots. However, only the primary PCIe 3.0 expansion slot offers x16 speeds, while the remaining expansion slots are capped at x1. The motherboard allows you to connect up to six graphics cards to mine cryptocurrency. An additional USB mining port bumps the number up to seven.
The steel expansion slots on the H510 PRO BTC+ make sure that your multiple graphics card sit neat and tight on the motherboard. ASRock equipped the H510 PRO BTC+ with not one but three 24-pin power connectors and four Molex power connectors so the motherboard will get all the juice that it needs to feed each and every graphics card.

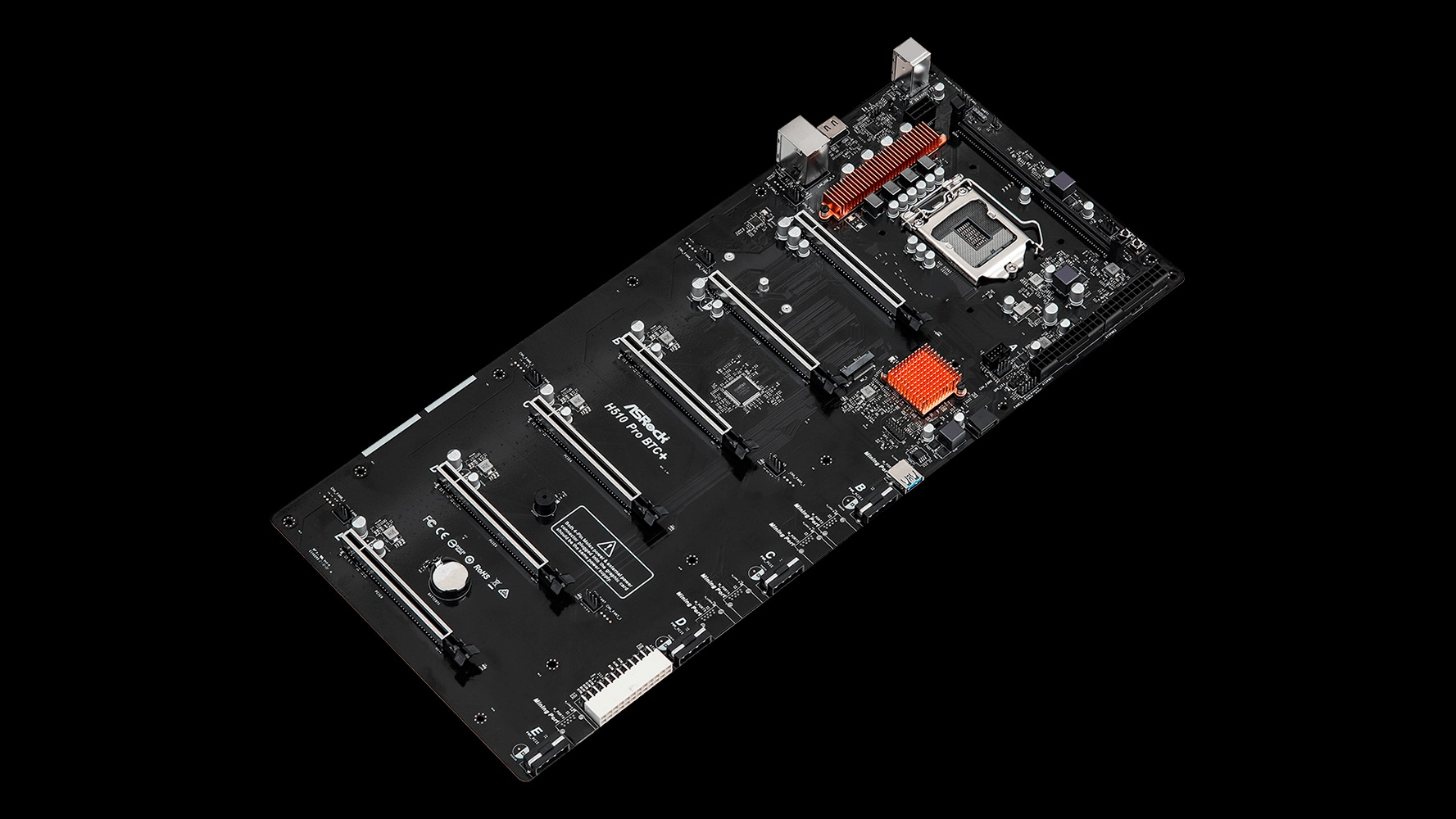

H510 Pro BTC+ (Image credit: ASRock)
If we leave the expansion slots aside, the H510 PRO BTC+ is really an austere motherboard. It features a very modest four-phase power delivery subsystem, but the motherboard does boast 50A power chokes. It only has one DDR4 memory slot, though. You're limited to 32GB of total memory and memory speeds up to DDR4-3200 on Rocket Lake and DDR4-2933 for Comet Lake. However, there is support for ECC memory modules if that's your thing.
You only have two options for storage. The SATA III port will accept any ordinary hard drive or SSD, while the M.2 slot houses SATA-based drives up to 110mm in length. There's no audio chip onboard the H510 PRO BTC+ so you'll have to rely on the HDMI 1.4 port.
The H510 PRO BTC+ provides a single Gigabit Ethernet port, which is based on the Intel I219V controller. The rear panel also holds a combo PS/2 port, one HDMI 1.4 port, two USB 2.0 ports and two USB 3.2 Gen 1 ports. One USB 2.0 header is readily available to deliver two more USB 2.0 ports.
Stay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Newegg has the H510 PRO BTC+ up for pre-order at $279.99. The H510 PRO BTC+ officially launches on July 18, and purchase is limited to two motherboards per customer.
