MSI X870E Carbon WIFI Motherboard Review: USB 4.0 has arrived

The X870E Carbon offers native Zen 5 support, loads of Type-C ports, and lots of EZ DIY features.

Reviews
By
published
MSI X870E Carbon WIFI
(Image: © Tom's Hardware)

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Firmware

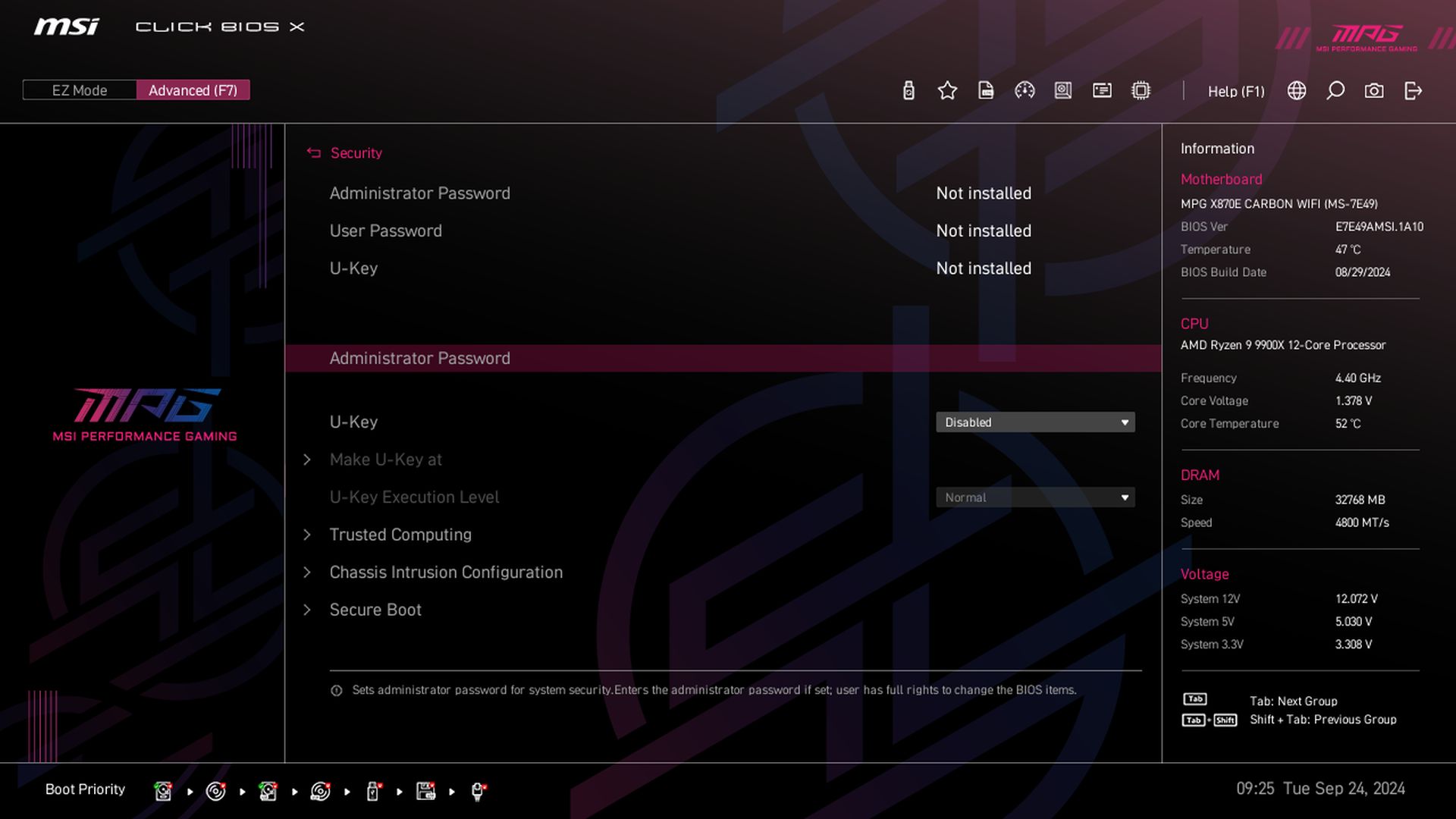

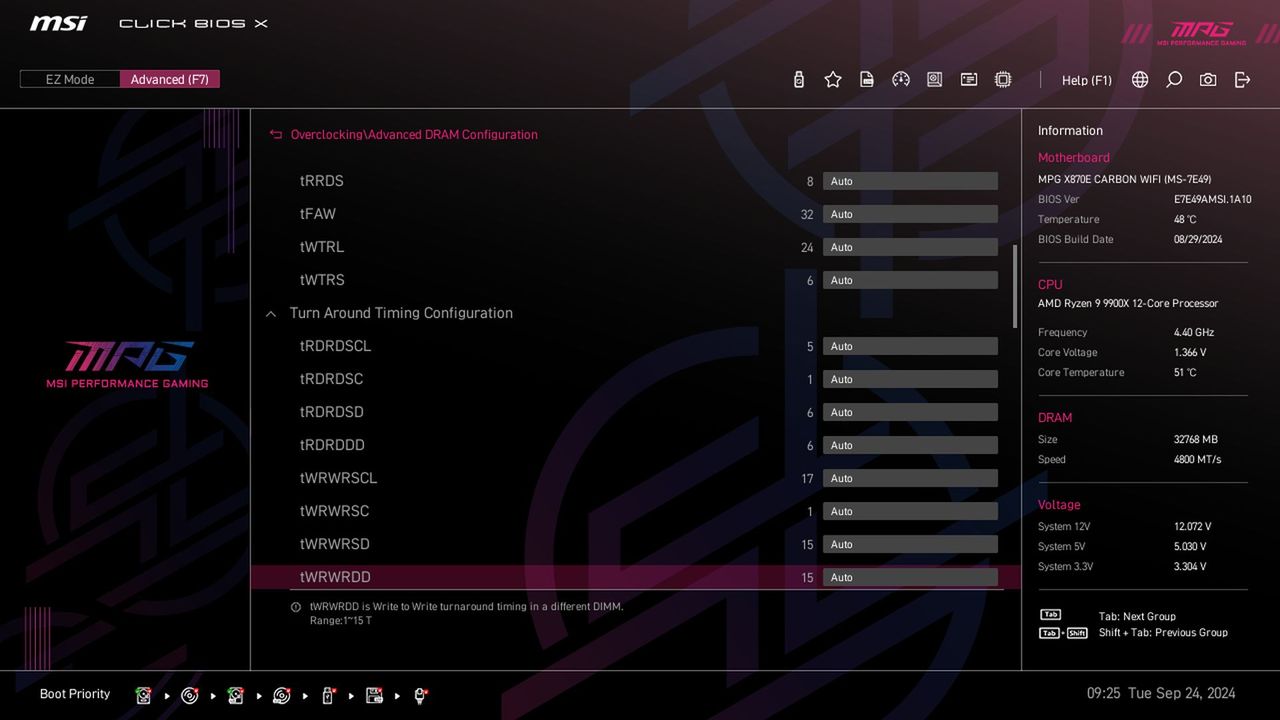

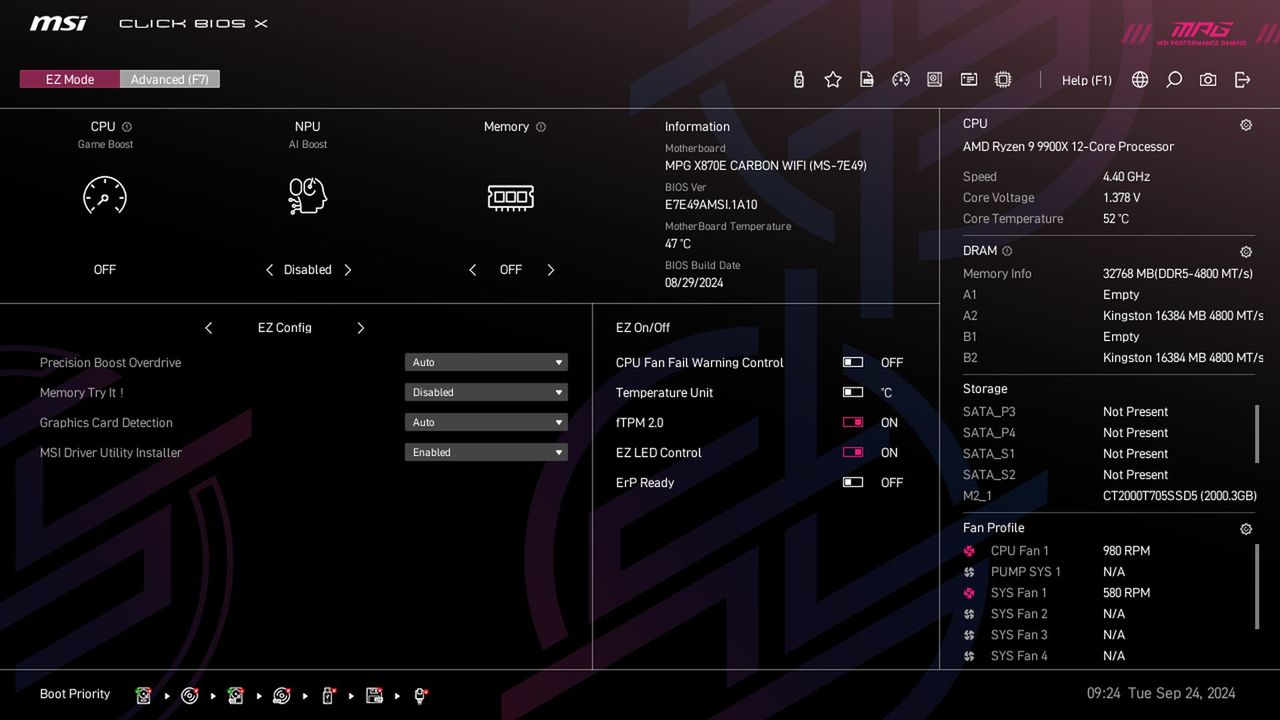

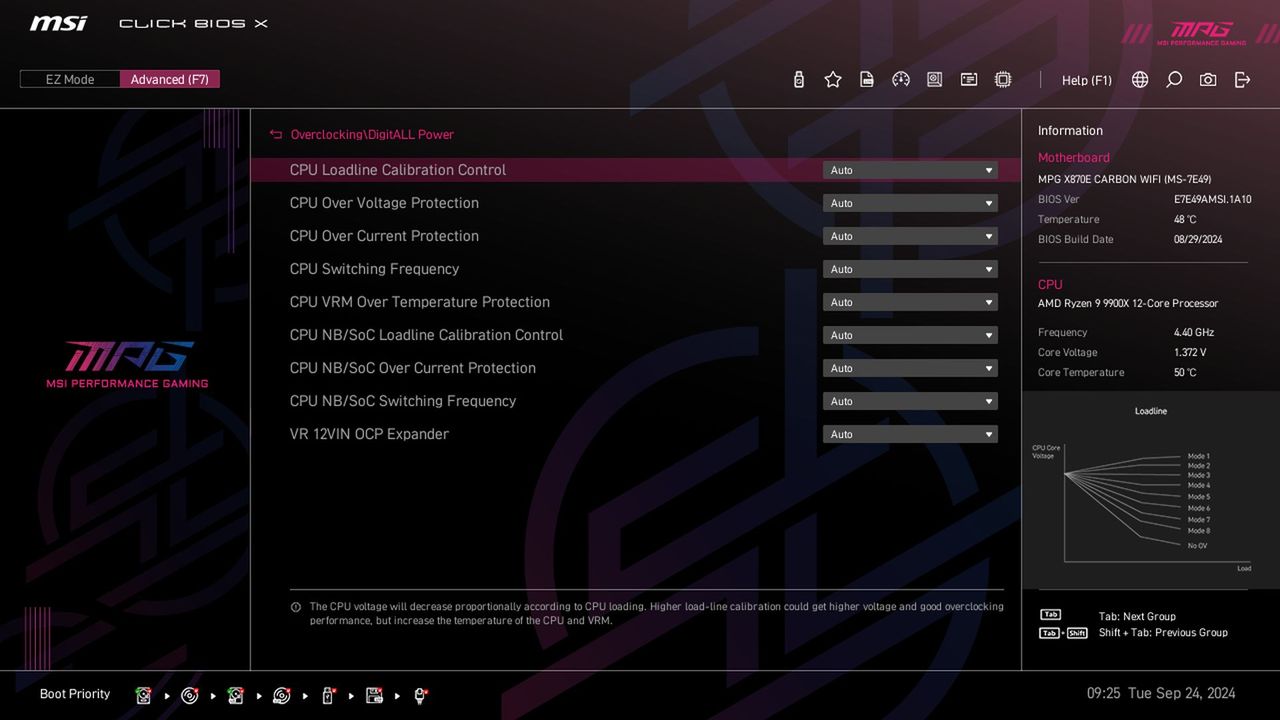

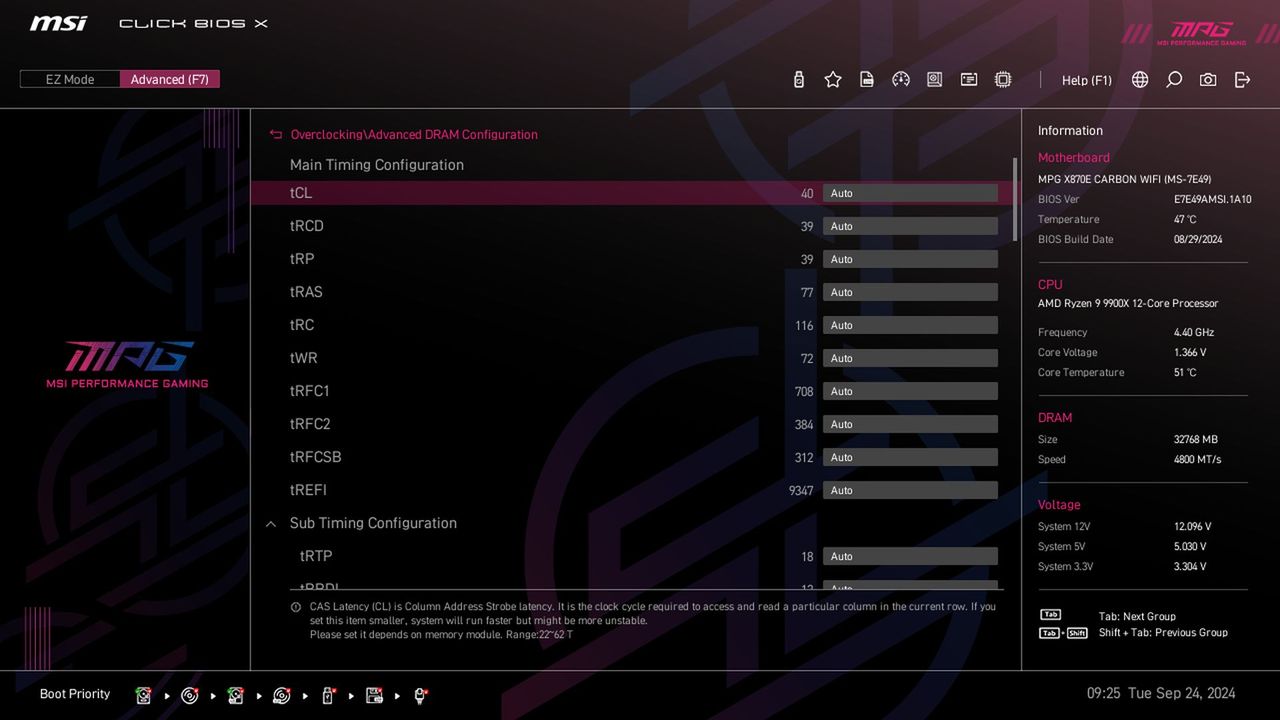

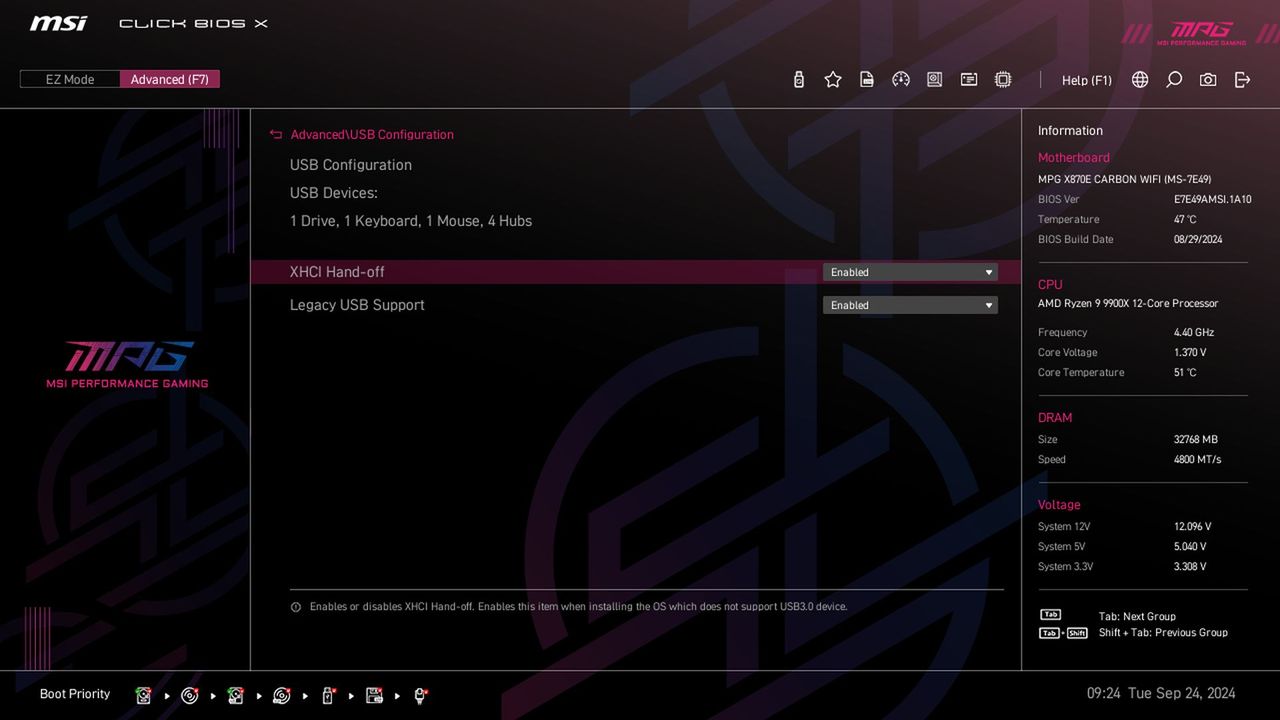

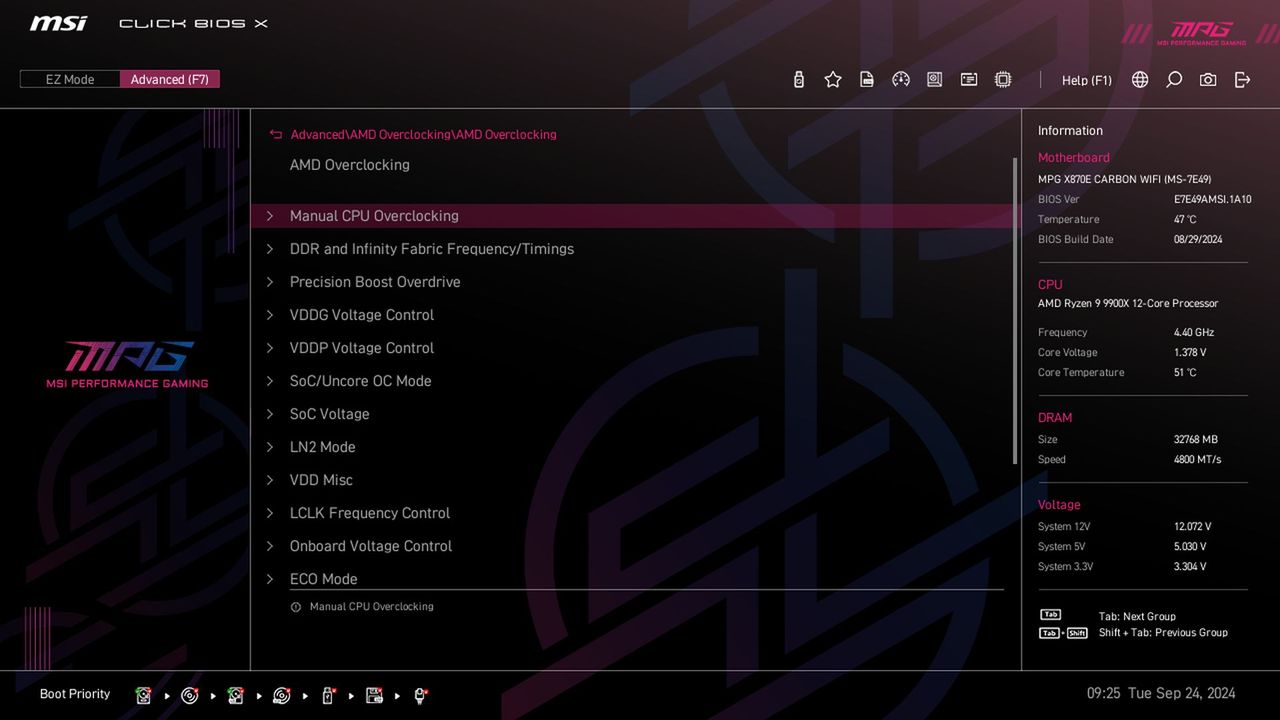

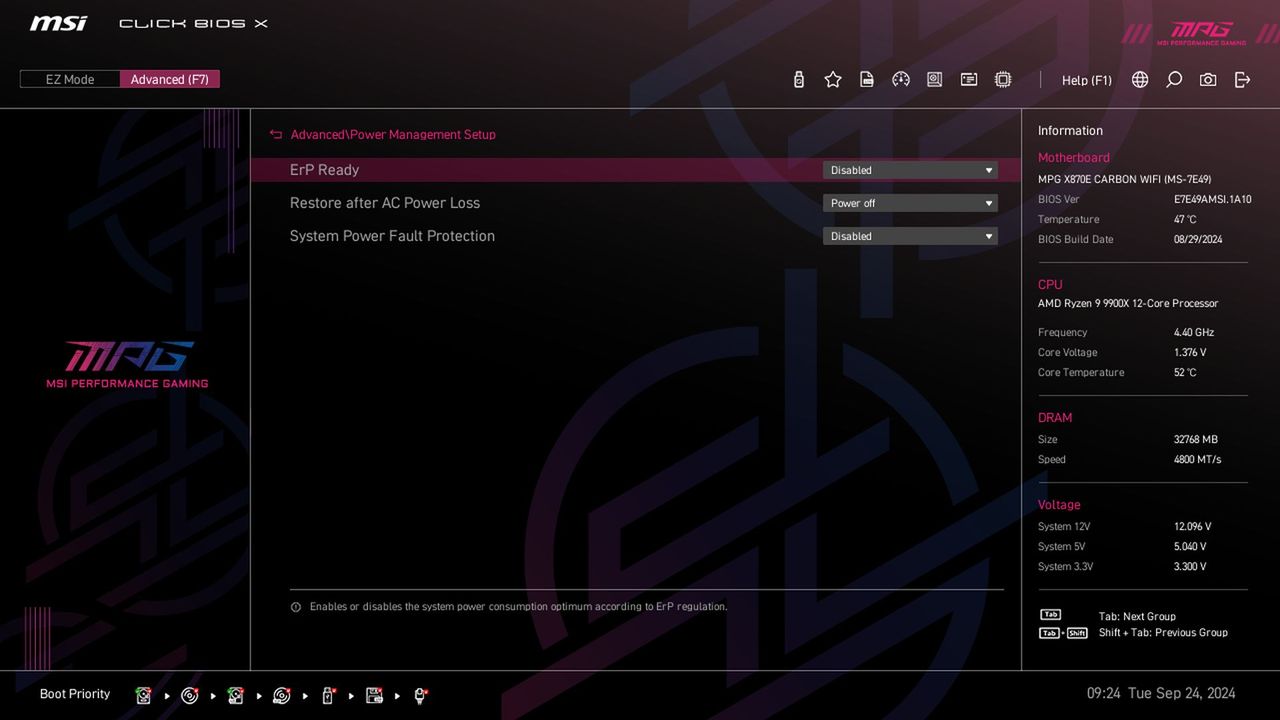

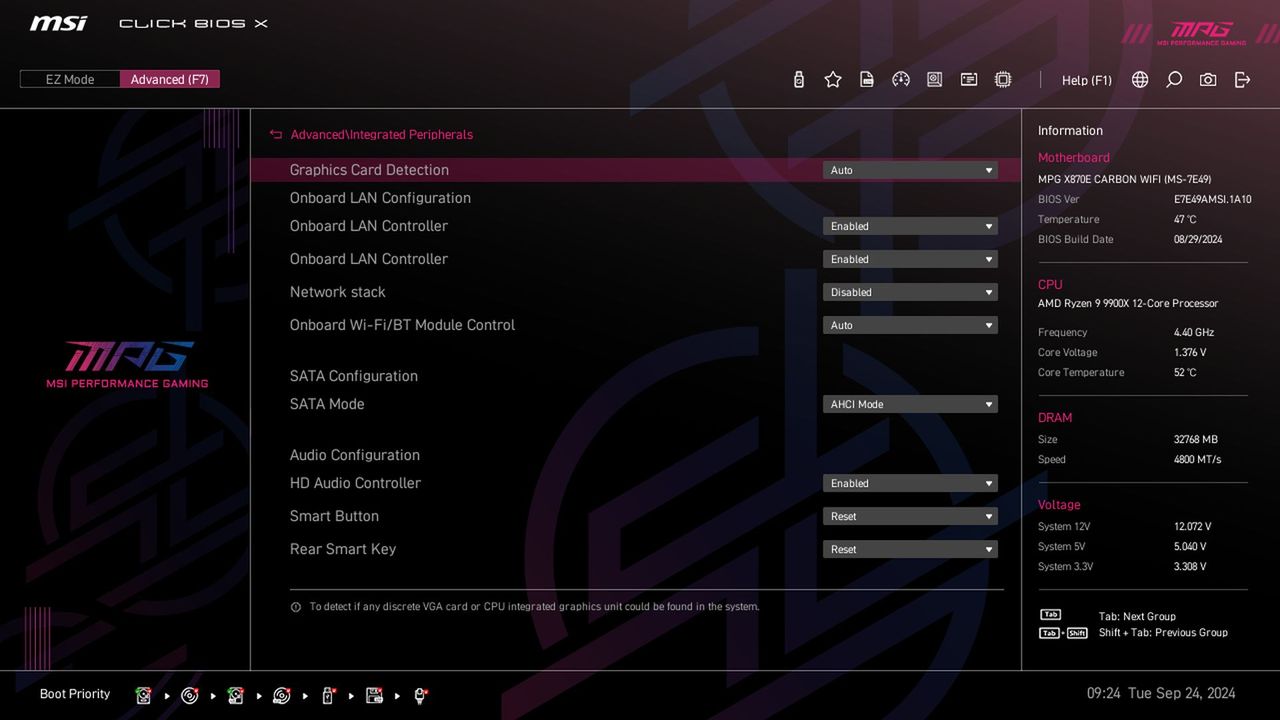

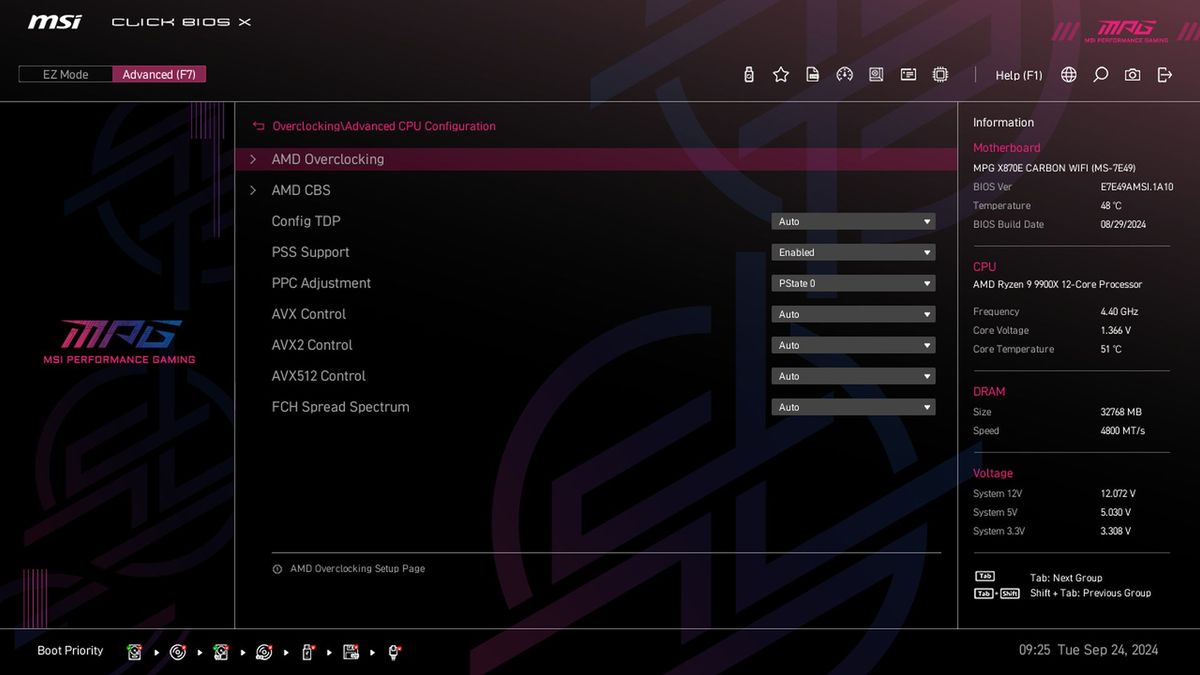

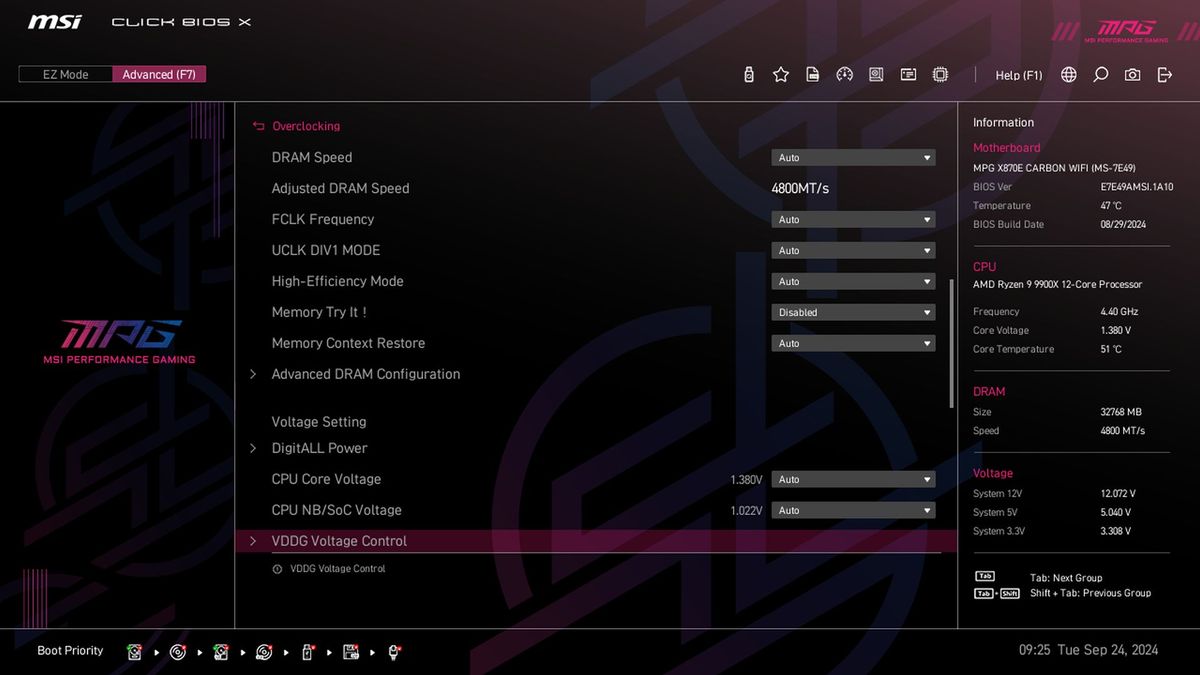

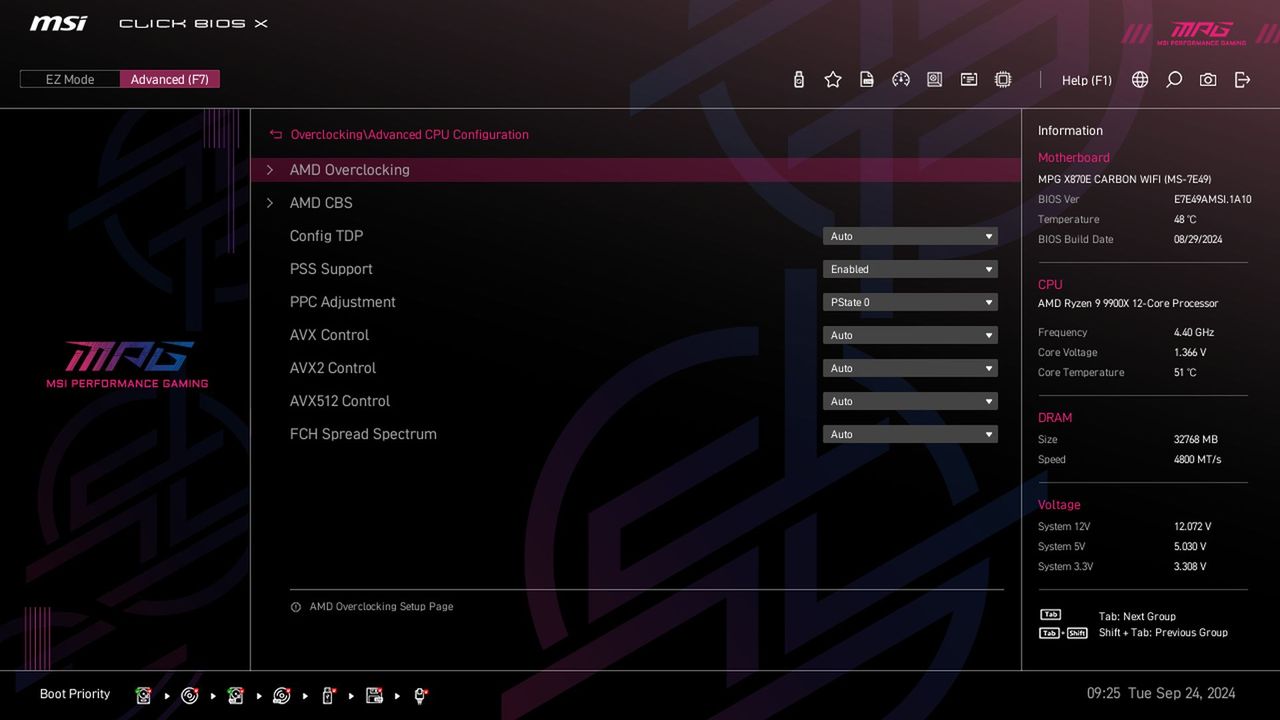

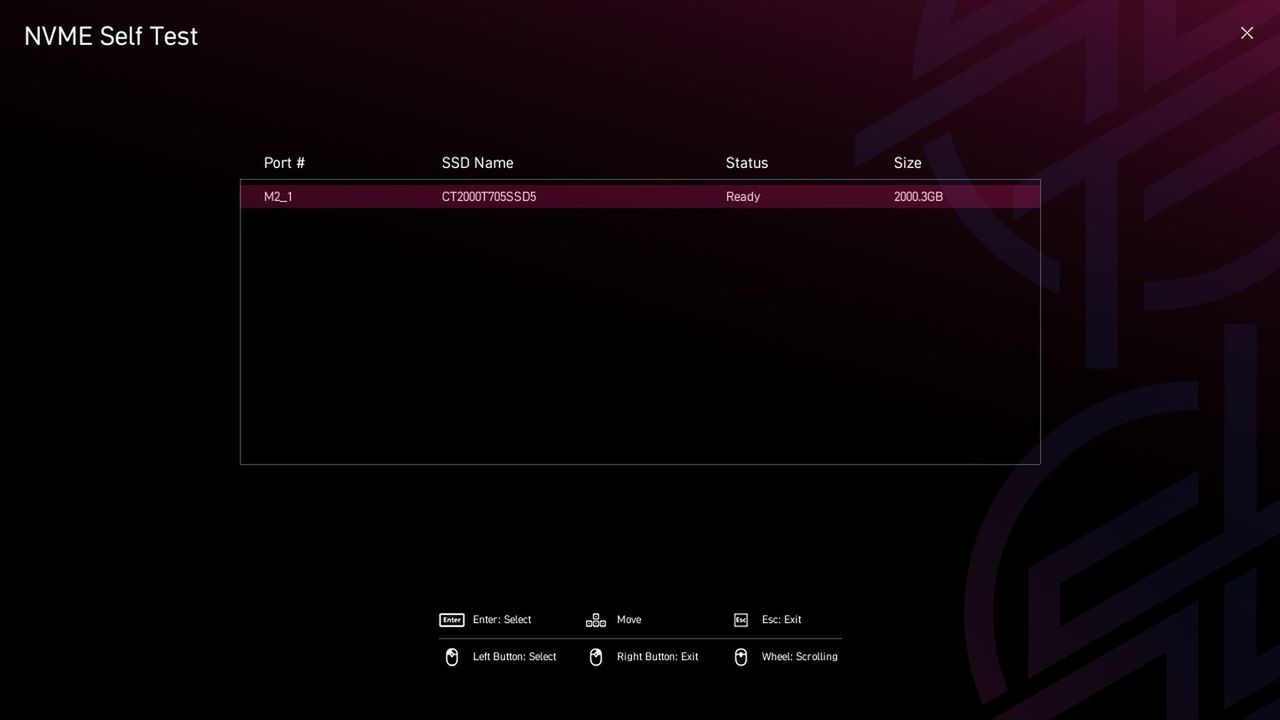

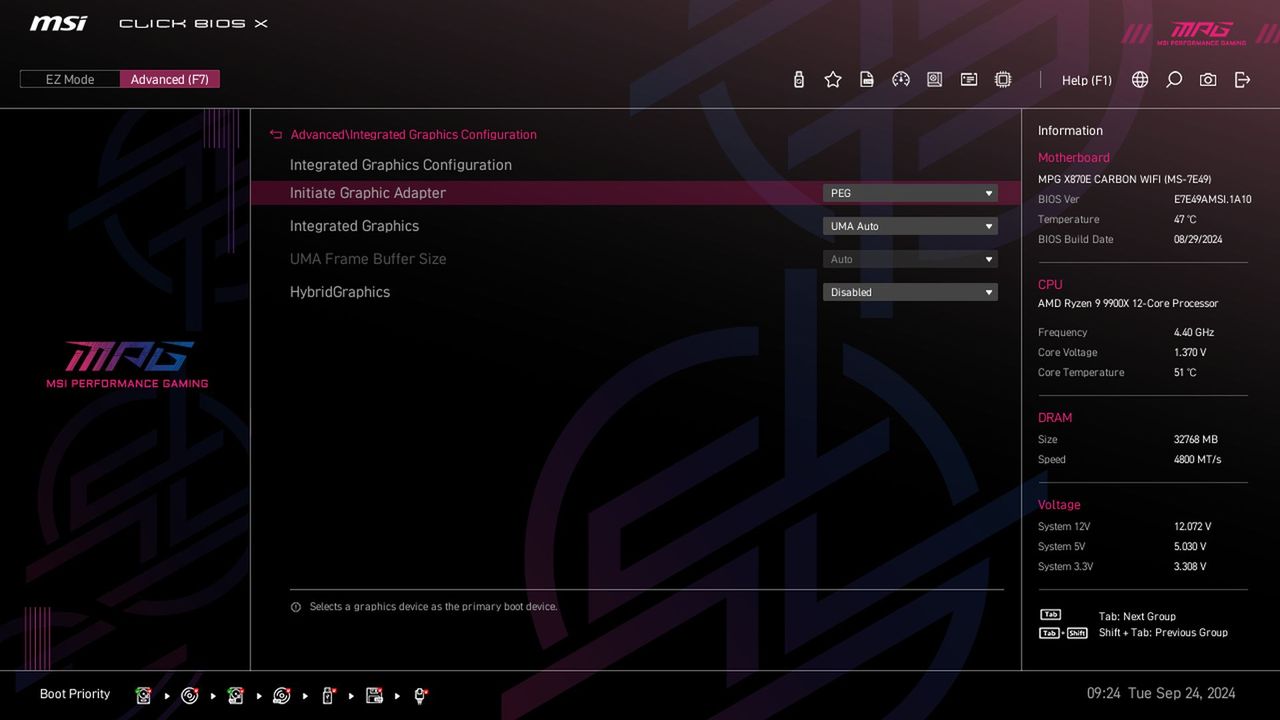

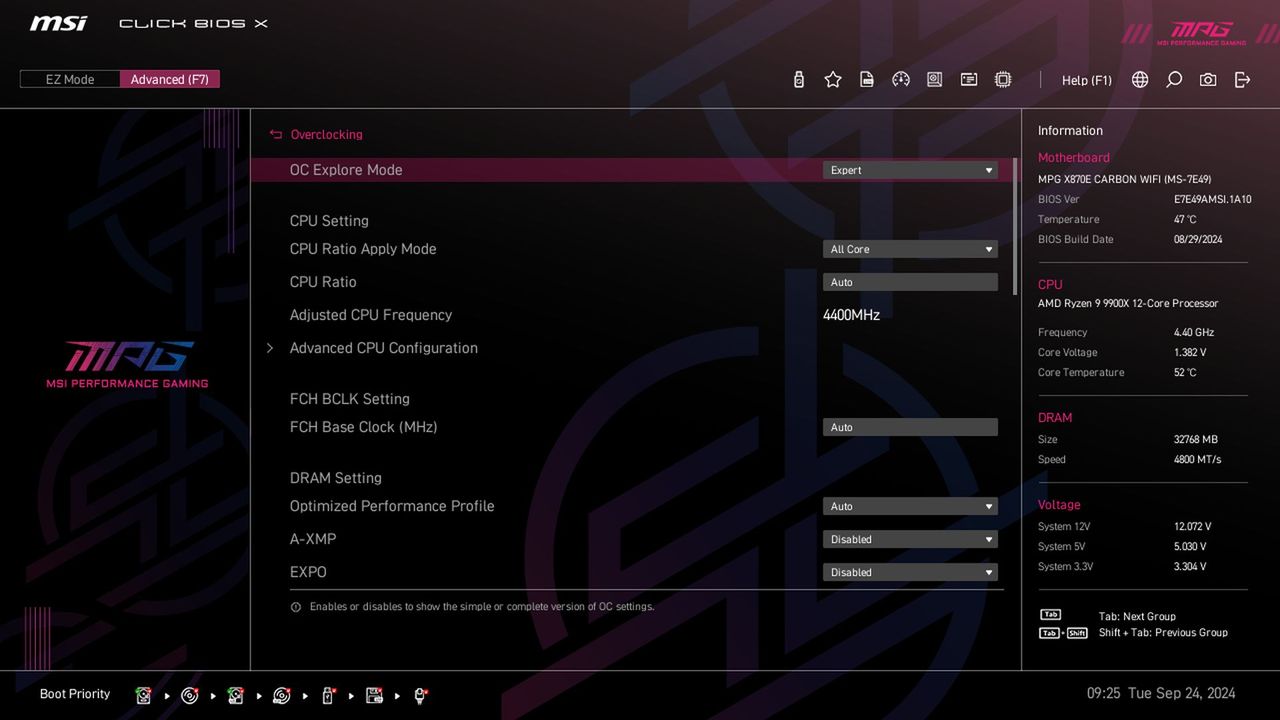

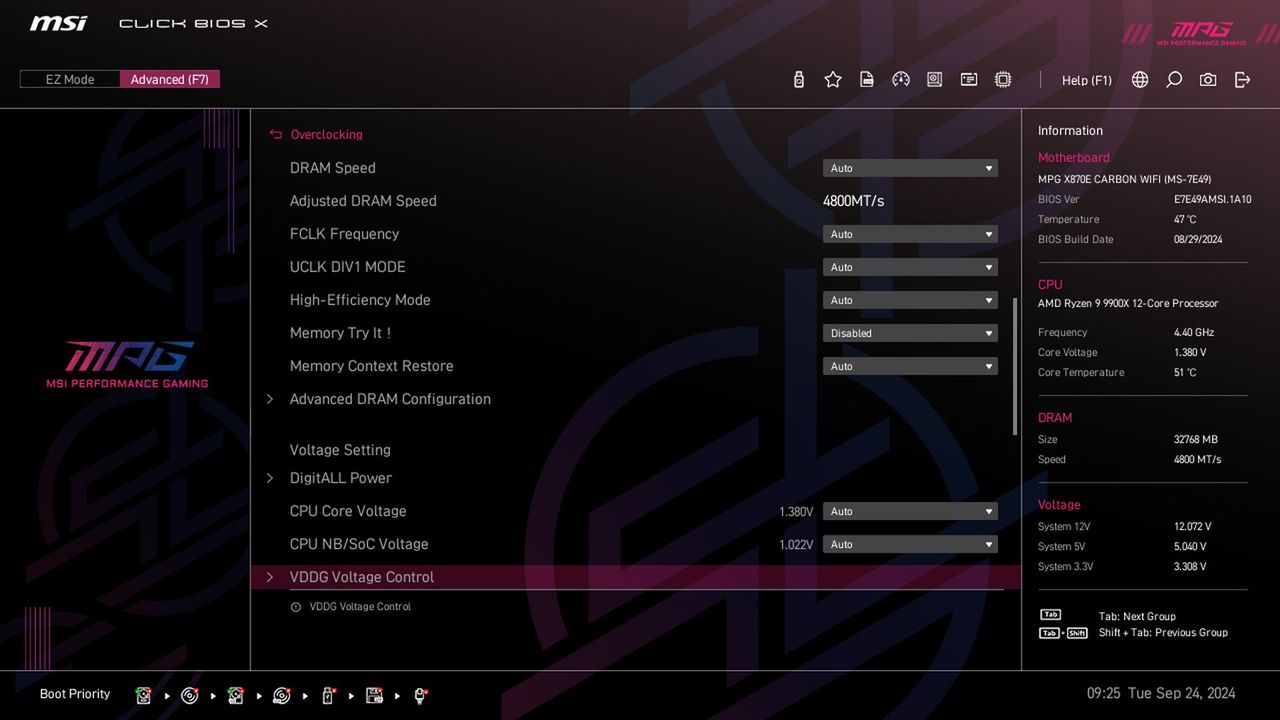

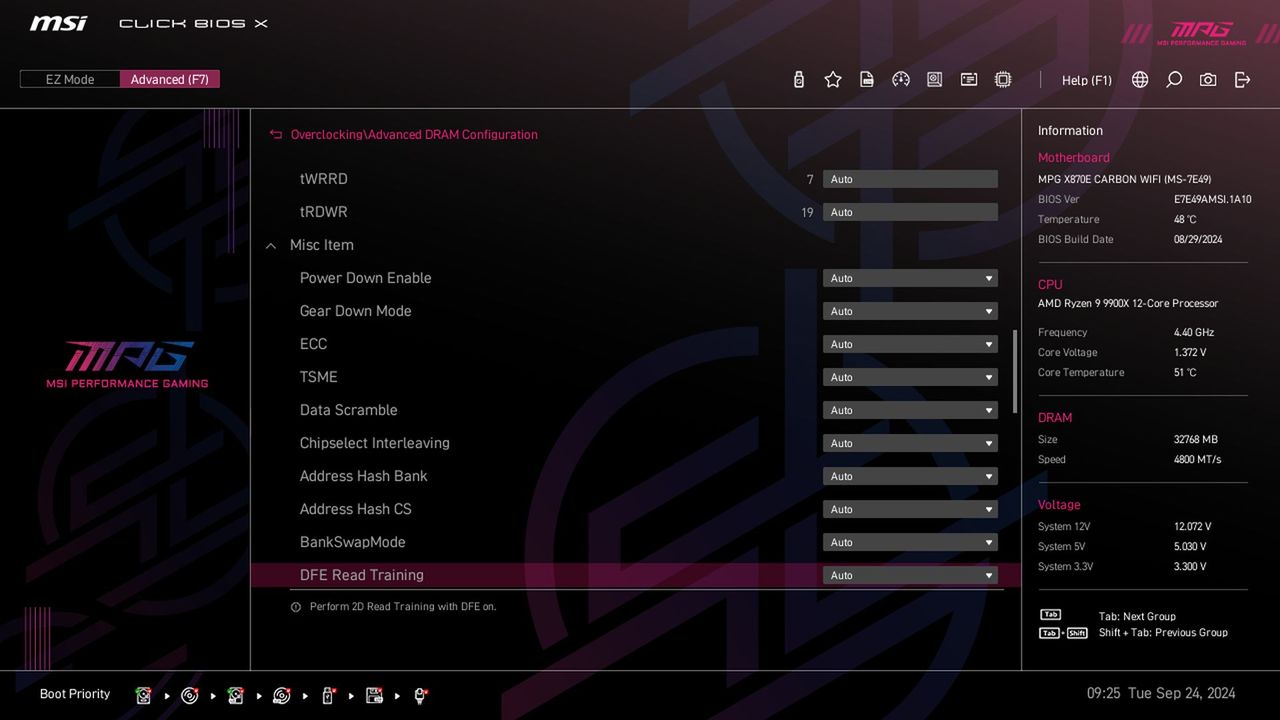

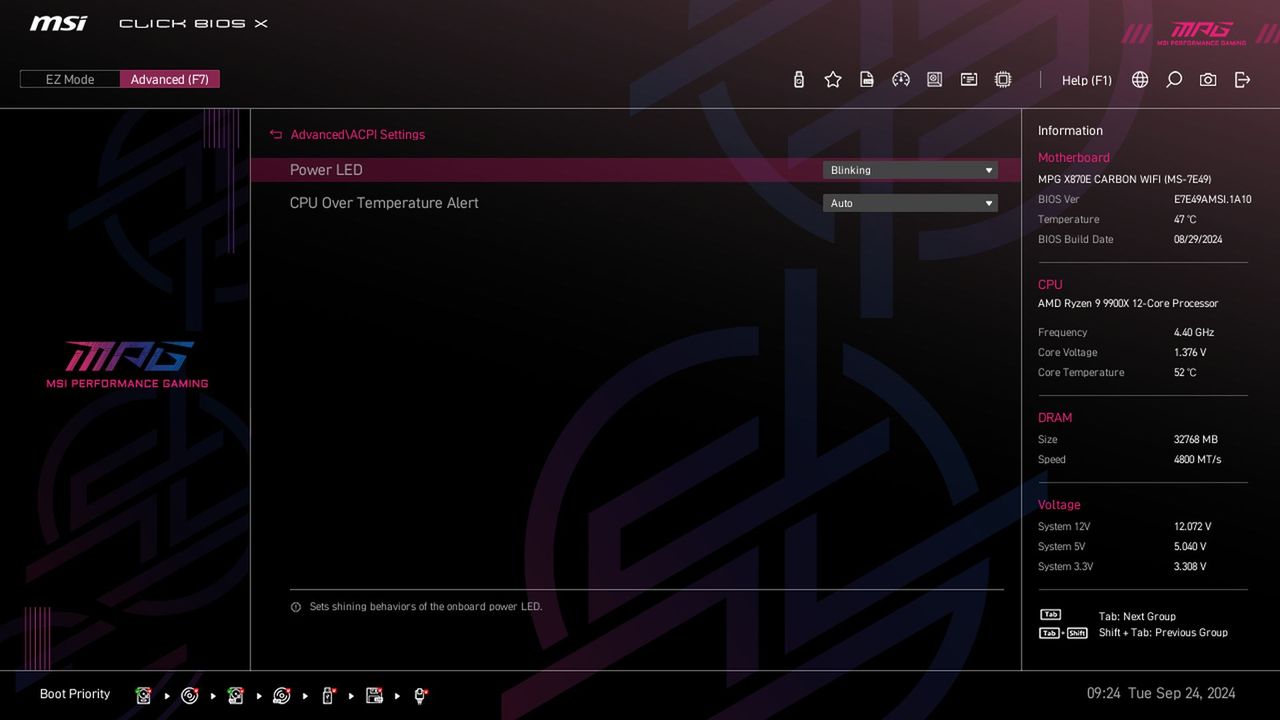

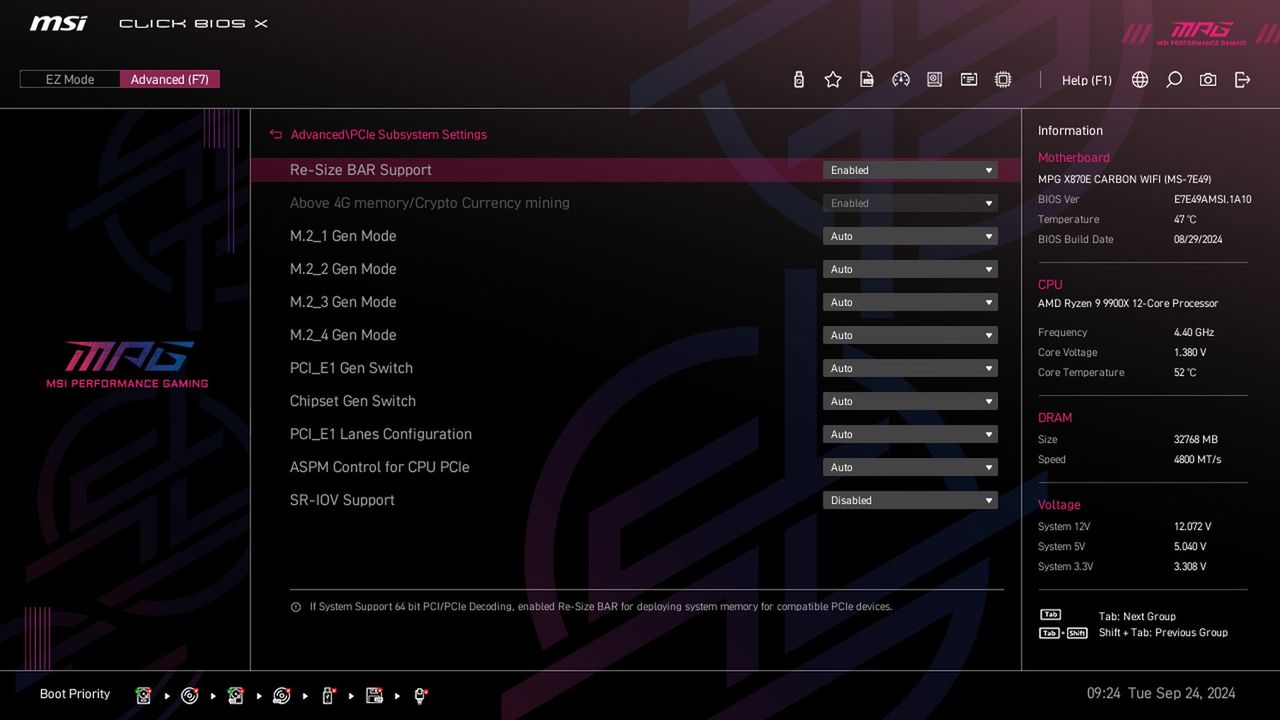

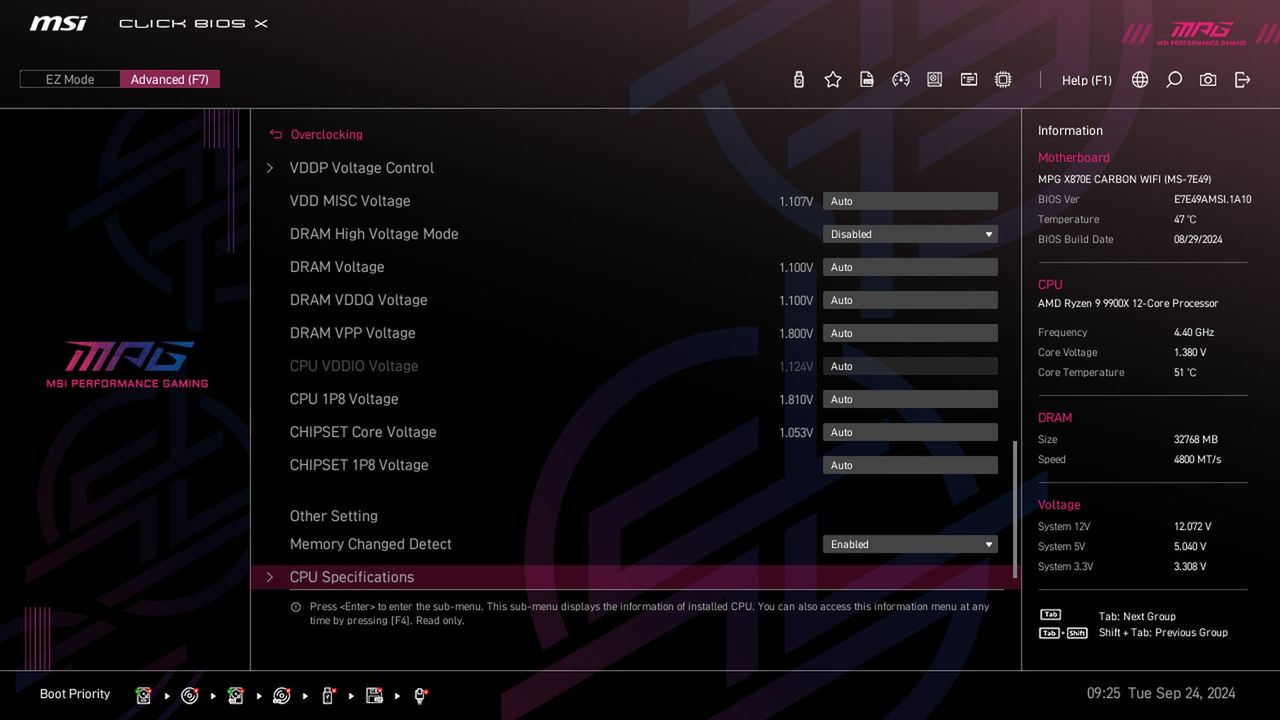

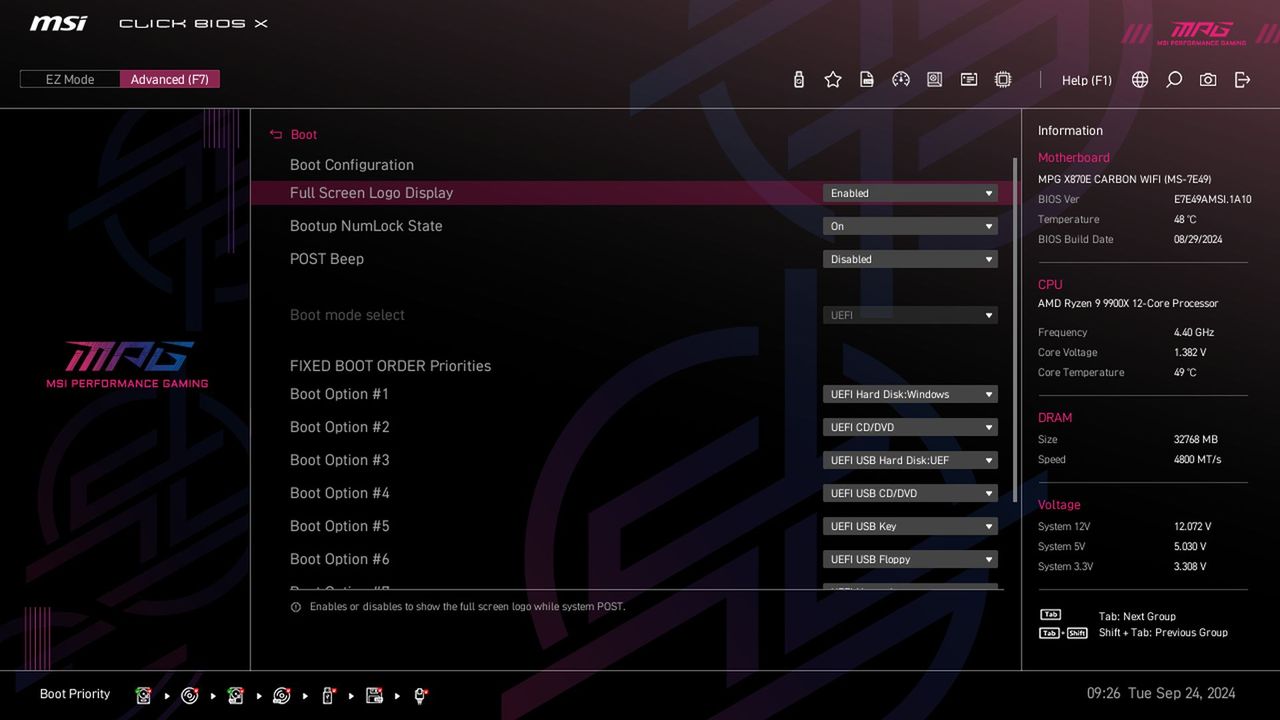

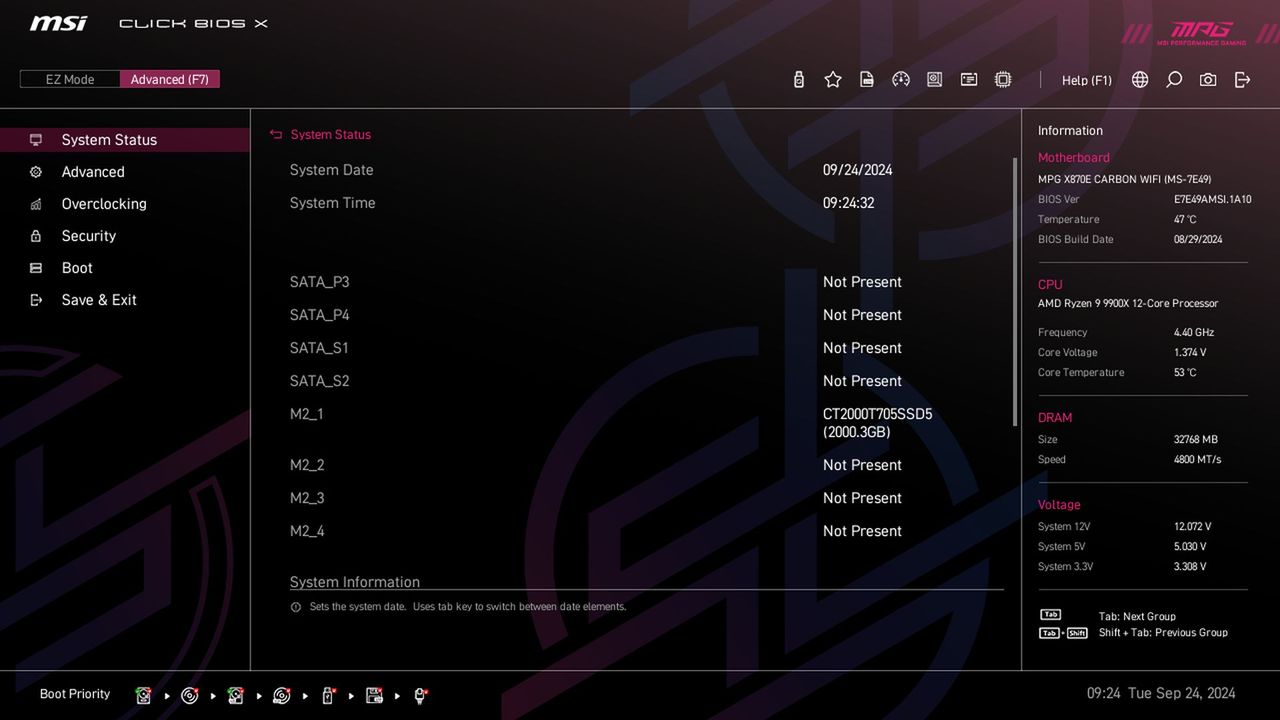

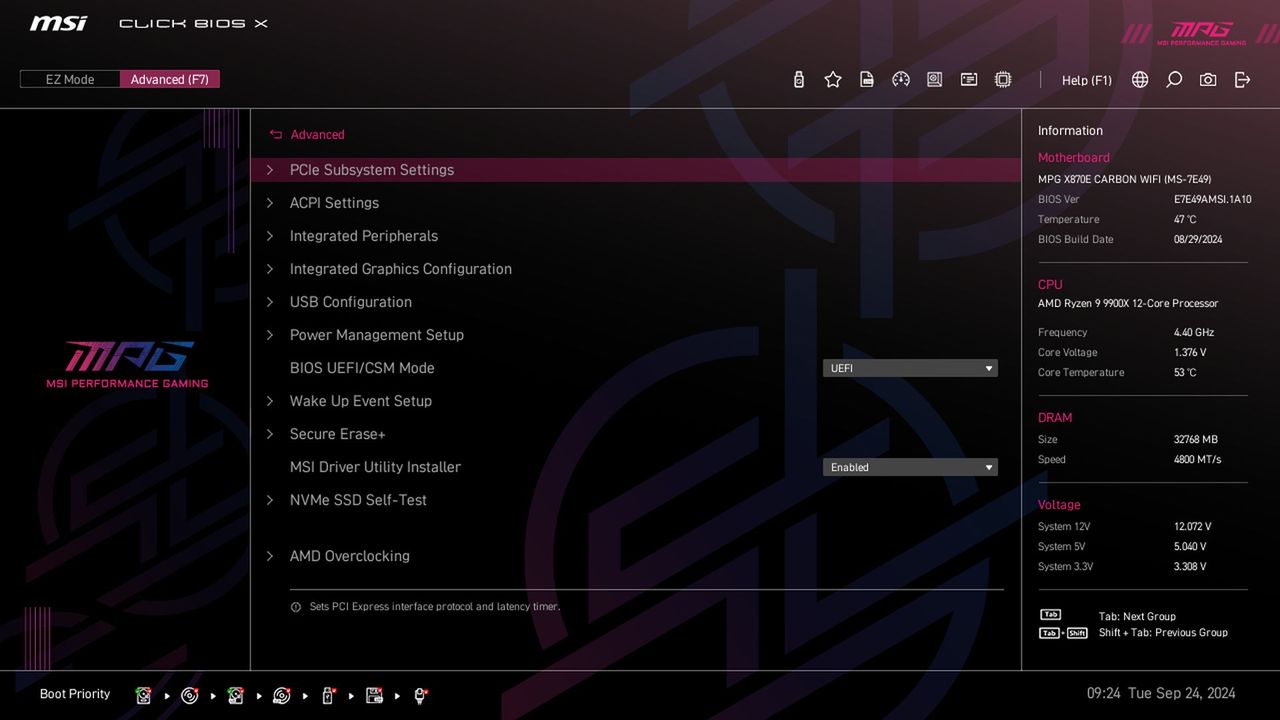

With X870, MSI has updated its BIOS, renaming it “Click X”, and improved the aesthetic and functionality. The company changed up the format with the headings on the left side, details in the middle, and system status information on the right side. Like most other board partners, it has an informational EZ Mode that allows for limited functionality, such as Game Boost, PBO, and more. Overall, I like the new layout, and maneuvering around is intuitive after a short time, though it does take some getting used to. The dark, fading purple background and white labeling are easy to read, and most of what you need is at your fingertips.

Image 1 of 21
MSI X870E Carbon WIFI
(Image credit: Tom's Hardware)

Software

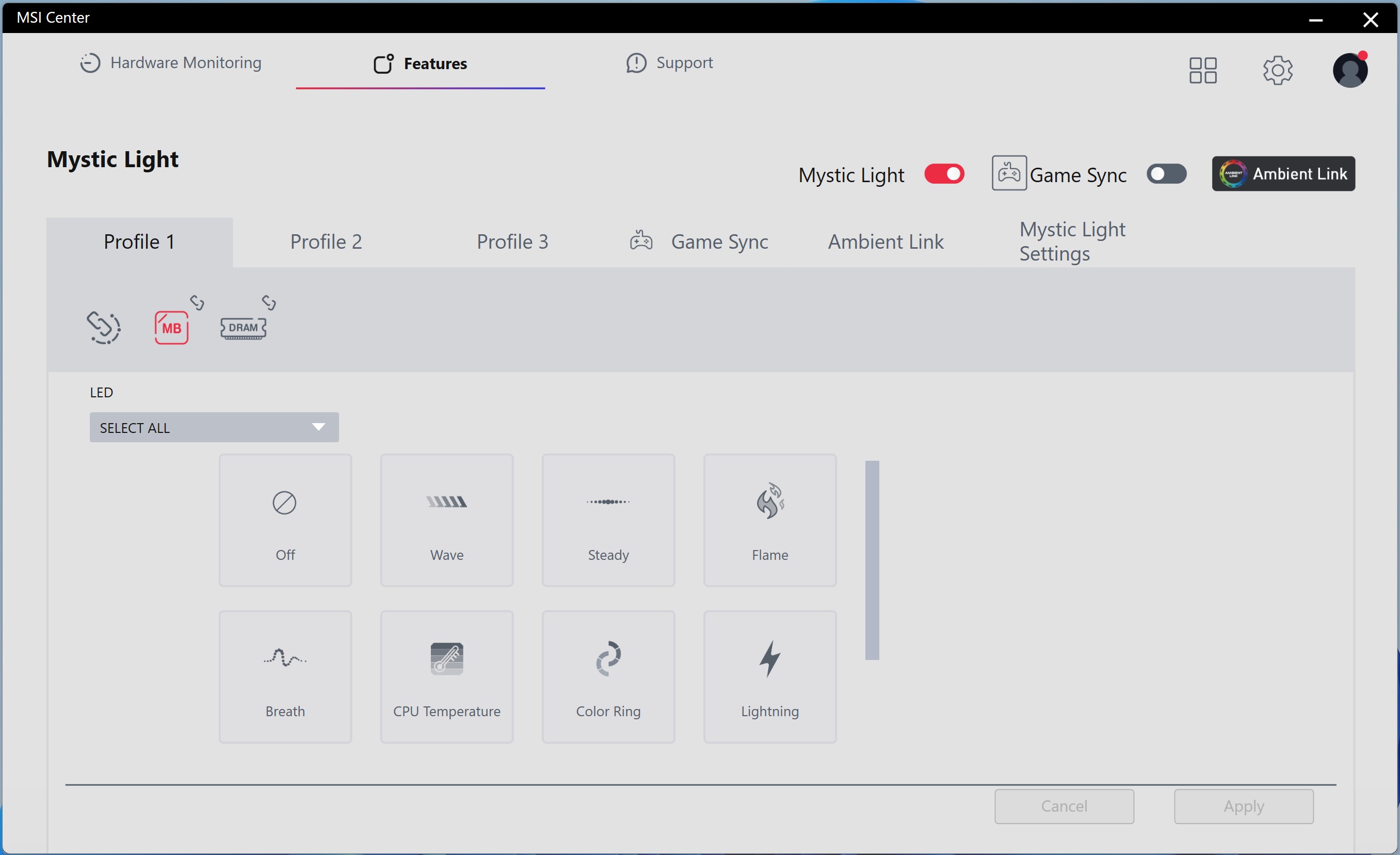

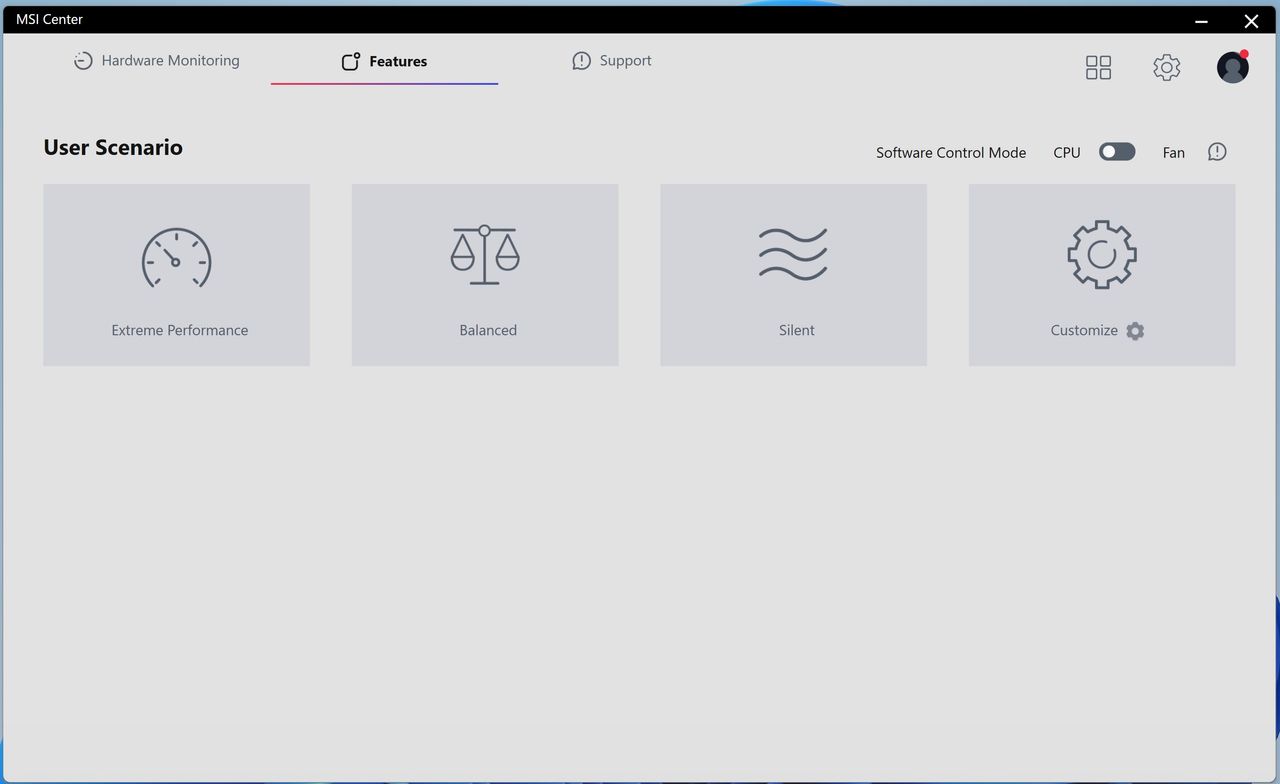

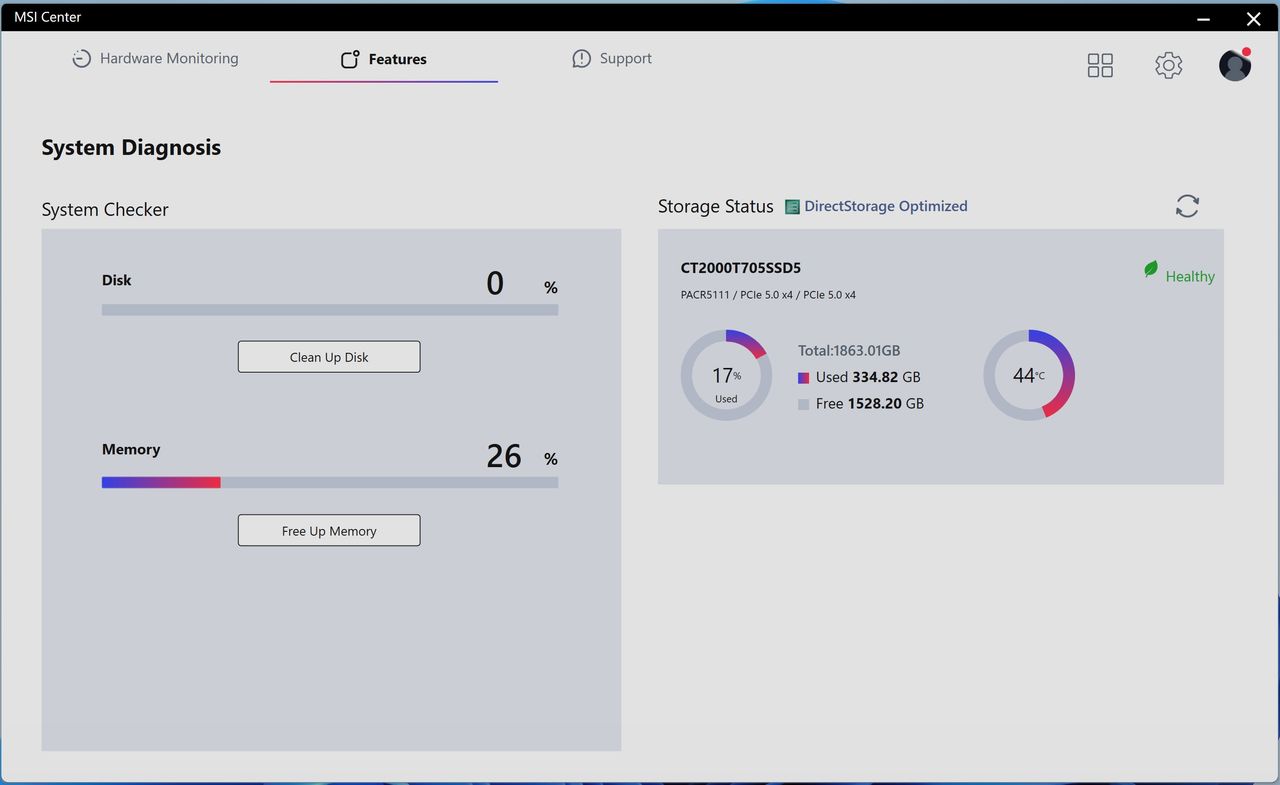

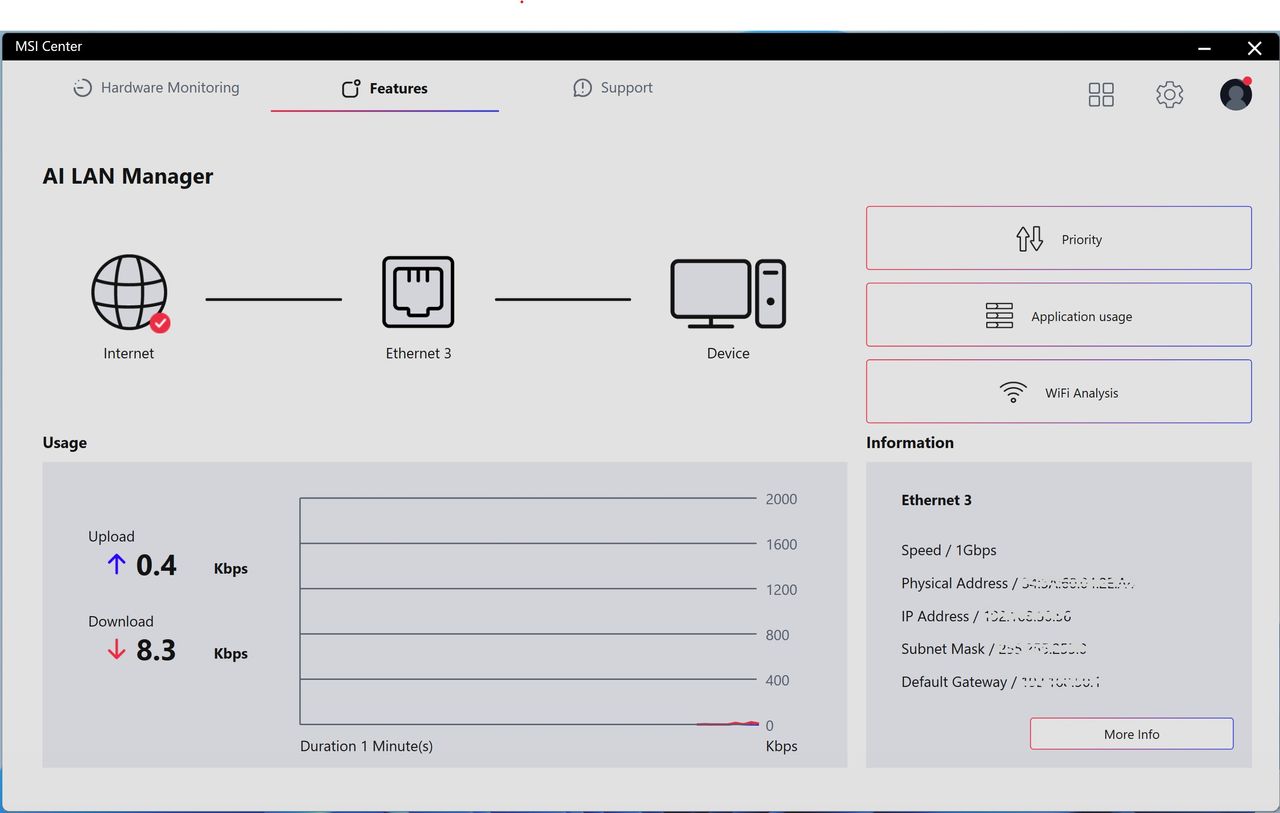

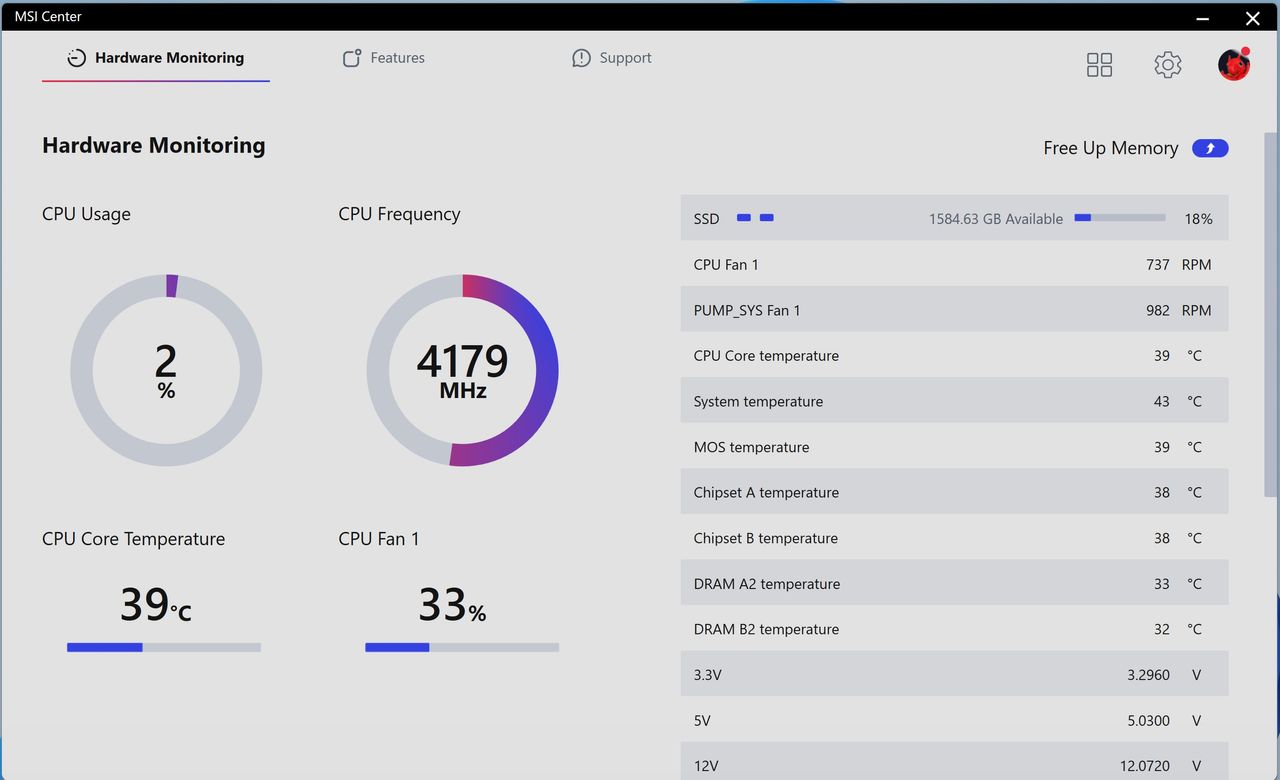

MSI Center is a single utility that covers quite a bit of functionality. From hardware monitoring to RGB control with Mystic Light, the software has many applets and is a one-stop shop for downloading other utilities, including overclocking and fan control. Those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will find them all in MSI Center.

Image 1 of 5
MSI X870E Carbon WIFI
(Image credit: Tom's Hardware)

Test System / Comparison Products

We’ve updated our test system to Windows 11 (23H2) 64-bit OS with all updates applied as of late September 2024 (this includes the Branch Prediction Optimizations for AMD). Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS available to the public. Thanks goes out to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs in our updated testbed. The hardware we used is as follows:

Test System Components

(Image credit: Tom's Hardware)
Swipe to scroll horizontally
CPUAMD Ryzen 9 9900XRow 0 - Cell 2
CoolingArctic Liquid Freezer II 420Row 1 - Cell 2
StorageCrucial 2TB T705 M.2 PCIe 5.0 NVMe SSDRow 2 - Cell 2
RAMKingston Fury Beast DDR5-6000 CL36(KF560C36BBEAK2-32)
RAMTeamgroup T-Froce Delta DDR5-7200 CL34(FF3D518G7200HC34ABK)
RAMKlevv Cras XR5 RGB DDR5-8000(KD5AGUA80-80R380S)
GPUAsus TUF RTX 4080 16GRow 6 - Cell 2
PSUEVGA Supernova 850W P6Row 7 - Cell 2
OSWindows 11 64-bit (23H2 - 22631.4169)Row 8 - Cell 2
SoundIntegrated HD audioRow 9 - Cell 2
NetworkIntegrated Networking (GbE to 10 GbE)Row 10 - Cell 2
Graphics DriverNVIDIA Driver 561.09Row 11 - Cell 2

Benchmark Settings

Swipe to scroll horizontally
Synthetic Benchmarks and SettingsRow 0 - Cell 1
ProcyonVersion 2.6.848 64
Row 2 - Cell 0 Office Suite (Office 365), Video Editing (Premiere Pro 23.6), Photo Editing (Photoshop 25.0, Lightroom Classic 12.5)
3DMarkVersion 2.27.8177 64
Row 4 - Cell 0 Firestrike Extreme (v1.1) and Time Spy (v1.2) Default Presets
Cinebench R24Version ‘build unknown’
Row 6 - Cell 0 Open GL Benchmark - Single and Multi-threaded
BlenderVersion 3.6.0
Row 8 - Cell 0 Full benchmark (all 3 tests)
Application Tests and SettingsRow 9 - Cell 1
LAME MP3Version SSE2_2019
Row 11 - Cell 0 Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Row 13 - Cell 0 Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Row 15 - Cell 0 Custom benchmark
7-ZipVersion 21.03-beta
Row 17 - Cell 0 Integrated benchmark (Command Line)
Game Tests and SettingsRow 18 - Cell 1
Far Cry 6Ultra Preset - 1920 x 1080, HD Textures ON
F1 2022Ultra Preset - 1920 x 1080, Ultra High (default) Bahrain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Joe Shields
Joe Shields
Motherboard Reviewer

Joe Shields is a Freelance writer for Tom’s Hardware US. He reviews motherboards.
