Firmware, Software and Test System

Firmware

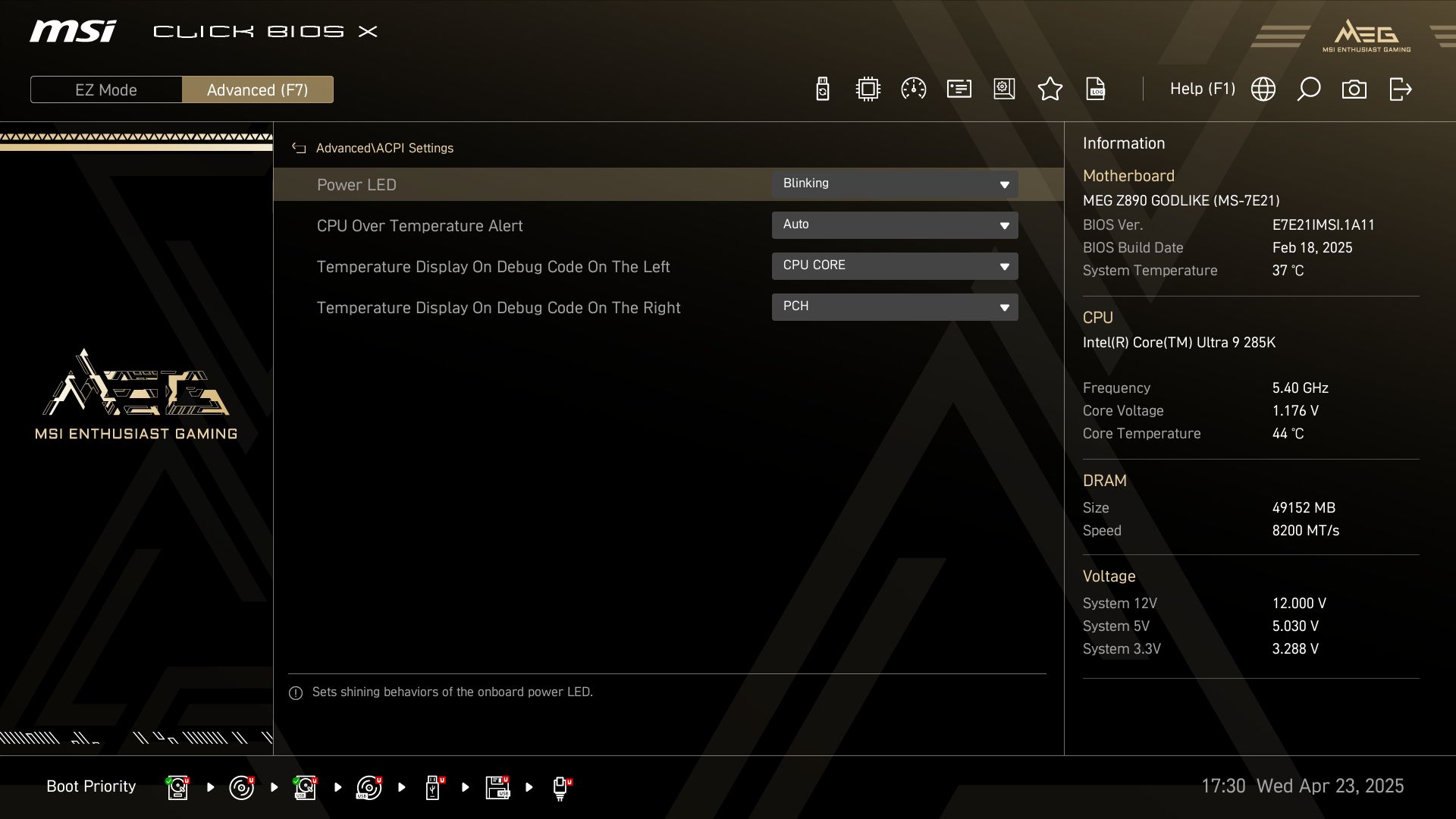

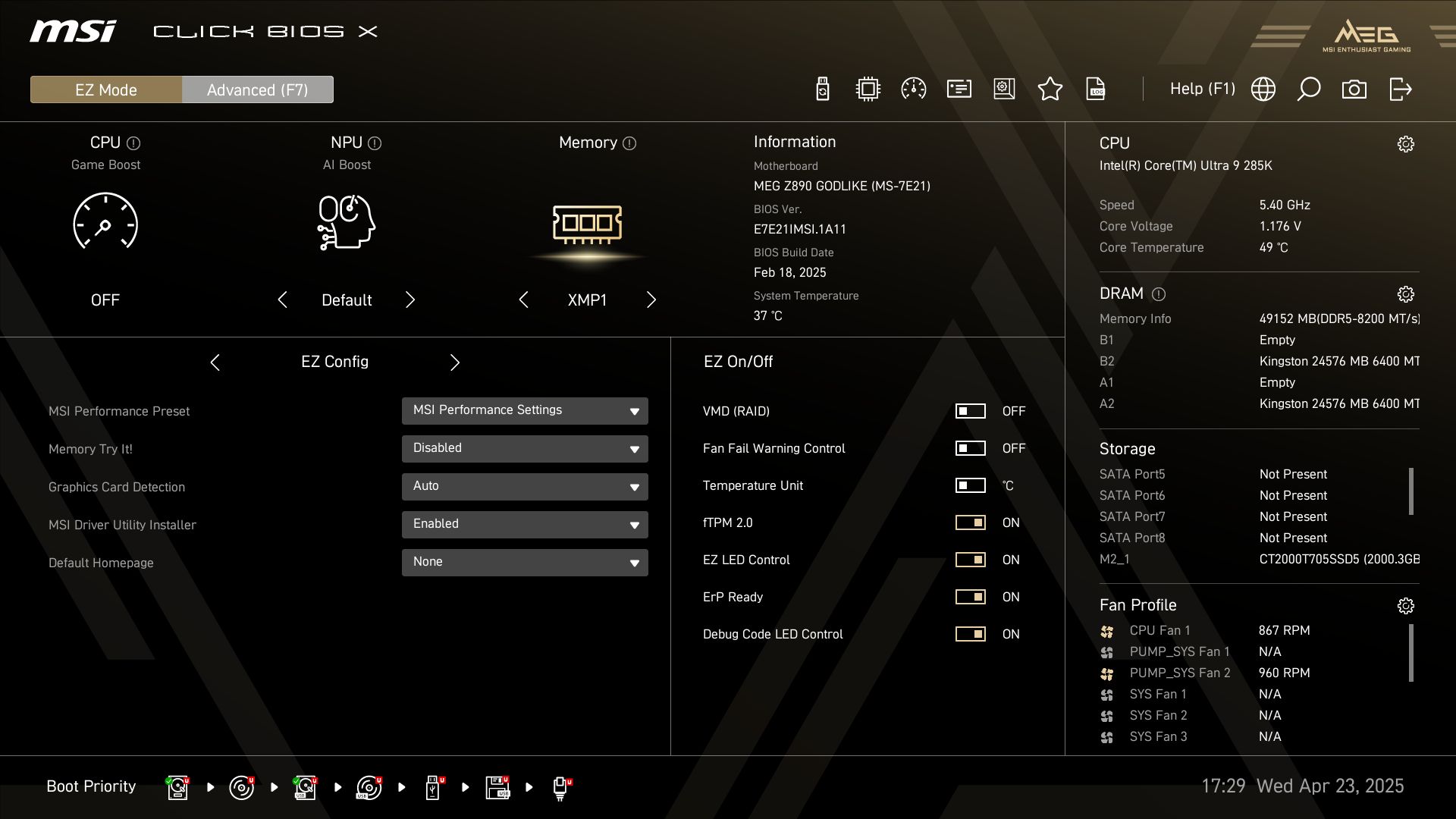

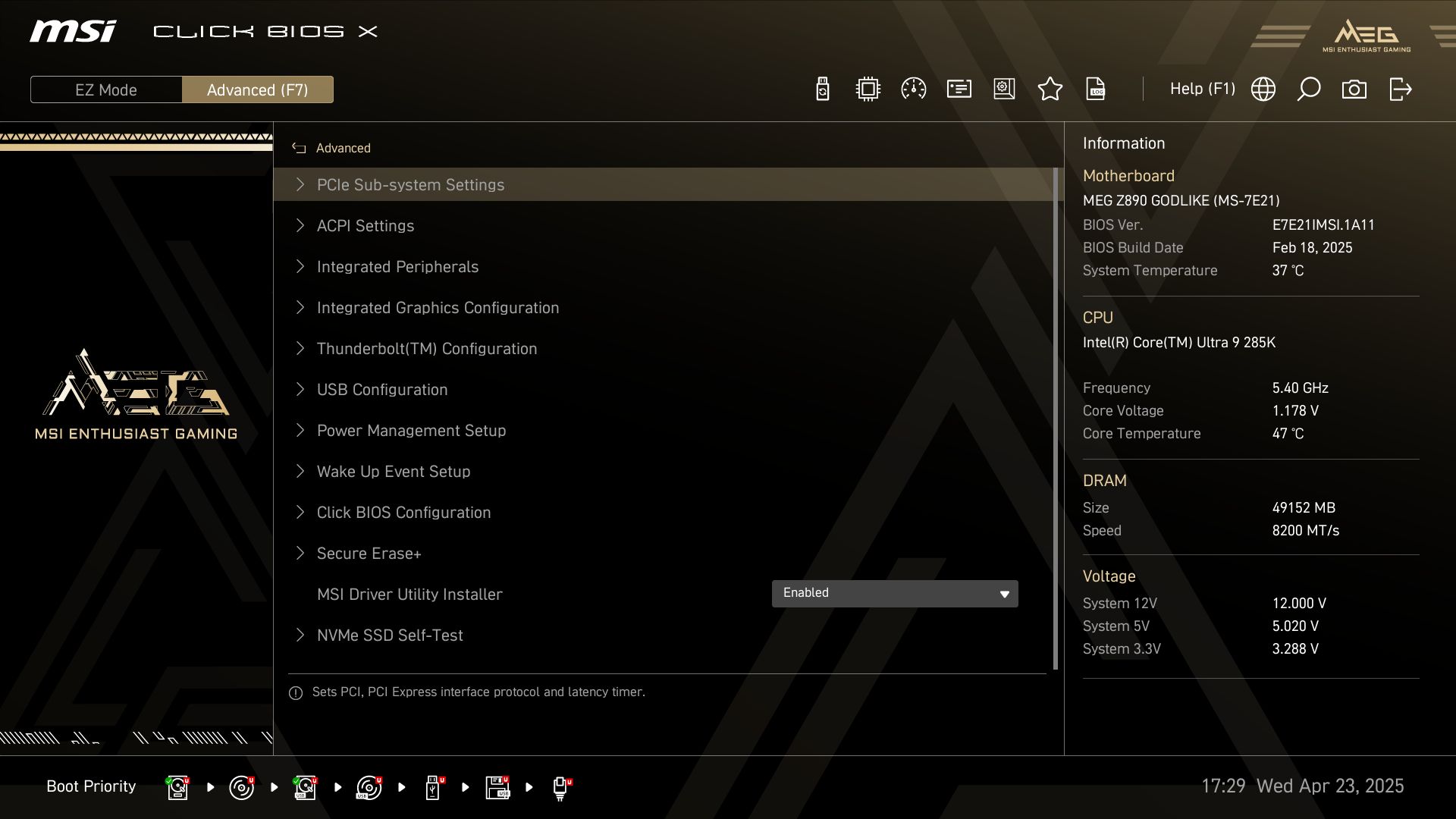

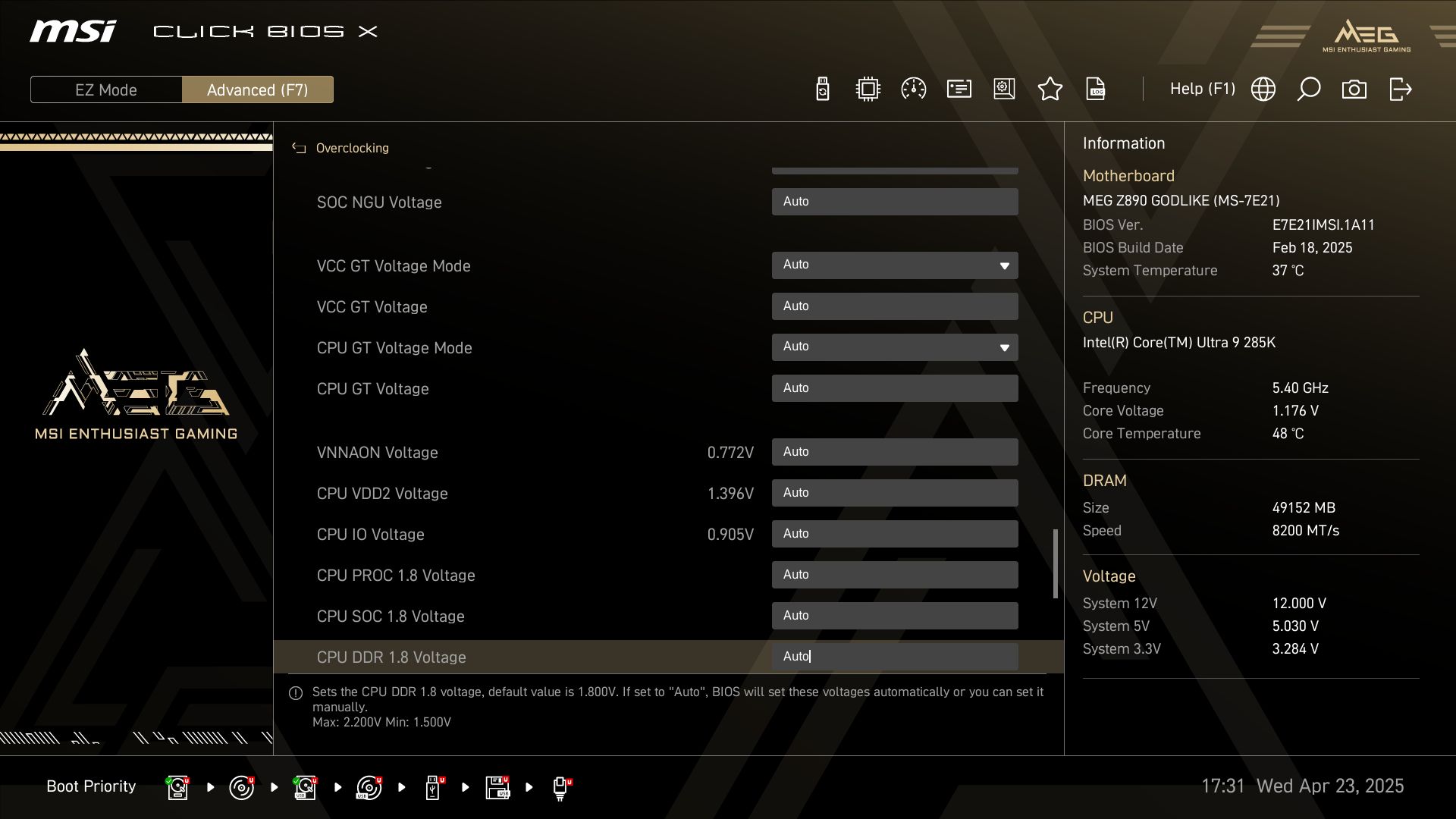

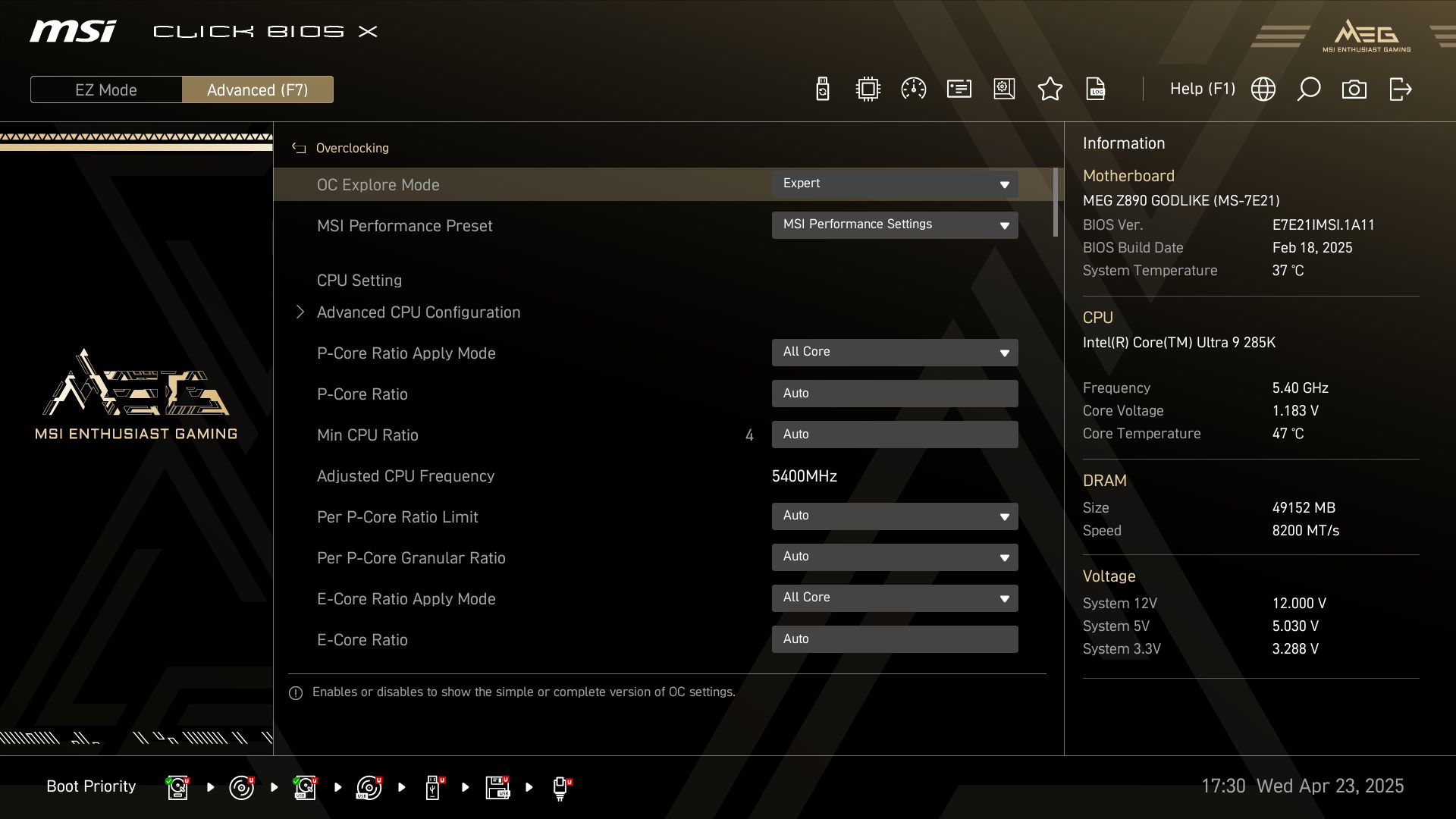

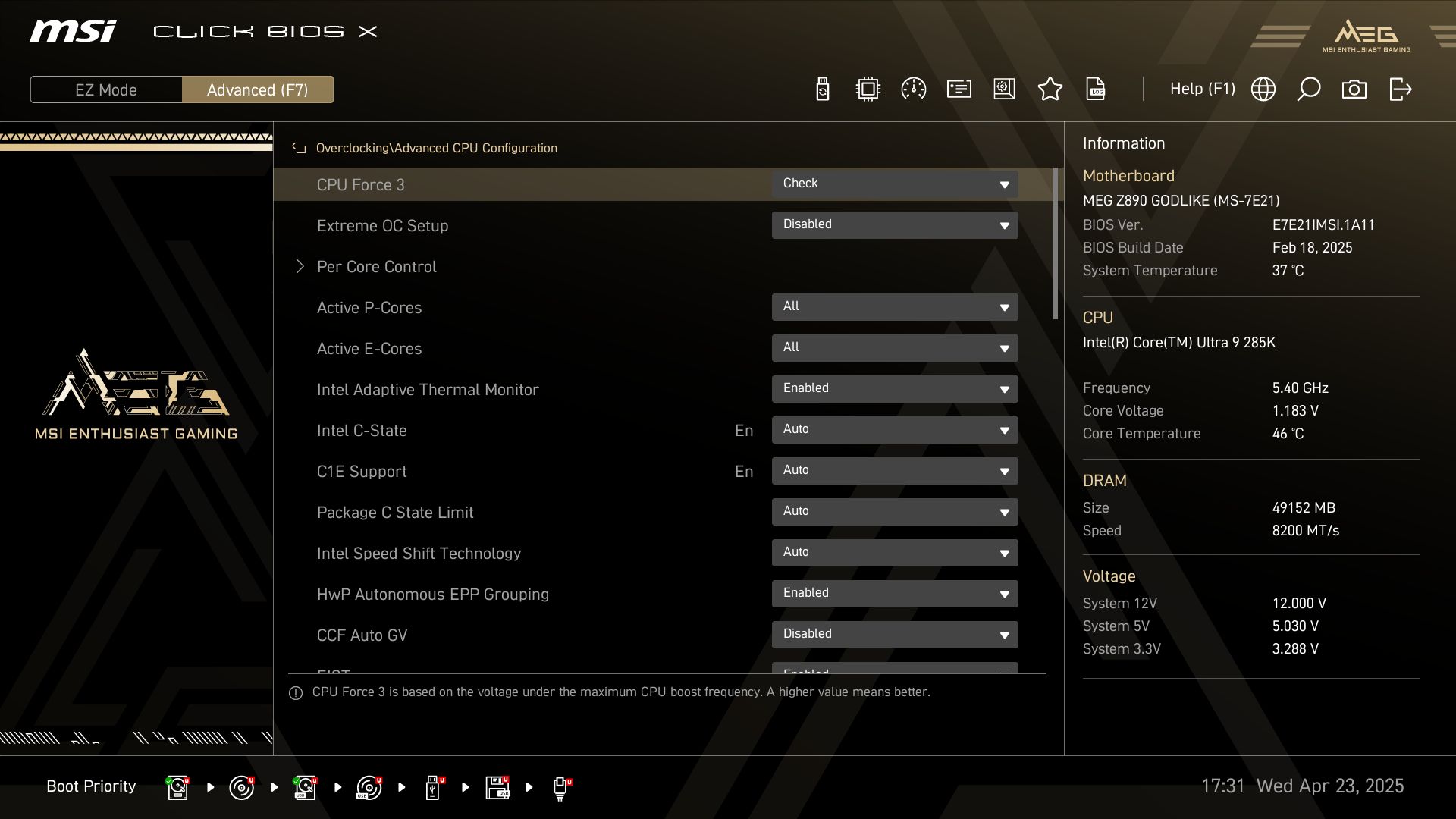

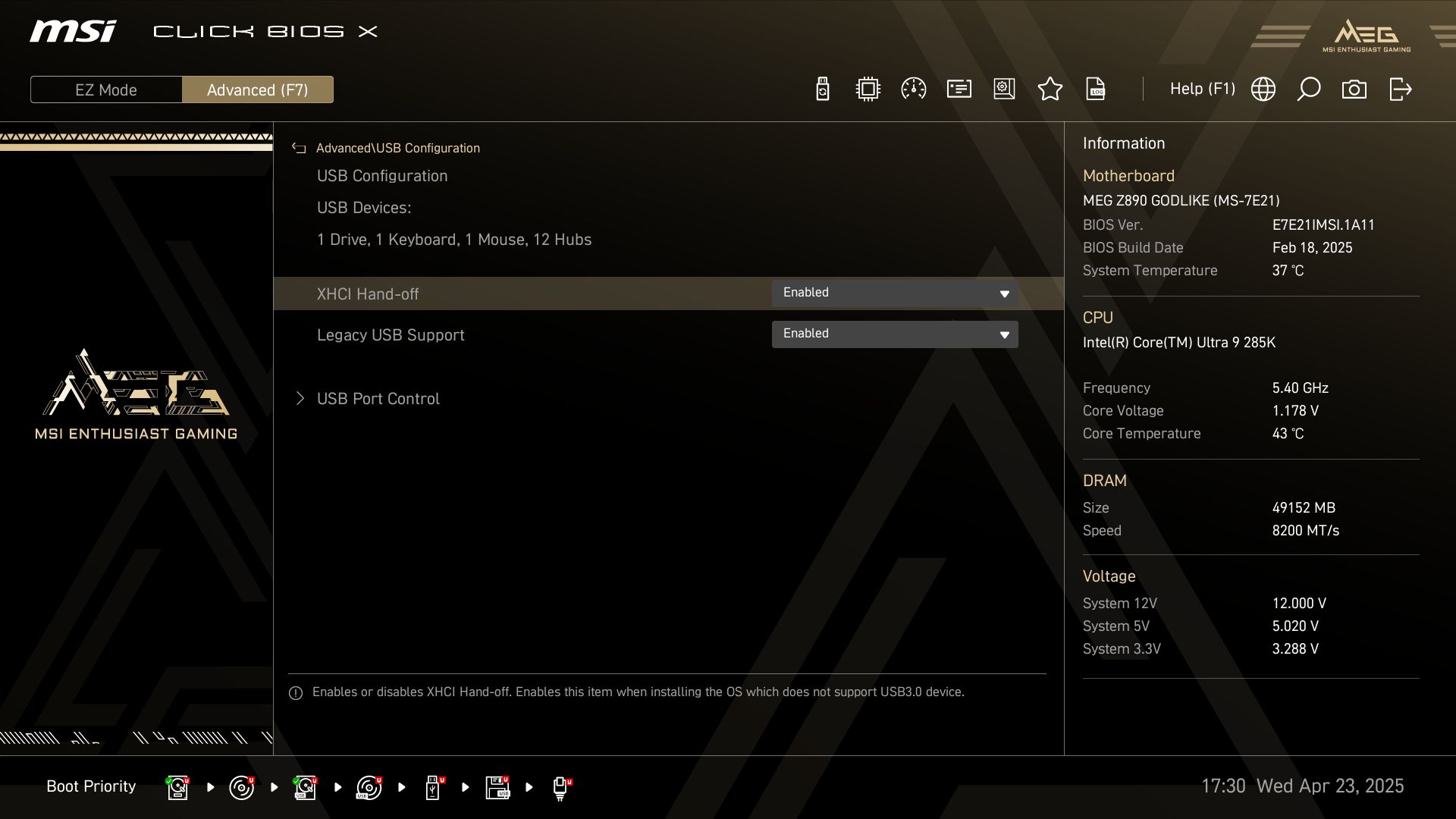

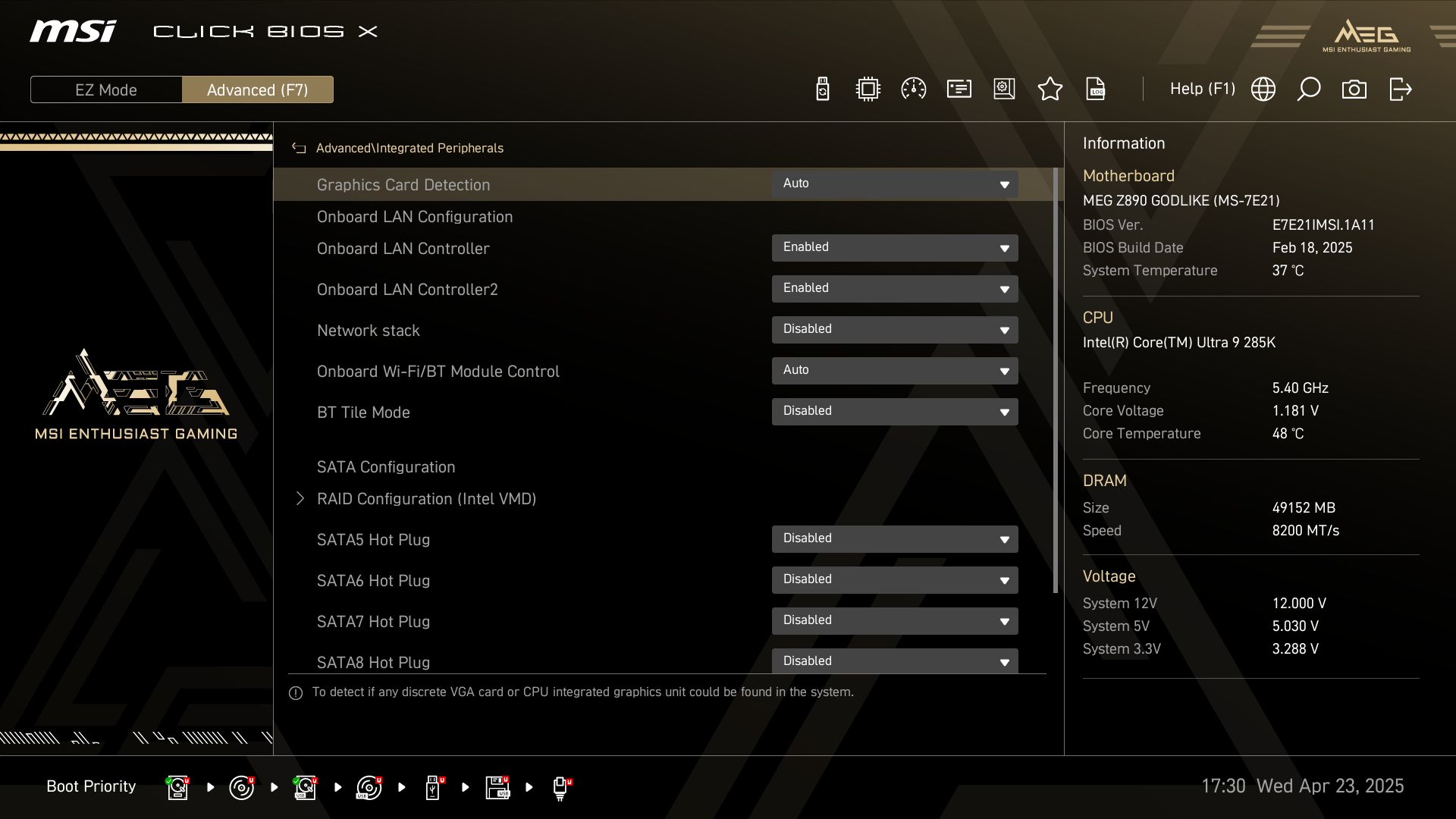

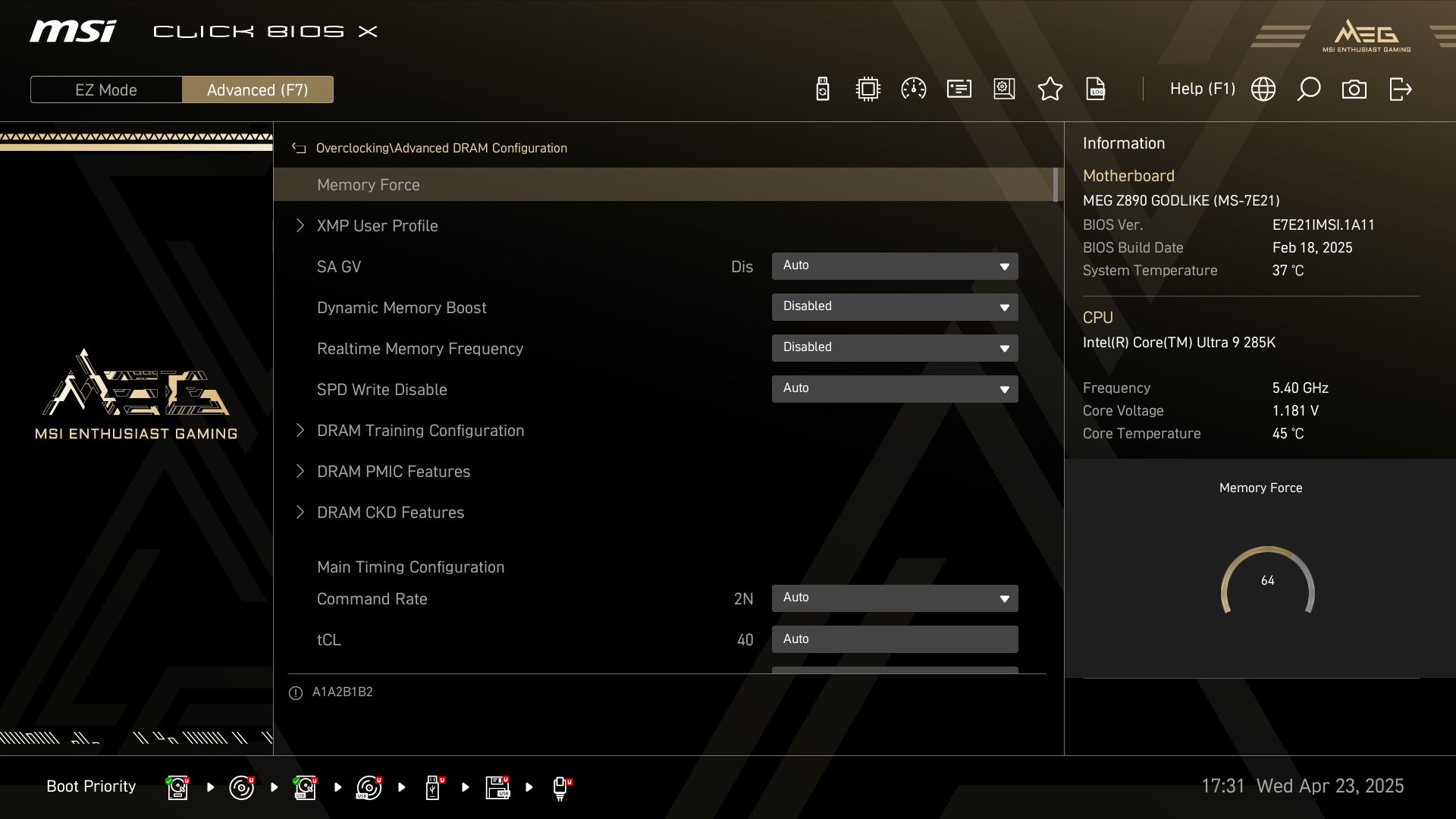

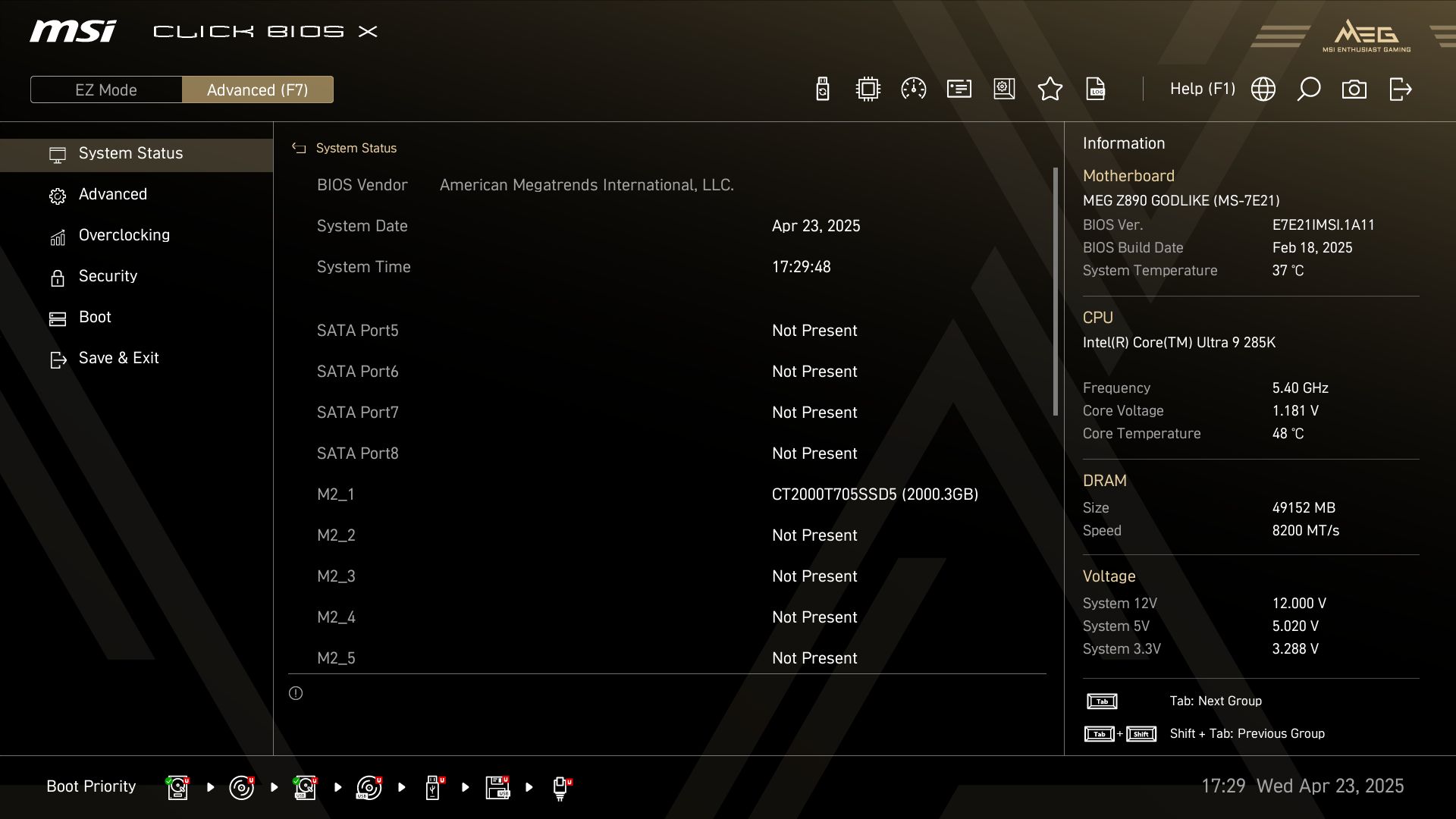

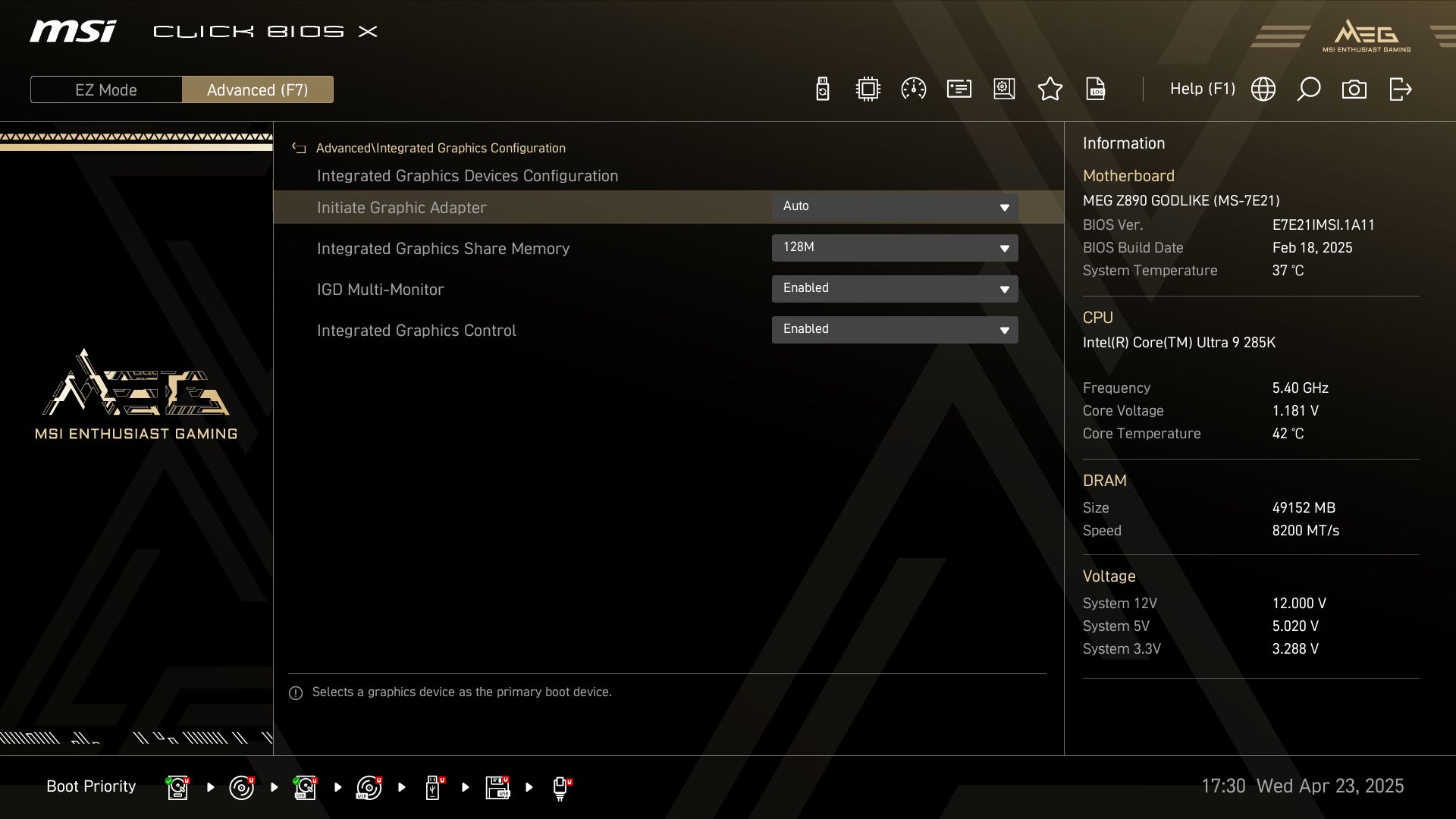

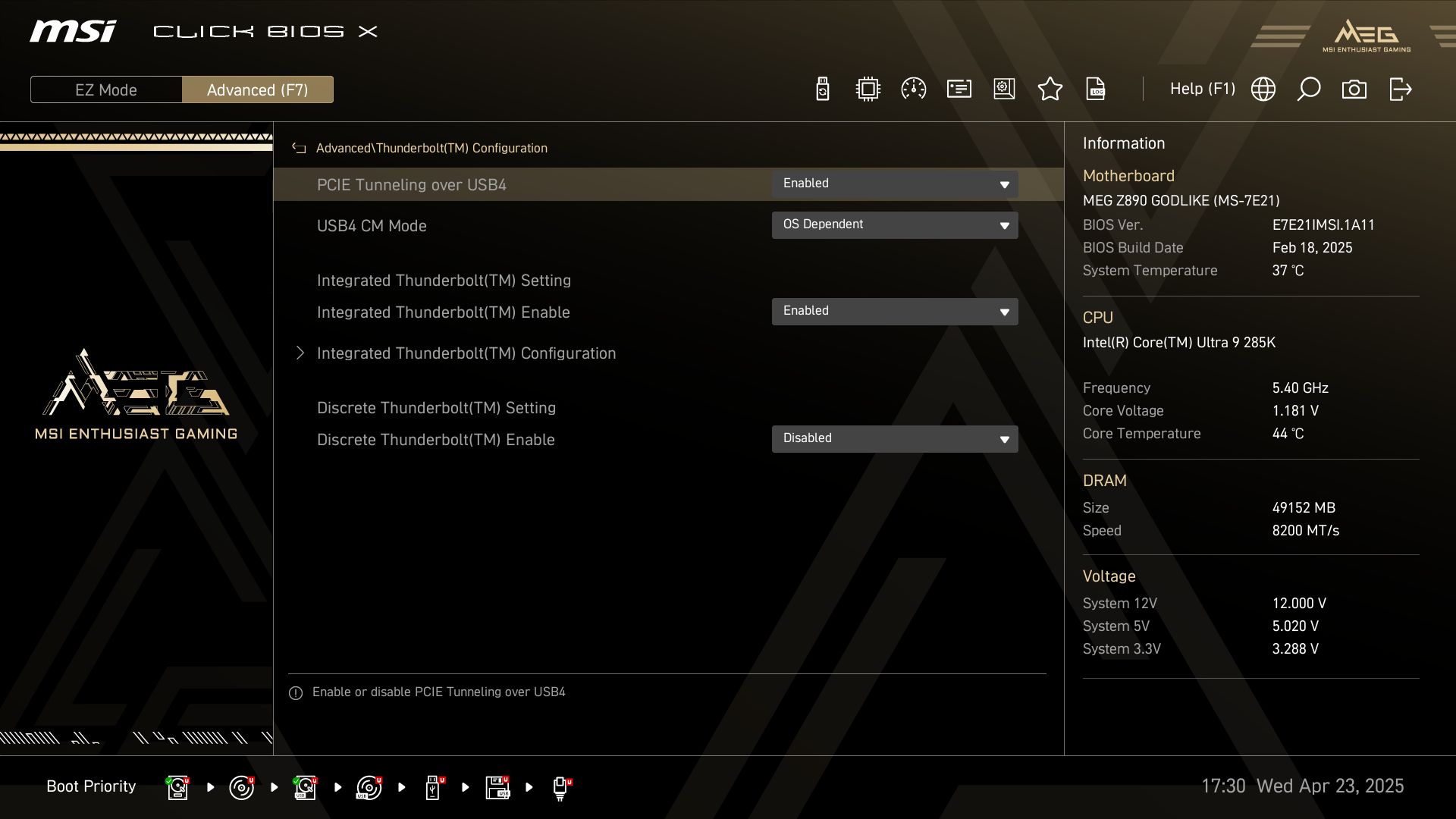

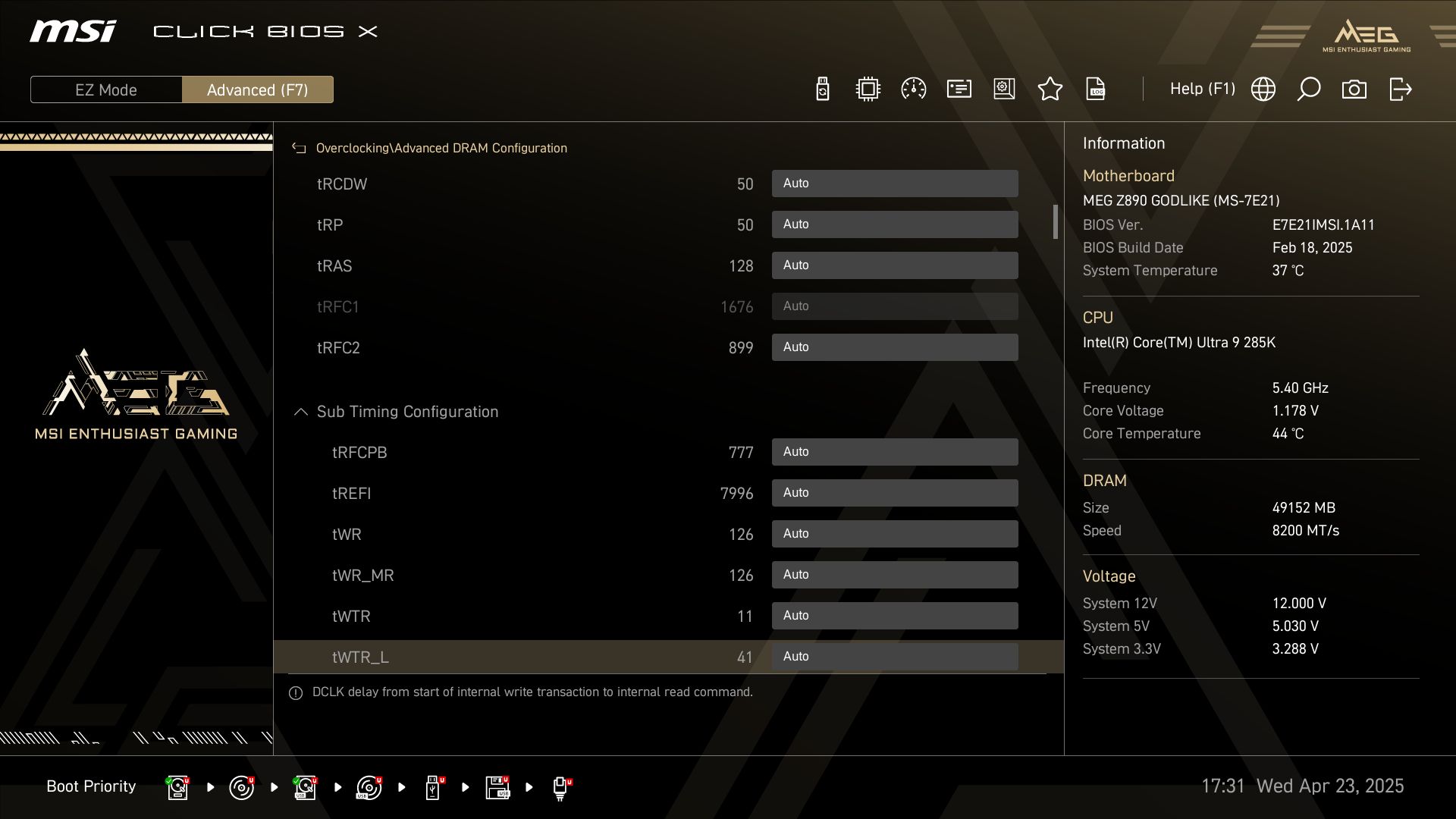

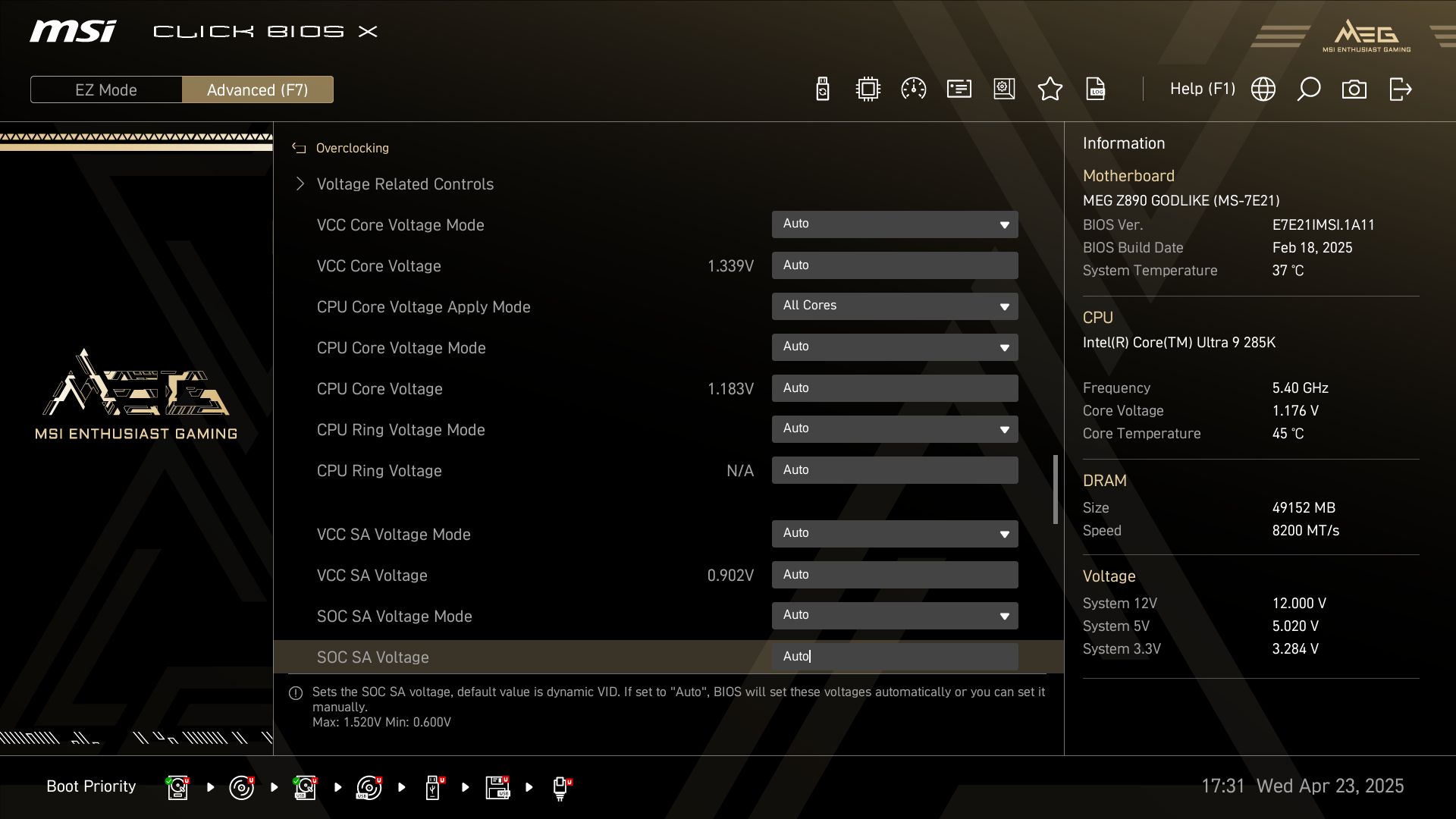

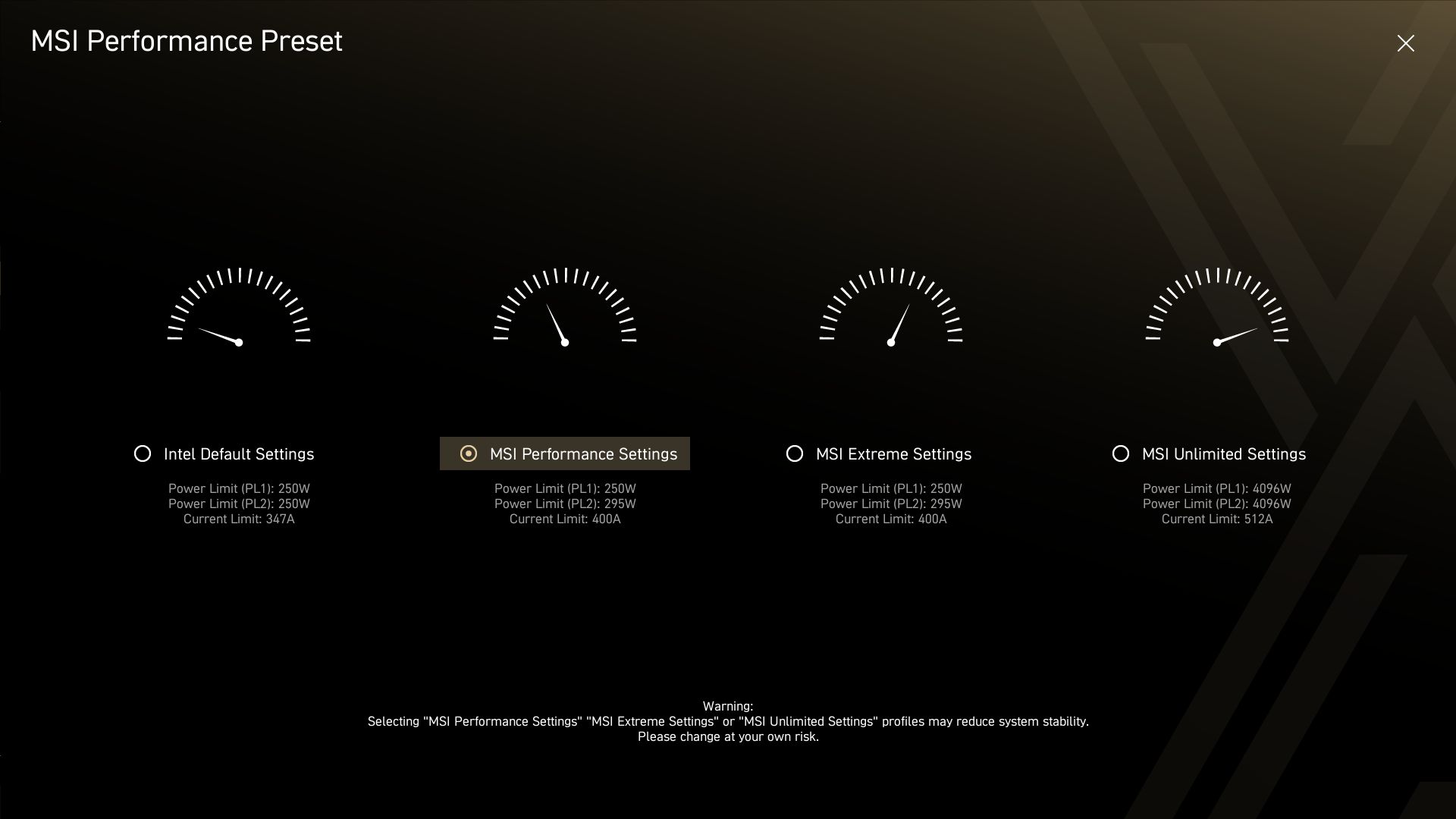

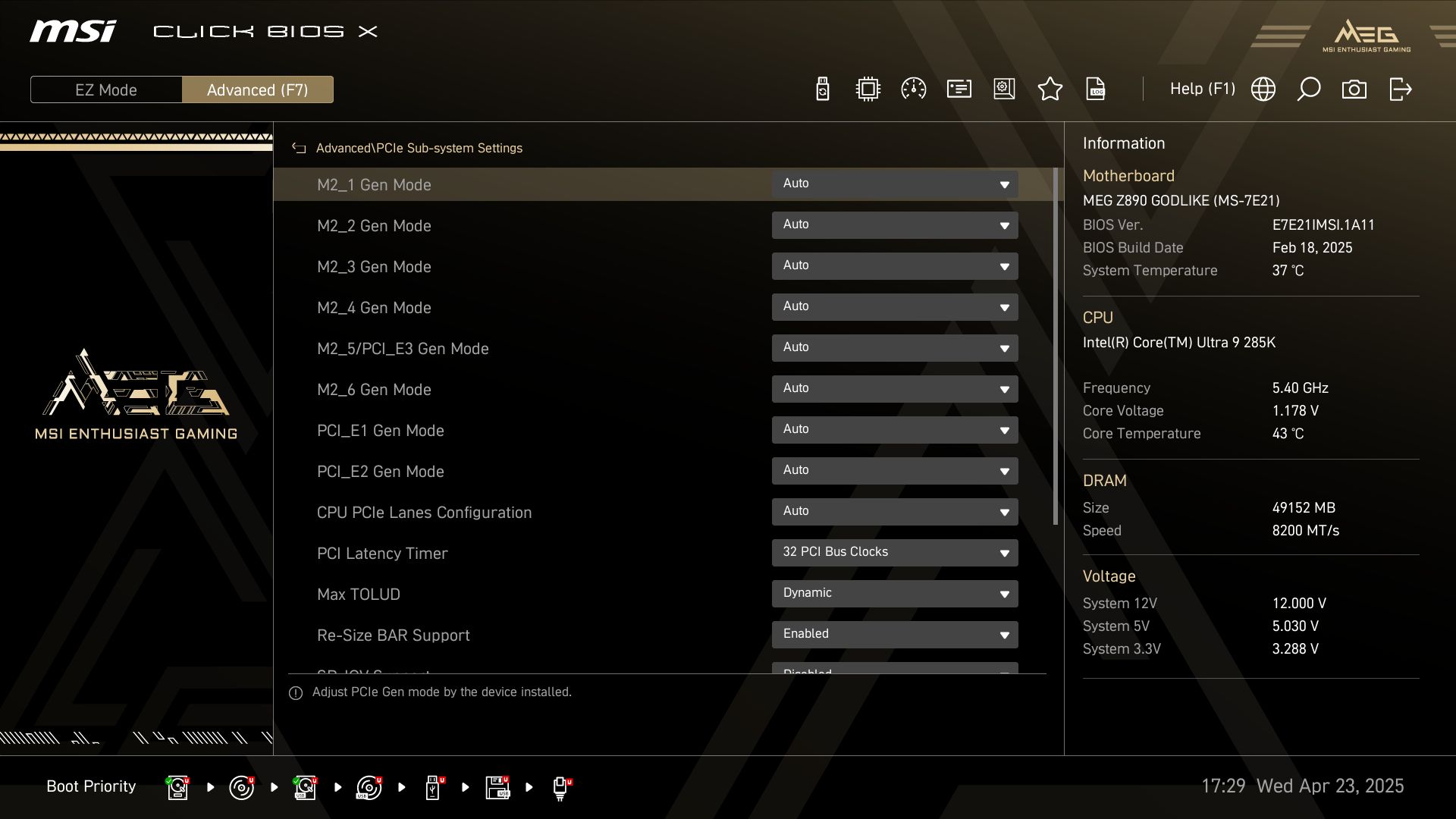

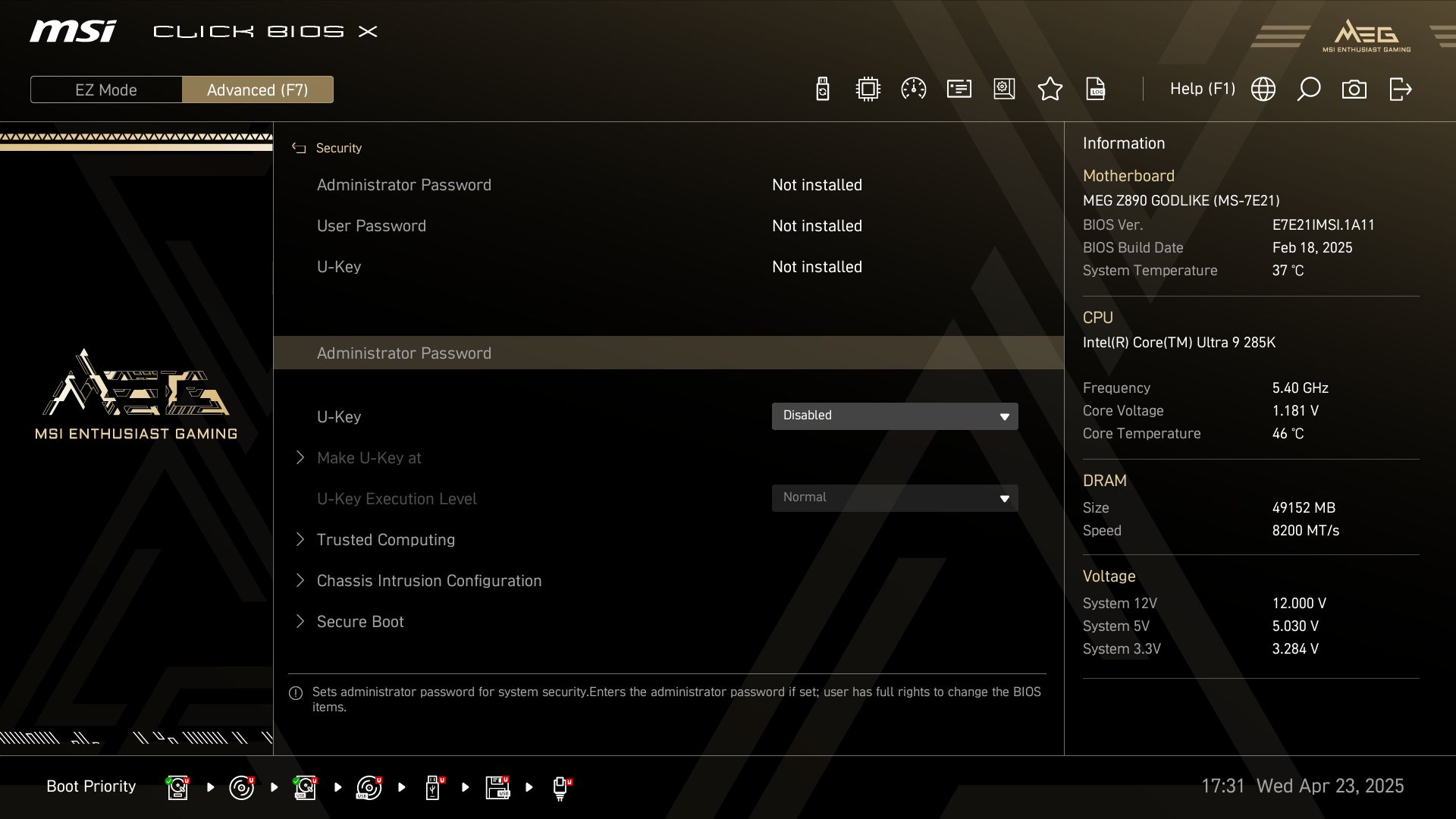

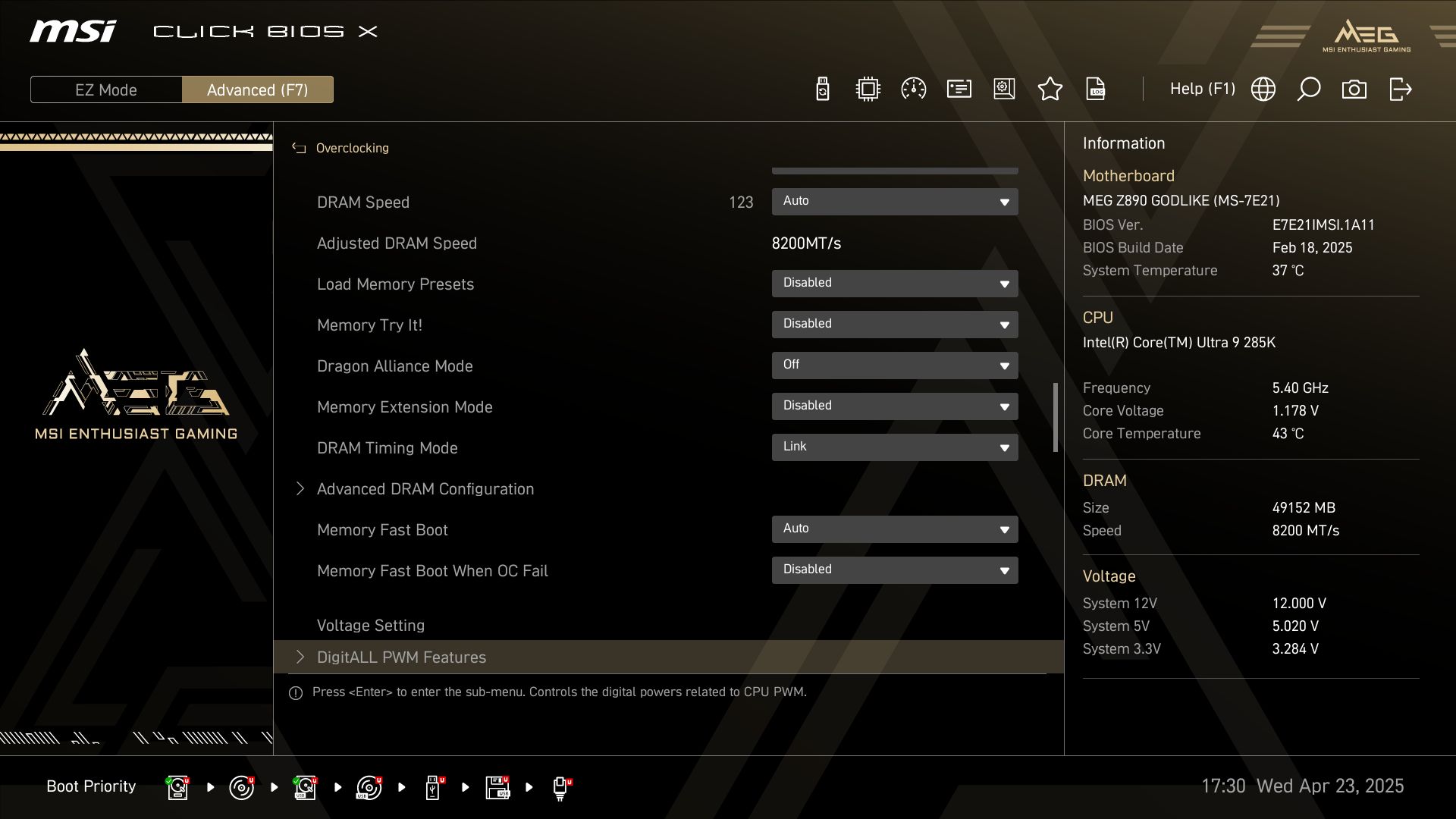

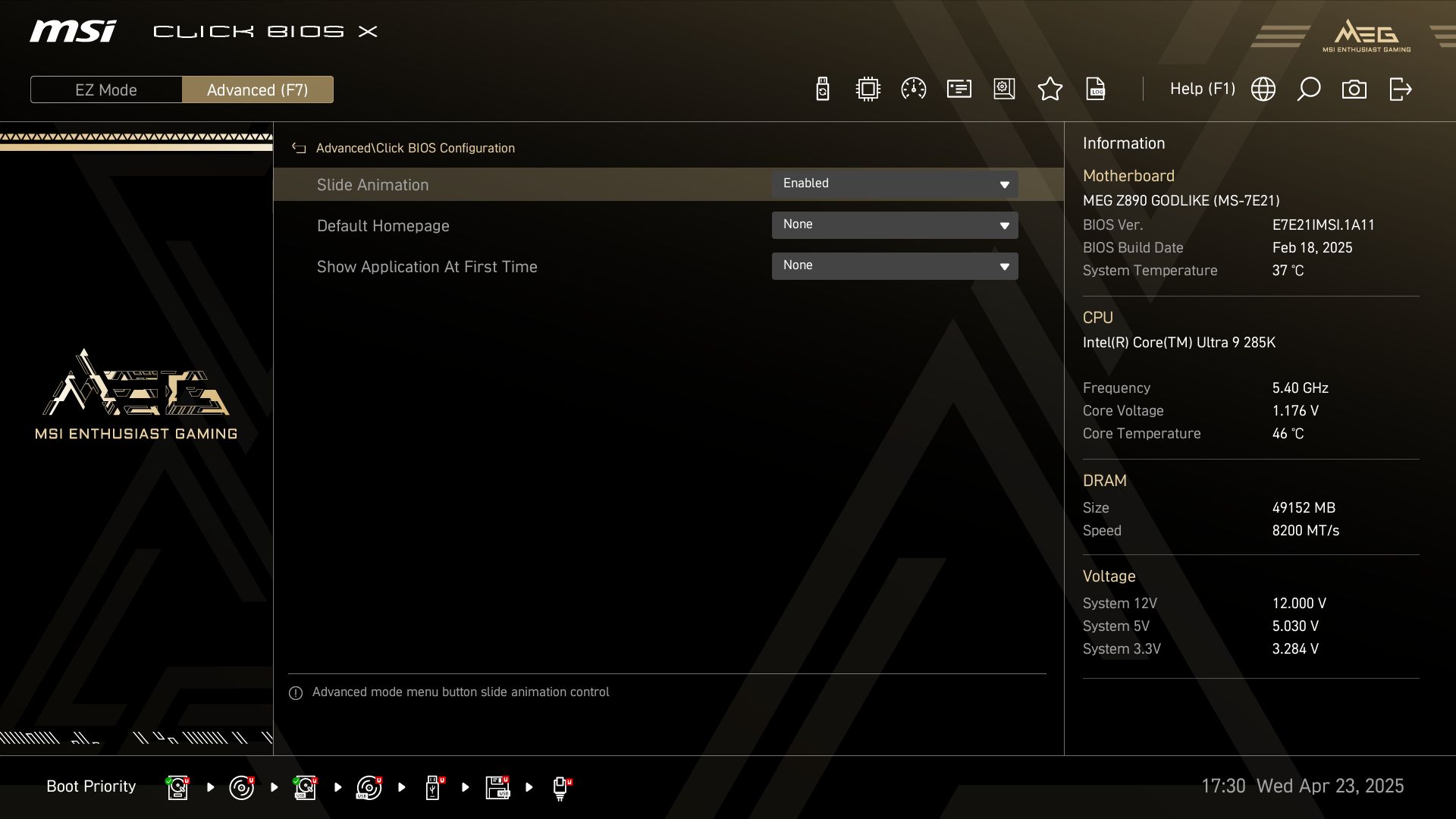

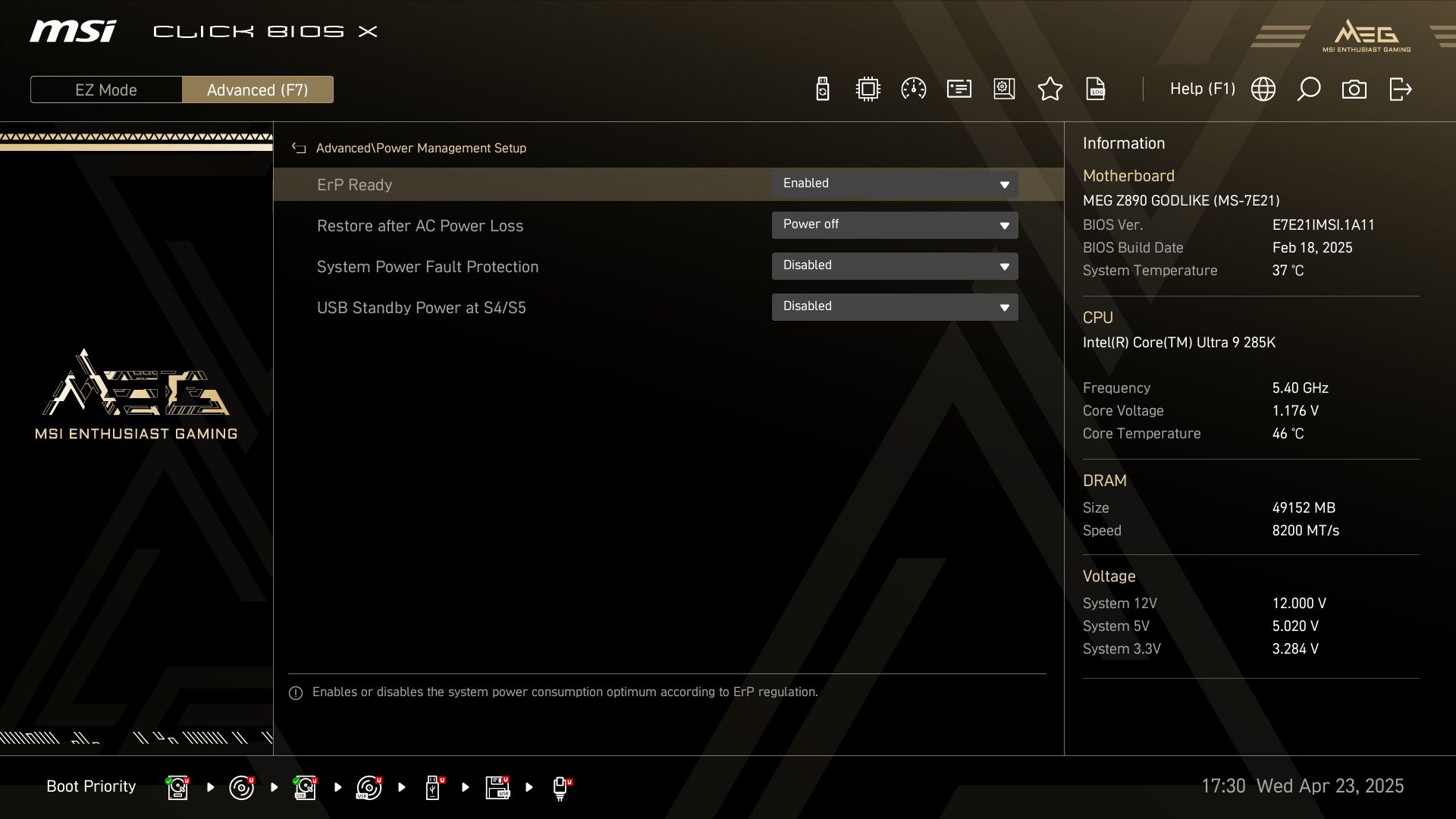

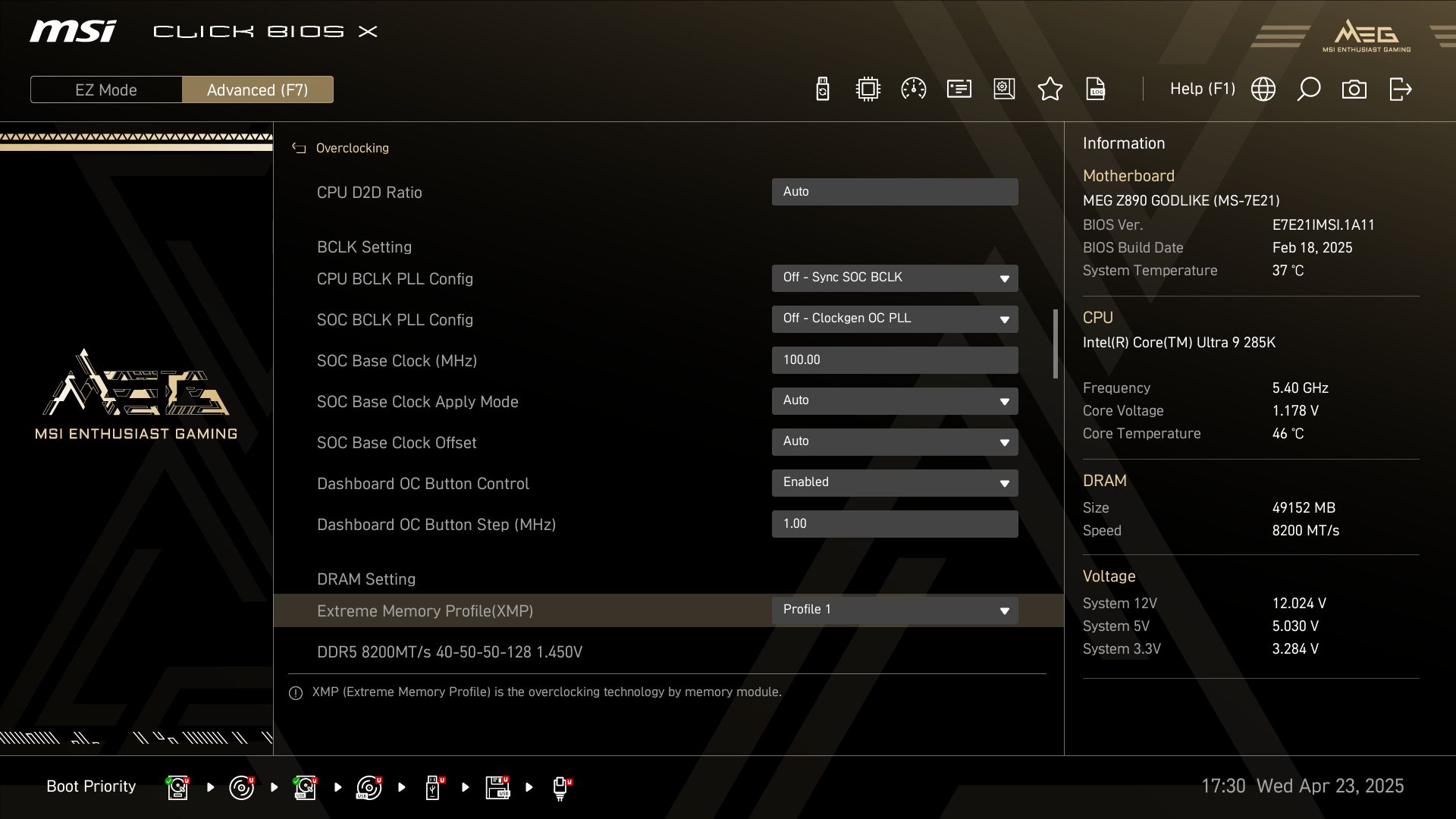

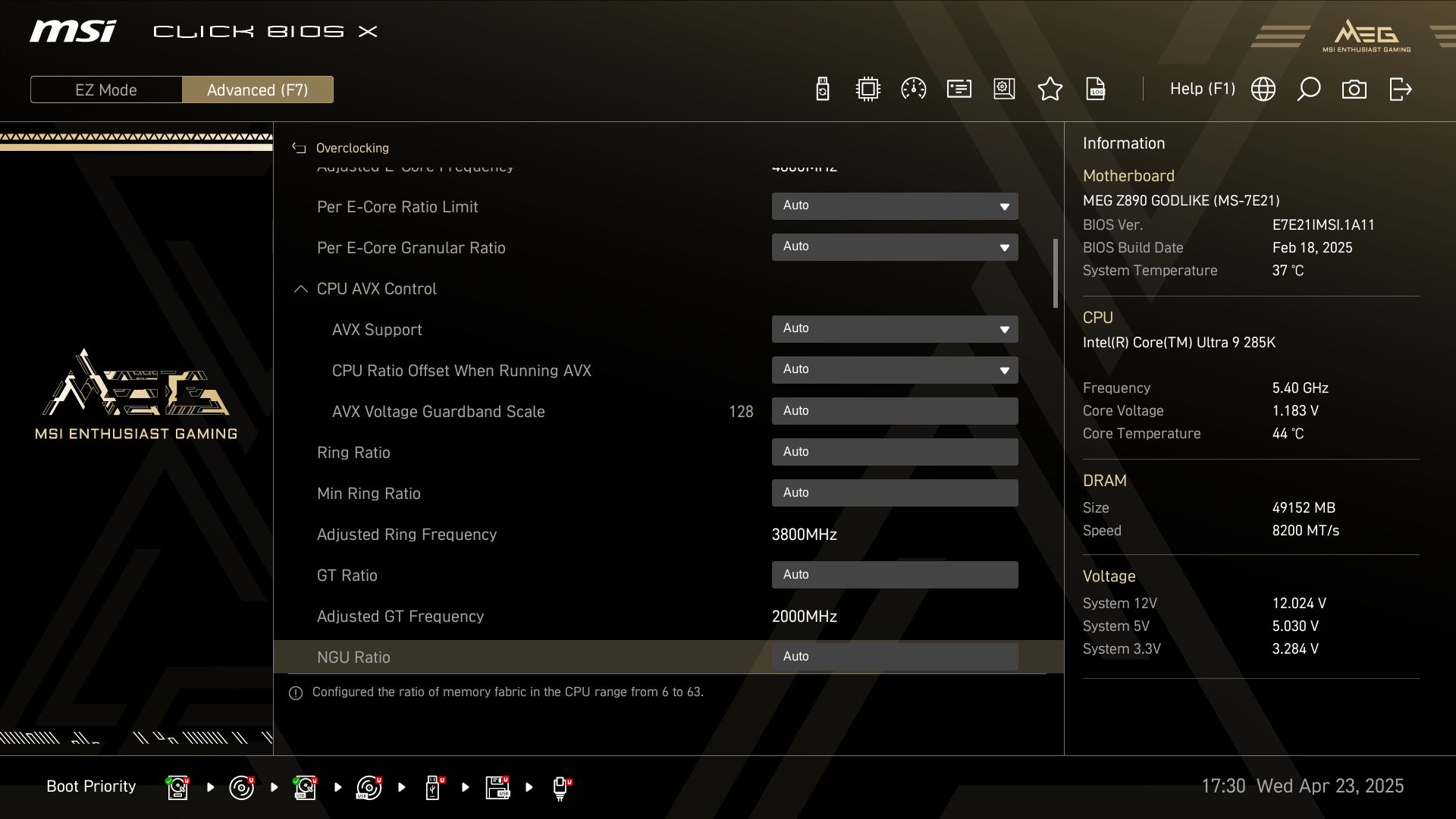

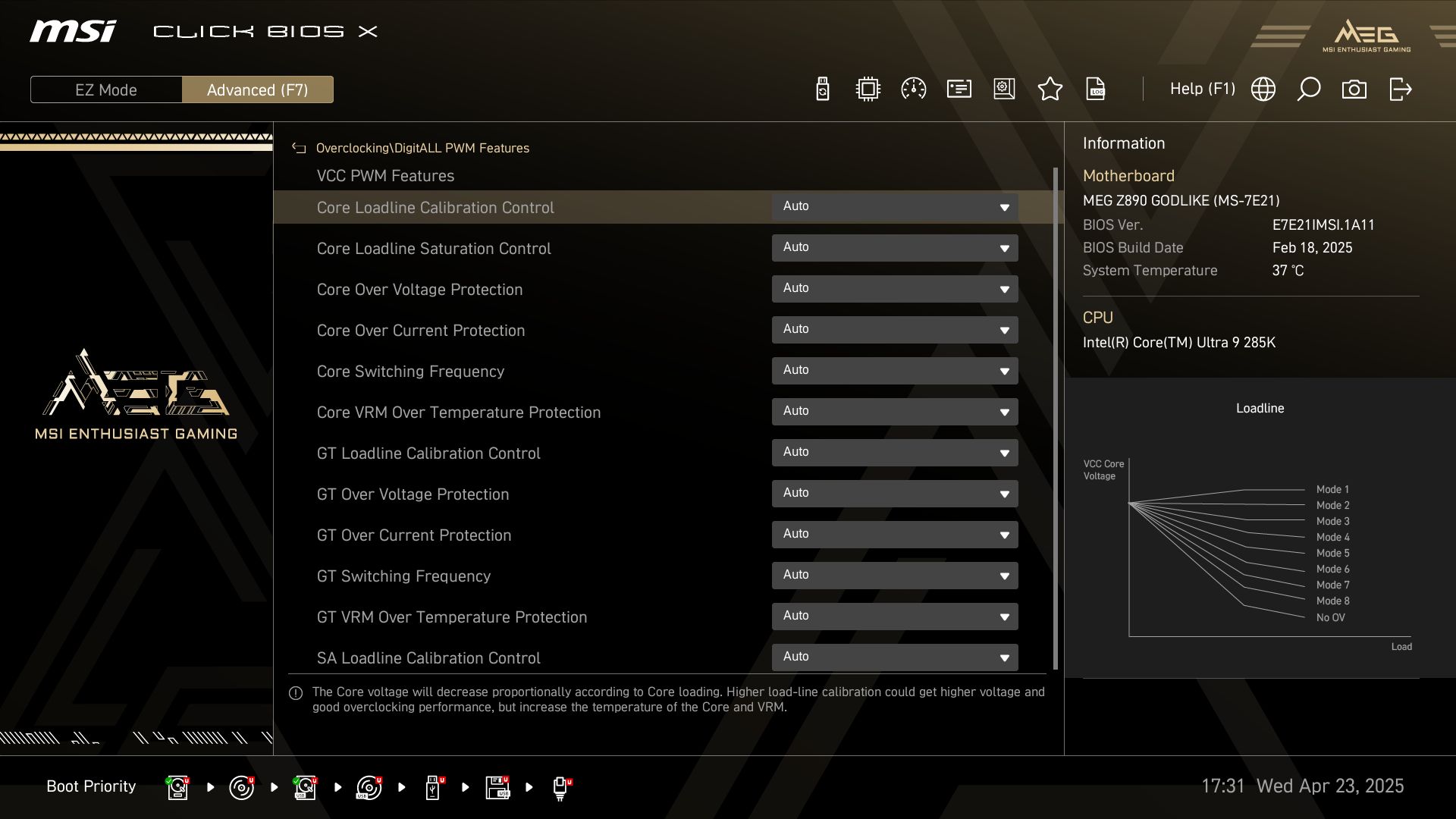

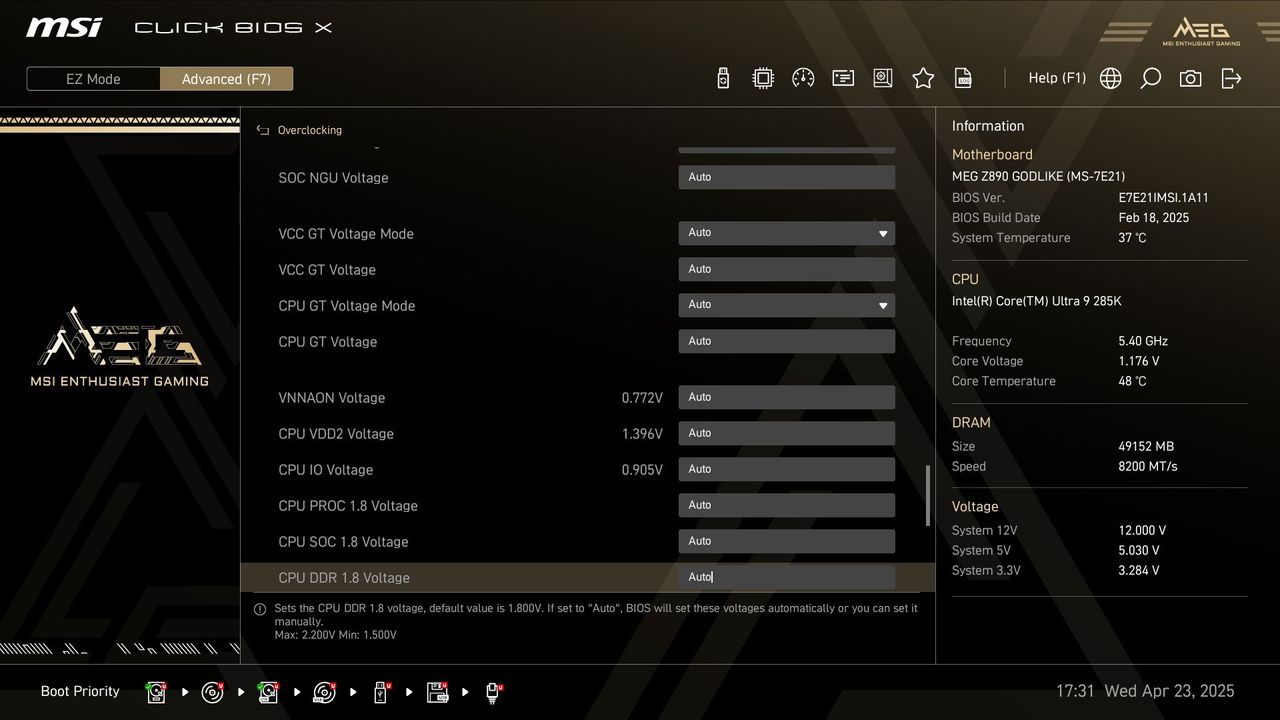

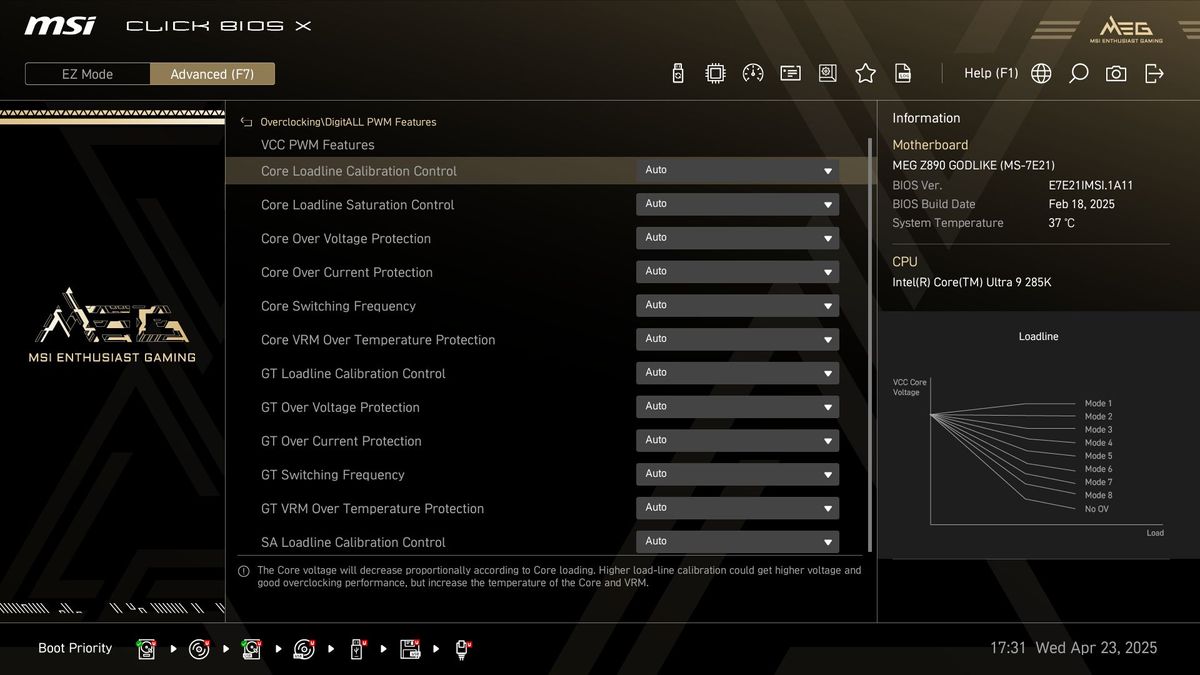

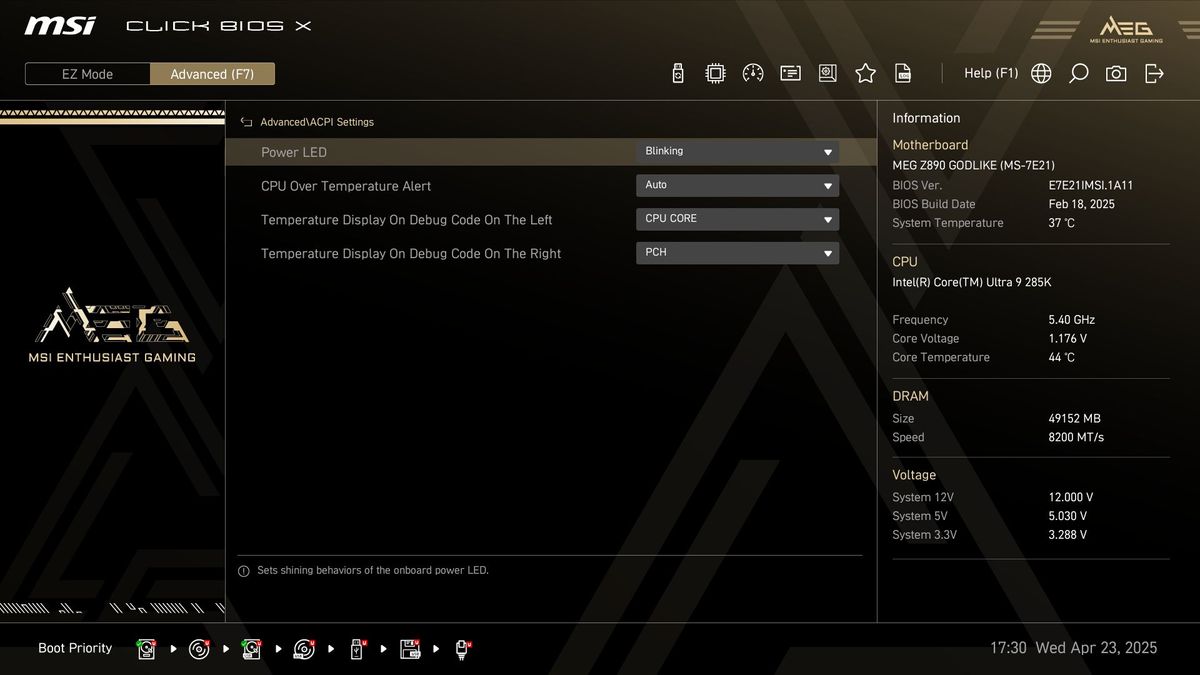

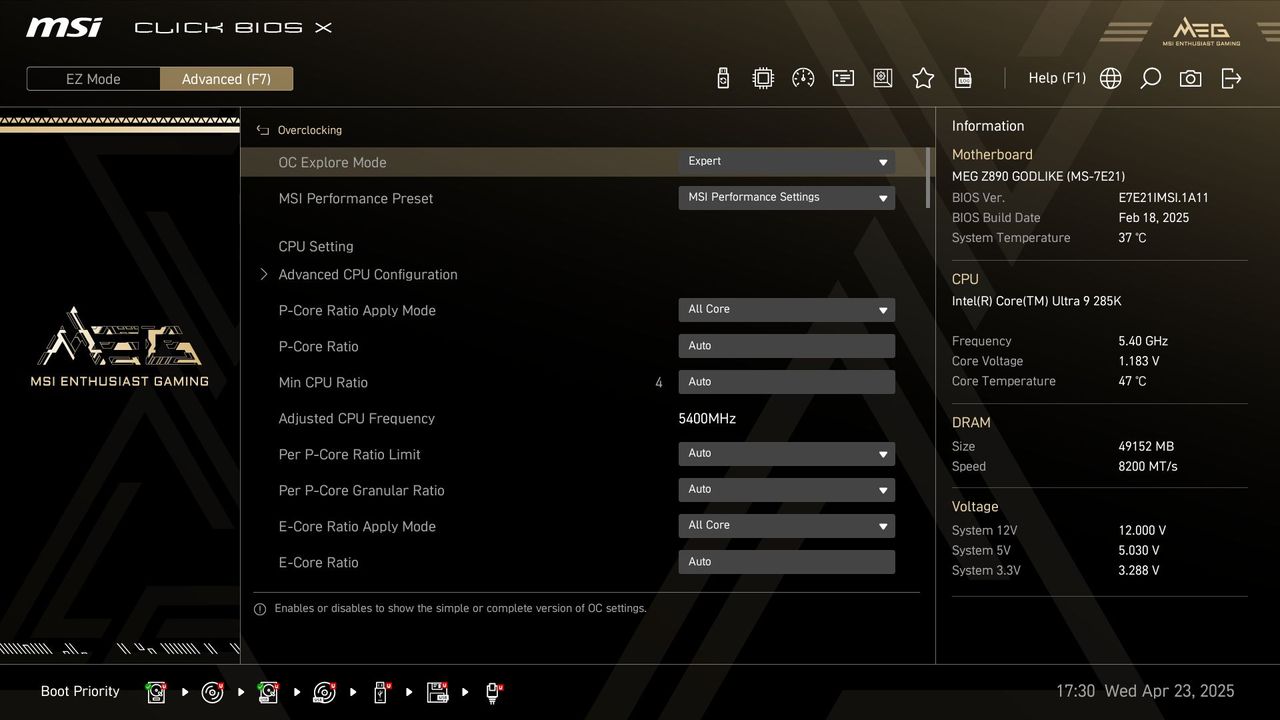

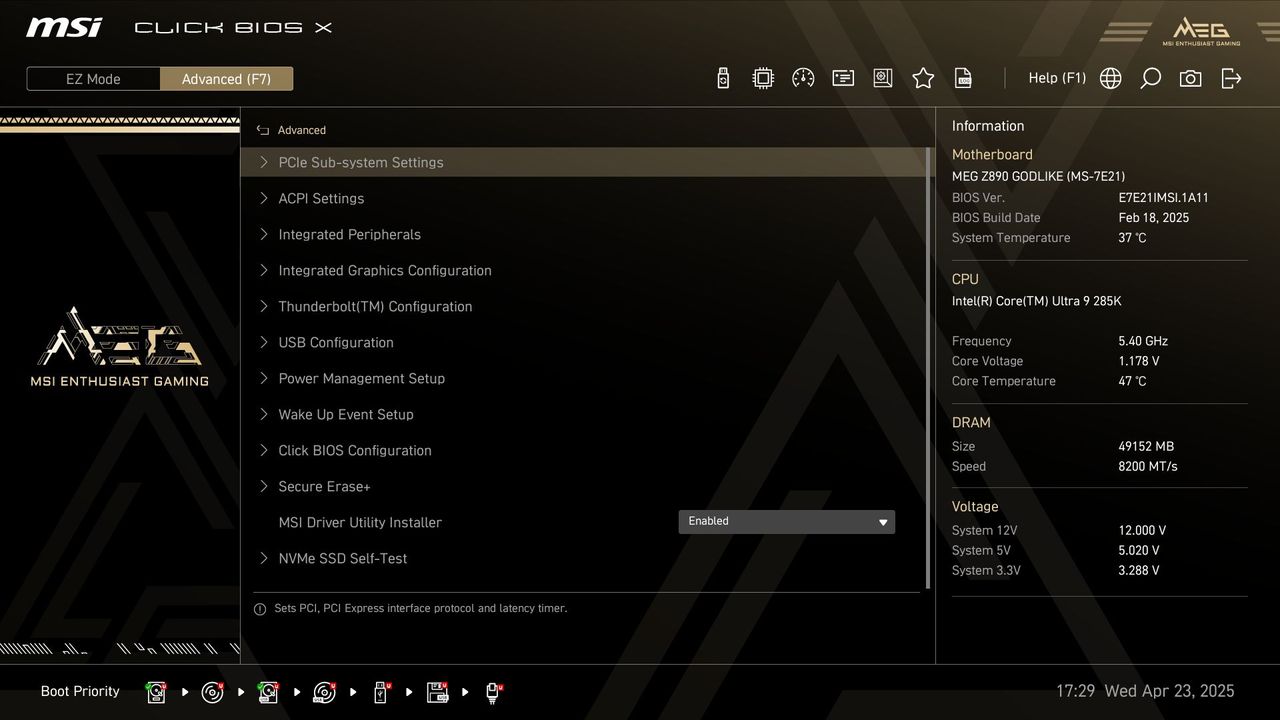

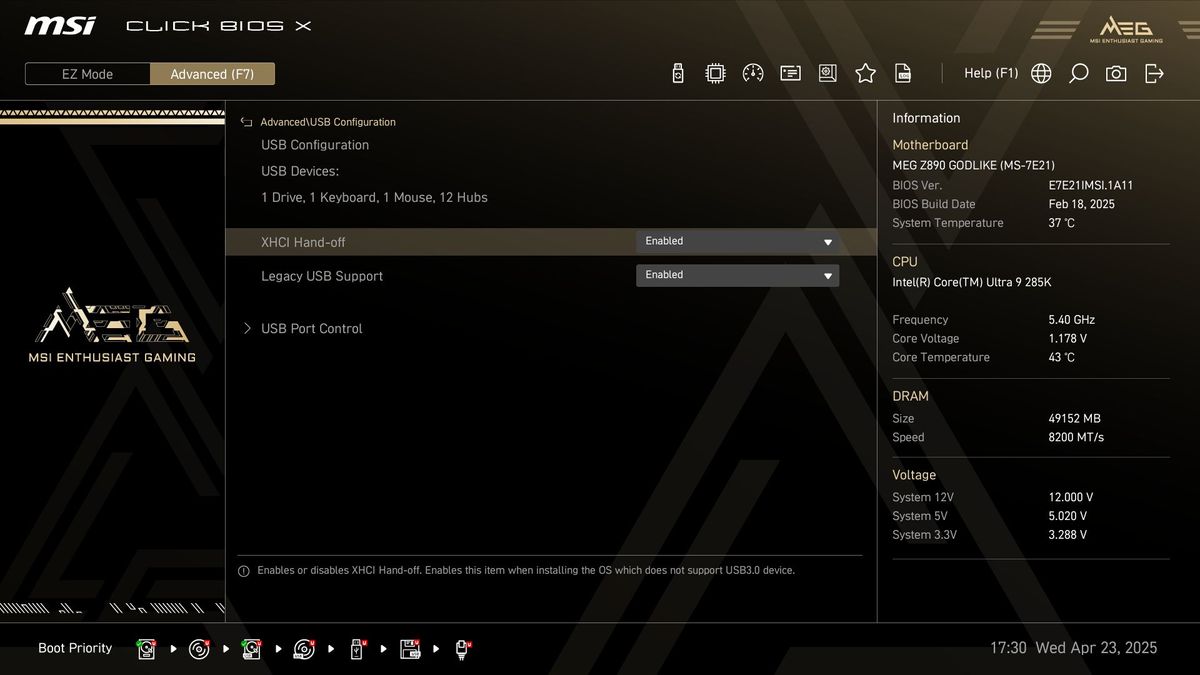

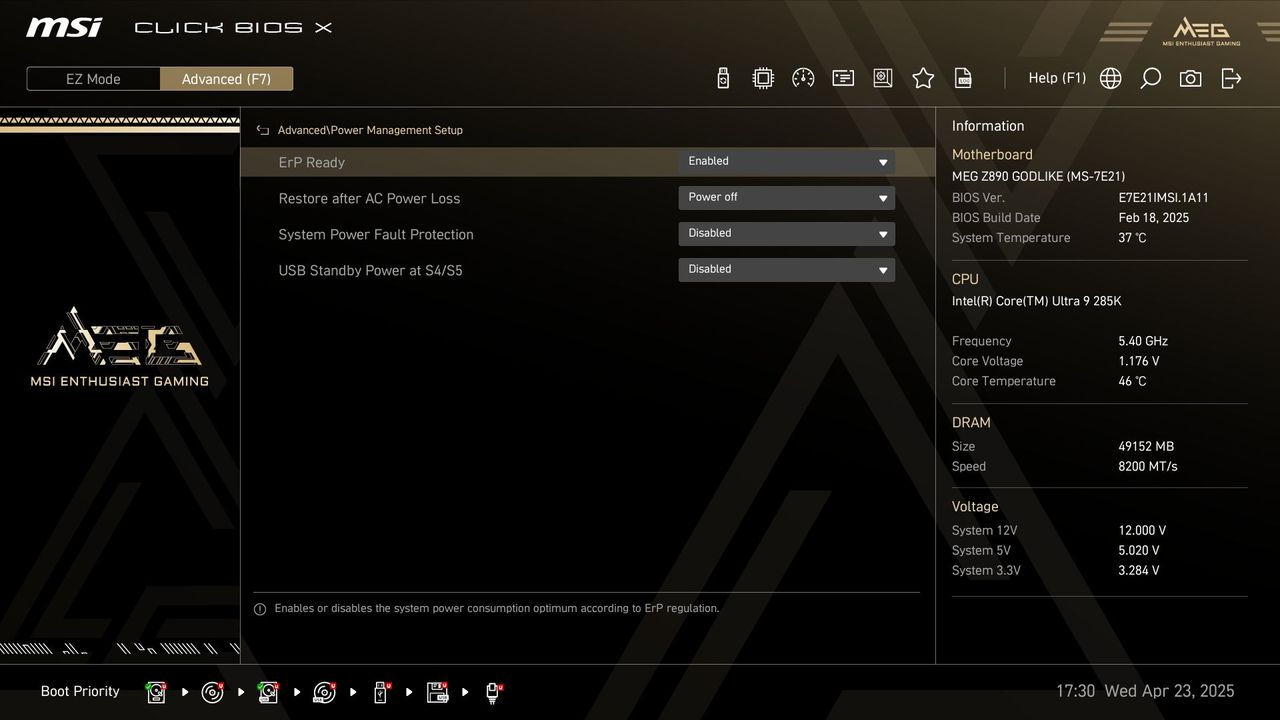

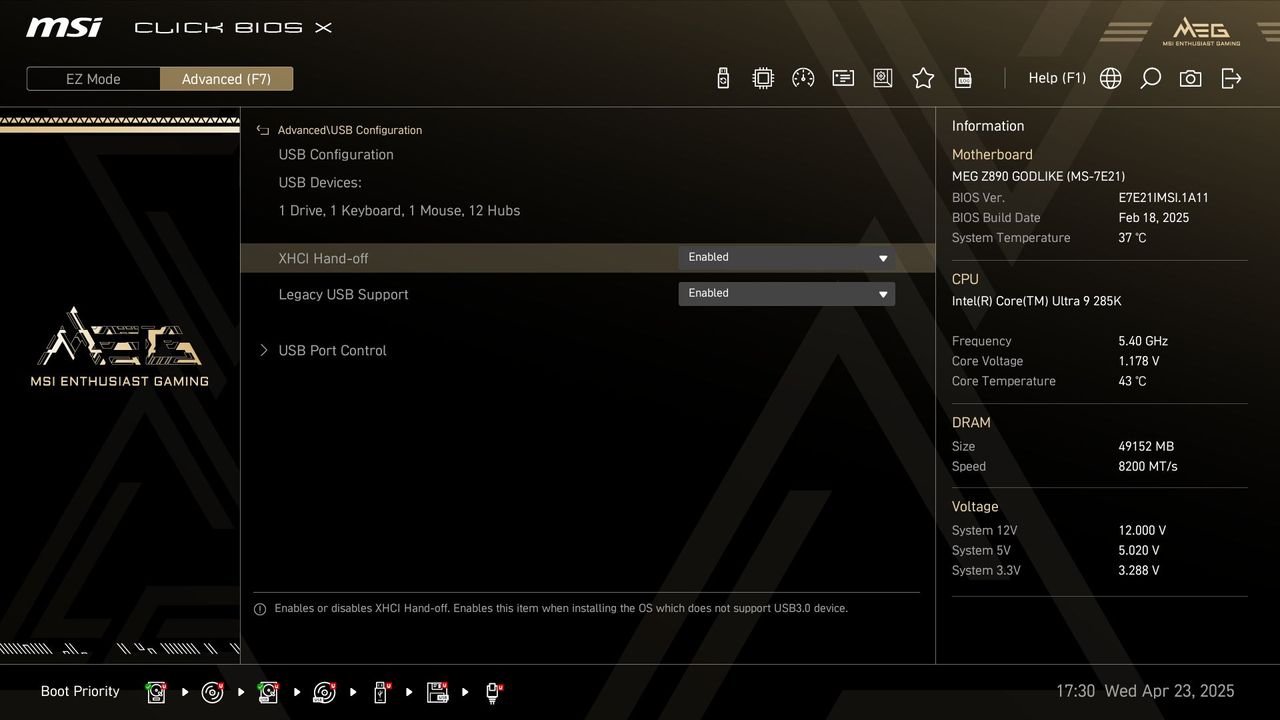

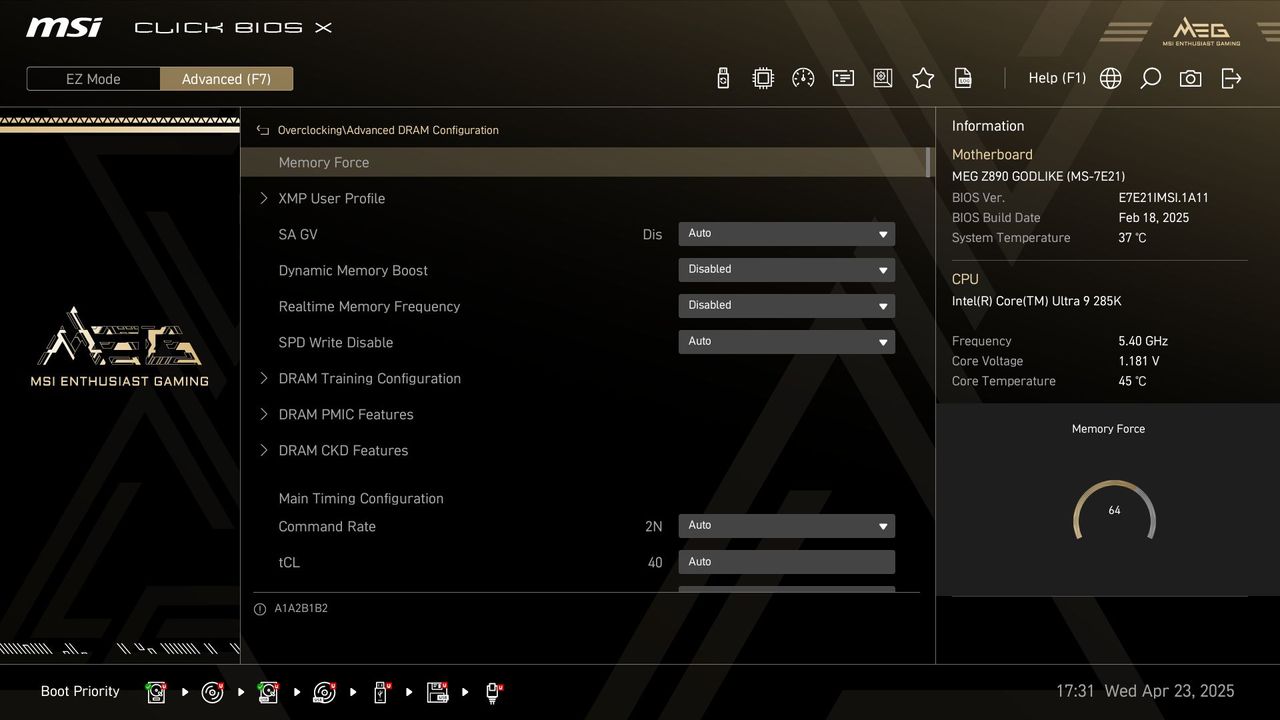

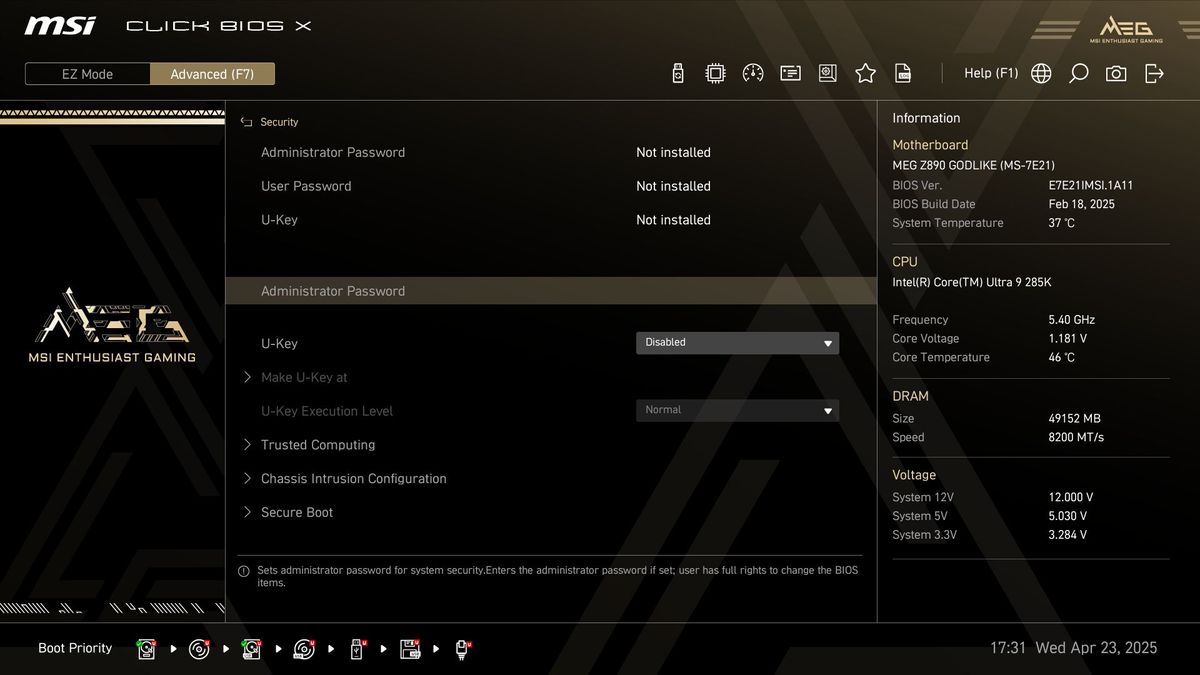

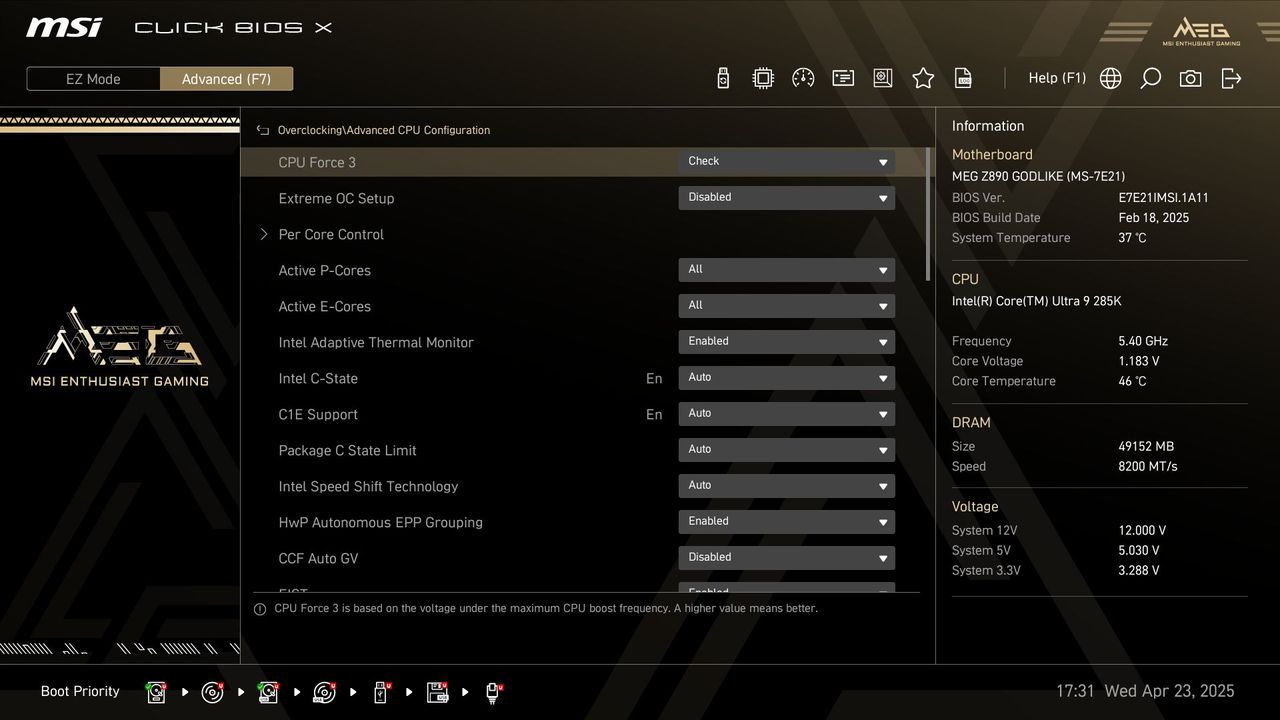

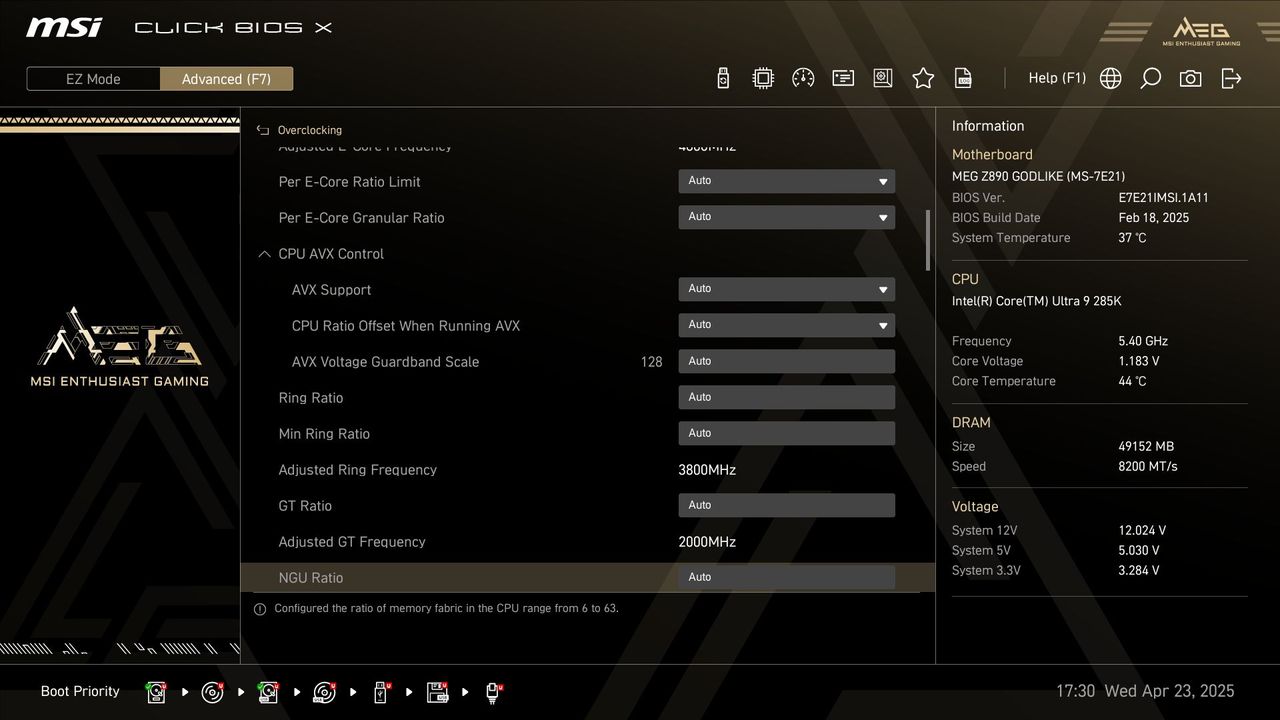

MSI has updated its BIOS for Z890 (and X870), renaming it “Click X” and improving the aesthetic and functionality. The company changed the format from its previous UEFI, with the headings on the left side, details in the middle, and system status information on the right. Like most other board partners, it has an informational EZ Mode, allowing limited functionality, such as Game Boost, PBO, XMP, and more. The black background that fades to gold with light-colored text is easy to read, and most of what you need is at your fingertips. Overall, I like the new layout, and maneuvering around is intuitive, though it does take some getting used to.

Image 1 of 24

MSI Z890 Godlike — (Image credit: Tom's Hardware)

Software

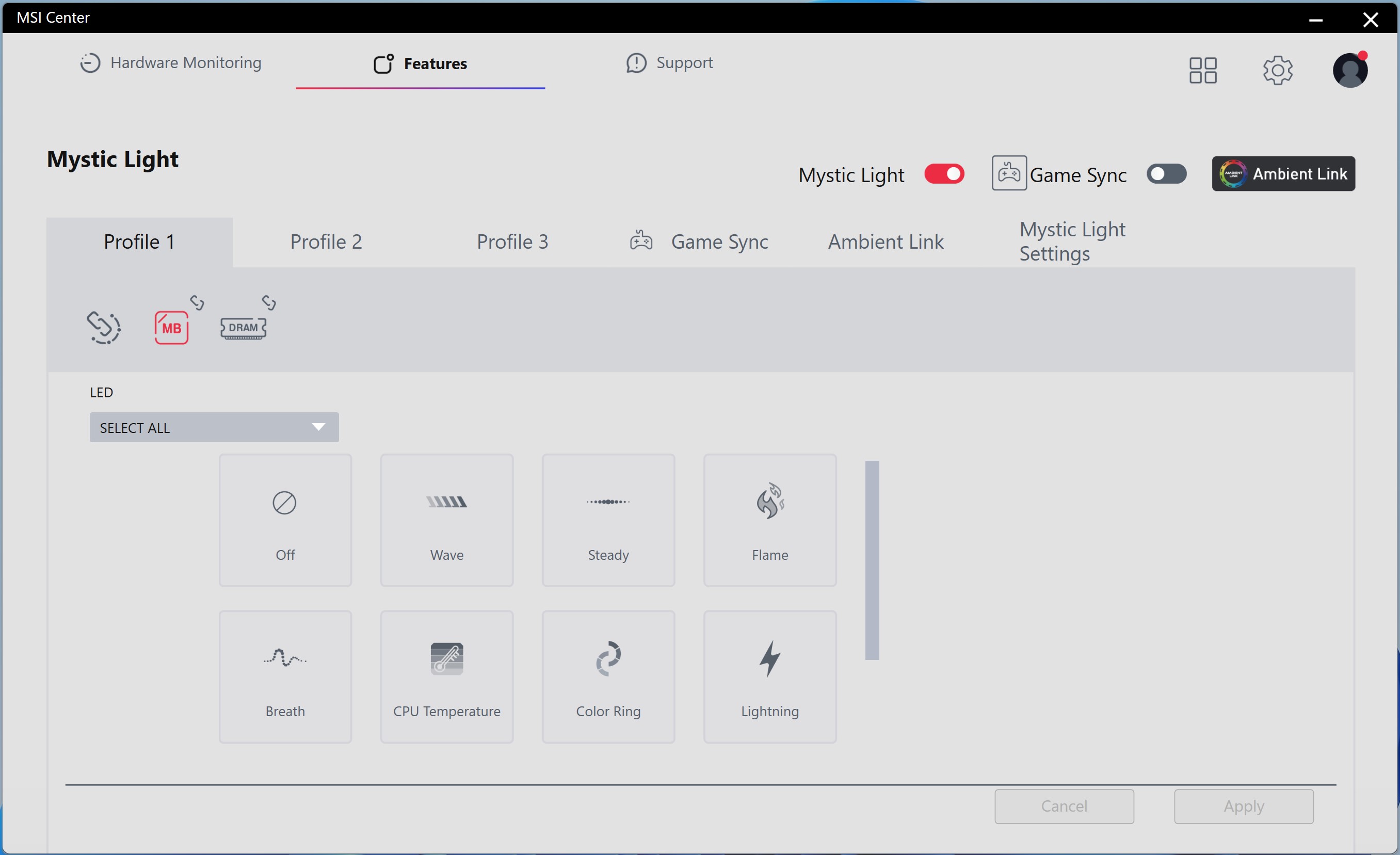

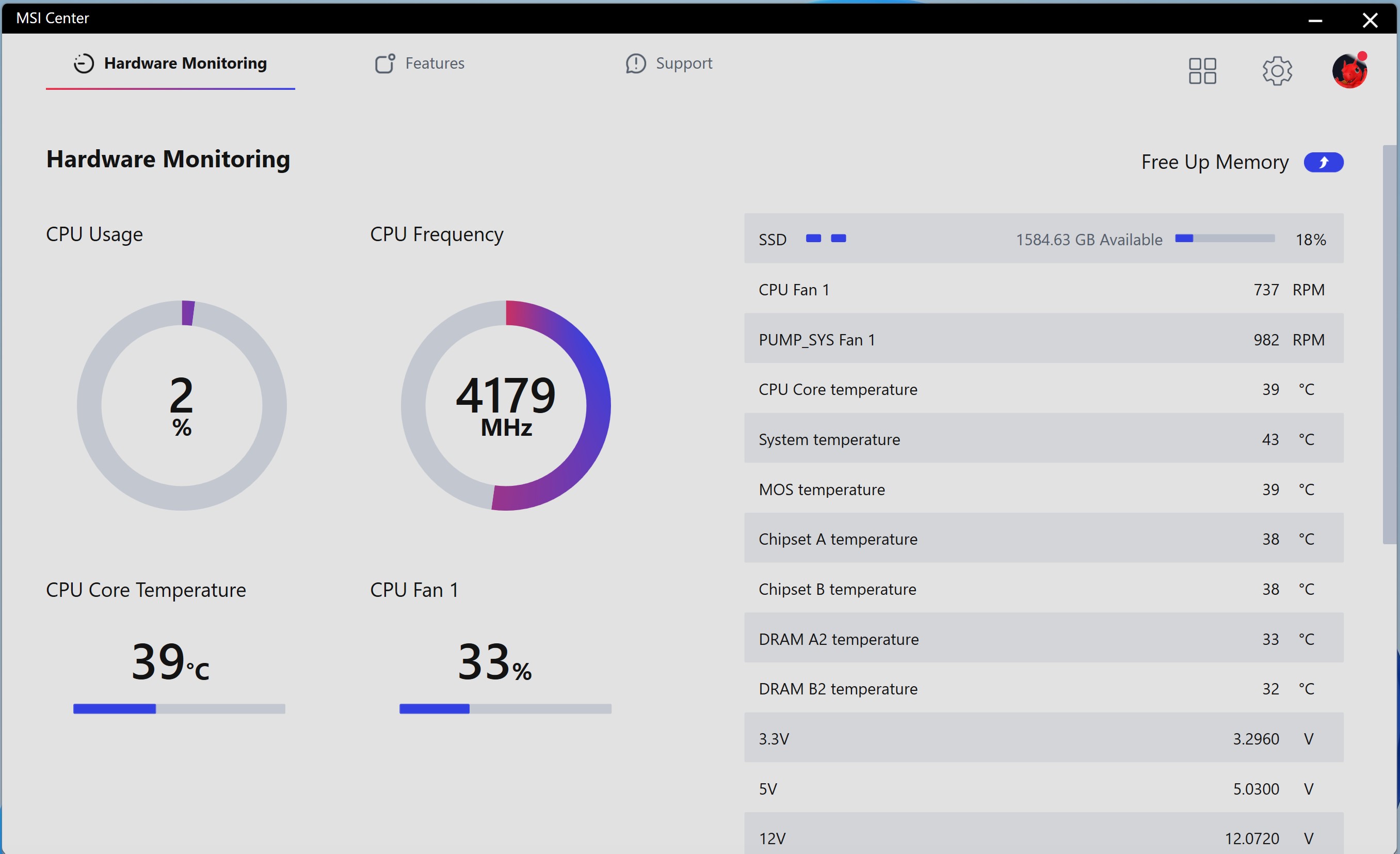

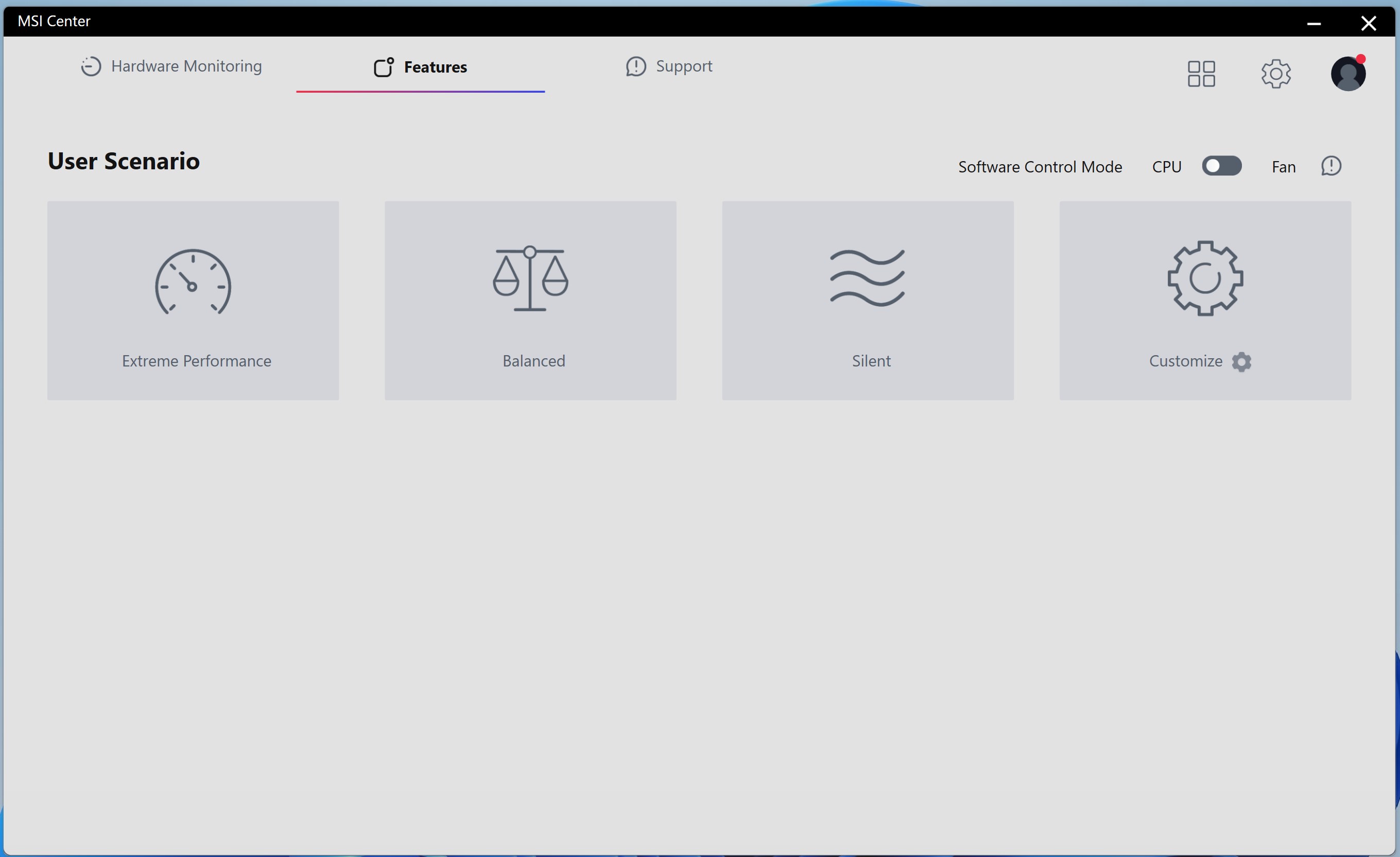

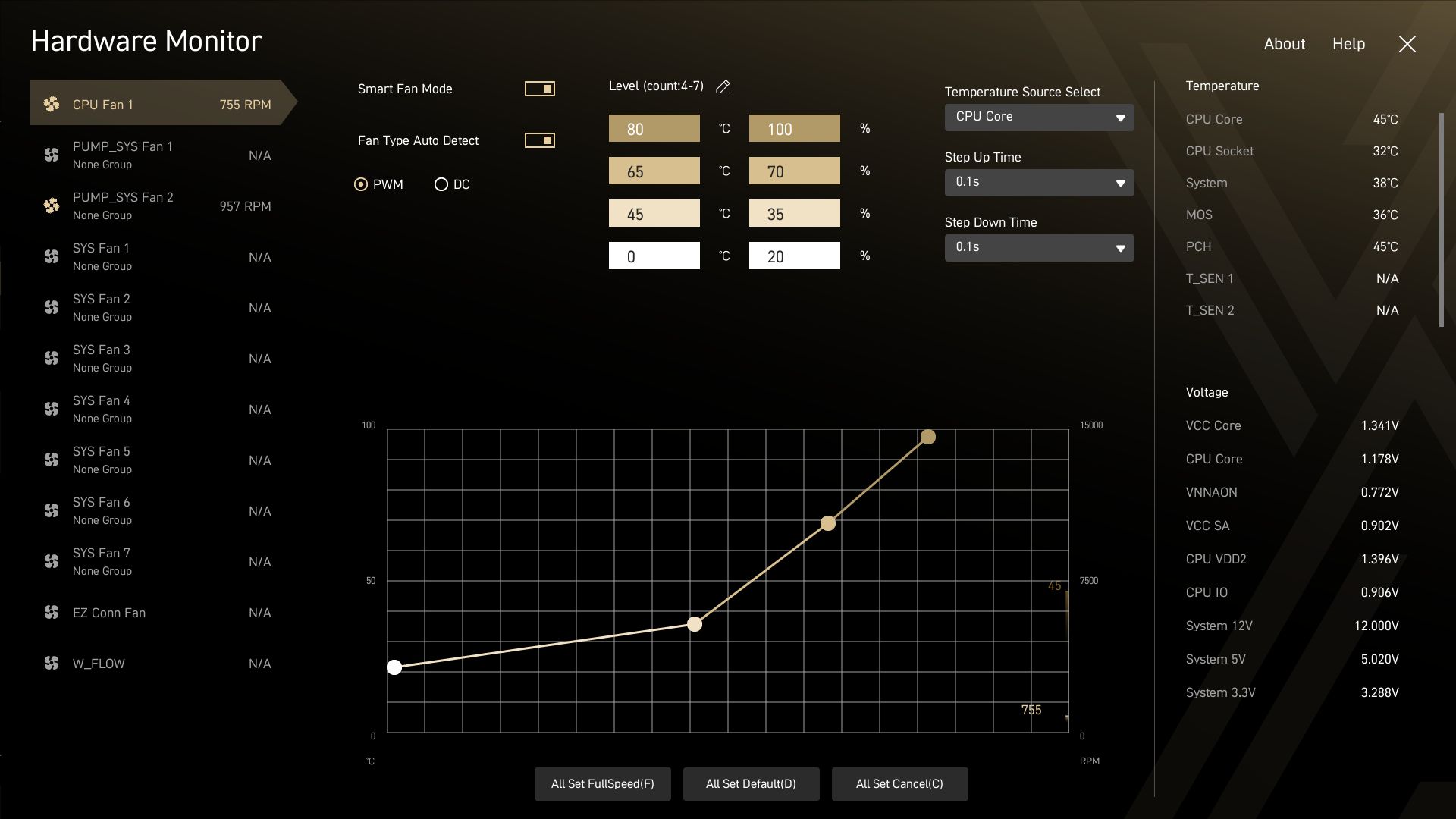

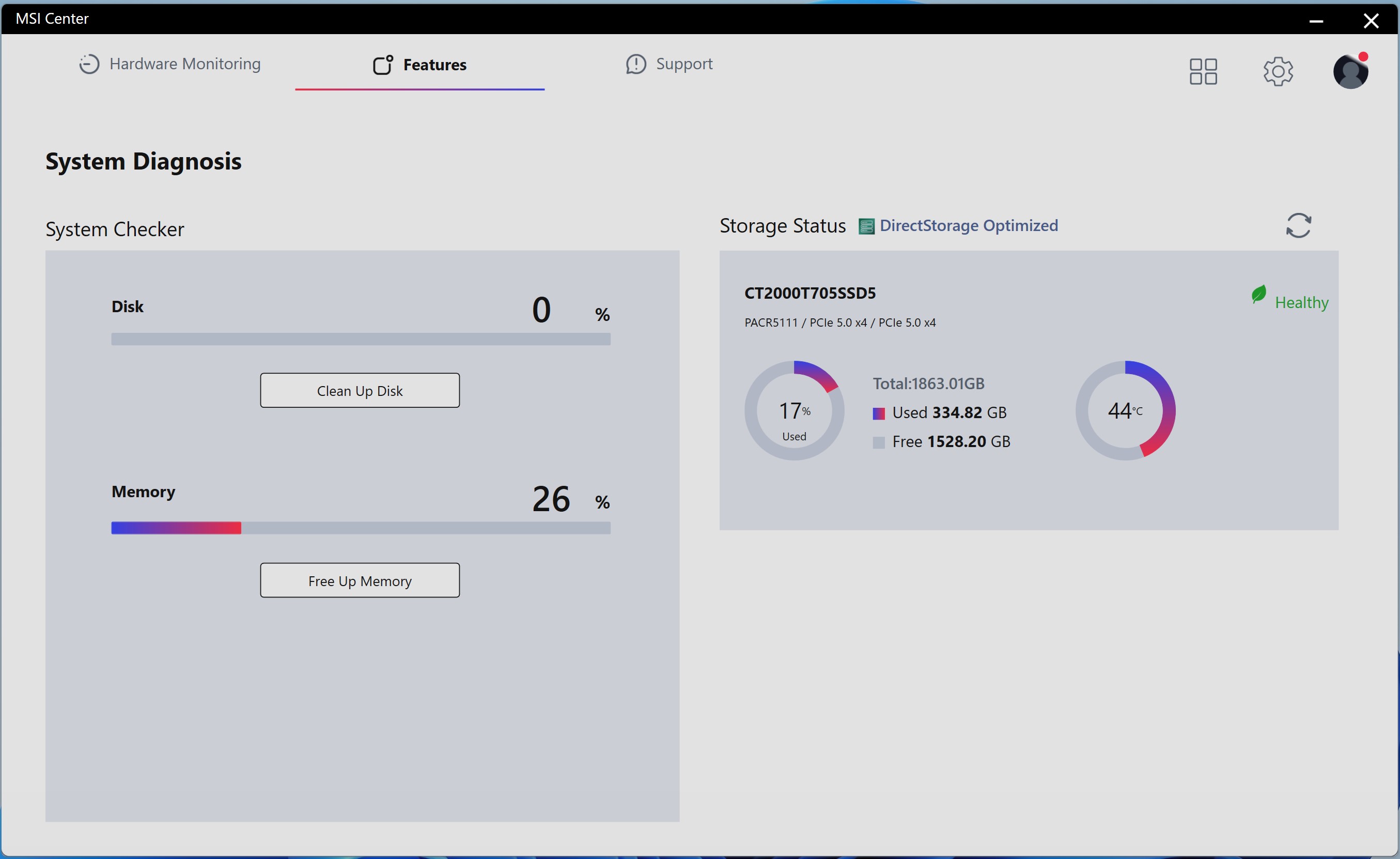

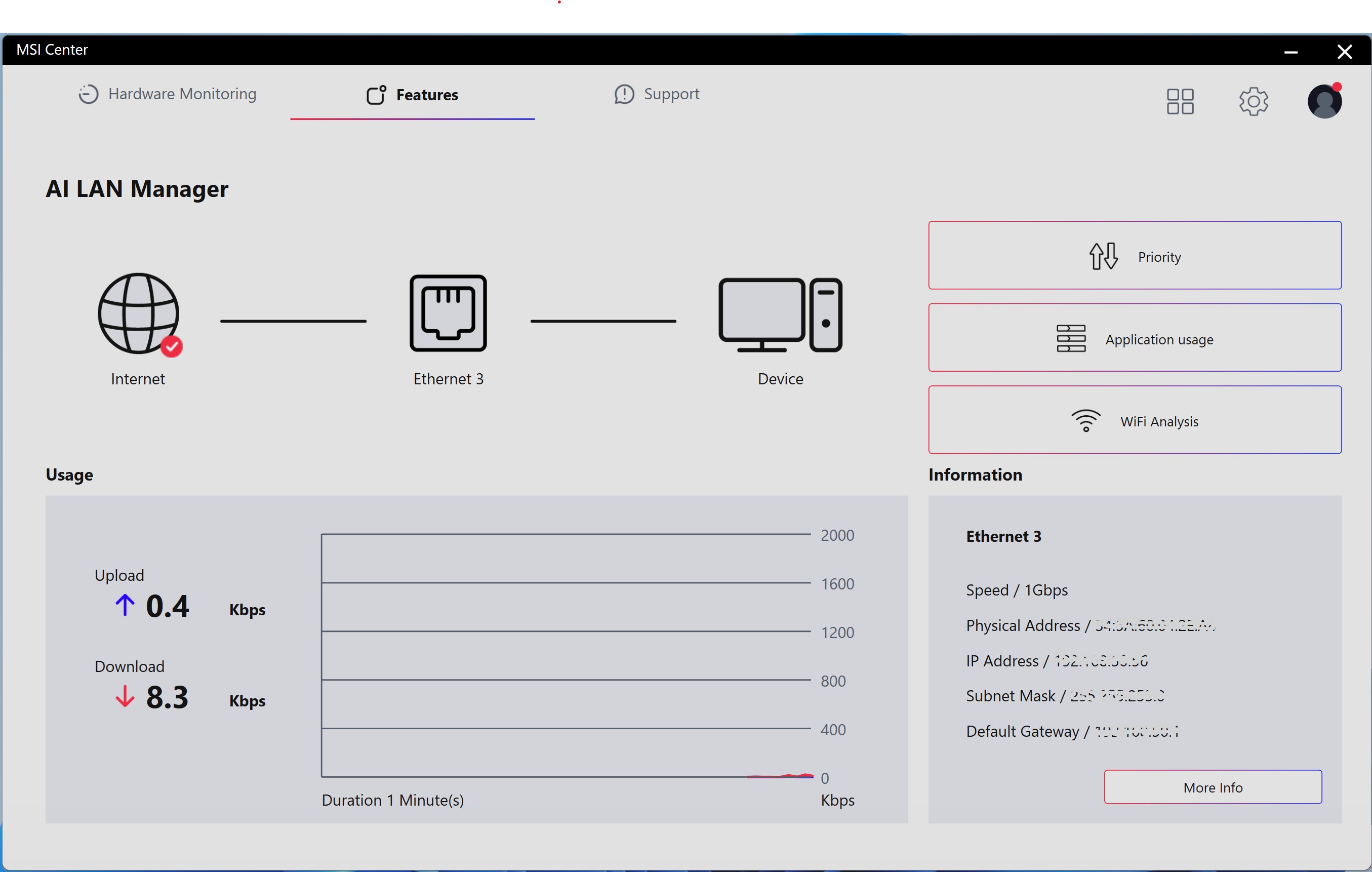

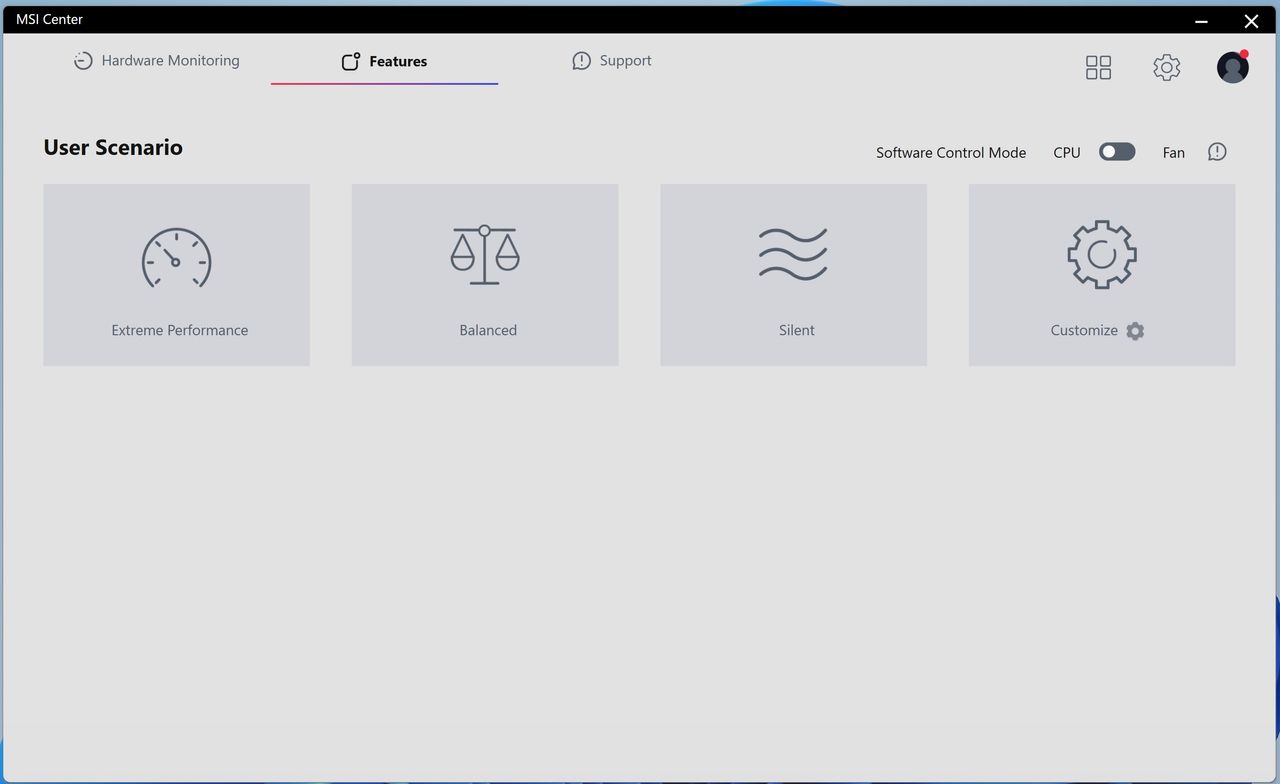

MSI Center is a single utility that offers a wide range of functionality. From hardware monitoring to RGB control with Mystic Light, the software features numerous applets and serves as a one-stop shop for downloading additional utilities, including overclocking and fan control. Those looking to use the Gamebar feature, Super Charger, or any other utilities MSI offers will find them all in MSI Center.

Image 1 of 5

Test System / Comparison Products

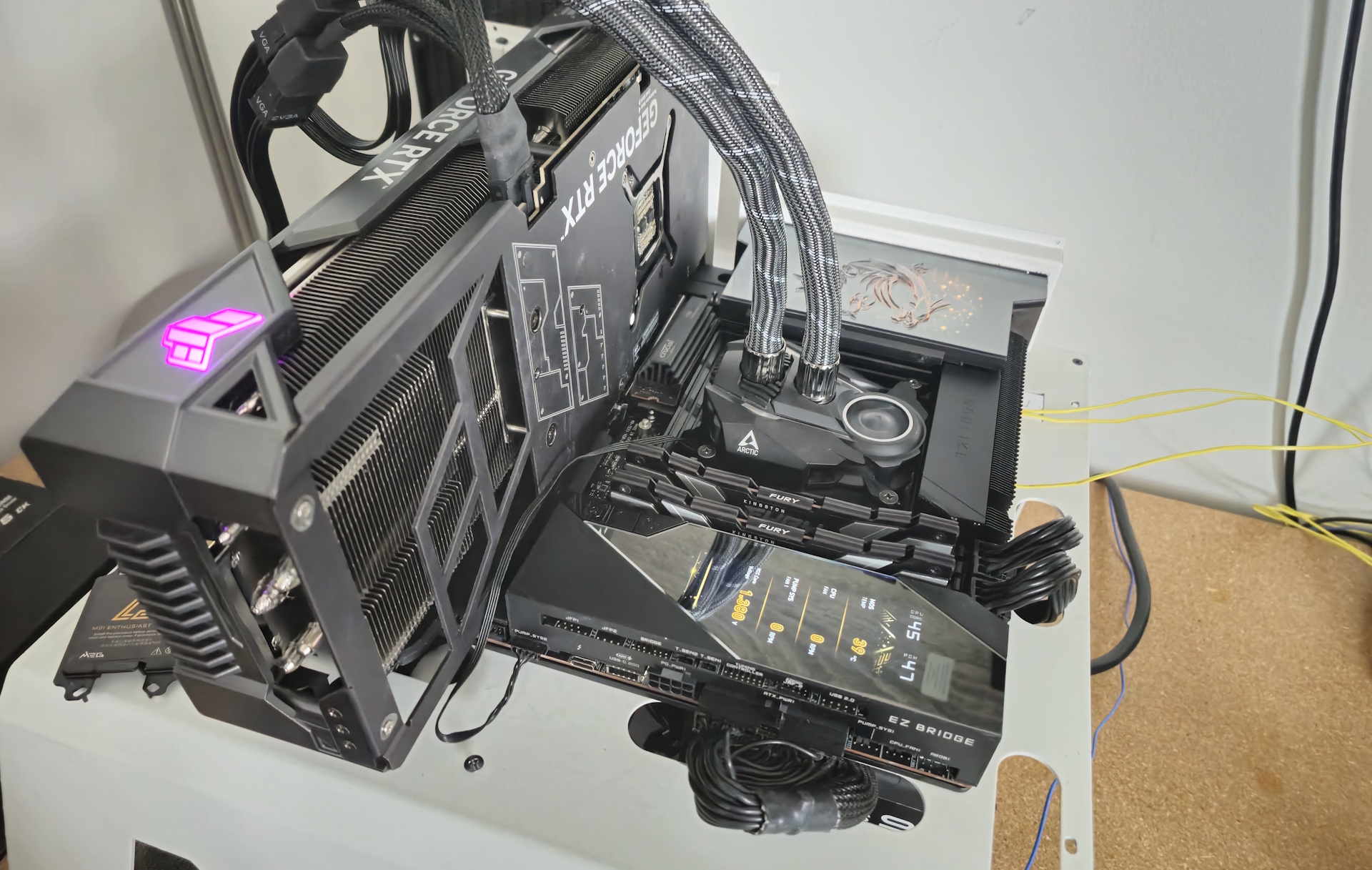

We’ve updated our test system to Windows 11 (24H2) 64-bit OS, with all updates applied as of late September 2024, including the Branch Prediction Optimizations for AMD. Hardware-wise, we’ve updated the RAM kits (matching our Intel test system), cooling, storage, and video card. Unless otherwise noted, we use the latest non-beta motherboard BIOS that is publicly available. Thanks to Asus for providing the RTX 4080 TUF graphics card and Crucial for the 2TB T705 SSDs. The hardware we used is as follows:

Test System Components

Swipe to scroll horizontally

CPU	Intel Core Ultra 9 285K
Cooling	Arctic Liquid Freezer II 420
Storage	Crucial 2TB T705 M.2 PCIe 5.0 NVMe SSD
RAM	Kingston Fury Beast DDR5-6000 CL36 (KF560C36BBEAK2-32)
RAM	GSkill Trident Z5 CK (F5-8200C4052G24GX2)
RAM	Klevv Cras XR5 RGB DDR5-8000 (KD5AGUA80-80R380S)
RAM	Kingston Renegade Fury DDR5-8200 CU-DIMM (KF582C40RS-24)
GPU	Asus TUF RTX 4080 16G
PSU	EVGA Supernova 850W P6
Software	Windows 11 64-bit (24H2)
Graphics Driver	NVIDIA Driver 561.09
Sound	Integrated HD audio
Network	Integrated Networking (GbE to 10 GbE)

Benchmark Settings

Swipe to scroll horizontally

Synthetic Benchmarks and Settings	Row 0 - Cell 1
Procyon	Version 2.8.1352 64
Row 2 - Cell 0	Office 365, Video Editing (Premiere Pro 24.6.1), Photo Editing (Photoshop 25.1.2, Lightroom Classic 13.5.1)
3DMark	Version 2.29.8294.0 64
Row 4 - Cell 0	Speed Way and Steel Nomad (Default)
Cinebench R24	Version 2024.1.0
Row 6 - Cell 0	Open GL Rendering Benchmark - Single and Multi-threaded
Blender	Version 4.2.0
Row 8 - Cell 0	Full benchmark (all 3 tests)
Application Tests and Settings	Row 9 - Cell 1
LAME MP3	Version SSE2_2019
Row 11 - Cell 0	Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLI	Version: 1.8.2
Row 13 - Cell 0	Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4	Version 1.4
Row 15 - Cell 0	Custom benchmark
7-Zip	Version 24.08
Row 17 - Cell 0	Integrated benchmark (Command Line)
Game Tests and Settings	Row 18 - Cell 1
Cyberpunk 2077	Ultra RT: - 1920 x 1080, DLSS - Balanced
F1 2024	Ultra High Preset - 1920 x 1080, 16xAF/TAA, Great Britain (Clear/Dry), FPS Counter ON

MORE: Best Motherboards

MORE: How To Choose A Motherboard

MORE: All Motherboard Content

Current page: Firmware, Software and Test System

Prev Page Features and Specifications Next Page Benchmarks and Final Analysis
