Ripple Measurements
To learn how we measure ripple, please click here.
The following table includes the ripple levels we measured on the MasterWatt Maker 1200's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 10.5mV | 6.1mV | 6.7mV | 4.1mV | Pass |
| 20% Load | 11.7mV | 6.6mV | 7.1mV | 4.7mV | Pass |
| 30% Load | 13.0mV | 7.6mV | 8.9mV | 5.8mV | Pass |
| 40% Load | 14.4mV | 8.4mV | 9.6mV | 5.6mV | Pass |
| 50% Load | 16.2mV | 9.4mV | 10.9mV | 6.3mV | Pass |
| 60% Load | 14.0mV | 9.9mV | 13.1mV | 7.1mV | Pass |
| 70% Load | 15.0mV | 12.2mV | 13.7mV | 8.1mV | Pass |
| 80% Load | 15.6mV | 12.6mV | 15.5mV | 8.4mV | Pass |
| 90% Load | 17.4mV | 14.0mV | 16.1mV | 10.2mV | Pass |
| 100% Load | 19.3mV | 20.6mV | 22.7mV | 13.6mV | Pass |
| 107% Load | 20.5mV | 22.2mV | 23.5mV | 15.1mV | Pass |
| Cross-Load 1 | 11.5mV | 7.3mV | 9.8mV | 4.5mV | Pass |
| Cross-Load 2 | 19.1mV | 19.4mV | 22.3mV | 12.5mV | Pass |

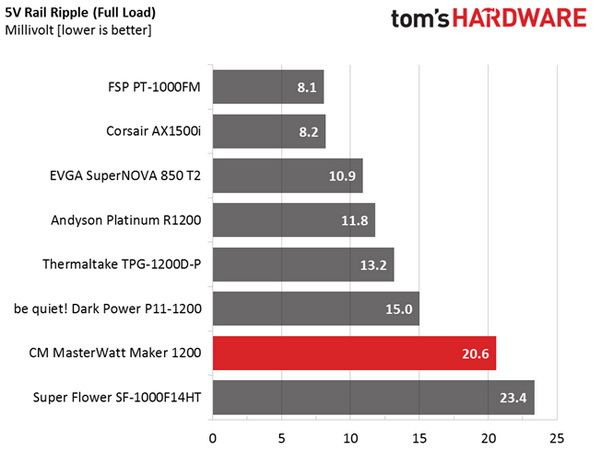

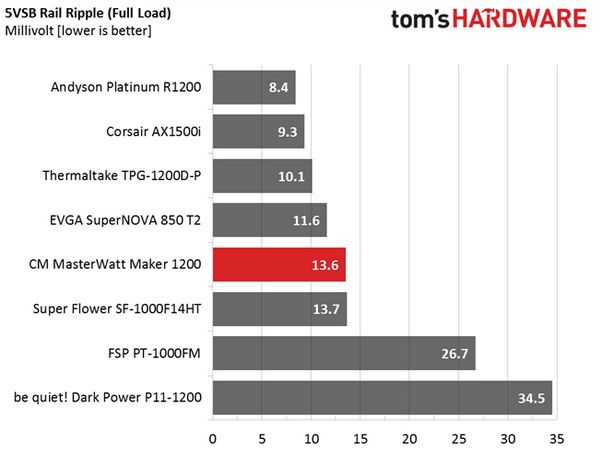

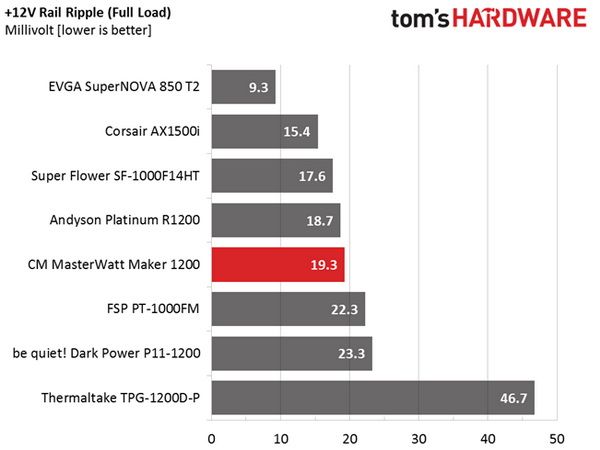

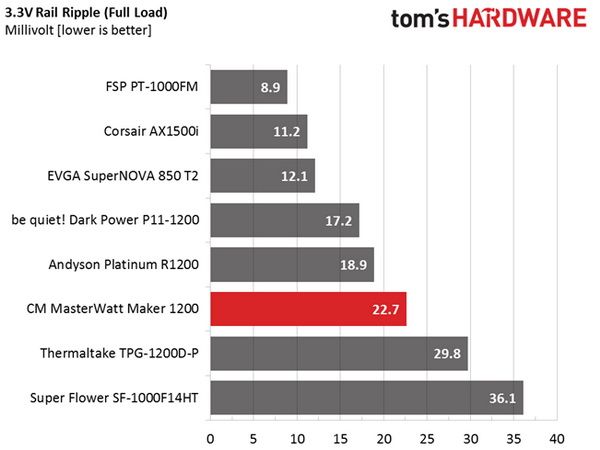

Ripple suppression is very good overall, though Corsair's digital AX1500i fares even better. Still, we're pleasantly surprised by these numbers since we aren't used to seeing such low ripple from Enhance's implementations.
Ripple Oscilloscope Screenshots
The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

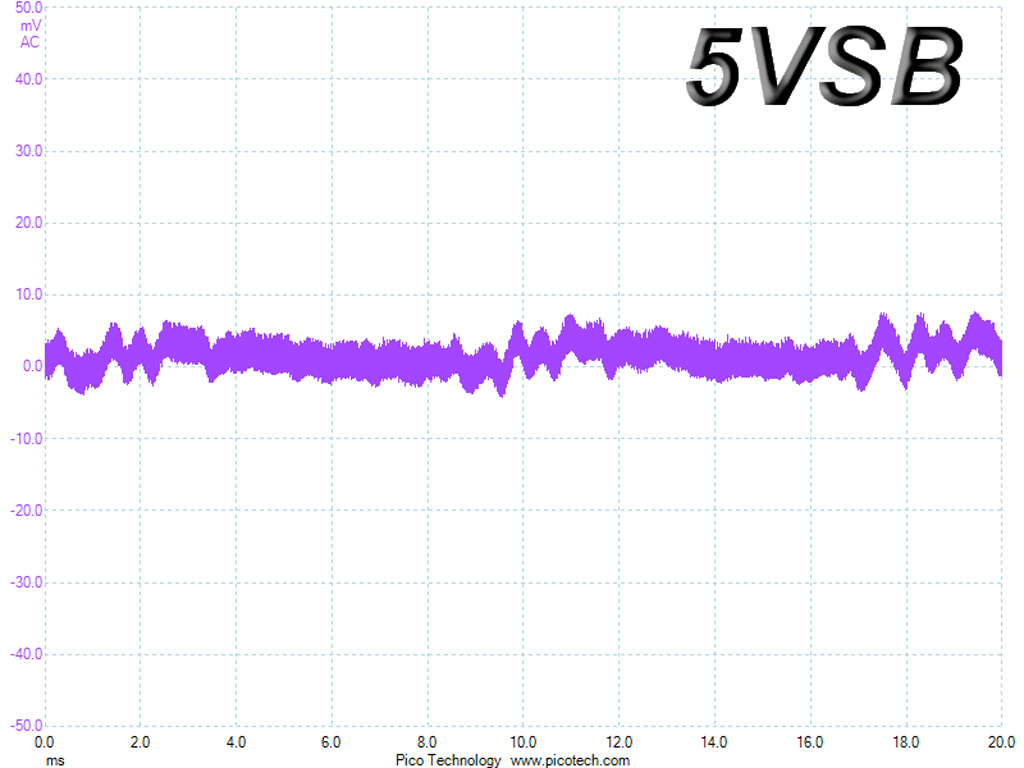

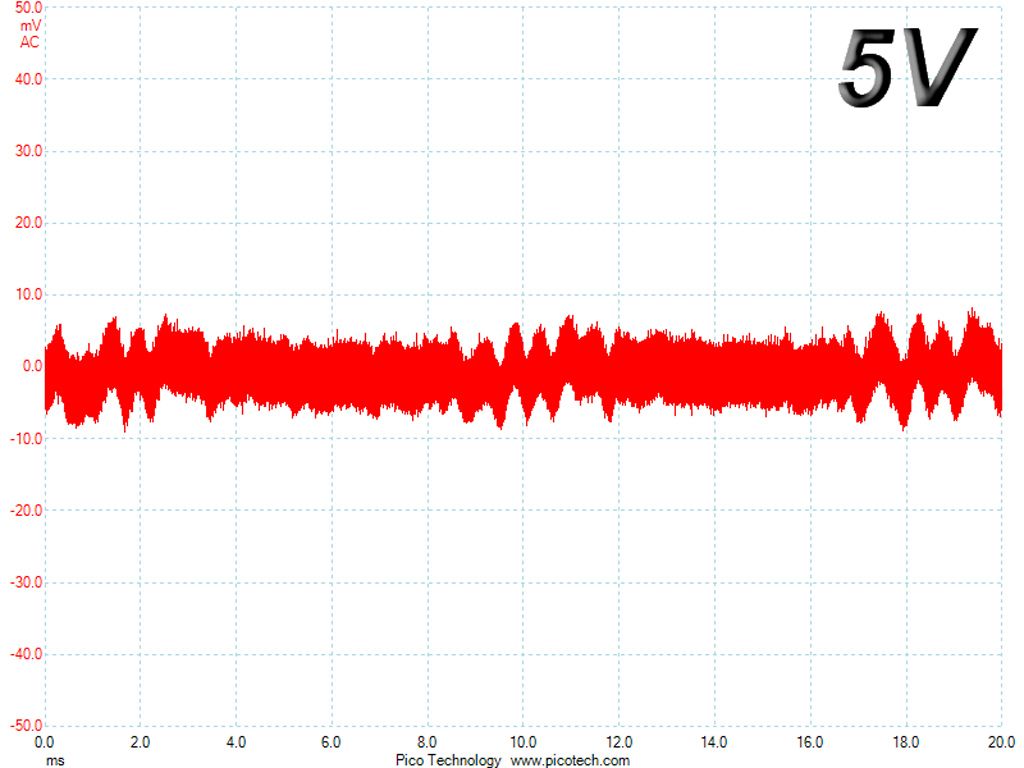

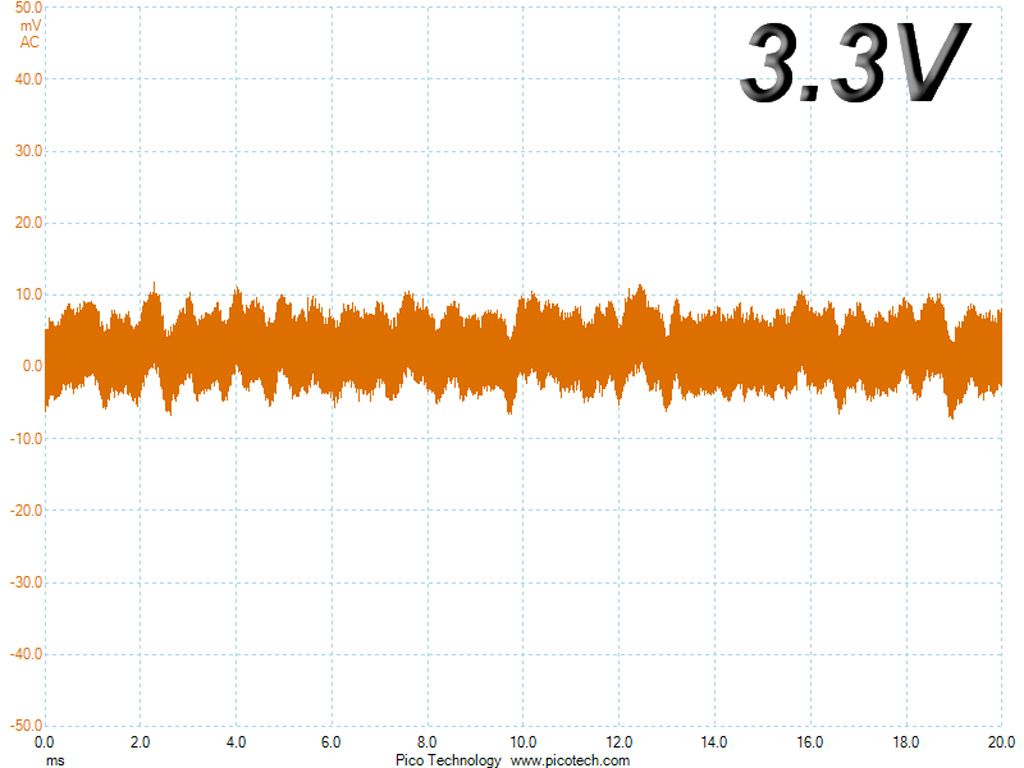

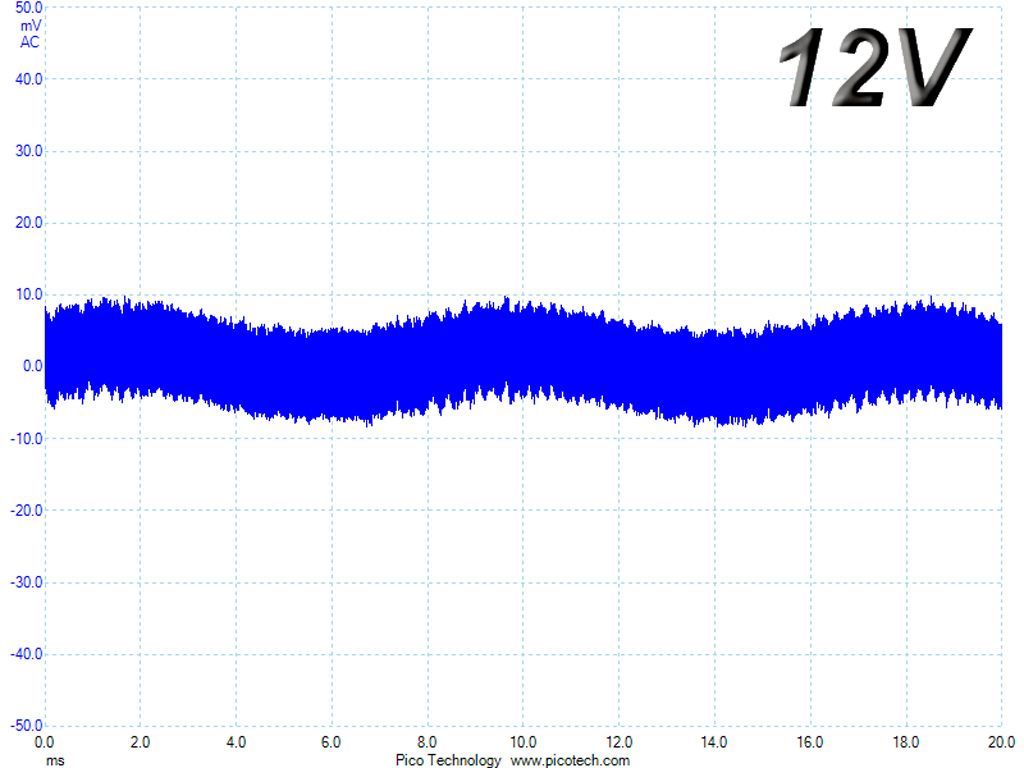

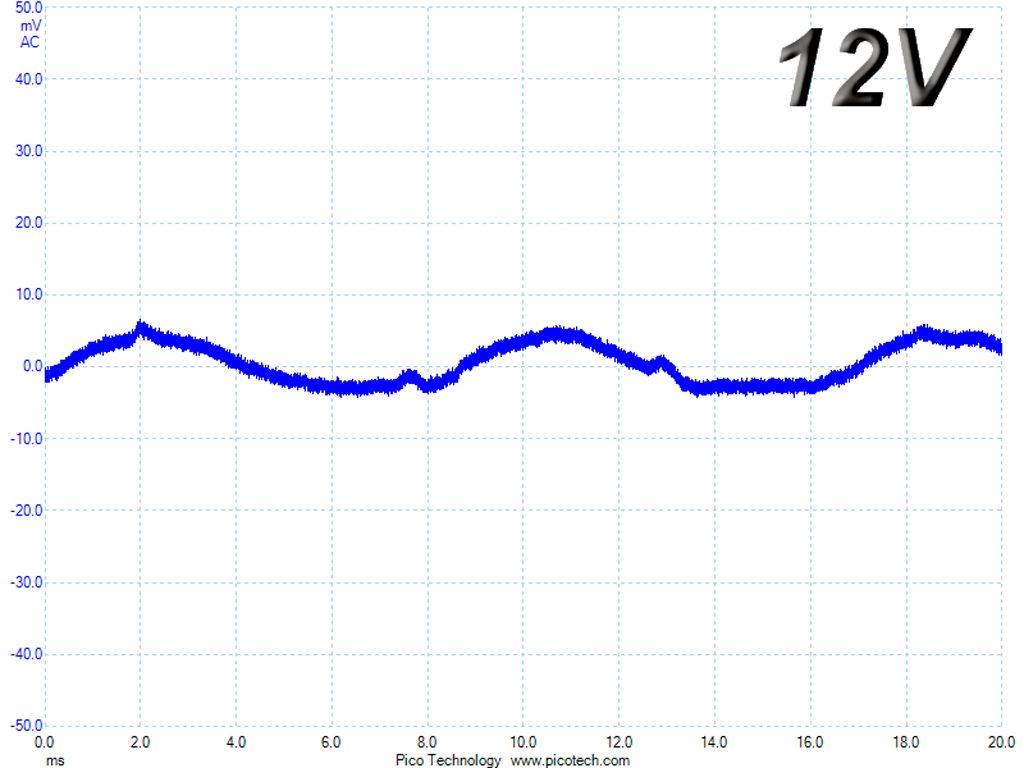

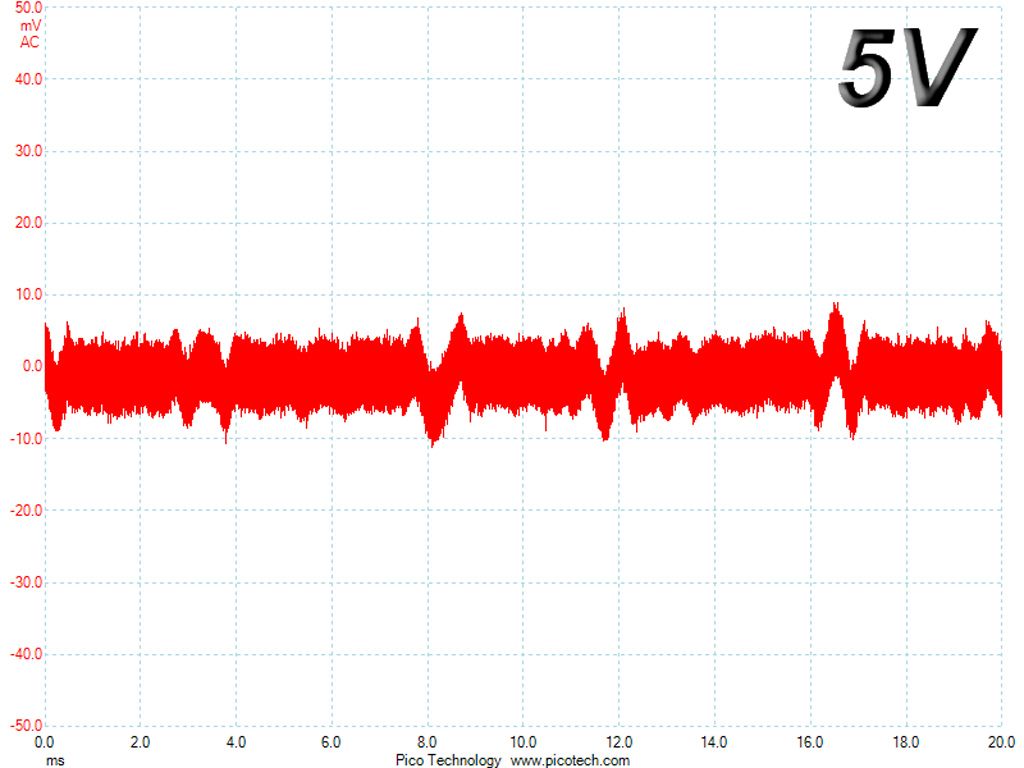

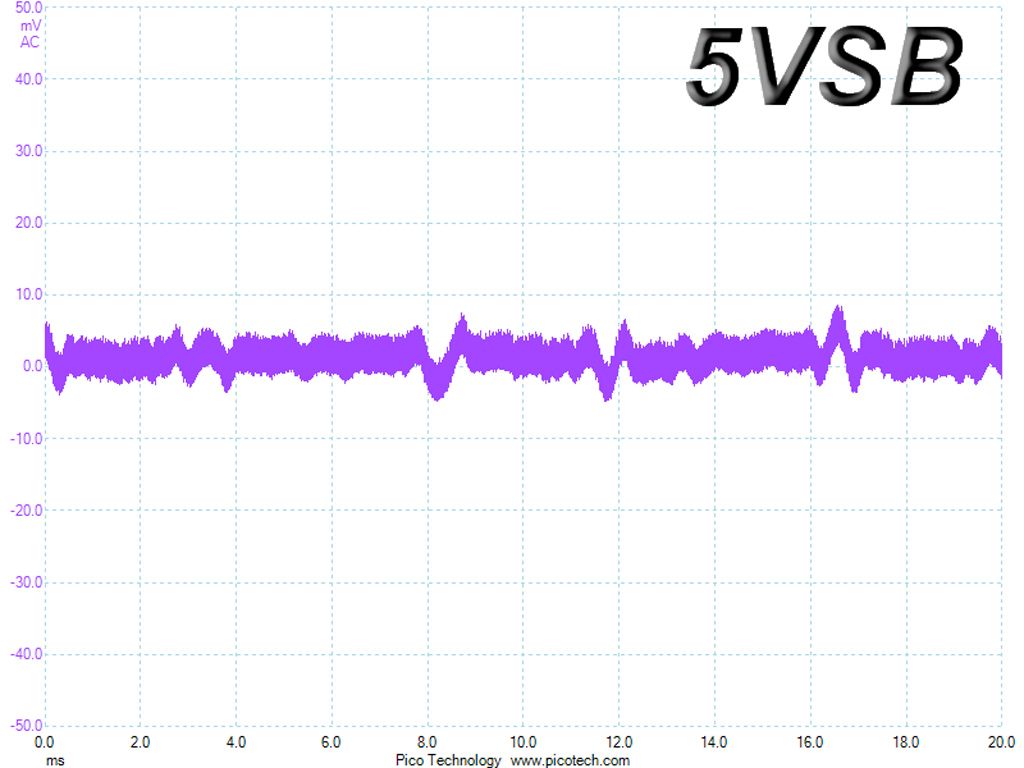

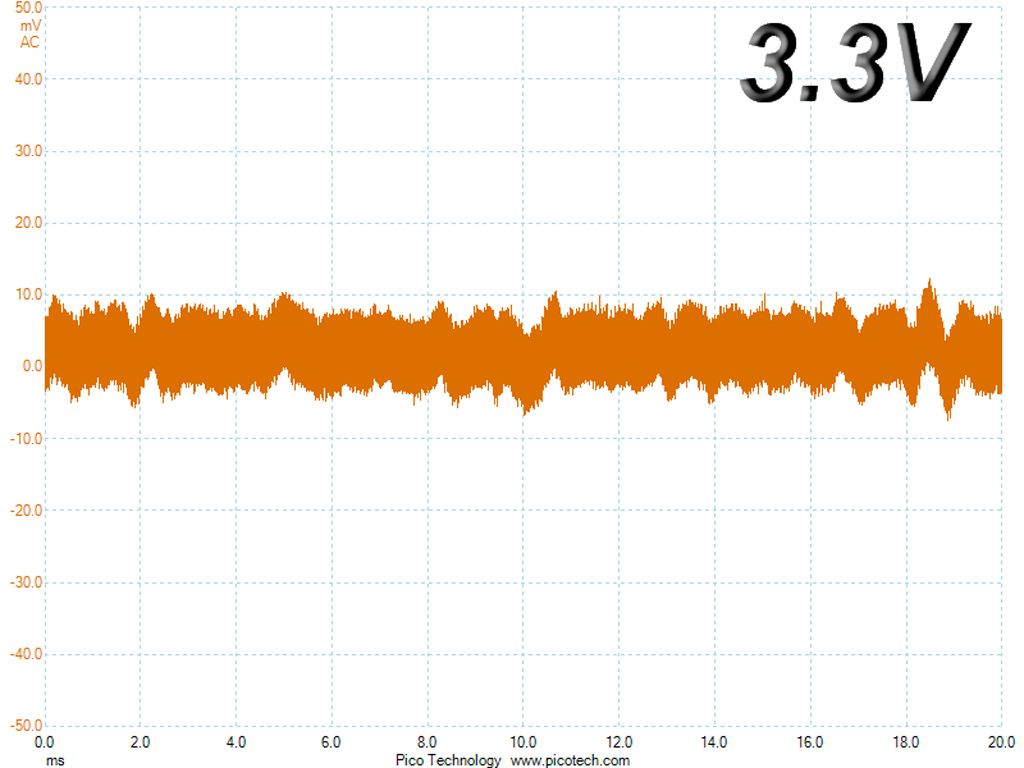

Ripple At Full Load

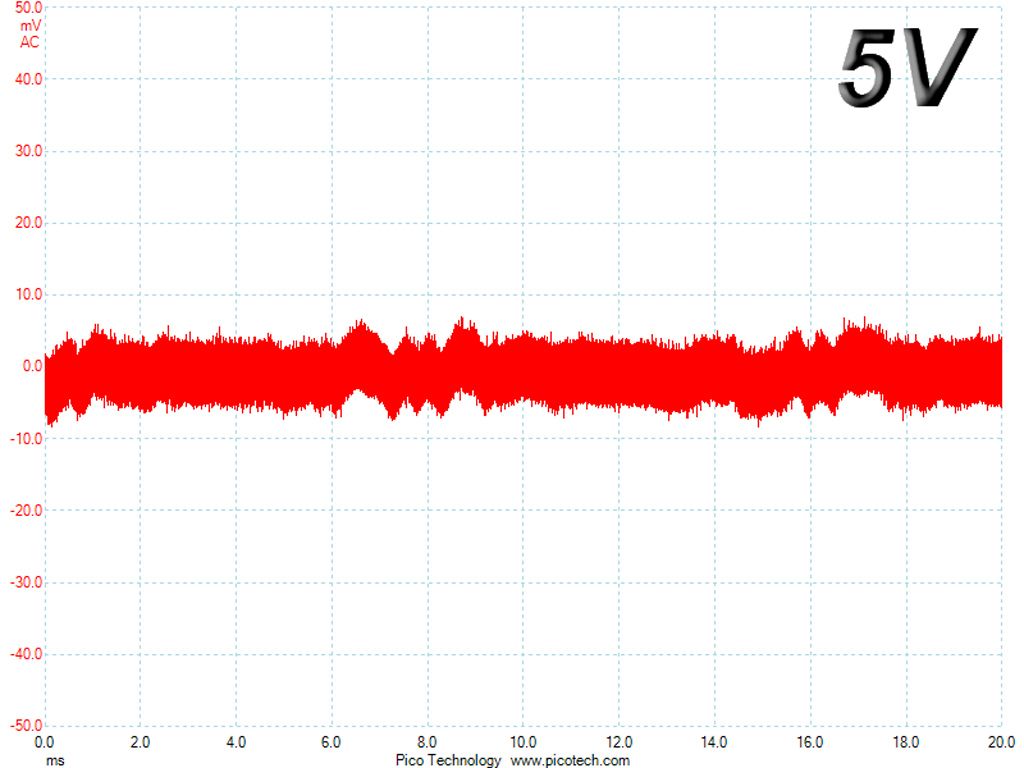

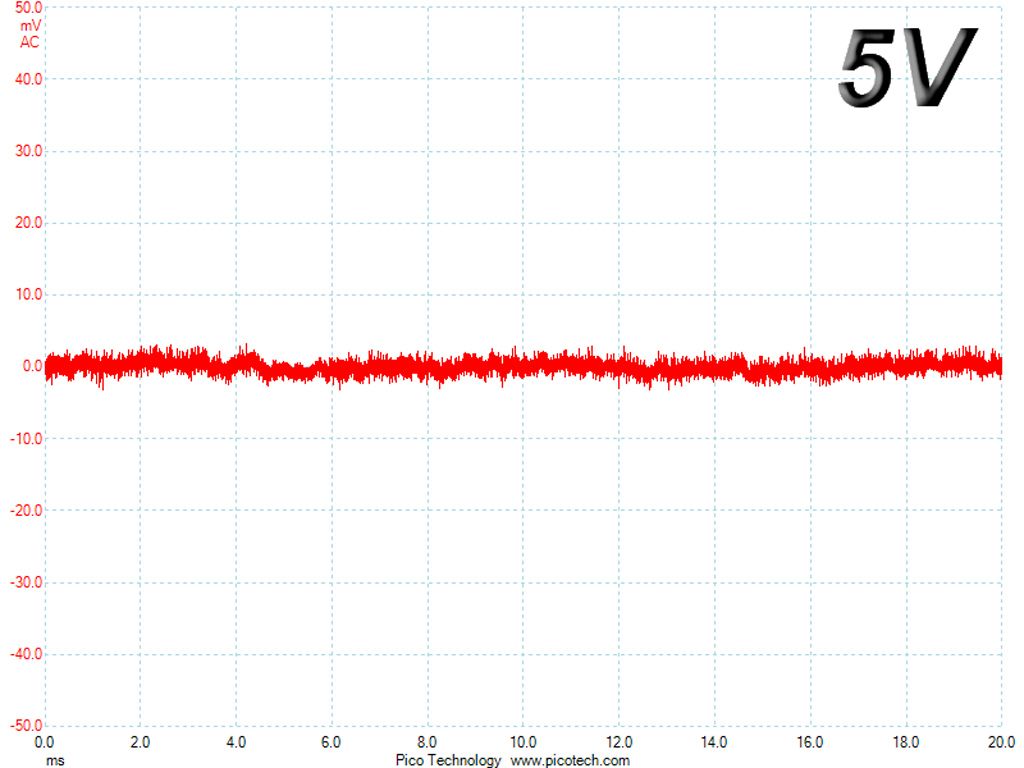

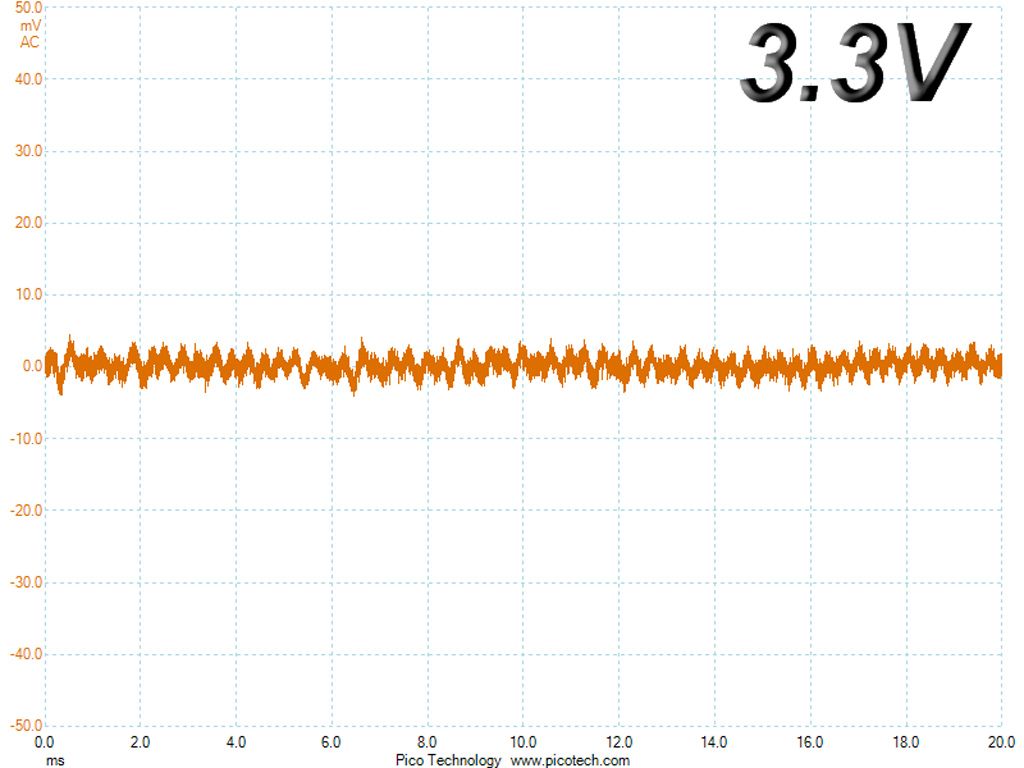

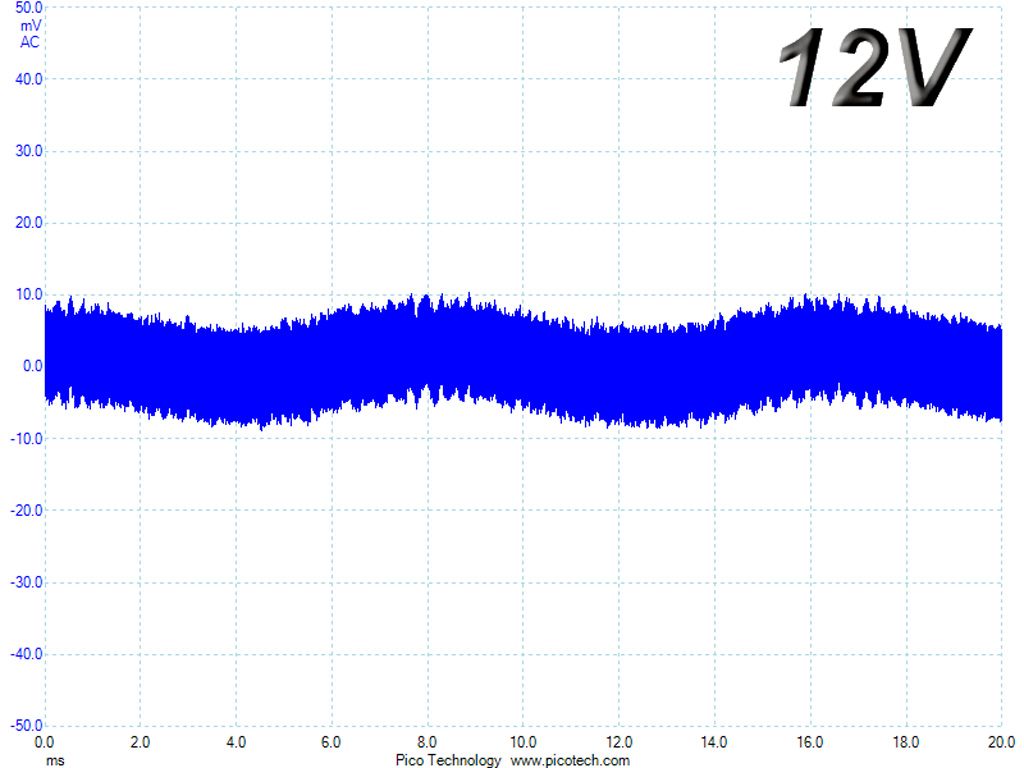

Ripple At 110-Percent Load

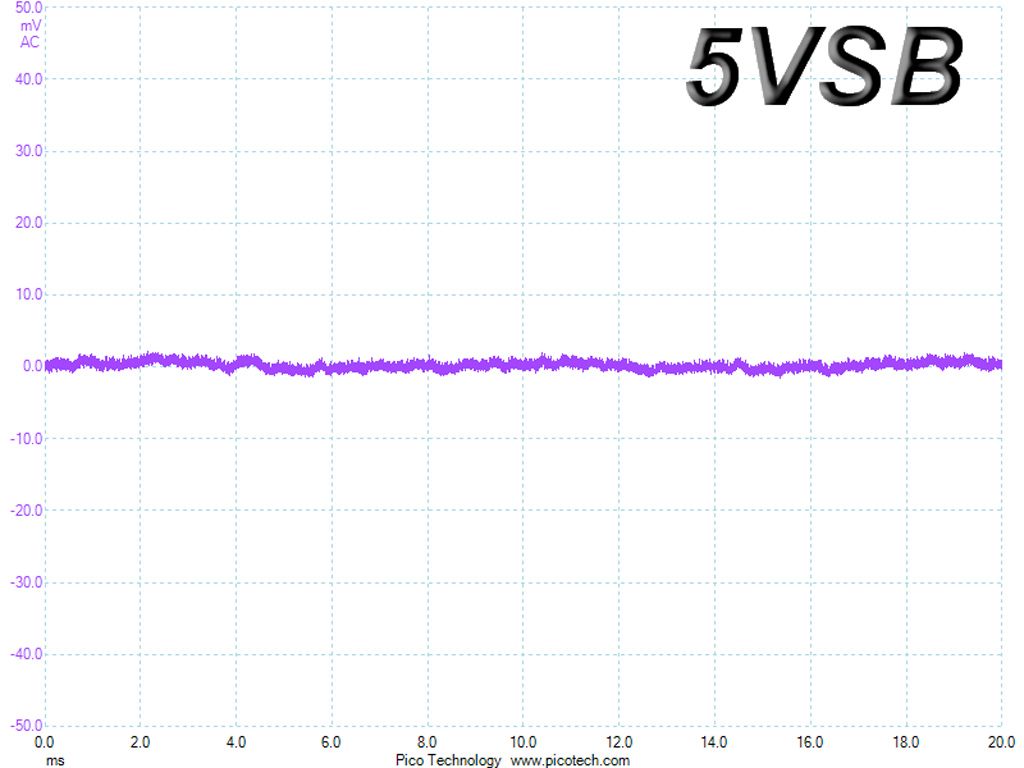

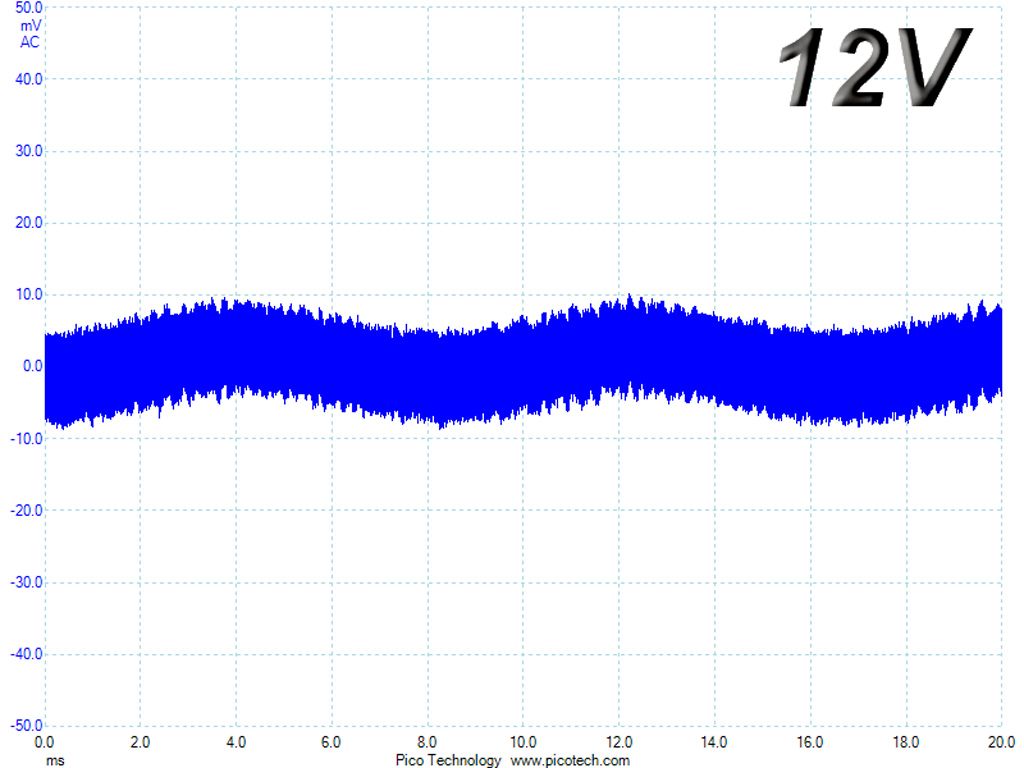

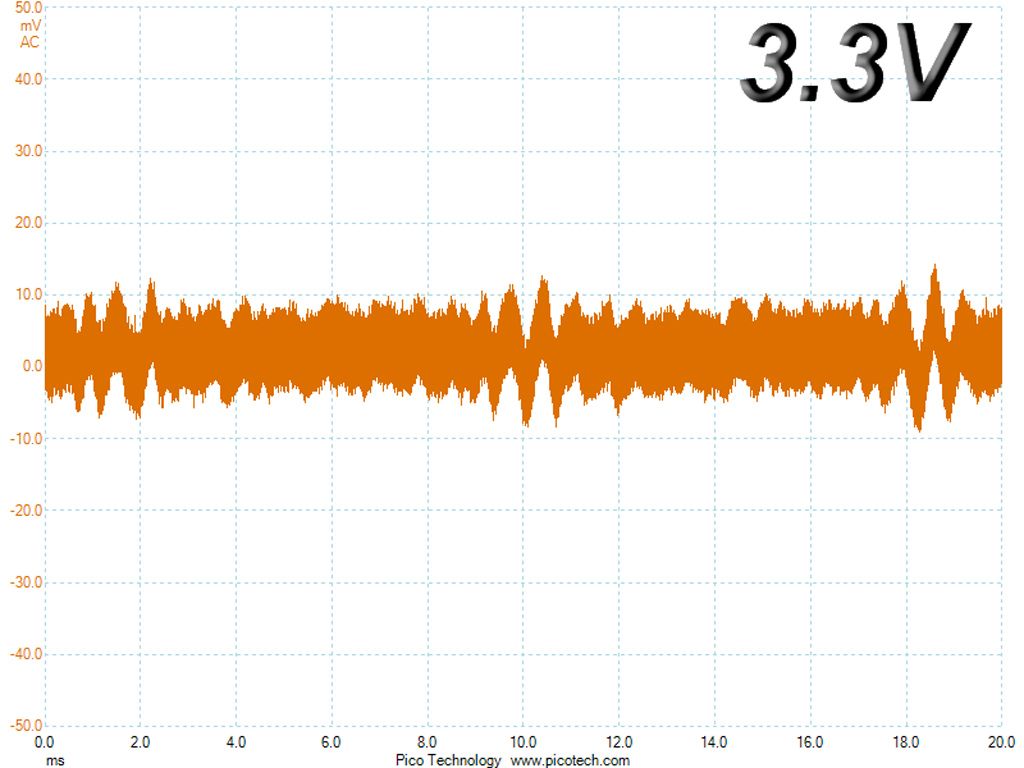

Ripple At Cross-Load 1

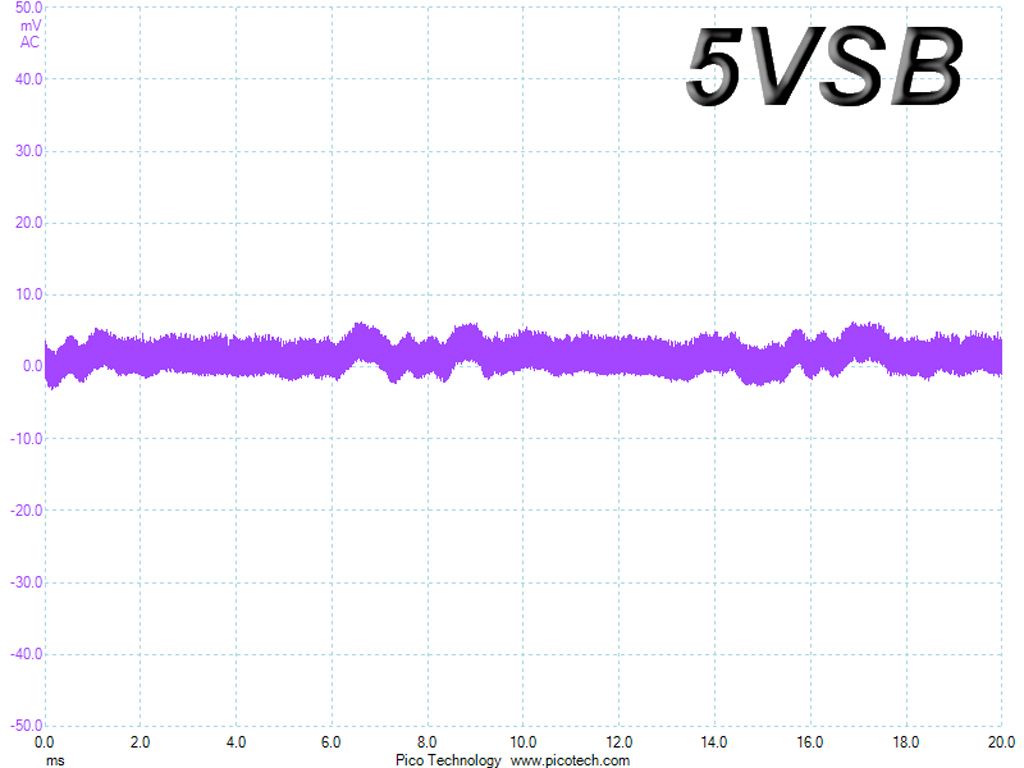

Ripple At Cross-Load 2
