Ripple Measurements
To learn how we measure ripple, please click here.

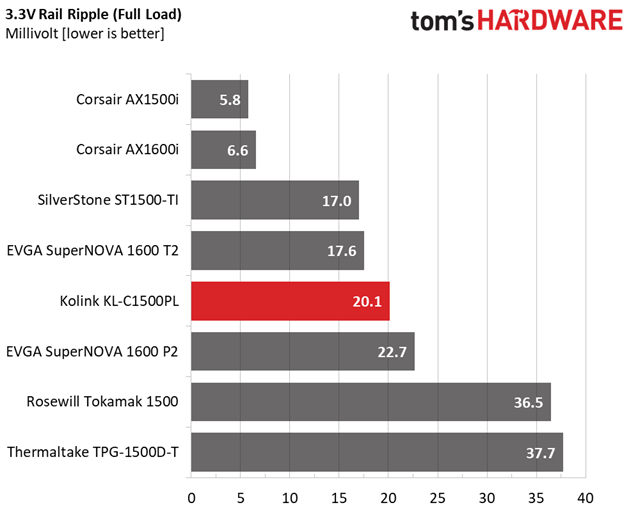

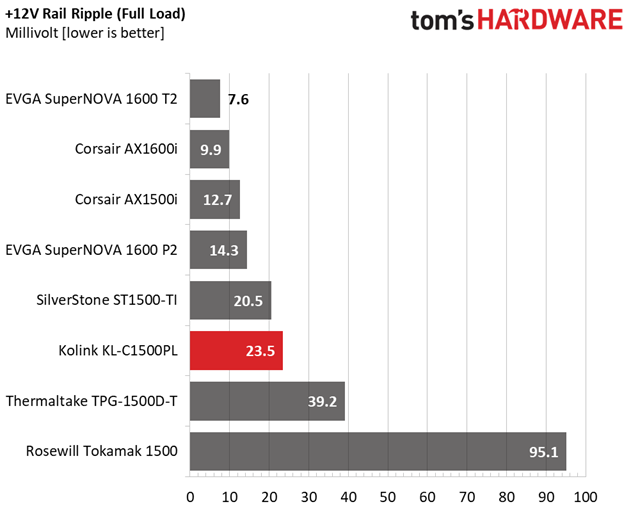

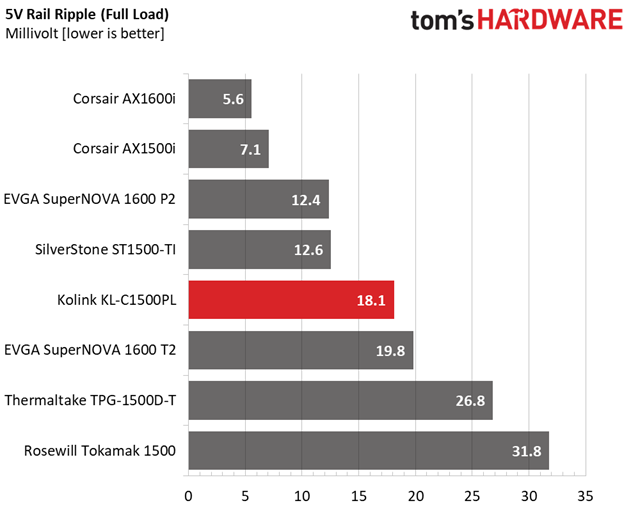

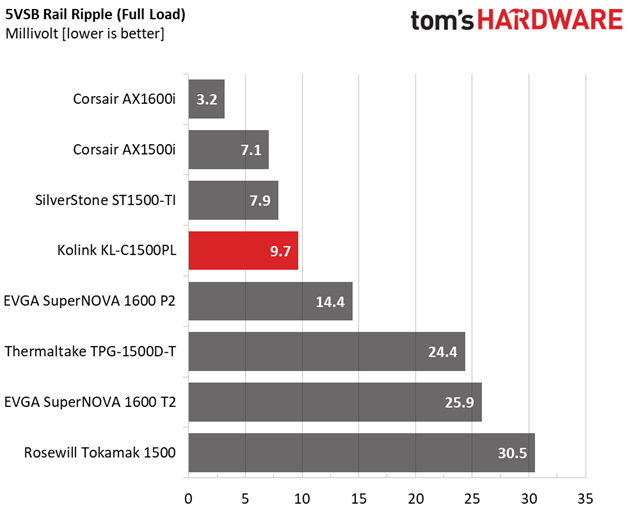

The following table includes the ripple levels we measured on the KL-C1500PL’s rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V, and 5VSB).
| Test | 12V | 5V | 3.3V | 5VSB | Pass/Fail |
|---|---|---|---|---|---|
| 10% Load | 4.3mV | 7.6mV | 7.3mV | 4.3mV | Pass |
| 20% Load | 8.3mV | 9.7mV | 8.9mV | 4.7mV | Pass |
| 30% Load | 11.5mV | 9.6mV | 9.1mV | 5.3mV | Pass |
| 40% Load | 17.7mV | 11.2mV | 10.7mV | 5.9mV | Pass |
| 50% Load | 17.9mV | 12.0mV | 12.2mV | 6.4mV | Pass |
| 60% Load | 19.6mV | 13.5mV | 14.1mV | 7.3mV | Pass |
| 70% Load | 20.8mV | 15.0mV | 18.4mV | 8.1mV | Pass |
| 80% Load | 21.7mV | 15.2mV | 17.4mV | 8.6mV | Pass |
| 90% Load | 22.4mV | 16.6mV | 18.8mV | 9.1mV | Pass |
| 100% Load | 23.5mV | 18.1mV | 20.1mV | 9.7mV | Pass |
| 110% Load | 24.3mV | 18.9mV | 21.4mV | 10.2mV | Pass |
| Cross-Load 1 | 8.5mV | 12.6mV | 13.3mV | 31.3mV | Pass |
| Cross-Load 2 | 23.0mV | 15.9mV | 17.0mV | 7.3mV | Pass |
The ripple suppression on every rail is very good (and without the need for extra ripple filtering caps on the modular cables).
Ripple Oscilloscope Screenshots

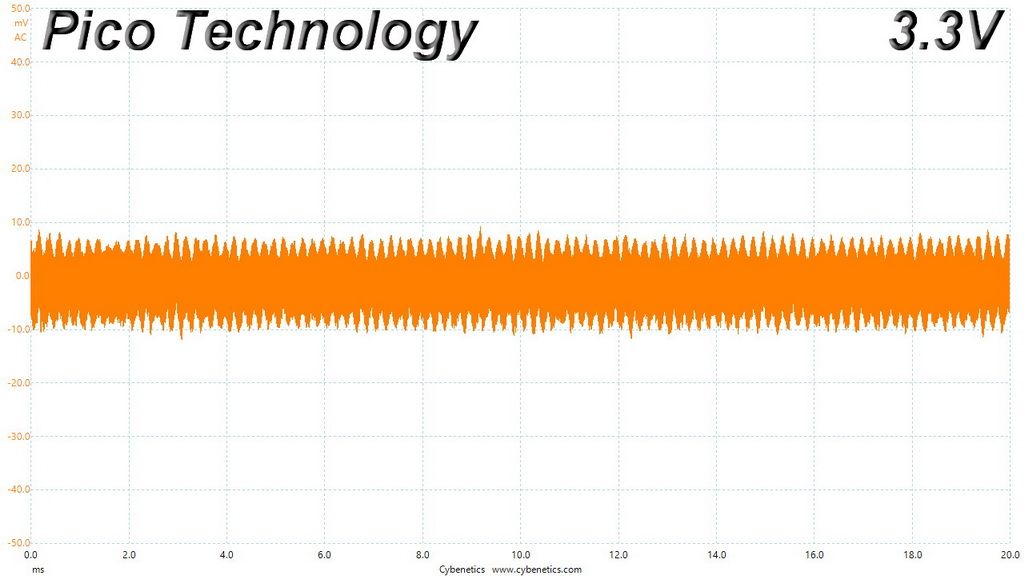

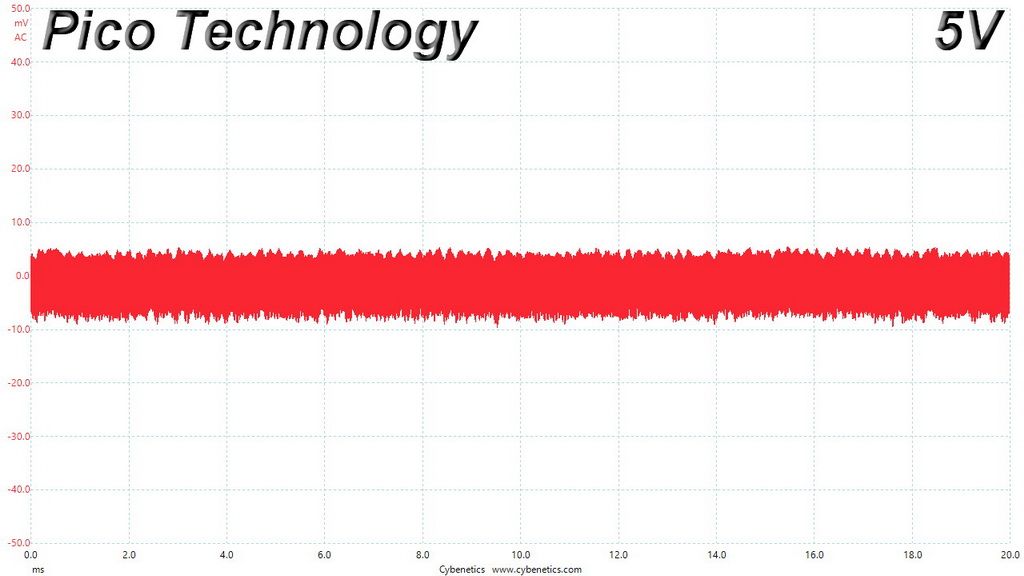

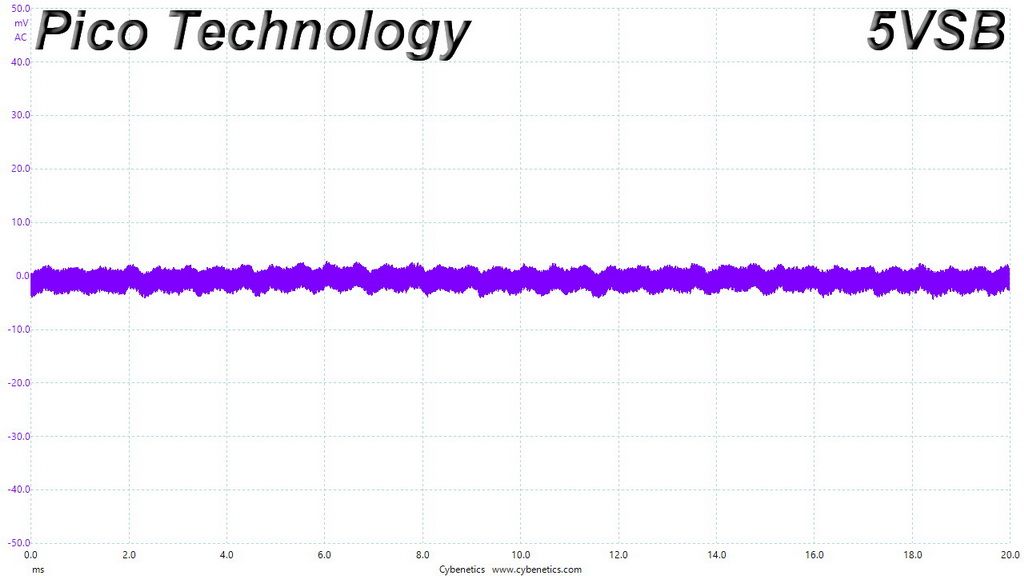

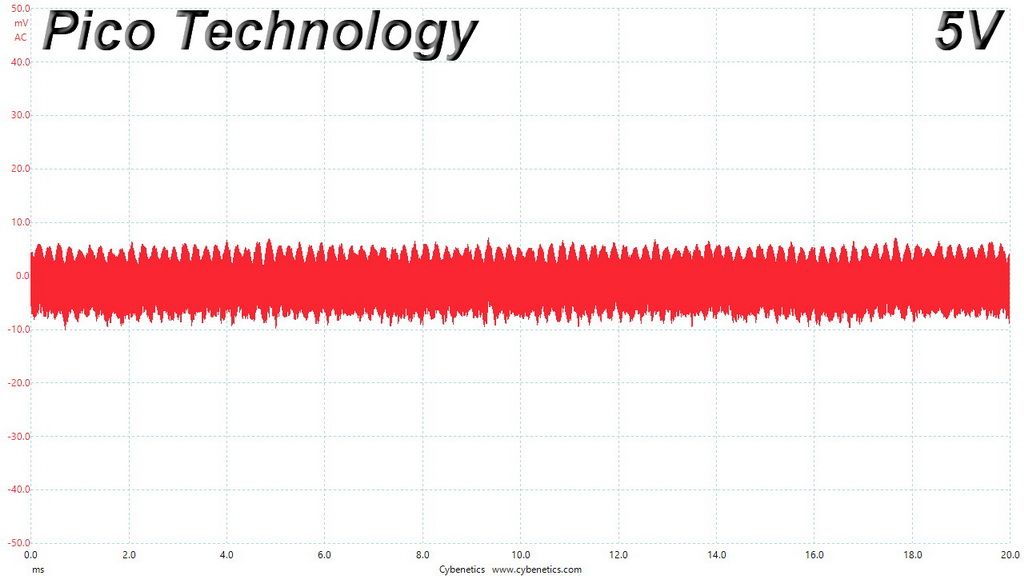

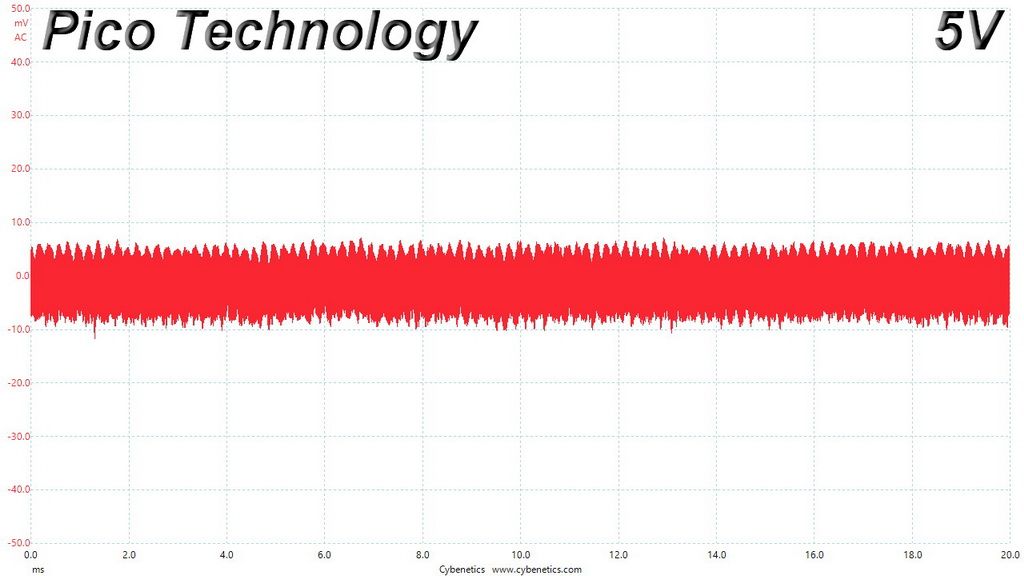

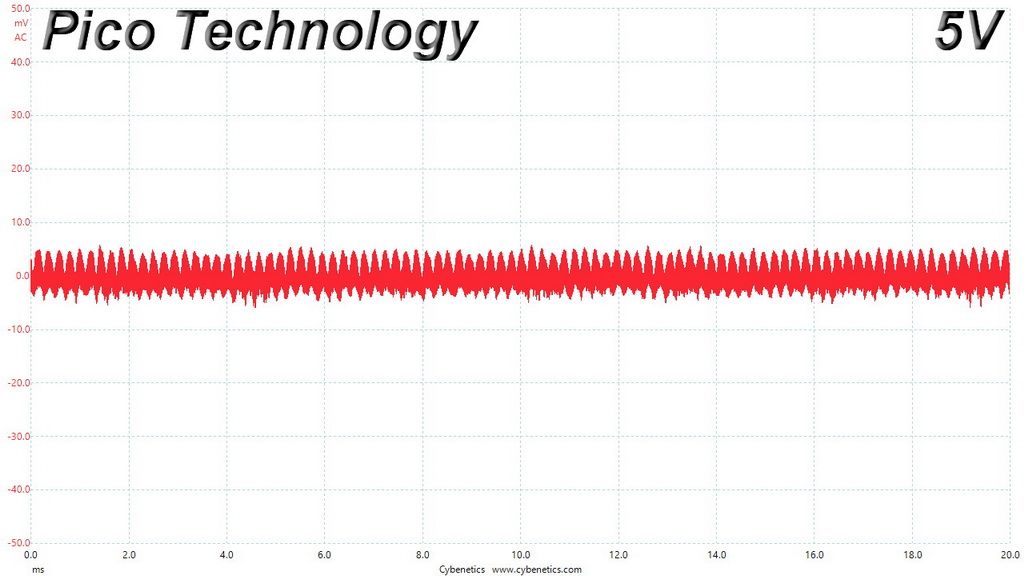

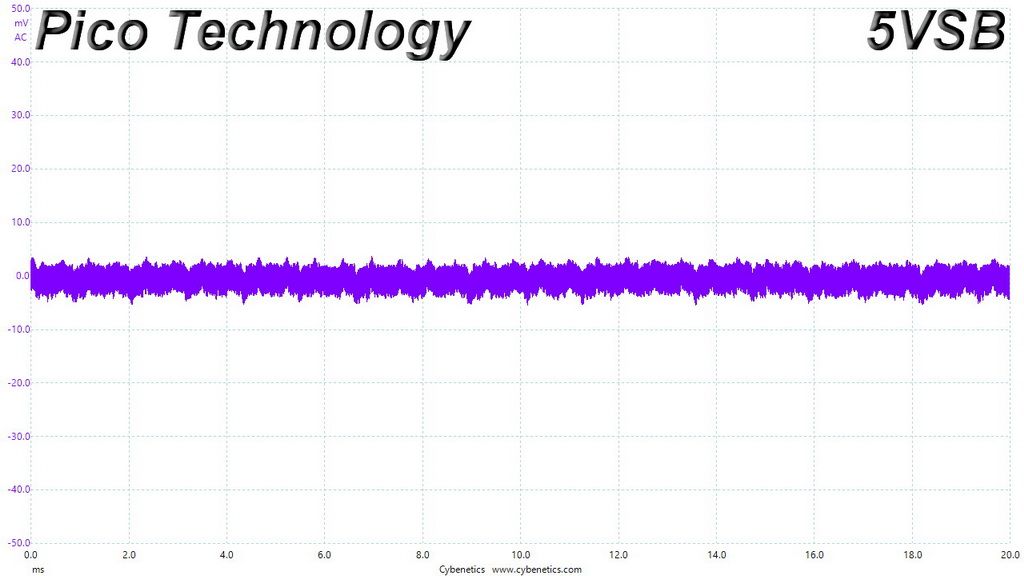

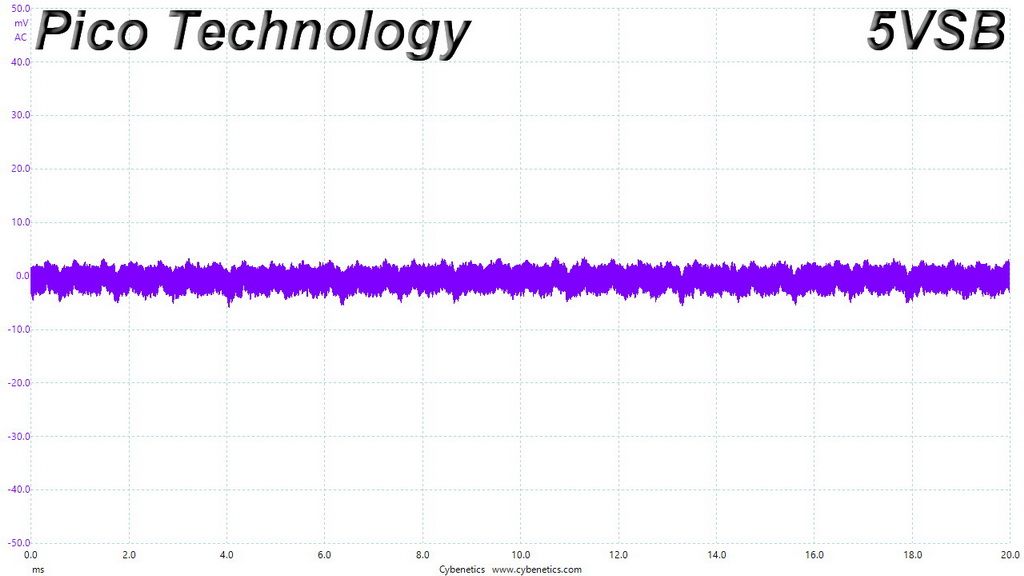

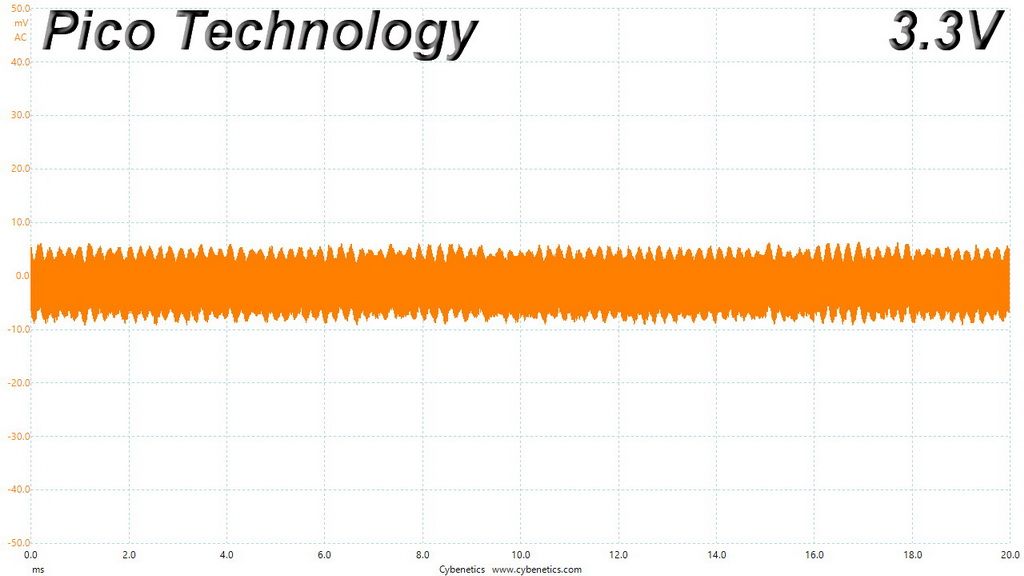

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V, and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01 V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

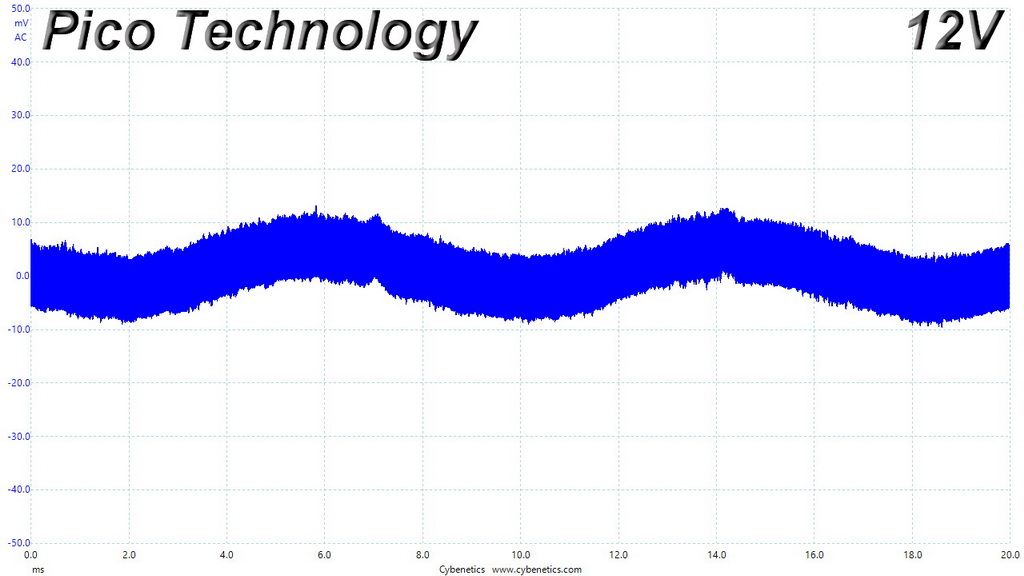

Ripple At Full Load

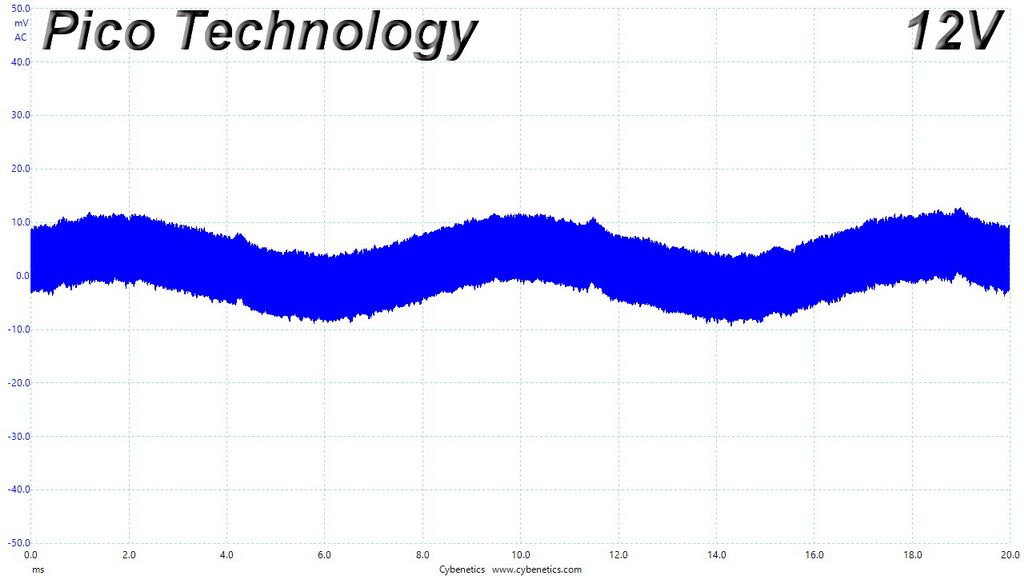

Ripple At 110-Percent Load

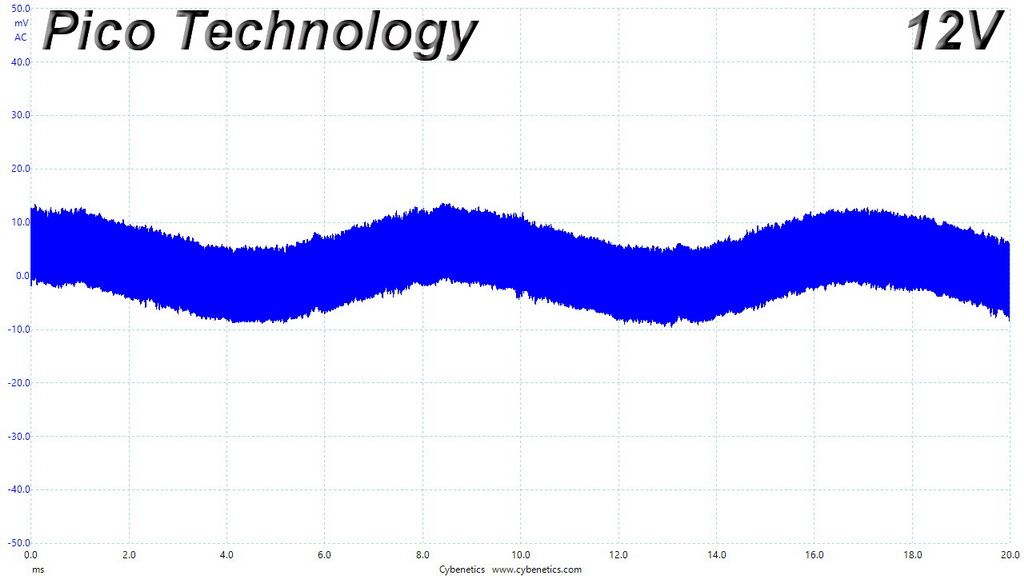

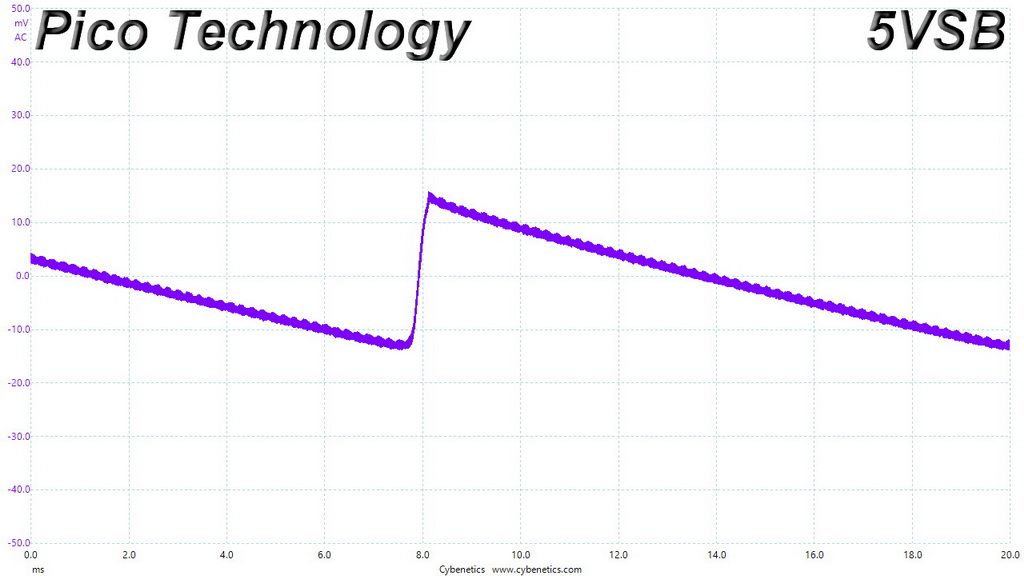

Ripple At Cross-Load 1
Ripple At Cross-Load 2
