Thermaltake Tower 900 Case Review

Benchmark Results & Final Analysis

A casual observer would think that The Tower 900’s closest match for a performance comparison would be the PC-O11 from Lian Li, but we’ve already established that your observations are far more acute. While the Lian Li model shares the stretched cube style and dual-chamber construction, it doesn’t include any fans, and its large radiator bracket doesn’t even have direct access to outside air.

Comparison Cases

Loading...

Aesthetic similarities place the PC-O11 second on the comparison list behind Rosewill’s Cullinan, a case that has a similar quantity of glass and similar stock fan capability. The Rosewill model is also EATX, like The Tower 900. Meanwhile the PC-O11WX is EATX in name only. It lacks the fourth column of standoffs required to support a full-EATX motherboard. And the Corsiar Crystal 570X? Full glass and enough room to mount a 10.6” deep motherboard, which corresponds to the dimensions of most oversized-ATX enthusiast motherboards that carry the EATX label. All four cases have been tested using our standardized hardware configuration.

The Tower 900 has only exhaust fans, but these appear to be strategically placed to draw maximum heat away from our CPU cooler. Having noticed that in the temperatures, we also noticed that the CPU temperature dropped around 10°C over a 30-minute period when the GPU was unloaded.

After all the trouble I had photographing a case this large, I was thrilled when I cranked the GPU fans to full throttle and didn’t have to hear them whine. The Tower 900’s glass did an excellent job of blocking noise from the side, and its double-layer top panel did a good job of muffling the exhaust.

Being both cooler and quieter than competitors, The Tower 900 take top honors in our overall performance calculation, labeled Acoustic Efficiency.

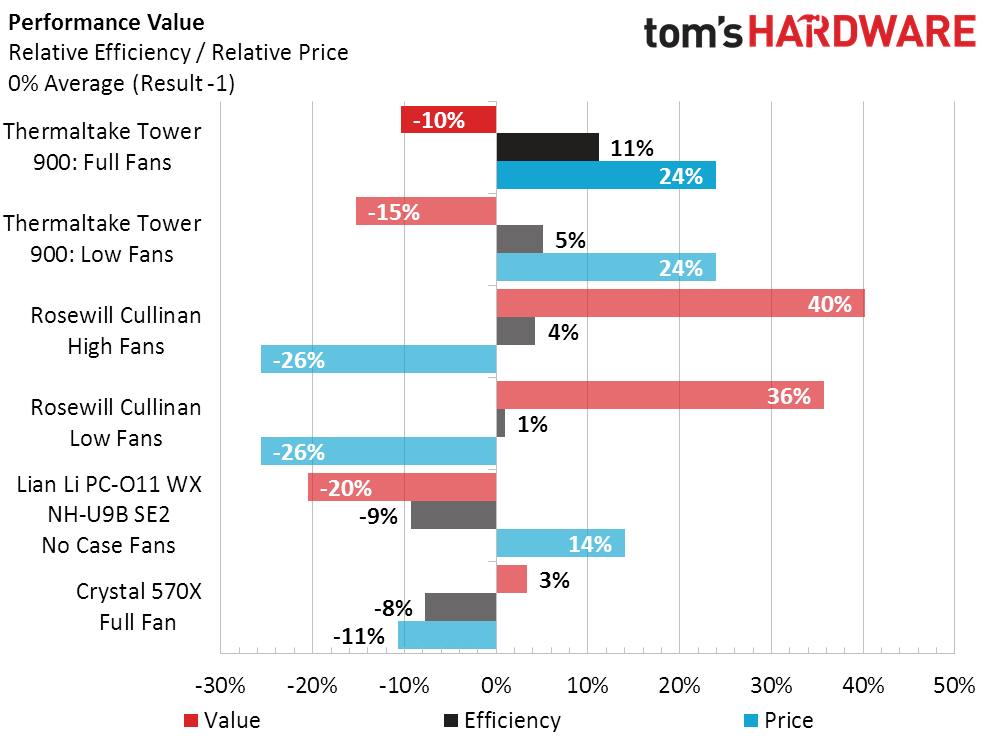

The Tower 900 is significantly more expensive than second-place Rosewill Cullinan. Even the somewhat expensive Crystal 570X, which ran too hot to be tested at low fans, came up with a slight price-to-performance margin over the high-priced Thermaltake model.

Buyers in The Tower 900’s market are surely not considering the Rosewill Cullinan. Even though these are fairly matched in a performance comparison, the Cullinan supports only a 3x 140mm radiator up front and a 2x 140mm radiator on top. The Tower 900 can do two 4x 140mm radiators, and crafty installers might even fit three 2x 120mm radiators while keeping the extra drive cages in back.

The Tower 900 is also insanely impractical for normal users, or even for normal enthusiasts. It’s huge, and the empty case weighs as much as many high-end gaming PCs. Yet if you really aren’t put off by the enormity or the borderline pretentious design, you’ll be able to pack a bunch of high-end gear inside. If you own a custom computer shop and want to showcase your rigid-tube bending skills, The Tower 900 is for you. On the other hand, if your 4x4 has perfectly Armor-All’d 44” Super Swampers and never leaves the city, or if your million-dollar sports car spends its days cruising gently down the strip, The Tower 900 might also be for you.

MORE: Best Cases

MORE: All Case Content

This thread is closed for comments
16 comments
    Your comment
  • dstarr3
    That's a sweet-looking 3D printer. Oh, wait...
  • GaryD9
    Wait... Thermaltake actually sells that case? I thought it was just a marketing gimmick.
  • ingtar33
    who did they copy this case design from?
  • derekullo
    I don't quite get the Temperatures over Ambient chart.

    Neither Celsius nor Fahrenheit makes much sense.

    Either cpus were averaging 90 - 106 Celsius or the ambient temperature in the room was like 50 °F.

    Am I missing something?
  • IzK666
    Mozart²? It's amazing... I like it!
  • Crashman
    212804 said:
    I don't quite get the Temperatures over Ambient chart. Neither Celsius nor Fahrenheit makes much sense. Either cpus were averaging 90 - 106 Celsius or the ambient temperature in the room was like 50 °F. Am I missing something?

    Nope. I increased the thermal threshold to 115 °C. You can do that with this CPU and motherboard.
  • 10tacle
    Excellent and thorough review as always. As an air cooler builder, I am always interested in seeing the difference a case design makes in CPU and GPU thermals. What I found intriguing here was that the 900 had the best CPU temp but only third best GPU temp with two other cases tying. Rosewill's classic pull-push case design continues to prove that a simple in-out air solution is the best over a ton of fans blowing everywhere.

    With that said, as one who only likes to keep his gaming PCs on top of a desk instead of on the floor where dust gets kicked up, these cube designs would be impracticable. They would look good in the slot of a media center however as a media PC.
  • ObelixThe
    Not a nice Thermaltake case... no absolutely not buying this BOX.
  • Kepalajamuran
    I can put my grandma's pottery collection in it.
  • falchard
    Thermaltake and inWin seem to be the only ones pushing forward unique case designs.
  • suryatricks
    I can put my grandma's pottery collection in<a href="http://suryatricks.in/"> it. </a>
  • daglesj
    Arrrgh I hate those stamped, split corner and flattened style USB case ports. They look sooo cheap. When I was looking for a new case any that had those were crossed off the list.
  • derekullo
    8708 said:
    212804 said:
    I don't quite get the Temperatures over Ambient chart. Neither Celsius nor Fahrenheit makes much sense. Either cpus were averaging 90 - 106 Celsius or the ambient temperature in the room was like 50 °F. Am I missing something?
    Nope. I increased the thermal threshold to 115 °C. You can do that with this CPU and motherboard.


    Ahh.

    At that point you don't have water cooling, more like half of a steam generator lol.
  • Crashman
    212804 said:
    8708 said:
    212804 said:
    I don't quite get the Temperatures over Ambient chart. Neither Celsius nor Fahrenheit makes much sense. Either cpus were averaging 90 - 106 Celsius or the ambient temperature in the room was like 50 °F. Am I missing something?
    Nope. I increased the thermal threshold to 115 °C. You can do that with this CPU and motherboard.
    Ahh. At that point you don't have water cooling, more like half of a steam generator lol.

    We actually set the system up to find the greatest variation in temperatures. Unfortunately, the case we used for the baseline was a really WELL ventilated case. Otherwise we would have used a larger (air) cooler or a lower overclock. When we set this up, there still wasn't enough consistency in radiator support between cases to pick just one liquid cooler, and air does a good job of showing the effects of airflow anyway.
  • Fiqar_
    That's a beautiful looking pc right there!
  • Fiqar_
    Does anyone else get the vibes of a sad little box looking at this thing?
