Benchmark Results: Throughput And Streaming

3.5” Enterprise Hard Drive Development Analyzed
By

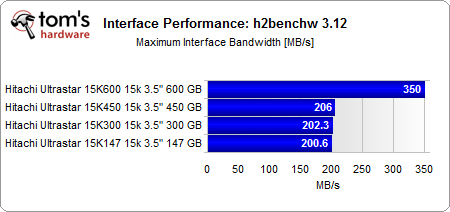

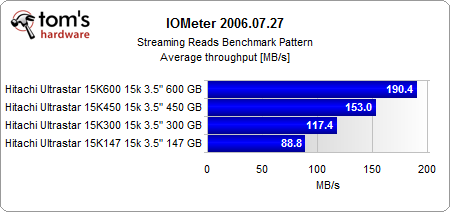

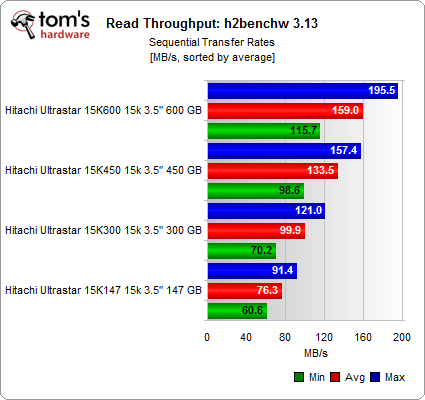

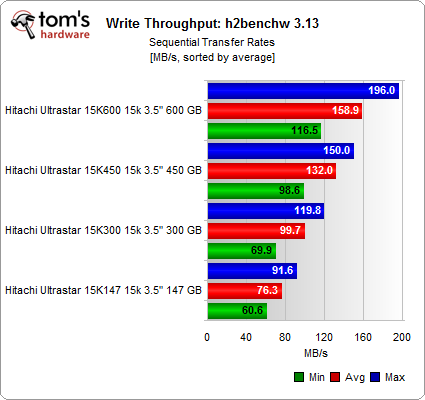

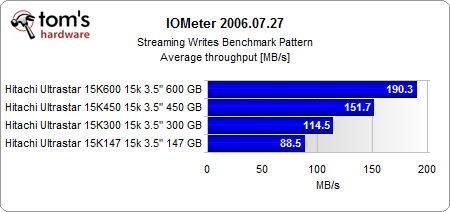

We found the improvement in throughput to be most impressive, more than doubling between 2005 and 2009. Although a single Ultrastar 15K600 cannot outperform the throughput level of fast SSDs, it’s often cheaper to achieve many hundred megabytes per second throughput by arranging multiple enterprise drives like the Ultrastar 15K600 in a RAID.

Display all 10 comments.
This thread is closed for comments
  • 0 Hide
    nihility , March 6, 2010 6:49 AM
    What's the price range on the newest drive? Any changes in affordability over the years? How does the price/performance compare to SSDs. We know an SSD is more expensive per unit, but how about price/performance?
  • 0 Hide
    Lutfij , March 6, 2010 7:17 AM
    @nihility - The change in affordability will come about in a few more years...as for price/performance ratio its bad when u compare them to the HDD mentioned above...they are good in data retention. But these are more for servers, SSD's on the other hand are for gamers and enthusiasts.

    lol, i thought the days of seein an wierd numbered HDD was over - 147GB wats with that?
  • 1 Hide
    candide08 , March 7, 2010 2:26 PM
    "Never change a running system” is the IT world’s version of “If it ain’t broke, don’t fix it."

    This also is NOT the philosophy of many IT shops.

    Many, especially larger shops, have replacement policies based on usable lifetime (3 years mostly) and even more so based on the availability of support. Once an item goes EOL at the vendor the risks of failure and inability to replace demand that the system be upgraded and replaced - running or not.
  • 1 Hide
    jcurryaz , March 10, 2010 2:10 PM
    Why isn't the SAS HBA or RAID card identified? Could drivers or HBA settings impact the performance of these drives?

    Are the results reported as single runs of each test or averages of multiple runs with some standard deviation?
  • 0 Hide
    Anonymous , March 12, 2010 1:55 AM
    I would be very interested to see how the figures compare with 2.5" SAS disks.

    In our enviroment, we have only purchased two servers in the past 2 years with 3.5" SAS disks, the others using 2.5" HS 15K SAS disks.

    Disk storage systems still use 3.5" disks, and will do for the foreseable future and most disk storage systems use SAS disks primarily, and then fibre attached for high speed.

    As for upgading disks, in the enterprise enviroment, the disks are normally swapped for like disks- the same if possible, or very similar models if necessary- the reason is compatability. The disk's firmwares are kept at the same level to ensure that they respond in exactly the same way and run at the same way.
    When you are talking about RAID 1 or RAID 5 disk sets on a business critical system, performance takes second place to reliability- every minute of downtime costs money, every byte of lost data costs money.

    My 2 penny's worth.
  • 0 Hide
    shreeharsha , March 13, 2010 2:34 AM
    Looking forward to see Ultrastar 15K600 storage boxes. 16bay box can give upto 9.6 TB of raw storage capacity :)
  • 0 Hide
    tj_the_first , March 14, 2010 10:17 PM
    nihility - SSDs wouldn't last in a server. Rewrite limits would come into play and we don't know what reliable lifetime numbers would be. Value is already bad so imagine replacing them every 3 or 6 months. Most SSD v HDD reviews include server workload comparisons.
  • 0 Hide
    ossie , March 20, 2010 8:31 AM
    Wondering a bit about those extreme surface temps...
    Can only hope the dynamic duo didn't let those fine drives cook themselves without forced cooling... That wouldn't be only incompetent, but right out criminal.
    About the selection of "benchmarks" and "o$", it isn't even worth to comment any further. Vantage "less interesting", right? Completely useless...
  • 0 Hide
    Anonymous , March 21, 2010 7:15 PM
    how can anyone seriously believe the hard drive companies haven't done rundown tests on their SSDs.

    If the new SSDs could outlast and normal hard drive, the marketing dropkicks would be chatting our ears off about it. Marketing is one place where absence of evidence is usually evidence of absence.
  • 0 Hide
    atmi , March 22, 2010 8:35 AM
    TJ_the_first - Have you read this article "Storage Trends In 2010: An Interview With Hitachi" in here tomshardware.

    It says that "Hitachi is now going to bring to market is a complete enterprise products portfolio all the way from very large capacity drives (2TB, I spoke about this earlier) through to SSD for the very high-end."

    And from the last paragraph " Solid state drives fill the gap for transactional applications. Banks, insurance companies, airlines, or any application responsible for tackling millions of transactions very, very quickly will value the performance of SSDs. That’s the key strength."

    So that's some fact. I personally don't think that there will be any major issues with SSD's in server use. Where's fast drive needed then it will be the SSD.
