ATI Radeon X800 XT PE
Graphics Processor: ATI Radeon X800 XT PE
Memory: 256 MB
Display Outputs: 1x VGA, 1x DVI-I (Single Link)
TMDS: Integrated into Graphics Processor (ATI)
Bus: AGP 8x
Special: Video-In

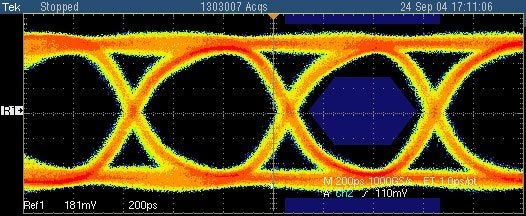

DVI Compliance Test
TX0 (Red): UXGA (1600x1200) 162 MHz
TX1 (Green): UXGA (1600x1200) 162 MHz
TX2 (Red): UXGA (1600x1200) 162 MHz
The ATI Radeon X800 XT PE (Built by ATI) is also fully DVI compliant at 162 MHz (UXGA). The eye diagrams show a very homogeneous distribution of the data. An exemplary result.
Result: DVI compliant at 162 MHz
