This new 'DockFrame' expansion card can transform a PC's USB-C port into swathe of features and functions — Multimeter, Microcontrollers and Mini SSDs among new hot-swappable expansion card ecosystem

News
By published

The maker is also releasing a range of custom ‘Tool Cards.’

DockFrame prototype
(Image credit: HW Media Lab LLC's DockFrame)

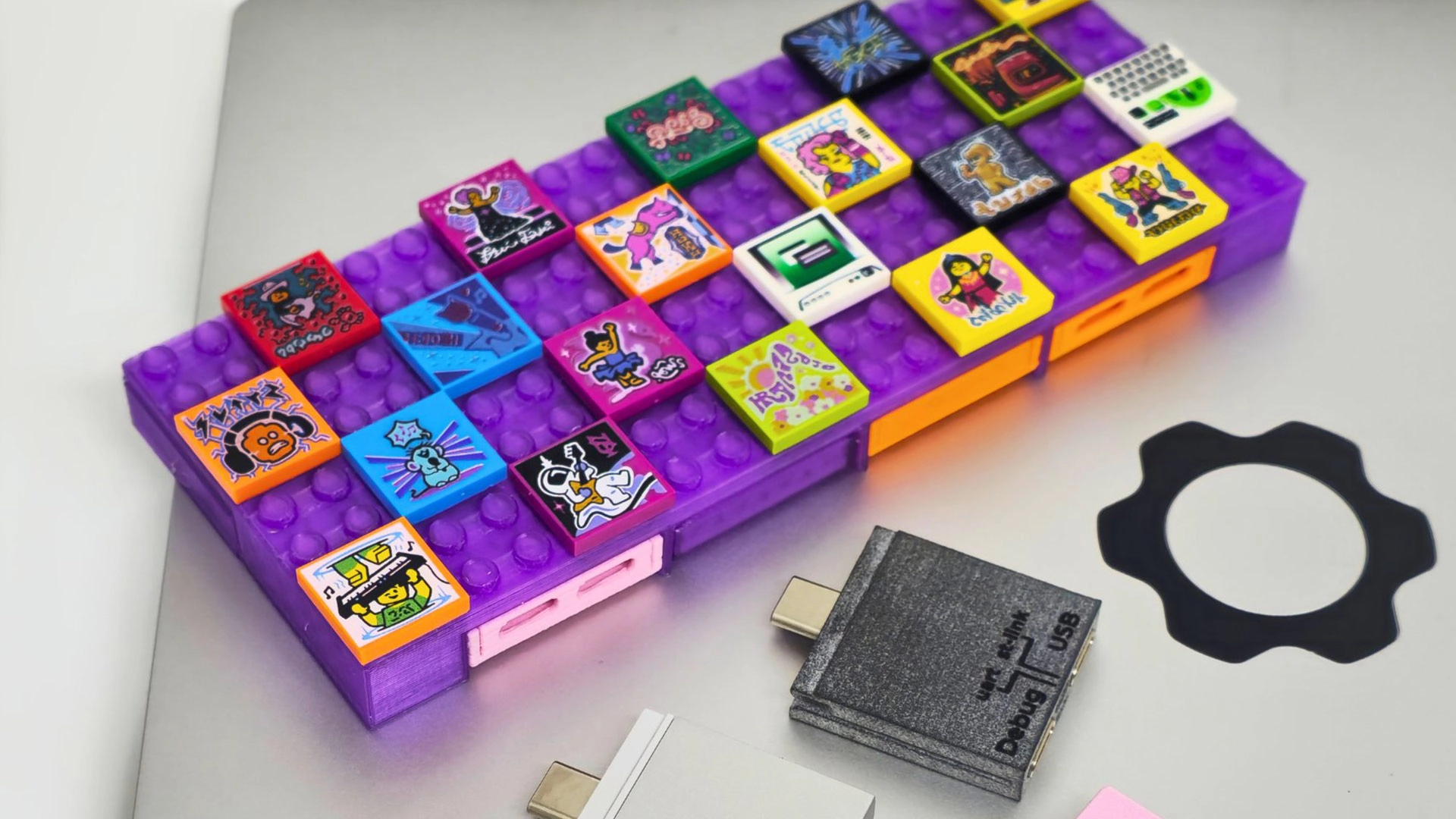

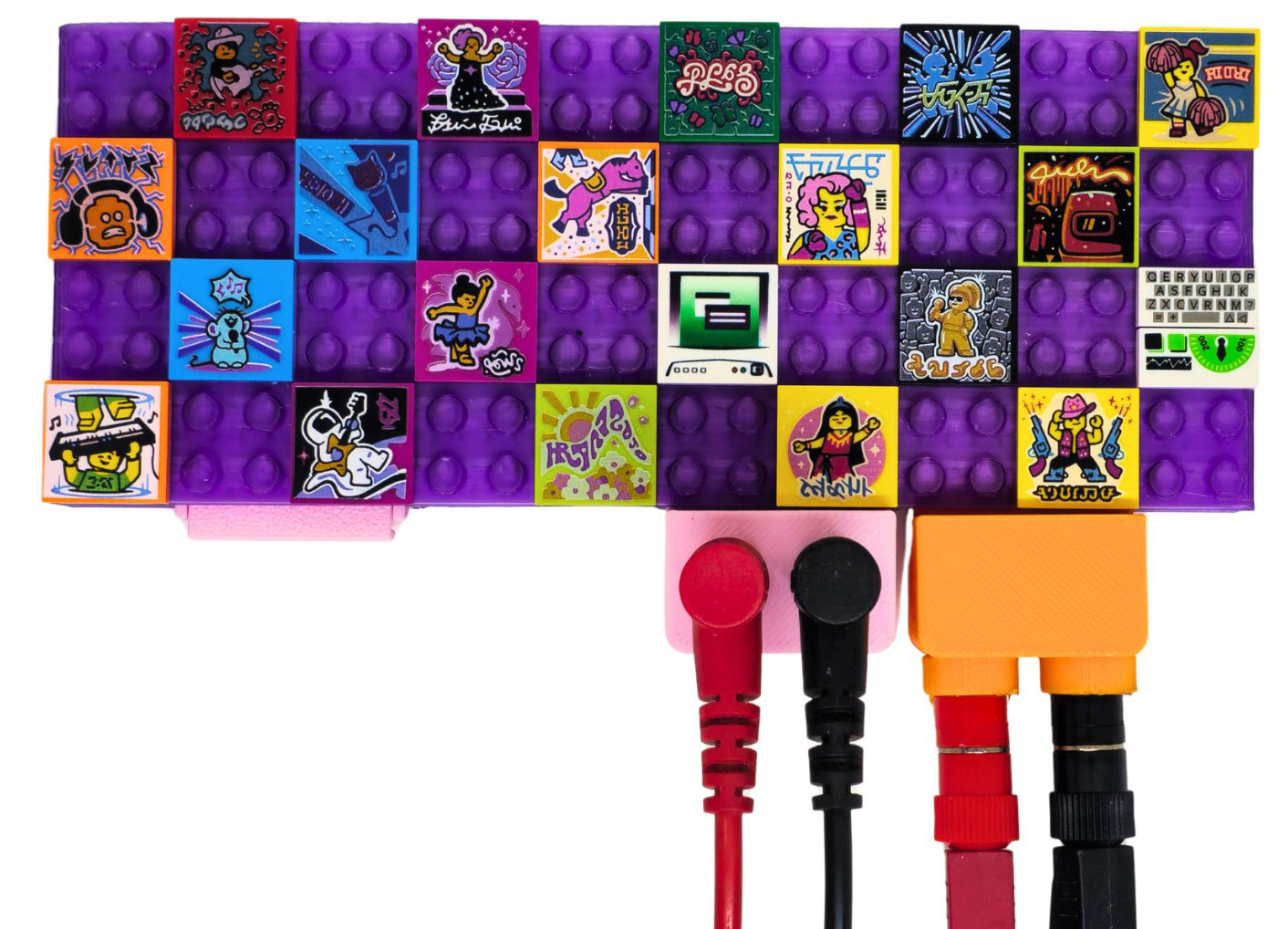

There’s a new USB Type-C dock on the block. So far, so ordinary. But the new DockFrame from HW Media Lab LLC has caused a stir by (unofficially) supporting Framework’s range of modular expansion cards. Furthermore, the maker is promising its own ‘Tool Cards,’ Lego brick compatibility, and more.

The first prototype photos of the DockFrame were released over the weekend, showing some capabilities, customizations, and other options. In the Tweet above, the HW Media Lab director said, “We're iterating on the PCB now (power + routing + port behavior) and we're incorporating the community's requirements into the spec.”

Encouragingly, DockFrame is still on the lookout for device/expansion/tool card suggestions. So, don’t feel you’ve missed the chance to mail in your idea for a USB-powered scone warmer, mechanized bottle opener, or whatever.

Image 1 of 3
DockFrame prototype
(Image credit: HW Media Lab LLC's DockFrame)

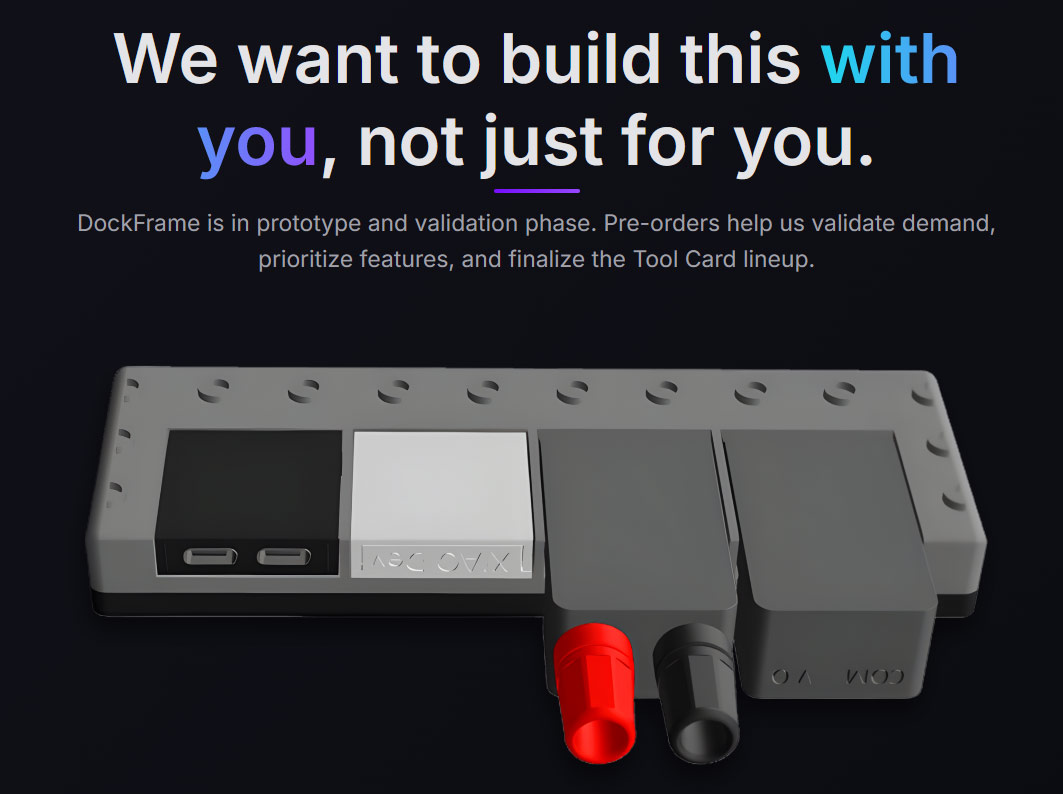

DockFrame’s site shows that its first product is set to have four slots for hot-swappable Framework computer-compatible expansion cards. At the time of writing, Framework offers 24 types of expansion cards directly. This range spans offerings for USB-A, DP, HDMI, audio, Ethernet, and more. There are various color options just for fun.

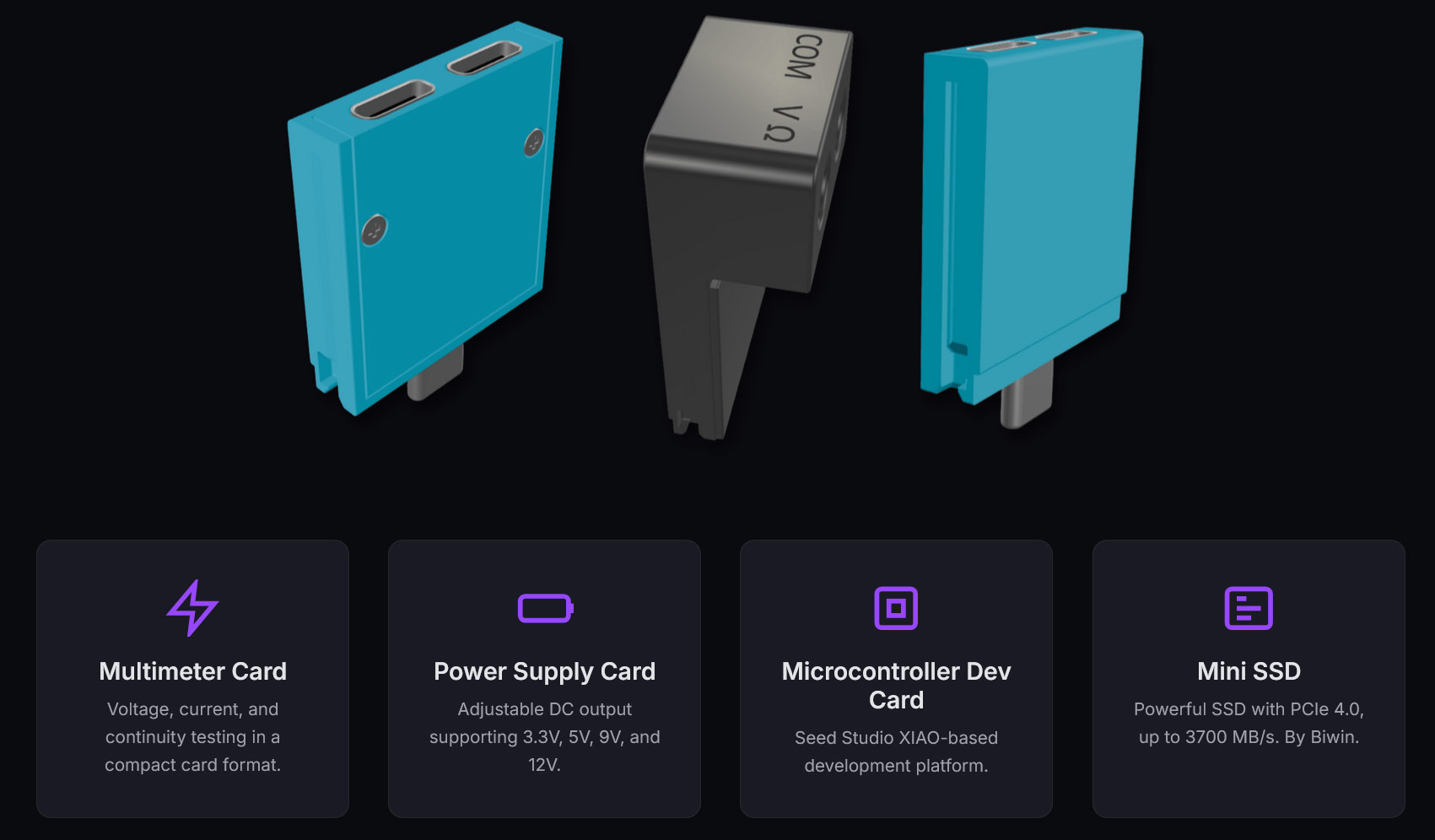

HW Media Lab plans to expand the hot-swap modular docking ecosystem with its Tool Cards. These currently include the following:

  • Multimeter card
  • Power supply card
  • Microcontroller dev card
  • Mini SSD card
  • Dual USB-C card

The dock maker states that its Tool Cards can be plugged directly into USB-C devices like phones and computers – so they aren’t tied to the DockFrame docking product in any way.

At the time of writing, we don’t have pricing for the DockFrame. Pre-orders are not live, but the firm has a list that you can sign up for. We’d hope the DockFrame is as affordable as it looks, and thus follows the spirit of the official Framework expansion cards, which are available for just $11. Buyers will probably want at least four expansion cards or tool cards to populate their DockFrame.

Remember, the DockFrame should work with any USB-C computer. However, to fully support the full range of expansion cards and tool cards, we’re certain you’ll have to plug it into a ‘full function’ USB-C port. That is a Type-C port which offers power delivery, video (DP Alt Mode), and high-speed data (USB 3.X, USB4, Thunderbolt). You might also want a few Legos.
