EUROCOM M620NC Titanium: Photos

The M620NC Titanium is a compact notebook, measuring 11" x 1.25" x 9.3" and weighing only 2lb 14oz / 1304g.

The M620NC Titanium is a compact notebook, measuring 11" x 1.25" x 9.3" and weighing only 2lb 14oz / 1304g.

The notebook has a 12" Full Screen display powered by an integrated Intel 945GM graphics chipset.

The notebook has a 12" Full Screen display powered by an integrated Intel 945GM graphics chipset.

Taking a closer look at the M620NC Titanium you'll notice the Touchpad and the integrated biometric fingerprint reader on the bottom right of the notebook.

Taking a closer look at the M620NC Titanium you’ll notice the Touchpad and the integrated biometric fingerprint reader on the bottom right of the notebook.

The rear of the unit includes the AC adapter, modem and Ethernet LAN inputs.

The rear of the unit includes the AC adapter, modem and Ethernet LAN inputs.

The left side of the unit, from left to right includes the external RGB monitor port, USB 2.0, IEEE 1394 (Firewire), SD media card slot and PC-Card slot.

The left side of the unit, from left to right includes the external RGB monitor port, USB 2.0, IEEE 1394 (Firewire), SD media card slot and PC-Card slot.

The right side of the unit includes headphone and microphone jacks, 2 USB 2.0 ports and a MATSHITA DVD-RAM UJ-842S.

The right side of the unit includes headphone and microphone jacks, 2 USB 2.0 ports and a MATSHITA DVD-RAM UJ-842S.

Here's the bottom of the Eurocom M620NC Titanium.

Here’s the bottom of the Eurocom M620NC Titanium.

Peel off a few of the covers and you see that the hard drive plugs in on the bottom left. The wireless card and memory are to the right.

Peel off a few of the covers and you see that the hard drive plugs in on the bottom left. The wireless card and memory are to the right.

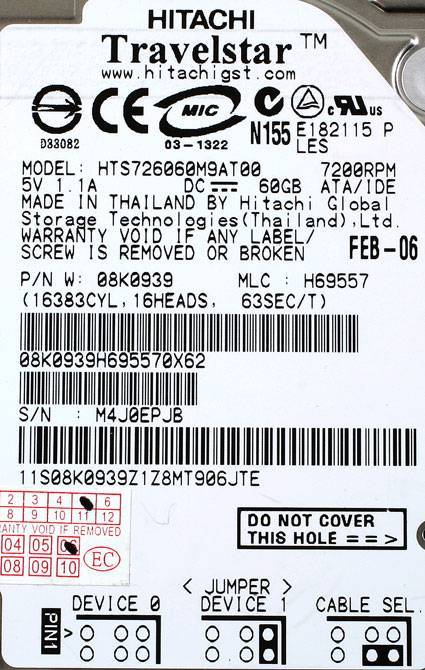

As tested our Eurocom M620NC had a 7200 RPM Hitachi Travelstar TS726060M9AT00 60 GB IDE drive. Yes 7200 RPM!

As tested our Eurocom M620NC had a 7200 RPM Hitachi Travelstar TS726060M9AT00 60 GB IDE drive. Yes 7200 RPM !

The M620NC as tested had only 256 MB of memory in its standard memory slot. Thankfully there is an expansion slot that allows for additional memory. See the next slide.

The M620NC as tested had only 256 MB of memory in its standard memory slot. Thankfully there is an expansion slot that allows for additional memory. See the next slide.

Here's the extra RAM that was in the special expansion slot on the M620NC. It's a 1GB 533MHz DDR2 module that has a "Crucial" sticker on it, though EVEREST Ultimate Edition reported the memory to be from Micron Tech.

Here’s the extra RAM that was in the special expansion slot on the M620NC. It’s a 1GB 533MHz DDR2 module that has a "Crucial" sticker on it, though EVEREST Ultimate Edition reported the memory to be from Micron Tech.
