AMD Ryzen 9 3950X Review: 16 Cores Muscles Into the Mainstream

Turn the dial up to 16

Editor's Choice
(Image: © AMD)

Test Notes

All Ryzen entries with "PBO" indicate an auto-overclocked configuration with memory configured to DDR4-3600. Intel's overclocked configurations also use DDR4-3600. Except where noted, we tested the Ryzen Threadripper 2990WX and 2950X in game mode for all gaming tests, and in Creator mode for application tests.

VRMark and 3DMark

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

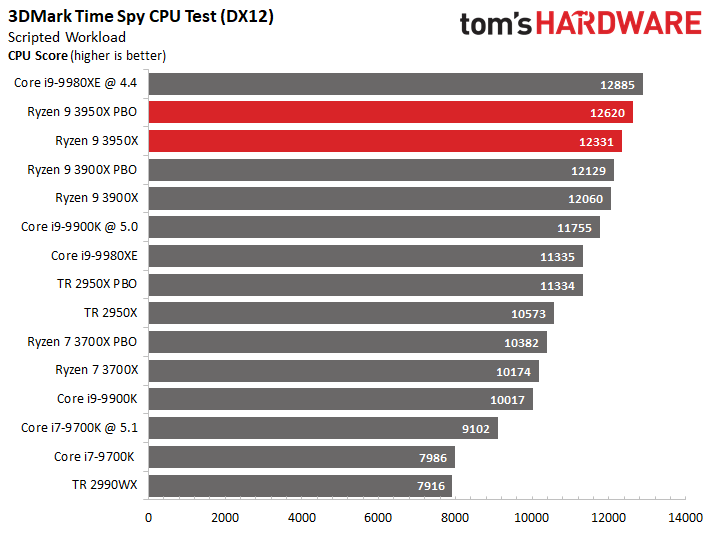

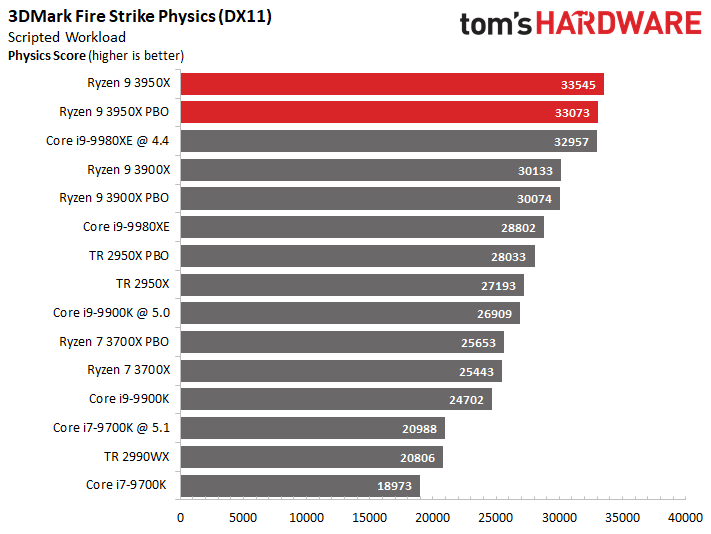

The 3DMark DX12 and DX11 tests measure the amount of raw horsepower exposed by the processor to game engines, but most game engines don't scale as linearly with additional compute resources.

As expected, the Ryzen 9 3950X is exceedingly powerful when the game engine can take advantage of its 16 cores and 32 threads, and paired with its solid per-core performance, it even outperforms the stock Core i9-9980XE, although that processor flips the tables after overclocking.  The Core i9-9900K can't compete here due to its eight cores. We ran the Threadripper processors in Creator Mode for these tests, but the extra cores don't equate to extra performance due to the memory architecture.

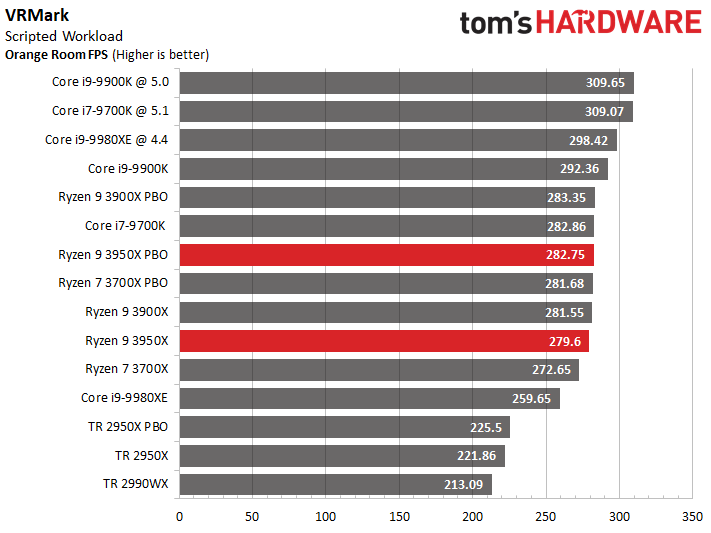

VRMark responds well to high clock rates, giving the Intel processors a big advantage in this test.

Civilization VI AI and Stockfish

Image 1 of 2

(Image credit: Future)
Image 2 of 2

(Image credit: Future)

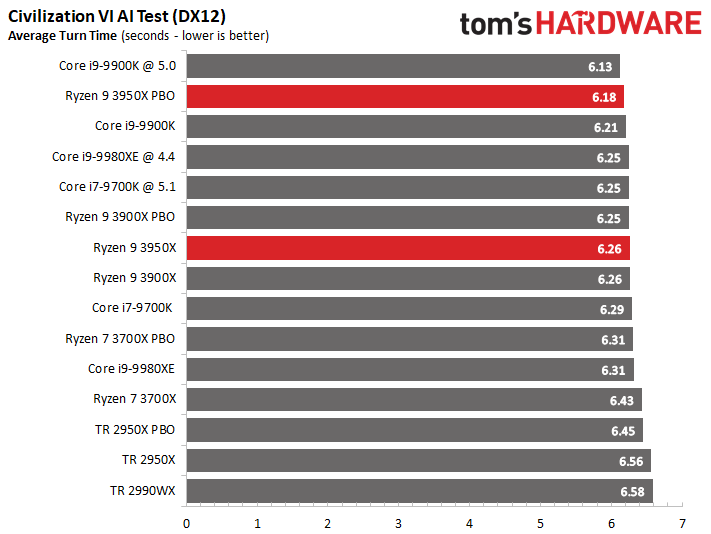

The Civilization VI AI test measures AI performance in a turn-based strategy game and is heavily influenced by high clock rates and instruction per cycle (IPC) throughput.

The top of these charts used to be Intel-only territory, but AMD has made amazing gains in per-core performance (a mixture of IPC and frequency) with the Zen 2 microarchitecture. The stock Ryzen 9 3950X beats the other Ryzen models while trailing the Intel Core i9-9900K, but overclocking propels it near the top of the chart. The result reflects that the Ryzen 9 3950X is boosting well and that the game engines' execution threads are correctly steered to the faster cores. Meanwhile, the stock -9980XE trails, but tuning pushes it up the chart.

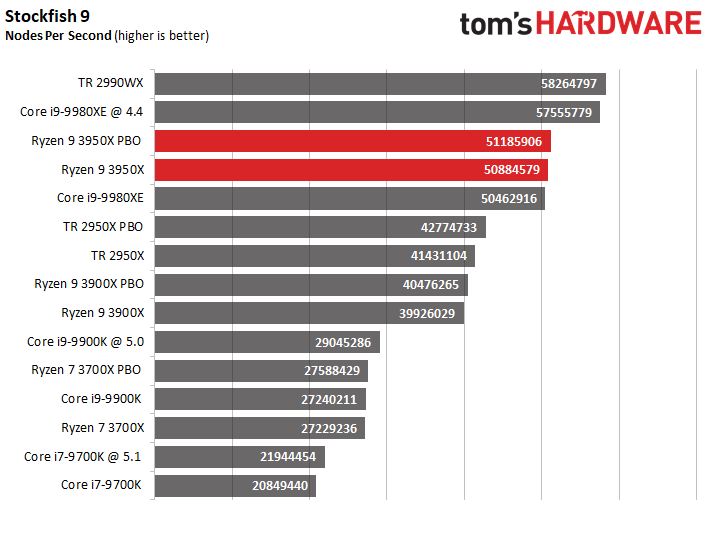

The open-source Stockfish chess engine is the polar opposite of the Civilization VI engine. This engine is designed specifically for many-core chips and scales well up to 512 cores. The Ryzen 9 3950X shows its agility and matches the stock -9980XE step for step, but Intel's overclocking advantage hands the -9980XE the lead. As expected, the 32-core 64-thread Threadripper 2990WX takes the top of the chart, but you'll notice the Threadripper 2950X in Creator Mode falls far behind the 3950X.

Ashes of the Singularity: Escalation

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

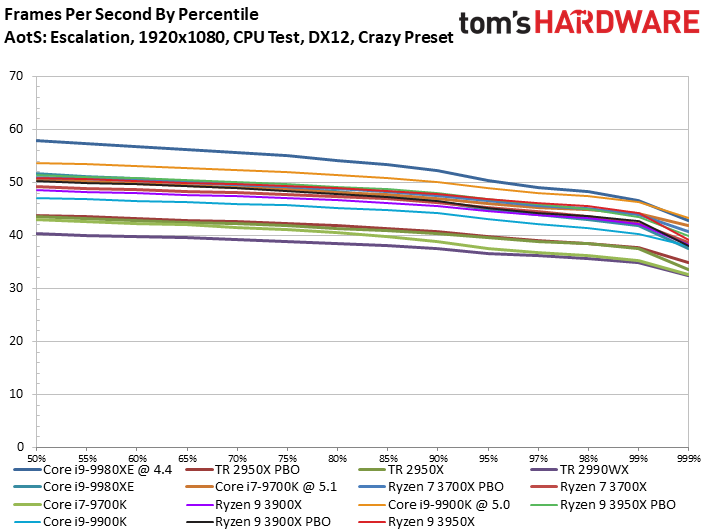

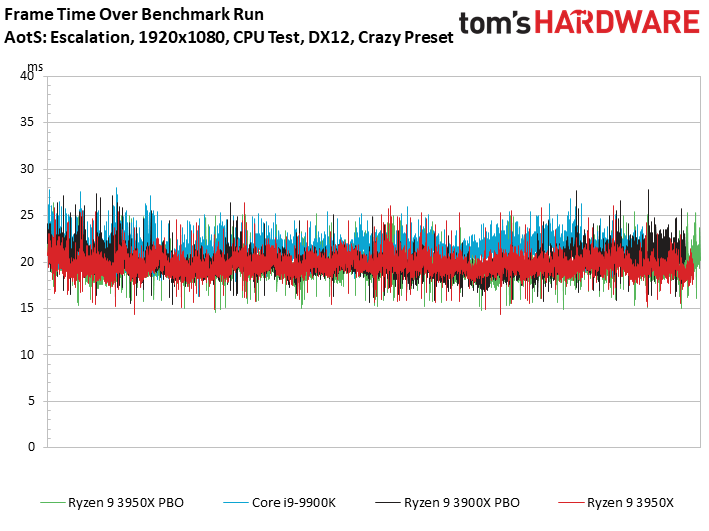

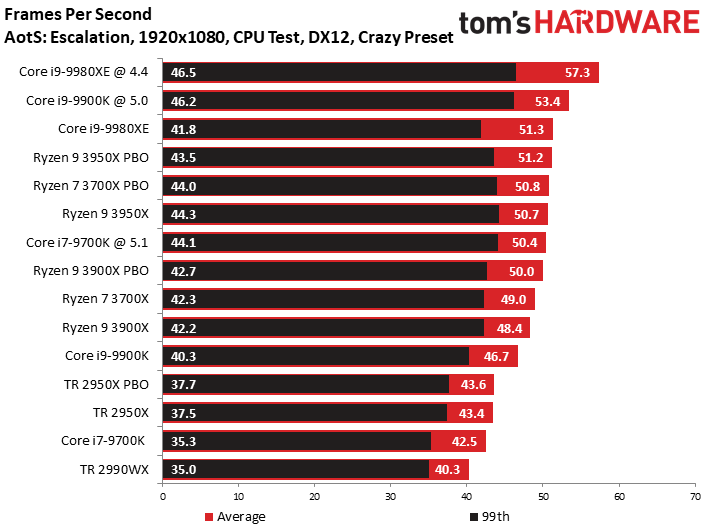

Ashes of the Singularity: Escalation responds well to extra cores and threads, which benefits the Ryzen lineup. The Ryzen 9 3950X leads the AMD pack, but the Ryzen 7 3700X is plenty impressive after overclocking. The -9980XE is impressive in stock and overclocked trim. As you can see at the bottom of the chart, the second-gen Threadripper chips aren't the best solution for gaming due to the eccentricities of their multi-die design. We expect that to change radically with the arrival of the Threadripper 3000 chips and their EPYC Rome-based architecture.

Civilization VI Graphics Test

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

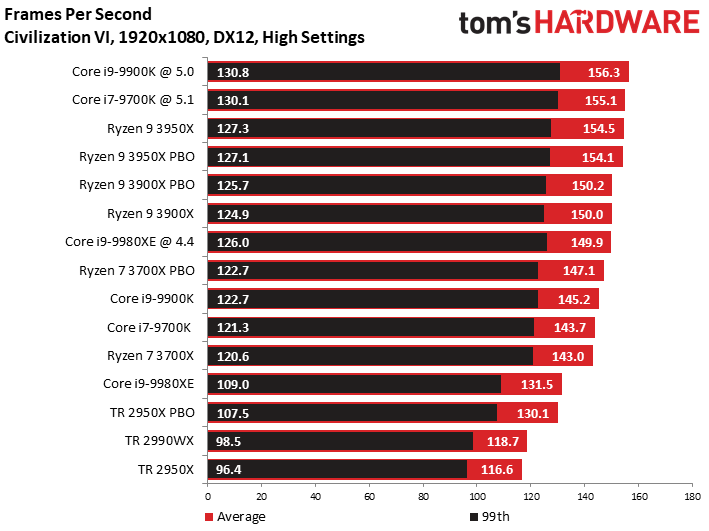

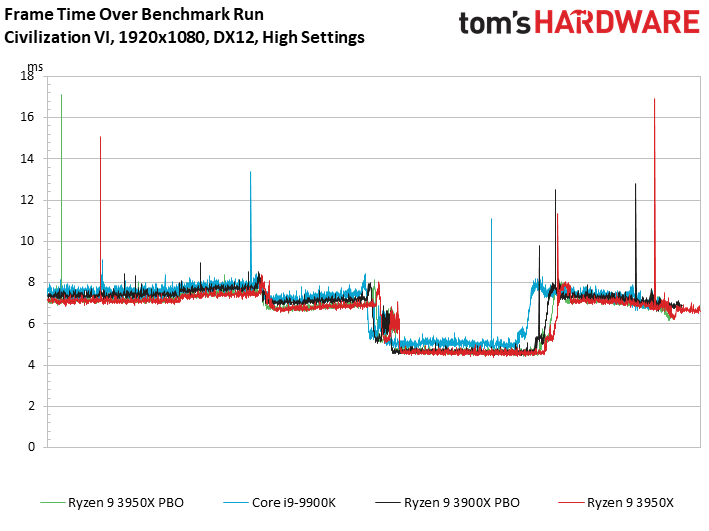

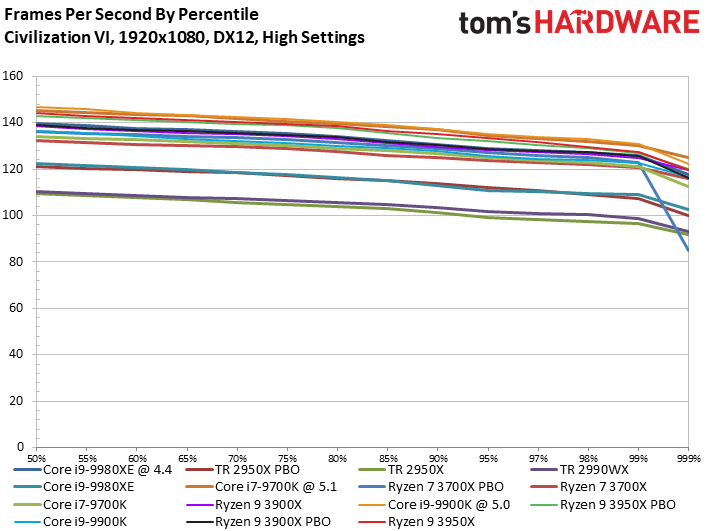

The Civilization VI graphics test finds the stock Ryzen 9 3950X delivering excellent performance. In fact, it actually outpaces the auto-overclocked 3950X configuration. We've become accustomed to these inversions with AMD's PBO feature, but they usually occur in our application testing. We ran this test several times to confirm the result.

In either case, the Ryzen 9 3950X beats the stock Intel processors handily in this benchmark, which is quite the feat.

Dawn of War III

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

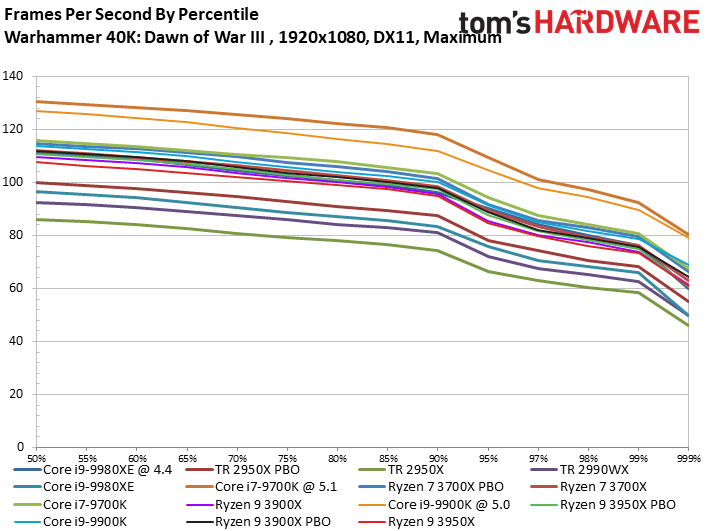

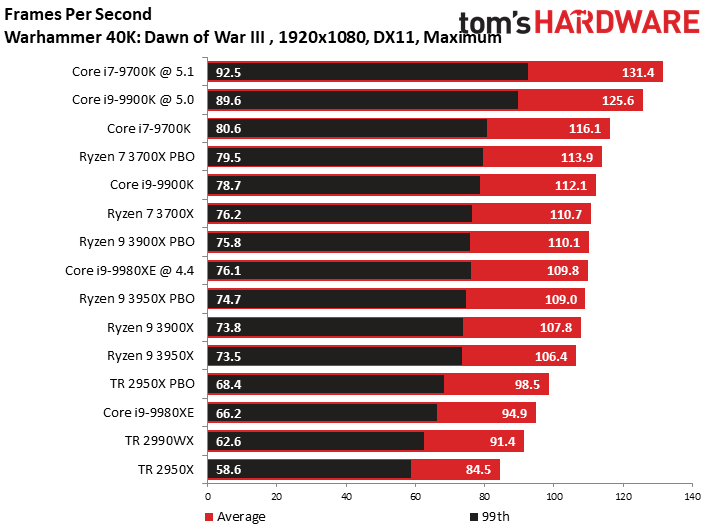

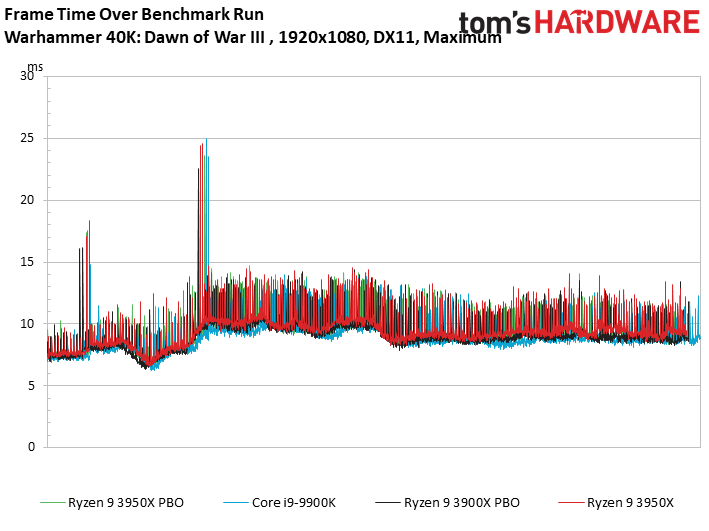

The Core i9-9900K and -9700K take their traditional spots at the top of the Dawn of War III pecking order, a byproduct of their clock speed advantage. The Ryzen 9 3950X and Core i9-9980XE land within range of each other on the lower portion of the chart, but that still represents a big improvement over the Threadripper models.

Ryzen 7 3700X is very competitive with the much higher-priced models, reminding us that the majority of gamers are well-served by more modest accommodations.

Far Cry 5

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

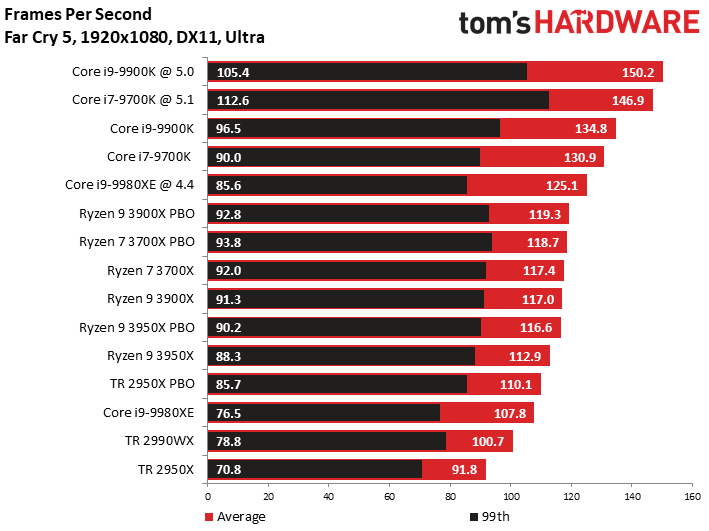

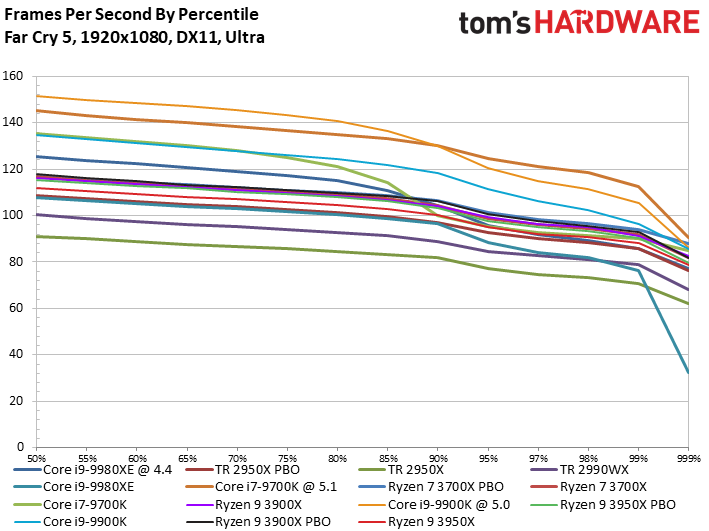

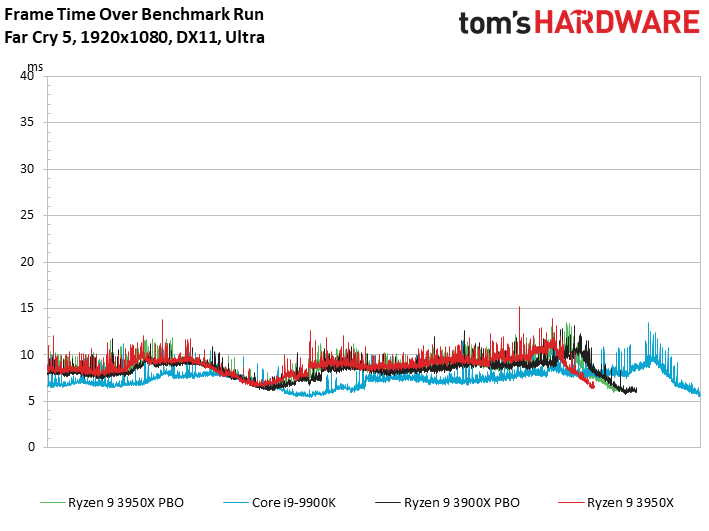

Intel's mainstream chips convincingly lead the pack. The divide between the Core i9-9980XE at stock and overclocked settings is massive, highlighting the advantage of dialing up its clock speed. Intel plans to bring overclocked-like performance at stock settings with its Cascade Lake-X chips, which will certainly make the competition with the Ryzen 9 3950X more interesting.

Final Fantasy XV

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

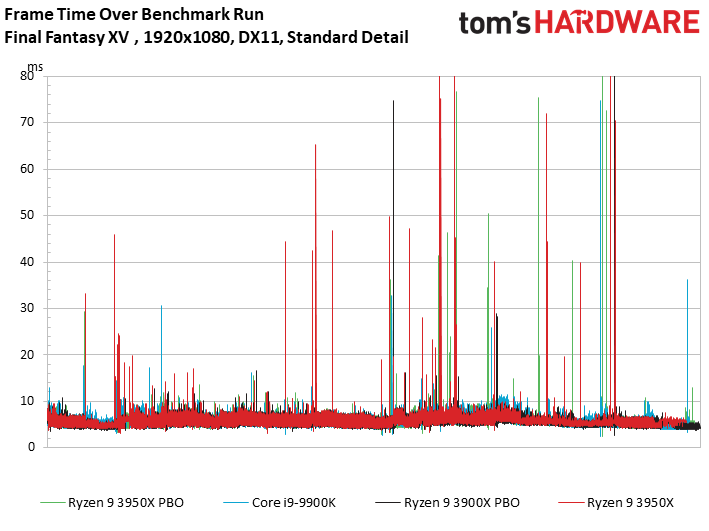

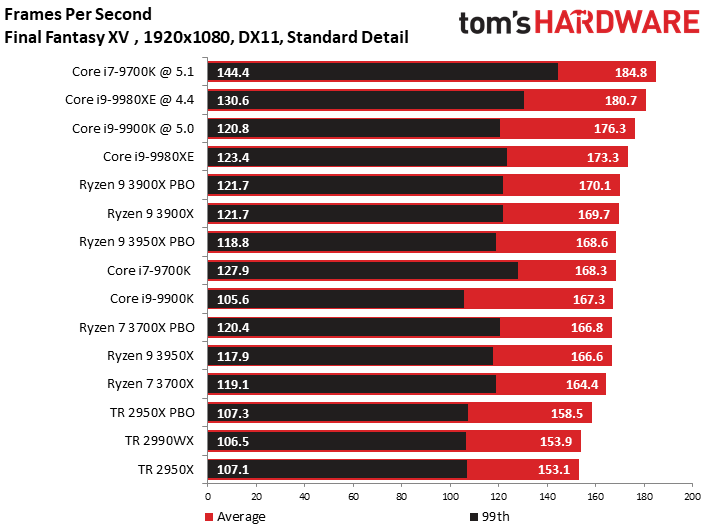

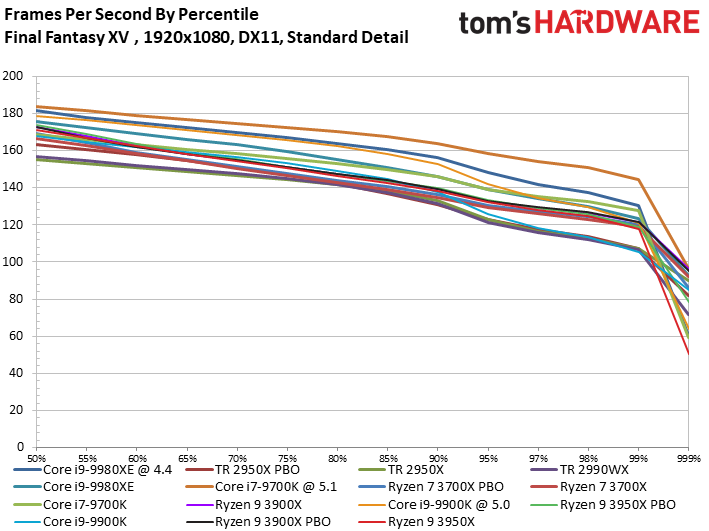

We run this test with the standard quality preset to sidestep the impact of a bug that causes the game engine to render off-screen objects with the higher-resolution setting.

The Ryzen 9 3950X is competitive with Intel's stock Core i9-9900K and i7-9700K, but the -9980XE separates itself from the rest of the test pool.

Grand Theft Auto V

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

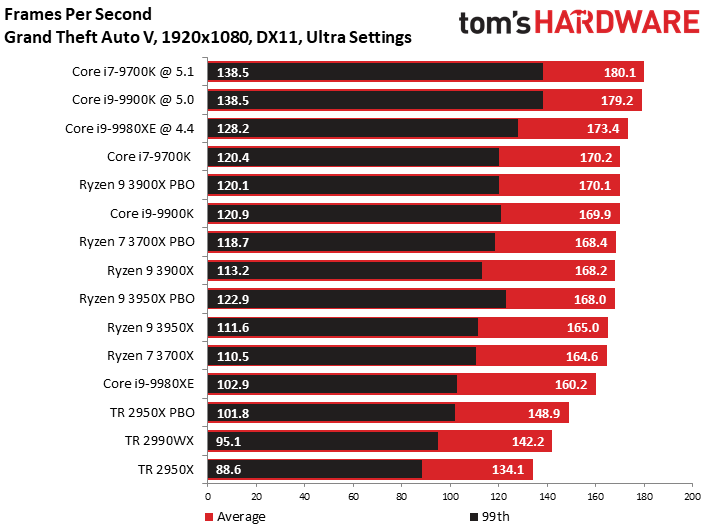

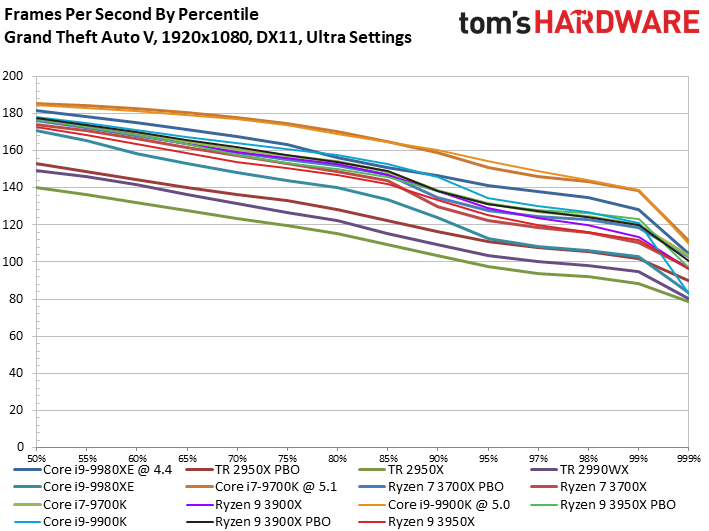

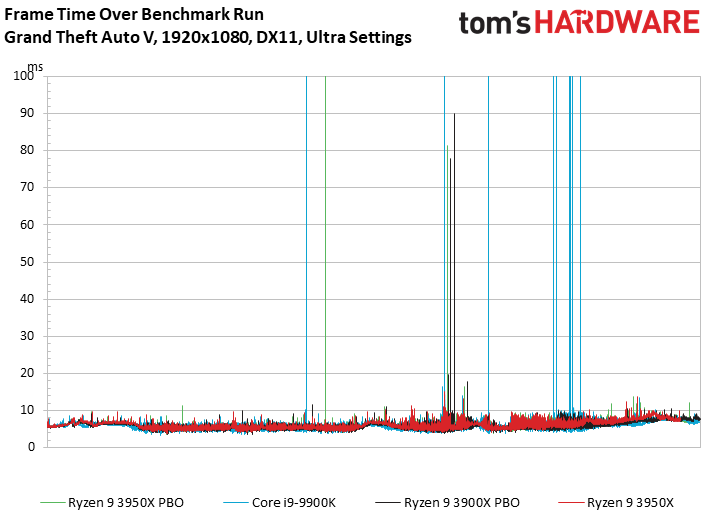

Grand Theft Auto V continues to be popular six long years after its release. This title favors Intel architectures and, more generally, multi-core designs with high clock rates. Intel's overclocked Core i9-9900K and Core i7-9700K push us to a graphics bottleneck in this test, but the middle of the test pool is very competitive with slight deltas separating the various models.

Hitman 2

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

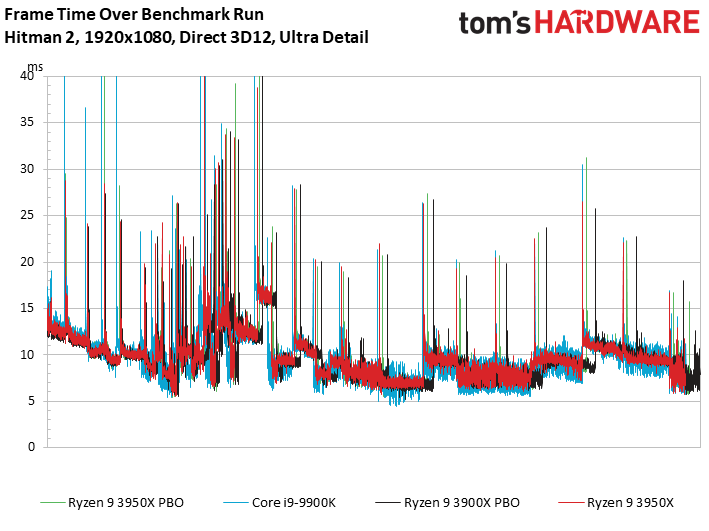

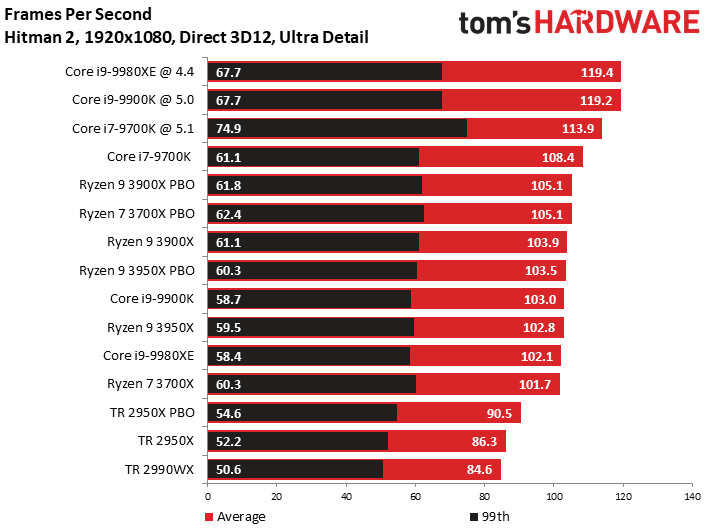

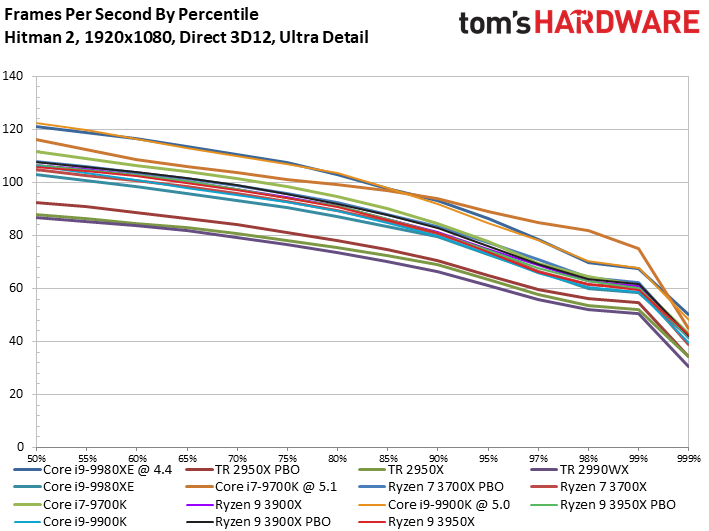

The 3950X matches the stock Core i9-9900K and -9980XE step for step in this benchmark, but overclocking Intel's processors bottlenecks the graphics card.

Project Cars 2

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

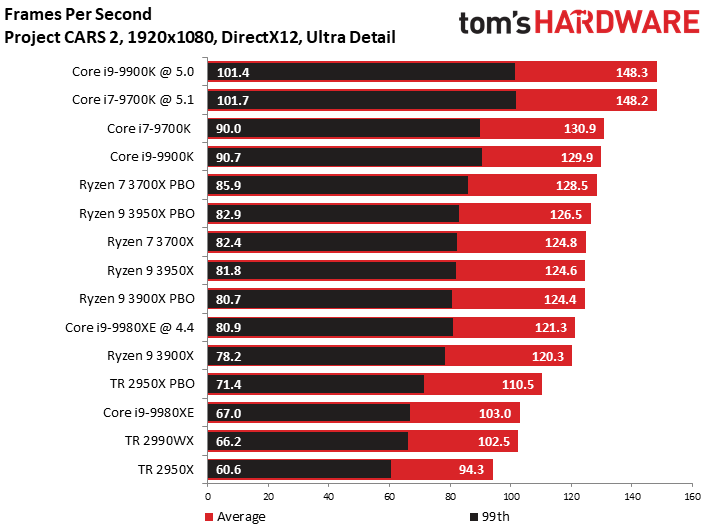

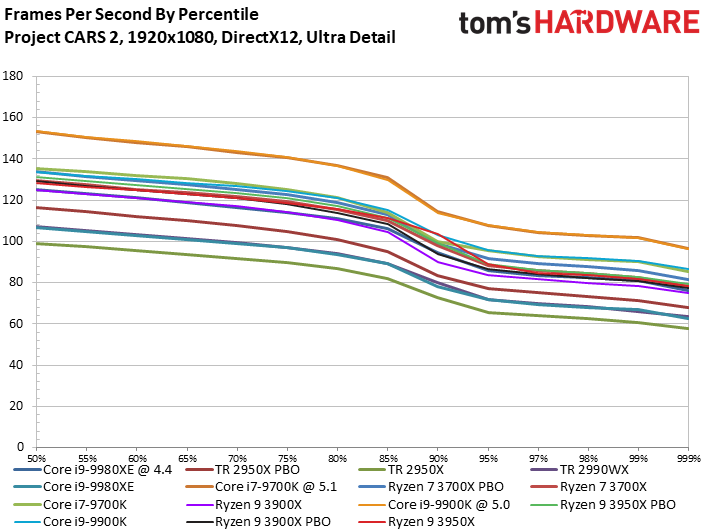

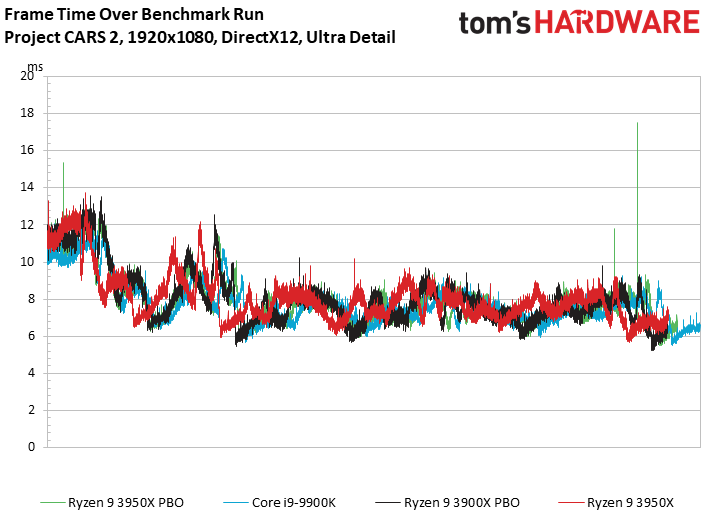

Project Cars 2 is optimized for threading, but high clock rates pay off. That naturally results in a win for the Intel -9900K and -9700K processors.

The Core i9-9980XE shines in some benchmarks, but like the Threadripper chips, it has a unique architecture that can result in reduced performance with some existing software. Intel's mesh architecture is designed to increase scalability, much like AMD's Infinity Fabric, thus yielding higher core-count chips. But here we see the impact of the design.

World of Tanks enCore

Image 1 of 3

(Image credit: Future)
Image 2 of 3

(Image credit: Future)
Image 3 of 3

(Image credit: Future)

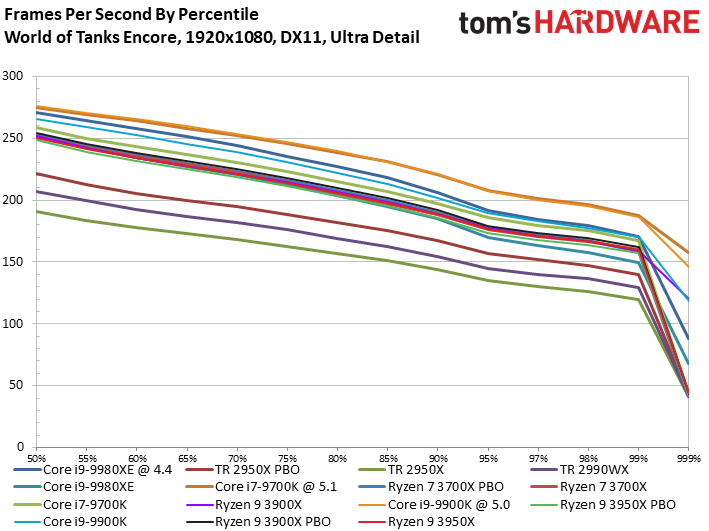

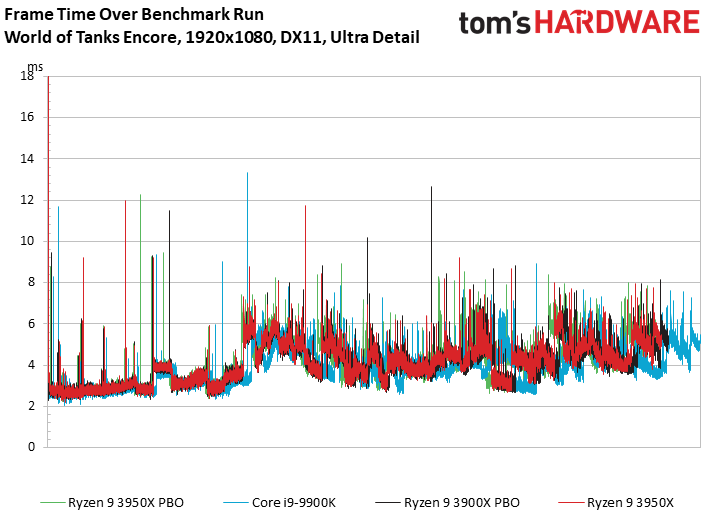

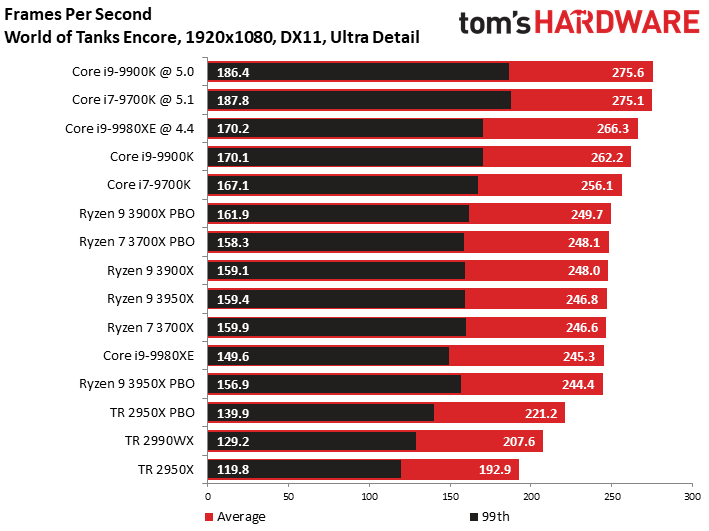

World of Tanks finds another odd inversion with the auto-overclocked 3950X lagging behind the stock configuration. The delta between the two configurations weighs in at 2.4 fps, but it's repeatable.
