APC BX1000 Click-of-Death Repair

Following My Own Advice

When people ask me how to troubleshoot a device they aren’t intimately familiar with, my first recommendation is to start from the power supply. This is common wisdom: if you have garbage power going into a system, you will inevitably encounter garbage output, making it impossible to troubleshoot anything else until you resolve the power problems. I have ignored my own advice in previous stories both out of curiosity and for educational purposes. This time around, though, I am going for efficiency and will drill straight down the power supply chain until I find something that is broken. I’ll worry about other possible failures if I fail to find anything related to power along the way.

Before poking around the UPS, I verified that the low-voltage side was indeed isolated from mains under all operating modes by watching battery negative voltage on the scope with a 1000Ω resistor pulling it to ground. Confirming that battery negative remained at ground potential allowed me to put a jumper (in the form of a spare oscilloscope probe’s alligator clip) from negative to ground. This spared me the hassle of finding ground points close enough to points of interest.

One downside is that oscilloscope measurements may contain significant common-mode noise. However, having some common-mode noise in non-critical measurements is preferable to having a ground wire or spring where it may potentially short out to 120V mains or battery positive. If I find places where I need to eliminate as much common-mode noise as possible to make the call between common-noise, a bad cap, and whatever else, I can always come back to those spots with a ground spring attachment later. It makes no sense to risk it until I have specific reasons to do so.

First Stop: 24VDC Charging Supply

Image 1 of 3

Image 2 of 3

Image 3 of 3

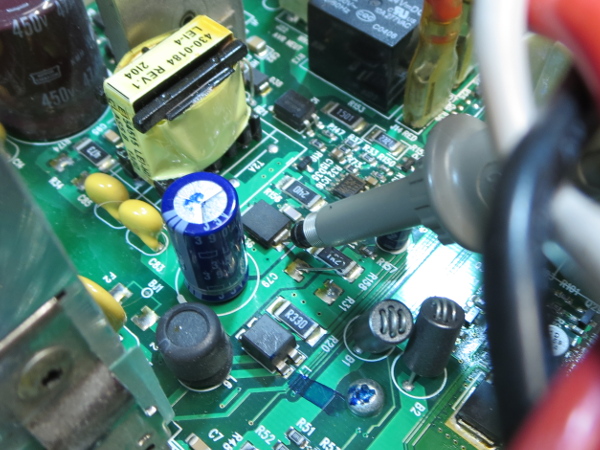

The BX1000’s power supply has one power supply rail, if we ignore the auxiliary winding on its primary side. The main switcher is a TOPSwitch flyback controller with built-in FET, and its output filter is a 390µF 35V Chemi-Con capacitor that should be perfectly adequate for the task. Its output voltage is 27.6V, which sits comfortably within the realm of what you would expect the float-charging voltage of a 24V VRLA battery pack to be, so no issue there.

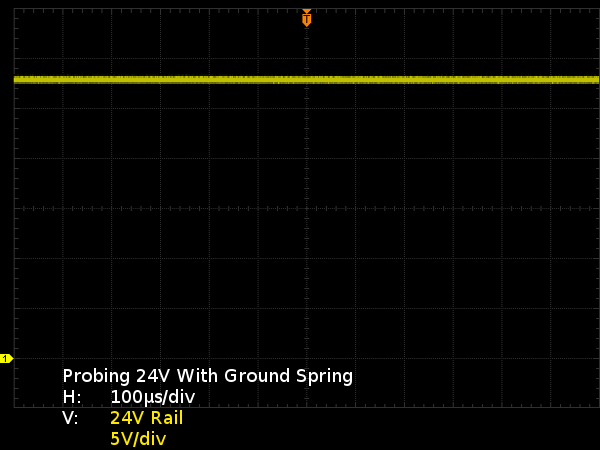

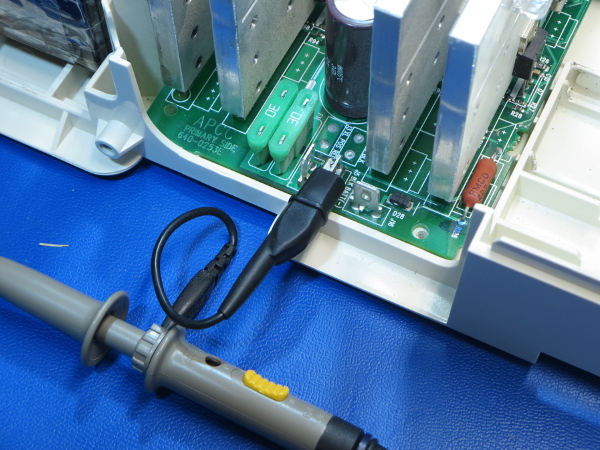

On the oscilloscope, the 24V rail looks perfectly fine except for common-mode noise bursts. Since there are plenty of large ground and positive pads in the area, I redid the oscilloscope measurement using a ground spring attachment to show how common-mode noise can vary depending on where you measure. As you can see, bringing ground closer to the measurement point practically eliminates common-mode noise, and what may have initially looked like a questionable capacitor turns out to be fine.

Unfortunately, I remembered common-mode being an issue only after I had already swapped the capacitor and found out that the results didn't change. This capacitor and voltage rail are good, so it's time to move on to the next logical stop.

Second Stop: 12V Linear Regulator

Image 1 of 2

Image 2 of 2

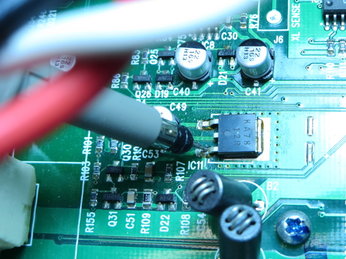

This KA7812 linear regulator takes the 20-28V battery or power supply voltage and drops it to 12V. Did the warmest chip on the board die from running hot enough to discolor the PCB’s solder mask across its heat sink ground plane on both sides of the board? If you look at my tear-down pictures, some of them clearly show how extensive the affected area is on both sides.

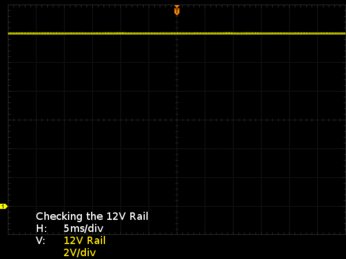

If it didn’t die during the first 10 years, I doubt it would do so now. But since I am already in there with my test equipment, it takes only seconds to turn that suspicion into a known quantity. My multimeter says it is still putting out 12V as expected, and my oscilloscope confirms it still looks squeaky-clean. This means that the fault must be further downstream. The last suspect on my list is the power supply rail running the UPS’ micro-controller.

Third Stop: 5V Logic Supply

Image 1 of 2

Image 2 of 2

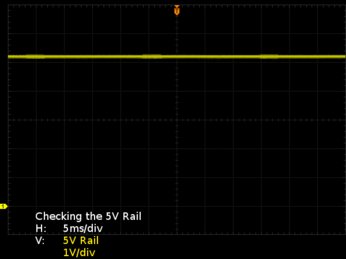

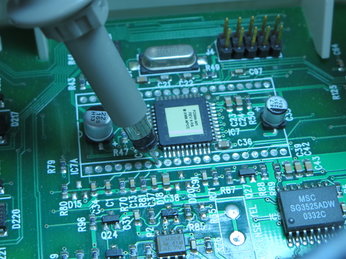

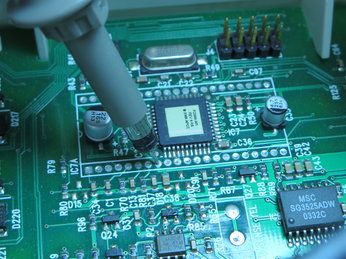

Initially, I could not find where the micro-controller voltage came from. By probing the pads (conveniently exposed in the form of a dual DIP-QFP footprint), I determined that its supply voltage was 5.2V, and again, my oscilloscope told me the rail should be clean enough to run the controller. Whatever is causing the UPS to have trouble turning on must come from somewhere else, and I have run out of obvious supply rails to check. It's time to dig deeper from another angle.
