Five Z97 Express Motherboards, $160 To $220, Reviewed

By Thomas Soderstrom
published

Intel’s “mainstream” socket continues to spawn enthusiast parts with the company’s fastest-ever gaming-oriented CPU. You’ll probably want a feature-packed motherboard for that, and five companies stepped up to show off the best of the sub-$220 segment.

Z97 Pro(Wi-Fi ac) Software

Asus Ai Suite hasn’t changed noticeably from our previous discussion, though the combination of wireless controller and a new test processor give us a few things to discuss in this Z97 Pro(Wi-Fi ac) review.

Image 1 of 2
Image 1 of 2

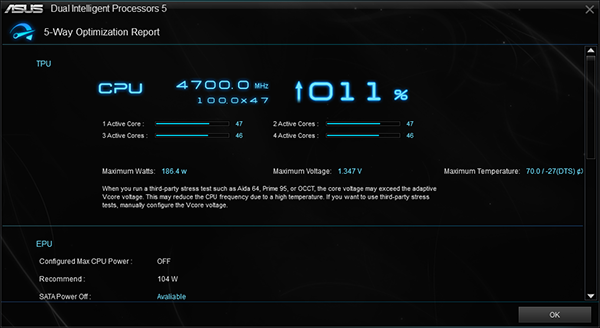

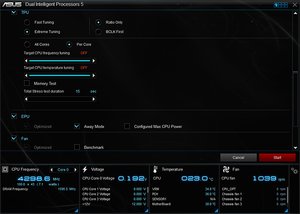

The firm’s five-way optimization protocols brought our processor to 4.6 GHz at 1.33 to 1.35 V, which slightly exceeds both our recommended 1.30 V limit for continuous operation of fully-loaded Haswell-based cores, and our CPU cooler’s capability. Your processor and use scenario may make these settings more agreeable.

Image 1 of 2

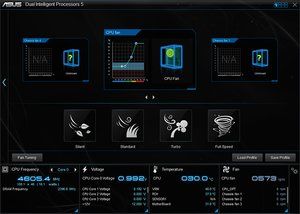

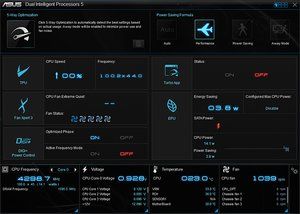

Ai Suite still offers fan speed and voltage regulator controls to save noise and/or energy as the user desires.

Image 1 of 2

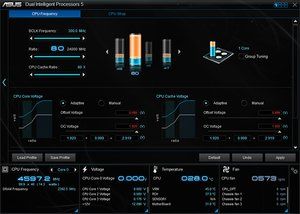

Software controls are available within firmware limits for base clock, CPU ratios, and most of the Z97 Pro(Wi-Fi ac)’s voltage levels. Better still, all of the adjustments we made (within our CPU’s capabilities) worked.

Image 1 of 2

EZ Update links AI Suite directly to Asus’ driver servers. EZ Update’s “USB BIOS Flashback” tab to puts the latest Z97 Pro(Wi-Fi ac) firmware onto your USB thumb drive.

Image 1 of 2

Asus Wi-Fi Engine let you turn your 802.11n Wi-Fi transceiver into an AP, using gigabit Ethernet to reach the Web.



Image 1 of 2

Asus continues to provide a quick-charging USB port option for BC1.1-compliant portable devices, turbo mode for USB 2.0, UASP performance enhancements for USB 3.0, and traditional quick-charge mode for non-BC1.1 devices.

Image 1 of 2

A Web extension for Ai Suite system monitoring, Asus Push Notice is accessible through downloadable iPhone and Android apps.

Image 1 of 2

More than just a basic status report, Asus System Information also provides the most comprehensive memory programming information we’ve seen. Ai Suite’s software version tab is similarly complete.
