JMicron JMF670H SSD Controller Preview

By Chris Ramseyer
published

JMicron sent over three SSD configurations that use the new JMF670H controller and are paired up with brand new flash memory.

Latency Tests

Image 1 of 3

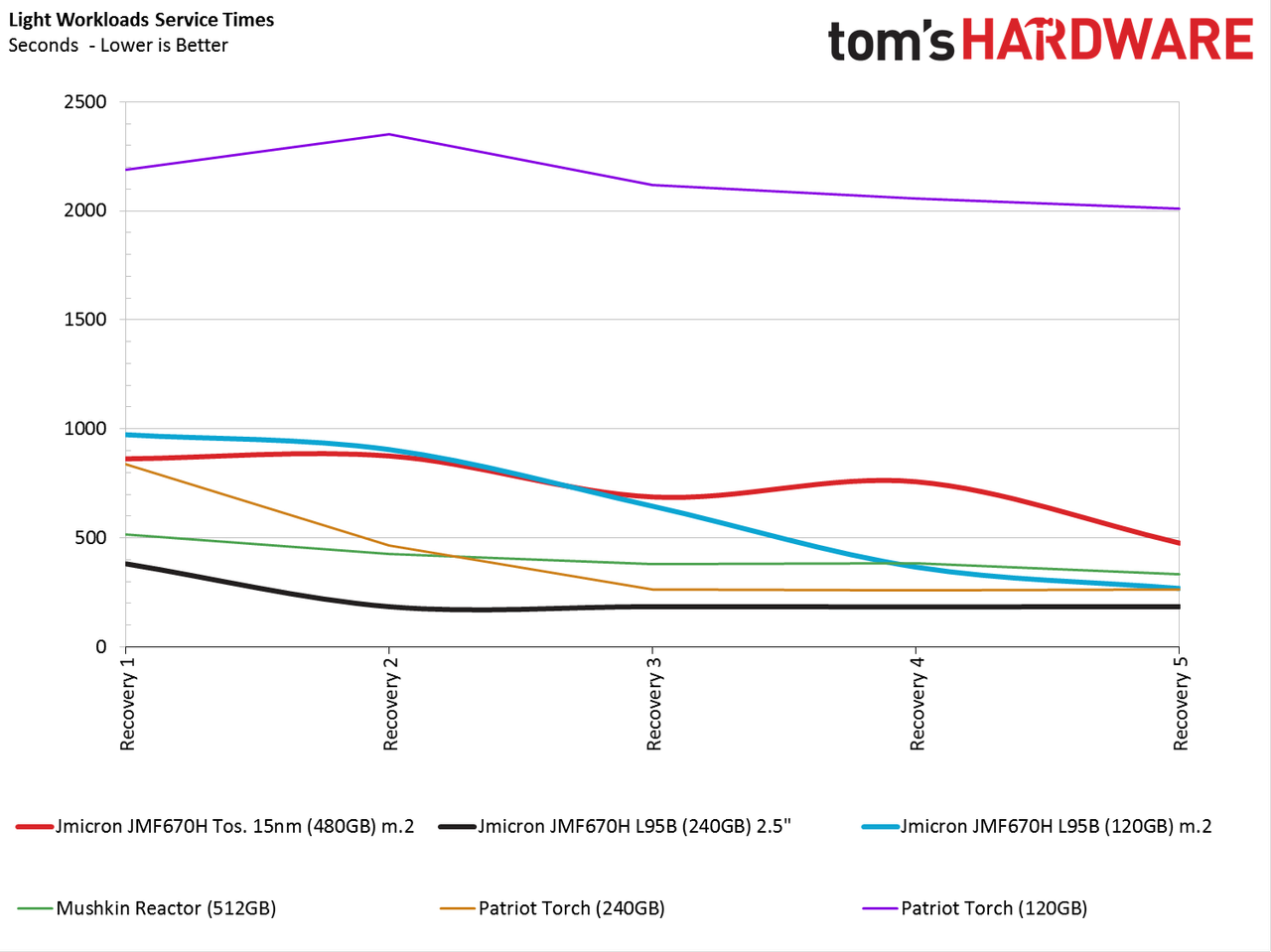

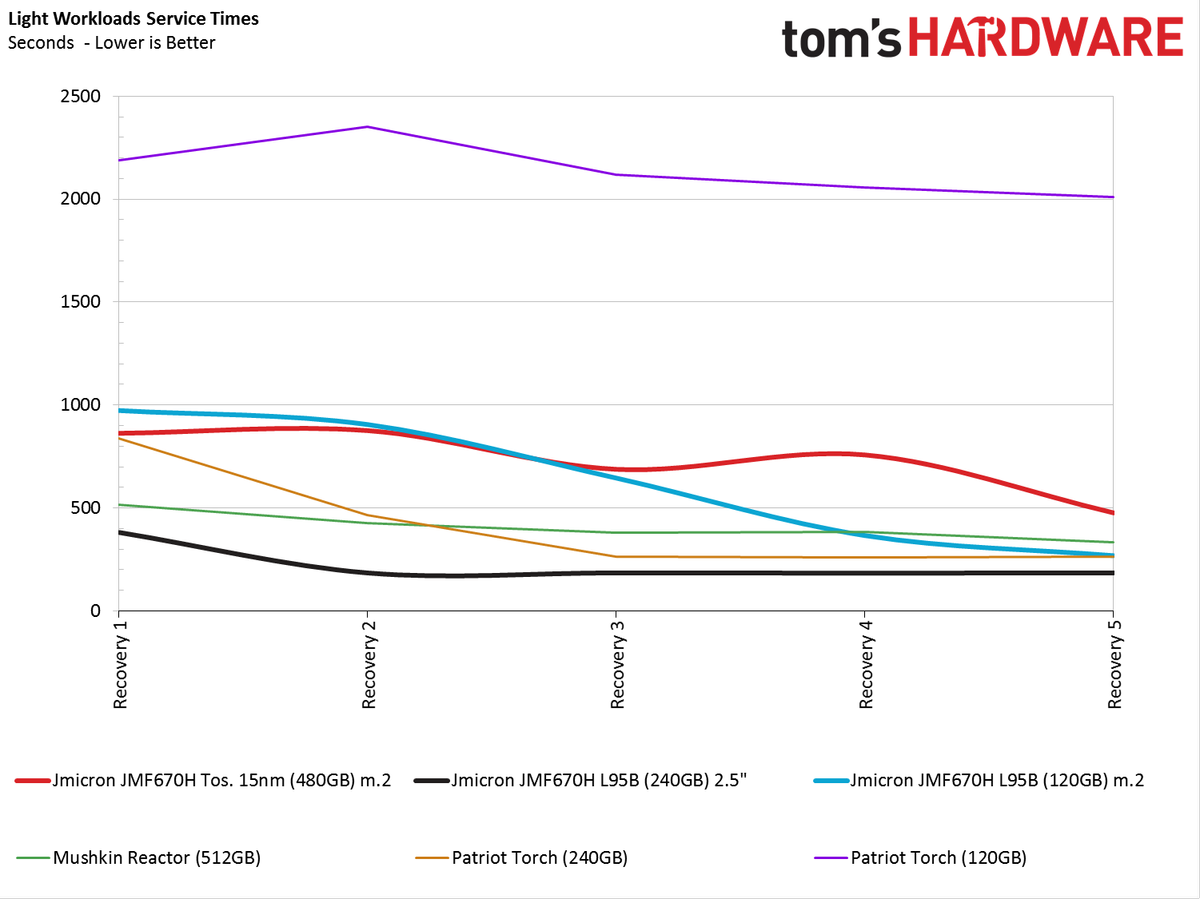

Keeping with the light workload group, this time measuring service times, the JMicron JMF670H controller paired with 256GB of L95B FortisFlash delivers good performance. This is a measure of how long the entire test takes to complete, creating one of the most important charts in our article.

The two other JMF670H-controlled products also performed well, though their service times were quite a bit higher than the 256GB model.

Chris Ramseyer
Chris Ramseyer
Chris Ramseyer is a Contributing Editor for Tom's Hardware US. He tests and reviews consumer storage.
Topics
SSD
Storage
8 Comments Comment from the forums
  • none12345
    "he untold aspect is available capacity. You can already purchase 128GB SSDs for the same price as 2.5" HDDs. For this example, we're using a 120GB PNY CS1111 SSD and comparing it to a large number of 2.5" 5400 RPM HDDs with 250GB of space. Current pricing comes out to $49 for the SSD and $35 for the hard drive. Once 256GB SSDs start selling for somewhere around $50 to $60, you'll see them becoming even more prolific. Believe it or not, that's going to happen this year."

    Wouldn't a much more appropriate comparison be the 1TB 2.5" 5400rpm drives that sell for about $50? 1TB HGST drive on newegg for $52(free ship) right now, first one i checked, so i didn't look for best price.

    When you say, look we can buy a 128gb flash drive for only a 30% more then a 250gb 2.5inch hard drive....you vastly inflate storage the value of the ssd compared to hdd.

    Dont get me wrong, would i want a $49 128gb ssd over a $35 250gb hhd as my only storage drive, yes! But, would i want the same ssd over a 1tb $52 drive as my only storage drive....no! Would i much rather have the $49 ssd AND the $52 drive as dual drives, YES!(well id much rather pay more then that and get both drives bigger tho ie 256gb and 2tb)
    Reply
  • Felipe Buxcador
    Just days ago Tomshardware ranted at users using adblocker applications, and today this page is putting my CPU at 100% usage for no reason.

    Sorry Tomshardware, you are blacklisted, and you need to earn your reputation back.

    ...and, by the way, this page took 40 seconds to load, and that without the crappy chart animations.
    You really need to fire the dude who made the charts, fix the long load, and fix you resource hungry ads. You have a problem here.
    Reply
  • apache_lives
    Samsung or Intel for SSD nothing else
    Reply
  • CRamseyer
    "he untold aspect is available capacity. You can already purchase 128GB SSDs for the same price as 2.5" HDDs. For this example, we're using a 120GB PNY CS1111 SSD and comparing it to a large number of 2.5" 5400 RPM HDDs with 250GB of space. Current pricing comes out to $49 for the SSD and $35 for the hard drive. Once 256GB SSDs start selling for somewhere around $50 to $60, you'll see them becoming even more prolific. Believe it or not, that's going to happen this year."

    Wouldn't a much more appropriate comparison be the 1TB 2.5" 5400rpm drives that sell for about $50? 1TB HGST drive on newegg for $52(free ship) right now, first one i checked, so i didn't look for best price.

    When you say, look we can buy a 128gb flash drive for only a 30% more then a 250gb 2.5inch hard drive....you vastly inflate storage the value of the ssd compared to hdd.

    Dont get me wrong, would i want a $49 128gb ssd over a $35 250gb hhd as my only storage drive, yes! But, would i want the same ssd over a 1tb $52 drive as my only storage drive....no! Would i much rather have the $49 ssd AND the $52 drive as dual drives, YES!(well id much rather pay more then that and get both drives bigger tho ie 256gb and 2tb)

    The choice to compare low capacity sizes revolves around OEMs and the lowest priced products. Even though a 1TB 2.5" HDD represents a great value, the OEMs will always choose a low capacity size model that shaves a few dollars off the price.

    A report came out last night that stated major OEMs are now buying 128GB SSDs at $50. Sadly, I didn't have that data when I wrote this article.
    Reply
  • RamCity
    Good article Chris. There is a certainly a lot happening in high-volume end of the SSD industry. The tipping point for the 256GB HDD vs SSD choice (based purely on price) is very close.
    Reply
  • PaulBags
    Heard a few times lately about fancy current controllers enabling more fragile nand to be effective. That's cool, building algorithms etc that can do more with lesser nand is impressive. Still, I wish there was some news of consumer/prosumer grade ssds with slc and/or larger nm nand taking advantage of newer controllers to be even more rock solid and effective. It's great and impressive that it works stability tricks work, but when I want performance I don't want to be relying so heavily on error correction.
    Reply
  • CRamseyer
    I'm with you. Long live SLC. Sadly though, I don't want to spend 1500 Dollars on a low capacity SSD that rips through my workloads at high speeds.
    Reply
  • f-14
    THE REAL Conclusion: Mushikin's Reactor is walking all over the competition even when the testing was rigged to make jmicrons newest 32 bit bottlenecked solution look better.
    Reply
