JMicron JMF670H SSD Controller Preview

Features
By
published

JMicron sent over three SSD configurations that use the new JMF670H controller and are paired up with brand new flash memory.

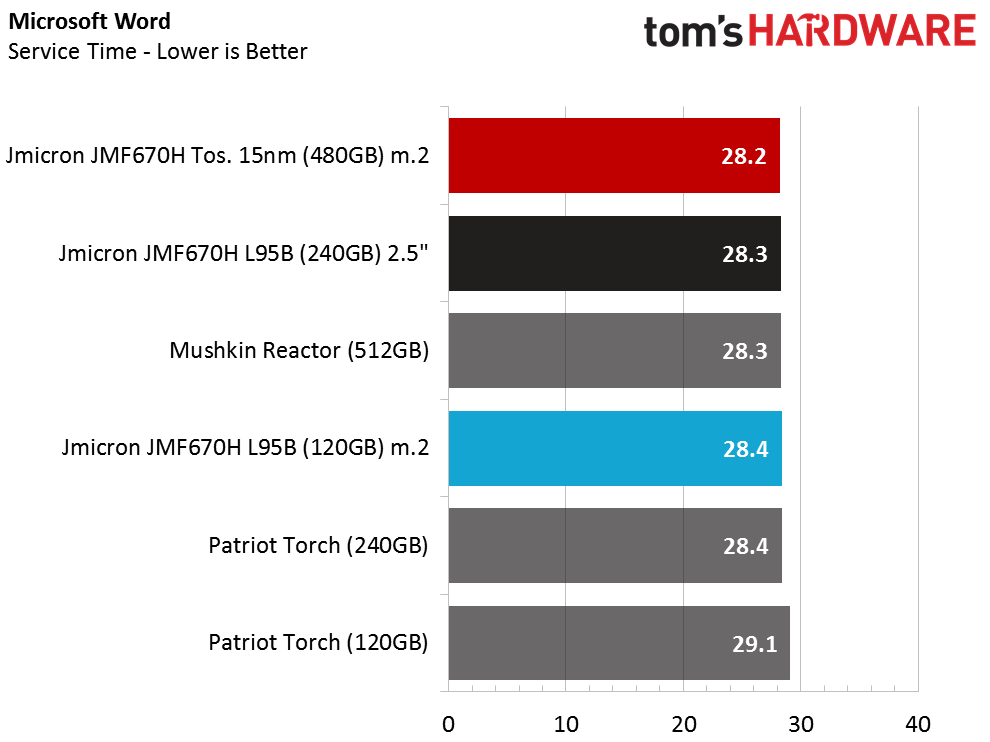

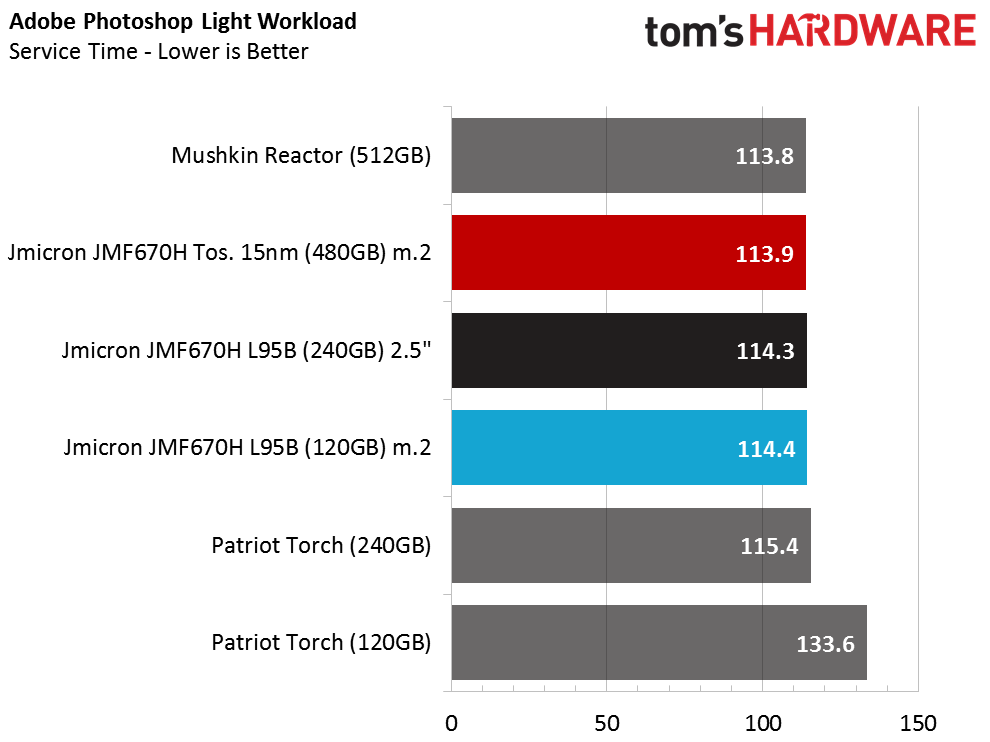

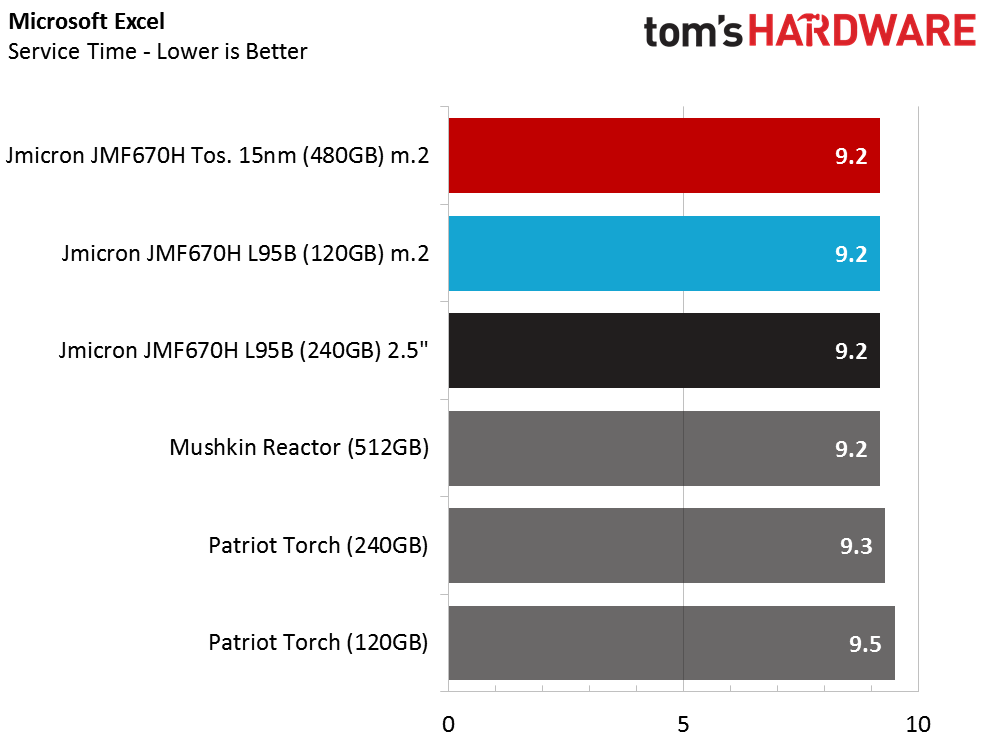

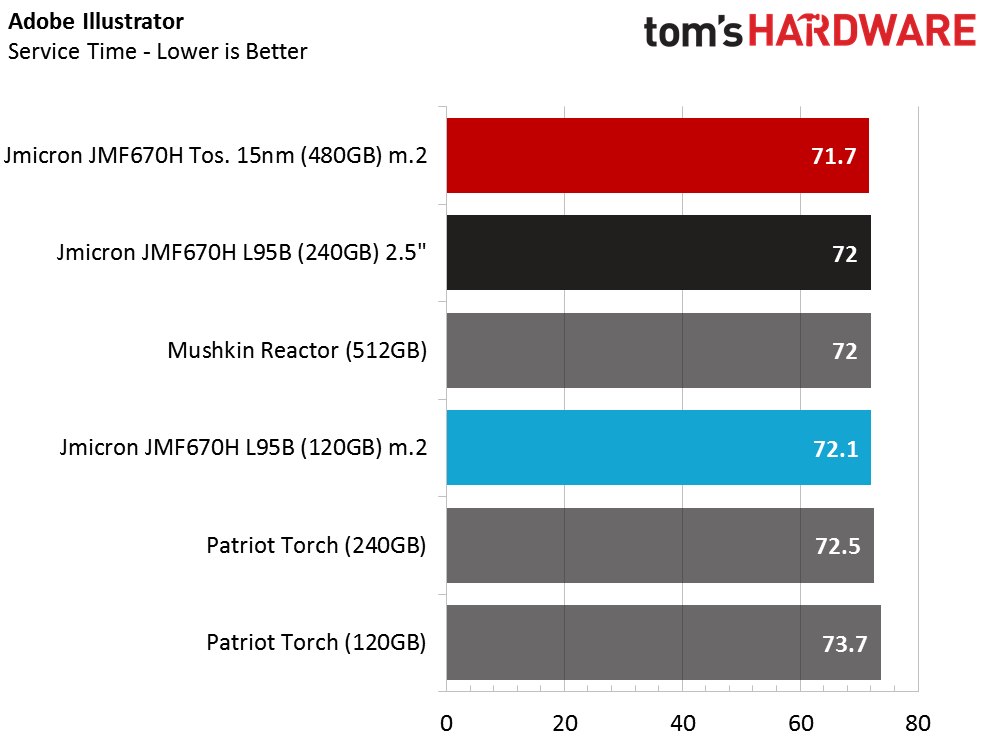

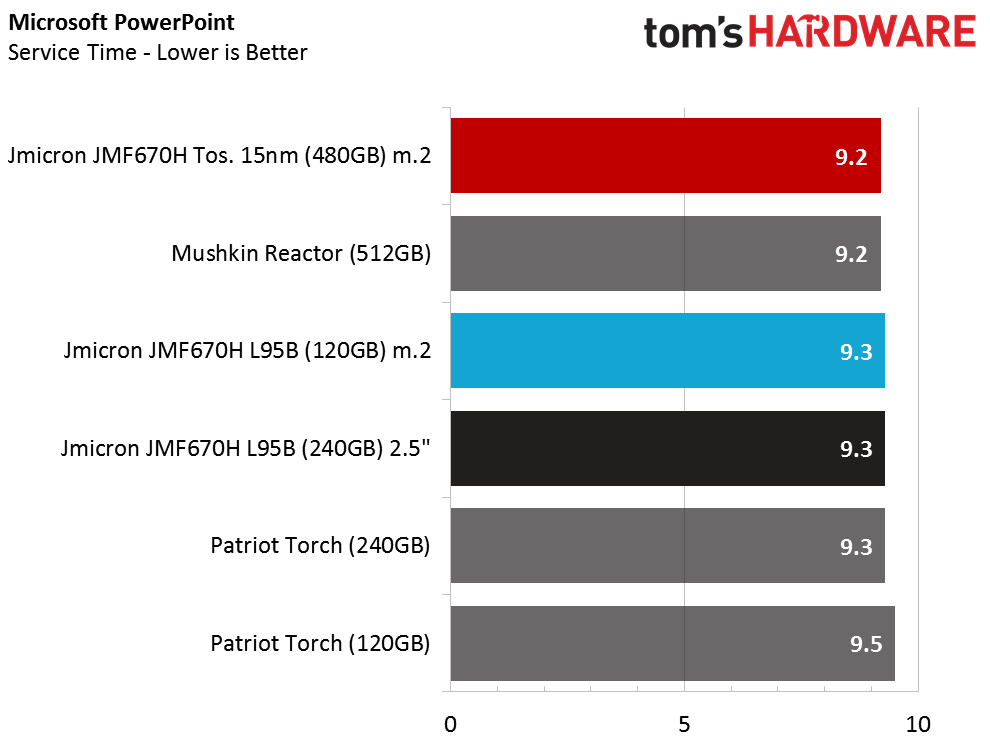

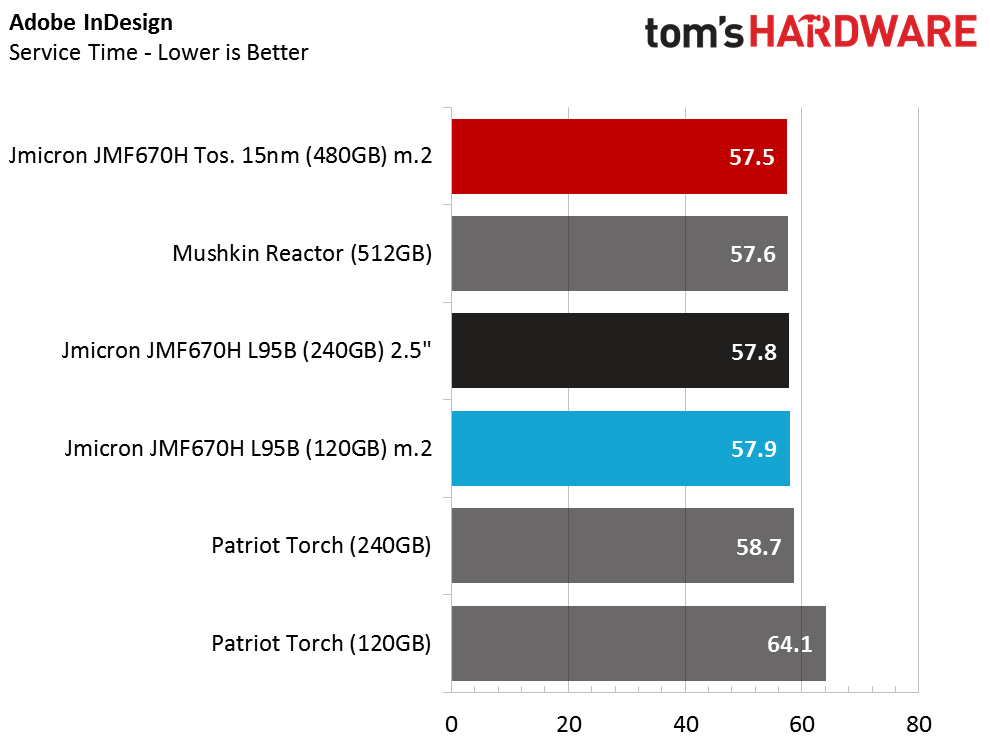

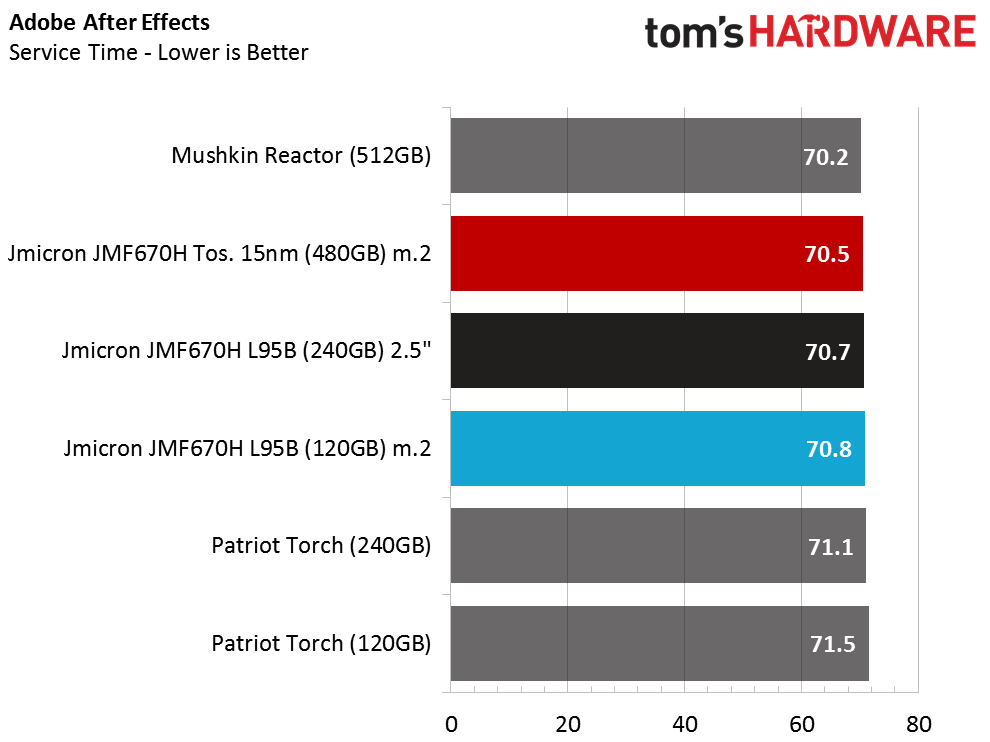

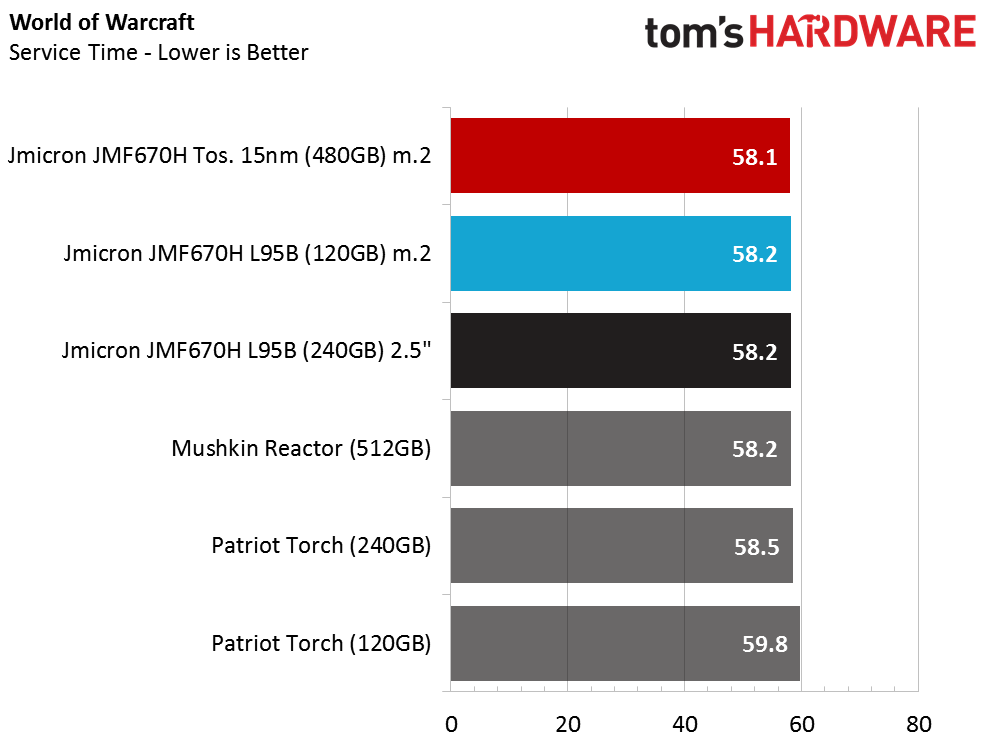

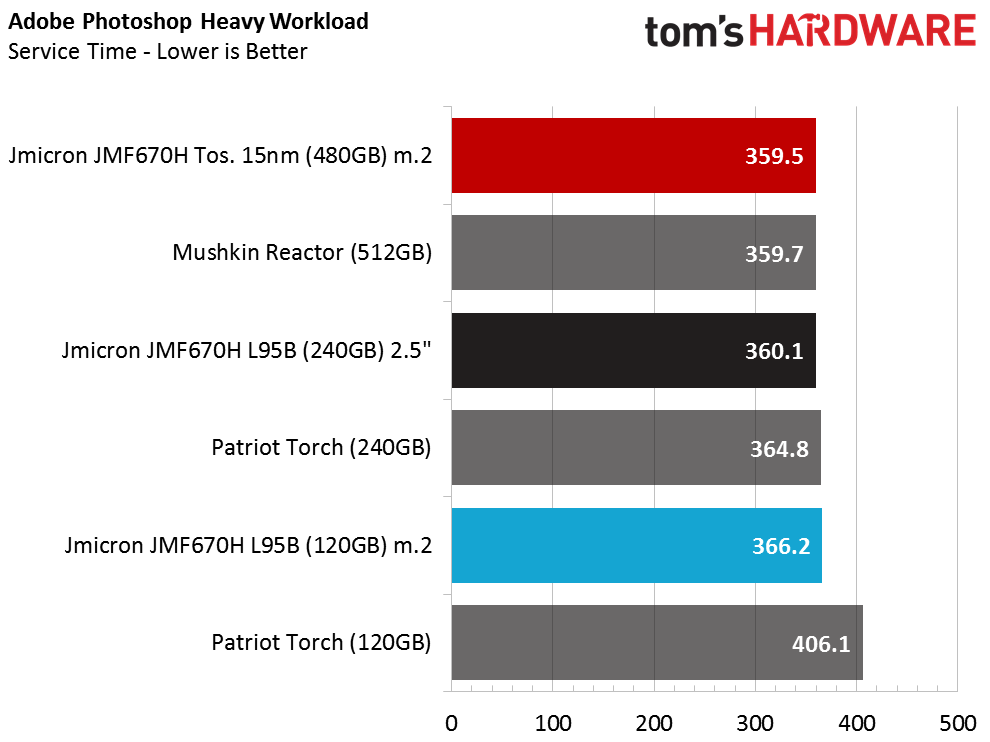

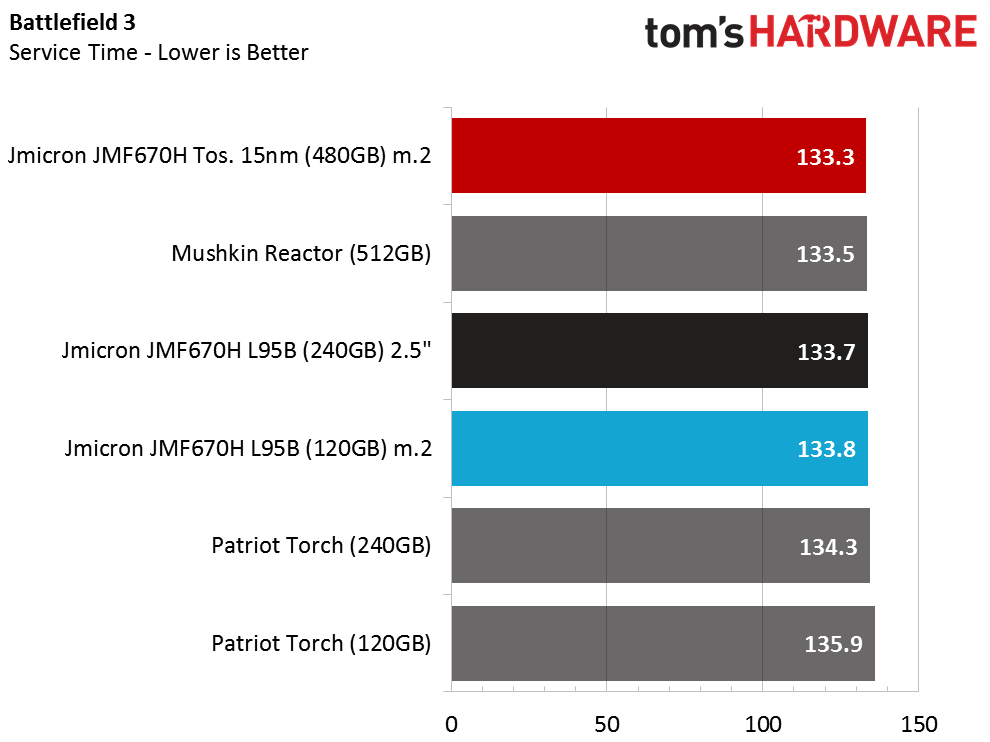

PCMark 8 Real-World Software Performance

For details on our real-world software performance testing, please click here.

Image 1 of 10

The three JMicron JFM670H-based SSDs compare well against existing low-cost rivals when we sort by capacity. In many of these tests, the difference is only a few tenths of a second, so we're not going to crown an undisputed winner. Still, the leads are clean and undeniable.
