PCI Express And SLI Scaling: How Many Lanes Do You Need?

Features
By
published

Are the most elaborate platforms really required to host the fastest GPUs, or can you get away with P55's lane-splitting scheme? As Nvidia’s latest graphics processors push 3D performance to new heights, we examine the interfaces needed to support them.

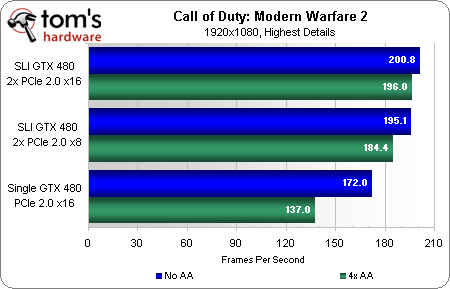

SLI Scaling: Call Of Duty: Modern Warfare 2

Previously cited for being the most bandwidth-dependent benchmark with a single card, CoD:MW2 becomes the wrench in the works for our SLI tests. It’s essentially CPU-bound at 1680x1050, and that problem will have a big impact on our final averages.

As with most CPU-bound benchmarks, load shifts toward the GPU as CoD:MW2 resolutions are increased. Unfortunately, that’s also where this benchmark became less bandwidth-dependent in our single-card tests. Even at 4.00 GHz, our Core i7 CPU’s “poor” performance artificially reduces both bandwidth-scaling and SLI-scaling differences.

TOPICS
Thomas Soderstrom
Thomas Soderstrom
Thomas Soderstrom is a Senior Staff Editor at Tom's Hardware US. He tests and reviews cases, cooling, memory and motherboards.
