We got our hands on four SAS 6 Gb/s RAID controllers from Adaptec, Areca, HighPoint, and LSI and ran them through RAID 0, 5, 6, and 10 workloads to test their mettle. Does your system need eight more ports of connectivity? We can answer that!

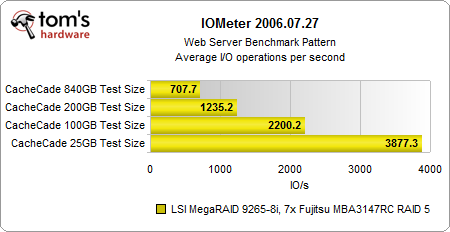

Benchmark Results: LSI CacheCade
Stay On the Cutting Edge: Get the Tom's Hardware Newsletter
Get Tom's Hardware's best news and in-depth reviews, straight to your inbox.
Great review! Though I would have like to see some RAID 1 and RAID 10 benchmarks. Don't usually see RAID 0 for expensive SAS RAID Controllers, and more RAID 10 configurations than RAID 5.
I just sold my HighPoint RocketRAID 2720 because of the terrible drivers. Not only do the drivers add about 60 seconds to the Windows boot, they also cause random BSODs. The support was a joke, and the driver that came on the disc caused the Windows 7 x64 setup to instantly BSOD even though the box had a Windows 7 compatible logo on it. I even RMAed the card and the new one was exactly the same.
Very cool, fast and expensive means not home server stuff. For that, try the IBM BR10I, 8port PCI-e SAS/SATA RAID controller, which is generally available on eBay for $40 with no bracket (I live for danger). You are stuck with 3 GB/sec per port, but if you add $34 for a pair of forward breakout cables you have 8 sata ports at a cost of under $10 per port. The card requires a PCIe X8 slot but if you only give it 4 lanes (the number of lanes offered by our Atom's NM10) if will give each port 1.5 Gb/sec. Cheap SAS makes software RAID 6 prudent in a home storage server.
I have pretty much no use for anything other than raid 0 but it was still an interesting read. I think i prefer this type of article over the longer type with actual benchmarks thrown in (not for gpu or cpu reviews though).
I had a hard time deciding between 9265-8i, 1880 and 6805 a month ago. I bought the 6805 and always wondered why RAID-10 was not as fast as I thought it should be. This reviewed proved my worries.
I eventually went to RAID 6 with 6 Constellation ES 1TB disks. Here's where the adaptec really shines. This is for a photo/video storage/editing disk array.
Admittedly if I have a choice again I would have picked the Areca after seeing the numbers. Adaptec was the cheapest among all of them so it's not too much of a regret.
Great review! As I am in the process of building a new home file server and always have a habit of going overboard in such situations, I will be referring back to this article many more times before purchasing.
That said can you please talk more to the differences performance wise between SATA and SAS? I understand the reliability argument, however I wonder if for my purposes I would not be better served by using cheaper SATA disks over SAS disks?
I would also love some direction with regard to a good enclosures/power supplies for a hard drive only enclosure. I realize I am quickly priced out of an enterprise solution in this arena, but have seen at least a couple cheaper options online such as the Sans Digital TR8M+B. (This enclosure is normally bundeled with some RocketRaid controller which I would probably discard in favor of either the Adaptec or LSI solution.)
You are missing a huge competitor in this space. Atto RAID Adapters are on par and I think the only other one out there, why are they not compared in this review?
I evaluated all but the Highpoint for work. What isn't shown, and would be unrealistic for a home user, is that the LSI destroys the competition when you throw on a SAS expander. With 24 15k SAS drives, the LSI card tops out at 3500MB/s, RAID0 sequential write, while the Areca is
