SilverStone SX550 SFX PSU Review

Not yet rated Reviews
By Aris Mpitziopoulos
published

SilverStone continues to enrich its SFX PSU portfolio. One of the most recent additions is the SX550, a budget-oriented unit featuring Gold-class efficiency and fixed cables instead of modular ones. As you can tell, it's intended to bring prices down.

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Performance, Performance Per Dollar, Noise And Efficiency Ratings

Performance Rating

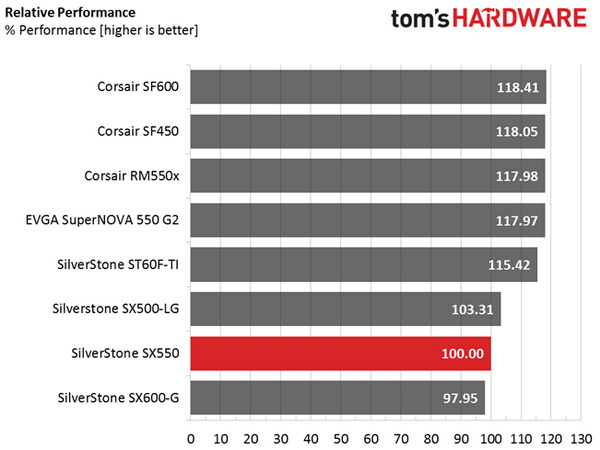

The following graph shows the SX550's total performance, comparing it to other units we have tested. To be more specific, the tested unit is shown as 100 percent, and every other unit's performance is shown relative to it.

Click Here To See More Results

The SX550's relative performance score puts it way behind the SF450 and SF600. However, thanks to decent ripple suppression, it manages to surpass the SX600-G, which appears higher up in SilverStone's portfolio.

Performance Per Dollar

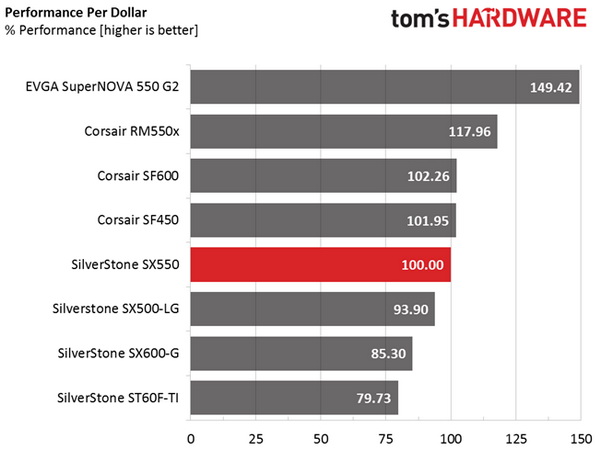

The following chart may be the most interesting to many of you because it depicts the unit's performance-per-dollar score. We looked up the current price of each PSU on popular online shops and used those prices and all relative performance numbers to calculate the index. If the specific unit wasn't available in the United States, we searched for it in popular European Union shops, converting the listed price to USD (without VAT). Note that all of the numbers in the following graph are normalized by the rated power of each PSU.

Click Here To See More Results

The SX550 easily beats SilverStone's other SFX-based units thanks to its fair price. However Corsair's SFX solutions are tough opponents, despite higher prices, due to superior performance.

Noise Rating

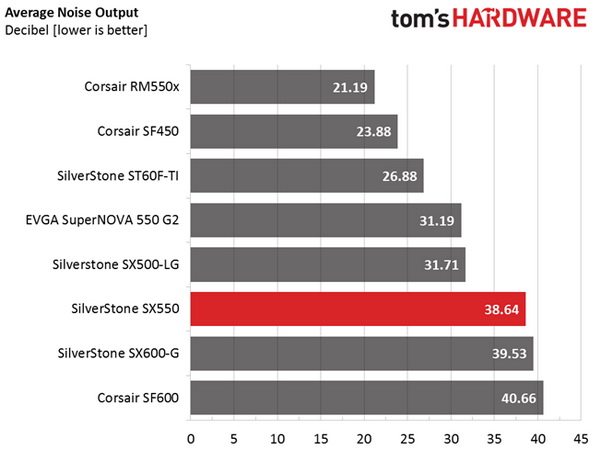

The graph below depicts the cooling fan's average noise over the PSU's operating range, with an ambient temperature between 28 °C and 30 °C (82 °F to 86 °F).

Click Here To See More Results

The SX550 isn't as quiet as the SF450 or SX500-LG. However, it is quieter than the SX600-G. As for the SF600, we still haven't tested the second sample that Corsair sent a while ago to check if our first unit had a problem with its fan control circuit. According to Corsair, the SF600 should be as quiet as the SF450.

Efficiency Rating

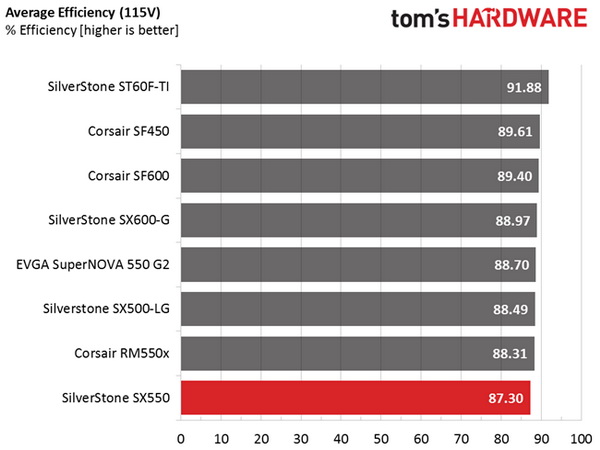

The following graph shows the PSU's average efficiency throughout its operating range with an ambient temperature between 28 °C and 30 °C.

Click Here To See More Results

This graph clearly shows the SX550's low efficiency compared to other Gold-rated units. The ACRF topology that this PSU uses cannot meet the efficiency levels of other topologies utilizing LLC resonant converters.

Aris Mpitziopoulos
Contributing Editor

Aris Mpitziopoulos is a Contributing Editor at Tom's Hardware US, covering PSUs.

See more Power Supplies Reviews
