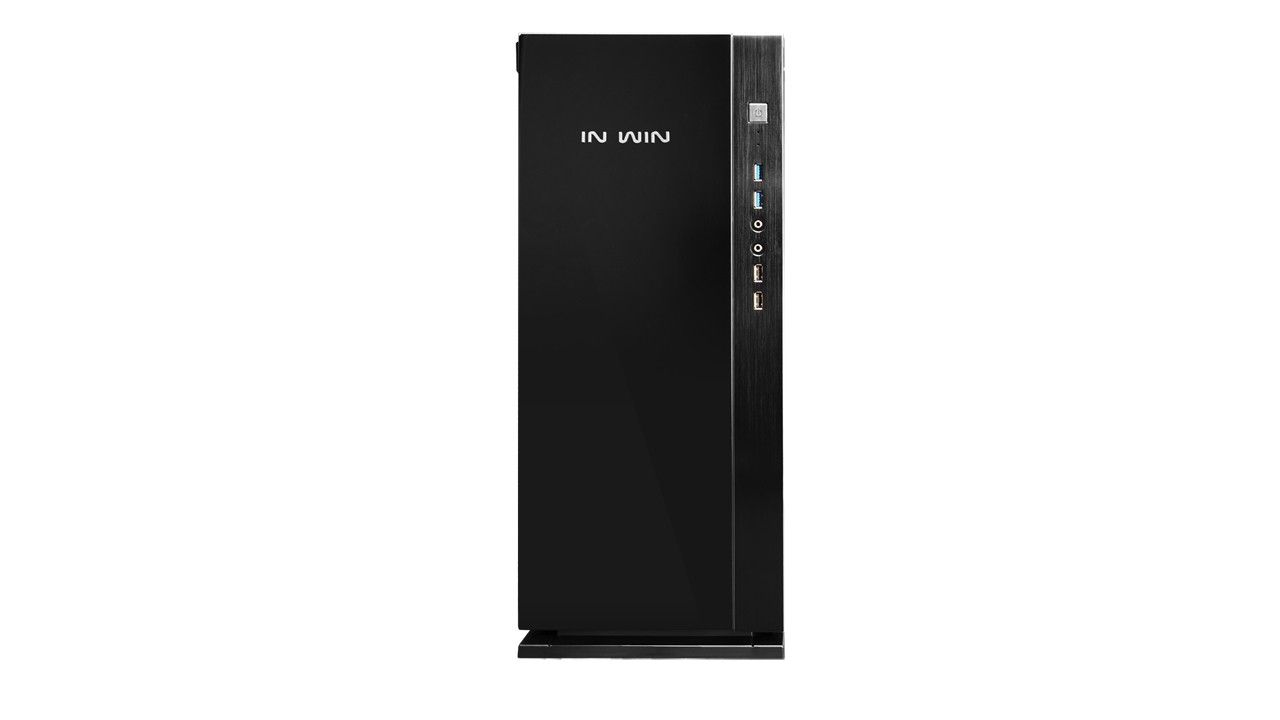

If you are in the market for a mid-tower ATX chassis with a tempered glass side panel, the In Win 305 might be right up your alley.

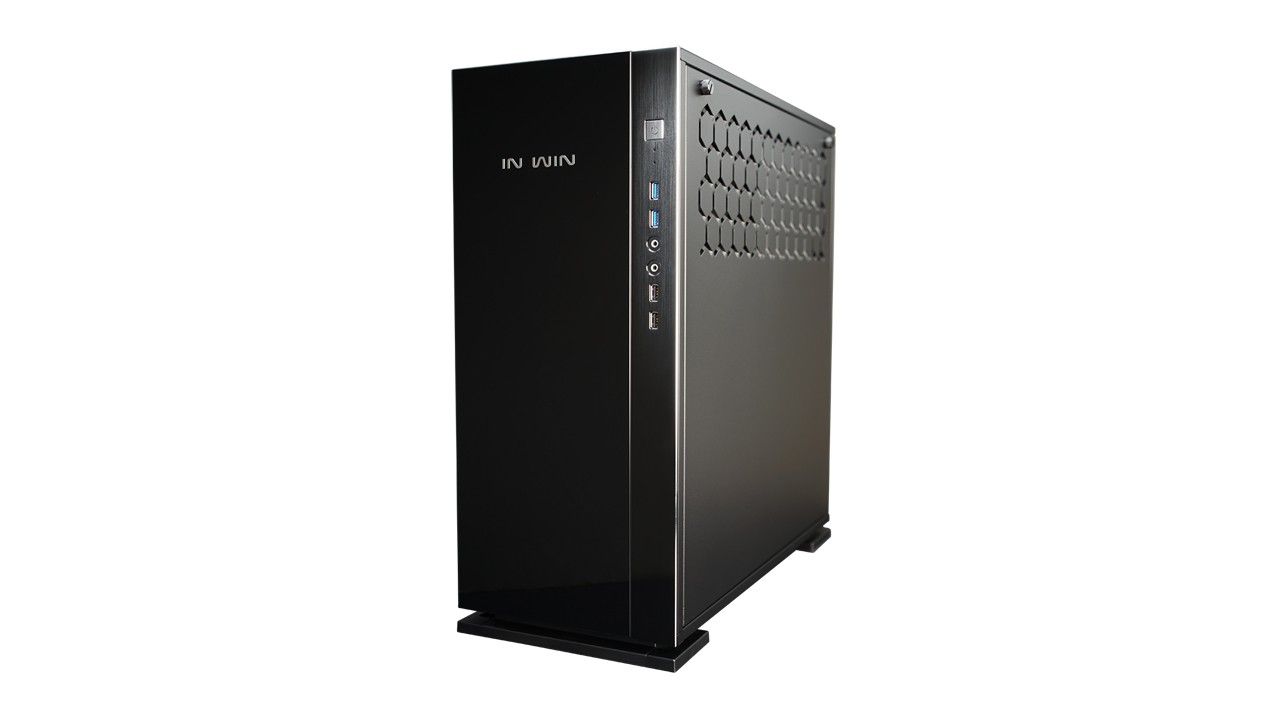

In Win’s latest mid-tower case offering measures 500 x 248 x 484mm (HxWxD) and weighs in at 25lbs. The In Win 305 features a steel, plastic, and tempered glass construction and supports up to ATX motherboards. This case can accommodate CPU coolers up to 160mm in height and power supplies up to 200mm in length. Those of you running multi-GPU setups will be happy to know the chassis’ seven expansion slots permit the installation of graphics cards up to 350mm in length.

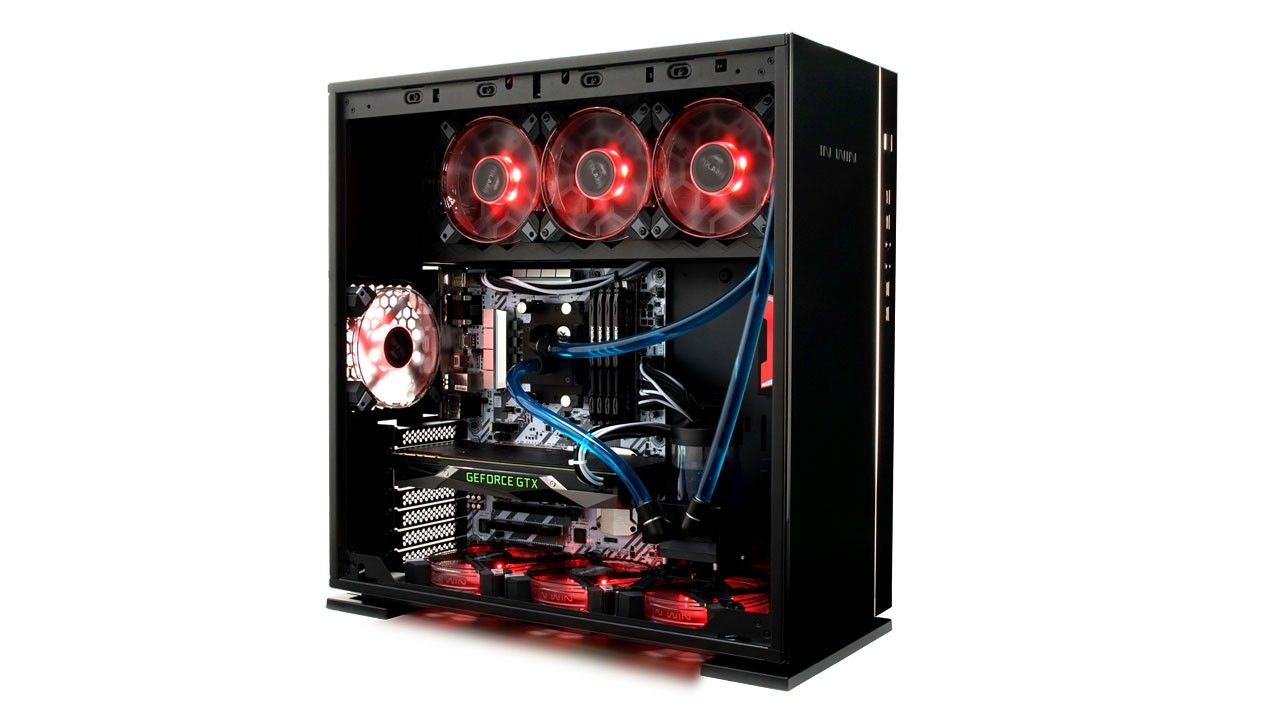

There are mounting locations for up to seven 120mm fans--three in the top, three in the bottom, and one in the rear--but as far as we can tell, there are no fans included with this chassis. Radiators and all-in-one coolers up to 360mm can be installed in the top of the chassis. A 120mm radiator can be installed in the rear fan mounting location over the CPU socket area. Front I/O connectivity consists of two USB 2.0 ports, a single USB 3.0 port, a fan speed switch, and the standard set of HD audio jacks.

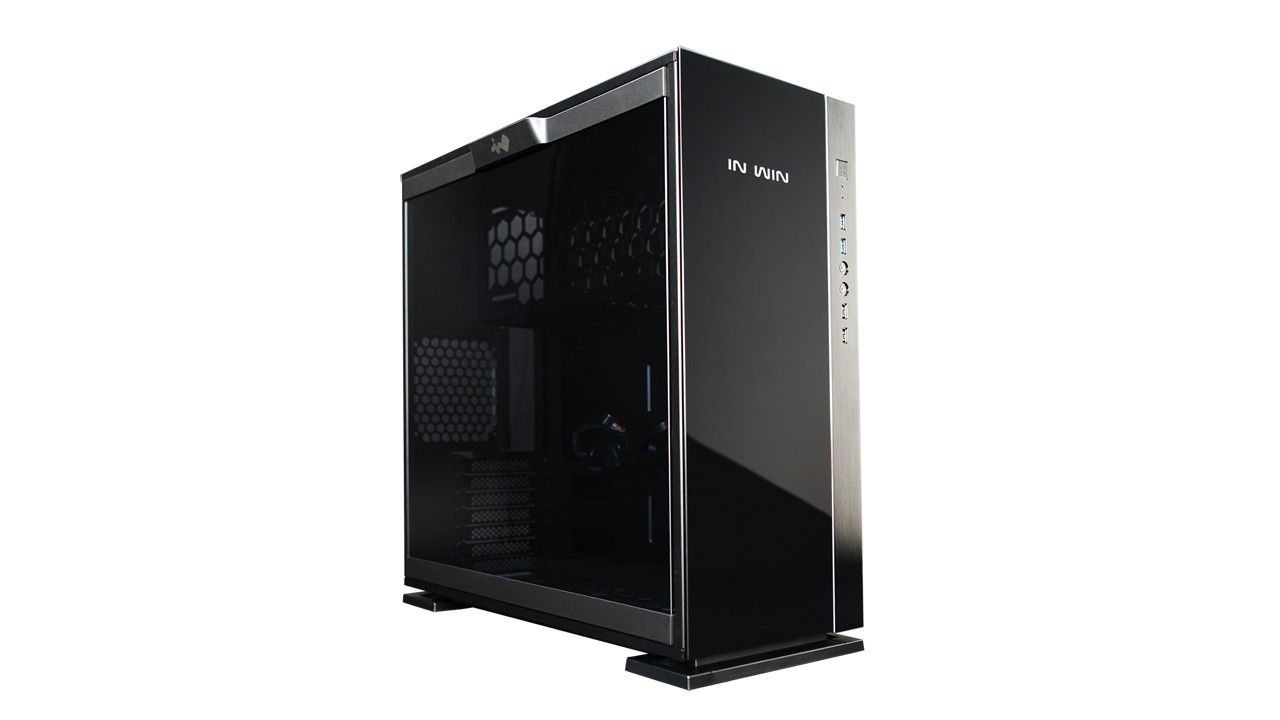

The 3mm-thick tempered glass side panel is tool-less, requiring just a simple press of the handle to remove. The metal panel on the opposite side of the chassis is attached via captured thumbscrews. The 305 is outfitted with removable dust filters in the front and on the bottom of the case.

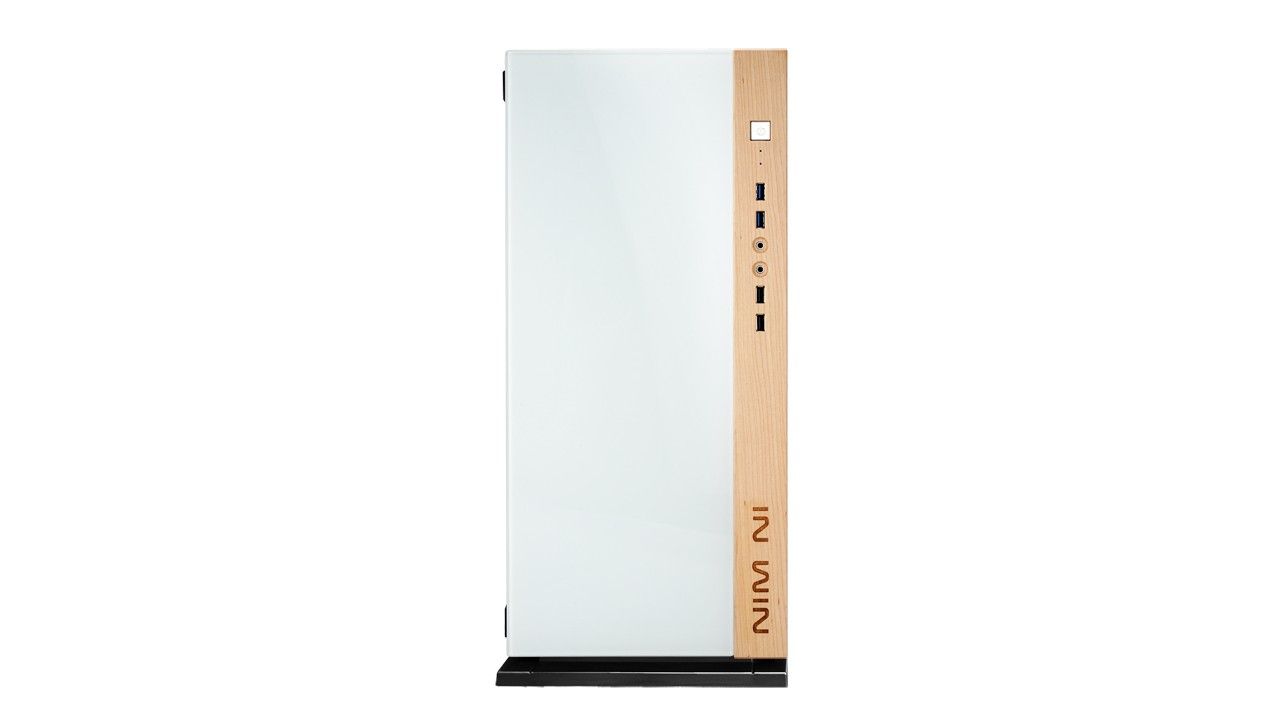

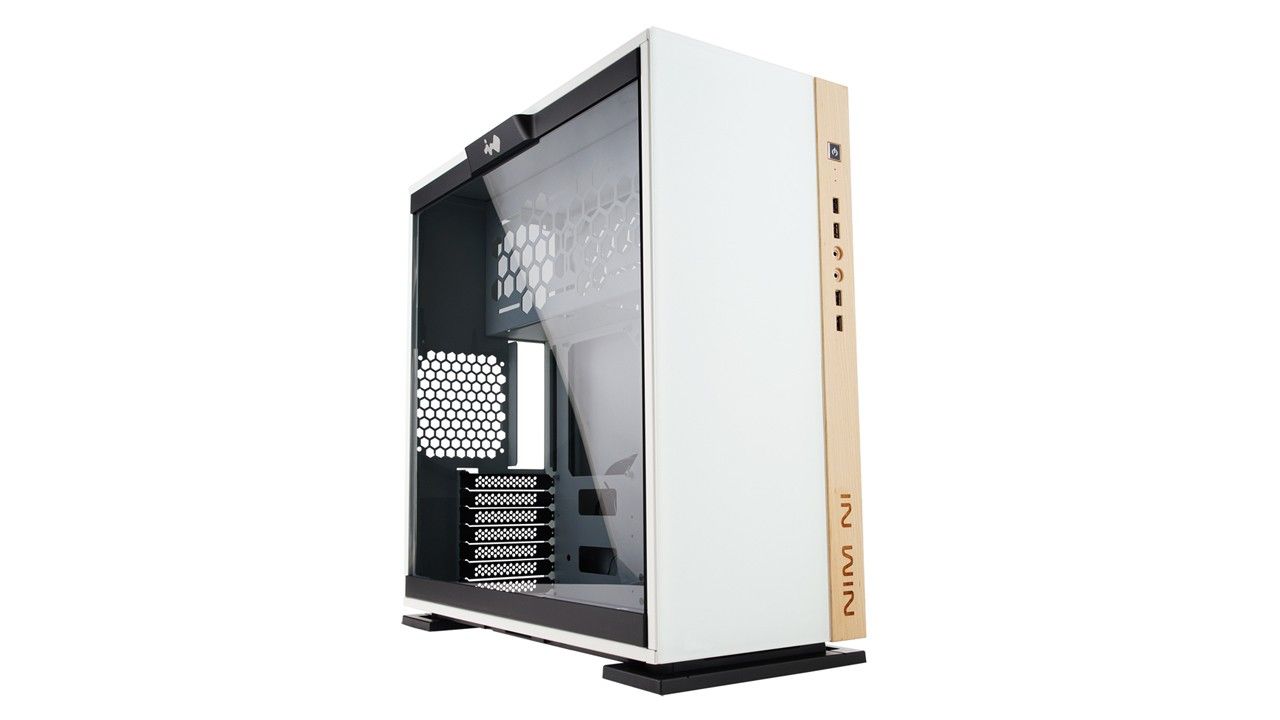

The In Win 305 is available now in black or white with an MSRP of $115.
|In Win 305|
|Dimensions (H x W x D)||500 x 248 x 484mm|
|Materials||SECC, Plastic Tempered glass|
|Motherboard Support||ATX, Micro ATX, Mini-ITX|
|Drive Bays||3.5” x 2|
2.5” x 2
|Fan Support||Front: 120mm x 3 |
Bottom: 120mm x 3
Rear: 120mm x 1
|Radiator Support||Up to 360mm|
|I/O||USB 2.0 x 2|
USB 3.0 x 2
Audio x 1
MIC x 1
