QNAP now offers pre-installed bundles for the company's NASbook TBS-h574TX, featuring EDSFF (Enterprise and Datacenter Standard Form Factor) E1.S SSDs, commonly referred to as the "ruler" form factor. The Thunderbolt 4 NAS, powered by an Intel processor, is now available with capacities of 9.6TB or 19.2TB.

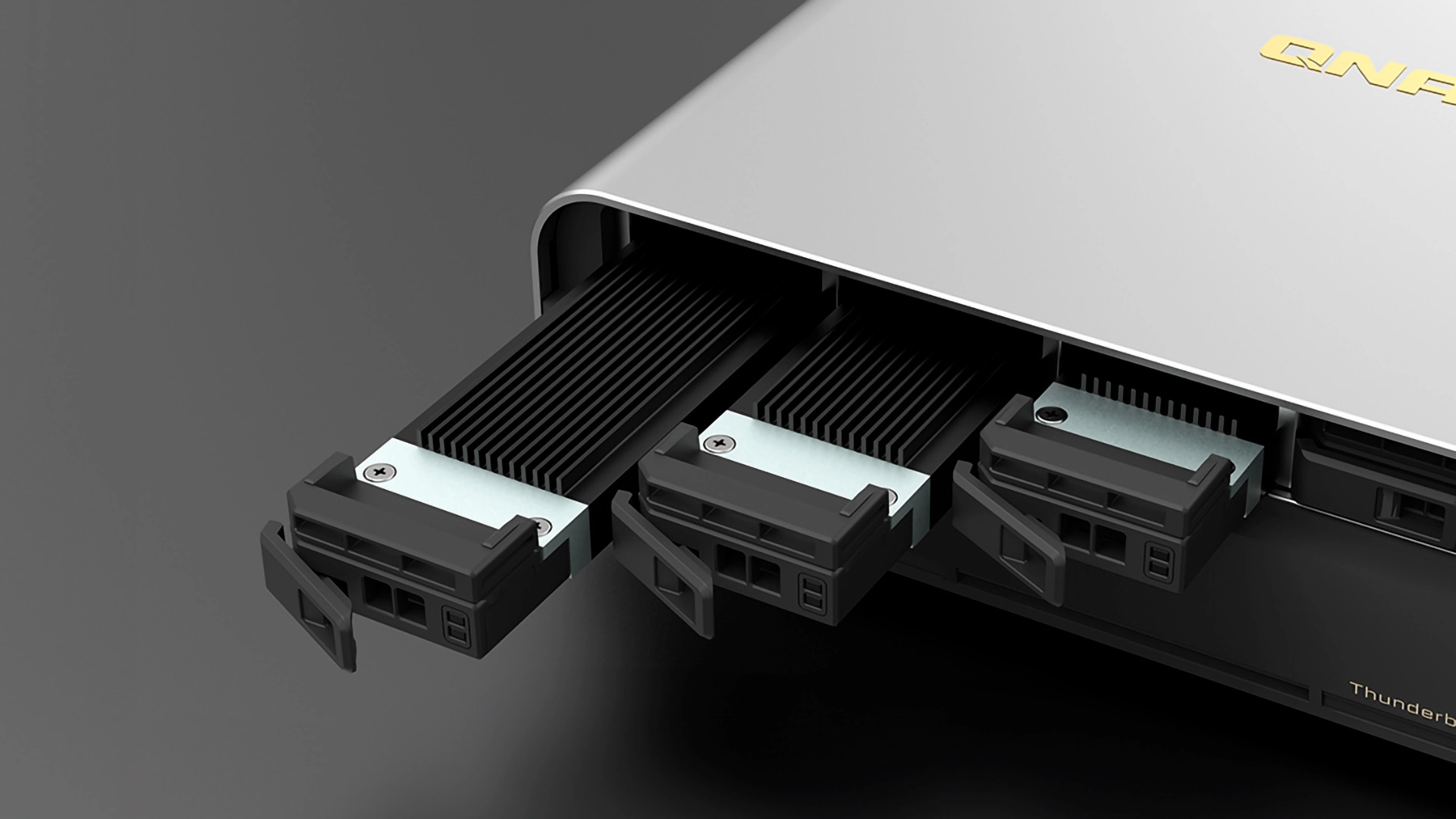

The TBS-h574TX supports standard M.2 2280 and enterprise E1.S SSDs. The NAS employs a simple hot-swappable design that simplifies drive upgrades and replacements. It supports up to five SSDs. Two tiny 40mm cooling fans provide active airflow. While you can purchase the TBS-h574TX and install your own drives, QNAP's pre-configured option may be more convenient for those seeking to avoid the complexities of purchasing and installing compatible drives.
QNAP NASbook TBS-h574TX Specifications
Model | Pricing | Processor | Memory | Flash Memory | Storage |
|---|---|---|---|---|---|
TBS-h574TX-i5UC-05S02-US | $4,399 | Intel Core i5-1235U | 16GB | 5GB | 19.2TB |
TBS-h574TX-i5UC-05S01-US | $2,899 | Intel Core i5-1235U | 16GB | 5GB | 9.6TB |
TBS-h574TX-i5-16G-US | $1,449 | Intel Core i5-1340PE | 16GB | 5GB | N/A |
TBS-h574TX-i3-12G-US | $1,199 | Intel Core i3-1320PE | 12GB | 5GB | N/A |
QNAP offers the TBS-h574TX with three different processor options; however, the company only provides the pre-installed configuration featuring the Core i5-1235U, a processor from the 12th Generation Alder Lake series. The ten-core processor features two P-cores and eight E-cores, with a maximum turbo frequency of 4.4 GHz. The integrated Iris Xe graphics engine handles hardware decoding, encoding, and transcoding.
The Core i5-1235U represents a downgrade, especially since QNAP sells a variant of the TBS-h574TX equipped with a Core i5-1340PE (Raptor Lake), which is newer and more powerful. The only rationale we can think of for QNAP not utilizing the Core i5-1340PE is to minimize costs. The vendor pairs the Core i5-1235U with 16GB of soldered memory.

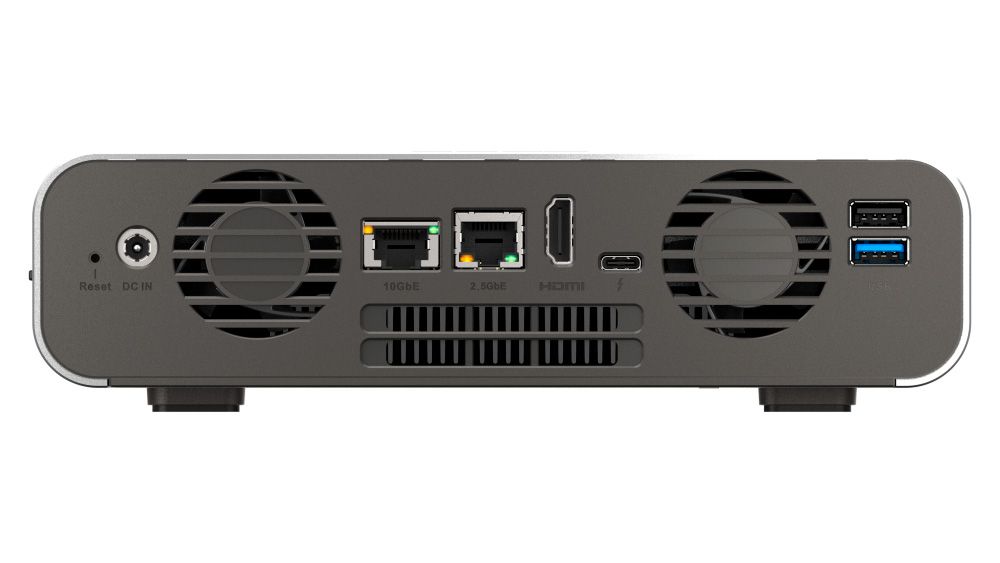

The TBS-h574TX's networking capabilities encompass a 2.5 Gigabit Ethernet port and a high-speed 10 Gigabit Ethernet port. Although the NAS is equipped with two Thunderbolt 4 ports, it also offers a standard USB 2.0 port and two USB 3.2 Gen 2 ports supporting 10 Gbps data transfer. The sole display output is a single HDMI 1.4b port, which is suitable for up to 4K (3840x2160) at 30 Hz. The TBS-h574TX typically draws around 46W of power. The device comes with a 120W power adapter.
The TBS-h574TX-i5UC-05S01-US, the 9.6TB model, sells for $2,899 on QNAP's official website. Since the company does not offer a standalone Core i5-1235U model, it is impossible to determine the individual value of the five E1.S SSDs. However, by referencing the Core i5-1340PE model, the estimated cost per drive is approximately $290. The TBS-h574TX-i5UC-05S02-US, which has the largest storage capacity (19.2TB), comes with an even more eye-watering price tag at $4,399. Essentially, you are paying 52% more for double the storage capacity, which may be considered a reasonable offer when evaluated objectively.
QNAP offers a standard three-year warranty for the TBS-h574TX. Conversely, the E1.S drives are covered by an extended five-year warranty or until they reach the TBW rating — whichever occurs first. The specific TBW rating remains undisclosed, as QNAP does not specify the manufacturer or model of the drives used.
