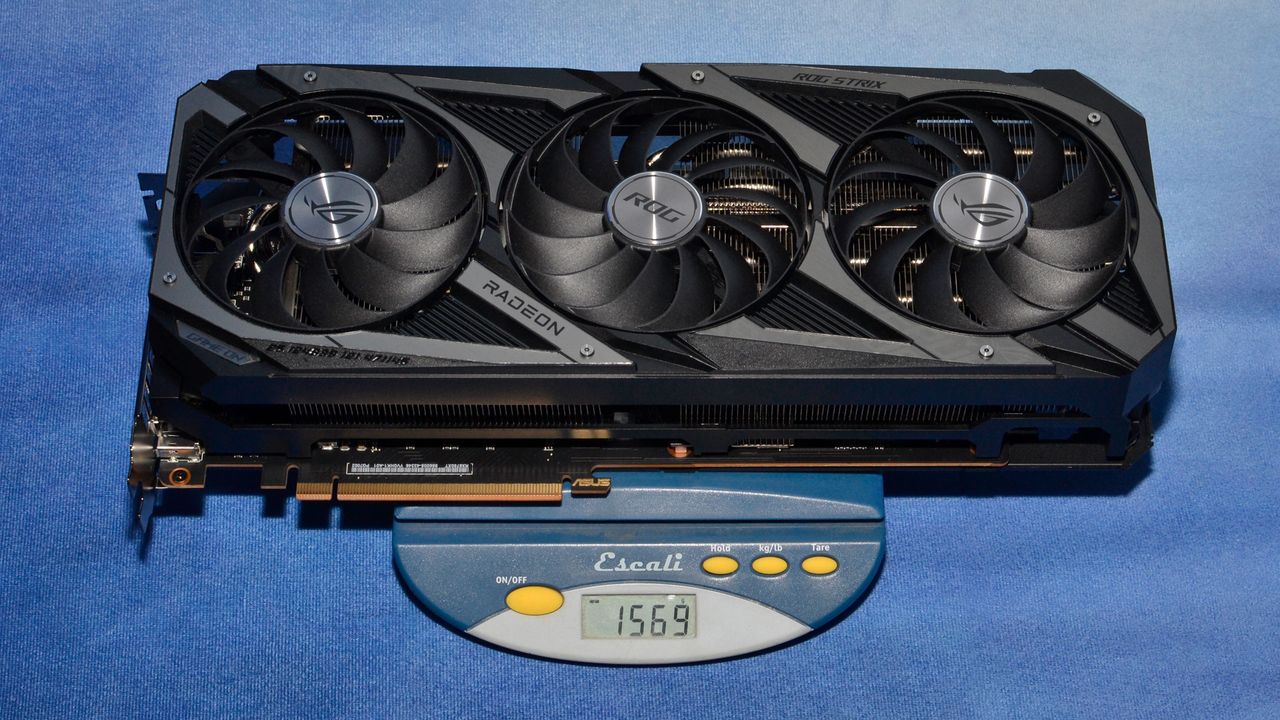

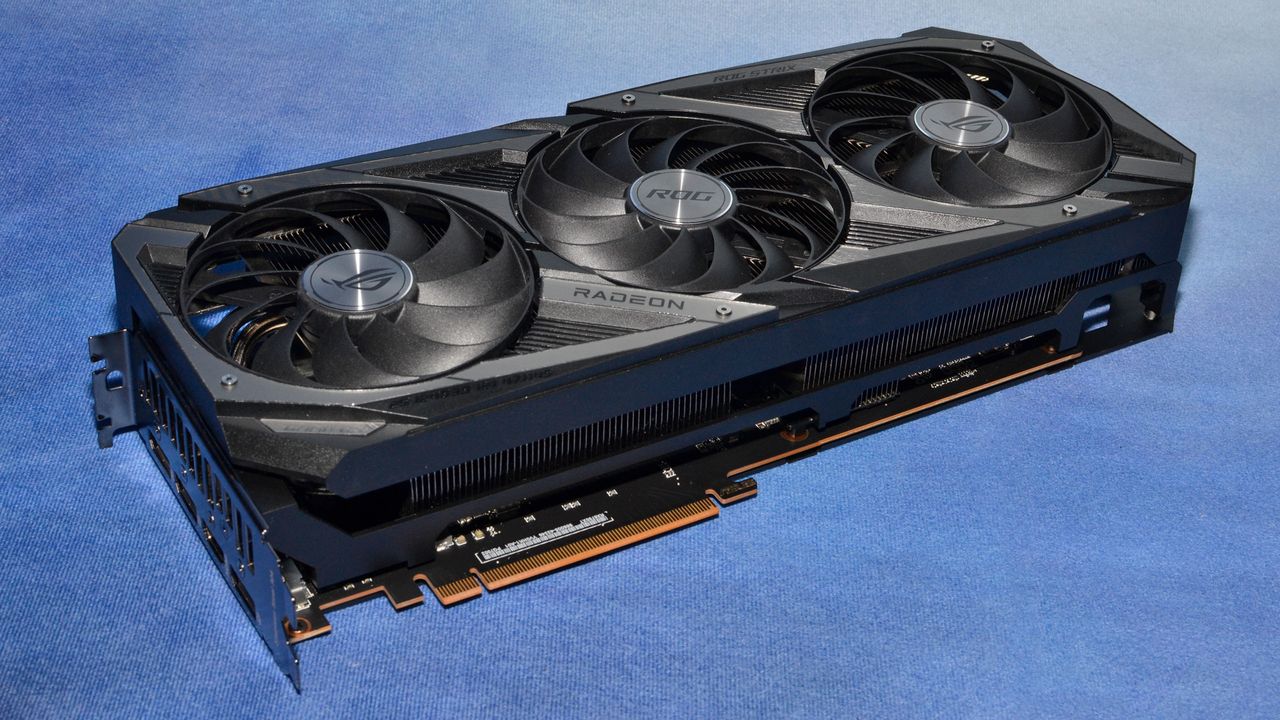

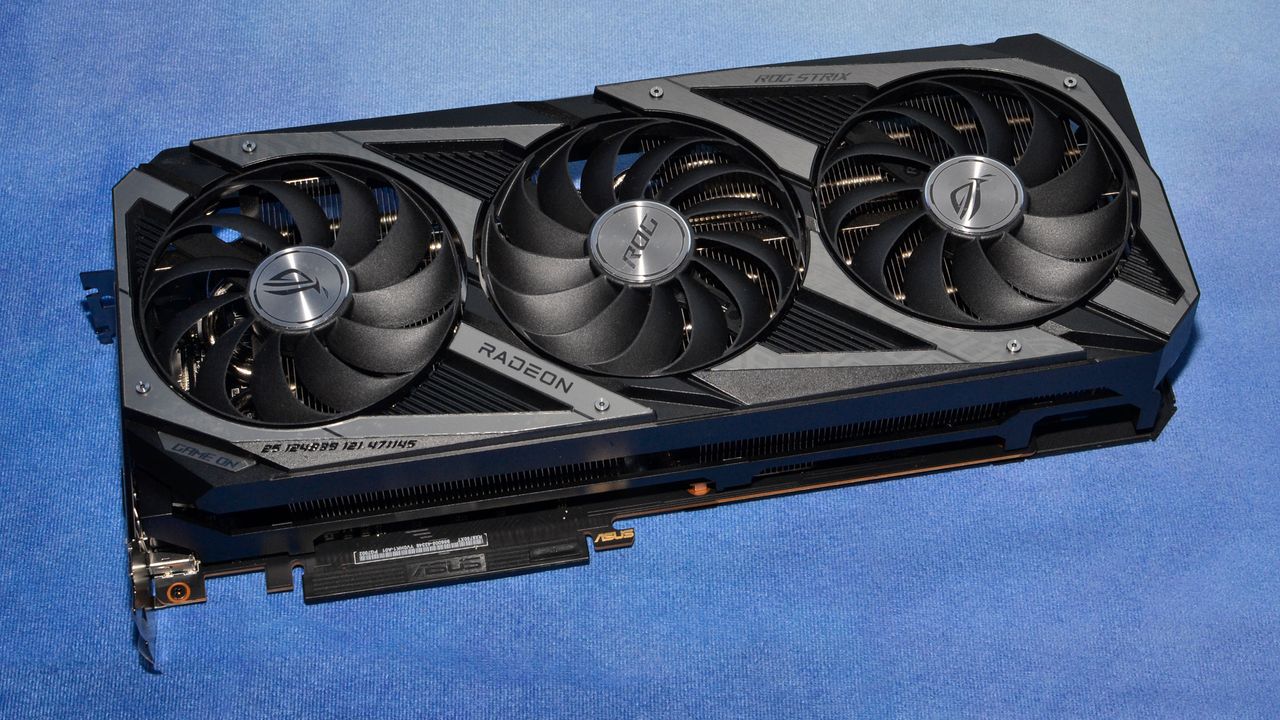

The Asus Radeon RX 6750 XT ROG Strix looks the same as many other ROG Strix cards that we've seen. That's not a bad thing, as you get plenty of RGB lighting effects, triple fans, and ample cooling. The card measures 322x141x57 mm and weighs 1569g, which is pretty chunky for a nominally 250W graphics card — for example, the Sapphire RX 6950 XT we looked at last week only weighed a few grams more at 1582g, though it was a wider 3.5-slot design. The Asus occupies 2.9 slots, though, so it's still plenty wide.

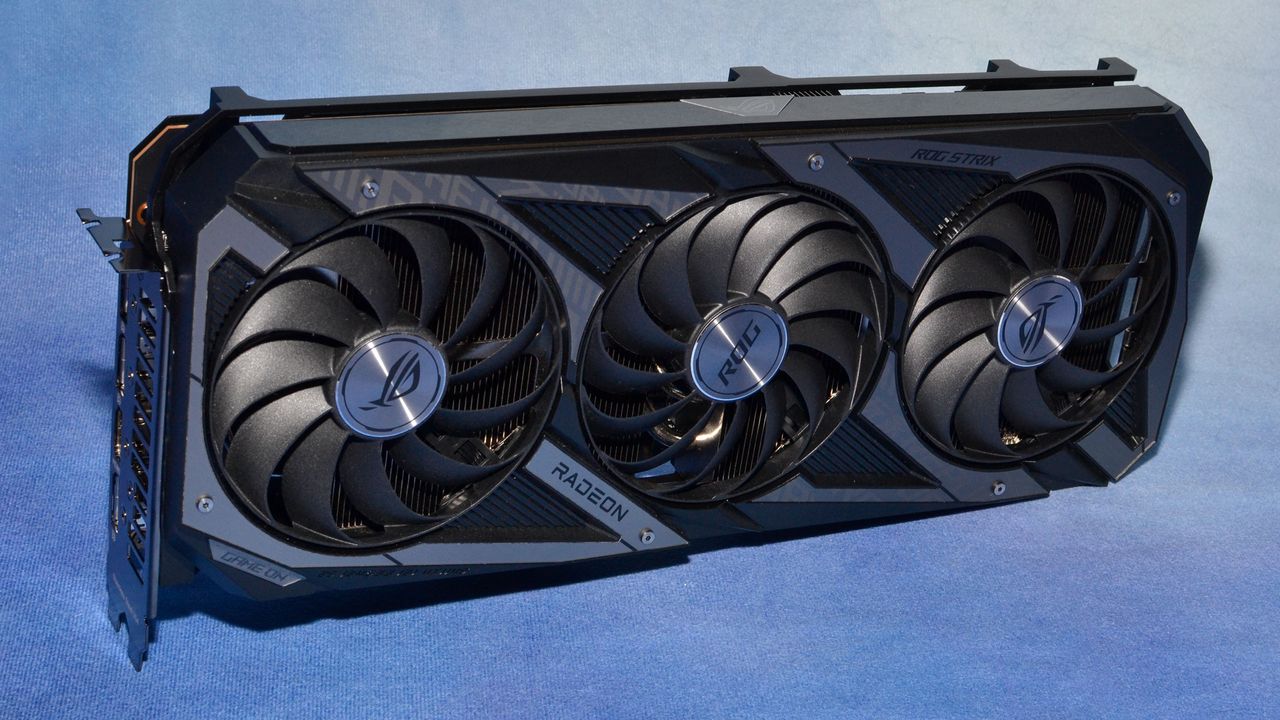

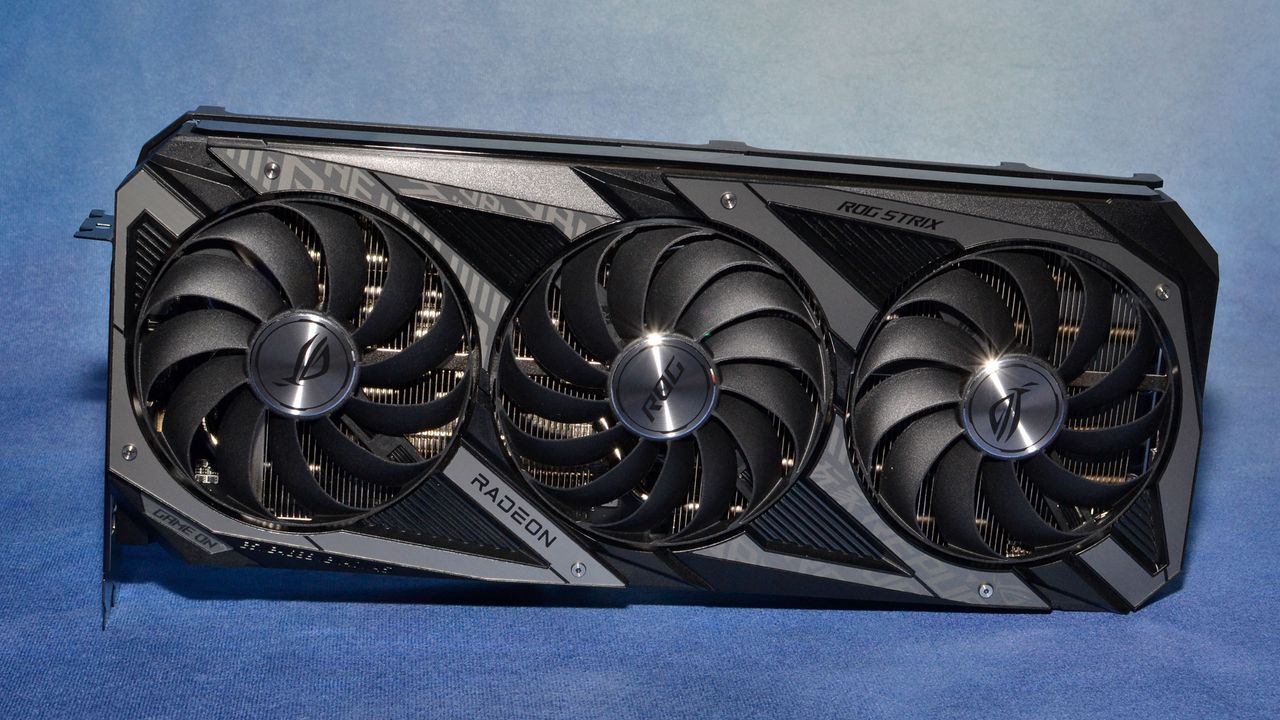

The three fans all have an integrated rim, which helps to improve static pressure and cooling. Asus also has the middle fan spinning in the opposite direction of the two outer fans, which it says helps reduce turbulence. It's tough to say how much that really matters, but the Strix card was generally quiet, with the fans stopping completely when GPU temperatures were below 50C.

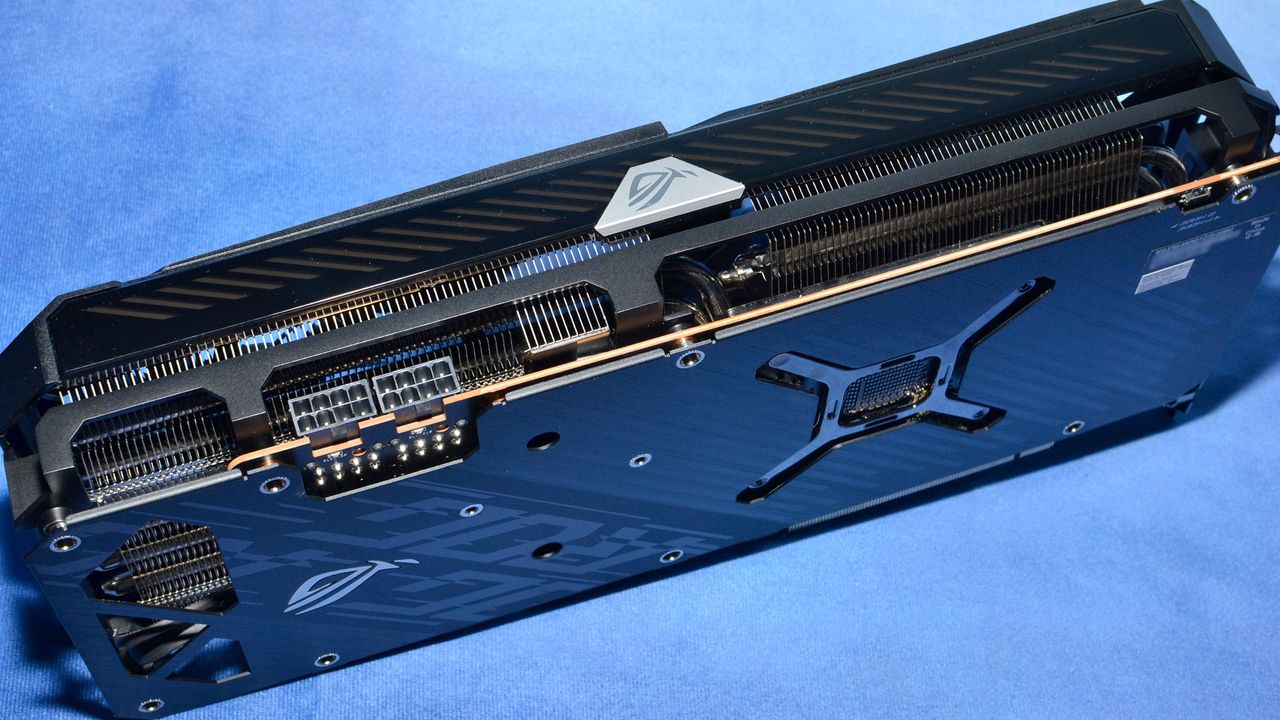

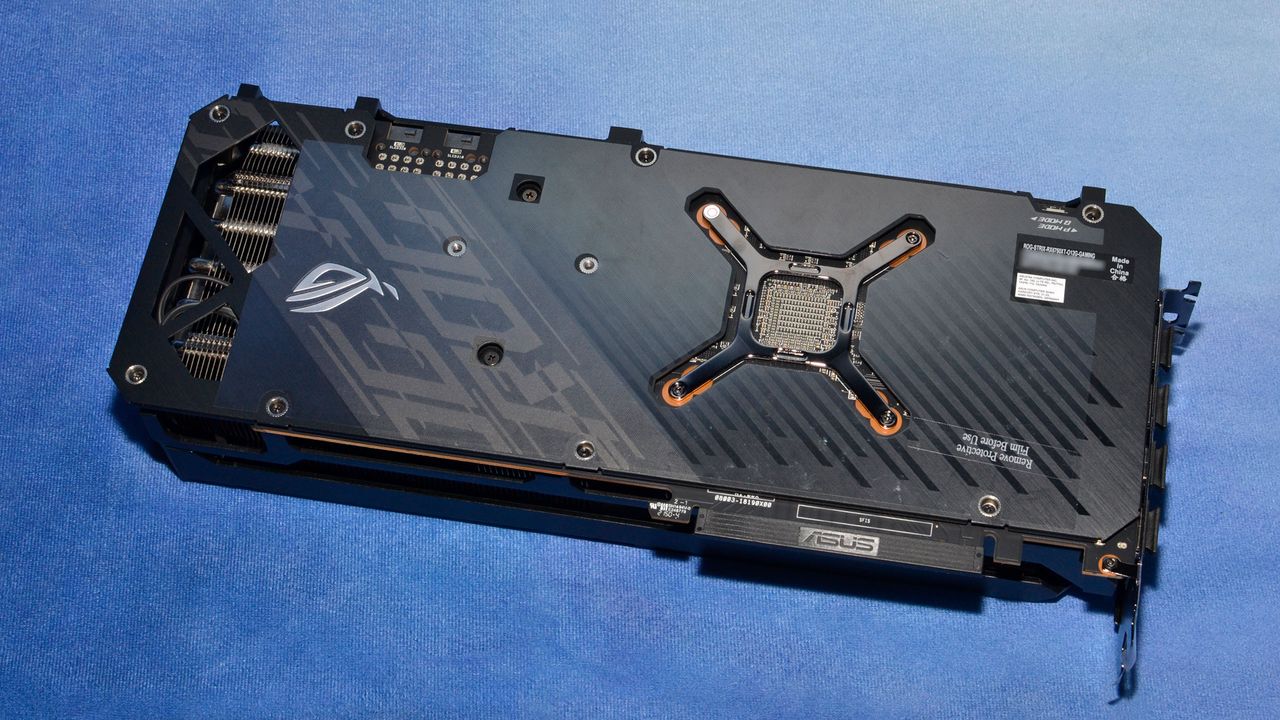

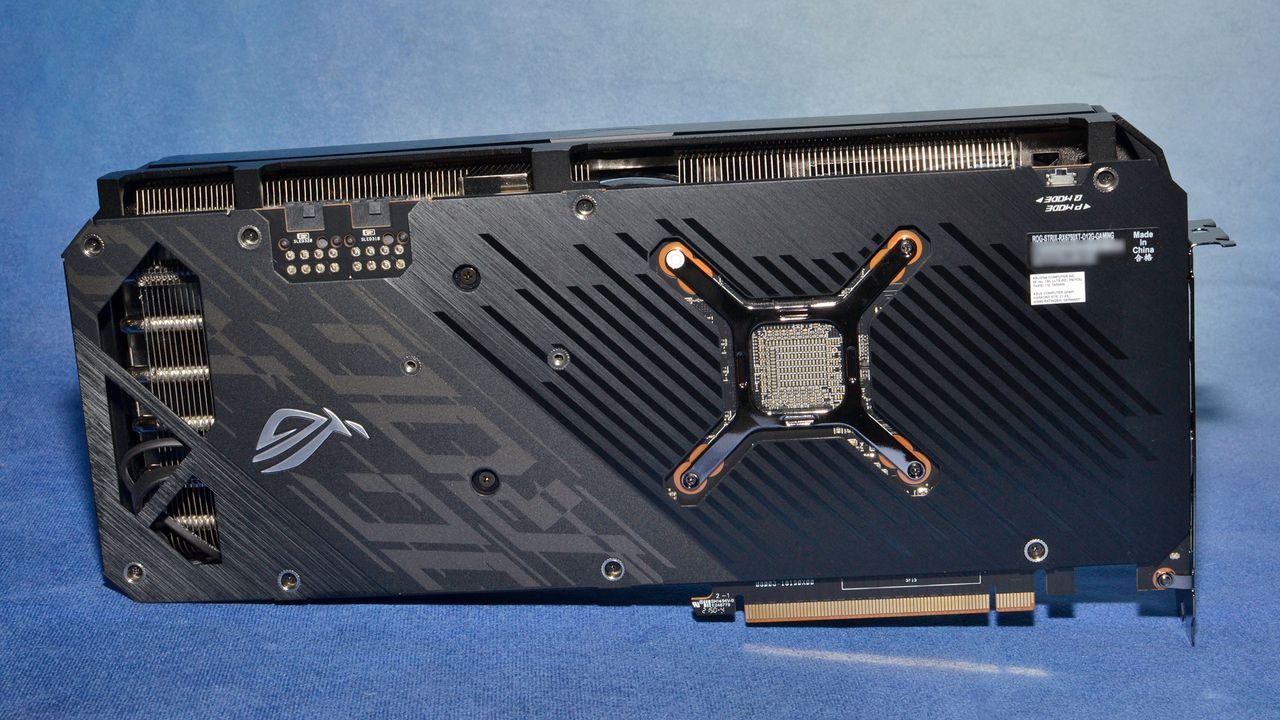

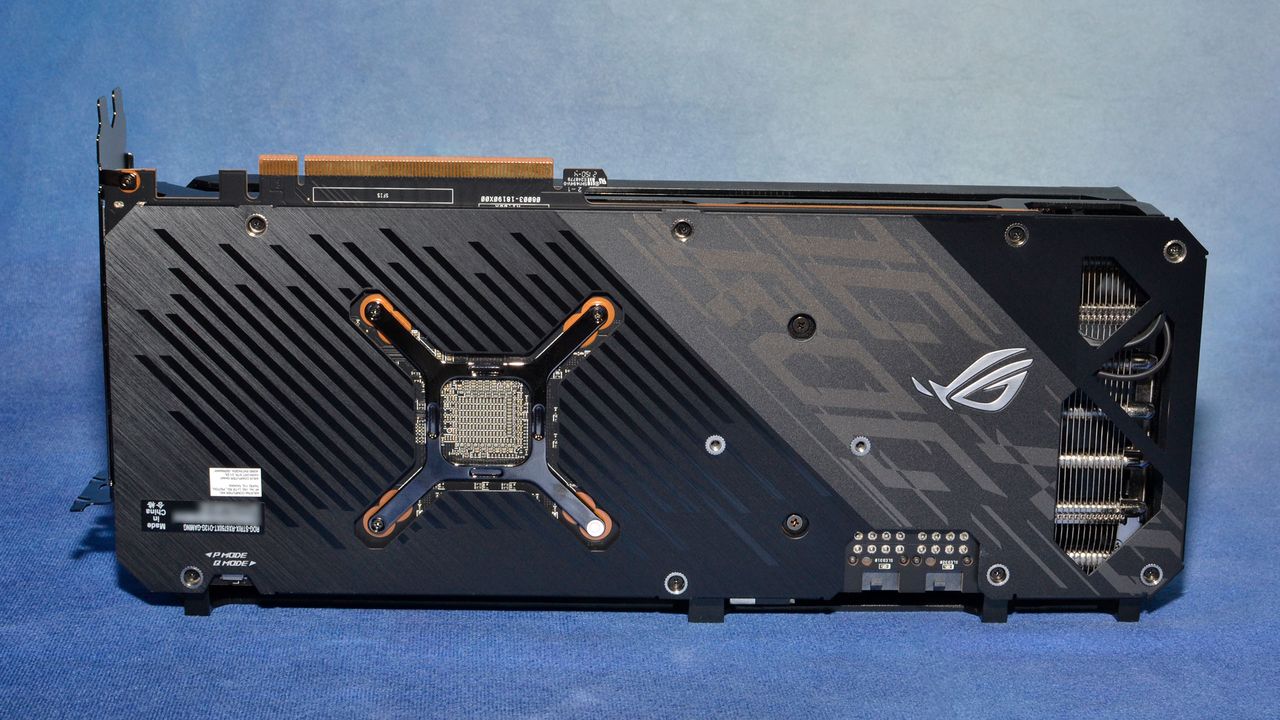

The top of the card has a large illuminated RGB lighting strip, which also shines down on the fan. The fans don't have their own RGB LEDs, not that it really matters since they typically end up facing the bottom of your PC case. The traditional black/gray/silver color scheme that we've seen on so many other cards is here as well, with the Strix logo on the backplate of the card. There are two 8-pin PEG power connectors on the top, and a small cutout near the back of the card to allow air to flow through the heatsink fins.

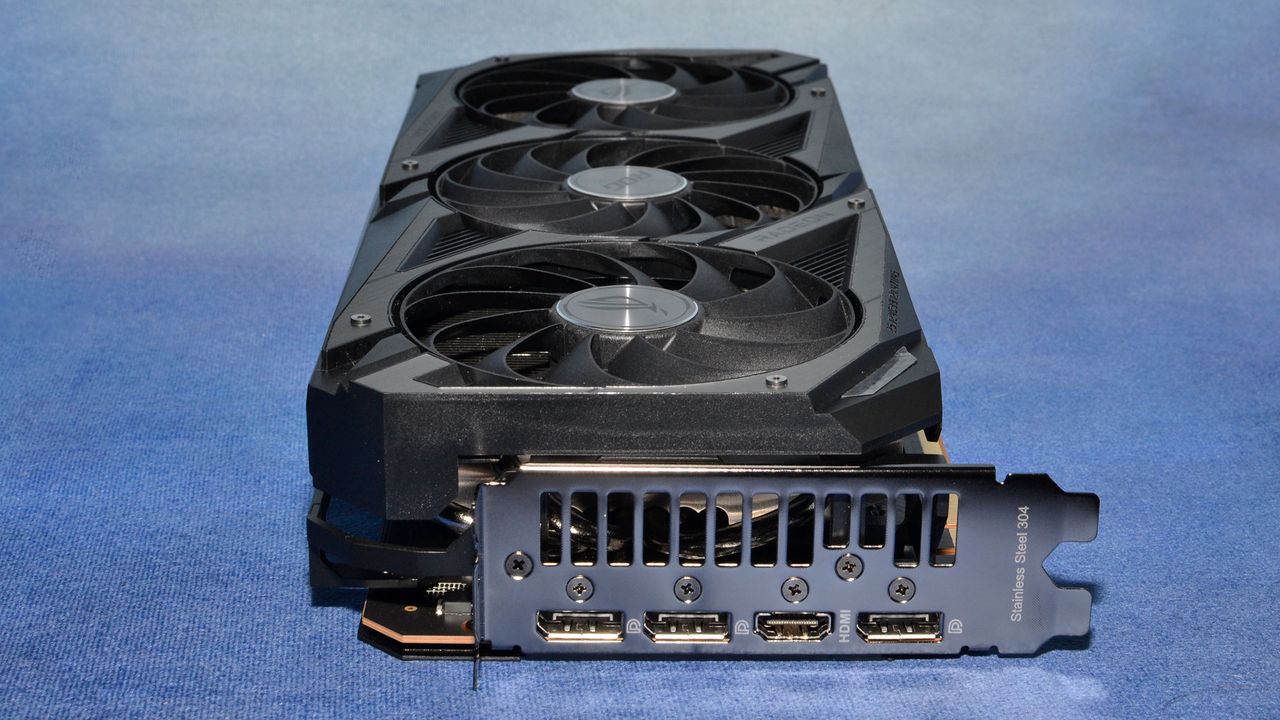

The Asus RX 6750 XT includes the standard three DisplayPort 1.4 and one HDMI 2.1 outputs. The IO bracket is only two slots wide, with half of it allowing ventilation of sorts. However, those heatsink fins are oriented parallel to the IO backplate, meaning most of the heat from the card will exhaust out the top and bottom and into your case.
