ASRock Phantom Gaming X Radeon RX580 8G OC Review: A Solid Rookie Effort

By

Gaming Benchmarks

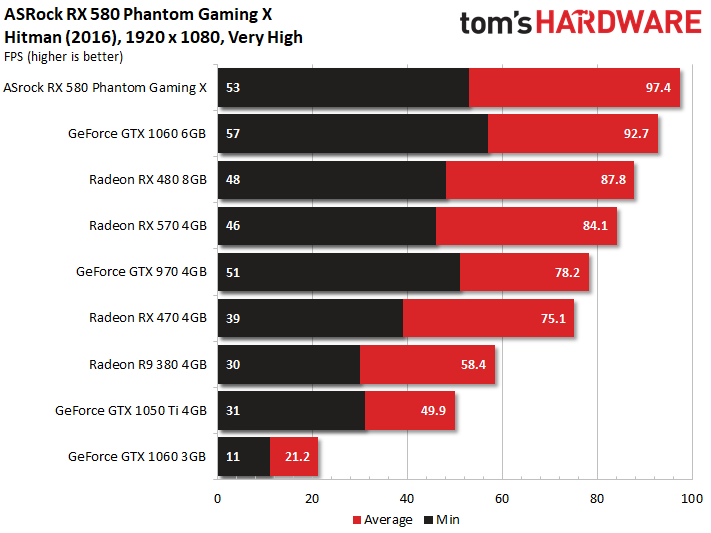

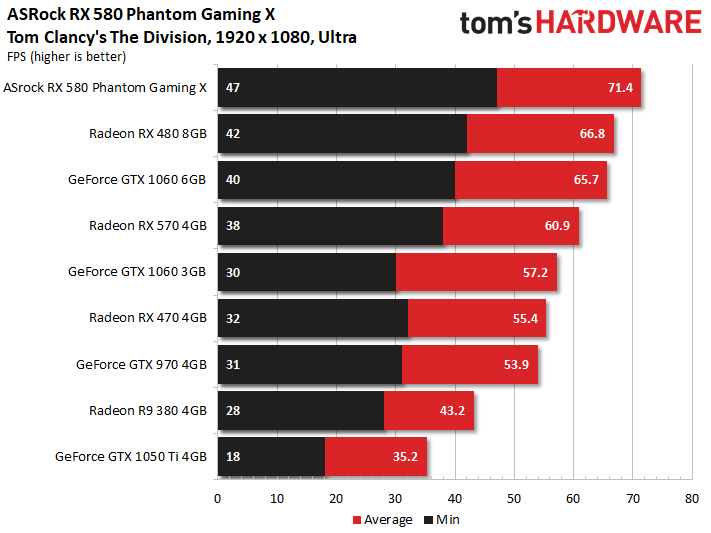

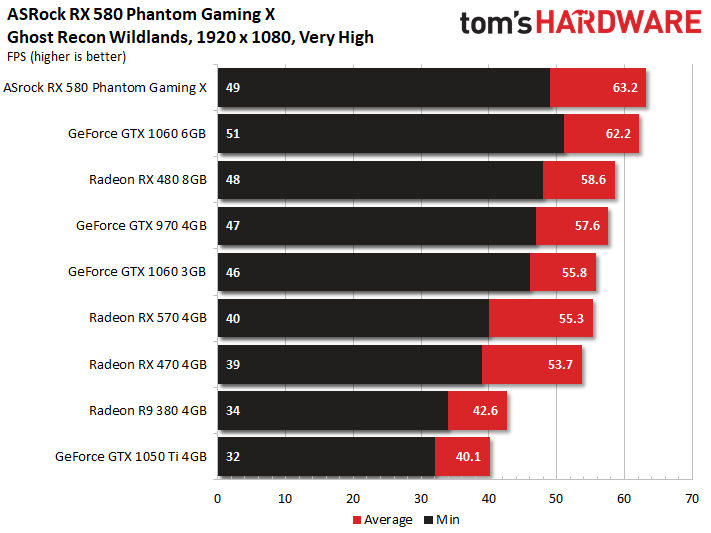

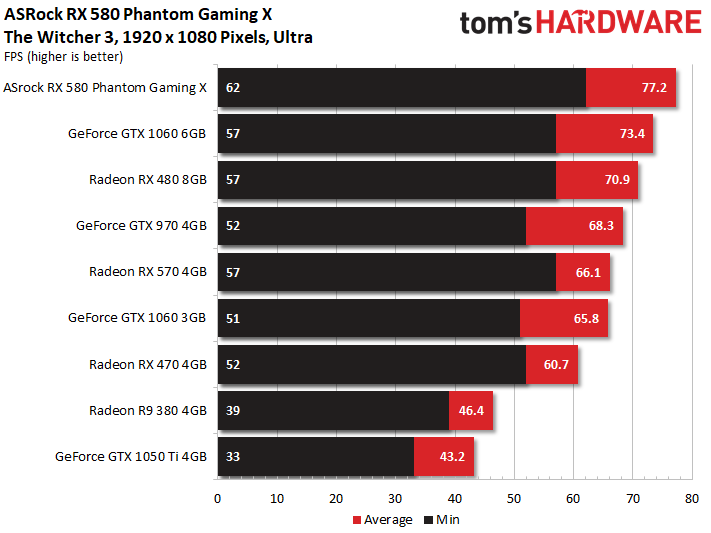

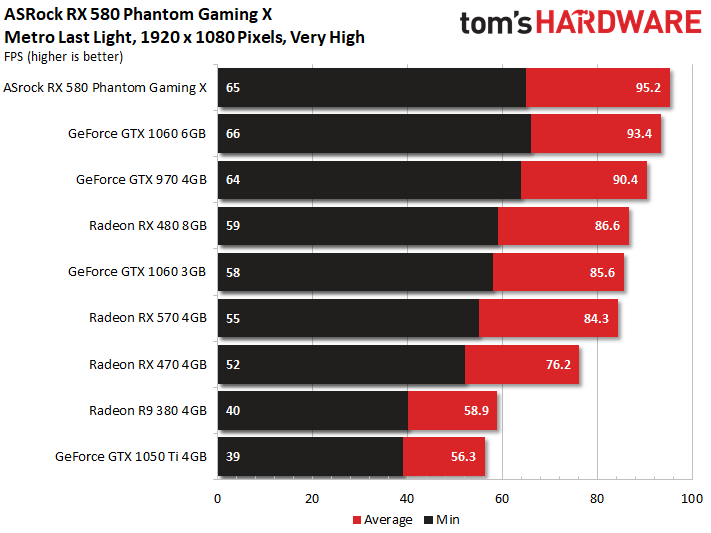

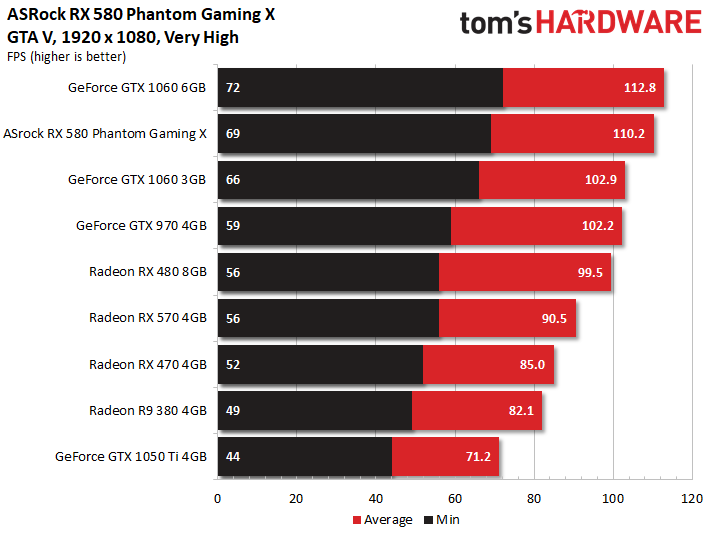

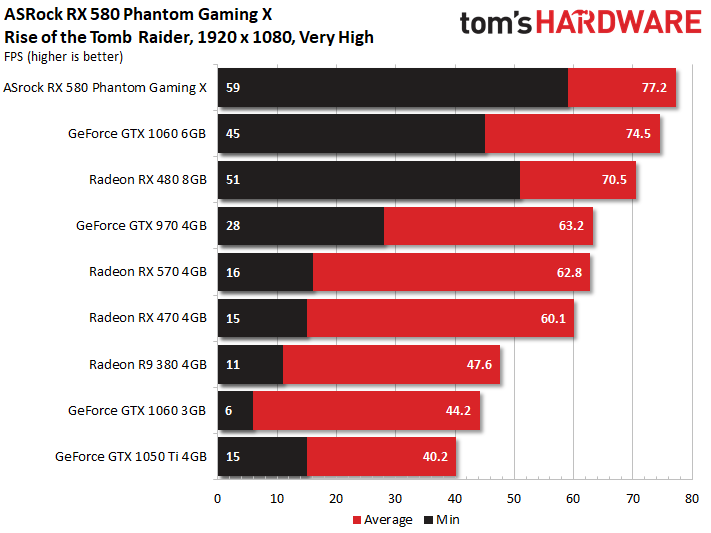

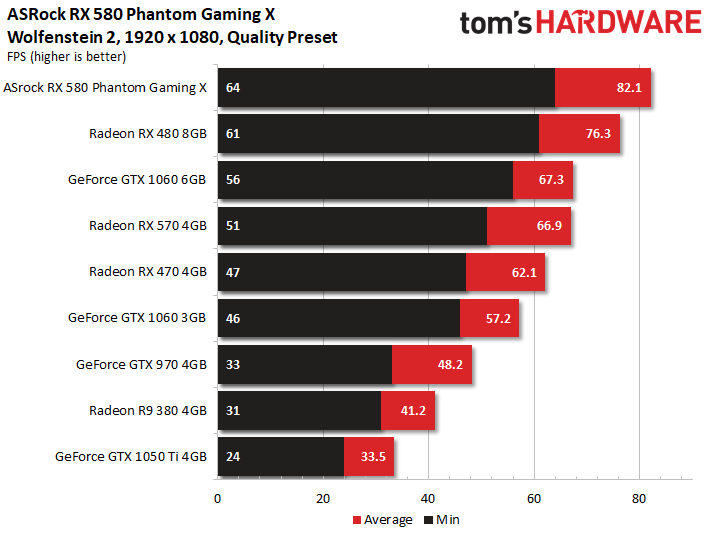

Results: 1920x1080 (FHD)

Image 1 of 10

Image 2 of 10

Image 3 of 10

Image 4 of 10

Image 5 of 10

Image 6 of 10

Image 7 of 10

Image 8 of 10

Image 9 of 10

Image 10 of 10

It's been a while since we benchmarked AMD's Radeon RX 580. Whereas the company had some issues at launch time (in certain cases under-performing the Radeon RX 480), those problems are fixed. Moreover, AMD's driver team has been hard at work. The Radeon RX 580 is now faster than GeForce GTX 1060 3GB and 6GB in most cases. That wasn't the case at launch.

Our benchmark results show that Nvidia's cards fare better in older titles, while AMD's are dominant in newer games.

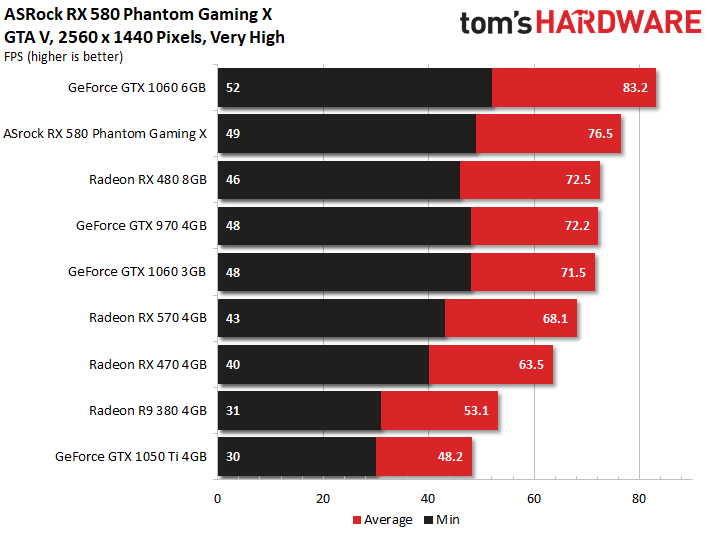

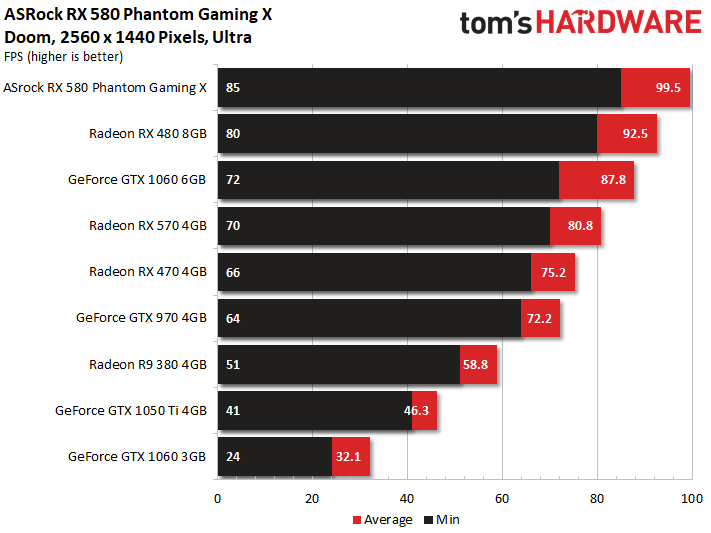

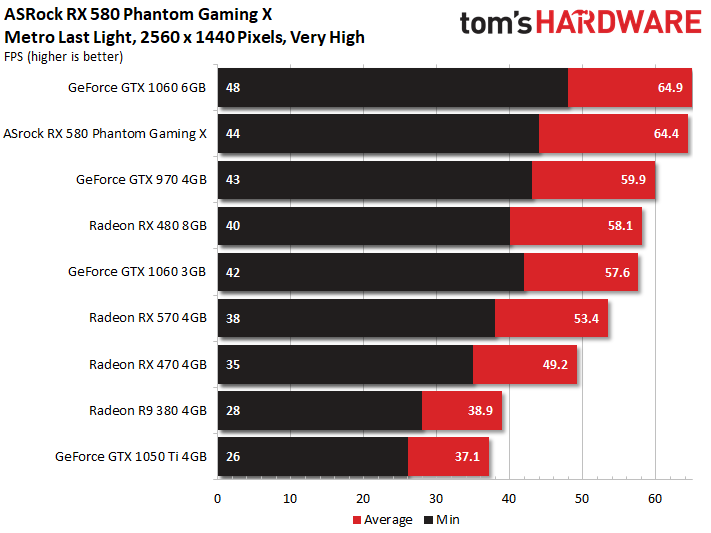

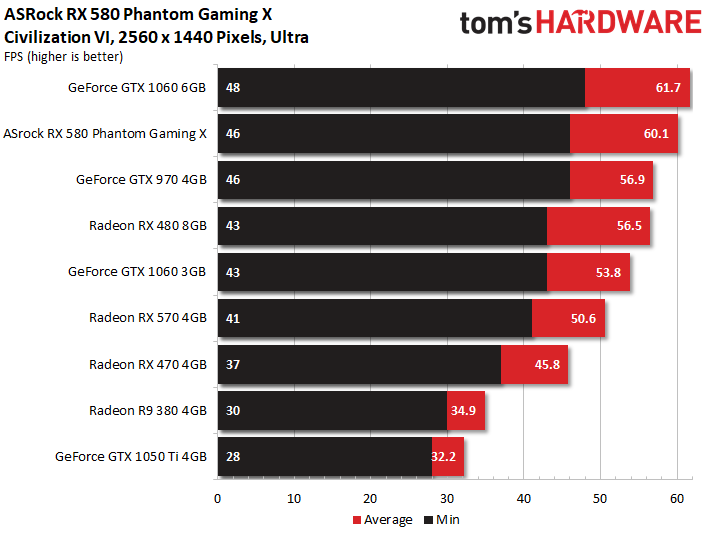

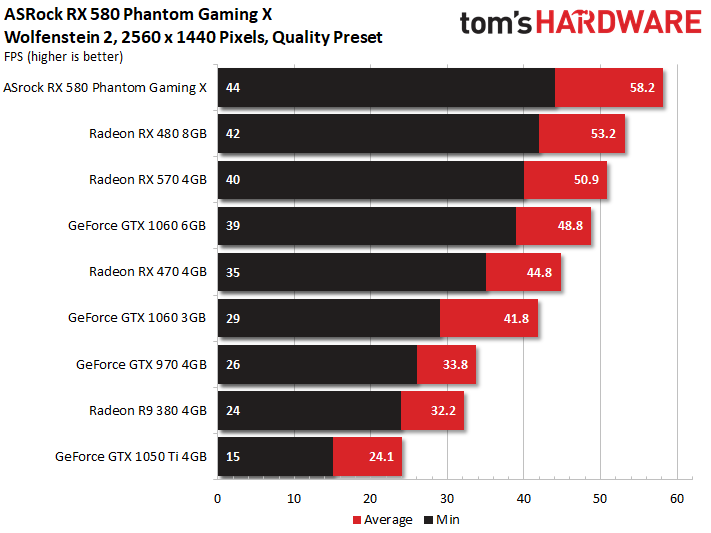

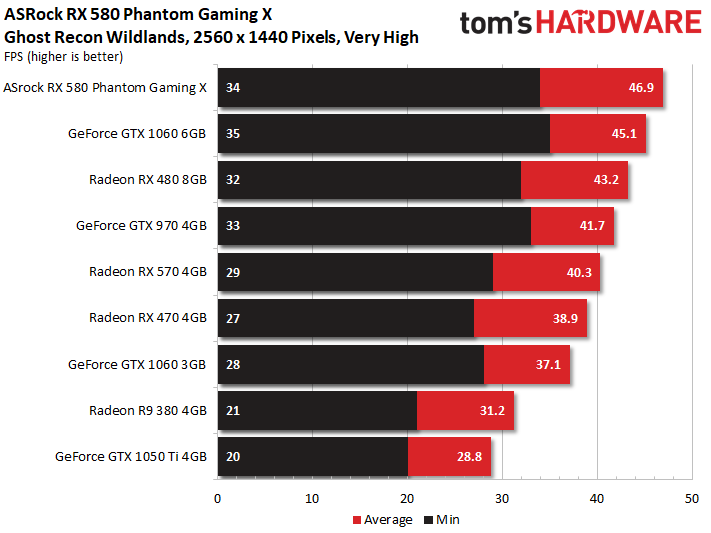

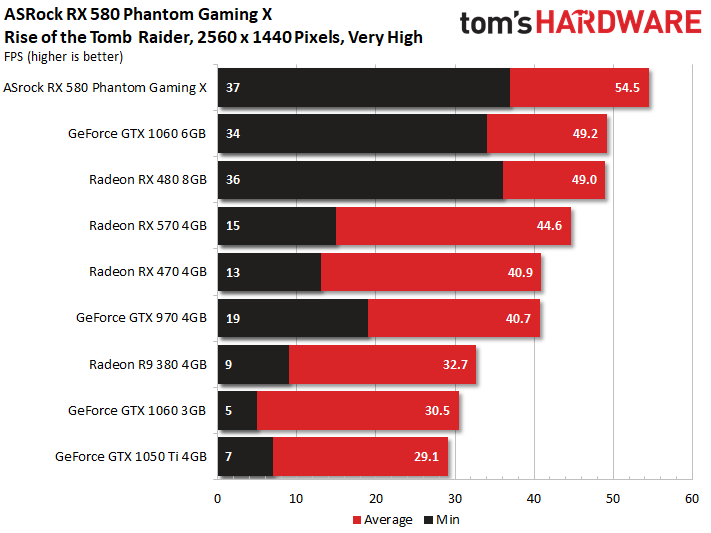

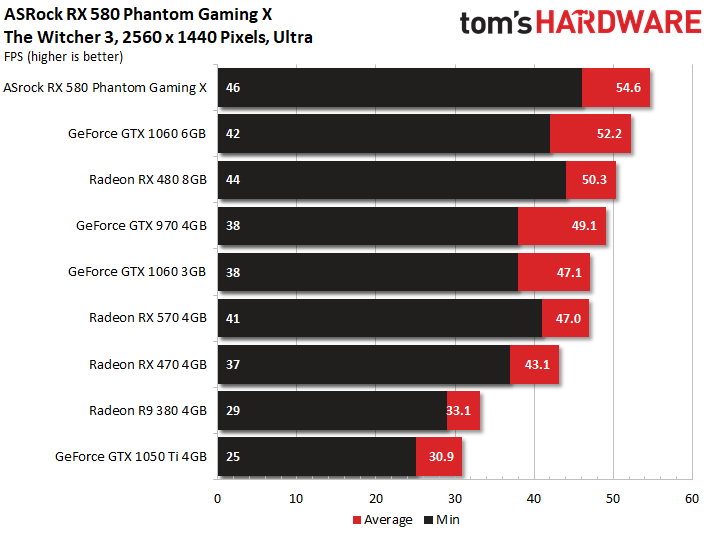

Results: 2560x1440 (WQHD)

Image 1 of 10

Image 2 of 10

Image 3 of 10

Image 4 of 10

Image 5 of 10

Image 6 of 10

Image 7 of 10

Image 8 of 10

Image 9 of 10

Image 10 of 10

Although the Radeon RX 580 excels at 1920x1080, its 8GB of GDDR5 and mature drivers make 2560x1440 a realistic target too, even in fast-paced games with taxing quality settings enabled. Naturally, if the frame rates we present aren't high enough for you, there's always the option to drop a detail preset or two. Pairing the Phantom Gaming X with a FreeSync-capable monitor would also help smooth out your experience.

Comparison Products

Nvidia GeForce GTX 1060 3GB

MSI GeForce GTX 1060 6GB

Gigabyte GeForce GTX 1050 Ti 4GB

MORE: Best Graphics Cards

MORE: Desktop GPU Performance Hierarchy Table

MORE: All Graphics Content

19 Comments Comment from the forums
  • Ulikedat 17 June 2018 16:31
    At least it's a looker and the competition just got a bit more heated (no pun intended).
    Reply
  • alextheblue 17 June 2018 17:47
    I have to wonder, since aiming for a cut-down budget design, why not an RX570? An entry level RX580 with halfway decent cooling can be had new for $270. The cheapest 570 I've seen is a reference model for $250. Push a budget aftermarket RX570 closer to $200 and undercut everyone else. Clocks and TDP would be lower (especially if they stuck close to reference), which would have further reduced board and cooler costs.

    Or perhaps yields are so good at this point, that there just aren't many cut-down Ellesmere chips getting pushed out the door?
    Reply
  • BulkZerker 17 June 2018 18:22
    @alextheblue they are pushing the bang for buck at every point it seems. It begs to wonder if some "cheap" (like as5) thermal paste would help or not. Certainly an aftermarket heatsink would help the temps.
    Reply
  • TJ Hooker 17 June 2018 21:55
    If this card is like most 580s, it will respond quite well to lowering the core voltage. With some undervolting (and maybe a slight underclock), you could likely improve power, thermals and noise noticeably with no (or little) impact on performance.
    Reply
  • AnimeMania 17 June 2018 23:25
    What's going on with the numbers for GTX 1060 3GB with certain games like Hitman and DOOM, they can't really be that bad, can they?
    Reply
  • gca.roberts 18 June 2018 04:55
    The 1R0 marking on the GDDR5 VRM inductor means 1.0uH, not 1.0mH.
    Reply
  • Sleepy_Hollowed 18 June 2018 05:09
    This is quite a nice card, especially for those looking to switch to FreeSync and the open drivers that AMD provides (For accelerating stuff like data compression or video encoding).

    Like all cards, I just wish it was available, this crypto craziness is on the downslope for now, but you never know when cards are just going to be missing from the shelves for months.
    Reply
  • Olle P 18 June 2018 09:03
    21064926 said:
    I have to wonder, since aiming for a cut-down budget design, why not an RX570? ...
    Around here there's almost no price difference between a 570 (4GB) and 580 (8GB). The latter is significantly better at the all important 1080p so that's where to make profit.

    21065443 said:
    If this card is like most 580s, it will respond quite well to lowering the core voltage. ...
    One can only hope. The 180W drawn is a bit steep IMO.

    21065545 said:
    What's going on with the numbers for GTX 1060 3GB with certain games like Hitman and DOOM, they can't really be that bad, can they?
    Seems off topic...
    The 3GB is a cut down version of the 6GB, with fewer ROPs and less memory bandwidth. 3GB VRAM is also insufficient to run newer games efficiently.
    Reply
  • AnimeMania 18 June 2018 13:15
    21066401 said:
    21065545 said:
    What's going on with the numbers for GTX 1060 3GB with certain games like Hitman and DOOM, they can't really be that bad, can they?
    Seems off topic...
    The 3GB is a cut down version of the 6GB, with fewer ROPs and less memory bandwidth. 3GB VRAM is also insufficient to run newer games efficiently.
    According to another review on Tom's Hardware, the GTX 1060 3GB had 68.1 FPS on Hitman at Ultra Levels.

    https://www.tomshardware.com/reviews/nvidia-geforce-gtx-1060-graphics-card-roundup,4724-2.html

    The GTX 1060 3GB in this article had 21.2 FPS on Hitman at Very High Levels. I don't think it is off topic if I am questioning the reliability of the benchmarking process used here. I was just wondering why the results seem to fluctuate so wildly. One value is 3 times higher than the other.
    Reply
  • alextheblue 19 June 2018 01:24
    21066401 said:
    Around here there's almost no price difference between a 570 (4GB) and 580 (8GB). The latter is significantly better at the all important 1080p so that's where to make profit.
    That was my point. There's less competition for cheap RX 570s. Their 580 design cuts down on costs across the board (pun intended). They could cut down even further with the lower-TDP (and presumably cheaper) RX 570 and undercut the entire field substantially. An RX 570 at ~$200 would be enticing for budget builds.

    When they first came out there was often a substantial price difference between full Ellesmere and cut-down Ellesmere. That's why I'm speculating that there just isn't enough supply of 570 chips to make this possible.
    Reply
