Asus ROG Maximus XIII Hero Review: Premium Hardware, Premium Price

Four M.2 sockets, premium audio and VRMs for $499

Asus ROG Maximus XIII Hero
Editor's Choice
(Image: © Asus)

Firmware

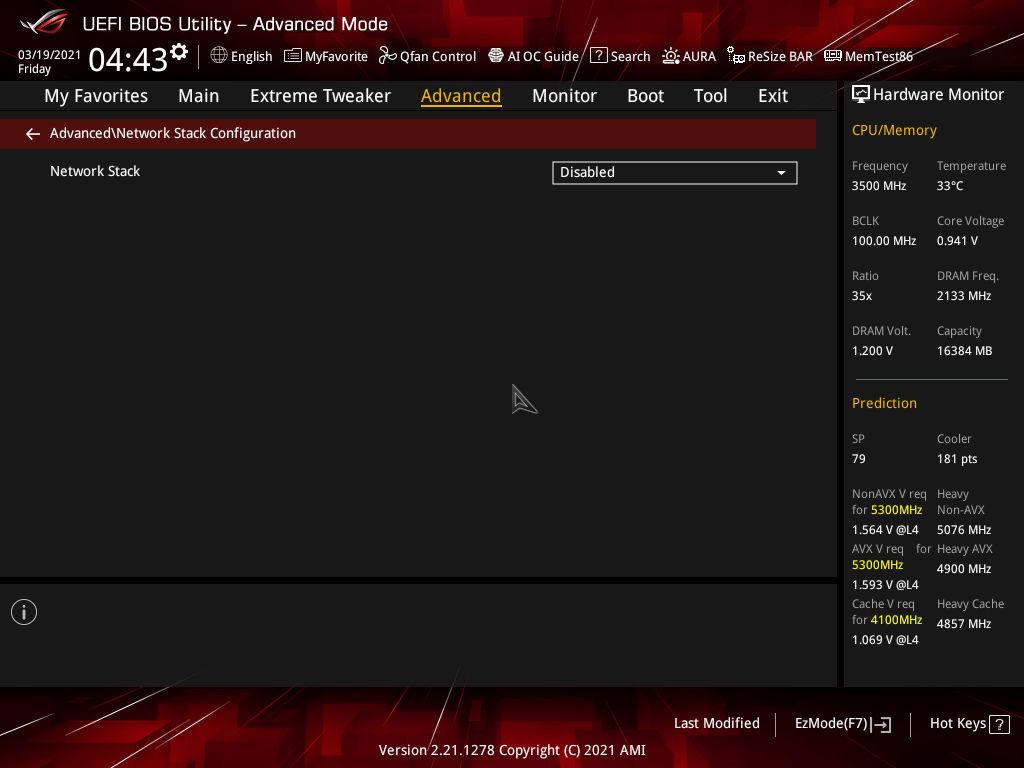

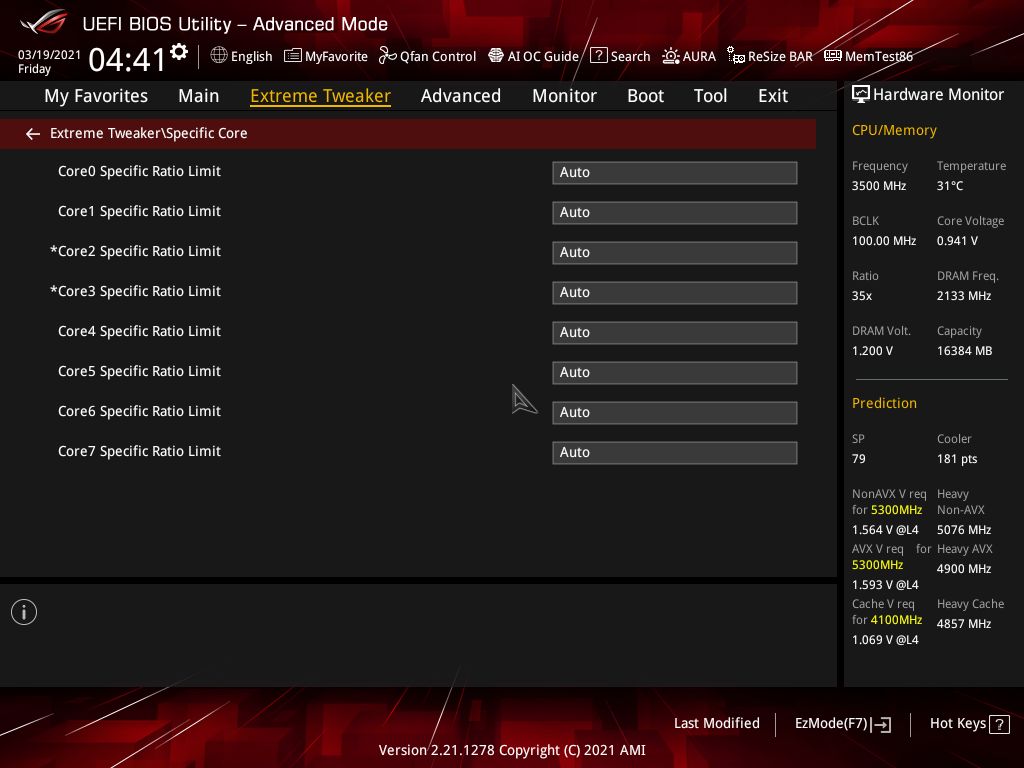

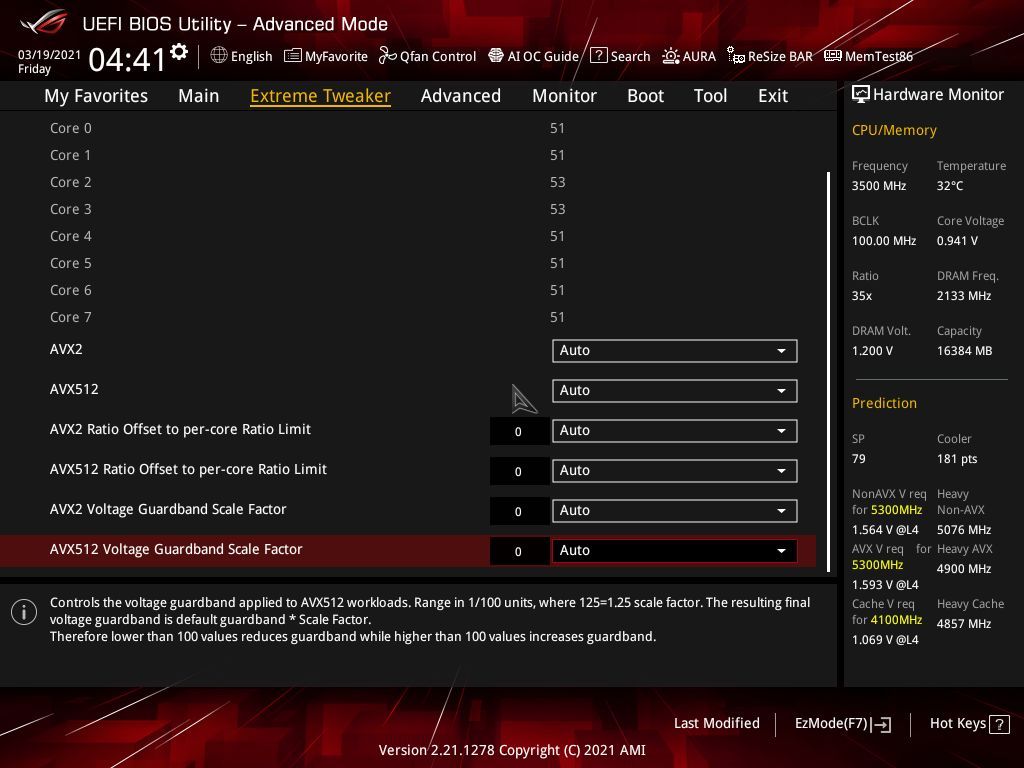

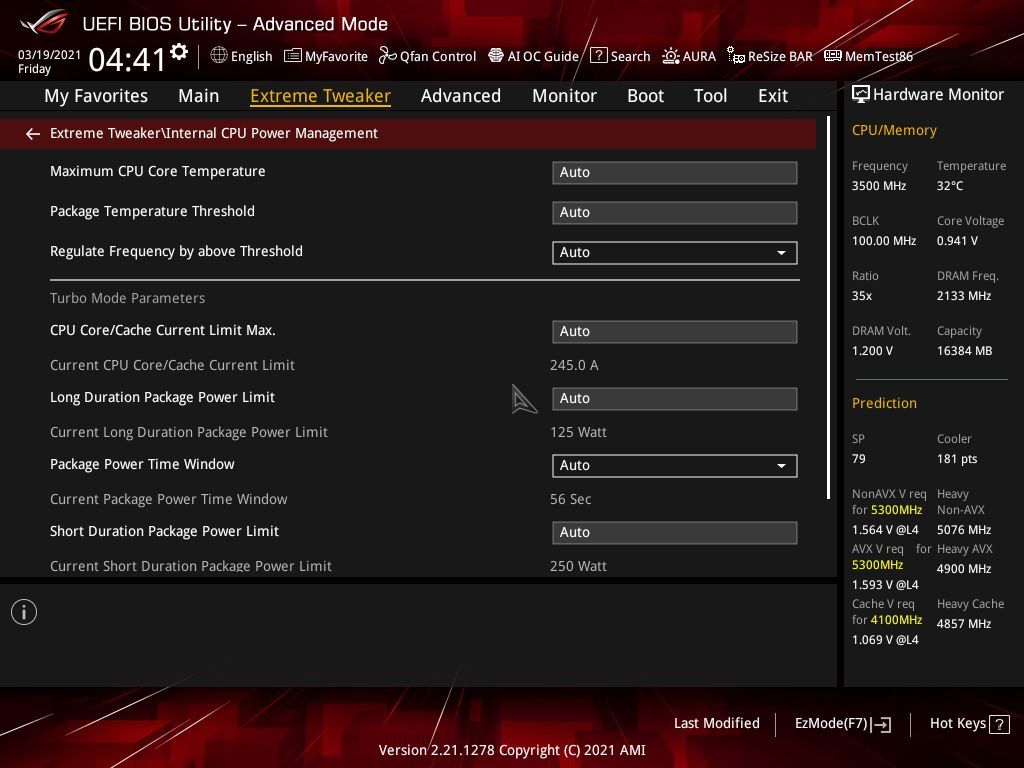

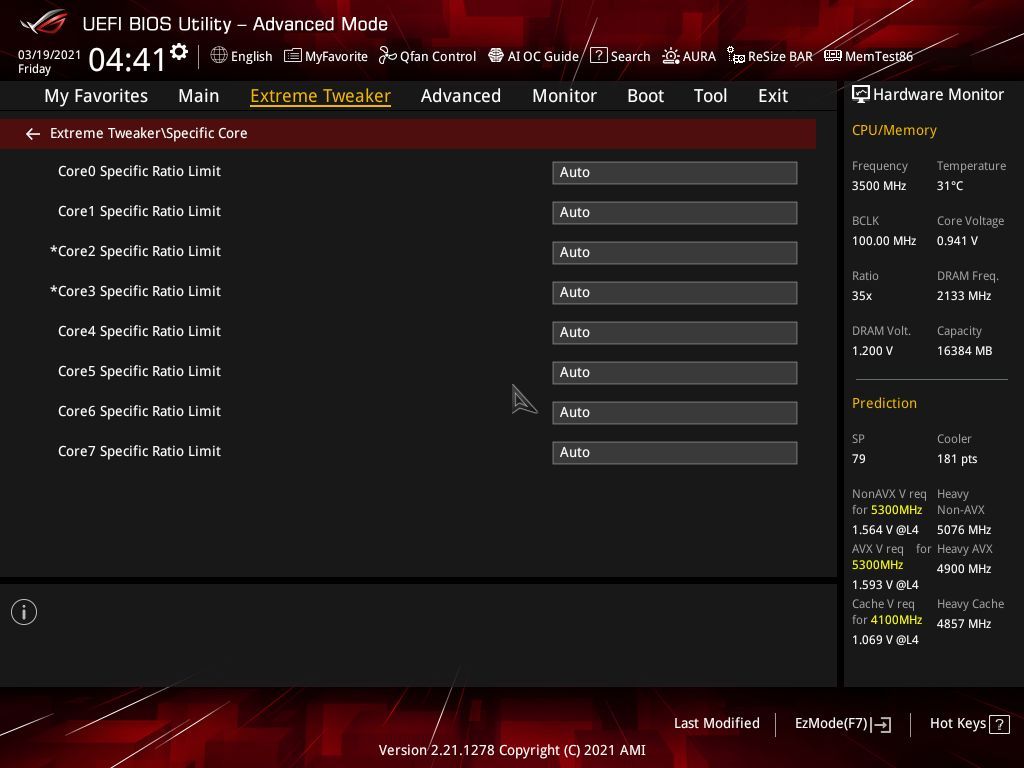

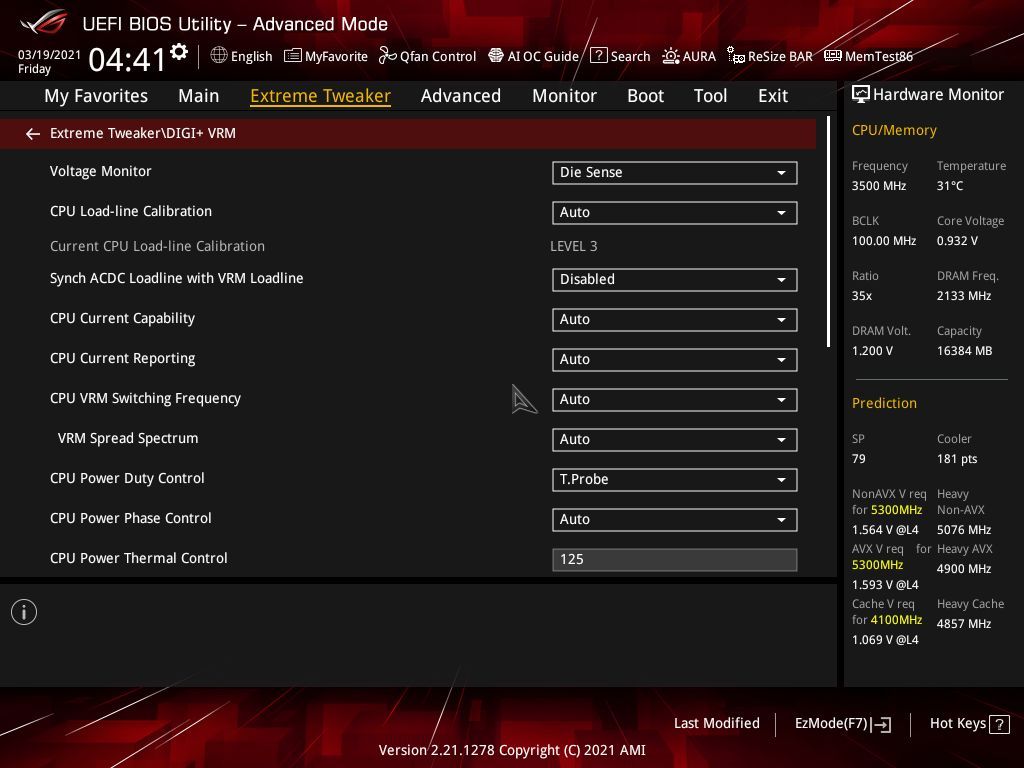

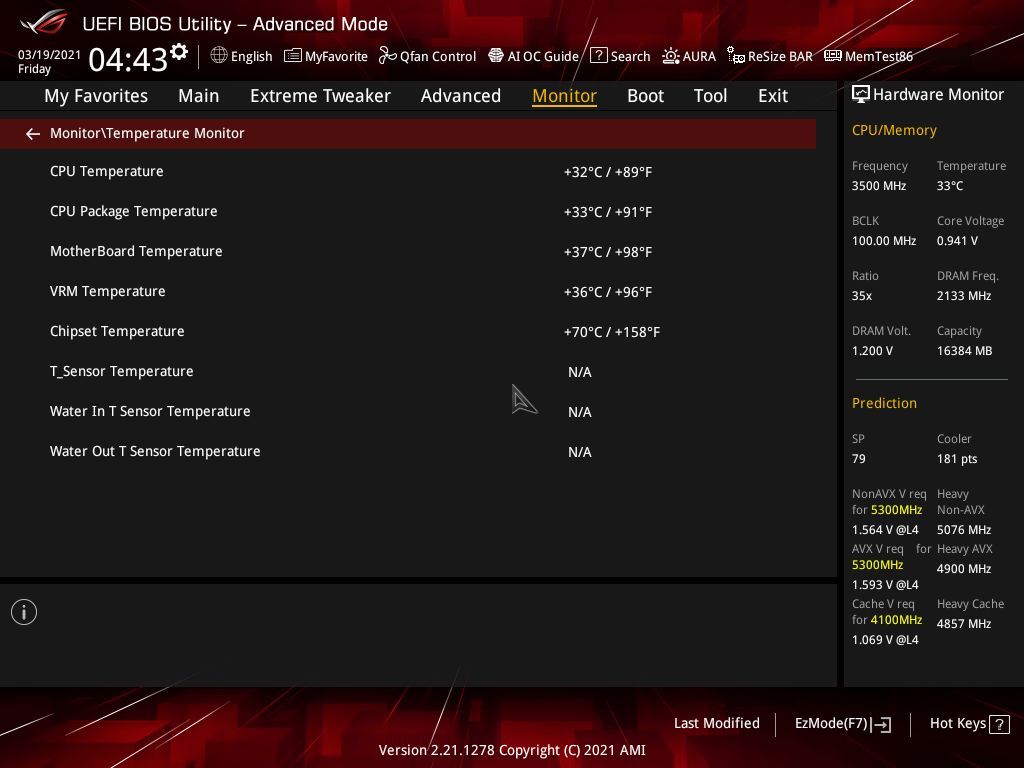

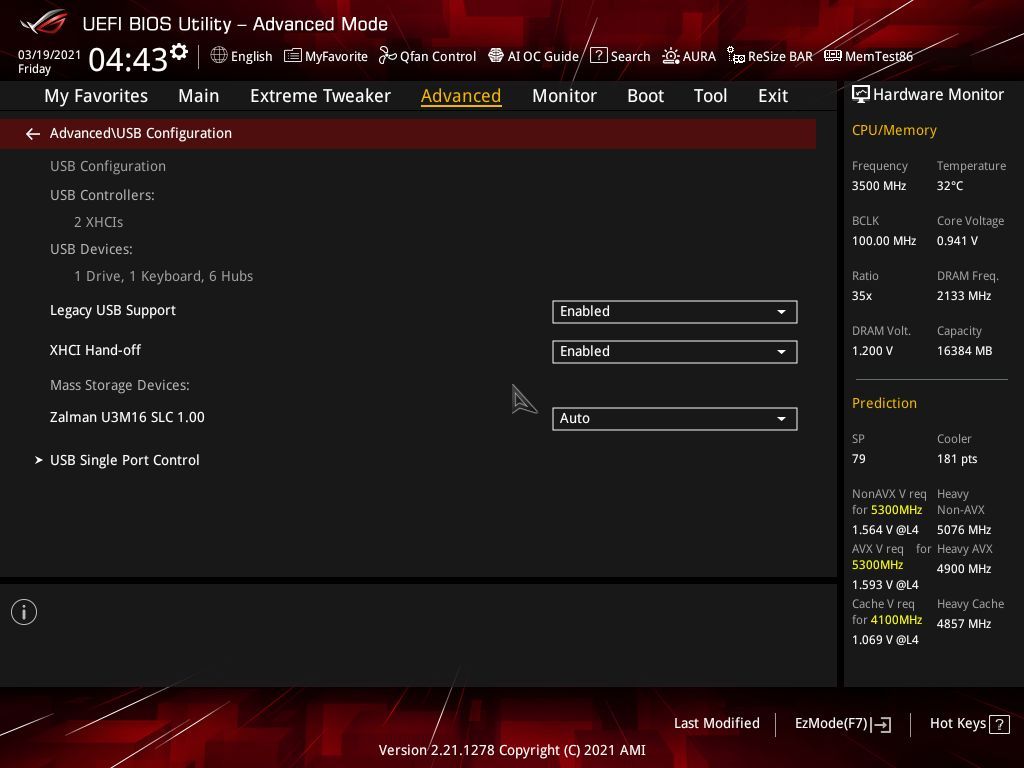

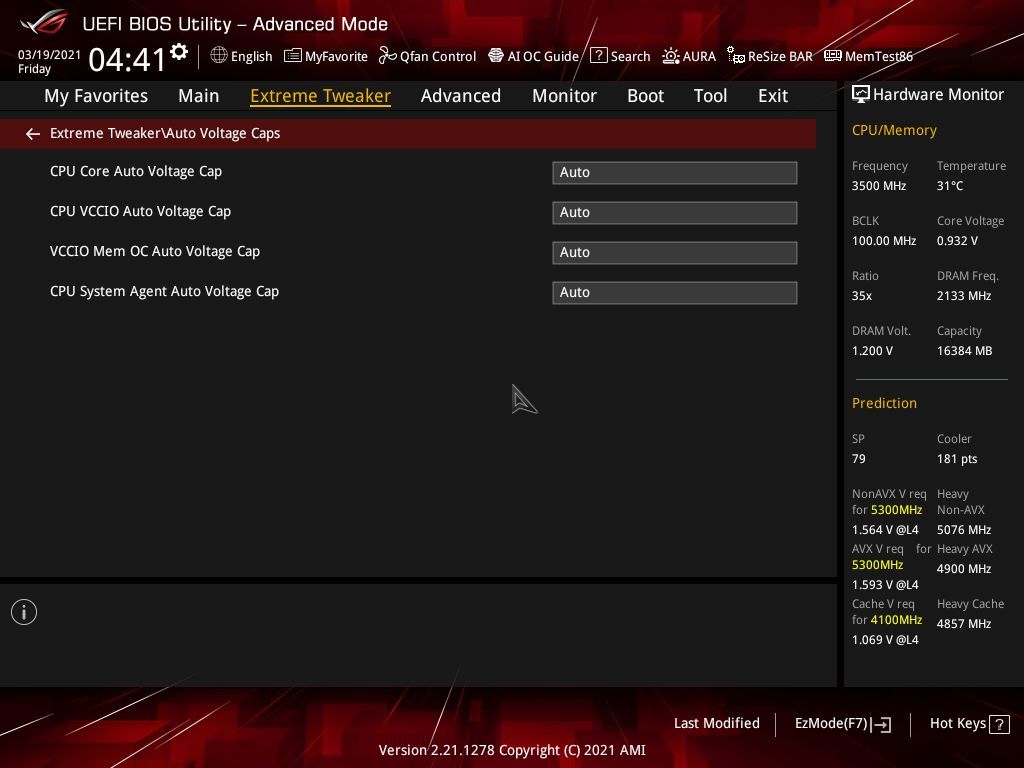

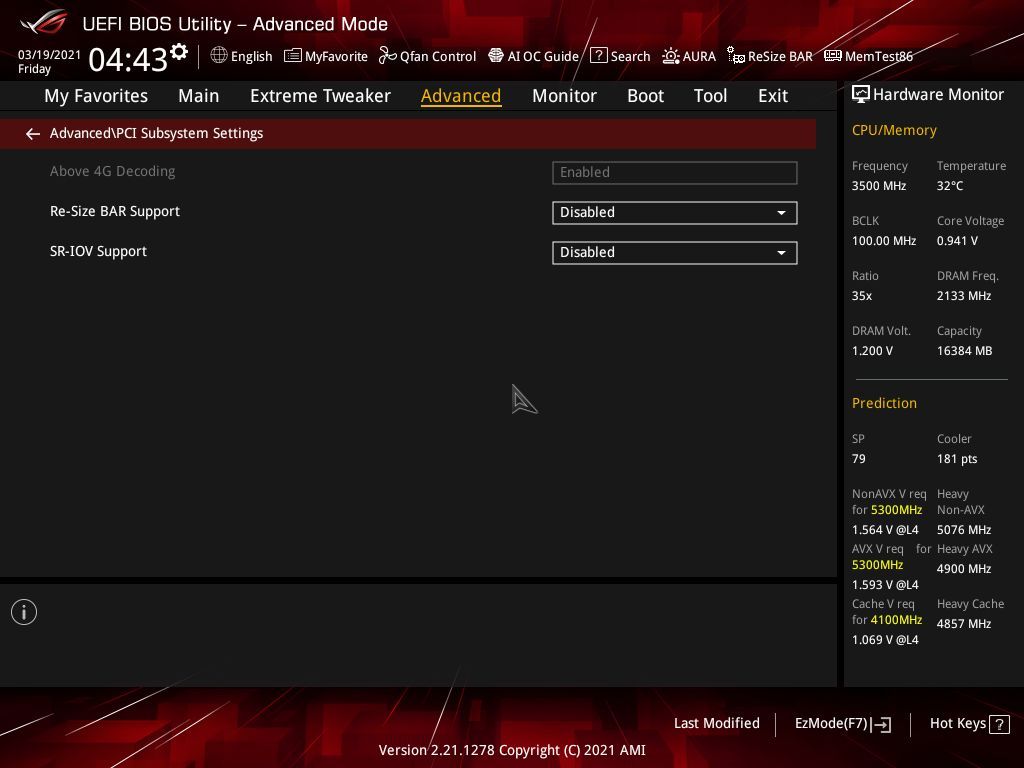

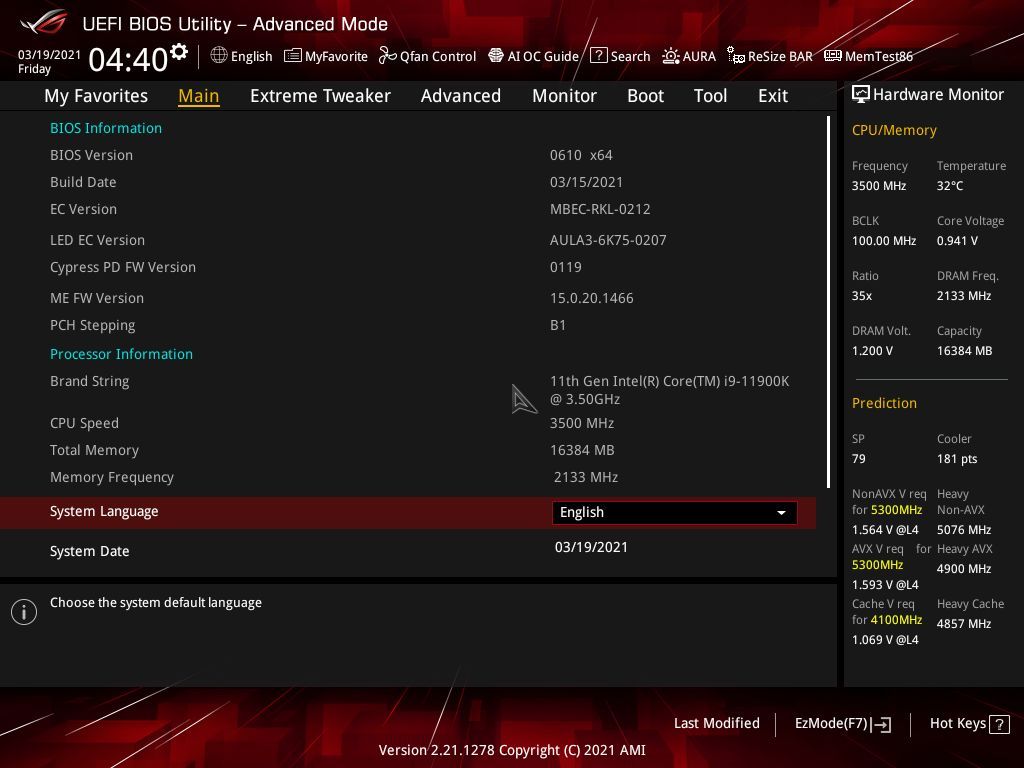

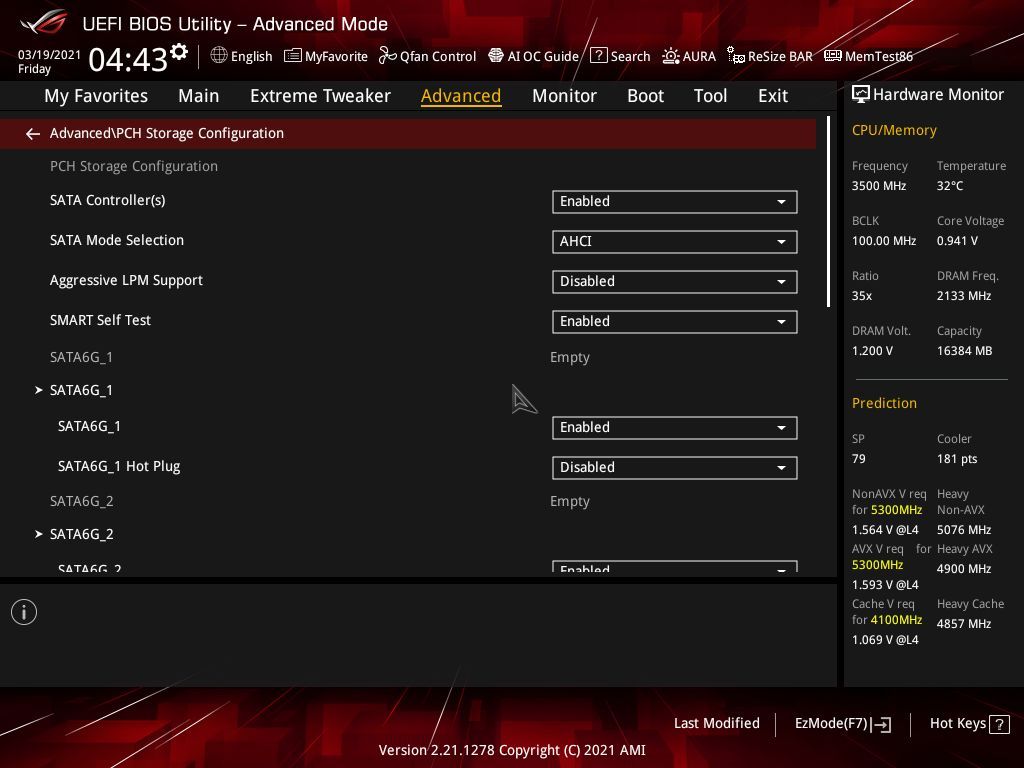

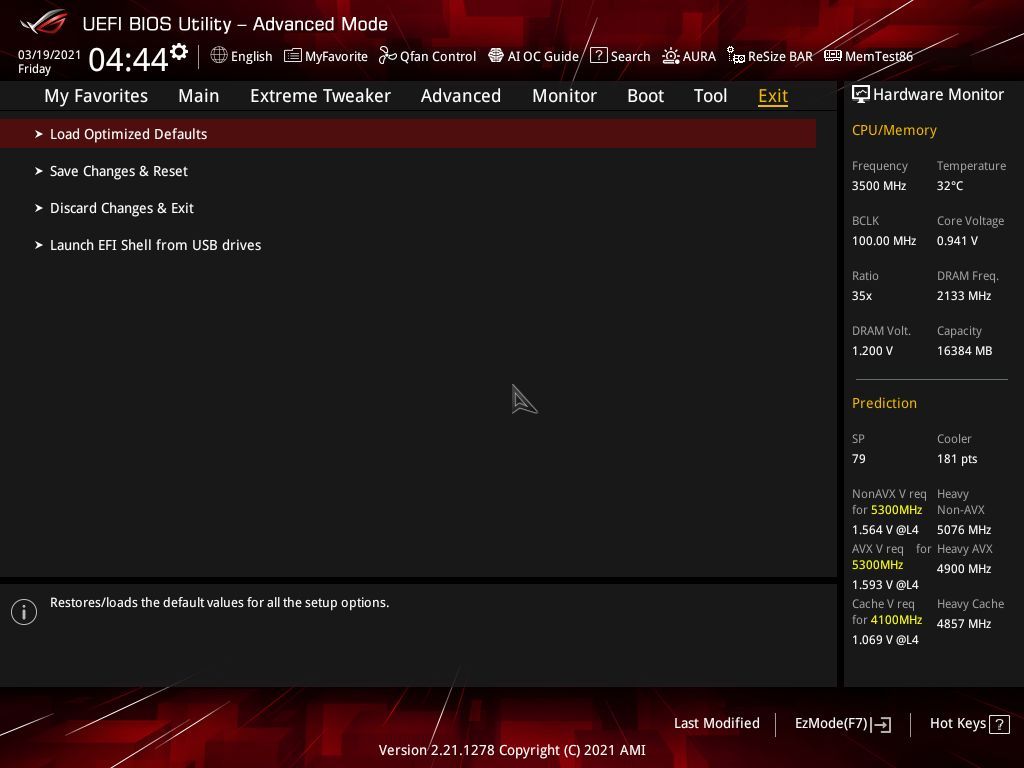

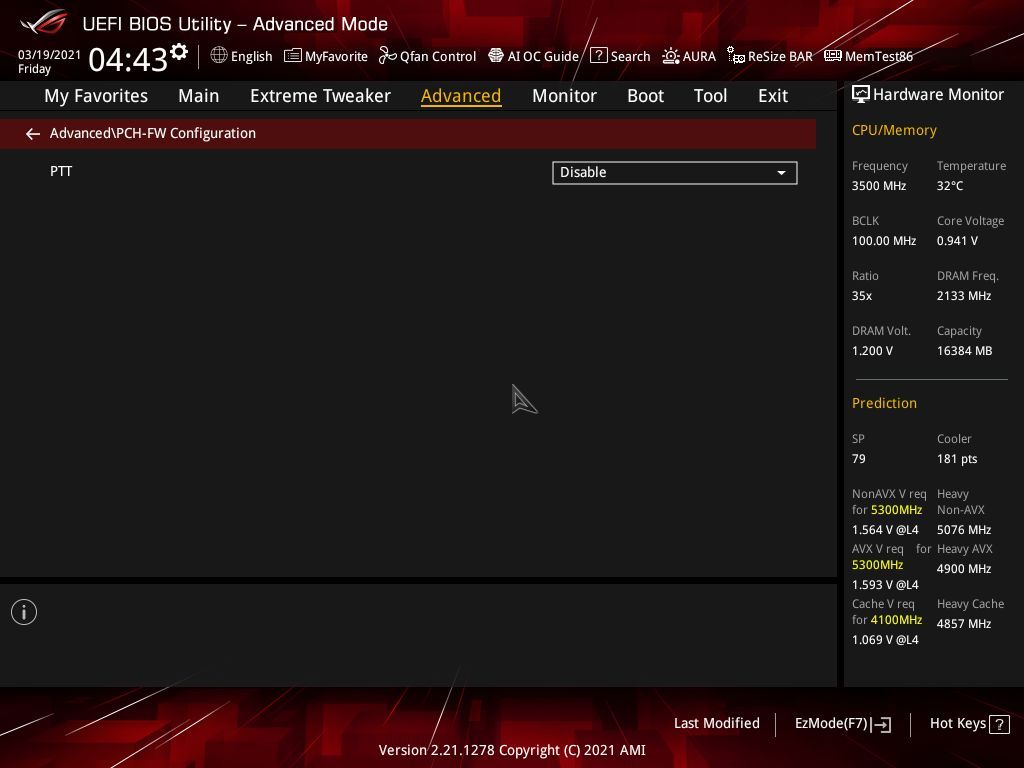

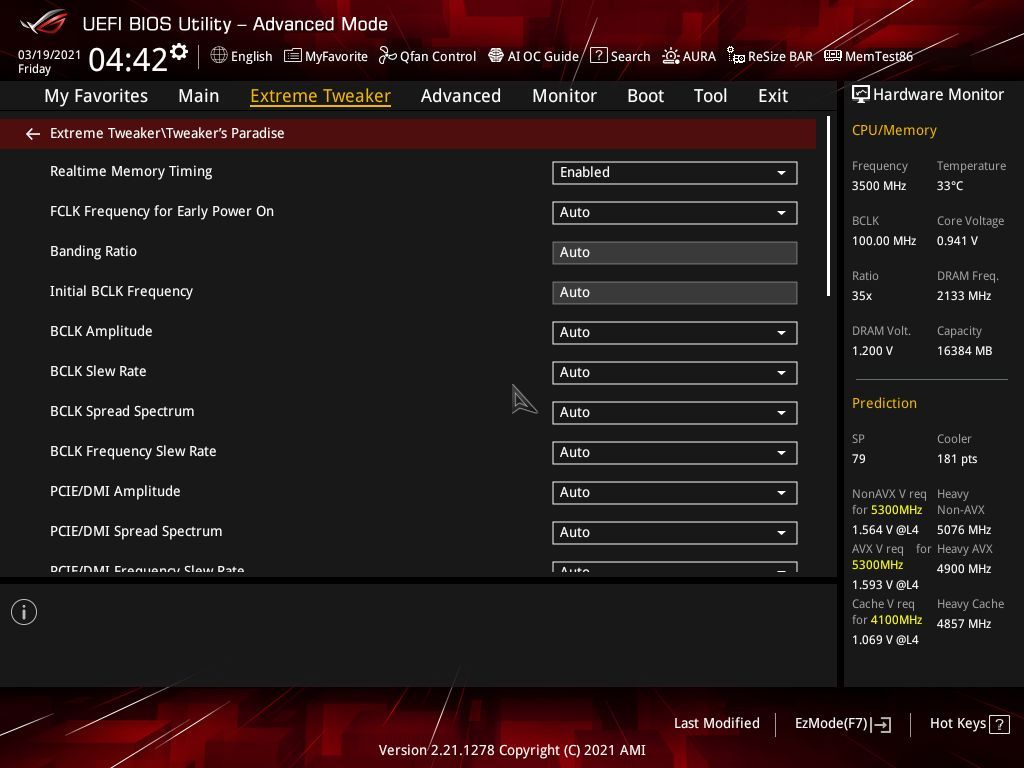

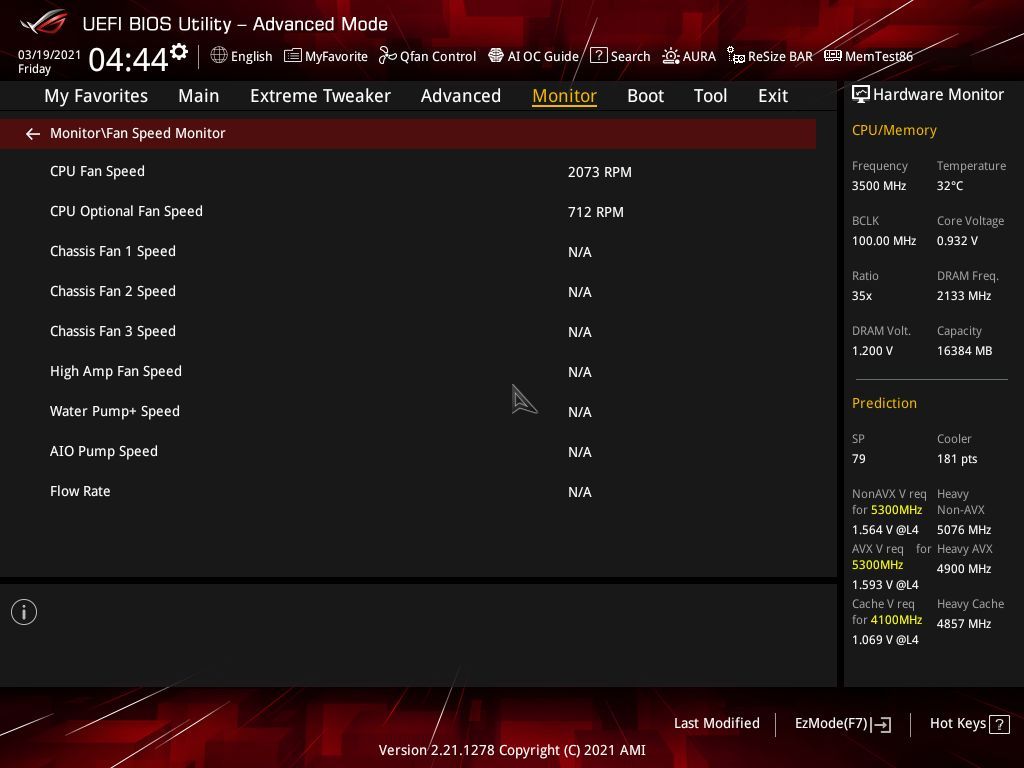

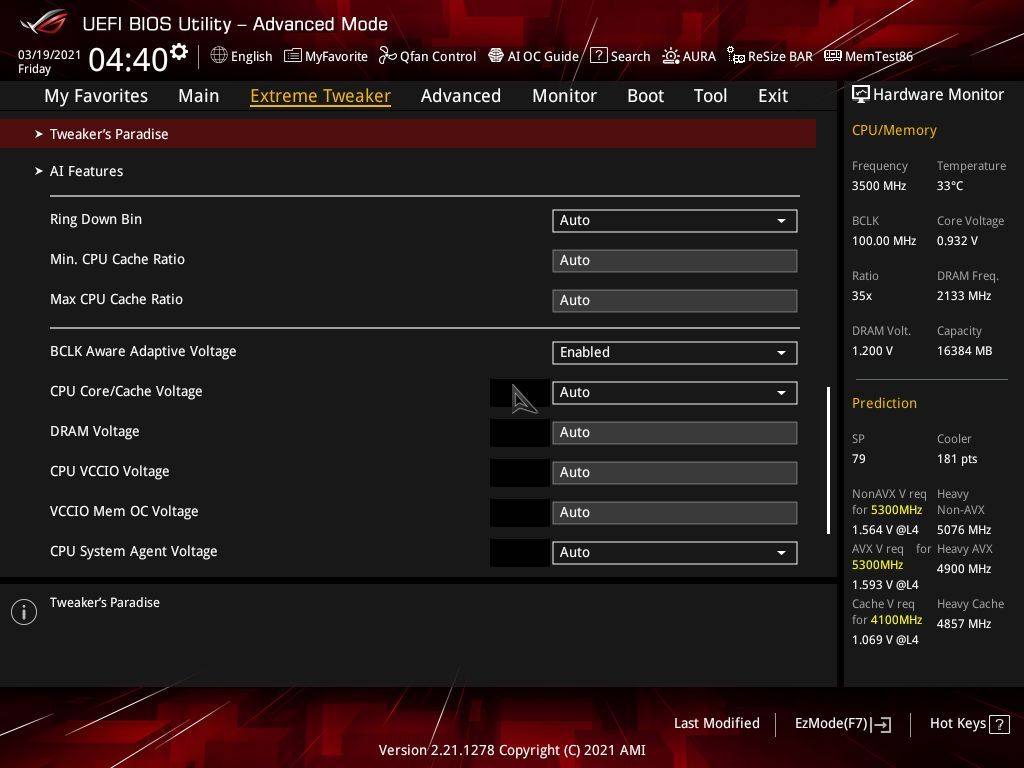

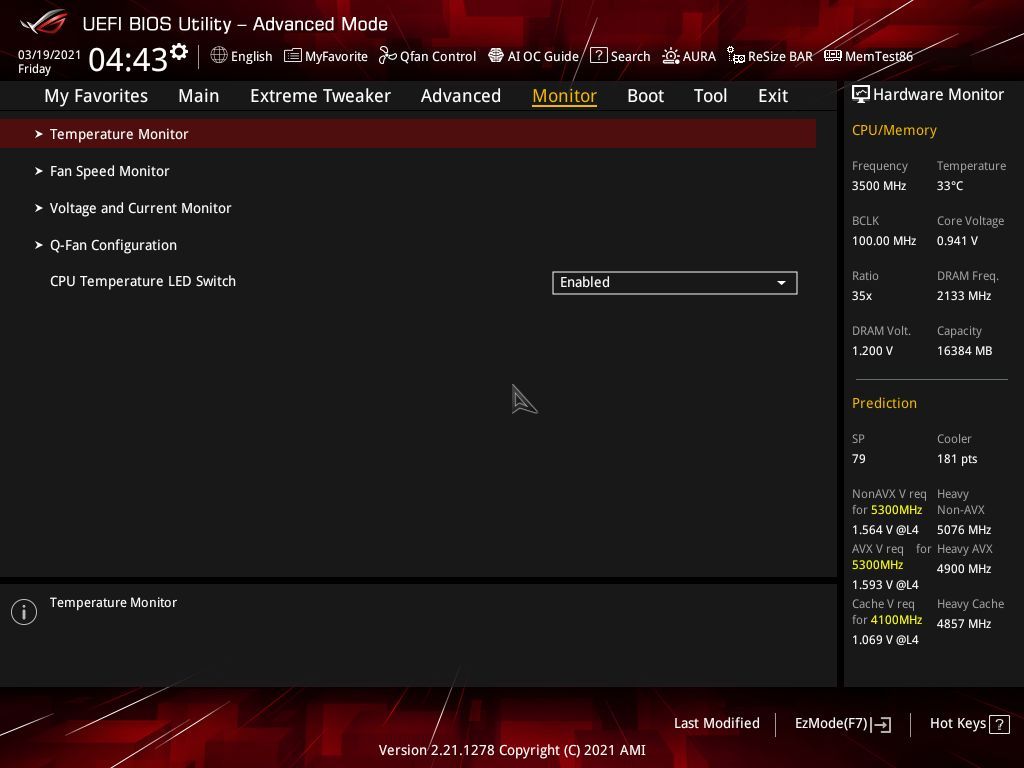

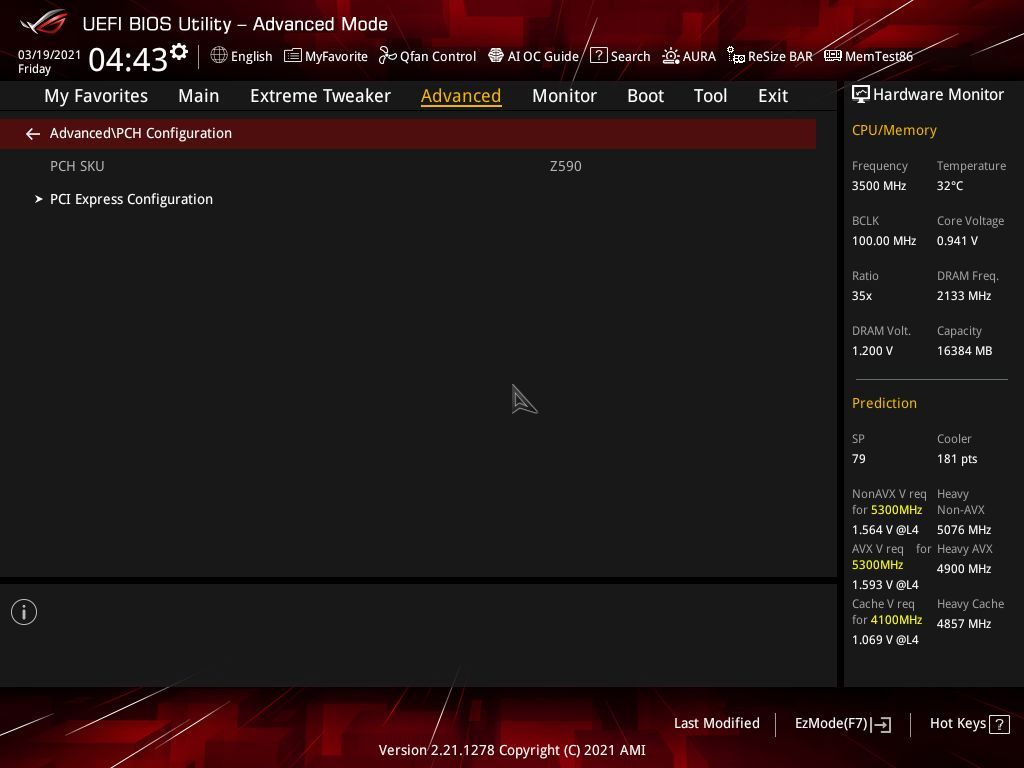

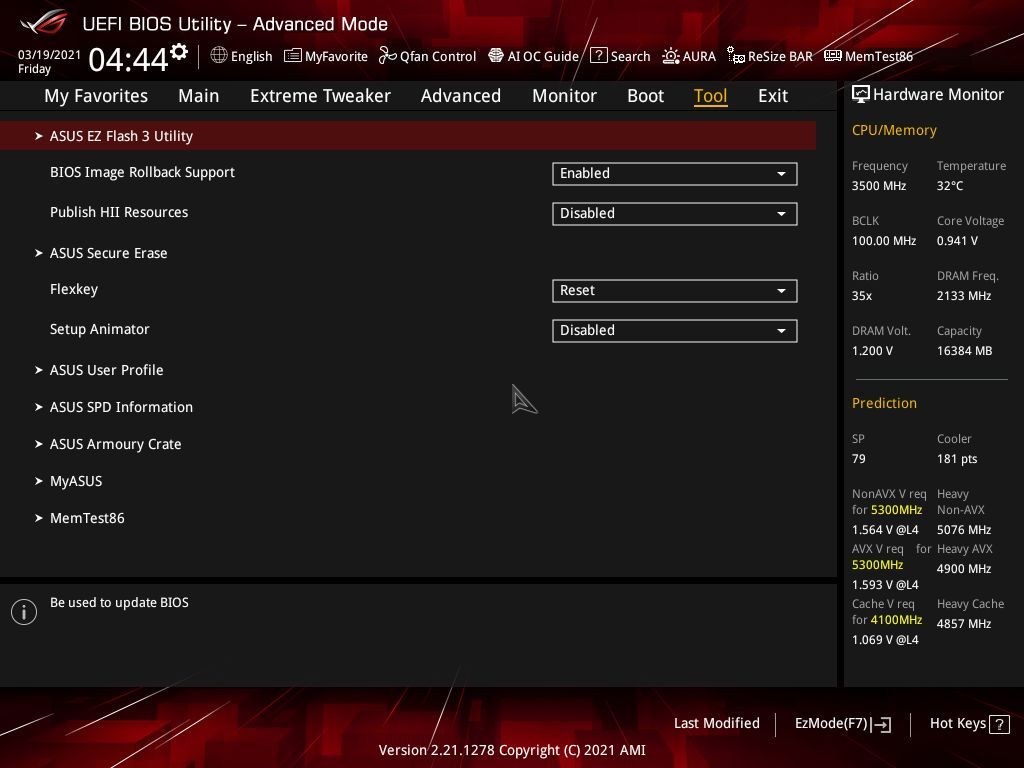

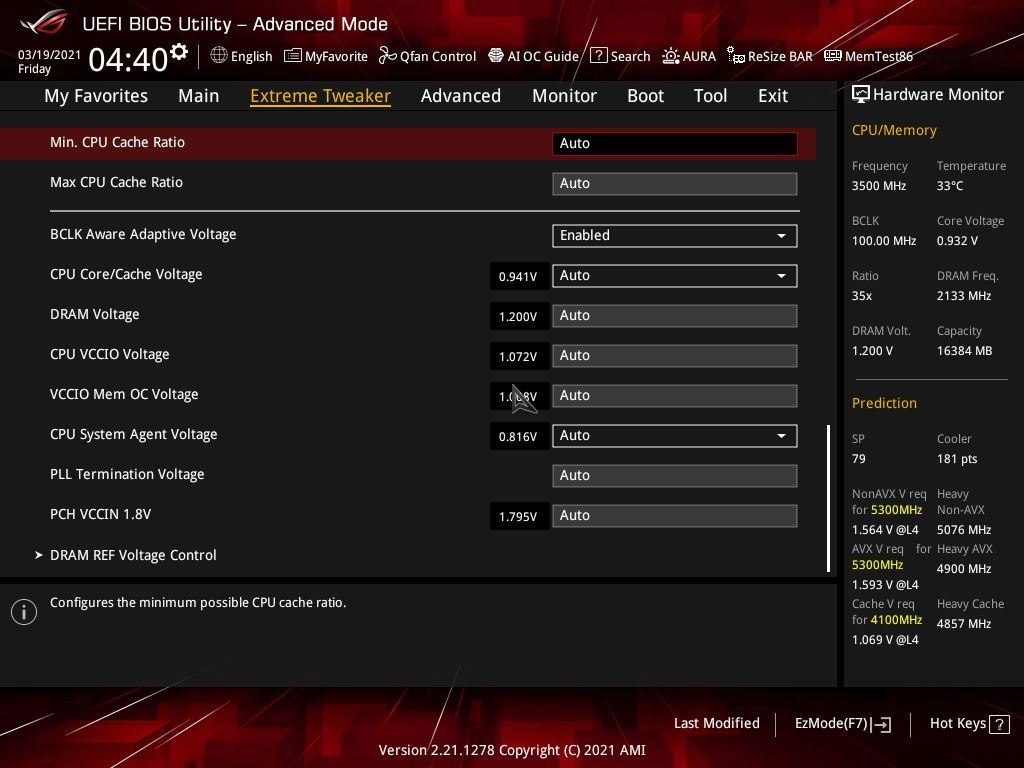

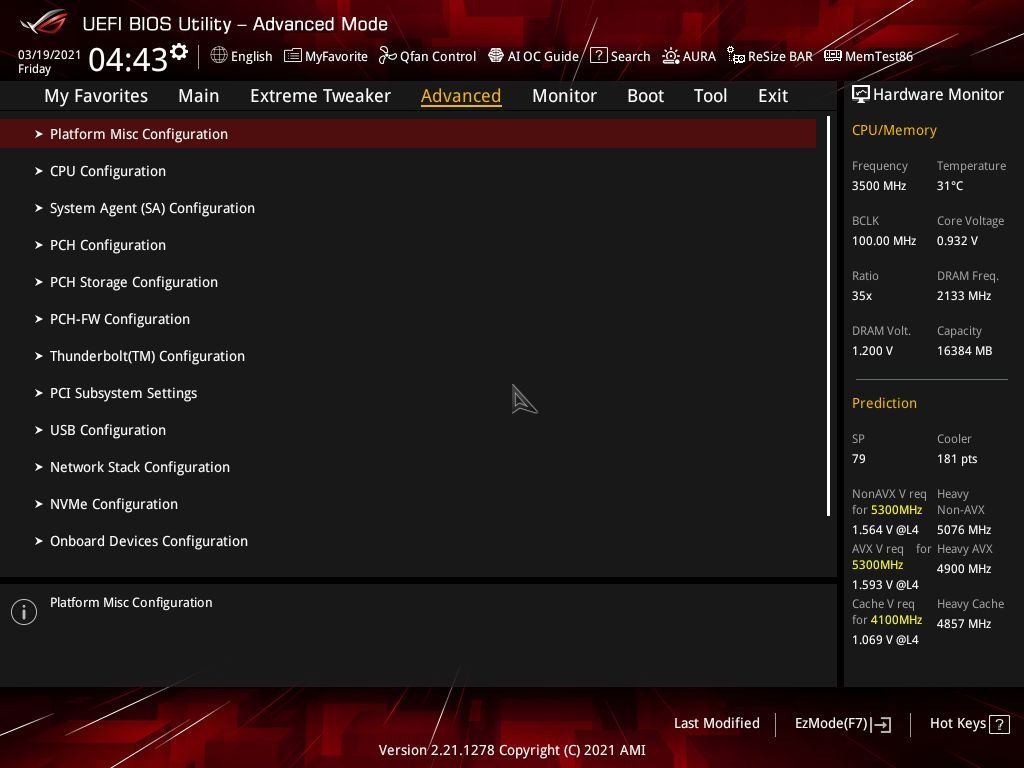

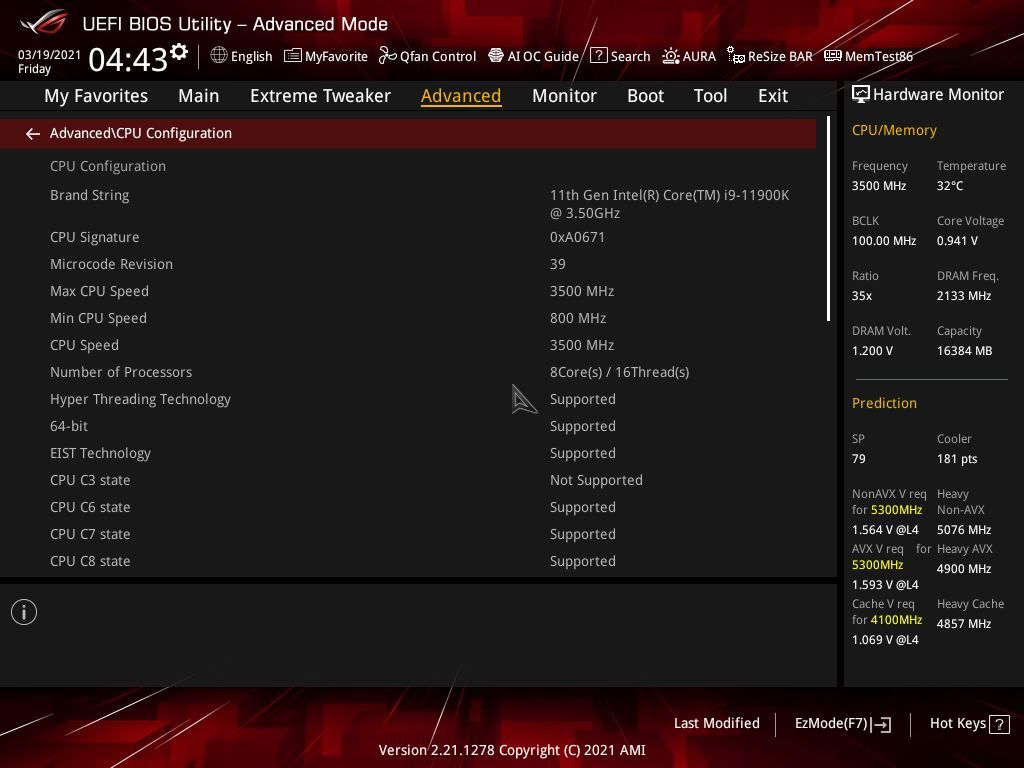

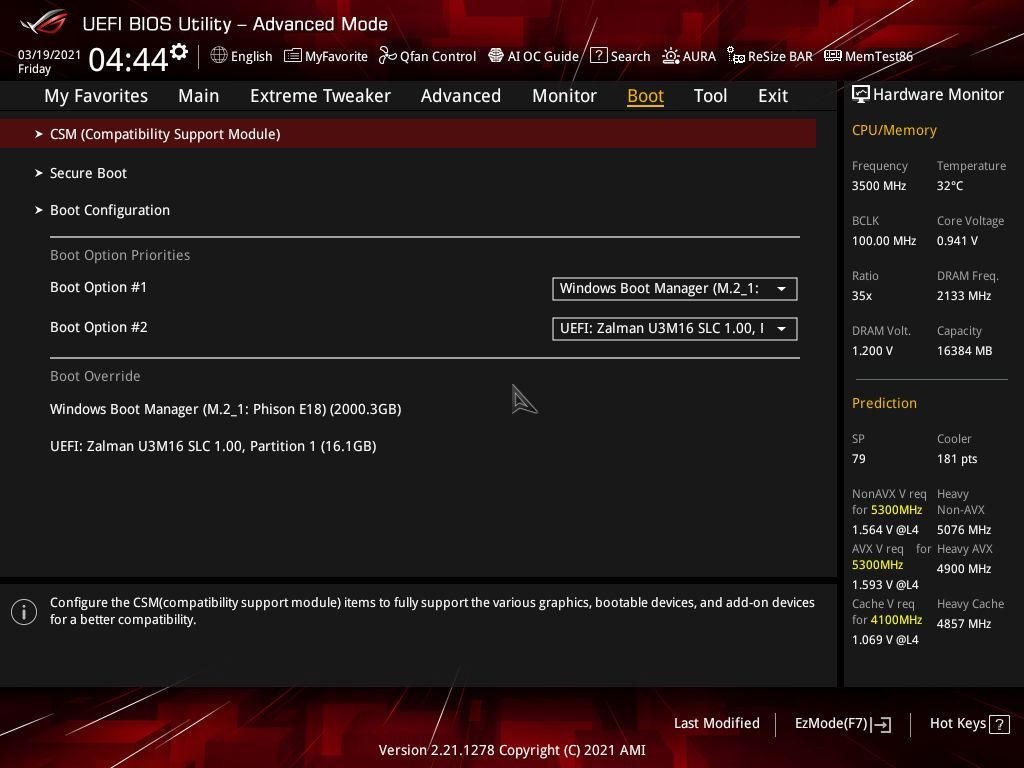

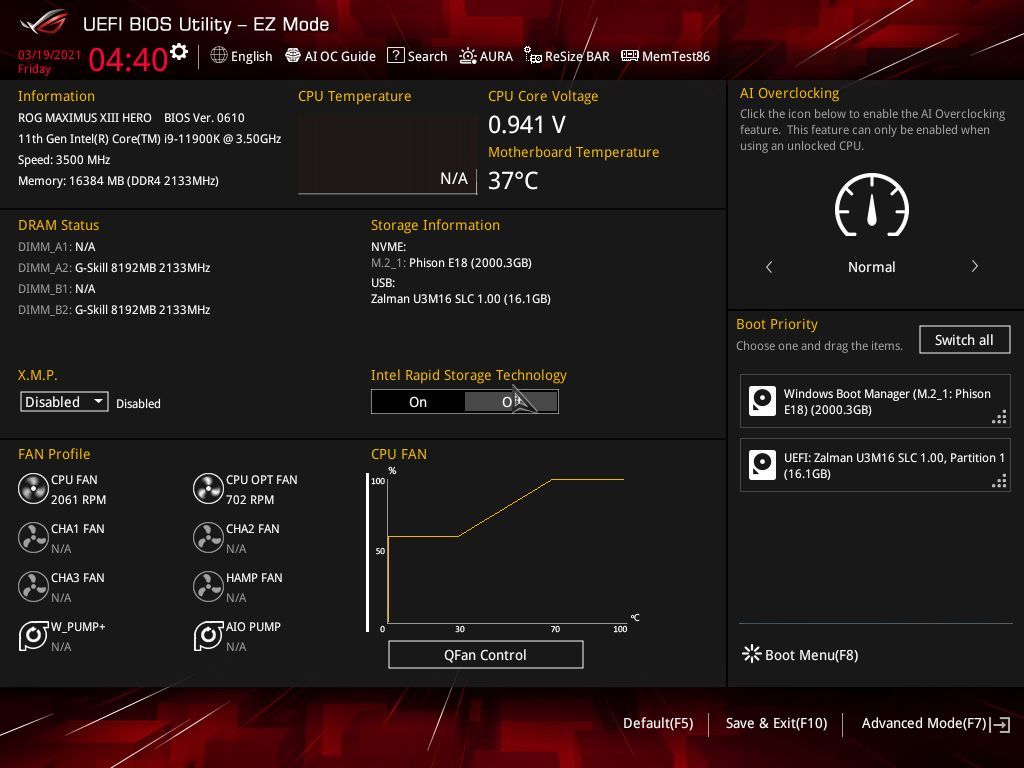

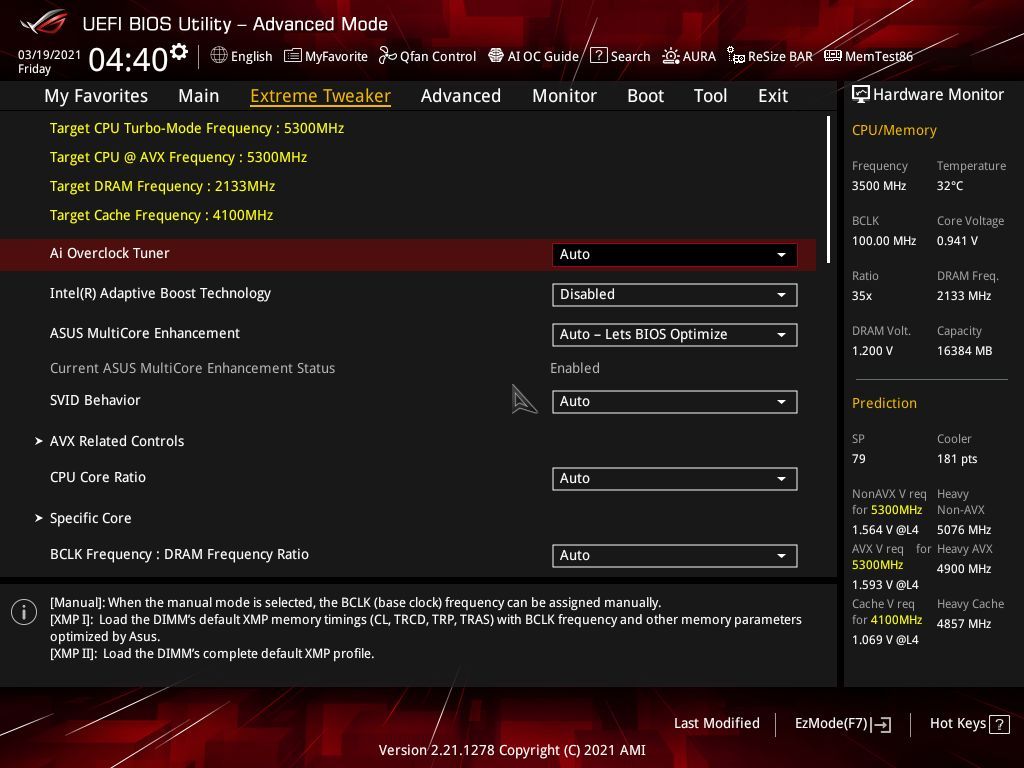

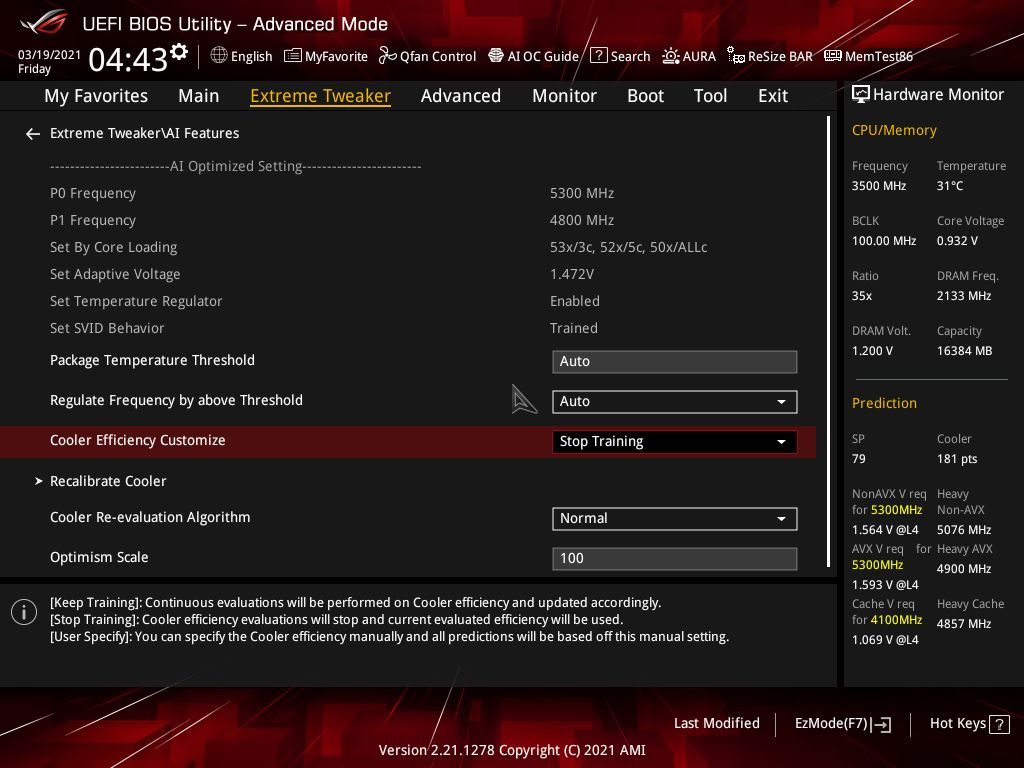

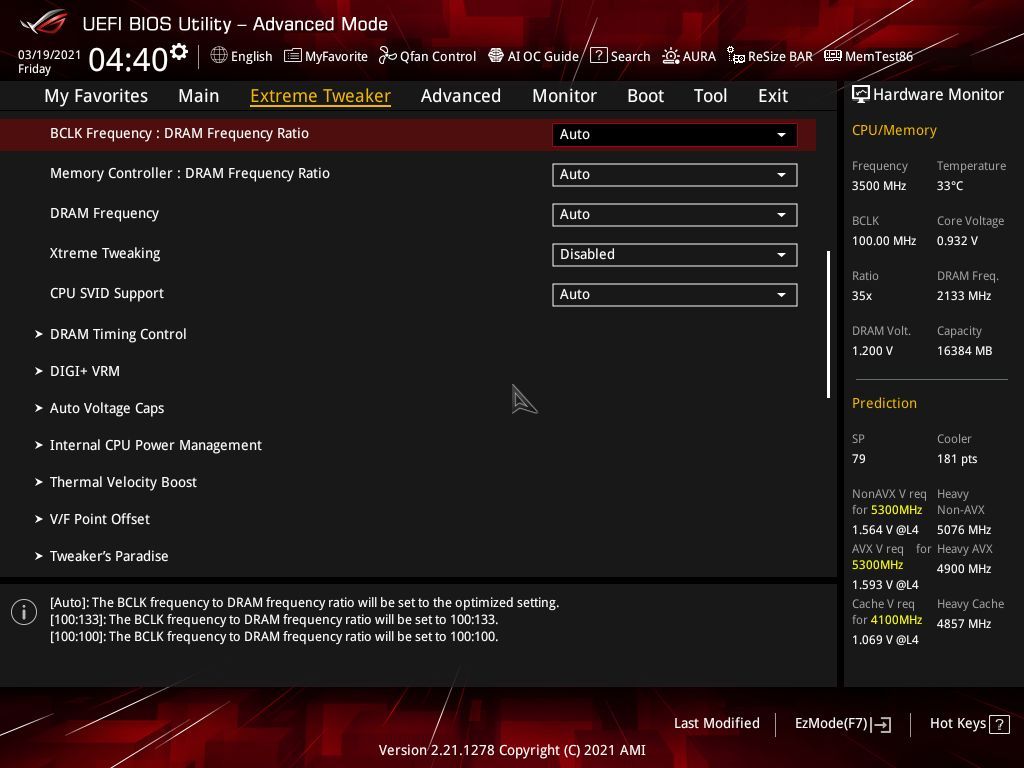

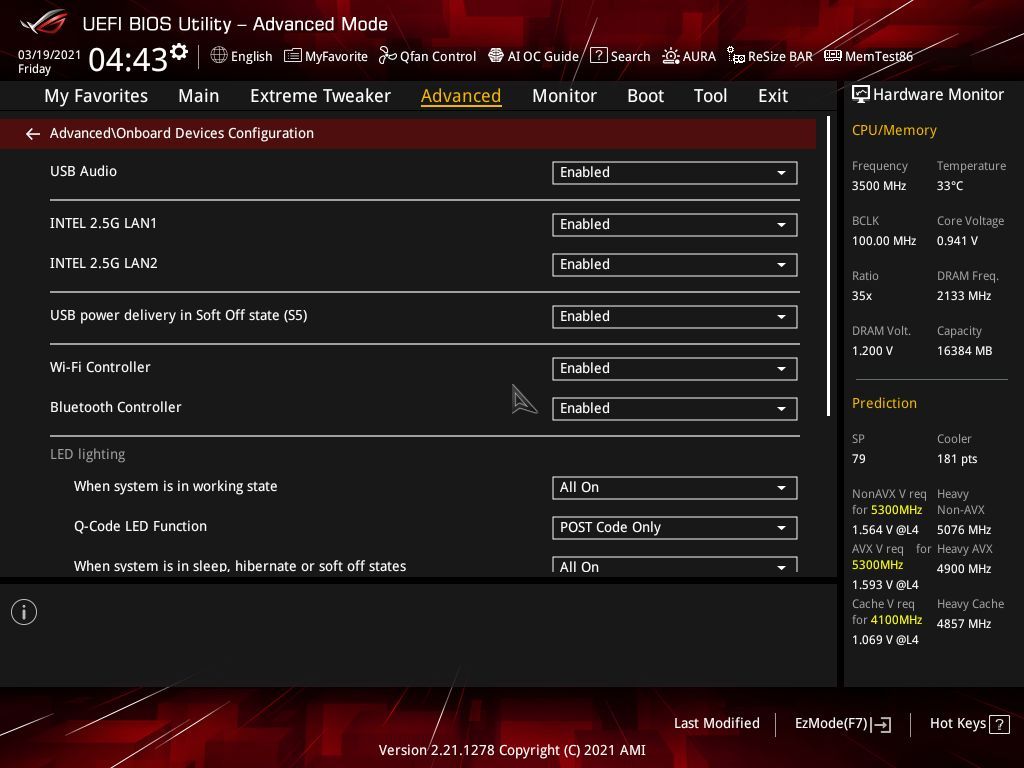

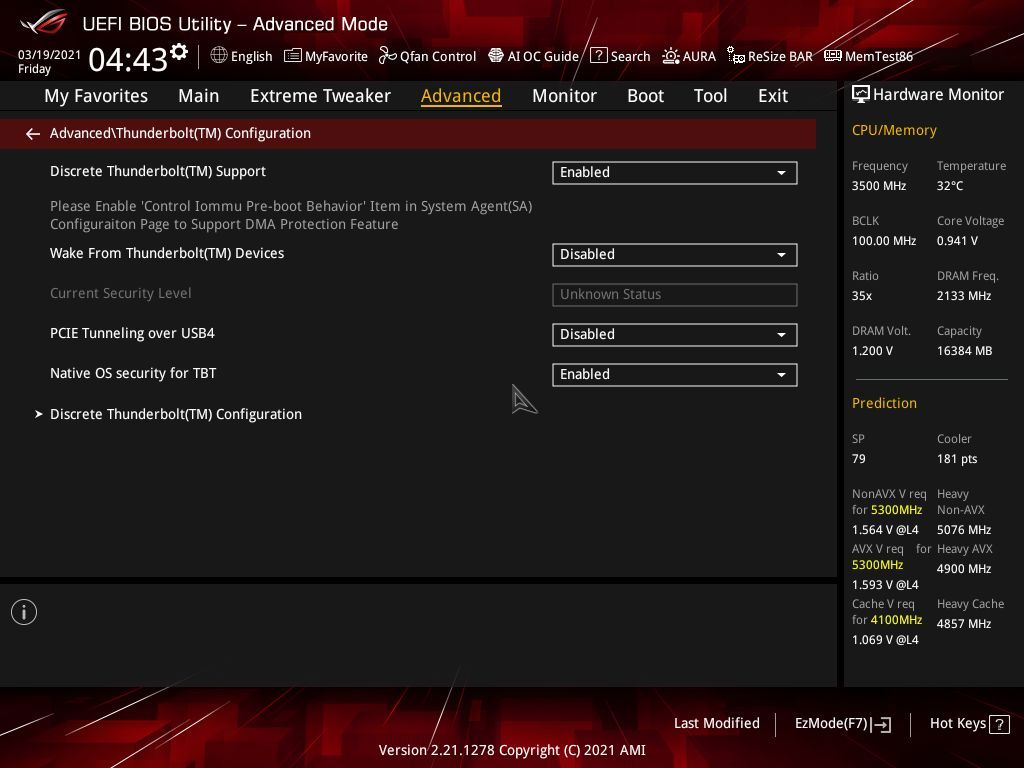

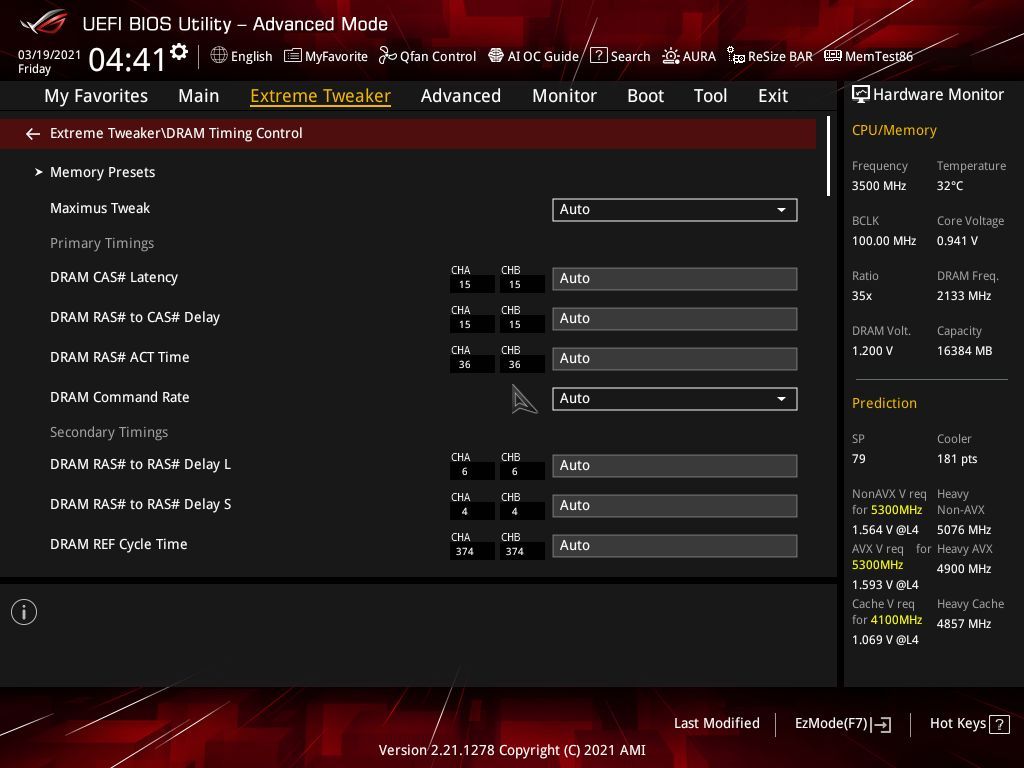

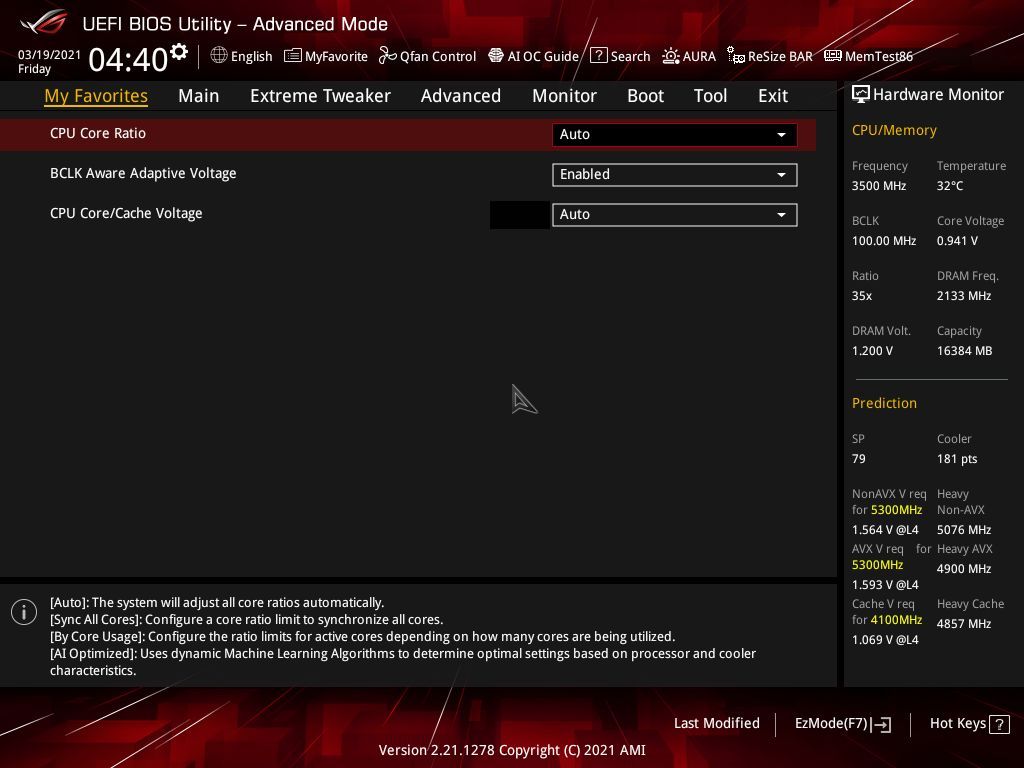

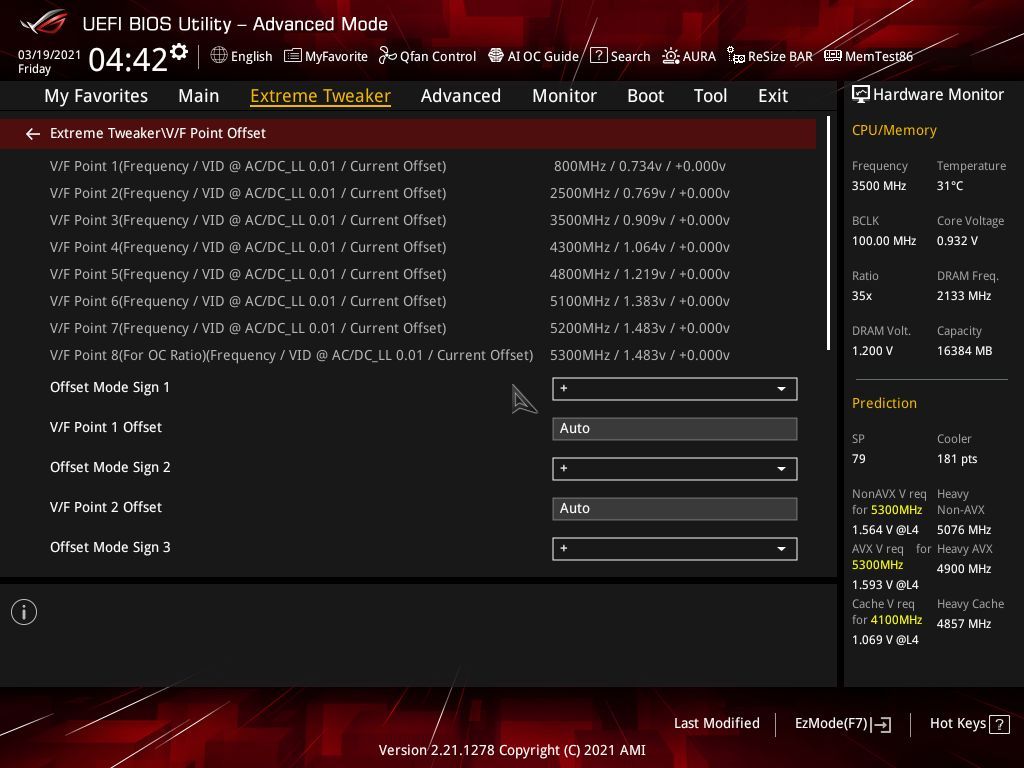

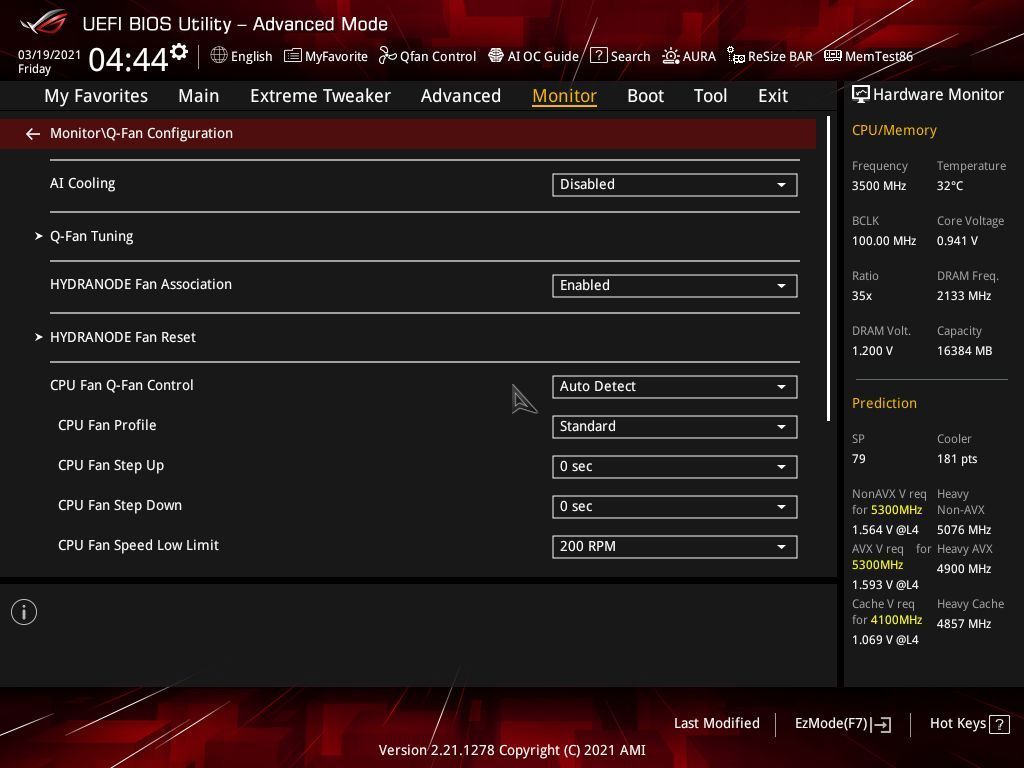

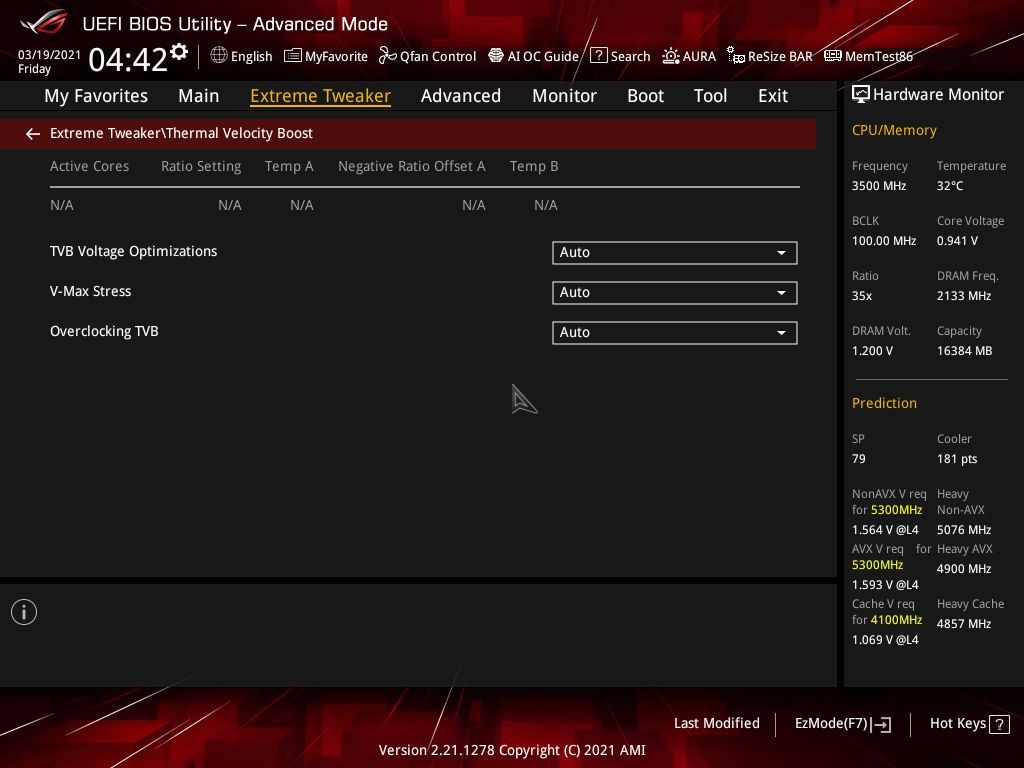

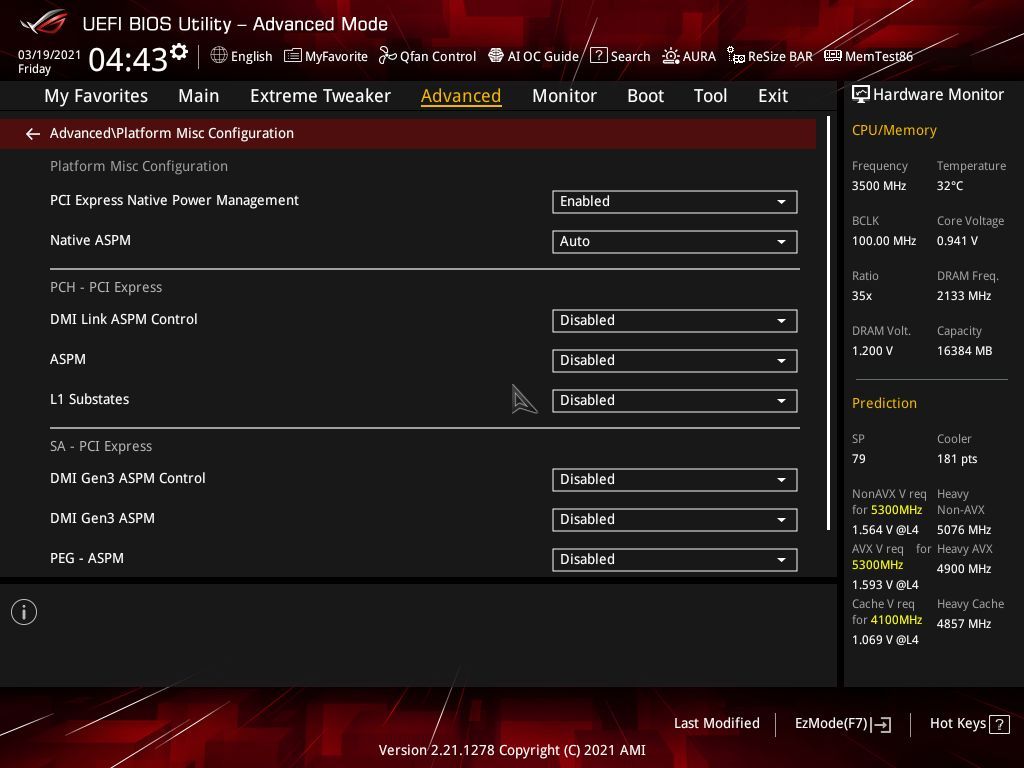

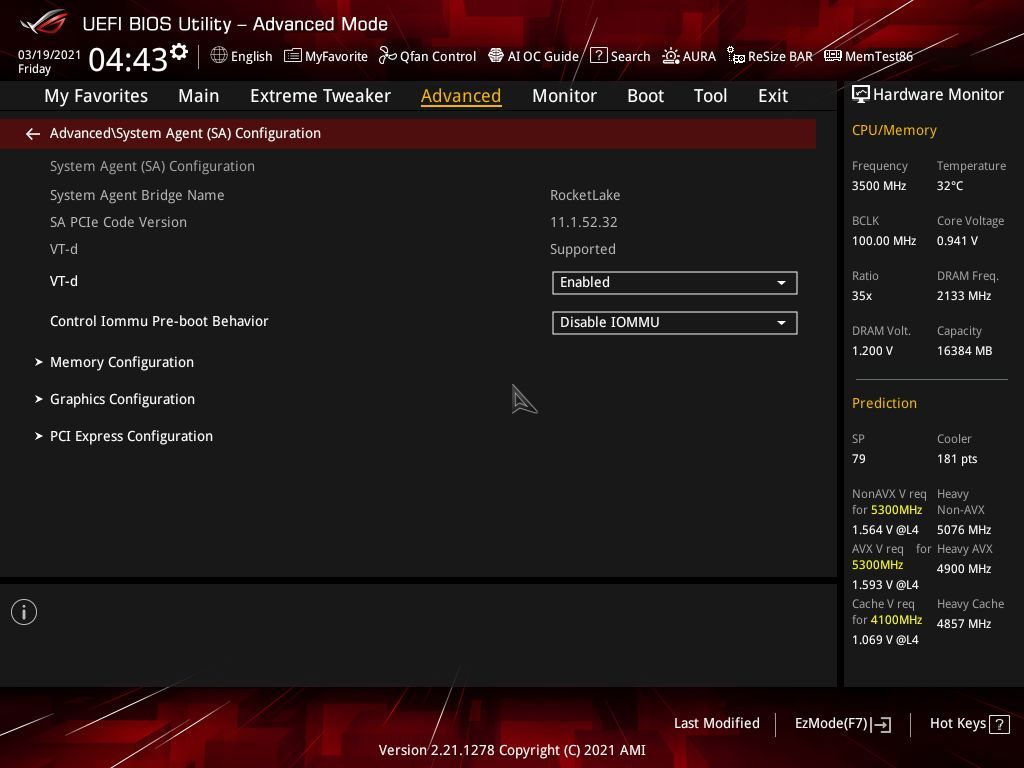

Asus’s BIOS for Z590 looks the same as found on previous-generation Z490-based motherboards. Asus uses a red background with white writing on these ROG boards -- a theme we’re all familiar with. Asus starts off in “EZ” mode where it presents some high-level information along with a couple of adjustable options such as enabling XMP and Boot priority. Advanced Mode has a slew of BIOS options, many of which most users will not touch. Asus organized the BIOS well and many of the common functions are easily accessible without drilling deep into the pages. Overall, Asus offers a user-friendly BIOS with enough options to keep the most-advanced user busy.

Image 1 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 2 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 3 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 4 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 5 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 6 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 7 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 8 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 9 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 10 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 11 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 12 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 13 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 14 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 15 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 16 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 17 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 18 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 19 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 20 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 21 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 22 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 23 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 24 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 25 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 26 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 27 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 28 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 29 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 30 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 31 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 32 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 33 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 34 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 35 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 36 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 37 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 38 of 38

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)

Software

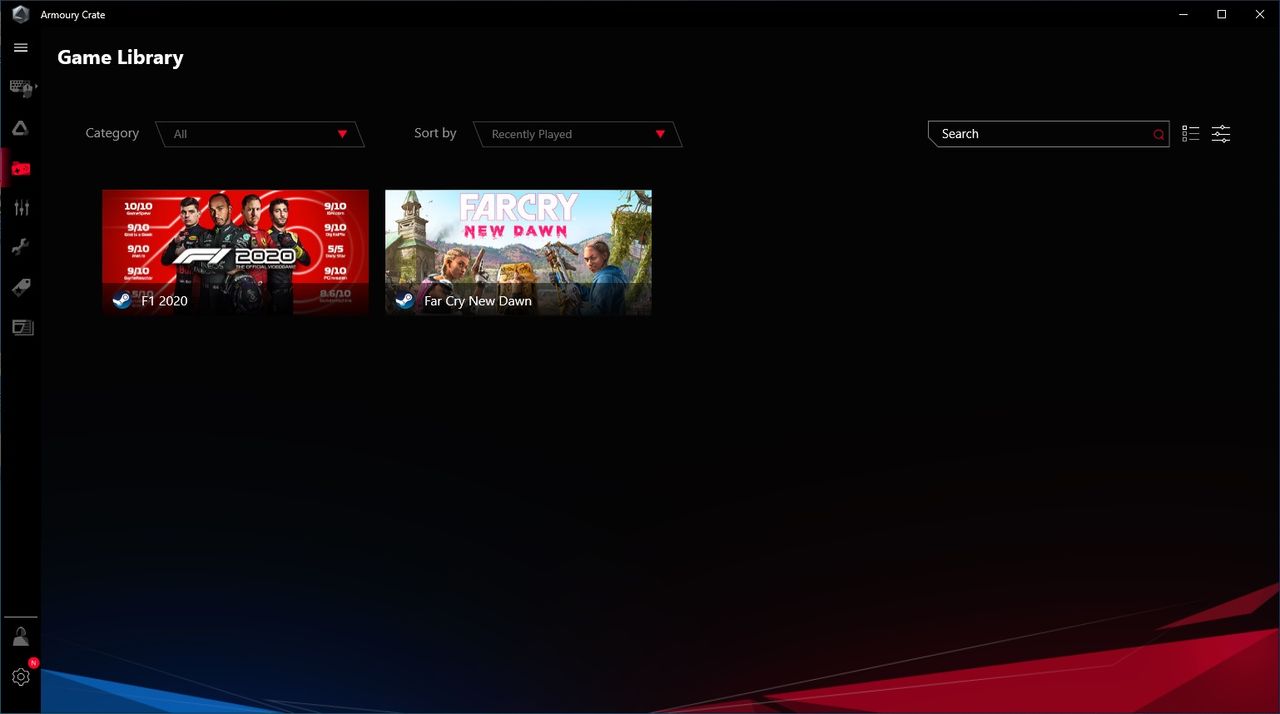

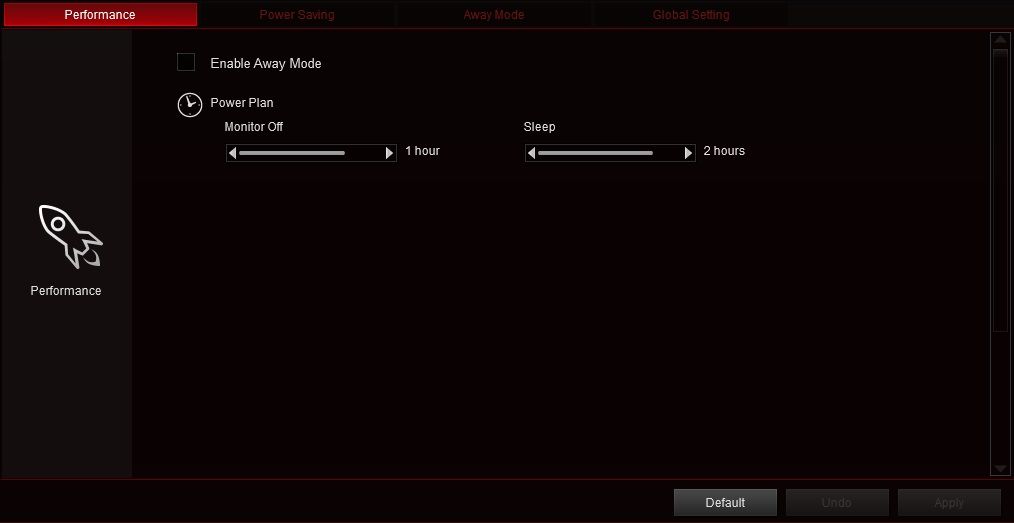

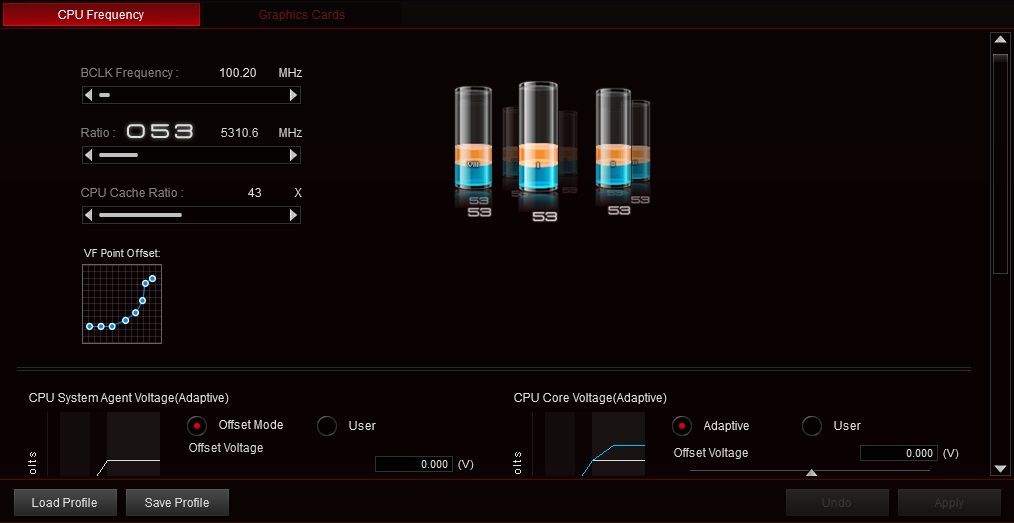

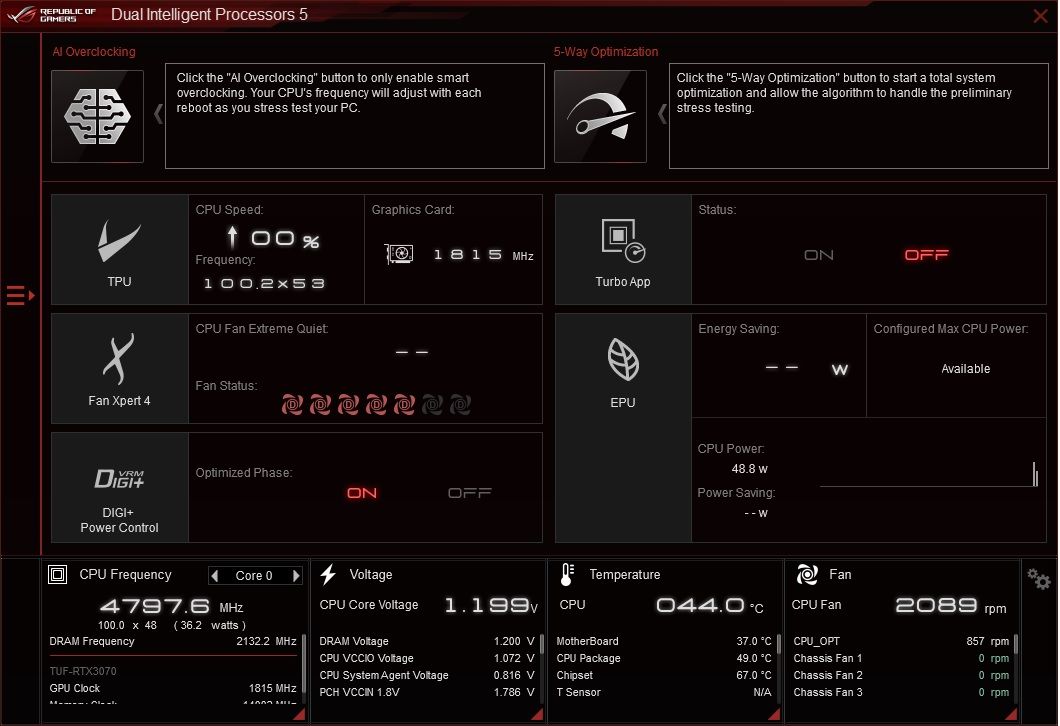

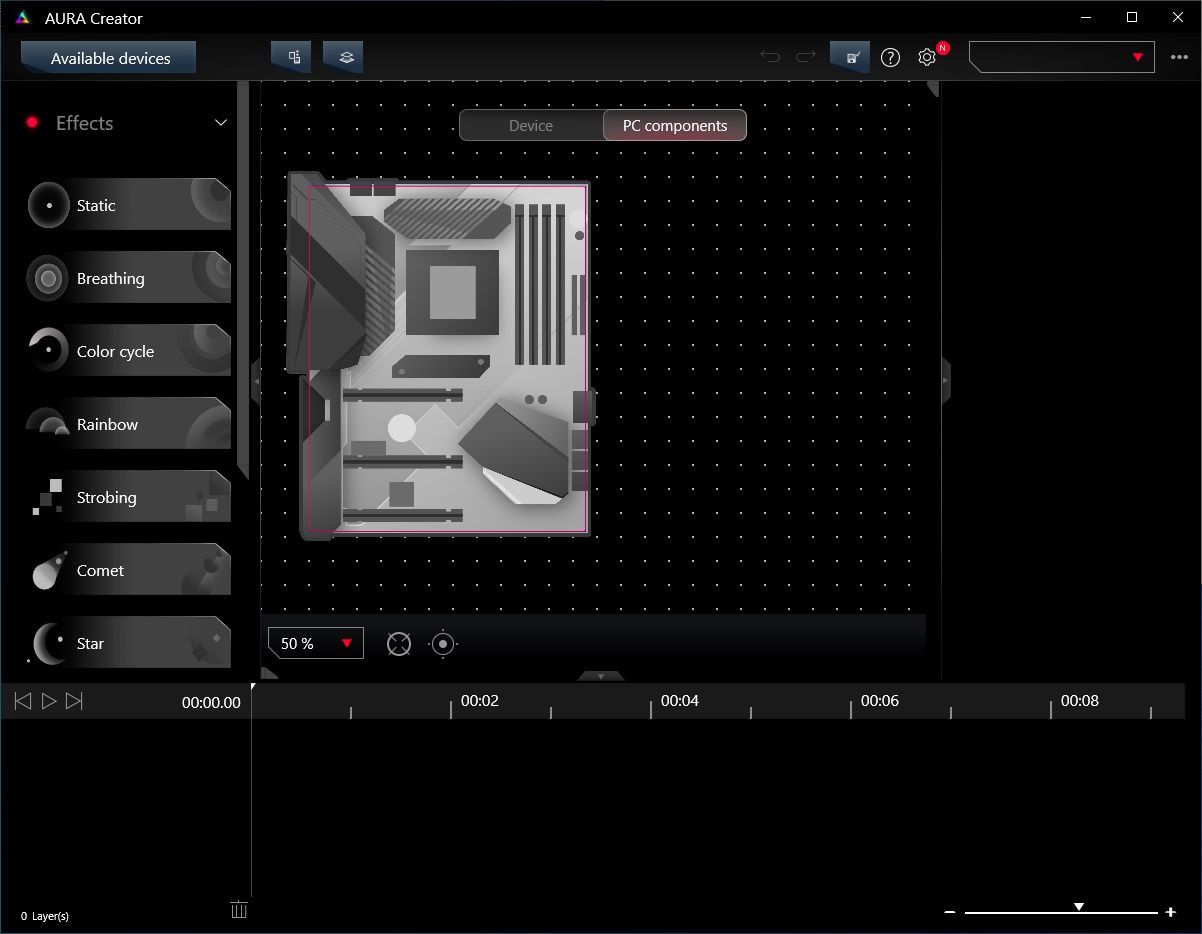

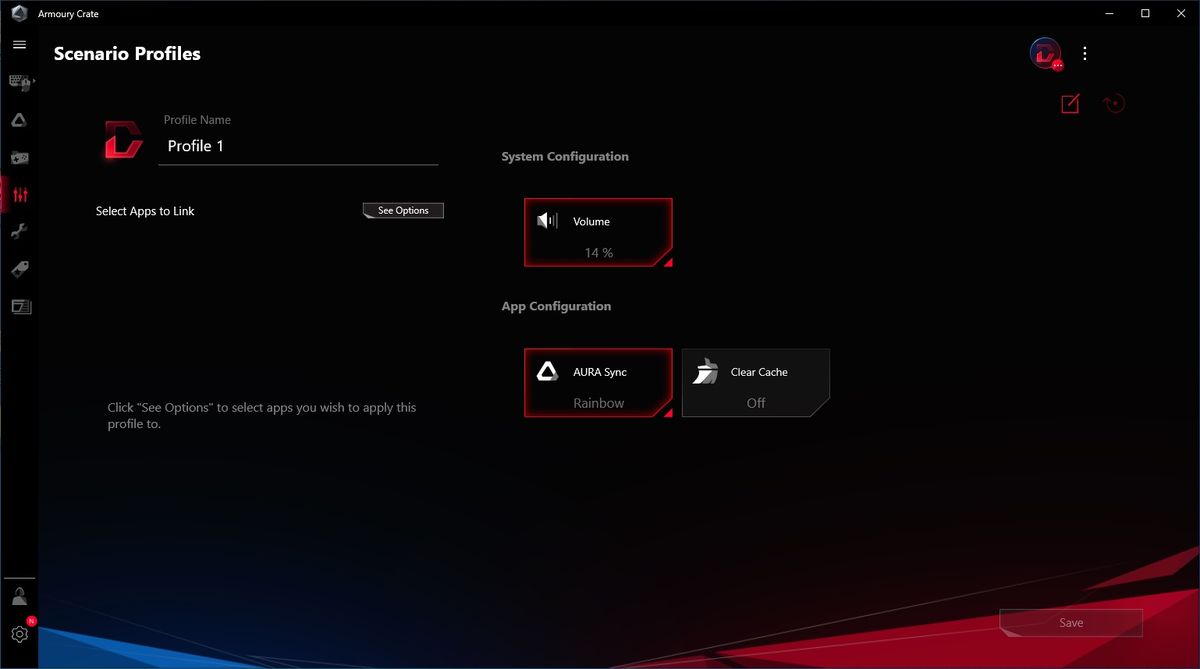

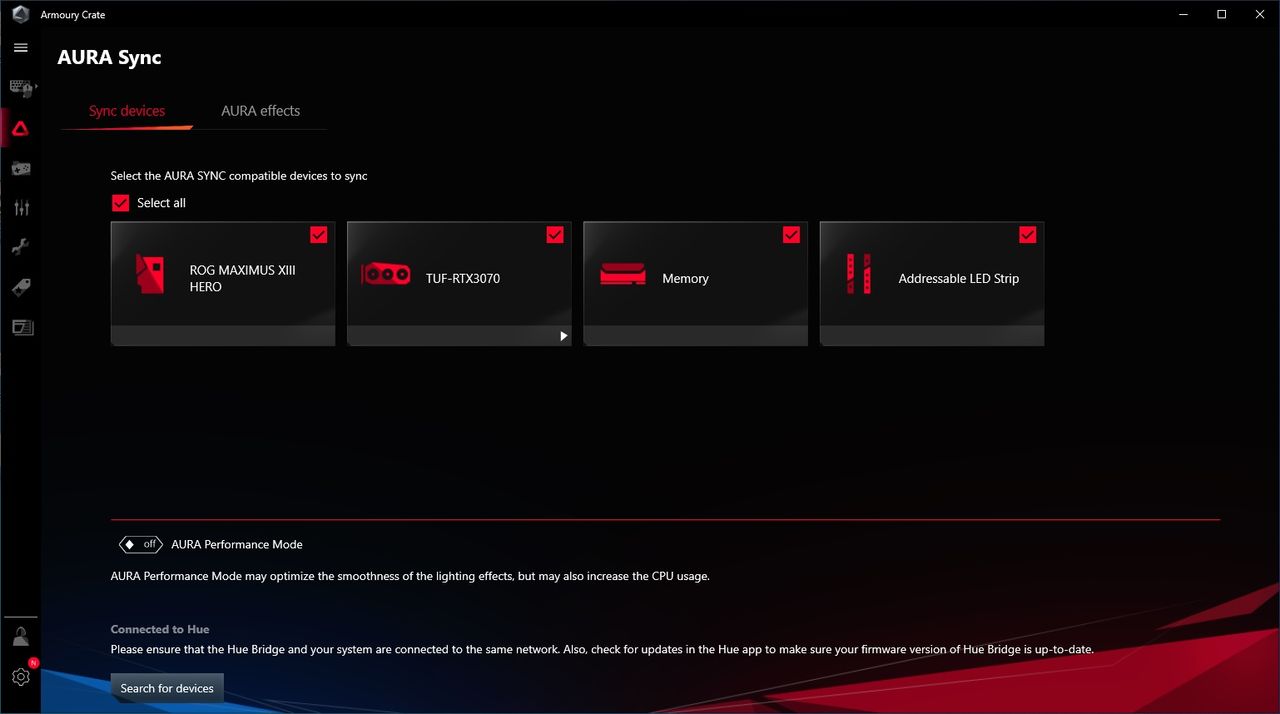

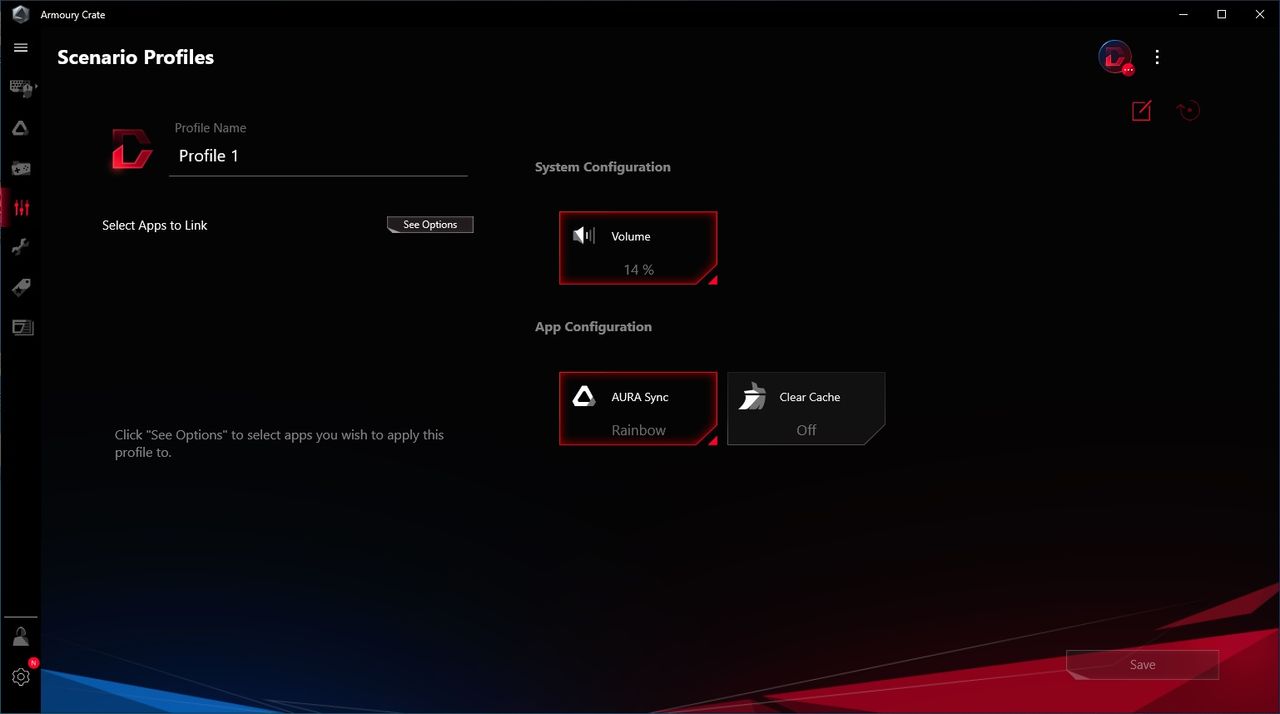

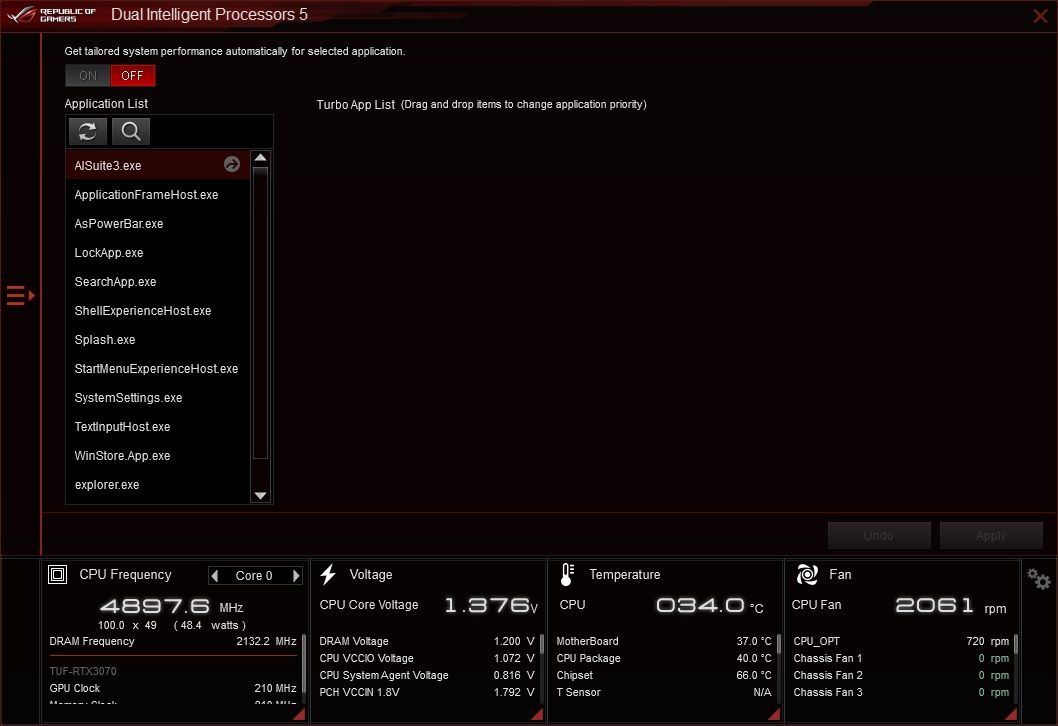

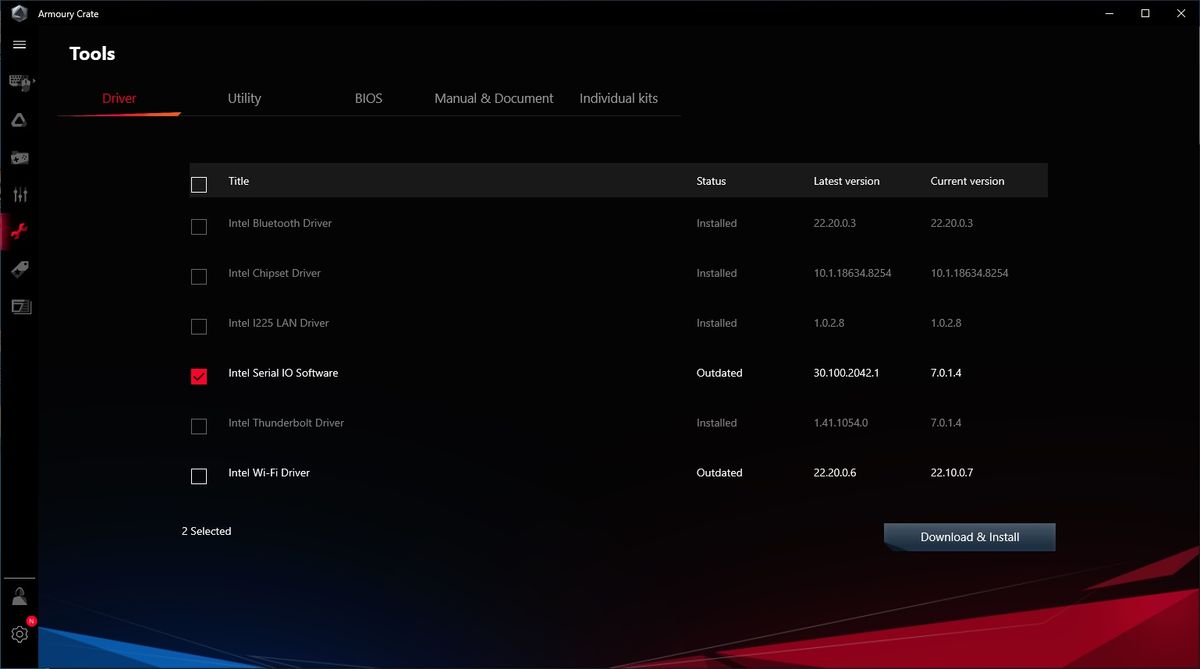

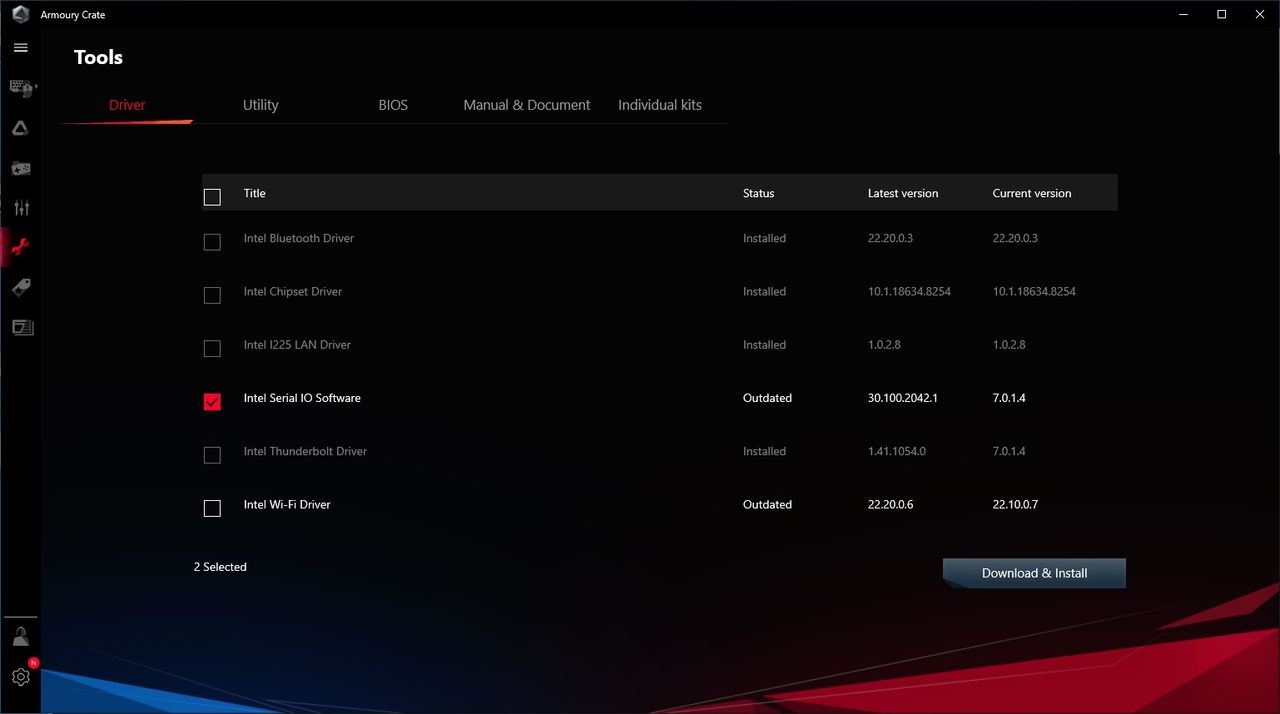

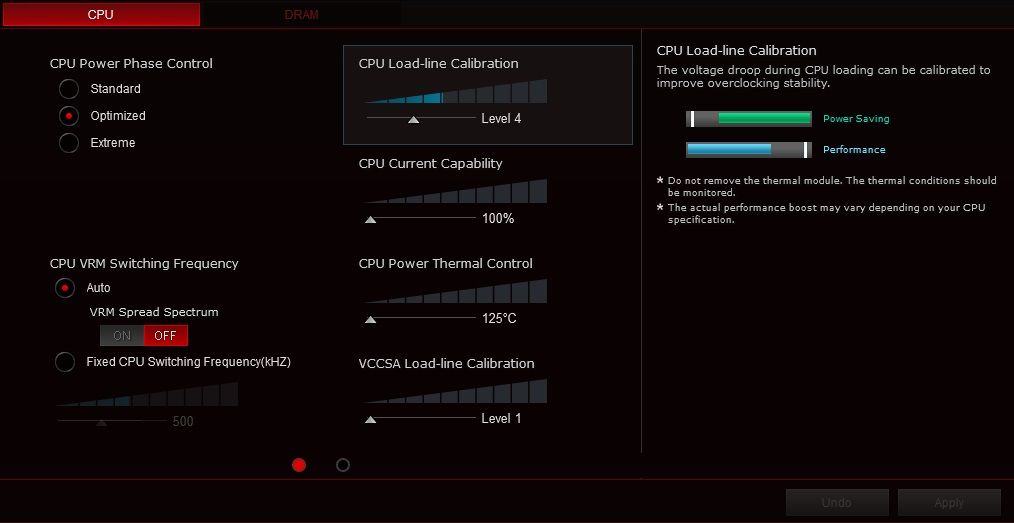

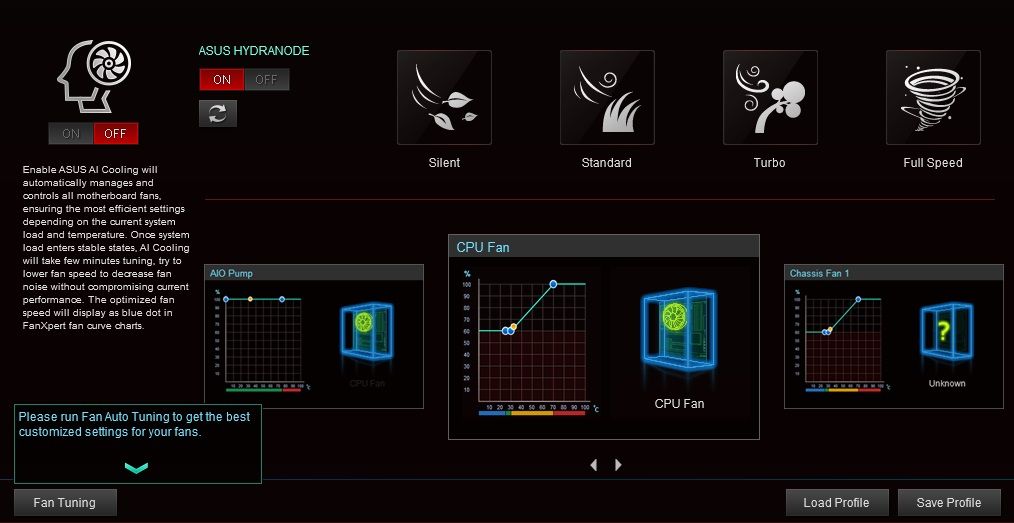

On the software side, Asus includes a couple of applications designed for varying functions. This includes RGB lighting control, system monitoring and overclocking, audio and more. Below we’ve captured a few screenshots of Ai Suite, the Armory Crate and Aura Creator.

Image 1 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 2 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 3 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 4 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 5 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 6 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 7 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 8 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 9 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 10 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)
Image 11 of 11

Asus ROG Maximus XIII Hero

(Image credit: Tom's Hardware)

Test System

As of March 2021, we’ve updated our test system to Windows 10 64-bit OS (20H2) with all threat mitigations applied. On the hardware front, we’ve switched to all PCIe 4.0 components. We upgraded our video card to an Asus RTX 3070 TUF Gaming and the storage device to a 2TB Phison PS5-18-E18 M.2. Along with the hardware changes, we’ve also updated the games to F1 2020 and Far Cry: New Dawn. We use the latest non-beta motherboard BIOS available to the public unless otherwise noted (typically during new platform launches). The hardware used is as follows:

CPUIntel i9-11900K
MemoryGSkill Trident Z Neo 2x8GB DDR4 3600 (F4-3600C16Q-32GTZN)
GSkill Trident Z Royale 2x8GB DDR4 4000 (F4-4000C18Q-32GTRS)
GPUAsus TUF Gaming RTX 3070
CPU CoolerCorsair H150i
PSUCorsair AX1200i
SoftwareWindows 10 64-bit 20H2
Graphics DriverNVIDIA Driver 461.40
SoundIntegrated HD audio
NetworkIntegrated Networking (GbE or 2.5 GbE)

Benchmark Settings

Synthetic Benchmarks and Settings
PCMark 10Version 2.1.2508 64
Essentials, Productivity, Digital Content Creation, MS Office
3DMarkVersion 2.17.7137 64
Firestrike Extreme and Time Spy Default Presets
Cinebench R20Version RBBENCHMARK271150
Open GL Benchmark - Single and Multi-threaded
Application Tests and Settings
LAME MP3Version SSE2_2019
Mixed 271MB WAV to mp3: Command: -b 160 --nores (160Kb/s)
HandBrake CLIVersion: 1.2.2
Sintel Open Movie Project: 4.19GB 4K mkv to x264 (light AVX) and x265 (heavy AVX)
Corona 1.4Version 1.4
Custom benchmark
7-ZipVersion 19.00
Integrated benchmark
Game Tests and Settings
F1 2020Ultra Preset - 1920 x 1080, TAA, 16xAF (Australia, Clear, Dry)
Far Cry: New DawnUltra Preset - 1920 x 1080
