Asus VG245H 24-inch FreeSync Gaming Monitor Review

Reviews
By
published

Why you can trust Tom's Hardware Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

Brightness & Contrast

To read about our monitor tests in depth, please check out Display Testing Explained: How We Test Monitors and TVs.  Brightness and Contrast testing is covered on page two.
AOC G2460PF
AOC C3583FQ
Asus MG24UQ

Uncalibrated – Maximum Backlight Level

We’ve been reviewing lots of Ultra HD gaming monitors lately. These offer less speed and response than the VG245H. Nevertheless, one is included in the group today: Asus’s MG24UQ. While pricier, it still represents one of the best values in UHD screens and it includes FreeSync. We also have Nixeus’ NX-VUE24A, AOC’s G2460PF, and ViewSonic’s XG2401. All are 24" TN/FHD displays with FreeSync. To bring the count to six, we’ve included AOC’s ultra-wide C3583FQ.

Image 1 of 3

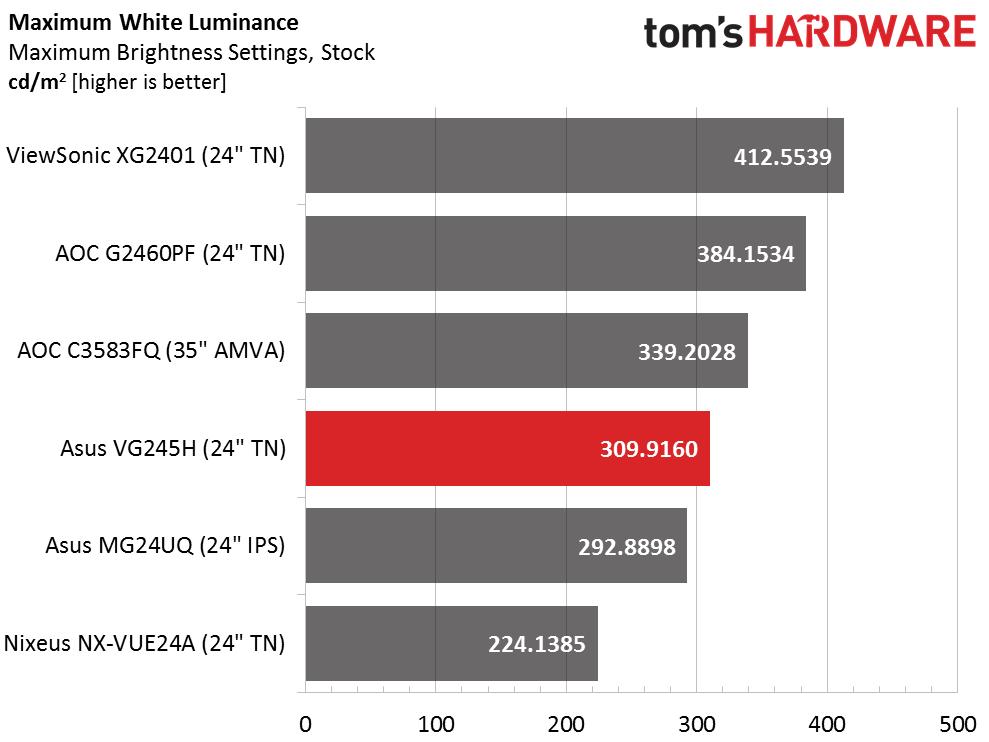

The VG245H isn’t a light cannon but it does measure brighter than its specs claim. 309.9160cd/m2 easily beats Asus’ 250cd/m2 number. That’s plenty of light for gaming in just about any interior environment. And without ULMB, there’s no need for any additional output.

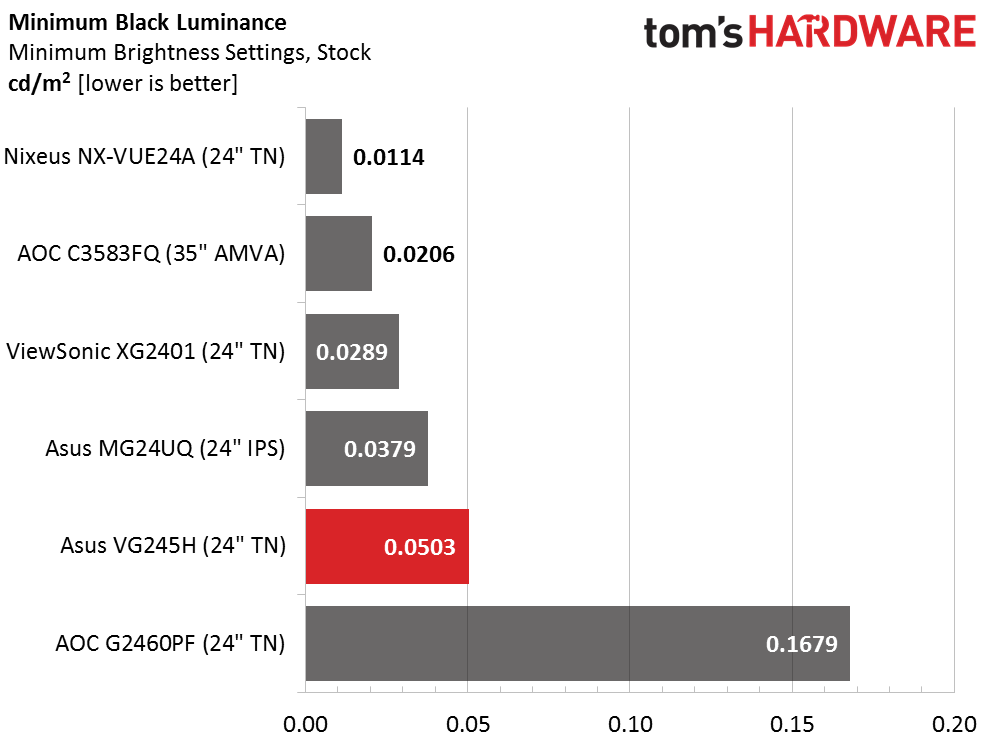

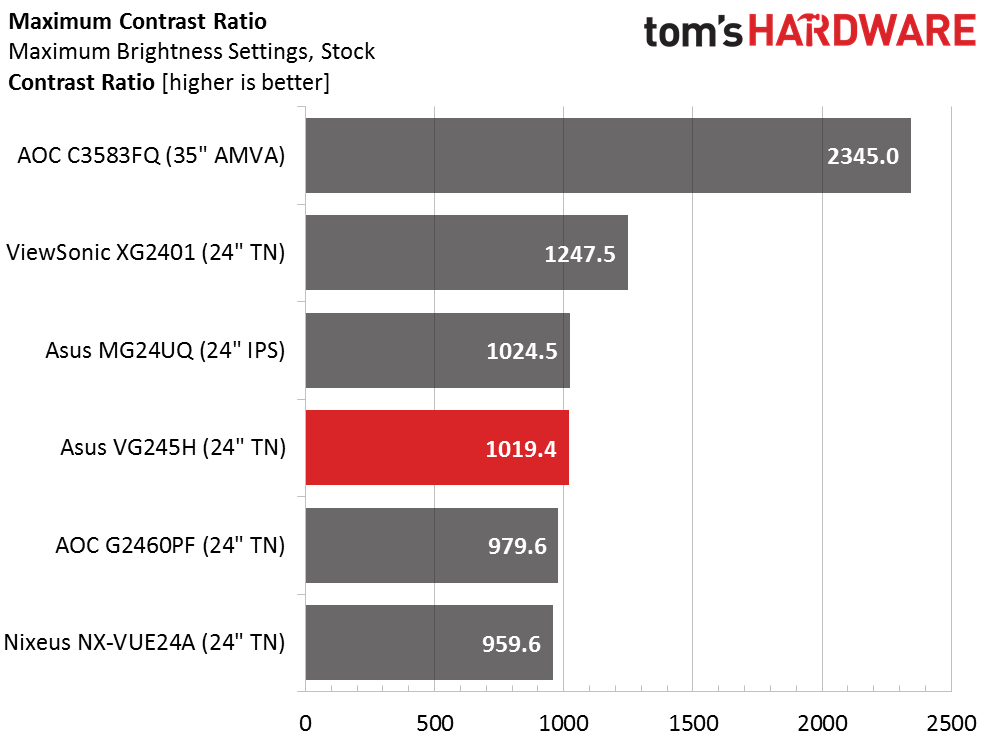

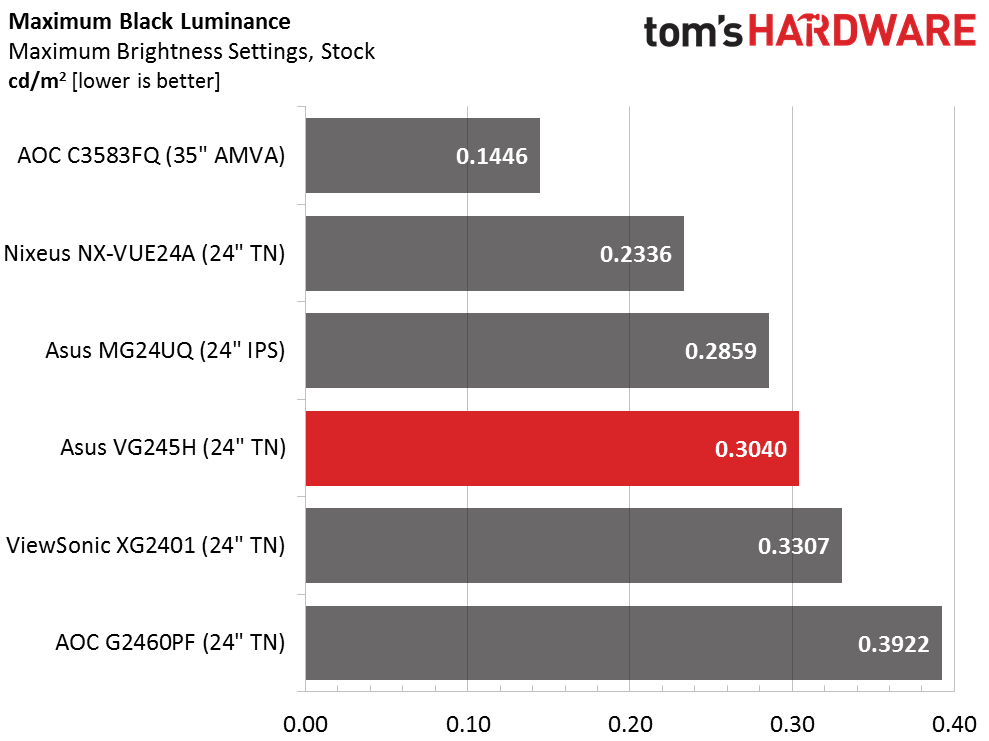

Black levels are mid-pack (remember that the C3583FQ is VA and therefore quite a bit darker than its TN competitors). The resulting contrast ratio is a respectable 1019.4:1. This provides plenty of depth and good color saturation for gaming, video, graphics work, or productivity.

Uncalibrated – Minimum Backlight Level

Image 1 of 3

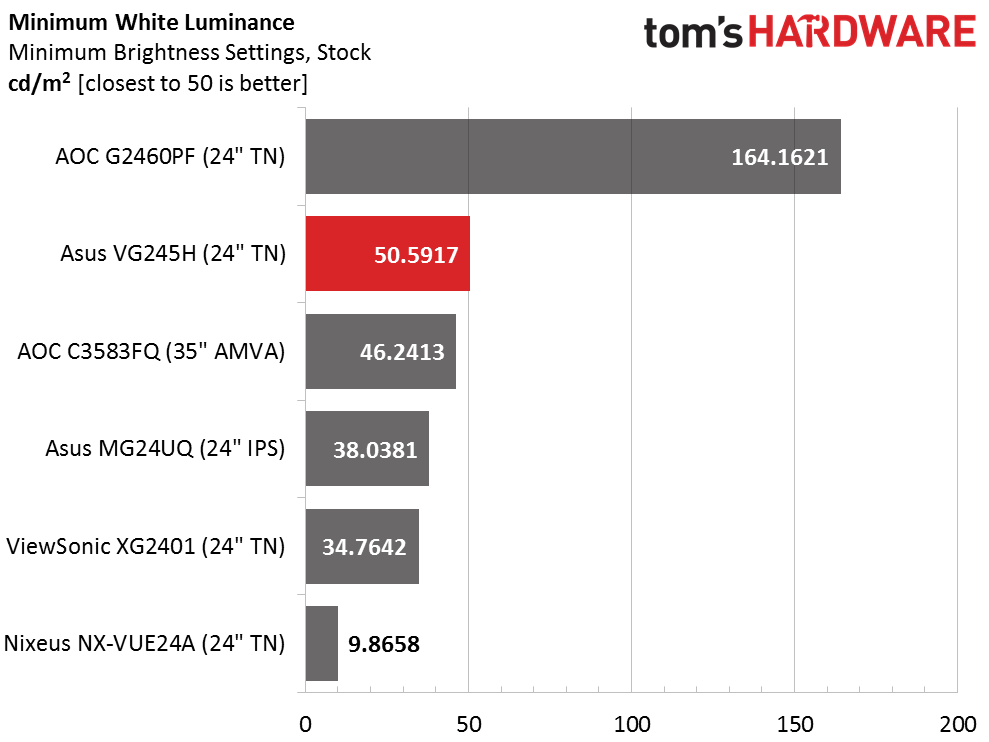

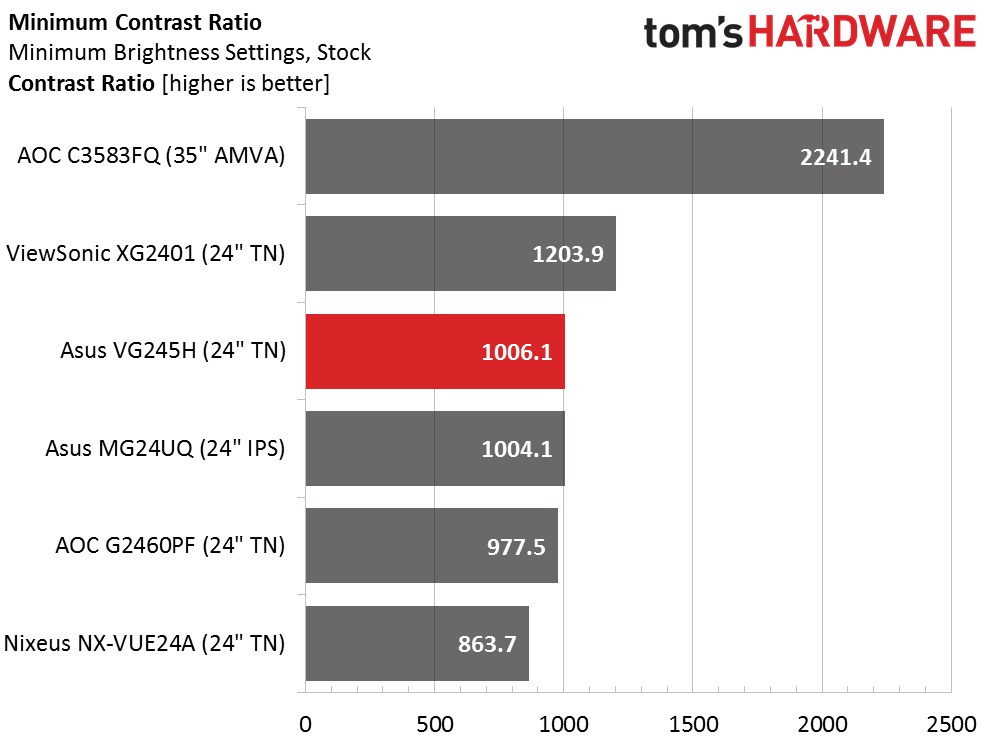

Reducing the brightness slider to zero results in an ideal 50.5917cd/m2. No other adjustments have been made at this point. When we calibrated the VG245H and lowered its contrast control, minimum output dropped to around 45cd/m2. Contrast remains constant at just over 1000:1, which is as it should be. We might be looking at an inexpensive panel here, but it seems to be outperforming its price-point so far.

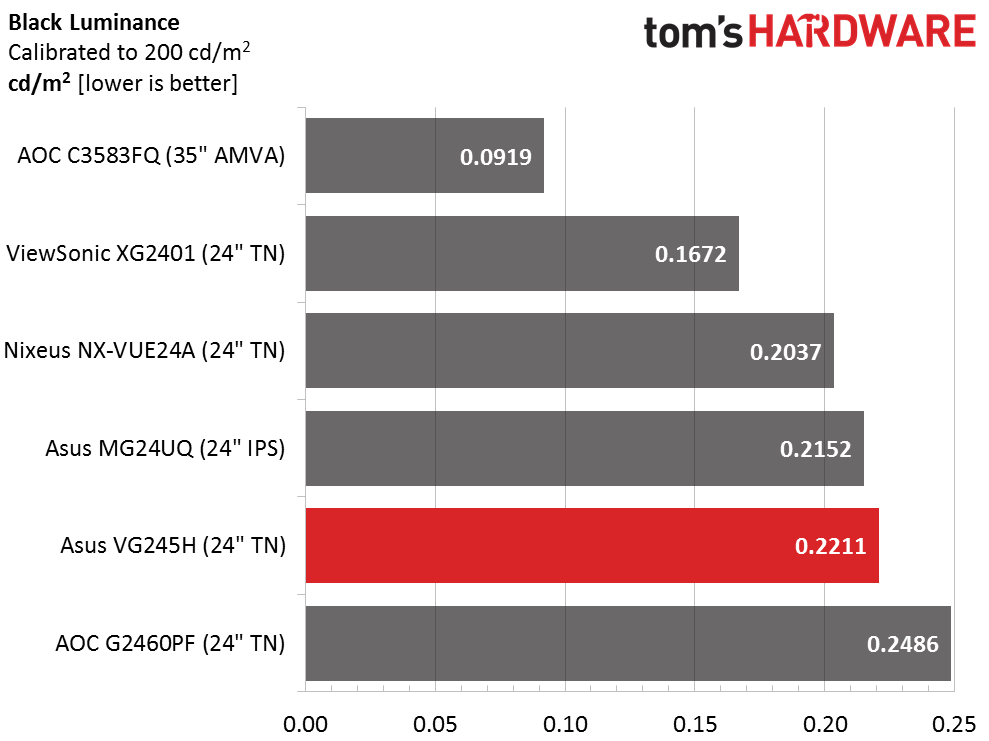

After Calibration to 200cd/m2

Image 1 of 2

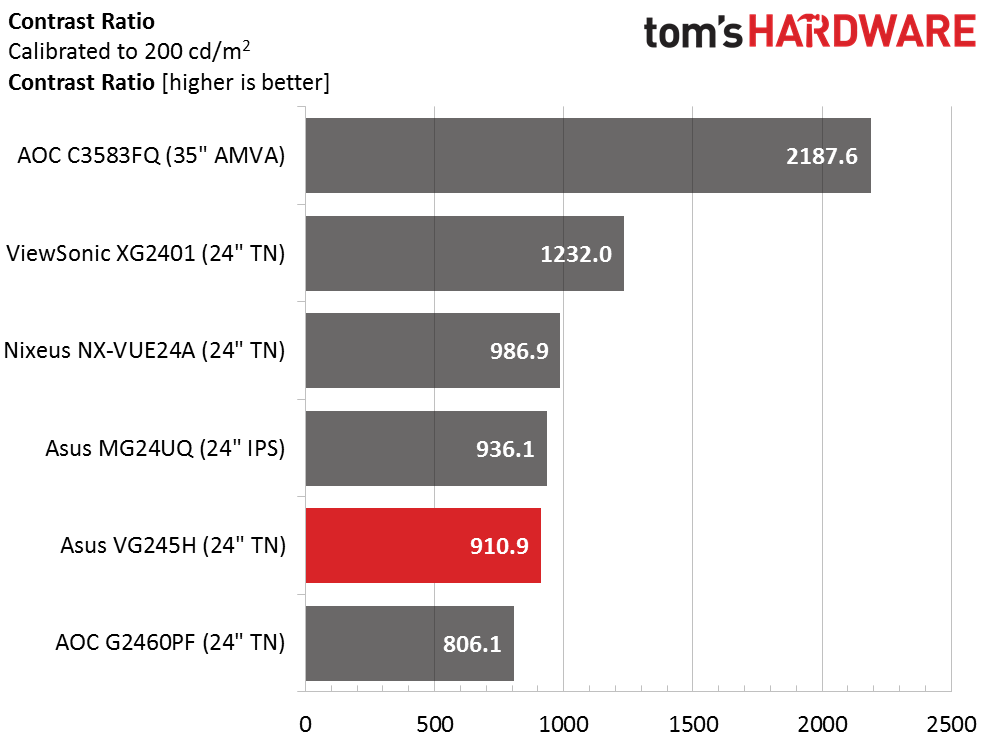

Fixing the grayscale and gamma issues we encountered cost the VG245H around 10% of its sequential contrast, which isn’t too bad and makes our changes worthwhile. The gain in color and gamma accuracy is noticeable and definitely improves overall image quality. We’re not looking at any sacrifices for the sake of cost here.

ANSI Contrast Ratio

A slightly hot area down the VG245H’s right side spoils an otherwise decent ANSI test result. Black levels are a tiny bit elevated there, which puts the panel in last place. White zones remain bright and clean so intra-image contrast with real-world content still looks pretty good. Since uniformity is a factor in this test, a different sample might measure better.

See more Gaming Monitors Reviews
Christian Eberle
Christian Eberle
Contributing Editor

Christian Eberle is a Contributing Editor for Tom's Hardware US. He's a veteran reviewer of A/V equipment, specializing in monitors. Christian began his obsession with tech when he built his first PC in 1991, a 286 running DOS 3.0 at a blazing 12MHz. In 2006, he undertook training from the Imaging Science Foundation in video calibration and testing and thus started a passion for precise imaging that persists to this day. He is also a professional musician with a degree from the New England Conservatory as a classical bassoonist which he used to good effect as a performer with the West Point Army Band from 1987 to 2013. He enjoys watching movies and listening to high-end audio in his custom-built home theater and can be seen riding trails near his home on a race-ready ICE VTX recumbent trike. Christian enjoys the endless summer in Florida where he lives with his wife and Chihuahua and plays with orchestras around the state.
