GPU vs. CPU Upgrade: Extensive Tests

Features
By
published

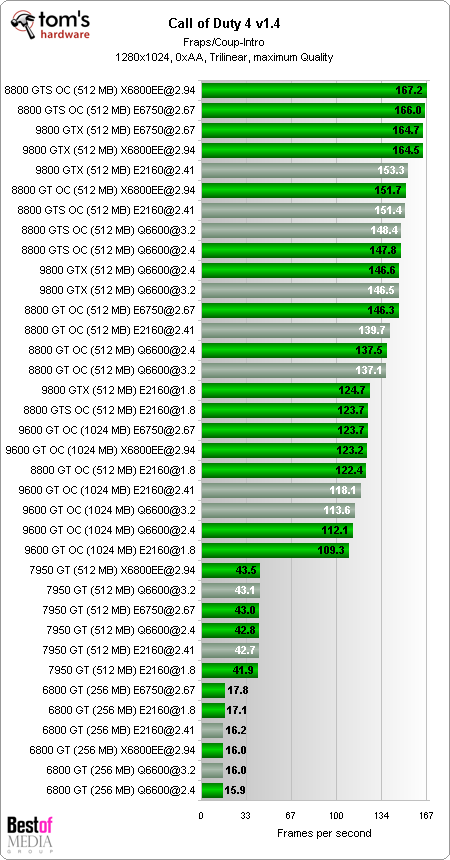

Call of Duty 4 v1.4

The Geforce 6800 GT is too slow at maximum graphics quality; to get playable frame rates, the graphics quality must be reduced. The Geforce 7950 GT barely reacts to increasing CPU performance, and antialiasing (AA) should probably not be employed when using high resolutions. With the Geforce 8 and 9, an E2160 at 1800 MHz is sufficient to obtain fluid gameplay. With a higher clocked CPU without antialiasing, you can achieve still additional 3D performance.

gpu vs cpu

gpu vs cpu

gpu vs cpu

gpu vs cpu

gpu vs cpu

gpu vs cpu

Tino Kreiss
75 Comments Comment from the forums
  • DjEaZy
    will there be a AMD/ATI roundup???
    Reply
  • randomizer
    That would simply consume more time without really proving much. I think sticking with a single manufacturer is fine, because you see the generation differences of cards and the performance gains compared to geting a new processor. You will see the same thing with ATI cards. Pop in an X800 and watch it crumble in the wake of a HD3870. There is no need to inlude ATI cards for the sake of this article.
    Reply
  • randomizer
    This has been a long needed article IMO. Now we can post links instead of coming up with simple explanations :D
    Reply
  • yadge
    I didn't realize the new gpus were actually that powerful. According to Toms charts, there is no gpu that can give me double the performance over my x1950 pro. But here, the 9600gt was getting 3 times the frames as the 7950gt(which is better than mine) on Call of Duty 4.

    Maybe there's something wrong with the charts. I don't know. But this makes me even more excited for when I upgrade in the near future.
    Reply
  • This article is biased from the beginning by using a reference graphics card from 2004 (6800GT) to a reference CPU from 2007 (E2140).

    Go back and use a Pentium 4 Prescott (2004) and then the basis of these percentage values on page 3 will actually mean something.
    Reply
  • randomizer
    yadgeI didn't realize the new gpus were actually that powerful. According to Toms charts, there is no gpu that can give me double the performance over my x1950 pro. But here, the 9600gt was getting 3 times the frames as the 7950gt(which is better than mine) on Call of Duty 4. Maybe there's something wrong with the charts. I don't know. But this makes me even more excited for when I upgrade in the near future.I upgraded my X1950 pro to a 9600GT. It was a fantastic upgrade.
    Reply
  • wh3resmycar
    scyThis article is biased from the beginning by using a reference graphics card from 2004 (6800GT) to a reference CPU from 2007 (E2140).
    maybe it is. but its relevant especially with those people who are stuck with those prescotts/6800gt. this article reveals an upgrade path nonetheless
    Reply
  • randomizer
    If they had used P4s there would be o many variables in this article that there would be no direction and that would make it pointless.
    Reply
  • JAYDEEJOHN
    Great article!!! It clears up many things. It finally shows proof that the best upgrade a gamer can make is a newer card. About the P4's, just take the clock rate and cut it in half, then compare (ok add 10%) heheh
    Reply
  • justjc
    I know randomizer thinks we would get the same results, but would it be possible to see just a small article showing if the same result is true for AMD processors and ATi graphics.
    Firstly we know that ATi and nVidia graphics doesn't calculate graphics in the same way, who knows perhaps an ATi card requiers more or less processorpower to work at full load, and if you look at Can you run it? for Crysis(only one I recall using) you will see the minimum needed AMD processor is slover than the minimum needed Core2, even in processor speed.
    So any chance of a small, or full scale, article throwing some ATi and AMD power into the mix?
    Reply
