Ripple Measurements

To learn how we measure ripple, please click here.

The following table includes the ripple levels we measured on the EVGA SuperNOVA 650 P2's rails. The limits, according to the ATX specification, are 120mV (+12V) and 50mV (5V, 3.3V and 5VSB).

Swipe to scroll horizontally

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	3.9mV	4.8mV	7.0mV	4.8mV	Pass
20% Load	4.9mV	4.9mV	7.9mV	4.7mV	Pass
30% Load	5.5mV	4.8mV	7.7mV	4.8mV	Pass
40% Load	5.7mV	5.0mV	10.5mV	4.6mV	Pass
50% Load	6.1mV	5.8mV	9.7mV	4.6mV	Pass
60% Load	6.5mV	6.3mV	9.9mV	4.7mV	Pass
70% Load	6.8mV	6.6mV	10.7mV	5.2mV	Pass
80% Load	6.7mV	6.7mV	11.0mV	5.7mV	Pass
90% Load	7.3mV	7.1mV	12.2mV	6.5mV	Pass
100% Load	7.7mV	8.4mV	12.5mV	7.2mV	Pass
110% Load	8.0mV	8.2mV	13.5mV	7.4mV	Pass
Cross-Load 1	5.7mV	6.4mV	11.1mV	9.3mV	Pass
Cross-Load 2	7.1mV	8.0mV	13.5mV	6.9mV	Pass

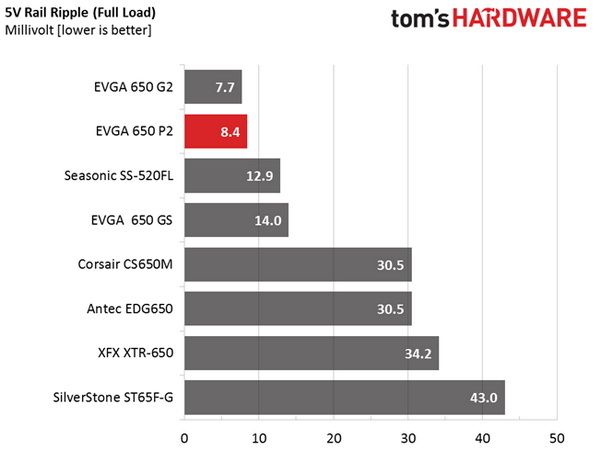

Image 1 of 4

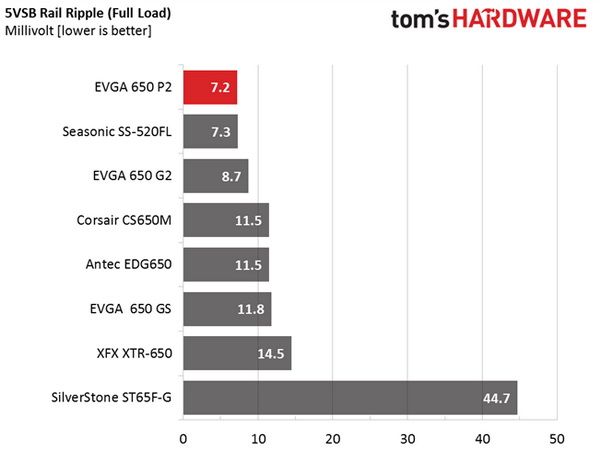

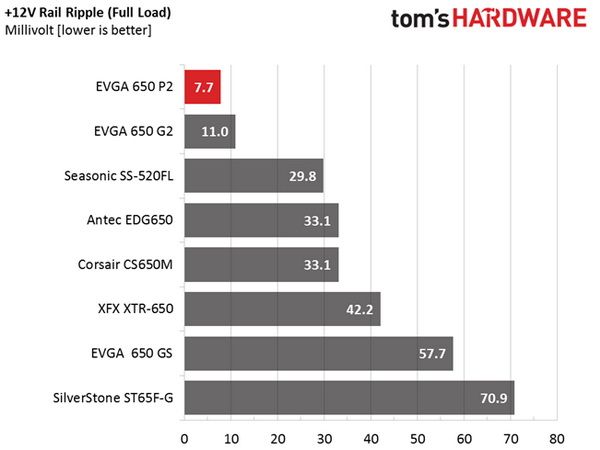

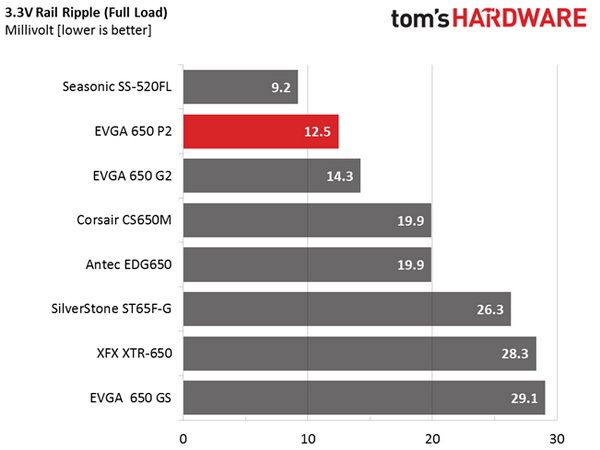

Super Flower's Leadex platforms simply do not have issues with high ripple, and the 650 P2 demonstrates its quality with the results listed above. Even in a worst-case scenario, the ripple at +12V was only 8mV. And only the 3.3V rail went above 10mV.

Ripple Oscilloscope Screenshots

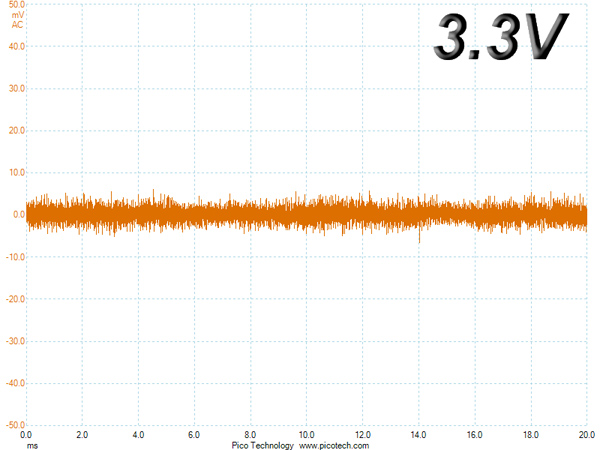

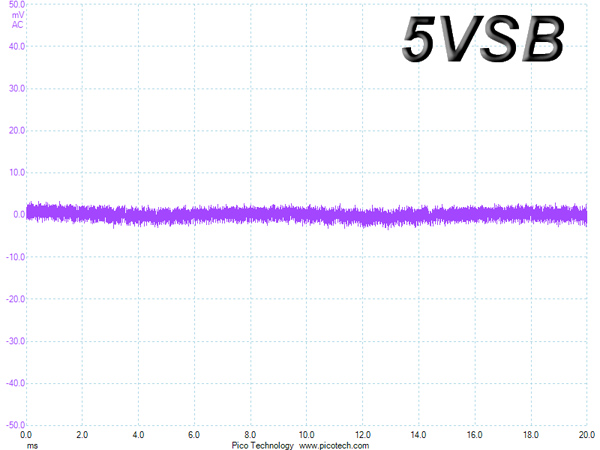

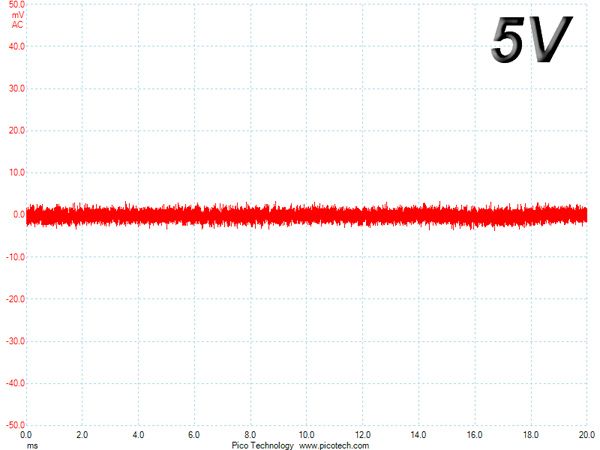

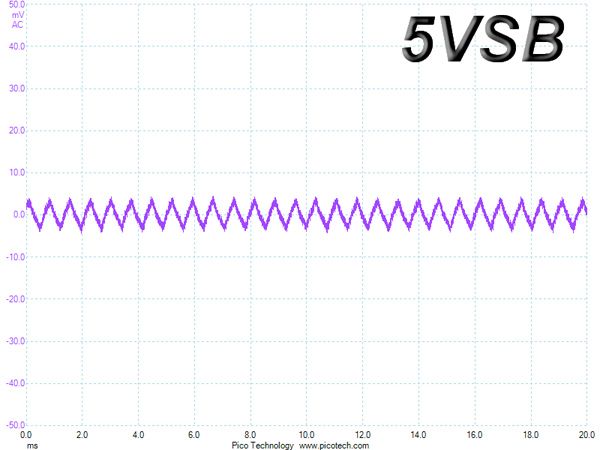

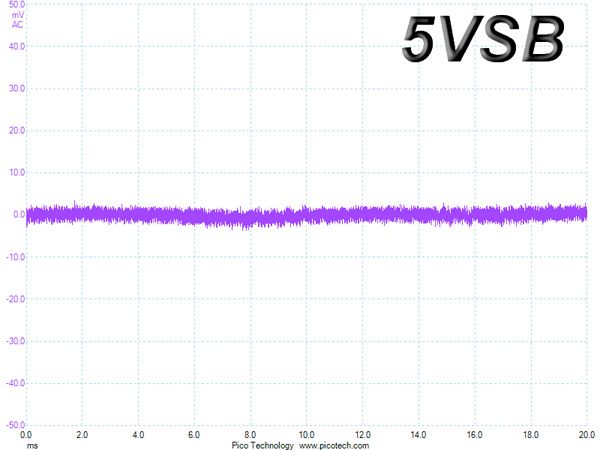

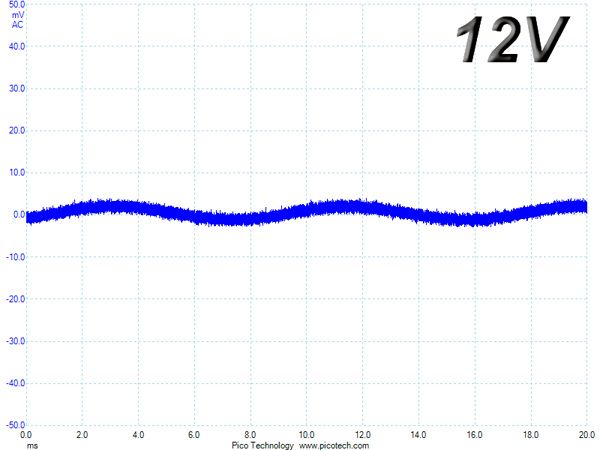

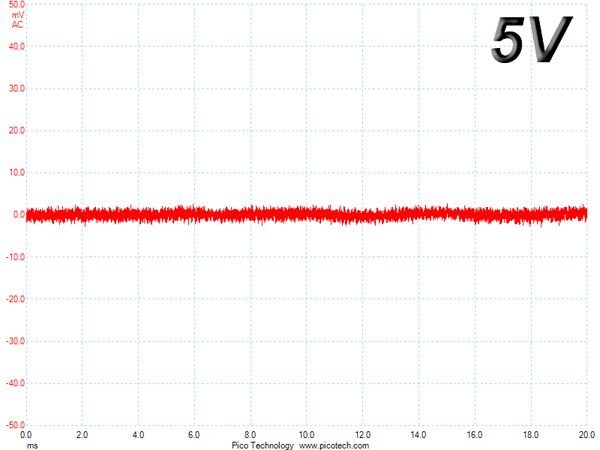

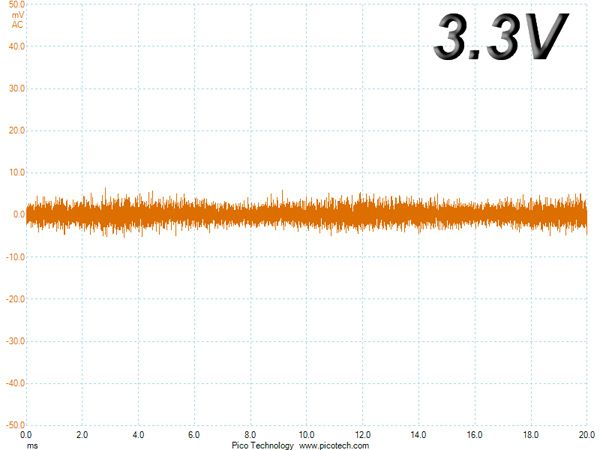

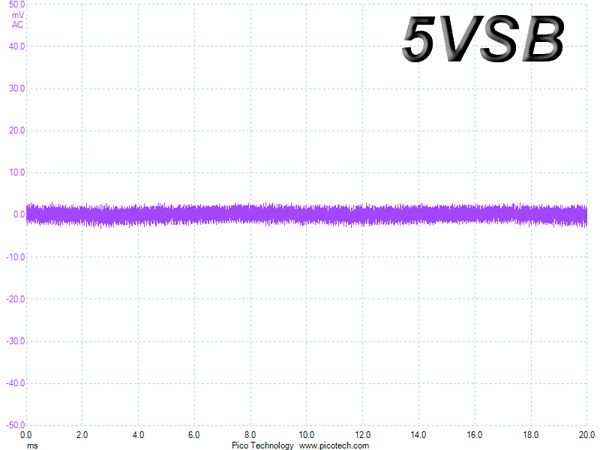

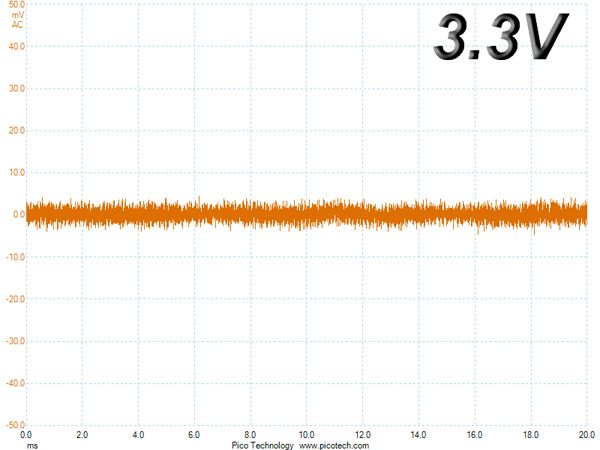

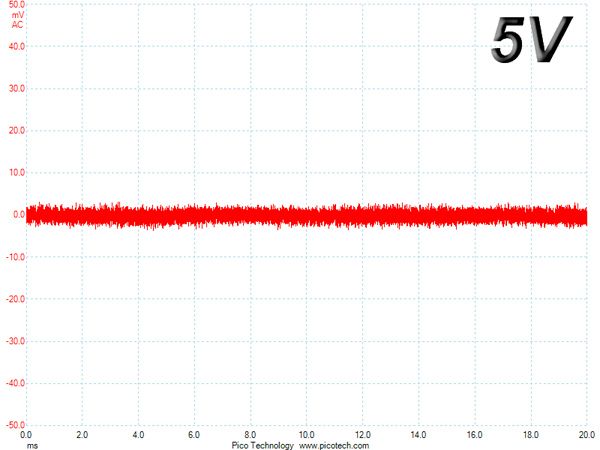

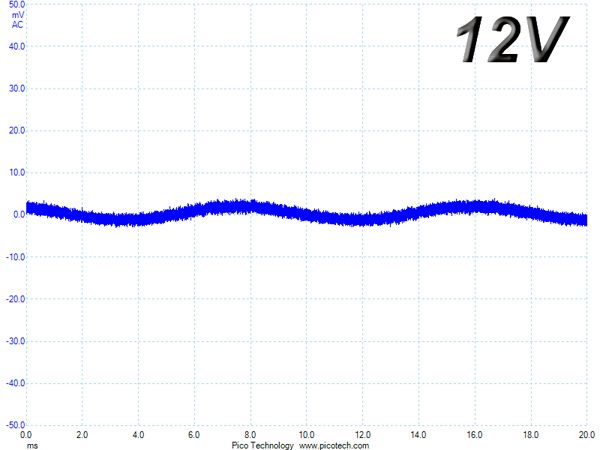

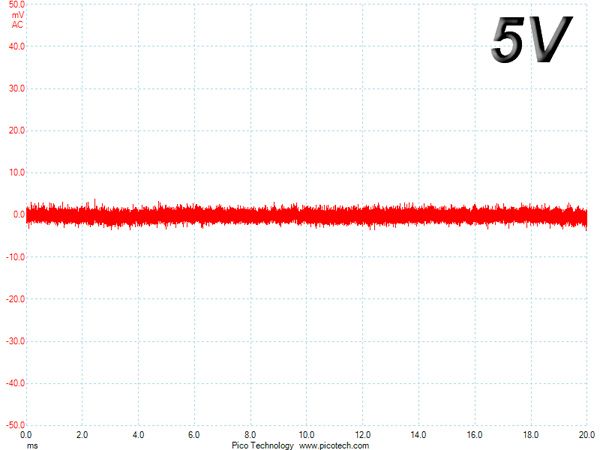

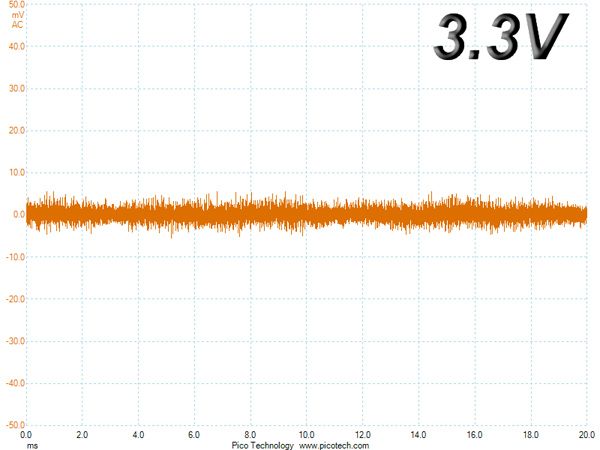

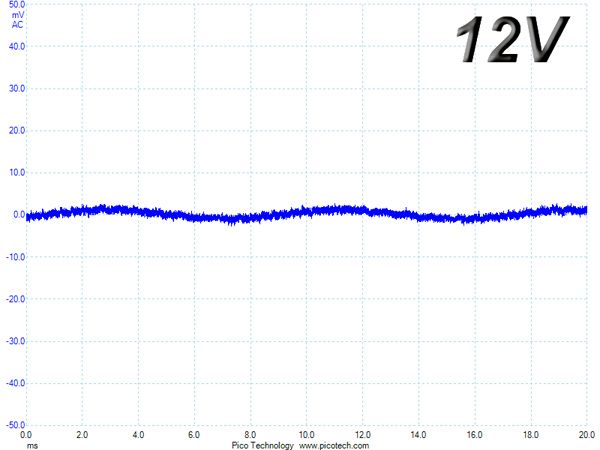

The following oscilloscope screenshots illustrate the AC ripple and noise registered on the main rails (+12V, 5V, 3.3V and 5VSB). The bigger the fluctuations on the screen, the bigger the ripple/noise. We set 0.01V/Div (each vertical division/box equals 0.01V) as the standard for all measurements.

Ripple At Full Load

Image 1 of 4

Ripple At 110-Percent Load

Image 1 of 4

Ripple At Cross-Load 1

Image 1 of 4

Ripple At Cross-Load 2

Image 1 of 4
